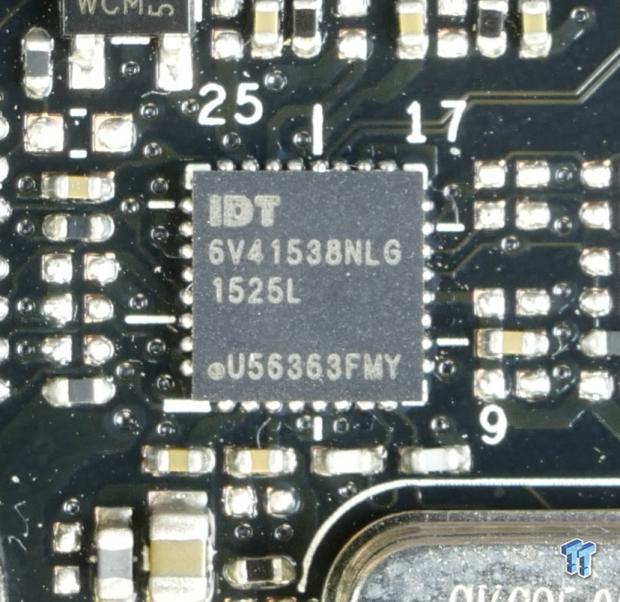

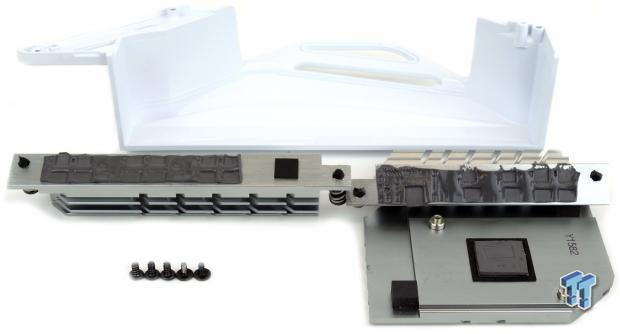

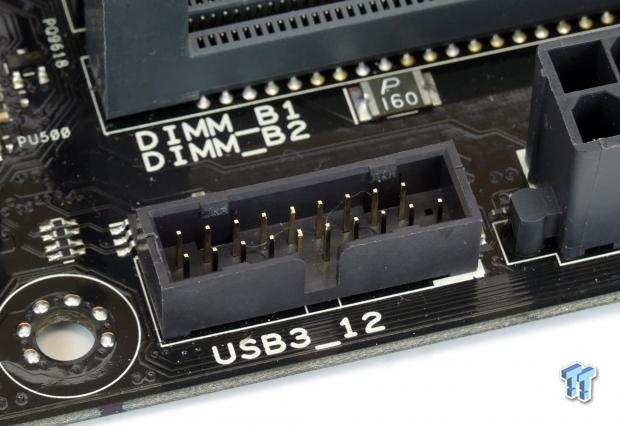

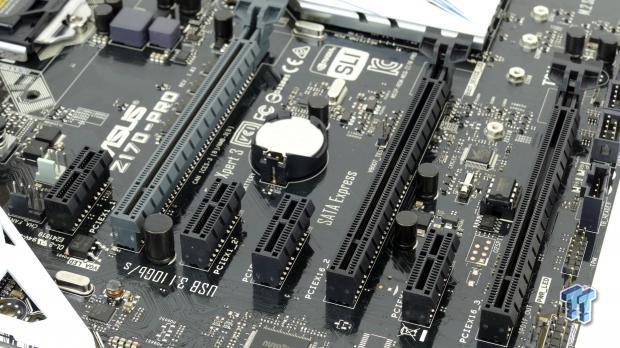

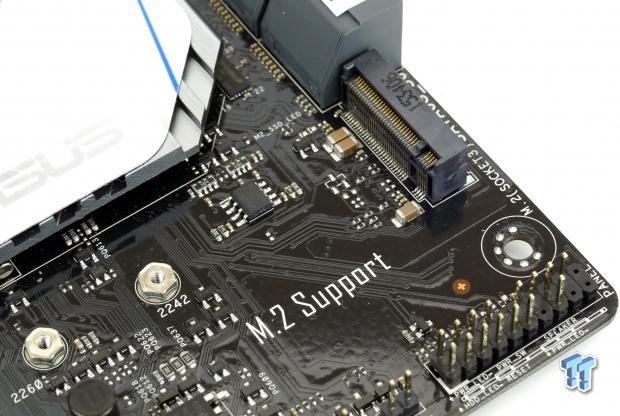

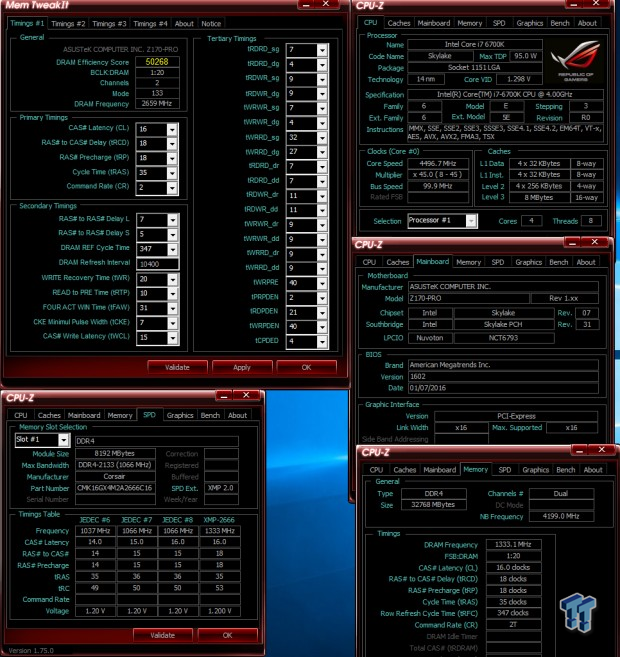

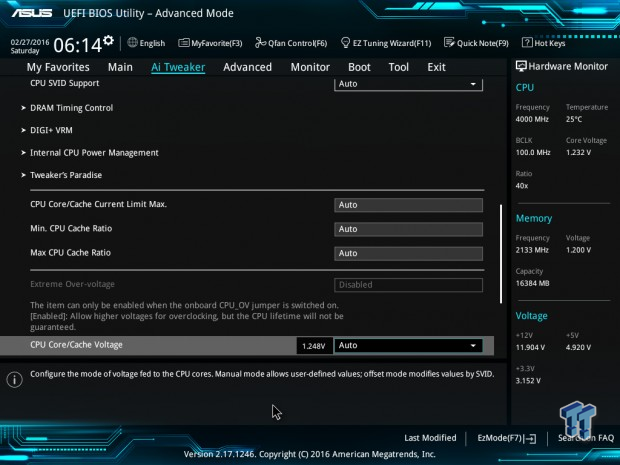

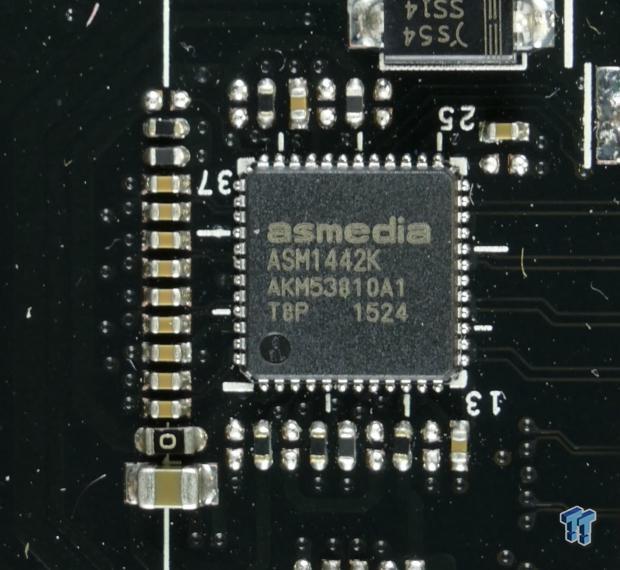

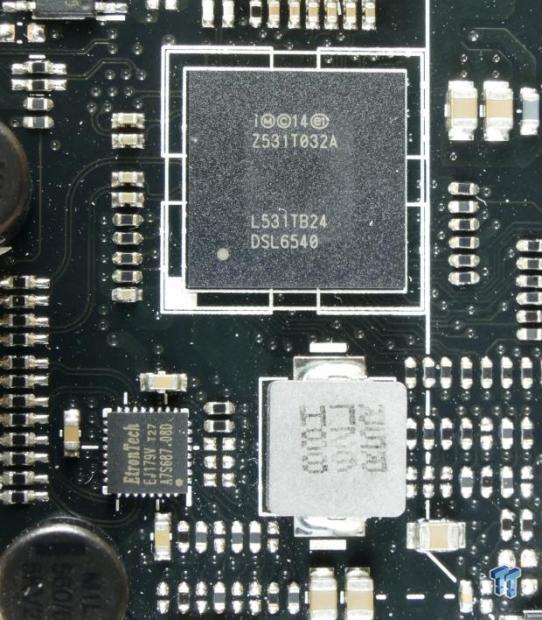

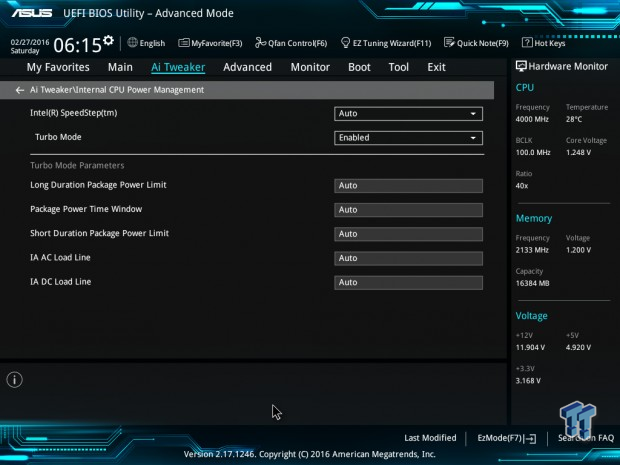

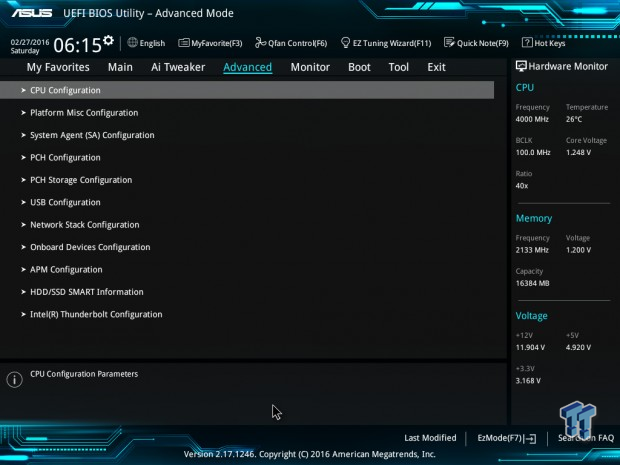

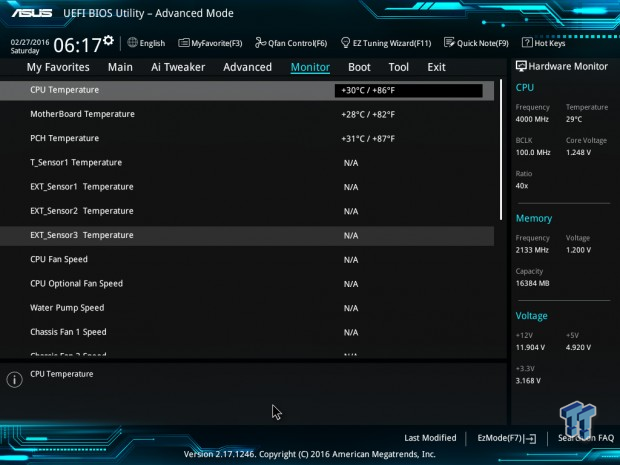

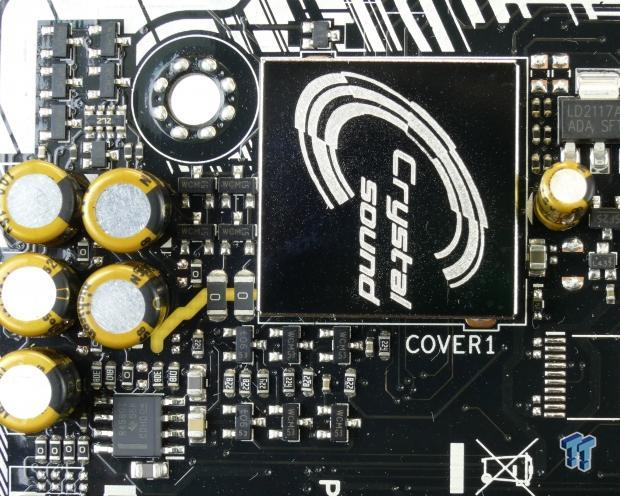

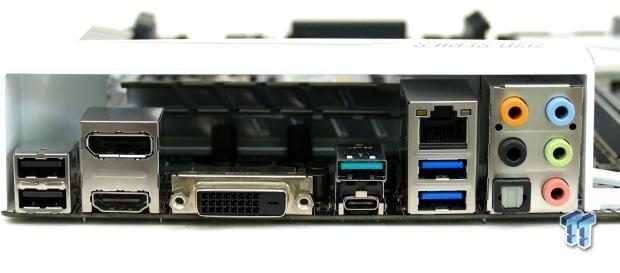

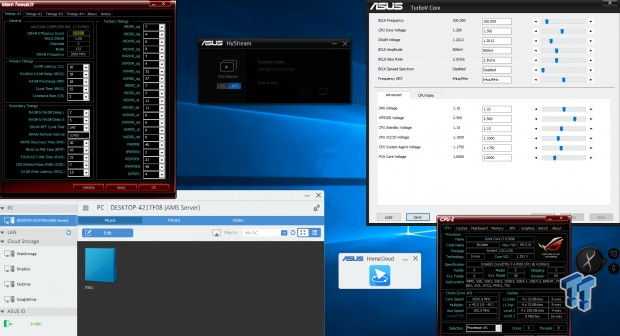

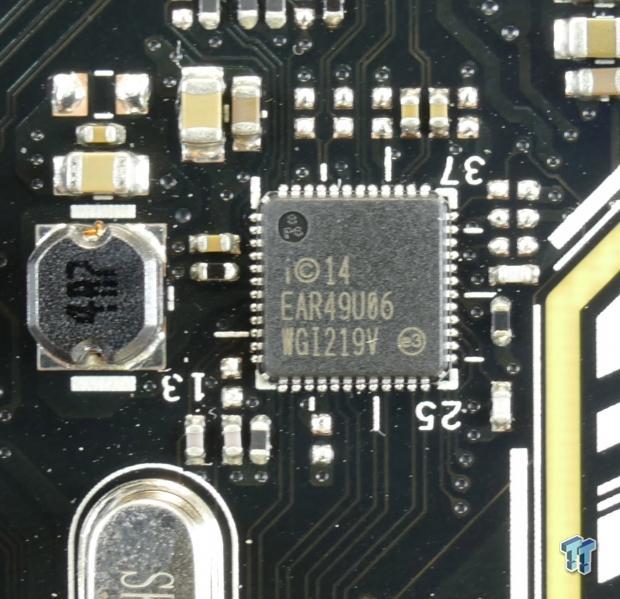

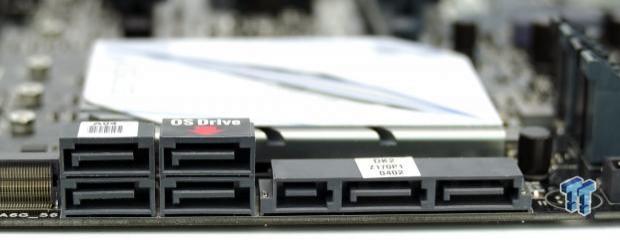

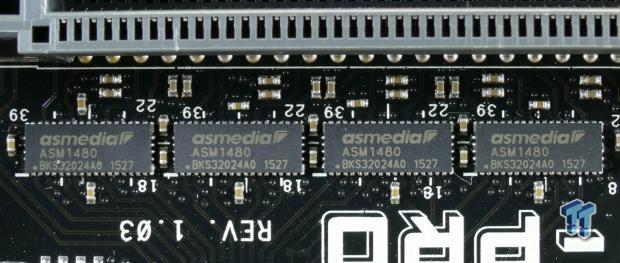

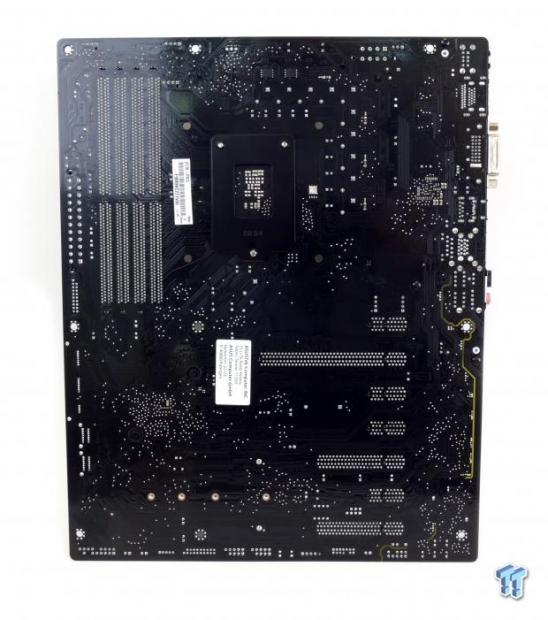

Now we can start to see the differences between the ASUS Z170-A and the Z170-Pro.

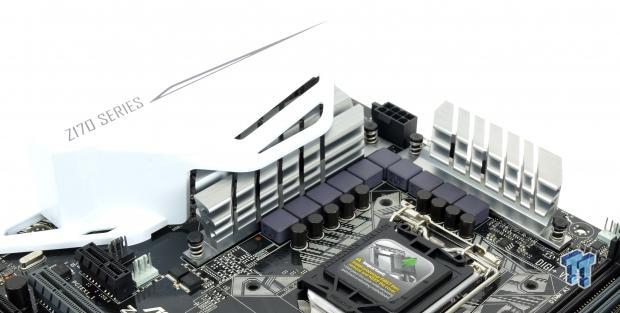

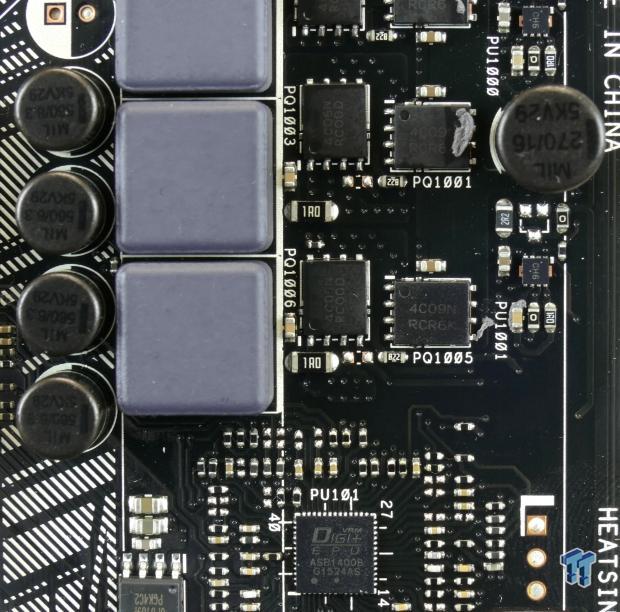

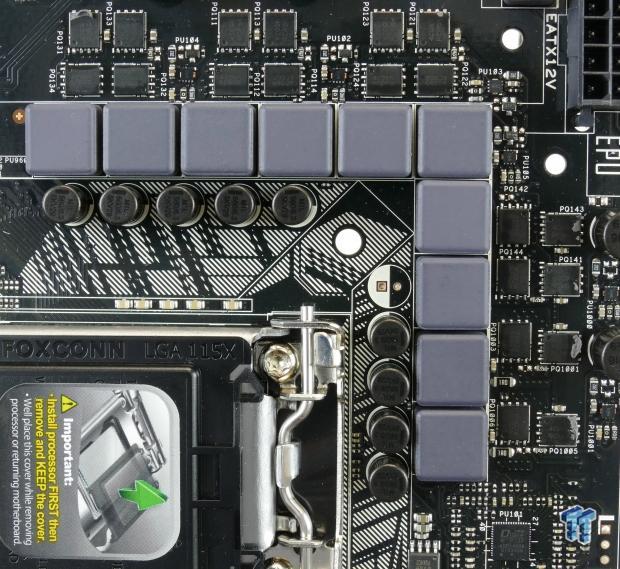

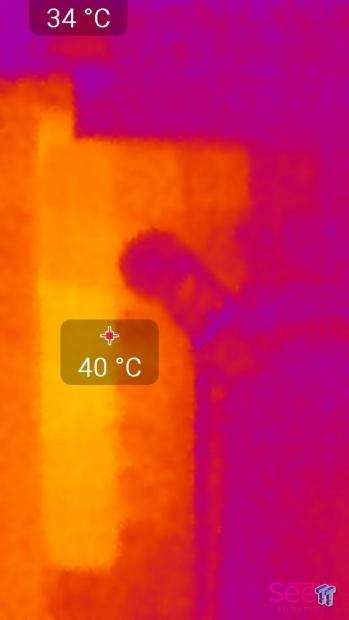

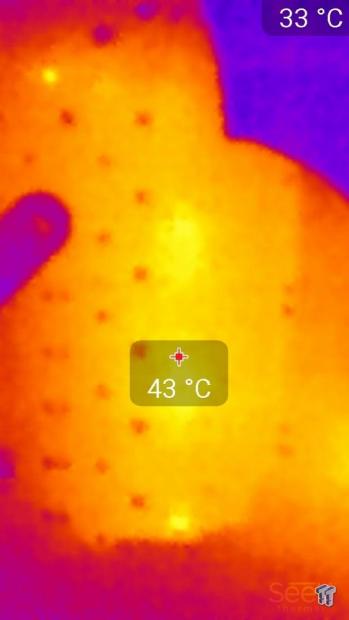

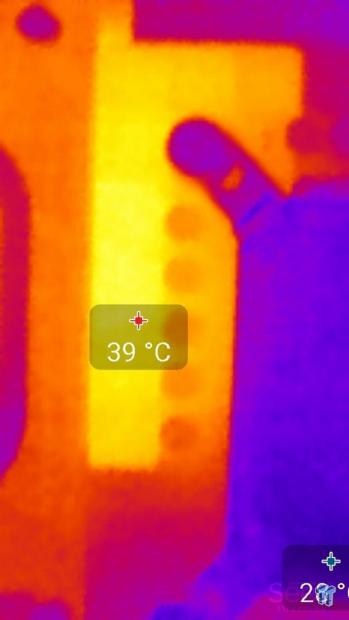

This VRM is an 8+2 phase (VCore + iGPU).
ASUS is using pretty much the same VRM as they did on the Z170-A. The ASP1400B is an unknown PWM (not IR35201 or IR35203 because of pin count, and most likely not one of the common Intersil PWMs). It can output at least 4+2 phases. The "+2" phases are provided to two drivers labeled "CE1" and output to two low-side and a single high-side MOSFET for each iGPU phase. The first four phases each goes to a "C1E" driver which outputs to two sets of one low-side and high-side MOSFET and two inductors. The eight phases are created by doubling the driver output. The high-side MOSFETs are ON Semiconductor NTMFS4C09N, and the low-side are NTMFS4C06N.

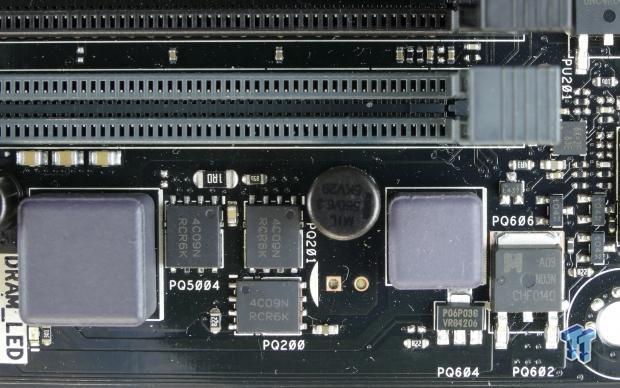

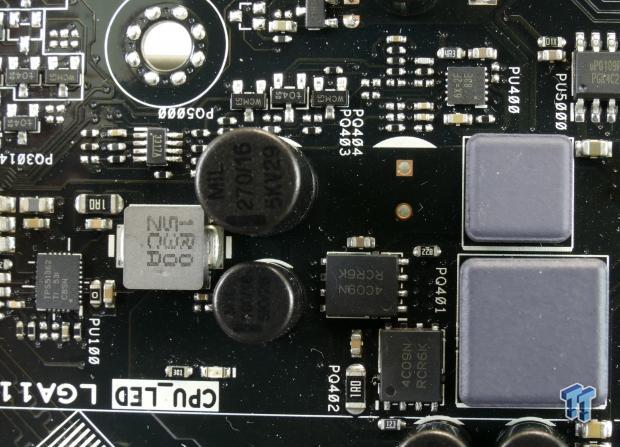

The VCCSA gets power from a single phase VR using the same MOSFETs as the CPU VRM and a Richtek PWM. The VCCIO gets power from a Texas Instruments 10A integrated step-down regulator.
The memory VRM uses the same components as the VCCSA VRM.
PRICING: You can find the ASUS Z170-PRO (Intel Z170) Motherboard for sale below. The prices listed are valid at the time of writing, but can change at any time. Click the link below to see real-time pricing for the best deal:
United States: The ASUS Z170-PRO (Intel Z170) Motherboard retails for $195 at Amazon.
United Kingdom: The ASUS Z170-PRO (Intel Z170) Motherboard retails for £134 at Amazon UK.
