Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review

The DT01ACA100 is part of the first wave of 3.5" hard disk drives to come from Toshiba. Let's look at how it fairs in the market.

@TylerBernath
Tyler Bernath
Published Wed, Dec 18 2013 8:05 AM CST   |   Updated Tue, Apr 7 2020 12:32 PM CDT
Rating: 93%Manufacturer: Toshiba

Introduction and Specifications, Pricing and Availability

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 01 | TweakTown.com
VIEW GALLERY - 17 IMAGES

Back in March of 2011, Western Digital announced that it would acquire Hitachi GST for a sum of $4.3 billion. To maintain the same level of competition in the market, the FTC asked WD to sell the IP and means to produce 3.5" hard drives to Toshiba. Prior to this, Toshiba only produced (and were quite happy with) 2.5" HDDs.

From the point of this acquisition, Toshiba went to work designing their very first consumer 3.5" HDD: the DT01ACA lineup. Today, we have the chance to look at the 100 model for 1TB capacity. The DT01ACA Desktop HDDs feature high-density, terabyte-per-platter designs that offer a 7200-RPM spindle speed, next to a healthy 32MB of DRAM cache.

Specifications, Pricing and Availability

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 02 | TweakTown.com

Looking over the specifications, we found the entire lineup of DT01ACA drives. For this review, we will focus on the last column, the 1TB model. Herein, we have a 1TB 3.5" HDD, featuring the SATA 3.0 standard. This drive features Advanced Format Technology, with single-track, read and write access times of 0.6ms and 0.8ms, respectively.

Rotational speed is listed at 7200RPM with 32MB of cache; with load/unload cycles listed at 300,000. Power consumption figures lineup with random read, write at 6.4 watts, and idle at 3.7 watts.

At the time of review, the Toshiba DT01ACA100 is priced at $54.99, with a two-year warranty.

Toshiba DT01ACA 1TB HDD

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 03 | TweakTown.com

Our sample of the 1TB DTO1ACA was delivered in bare-drive form. The manufacture date is listed at the top right, with capacity, and firmware revision in the center.

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 04 | TweakTown.com

The backside of the drive houses a teal green PCB, with several Torx screws holding it in place.

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 05 | TweakTown.com

Removing the PCB, we find a large thermal pad, to transfer the heat from the drive controller. A set of pins connects the PCB to the internal components.

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 06 | TweakTown.com

A closer look at the PCB reveals that the LSI controller is next to 32MB of DRAM cache. At the top of the drive, we have the spindle controller.

Benchmarks - Test System Setup and ATTO Baseline Performance

Desktop Test System

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 100 | TweakTown.com

ATTO Baseline Performance

Version and / or Patch Used: 2.34

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 18 | TweakTown.com

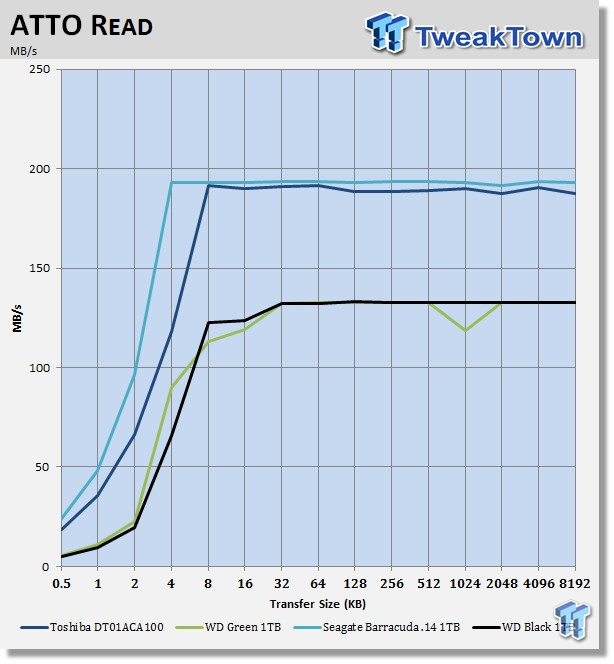

In ATTO read testing, we found the Toshiba right in line with the Barracuda .14. Both drives peaked at around 190 MB/s.

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 19 | TweakTown.com

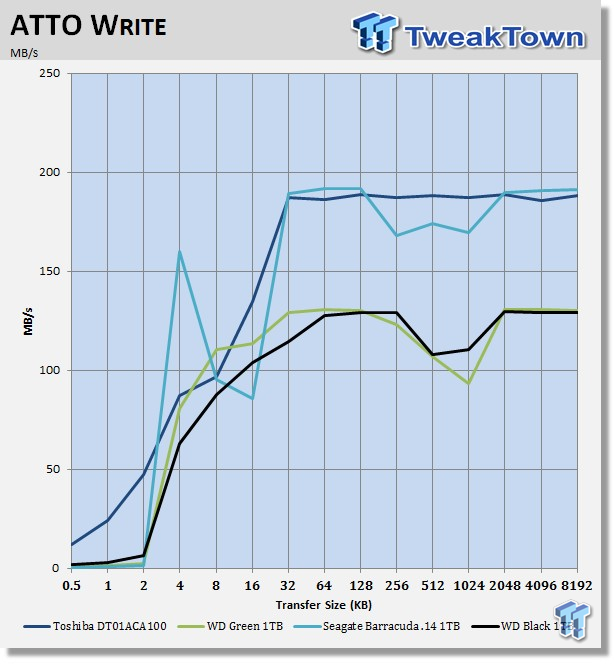

ATTO write was quite a similar situation. Here, we found the Toshiba with the same 190 MB/s performance.

Benchmarks - 4K Random Performance

IOMeter - 4K Random Performance with QD

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 20 | TweakTown.com

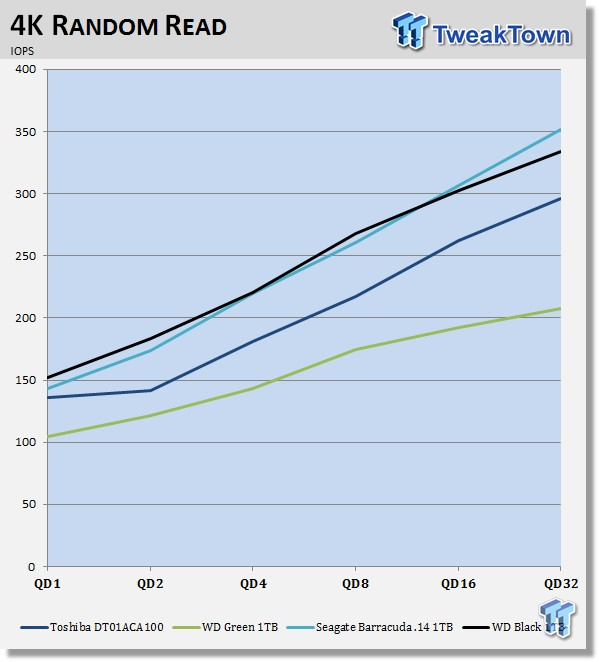

4K random read placed the Toshiba just behind the WD Black, and Barracuda .14

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 21 | TweakTown.com

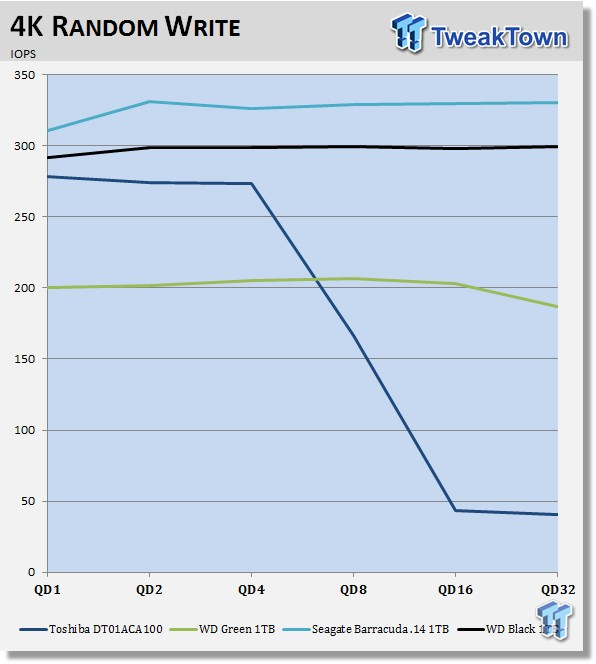

With 4K random write, we found the performance of the Toshiba dropped off after QD4.

Benchmarks - Sequential Performance

IOMeter - Sequential Performance with QD

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 22 | TweakTown.com

Sequential read again had the Toshiba near the top. Here, we have 190 MB/s across the entire QD scale.

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 23 | TweakTown.com

Sequential write showed the Toshiba just below the Barracuda .14, but above the two solutions from WD.

Benchmarks - Drive Acoustics and Power Consumption

Drive Acoustics and Power Consumption

Drive Acoustics

Drive acoustics can be a very important metric when purchasing a drive. As such, we purchased, and built, a 12 x 12 x 12 box out of 2" thick insulating foam. In the center of the box, we placed the drive on 3" acoustic foam. Sound level measurements were taken from a distance of 6 inches.

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 24 | TweakTown.com

Here, we have all drives hovering between 32 and 35 dba, throughout most of the testing. At the peak, the WD Black takes top honors as the loudest drive at 40 dba. Next in line, we have the Toshiba at 37 dba, and the WD Red, and Barracuda .14, round out the chart.

Power Consumption

Our custom power testing samples each drive for a period of three minutes, across each workload. In order to offer more granularity, we sample the power in one-second intervals.

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 25 | TweakTown.com

Across our entire workload, it is obvious that the WD Black is the top dog, eating up 8.5 watts at peak. The Toshiba manages five watts during random workloads, to a peak near six watts for sequential.

Final Thoughts

Toshiba DT01ACA100 1TB 3.5inch Consumer HDD Review 99 | TweakTown.com

As we found out through our testing, the Toshiba DT01ACA100 is quite the performer when it comes to sequential workloads. Herein, we found chart topping performance that rivals that of the previous generation Seagate Barracuda .14, in the same capacity. However, maintaining this type of performance, with admirable power consumption, is a real feat.

Power consumption of the 1TB model was rather impressive. While random read/write was around five watts, the sequential power consumption led us to believe that there is some sort of read-ahead algorithm in place, as the chart depicted a wave throughout. Even with this, the peak power consumption of the drive reached just a touch under six watts, and coupling that with the sequential performance of the drive, we may have one of the best performance per watt drives in our hands right now.

As stated in the introduction, the pricing for the 1TB DT01ACA100 from Toshiba is set at $54.99, and is available from a broad range of etailers. The drive carries a two-year warranty from Toshiba.

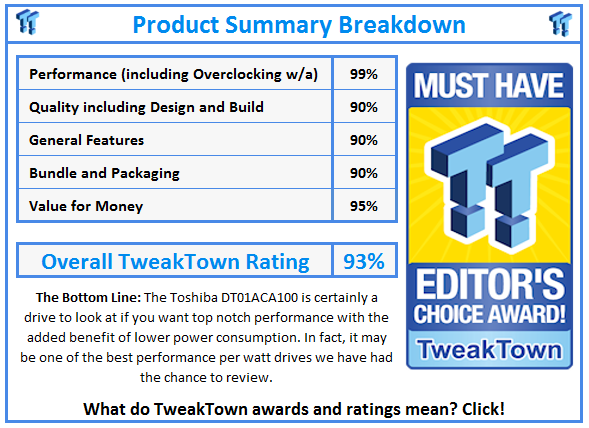

What do TweakTown.com awards mean? Click for details!
