AXUS FiT 500E Five-Bay RAID DAS Server

After testing the Promise DS4600, we had several requests to review other DAS servers. AXUS FiT 500E, come on down!

@ChrisRamseyer
Published Fri, Nov 20 2009 2:17 AM CST   |   Updated Tue, Nov 3 2020 7:03 PM CST
Rating: 88%Manufacturer: AXUS Microsystems

Introduction


AXUS FiT 500E Five-Bay RAID DAS Server 01 | TweakTown.com
VIEW GALLERY - 21 IMAGES




The Promise DS4600 review was quite popular and even I was surprised at the number of people talking about it. Up until now we focused primarily on Network Attached Storage (NAS) servers, but Direct Attached Storage (DAS) seems to be a level that consumers are more eager to venture. There could be many reasons for this. DAS products cost less while offering many of the benefits of NAS servers. In this economy disposable income for many has been reduced, but the problems still remain; how is one supposed to keep all their digital files safe from mechanical failure?

AXUS Microsystems is a company that most of us are not familiar with. Their parent company is ASUStek, someone we have all come to know and love for many years now. I am a little surprised to see ASUS not launching storage systems under their own name considering the global brand recognition they have, but Shakespeare said it best; does a rose by any other name not smell as sweet?

Over time I am sure we can get used to the AXUS name, as long as they are able to deliver the same level of quality ASUS brings to the table. Let's have a look at the specifications of the AXUS FiT 500E.

Specifications, Availability and Pricing




AXUS FiT 500E Five-Bay RAID DAS Server 02 | TweakTown.com

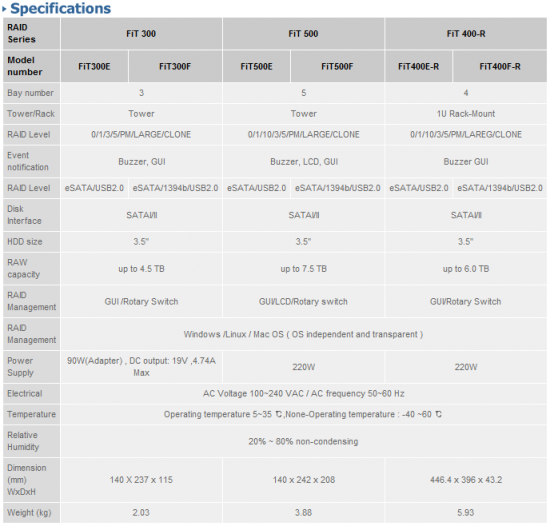

The AXUS FiT 500 is part of the FiT Series which consists of several different products. The 500E and 500F are nearly identical except for the addition of IEEE 1394b (FireWire 800) being included with the 500F. Today we are reviewing the FiT 500E, a five bay tower style direct attached storage unit that is able to connect to the host machine via USB 2.0 or eSATA.

Utilizing a maximum of five 3.5 inch form factor hard drives, the FiT 500E can run RAID 0,1,3, 5 and 10 as well as some special modes like Clone and Large. The Large mode is better known as Span on other devices and does not offer any data redundancy or performance increase. A majority of users should use RAID 5 over three or more hard drives for its data redundancy and performance increase over a single drive.

Like most other DAS systems, you are able to use Linux, Apple and Microsoft operating systems since all of the RAID activities are handled by the DAS controller. The operating system sees the DAS as a simple hard drive.

Pricing and availability is still a little skittish for the FiT 500E. In the U.S. only one e-tailer is carrying the unit, PC Pit Stop, and they are leveraging their position by offering it for nearly 500 Dollars, a full 70 Dollars more than the MSRP. This practice is so disturbing that we are not even going to link to the page, but hopefully over the next couple of months we will start to see more e-tailers carrying the AXUS product line.

The Packaging




AXUS FiT 500E Five-Bay RAID DAS Server 03 | TweakTown.com


The front of the package has an attractive appearance and on the bottom right shows the types of data connections the system is able to use.

AXUS FiT 500E Five-Bay RAID DAS Server 04 | TweakTown.com

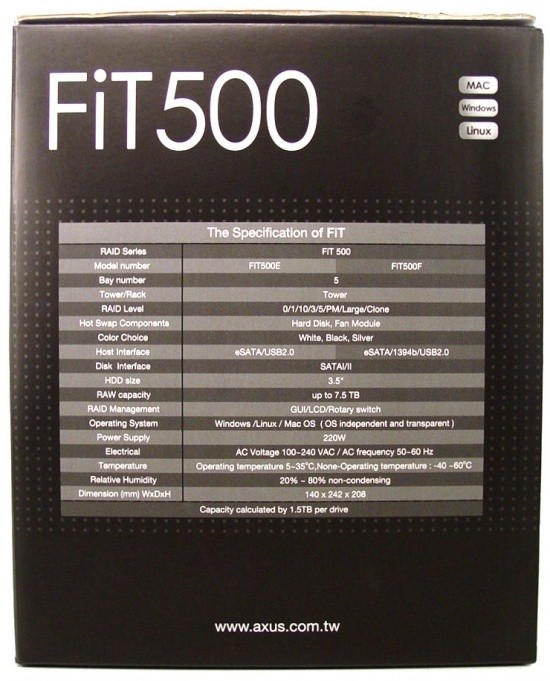

The full list of hardware specifications is listed on the side of the package.

AXUS FiT 500E Five-Bay RAID DAS Server 05 | TweakTown.com


The rear side of the box is identical to the front.

AXUS FiT 500E Five-Bay RAID DAS Server 06 | TweakTown.com


This side is where you can check the contents of the package. The FiT 500E and F use the same box and you can even get the DAS in white, black or silver.

AXUS FiT 500E Five-Bay RAID DAS Server 07 | TweakTown.com


The inner packaging was the best we have seen to date for any NAS or DAS server. Here you can see that even the drive sleds are packaged separately from each other.

The AXUS FiT 500E




AXUS FiT 500E Five-Bay RAID DAS Server 08 | TweakTown.com

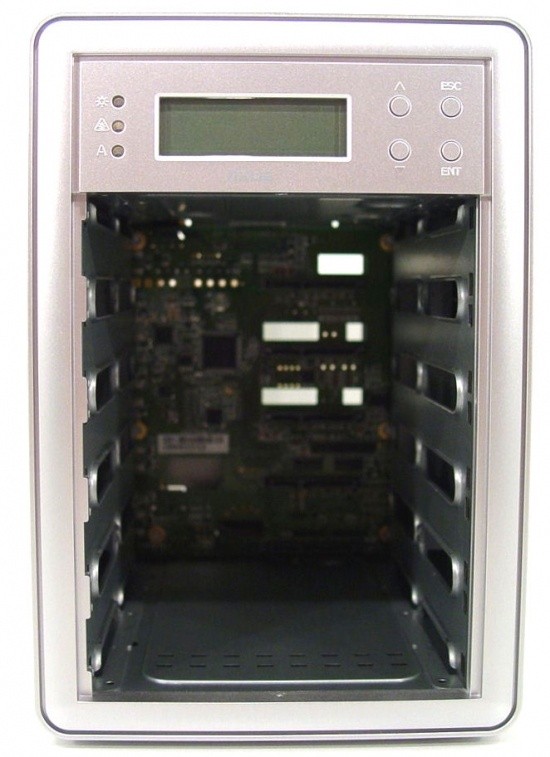

The system ships with the drive bays removed, so we took the opportunity to show the system bare.

AXUS FiT 500E Five-Bay RAID DAS Server 09 | TweakTown.com

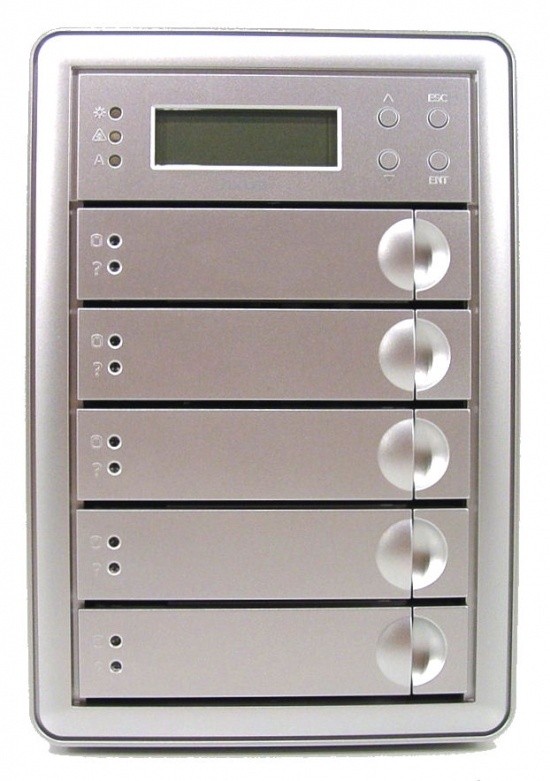

Here we see the drives installed. At the top a control panel allows the user to easily view the system status and set the RAID modes at startup. I configured the system for the first time with just the front display and can tell you that it is easier to navigate than the Thecus and QNAP front displays.

AXUS FiT 500E Five-Bay RAID DAS Server 10 | TweakTown.com

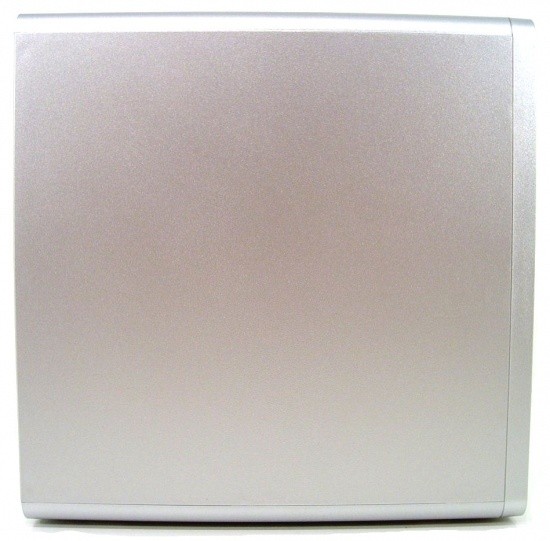

The side of the system is solid, but gets the job done.

AXUS FiT 500E Five-Bay RAID DAS Server 11 | TweakTown.com


The FiT 500E ships without the rear fan connected to the system.

AXUS FiT 500E Five-Bay RAID DAS Server 12 | TweakTown.com

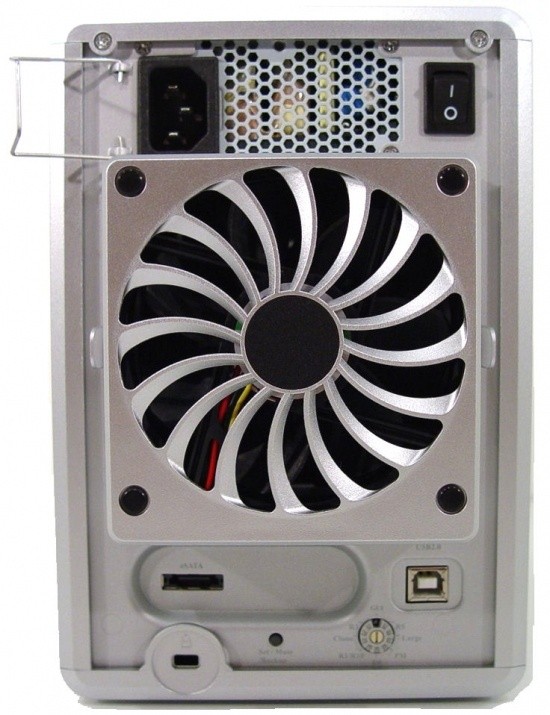

Here we see the fan installed. This adds around an inch to the overall length to the system, but it is quite small to begin with so it is not an issue.

AXUS FiT 500E Five-Bay RAID DAS Server 13 | TweakTown.com

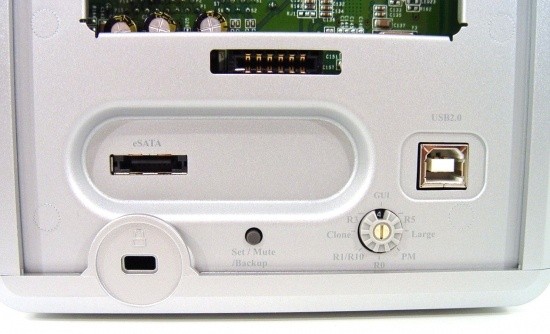

The eSATA and USB ports are on the back, as is a rotary switch that makes setup quite easy. You can set the RAID level with the switch or set it to GUI which allows you to adjust the array via the host software or the front panel.

AXUS FiT 500E Five-Bay RAID DAS Server 14 | TweakTown.com

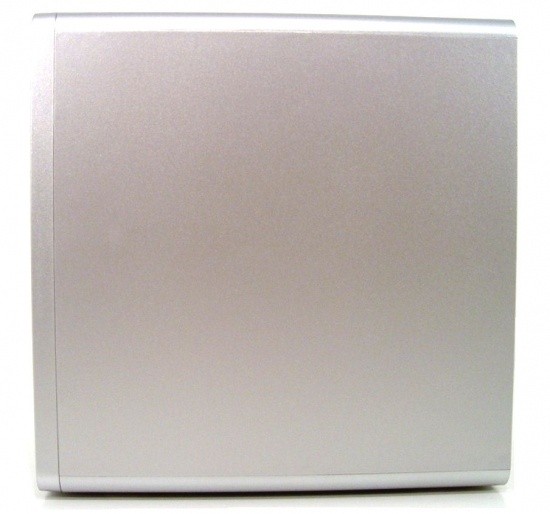

I was quite surprised to see that the FiT 500 doesn't have any ventilation on the sides of the DAS at all. That means that all of the incoming air passes over the drives.

AXUS FiT 500E Five-Bay RAID DAS Server 15 | TweakTown.com

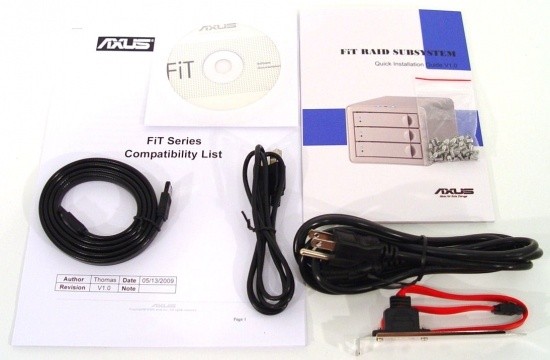

The accessories package for the FiT 500 is quite impressive. Every cable needed is included with the system including the eSATA cable and bracket. AXUS has also included a compatibility list which shows the hardware they have tested. The software CD includes all of the manuals and the host PC software that makes setting the system up much easier.

Test System Setup


Test System

Motherboard: ASUS P6T7 WS SuperCoputer (Supplied by ASUS)
Processors: Intel 975 EE (Supplied by AVADirect)
Memory: Corsair Dominator 1600 MHz Triple Channel Kit
Graphics Card: Leadtek Quadro FX1700 (Supplied by Leadtek)
Enclosure: Lian Li V2000
Cooling: Noctua NH-U12P SE2 (Supplied by Noctua)
SAS Controller: LSI MegaRAID SAS 9260-8i (Supplied by LSI)
Operating System: Microsoft Windows 7 Ultimate X64

You can read more about TweakTown's Storage Product Testing Workstation and the procedures followed to test products in this article.

For this review we are going to compare the AXUS FiT 500E to the Promise SmartStor DS4600 that we reviewed just a few short weeks ago. The SmartStor is a four drive DAS that was also tested with eSATA and under RAID 5.

Benchmarks - HD Tune Pro


HD Tune Pro

Version and / or Patch Used: 3.00
Developer Homepage: http://www.efdsoftware.com
Product Homepage: http://www.hdtune.com


HD Tune is a Hard Disk utility which has the following functions:

- Benchmark: measures the performance
- Info: shows detailed information
- Health: checks the health status by using SMART
- Error Scan: scans the surface for errors
- Temperature display

HD Tune Pro gives us accurate read, write and access time results and for the last couple of years has been gaining popularity amongst reviewers. It is now considered a must have application for storage device testing.




Read Tests

AXUS FiT 500E Five-Bay RAID DAS Server 16 | TweakTown.com


I would never suggest running a storage server in RAID 0 since there are just too many things that can happen that will lead to a loss of data. The RAID 5 numbers for the FiT 500E look pretty good considering you are pushing five drives worth of data through a single eSATA connection. The FiT 500 is faster than the Promise SmartStor DS4600 in read speeds.


Write Tests

AXUS FiT 500E Five-Bay RAID DAS Server 17 | TweakTown.com


The write speeds of the FiT 500E are significantly faster than the DS4600. Here we see the RAID 0 on the FiT 500E running just a little faster than RAID 5.

Benchmarks - Everest Random Access Time


Everest Random Access Time

Version and / or Patch Used: 4.60
Developer Homepage: http://www.lavalys.com
Product Homepage: http://www.lavalys.com




Everest Ultimate and Corporate Edition offer several different benchmarks for testing and optimizing your system or network. The Random Access test is one of very few if not only that will measure hard drives random access times in hundredths of milliseconds as oppose to tens of milliseconds.


Read Tests

AXUS FiT 500E Five-Bay RAID DAS Server 18 | TweakTown.com


The read access times look pretty good for the AXUS FiT 500E in both RAID 0 and 5.

Benchmarks - PCMark Vantage Hard Disk Tests


PCMark Vantage - Hard Disk Tests

Version and / or Patch Used: 1.0.0
Developer Homepage: http://www.futuremark.com
Product Homepage: http://www.futuremark.com/benchmarks/pcmark-vantage/
Buy It Here




PCMark Vantage is the first objective hardware performance benchmark for PCs running 32 and 64 bit versions of Microsoft Windows Vista. PCMark Vantage is perfectly suited for benchmarking any type of Microsoft Windows Vista PC from multimedia home entertainment systems and laptops to dedicated workstations and high-end gaming rigs. Regardless of whether the benchmarker is an artist or an IT Professional, PCMark Vantage shows the user where their system soars or falls flat, and how to get the most performance possible out of their hardware. PCMark Vantage is easy enough for even the most casual enthusiast to use yet supports in-depth, professional industry grade testing.

FutureMark has developed a good set of hard disk tests for their PCMark Vantage Suite. These tests are based on real world applications that many of us use daily.

AXUS FiT 500E Five-Bay RAID DAS Server 19 | TweakTown.com


HDD1 - Windows Defender
HDD2 - Gaming
HDD3 - Windows Photo Gallery
HDD4 - Vista Startup
HDD5 - Windows Movie Maker
HDD6 - Windows Media Center
HDD7 - Windows Media Player
HDD8 - Application Loading

Our real world Windows tests show strong performance in multimedia tests. Most users are using their DAS for these specific purposes and we are glad to see such high performance numbers in these tests.

Benchmarks - Passmark


Passmark Advanced Multi-User Tests

Version and / or Patch Used: 6.1
Developer Homepage: http://www.passmark.com
Test Homepage: http://www.passmark.com




Many users complain that I/O Meter is too complicated of a benchmark to replicate results so my quest to find an alternative was started. Passmark has added several multi-user tests that measure a hard drives ability to operate in a multi-user environment.



The tests use different settings to mimic basic multi-user operations as they would play out on your server. Variances is read / write percentage as well as random / sequential reads are common in certain applications, Web Servers read nearly 100% of the time while Database Servers write a small amount of data.

The Workstation test is the only single user environment and will be similar to how you use your system at home.

AXUS FiT 500E Five-Bay RAID DAS Server 20 | TweakTown.com


Once again we see the FiT 500E outperforming the DS4600 in all tests. It appears that the RAID 5 penalty is very low in almost all of the tests, so be sure to enable this option to keep your files safe.

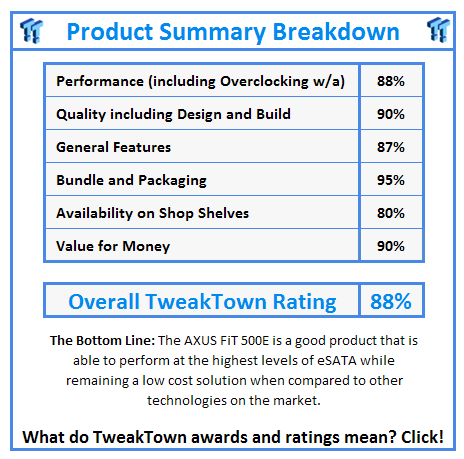

Final Thoughts




Direct Access Storage is a great alternative to the high priced NAS servers. If you only use a single computer in your home then DAS is actually a better option since all of your data is tied to that system and is not exposed to wireless networks. When it really comes down to it, the AXUS FiT 500 is even cheaper than a dedicated internal RAID controller and for many a better option since not every case has room for an additional five hard drives or the power to keep them running smoothly.

The performance of the AXUS FiT 500E maxes the eSATA interface, so it would be nearly impossible to get more performance until we start to see external SATA 6 Gb/s products. But with no mention of eSATA 6 Gb/s coming from SATA-IO, it will be awhile before those dreams materialize.

When it comes to the cost of the AXUS FiT 500E, the MSRP of 429.00 USD is in line with similar products in this class. I can't say I like only finding the 500E available from only one e-tailer in the U.S. but I was assured that more are coming and we should start to see AXUS products being made widely available in North America in the coming months.
