Promise SmartStor DS4600 4-Bay Direct Attached Storage

Direct Access Storage is a cost effective solution for single users who are looking to get the full redundancy of a NAS without the expense.

@ChrisRamseyer
Published Mon, Oct 5 2009 9:18 PM CDT   |   Updated Tue, Nov 3 2020 7:03 PM CST
Rating: 90%Manufacturer: Promise Technology

Introduction


Promise SmartStor DS4600 4-Bay Direct Attached Storage 01 | TweakTown.com
VIEW GALLERY - 21 IMAGES




We talk about the benefits of NAS servers a couple of times a month around here. It really doesn't matter if you are storing a collection of family photos or your businesses tax returns, it's all important data that you wouldn't want to lose. The more data you have to store, the more expensive a NAS server can be. For home users a four to five drive NAS tends to be the optimal balance of protection and speed, but the cost can be as much as a new complete computer.

For single computer families a NAS server can be cost prohibitive. Enter Direct Attached Storage or DAS servers. DAS servers can connect to your PC through USB, Firewire or eSATA and offer the redundancy of a full NAS, but at a substantial cost reduction.

The Promise DS4600 has the specifications of a NAS server that costs several hundred dollars more than what it is offered at. Newegg currently lists the DS4600 for 324.99 USD, quite a bit lower than the Thecus and QNAP NAS servers we review here every couple of months. The DS4600 uses four hard drives (that you must provide later) and supports the usual levels of RAID that keep your data secure.

Before I get too far along into the specifications, let's move on to the Specifications section of this review.

Specifications, Availability and Pricing




Promise SmartStor DS4600 4-Bay Direct Attached Storage 02 | TweakTown.com


The Promise SmartStor DS4600 is a four drive server that connects to your computer through USB, eSATA or Firewire (400 and 800). RAID 0, 1, 5 and 10 are all supported just like NAS servers and you can rest assured that your data is protected nearly the same way. eSATA is the fastest option available for connectivity and if everything goes as it should we should see transfer rates that are only limited by the speed of your motherboards SATA bus.

Once connected and configured the DS4600 will appear to your computer system as a hard drive, just as if you installed a drive inside the box. Promise includes a bracket for eSATA and an eSATA cable making installation simple. The included software makes setup easy, even easier than setting up a NAS server.

As we mentioned earlier the cost of the SmartStor DS4600 is remarkably low. After a quick search we were able to find the DAS at Newegg for only 324.99 USD. That is 550 USD cheaper than the Thecus N5500 we reviewed here just days ago. You will still need to purchase hard drives for your DAS just like NAS servers. The good thing is that large capacity drives have come down in cost and you can find 1TB drives for 80 Dollars or less.

Let's have a look and see what all is included with the Promise SmartStor DS4600.

The Packaging




Promise SmartStor DS4600 4-Bay Direct Attached Storage 03 | TweakTown.com


Promise products are available in many retail outlets like Fry's Electronics. Here we see that the DS4600 comes in a full retail package. On the front we found a wealth of useful information like PC and MAC support as well as the connectivity options that are available with the product.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 04 | TweakTown.com


The contents of the retail package are listed on the side of the box.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 05 | TweakTown.com


The back of the package is nearly identical to the front.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 06 | TweakTown.com


The product features and software requirements are listed on the side. Windows 7 is not listed as a software option but I can confirm that it works flawlessly.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 07 | TweakTown.com


The inner package secures the DAS safely for transport and shipping. All of the accessories are inside of an additional box and it keeps them from bouncing around and scratching the DAS.

The Promise SmartStor DS4600




Promise SmartStor DS4600 4-Bay Direct Attached Storage 08 | TweakTown.com


The front of the SmartStor DS4600 has a lockable door that will keep your drives secure. Each drive has an LED section assigned to it and it shows when the drive is in operation or when a problem has occurred.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 09 | TweakTown.com


With the door open we see the drive carriers in place.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 10 | TweakTown.com

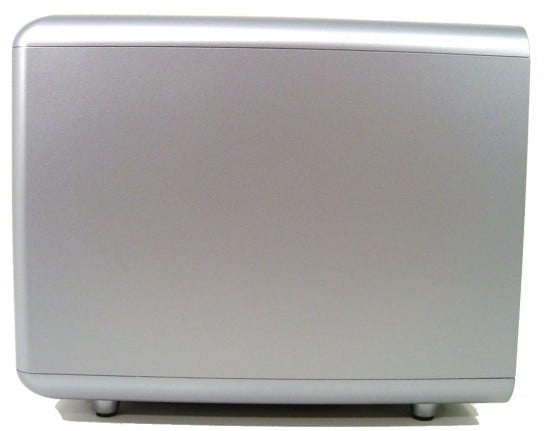

The side of the DS4600 is as we would expect.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 11 | TweakTown.com

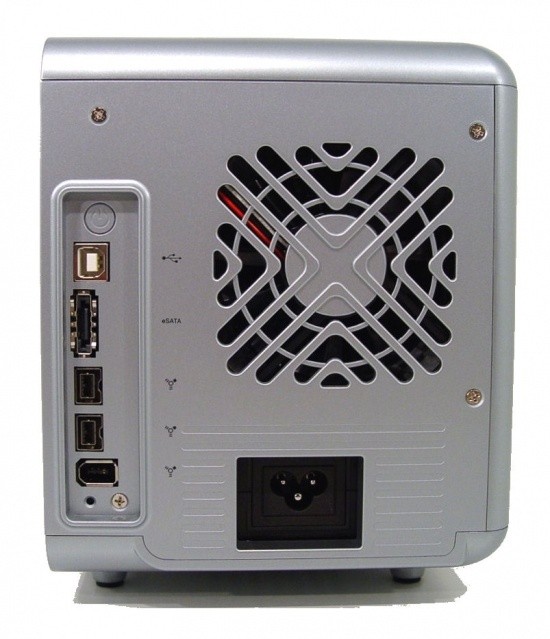

The back of the DS4600 is where most of the action is. Here we see the ports that you can use to connect the unit to your PC or Mac. The power button is also located in this area as is the power cord. A large fan keeps the drives and other hardware cool while staying quiet.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 12 | TweakTown.com

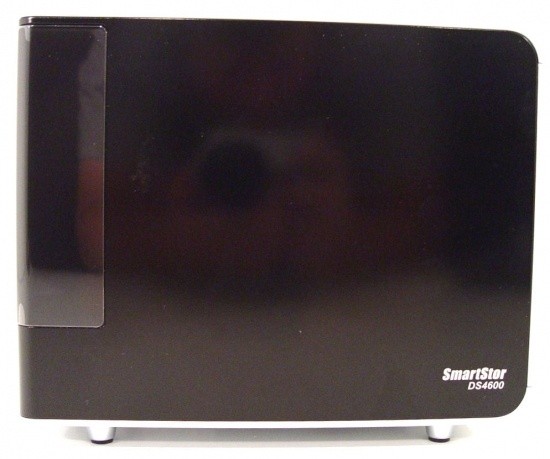

Promise spiced up this side of the DAS with some black paneling.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 13 | TweakTown.com


The unit comes with a full product manual, software disk and notes on setup.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 14 | TweakTown.com


The accessory package for the DS4600 includes an eSATA bracket, eSATA, Firewire, USB and power cables.

Test System Setup


Test System

Motherboard: ASUS P6T7 WS SuperComputer (Supplied by ASUS)
Processors: Intel 975 EE (Supplied by AVADirect)
Memory: Corsair Dominator 1600 MHz Triple Channel Kit
Graphics Card: Leadtek Quadro FX1700 (Supplied by Leadtek)
Enclosure: Lian Li V2000
Cooling: Noctua NH-U12P SE2 (Supplied by Noctua)
SAS Controller: LSI MegaRAID SAS 9260-8i (Supplied by LSI)
Operating System: Microsoft Windows Vista Ultimate X64


We are going to test the Promise DS4600 with our latest Storage Product Testing Workstation. You can view more about the new system and the procedures used in this article.

The drives used for testing the DS4600 were provided by Seagate and they are Seagate 7200.11 1TB models.

Since this is the first time we have tested a DAS there is little data available for us to compare the performance to. We will be testing the system in RAID 5 with four drives and attaching the DS4600 to the rear eSATA port found on the ASUS P6T7 WS SuperComputer motherboard.


ATTO Baseline Performance

Version and / or Patch Used: 2.34

ATTO is used by many disk manufactures to determine the read and write speeds that will be presented to customers.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 15 | TweakTown.com


We started out testing off with ATTO to get a baseline of performance for the DS4600. As we expected the read speeds were very good and the DS4600 pretty much maxed out our SATA port. Unfortunately we also expected the write numbers to be low since the DS4600 has to handle all of the XOR calculations. Still, the system is far from slow but it does take longer to write data than it does to read it.

Benchmarks - HD Tune Pro


HD Tune Pro

Version and / or Patch Used: 3.00
Developer Homepage: http://www.efdsoftware.com
Product Homepage: http://www.hdtune.com


HD Tune is a Hard Disk utility which has the following functions:

- Benchmark: measures the performance
- Info: shows detailed information
- Health: checks the health status by using SMART
- Error Scan: scans the surface for errors
- Temperature display

HD Tune Pro gives us accurate read, write and access time results and for the last couple of years has been gaining popularity amongst reviewers. It is now considered a must have application for storage device testing.




Read Tests

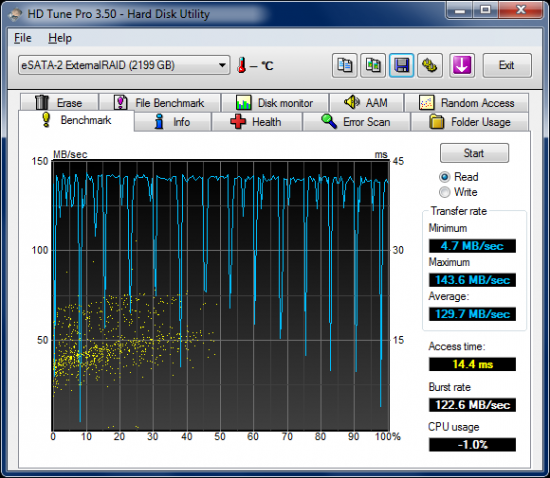

Promise SmartStor DS4600 4-Bay Direct Attached Storage 16 | TweakTown.com


Our read sustained transfer rate test shows some interesting data. We were able to average 129 MB/s but the system has some intense drop offs in performance going down to as low as 4.9 MB/s.


Write Tests

Promise SmartStor DS4600 4-Bay Direct Attached Storage 17 | TweakTown.com

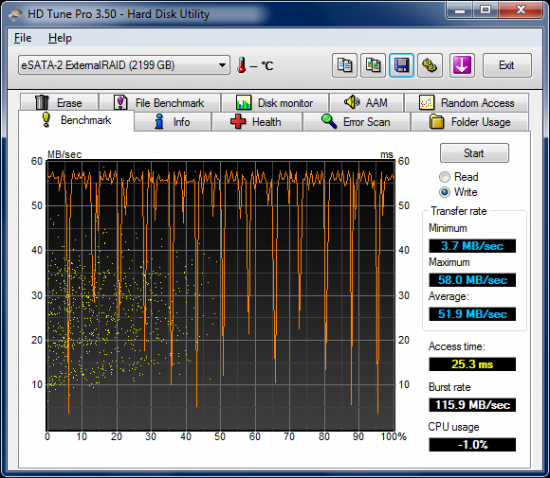

The write tests show the same type of numbers, only lower. It will be interesting to see how results like these affect our real world tests.

Benchmarks - Everest Random Access Time


Everest Random Access Time

Version and / or Patch Used: 4.60
Developer Homepage: http://www.lavalys.com
Product Homepage: http://www.lavalys.com




Everest Ultimate and Corporate Edition offer several different benchmarks for testing and optimizing your system or network. The Random Access test is one of very few if not only that will measure hard drives random access times in hundredths of milliseconds as oppose to tens of milliseconds.


Read Tests

Promise SmartStor DS4600 4-Bay Direct Attached Storage 18 | TweakTown.com

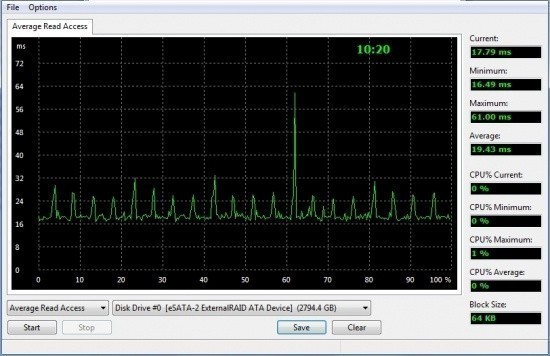

The latency of the SmartStor DS4600 is much higher than that of a standard hard drive or internal RAID controller with the same amount of drives in RAID 5.

Benchmarks - PCMark Vantage Hard Disk Tests


PCMark Vantage - Hard Disk Tests

Version and / or Patch Used: 1.0.0
Developer Homepage: http://www.futuremark.com
Product Homepage: http://www.futuremark.com/benchmarks/pcmark-vantage/
Buy It Here




PCMark Vantage is the first objective hardware performance benchmark for PCs running 32 and 64 bit versions of Microsoft Windows Vista. PCMark Vantage is perfectly suited for benchmarking any type of Microsoft Windows Vista PC from multimedia home entertainment systems and laptops to dedicated workstations and high-end gaming rigs. Regardless of whether the benchmarker is an artist or an IT Professional, PCMark Vantage shows the user where their system soars or falls flat, and how to get the most performance possible out of their hardware. PCMark Vantage is easy enough for even the most casual enthusiast to use yet supports in-depth, professional industry grade testing.

FutureMark has developed a good set of hard disk tests for their PCMark Vantage Suite. These tests are based on real world applications that many of us use daily.


Promise SmartStor DS4600 4-Bay Direct Attached Storage 20 | TweakTown.com


It is clear from the benchmark results that working directly on the SmartStor DS4600 to edit videos or photos could be a painful task.

Benchmarks - Passmark


Passmark Advanced Multi-User Tests

Version and / or Patch Used: 6.1
Developer Homepage: http://www.passmark.com
Test Homepage: http://www.passmark.com




Many users complain that I/O Meter is too complicated of a benchmark to replicate results so my quest to find an alternative was started. Passmark has added several multi-user tests that measure a hard drives ability to operate in a multi-user environment.



The tests use different settings to mimic basic multi-user operations as they would play out on your server. Variances is read / write percentage as well as random / sequential reads are common in certain applications, Web Servers read nearly 100% of the time while Database Servers write a small amount of data.

The Workstation test is the only single user environment and will be similar to how you use your system at home.

Promise SmartStor DS4600 4-Bay Direct Attached Storage 21 | TweakTown.com


The final test shows the DS4600 is a consumer product that isn't ready to take on the high bandwidth needs of server applications. Here we see the DAS barely breaking 2 MB/s in its best run.

Final Thoughts




The final verdict for the Promise SmartStor DS4600 really comes down to the consumer and how it is going to be used. If you are going to attempt to use the DS4600 as a large hard drive to store workable material, like editing several video clips together then forget about it, you are going to need something more powerful. If you are a looking to just store data like pictures, music, movies or documents and not need to access them at high speeds then the DS4600 can be one of the best options around. The whole thing just really comes down to personal use and if you are honest with yourself about it the DS4600 could end up being a great value solution.

Speaking of value, as long as you are just looking for a long term storage solution, at 324.99 USD the Promise SmartStor DS4600 is a really good deal. Once you figure in four 1TB HDDs for 320 Dollars you have less than 650 Dollars wrapped up in a RAID 5 device with enough storage to handle most people's personal data collection. The real issue here is redundancy and it is something that we all need.

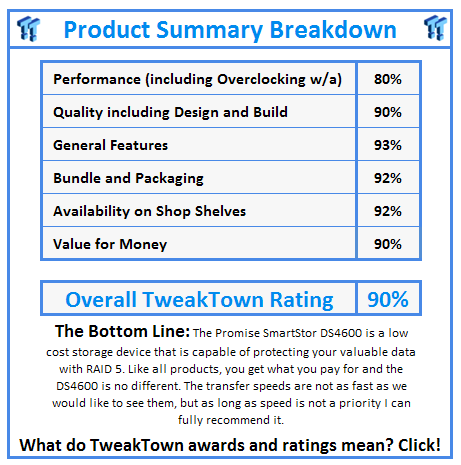

What do TweakTown.com awards mean? Click for details!
