Intel Core i9-14900KF breaches 9.2 GHz, breaking the previous CPU frequency world record

Intel's Raptor Lake i9-14900K has outdone itself once again, cementing its legacy as the only modern processor in the top five global frequency slots. Having already snatched the world record away from the ASUS team last year, Chinese overclocker "wytiwx" has returned to break his own record, once again.

The road to this milestone began in March 2024, when legendary overclocker Elmor and his binned Core i9-14900KS first breached the 9 GHz barrier. The following year, wytiwx stepped into the arena, eclipsing Elmor's historic run with two back-to-back records of 9.12 GHz and 9.13 GHz under Liquid Helium cooling.

2

It appears we're closing in on the 10 GHz barrier, as wytiwx has broken his previous record, hitting a staggering 9.20 GHz. The test bench this time centered on the ASUS ROG Maximus Z790 Apex, specifically designed for such runs, along with 16GB of DDR5 memory and the ROG THOR 1600W Titanium PSU. Interestingly, the test was conducted using Windows 7 (6.1) to minimize OS overhead during validation.

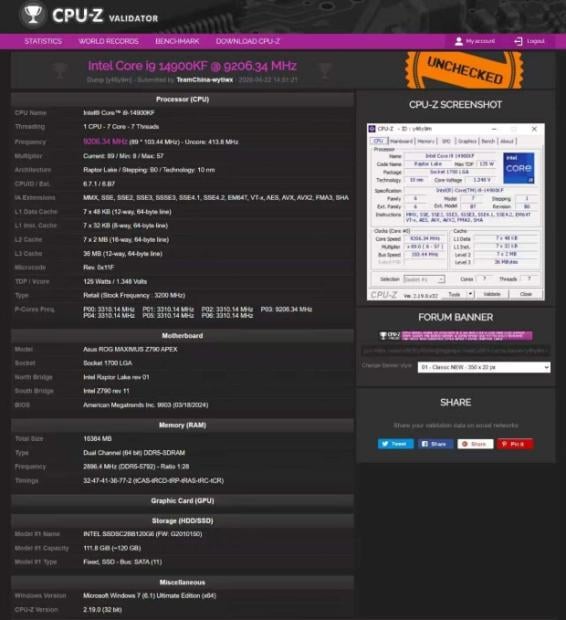

They specifically used the 14900KF since disabling or removing the iGPU's influence can sometimes reduce electrical noise and thermal density on the die. To land the final 9,206 MHz validation, the overclocker set the bus speed to 103.44 MHz against a massive x89 multiplier. Chilled near absolute zero under Liquid Helium and stabilized at a core voltage of 1.348V, the chip survived just long enough to report 9.2 GHz across a single P-core.

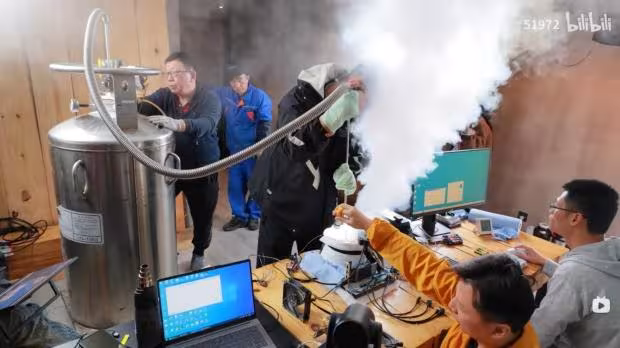

This feat was remarked by Intel Technology on X. The common element across these extreme overclocking runs is Liquid Helium, which is incredibly expensive due to its high per-liter cost and rapid evaporation. A world-record session can cost a fortune for just a few minutes of testing, a testament to the extreme lengths these enthusiasts will go to for just a few megahertz.

We have not seen such numbers from Intel's latest disaggregated CPUs, such as Arrow Lake. One reason is that these CPUs are built for efficiency, and secondly, bleeding-edge nodes likely don't scale as well in terms of frequency as the mature Intel 7 process that powers Raptor Lake.

In the early 2000s, Intel assumed that clock speed would scale linearly and projected that we would see 10 GHz chips by 2011. While that remains a distant reality for the average consumer, extreme overclockers are now just 800 MHz shy of breaching this barrier. It remains to be seen which CPU and which overclocking team will achieve this milestone.
