AMD Strix Halo APUs hit DIY PC builders with new MoDT 'Mini-ITX' mobos, up to 128GB LPDDR5X RAM

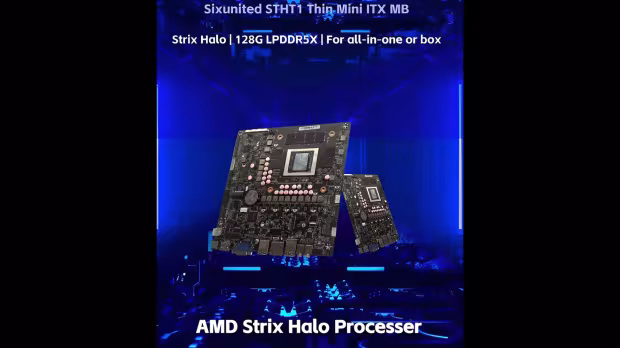

SIXUNITED recently unveiled its new STHT1 Thin Mini-ITX motherboard, ushering in AMD's new Ryzen AI Max 300 series "Strix Halo" APU to the PC enthusiast market. Check it out:

3

AMD's new Strix Halo APUs have only been released inside of high-end laptops and Mini-PC systems so far, with the new Strix Halo APU featuring 16 cores and 32 threads of Zen 5 processing power, enhanced RDNA 3.5-based integrated graphics with the Radeon 8060S GPU with up to 40 GPU cores, and support for up to 128GB of RAM.

SIXUNITED is a Chinese ODM that has just unveiled its new Mini-ITX motherboard with the Strix Halo APU ready with a non-socketed design that allows builders to choose between three different Ryzen AI Max series processors, with TDPs of between 45W and 120W.

The company ships its new STHT1 Mini-ITX motherboard with up to 128GB of LPDDR5X-8000 memory soldered onto the motherboard, with the 128GB of RAM pool feeding the Strix Halo APU and its CPU, GPU, and NPU. There's a lot of high-end I/O on the board as well, with dual Gen4 SSD slots, an M.2 2230 socket that supports Wi-Fi modules, HDMI 2.1 output, user-selectable DisplayPort, VGA, or COM output, dual USB 3.2 Gen2 Type-A ports, USB 3.2 Gen1, and USB 2.0 ports.

We've also got 1GbE Ethernet, audio jacks, and a robust 16-phase voltage regulator module that takes care of powering the SoC, as well as a 4+1-phase arrangement for auxiliary components. The PCB measures in at 170x170mm, uses a regular 4-pin ATX power connector, and a 19V DC-in plug.

3

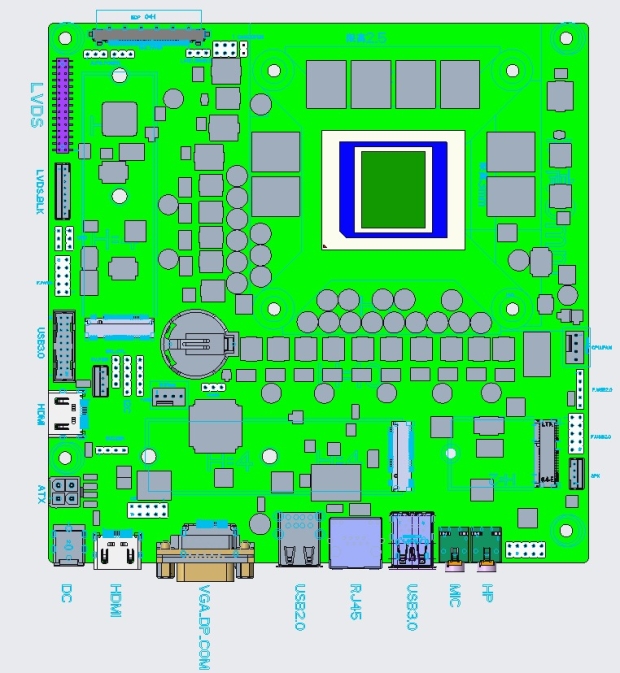

SIXUNITED STHT1 Thin Mini-ITX motherboard for AMD Strix Halo APUs:

• CPU: AMD FP11, Strix Halo
• Chipset: N/A
• Memory: LPDDR5X 315-ball, up to 128 GB
• Storage: 2 × M.2 2280 PCIe 4.0 x4
• WiFi: M.2 2230 PCIe + USB
• OS: Windows 10 / Windows 11 / Linux
• Audio (Rear I/O): 1 × Earphone, 1 × Mic-in
• USB (Rear I/O): 2 × USB 3.2 Gen2, 2 × USB 2.0 or 1 × USB 3.2 Gen2 Type-C (data + 15W PD), 1 × USB 3.2 Gen1 Type-A, 2 × USB 2.0
• HDMI (Rear I/O): 1 × HDMI 2.1 OUT, 1 × HDMI 2.1 OUT (Side I/O)
• VGA (Rear I/O): 1 × DP / VGA / COM (option)
• LAN (Rear I/O): 1 × RJ45 GLAN
• DC-IN (Rear I/O): 1 × 19V DC-IN
• USB (Internal I/O): 4 × Header (2 × USB 3.2 Gen1, 5 × USB 2.0)
• F_Panel (Internal I/O): 1
• Audio (Internal I/O): 1 × 4-pin Speaker, 1 × F_Audio
• FAN (Internal I/O): 1 × 4-pin CPU_FAN, 1 × 4-pin SYS_FAN
• LVDS / eDP (Internal I/O): 1
• COM (Internal I/O): 1 (connected to SIO)
• SATA (Internal I/O): /
• Power (Internal I/O): 2 × 2 ATX Power (19V)
• Power: 19V DC-IN
• Dimension: 170 mm × 170 mm
