OWC Mercury Elite Pro Dock Review

OWC Mercury Elite Pro Dock Review

OWC channels the Mercury Elite lineup with the Elite Pro to offer its storage driven dock solution. Here's our review.

Tyler Bernath | Mar 9, 2020 at 09:17 am CDT - 3 mins, 24 secs reading time
Rating: 88%Manufacturer: OWCModel: OWCTB3RSDK04T

OWC has launched several new solutions for early 2020, two of them being RAID capable. With the updated Thunderbay 4 mini already through the lab, we turn our focus to the Mercury Elite Pro Dock.

A new emerging trend in desktop dock solutions has been the addition of mechanical storage. Seagate introduced the FireCuda Gaming Dock at CES 2020, and at that same time, OWC was readying the Mercury Elite Pro.

The Mercury Elite Pro does offer a bit more flexibility with its storage configuration, even offering a diskless option for those that already have spare drives handy. For those that don't, you can pick up dual drive models anywhere from 4TB with a 2x2 configuration to 32TB in a 2x16 configuration.

Additional connectivity provided by the Elite Pro includes UHS-II, USB 3.2 Gen 1, Gigabit Ethernet, and DisplayPort. You will also find two Thunderbolt 3 with host and daisy chain support.

The MSRP of the OWC Mercury Elite Pro Dock comes in at $279.99 diskless and $429.99 in the 4TB configuration tested here today. All models include a three-year warranty.

OWC Mercury Elite Pro Dock Review 02 | TweakTown.com

The packaging follows right along with many products we have seen from OWC - blue on white box image of the enclosure centered. We have capacity listed with a gray sticker and connectivity along the bottom.

OWC Mercury Elite Pro Dock Review 03 | TweakTown.com

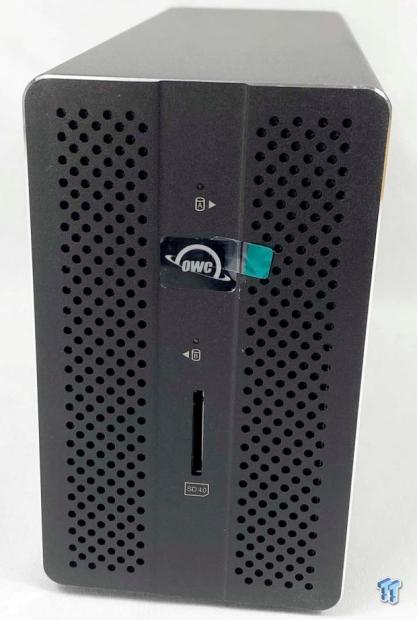

Unboxing, the enclosure houses the UHS-II reader on the front along with activity LEDs for each of the two drives installed.

OWC Mercury Elite Pro Dock Review 04 | TweakTown.com

On the back, we start with two USB 3.2 Gen 1 ports at the top and Gigabit ethernet to the right. Thunderbolt 3 stretches the left side, with DP just below.

OWC Mercury Elite Pro Dock Review 05 | TweakTown.com

Internally, the Mercury Elite Pro ships with Seagate Barracuda drives.

OWC Mercury Elite Pro Dock Review 10 | TweakTown.com

The Mercury Elite Pro is a multiplatform capable solution, and as such, formatting software has been included.

OWC Mercury Elite Pro Dock Review 11 | TweakTown.com

You have the choice to choose between a simple single partition or dual partition.

OWC Mercury Elite Pro Dock Review 13 | TweakTown.com

For testing, we did not change the configuration of the Mercury Elite Pro though it does support JBOD and RAID 1 along with the factory configured RAID 0. That said, 460 MB/s read and 427 MB/s write were easily attainable.

OWC Mercury Elite Pro Dock Review 14 | TweakTown.com

One oddity we found with the Mercury Elite Pro was specifications told us this is an SD 4.0 port and testing with our Extreme Pro from SanDisk, we found performance to peak at 95 MB/s read and 51 MB/s write.

OWC Mercury Elite Pro Dock Review 15 | TweakTown.com

Checking in on the rear-mounted USB 3.2 Gen 1 ports, we used our SanDisk Portable SSD to reach 376 MB/s read and 334 MB/s write.

The Mercury Elite Pro certainly has some things going for it, mainly the flexibility and storage options. Build quality isn't bad either; a steel structure gives way to a black exterior that is also metal. A good amount of connectivity allows this solution to expand your desktop with monitors and add Gigabit ethernet to your notebook or MacBook.

Mechanical drive performance is quite good in the factory configured RAID 0. We were able to ping off 460 MB/s several times, and the USB 3.2 Gen 1 ports weren't too far behind at 376 MB/s tested with a portable SSD. UHS-II seemed to have issues in our testing, something we have not seen with similar products or from past OWC solutions, but alas, we did get 95 MB/s read and 51 MB/s write.

As for pricing, for those that already have drives handy the barebones enclosure is a solid option at $279.99, but getting into pre-loaded enclosures puts this solution $100 more expensive than the FireCuda Gaming Dock at 4TB, and the Gaming Dock offers NVMe, USB 3.2 Gen 2, along with DisplayPort and Gigabit ethernet.

Tyler's Test System Specifications

Buy at Amazon

Performance85%

Quality85%

Features95%

Value85%

Overall Rating88%

The Bottom Line

The Mercury Elite Pro offers solid connectivity and a very flexible storage plan with both diskless and turnkey solutions.
