OCZ ZS750W Power Supply Review

OCZ's new ZS series provides a lot of bang for those on a tight budget.
@ChrisRamseyer
Published Mon, Sep 19 2011 2:23 AM CDT   |   Updated Fri, Sep 18 2020 10:50 PM CDT
Rating: 91%Manufacturer: OCZ Technology

Introduction, Specifications, Availability and Pricing

OCZ ZS750W Power Supply Review 01 | TweakTown.com
VIEW GALLERY - 24 IMAGES

Introduction

The last time we took a look at a power supply from OCZ, it was their top of the line ZX850 power supply. It featured just about everything you could ask for in a power supply, including superb performance, 100% modular cabling, 80Plus Gold efficiency and more. While the top of the line units are great for those who aren't on a budget, they certainly aren't for everyone. Today we are going to take a look at the opposite end of the spectrum, the ZS750.

OCZ launched the new ZS series of power supplies back in late July and is available in 550W, 650W and 750W varieties. The Senior VP of Power Management at OCZ stated that, "The new ZS line of power supplies provides customers with the ideal blend of quality, performance, and efficiency for power hungry desktops." - We will take an in depth look at the ZS750 and see just how well OCZ has blended the three and if it is worthy of your money.

Specifications, Availability and Pricing

OCZ ZS750W Power Supply Review 02 | TweakTown.com

Each of the minor rails is capable of outputting 22A and together they have a combined output of 130W. This is a tad bit less than we would like to see in a 750W unit, but since this isn't an enthusiast unit, we won't complain too much. 12V power is handled via a single rail that is capable of 54A of power for a total of 648W of power. While this isn't the most spectacular output we have seen from a 750W unit, it should be more than sufficient.

OCZ ZS750W Power Supply Review 03 | TweakTown.com

The ZS750 certainly lacks a few of the features we have become accustomed to seeing in our power supplies. OCZ doesn't rate the ZS series at 100% continuous output at 50C, but rather at a more modest 40C. The ZS750 also lacks Over Power Protection and Over Temperature Protection.

Getting your hands on the OCZ ZS series of power supplies shouldn't prove to be any trouble. The company has excellent market penetration and product availability. Newegg had the best price for the ZS750 at the time of writing this article, as the unit was listed for $99.99 with a 10% off code and free shipping. That means $90 for the unit shipped to your door. OCZ backs the ZS series of power supplies with a (somewhat short) 3-year warranty.

The Packaging

OCZ ZS750W Power Supply Review 04 | TweakTown.com

The ZS750 comes in some rather simplistic black and blue packaging. There is a good shot of the power supply on the front, a few marketing items are listed and the 80Plus Bronze logo is displayed as well.

OCZ ZS750W Power Supply Review 05 | TweakTown.com

The back of the box repeats the information on the front with a little bit more added.

OCZ ZS750W Power Supply Review 06 | TweakTown.com

Flipping to the bottom, we find the I/O specifications of the ZS750.

OCZ ZS750W Power Supply Review 07 | TweakTown.com

The top has a very paltry list of tech specs to put it nicely and also features a list of connectors available on the ZS750.

OCZ ZS750W Power Supply Review 08 | TweakTown.com

Both sides are void of any information that isn't covered elsewhere.

Inside the Box

OCZ ZS750W Power Supply Review 09 | TweakTown.com

OCZ seems to have skimped a bit on the packaging for the ZS750. It only has foam protecting it on the bottom, although it does sit inside the cutout and is held in place. There is dead space surrounding the unit. Our unit arrived safely so we don't have any real complaints.

OCZ ZS750W Power Supply Review 10 | TweakTown.com

As has been the trend for the last 10 power supplies or so that we have reviewed, the I/O specification label for the ZS750 can be found on the top of the power supply.

OCZ ZS750W Power Supply Review 11 | TweakTown.com

On both sides are the ZS series logos.

OCZ ZS750W Power Supply Review 12 | TweakTown.com

Taking a look at the back, we find the standard honeycomb mesh grill with both the AC input and on/off rocker switch present.

OCZ ZS750W Power Supply Review 13 | TweakTown.com

With the complete lack of modular cables, the front of the ZS series power supply has nothing going on.

OCZ ZS750W Power Supply Review 14 | TweakTown.com

Rounding out our shots of the ZS750 is a glimpse of the 135mm fan that draws air into the power supply through the bottom.

OCZ ZS750W Power Supply Review 15 | TweakTown.com

Also included in the box are the user manual, AC input cord and mounting screws.

Cabling Arrangement & A Look Inside

Cabling Arrangement

OCZ ZS750W Power Supply Review 16 | TweakTown.com

OCZ has done an excellent job with cable selection and connector availability on the ZS750. Aside from the short 20+4 pin Main connector, the only missing thing here is a second ATX/EPS12V connector and that isn't really an issue since this isn't an enthusiast unit.

There are two 8-pin PCI-E connectors and two 6-pin PCI-E connectors to power a pair of GPU's. Peripheral connectors come in the form of four Molex connectors and eight SATA cables. OCZ gets major props here for not including a FDD connector or adapter as it just isn't needed except in the rarest of occasions.

OCZ ZS750W Power Supply Review 17 | TweakTown.com

Rail distribution is kept simple with a single 12V rail.

A Look Inside

OCZ ZS750W Power Supply Review 18 | TweakTown.com

Opening up the ZS750 reveals a PCB much smaller than the actual enclosure. OCZ could have gone with a much shallower unit if they would have gone with a smaller fan.

OCZ ZS750W Power Supply Review 19 | TweakTown.com

There is a single capacitor on the primary side manufactured my Matsushita, better known as Panasonic.

OCZ ZS750W Power Supply Review 20 | TweakTown.com

Over on the secondary side, OCZ utilizes Japanese made Nippon Chemi-con capacitors.

OCZ ZS750W Power Supply Review 21 | TweakTown.com

Cooling for the power supply is handled by the 135mm Globe Fan, model RL4Z B1352512M.

Test Results & Final Thoughts

Test Results

Our load tests utilize a couple of FAST ATE active load testers and a variety of other equipment such as an oscilloscope, power conditioner, temperature probe and a power consumption meter. You can read more about our standard testing approach here.

The tests performed are based around six conceivable setups that are out there and progressively load down the PSU up to the power supply's limits or 1000W, whichever comes first. Since our test equipment's limits are higher than that of the OCZ ZS750, we can test it to the maximum.

OCZ ZS750W Power Supply Review 22 | TweakTown.com
OCZ ZS750W Power Supply Review 23 | TweakTown.com

The OCZ ZS750 does a decent job at voltage regulation for a budget power supply. The unit was able to stay within 2% of specification on both the 5V and 12V rails. This went up a little bit higher on the 3.3V rail as the unit started out in Test 1 showing a maximum of 3.39V. All of the voltages were well within ATX specifications and nothing to be worried about.

DC output quality certainly isn't one of the strongest areas for the ZS750, but it did pass the ATX specifications. The unit started out showing a 17mV ripple on the oscilloscope during Test One and it steadily increased as the loads were ramped up. By Test 3 we were seeing nearly 40mV of noise on the 12V rail and this continued to climb up to 54mV during the full loads of Test 5. We'd like to see better, but you can only get so much out of a sub $100 power supply.

The OCZ ZS750 comes with an 80Plus Bronze efficiency rating, meaning that it must be 82%/85%/82% efficient at 25%/50%/100% loads respectively. Our test unit started off strong with an efficiency of over 84% during Test 1, but seemed to flirt with falling out of specification the rest of the way. In the end, all that matters is that the unit passed our tests and showed that it was worthy of the rating.

Final Thoughts

As we have seen with several of our recent power supplies, there are certainly some sacrifices that must be made when you are powering a PC on a budget. There is a constant struggle between efficiency, output quality and regulation. Finding the balance between them is the real challenge for making sure the money is well spent.

With the results shown by our tests today, we have to say that OCZ has done a great job with the ZS750. They really have found the "ideal blend of quality, performance and efficiency for power hungry desktops."

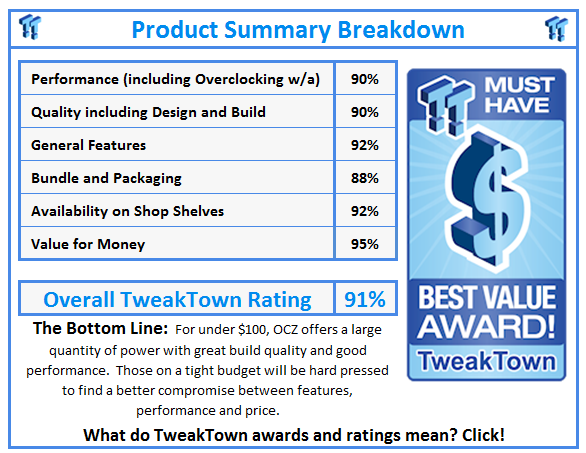

What do TweakTown.com awards mean? Click for details!
