Thermaltake BlacX 5G USB 3.0 HDD Docking Station

We're back with another HDD Docking Station, this time from the company that started it all. The latest BlacX is both USB 3.0 and SATA 6G compatible!

@ChrisRamseyer
Published Tue, Dec 7 2010 9:24 PM CST   |   Updated Tue, Nov 3 2020 7:02 PM CST
Rating: 91%Manufacturer: Thermaltake

Introduction


Thermaltake BlacX 5G USB 3.0 HDD Docking Station 01 | TweakTown.com
VIEW GALLERY - 20 IMAGES




Desktop docks are nothing new. We first looked at the Thermaltake BlacX two years ago and love the idea of being able to use raw HDDs without opening our computer cases. If you are someone like me with several drives sitting around, the idea is brilliant.

The early models had a few shortfalls, though; mainly their reliance on the aging USB 2.0 protocol and placing the power button on the back of the dock. The later issue was due to the urge to save money at the R&D level. With the button at the back you had to reach around the dock which was kind of a pain in the butt.

Today we are looking at a desktop dock that uses USB 3.0 and has the power button in a place that makes sense. The MUKii TransImp HDD Dock on the surface has everything going for it, but we will need to dig deeper into pricing (next page) and the performance of the unit before giving it a thumbs up or thumbs down.

Let's take a look at the specs.

Specifications, Pricing and Availability




Thermaltake BlacX 5G USB 3.0 HDD Docking Station 02 | TweakTown.com

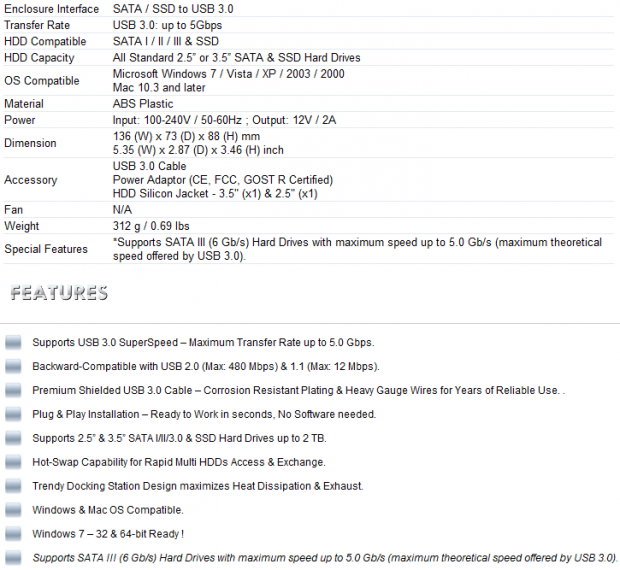

There isn't a whole lot to these desktop docking stations. They sit on your desk, you plug drives into them, hit a power button and within a few seconds your computer is ready to read and write data to the drive. The main variables are the interface; eSATA, USB 2.0 or USB 3.0, and how easy it is to turn the dock on and off.

Thermaltake's BlacX product line has been around since the start of the desktop docking station craze started and along the way they learned a few things. The first is ease of use. By putting the power button at the front of the docking station users can turn the system on or off much easier than they could if the power button was placed at the back of the unit where the connecting wires are located. It might not sound like a big deal while reading about it, but when you are using the docking station it makes all of the difference. There are many desktop docking stations that put the button on the back.

The BlacX is Thermaltake's first run at a USB 3.0 desktop docking station. They are claiming compatibility with SATA versions 1, 2 and 3. Today we will be putting those claims to the test and testing the BlacX 5G with Crucual's RealSSD C300, the fastest 256GB SSD in the world. The BlacX 5G works with both 3.5 and 2.5" form factors as long as the drive is serial ATA.

When it comes to cost, Newegg currently lists the Thermaltake BlacX 5G at 49.49. This is actually quite a bit more than the two other USB 3.0 desktop docking stations we reviewed last month. The MUKii TransImp TIP-D180U3 was selling for just 38.40 when reviewed and it also has a front mounted power button. The ineo Technology I-NA317U+ was even cheaper selling for just 29.99 when reviewed, but its power button was located on the back with the cable connectors.

The Packaging




Thermaltake BlacX 5G USB 3.0 HDD Docking Station 03 | TweakTown.com


The BlacX 5G package closely resembles the other BlacX products we've reviewed. You can easily distinguish the USB 3.0 enabled 5G by the USB 3.0 sticker on the front of the package. Also prominently shown is the 3 Year Warranty sticker.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 04 | TweakTown.com


The back of the package lists several features of the BlacX 5G in many languages.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 05 | TweakTown.com


The feature list for the English language is on the side of the box.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 06 | TweakTown.com


The full list of specifications is shown on the other side.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 07 | TweakTown.com

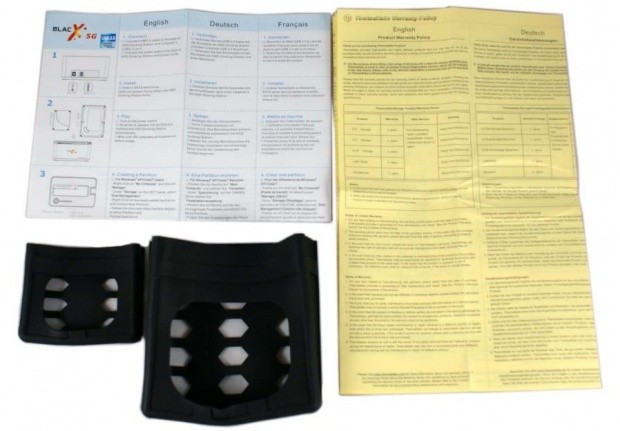

When we opened the package we imminently started finding accessories. Shown here are the two paper manuals and the two rubber HDD covers that will aid in protecting your drives when used in the enclosure and eliminate vibration noise.

The Thermaltake BlacX 5G




Thermaltake BlacX 5G USB 3.0 HDD Docking Station 08 | TweakTown.com


The meat of the package consists of the main components to the system, the dock itself, a power brick and the USB 3.0 cable. Thermaltake included a longer cable than what came with the ineo and MUKii docking stations, something we complained about those products for lacking. The longer cable will allow you to pull your computer out from under a desk and not need to disconnect the docking station before doing so.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 09 | TweakTown.com


Here we get our first look at the dock itself. The BlacX 5G logo is right on the front and as you can see the power button, a very important feature to include, is at the top.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 10 | TweakTown.com


A top down look shows with more detail the power button that lights up when the docking station is turned on. There is also a hard drive mechanical Eject button on the top and of course you plug your 2.5 or 3.5" HDD into the top of the docking station.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 11 | TweakTown.com

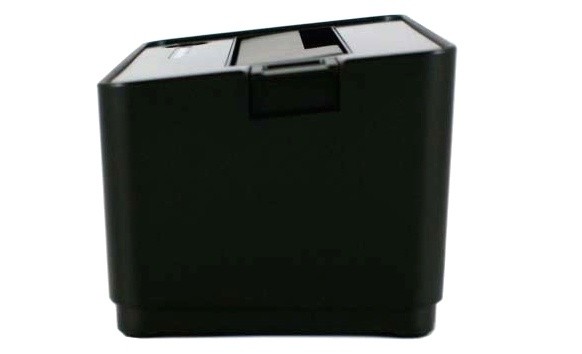

The side view shows that the BlacX 5G has a slanted top. This makes it easier to install a hard drive into the dock.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 12 | TweakTown.com

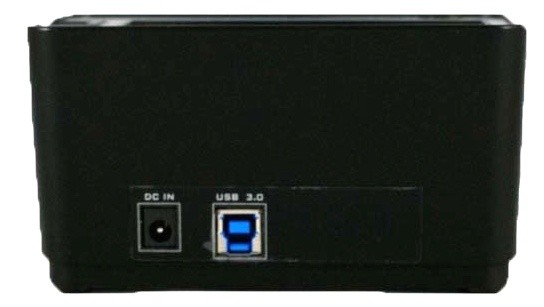

The back of the BlacX 5G is simple enough. There are only two connections; one for power and the other for USB 3.0.

Test System Setup and ATTO Baseline Performance


Thermaltake BlacX 5G USB 3.0 HDD Docking Station 13 | TweakTown.com


We would like to thank the following companies for supplying and supporting us with our test system hardware and equipment: AVADirect, GIGABYTE, Cooler Master, LSI and Noctua.

You can read more about TweakTown's Storage Product Testing Workstation and the procedures followed to test products in this article.

Currently USB 3.0 is a touchy subject. Most onboard USB 3.0 solutions only allow read speeds to around 200MB/s and write speeds of 180MB/s. A few PCIe aftermarket cards are delivering faster results, but not much faster at this time. We use the onboard USB 3.0 port that comes on the remarkable GIGABYTE X58A-UD7 motherboard.

For testing we will use the Crucial RealSSD C300, the world's fastest 256GB SSD. Crucial has graced us with several of these drives for use in all of our storage product reviews. You can learn more about the Crucial RealSSD C300 256GB SSD here.


ATTO Baseline Performance

Version and / or Patch Used: 2.34

ATTO is used by many disk manufacturers to determine the read and write speeds that will be presented to customers.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 14 | TweakTown.com

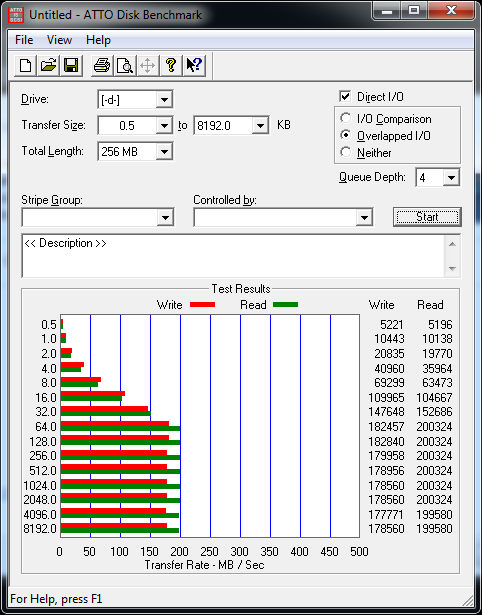

Using ATTO we see that the Thermaltake's electronics are not limiting the drives performance when compared to the other USB 3.0 enclosures we've tested. The GIGABYTE X58A-UD7 has right around a 200MB/s limit and we see the Thermaltake BlacX 5G running into this wall maxing out the motherboards potential.

Benchmarks - HD Tune Pro


HD Tune Pro

Version and / or Patch Used: 4.60
Developer Homepage: http://www.efdsoftware.com
Product Homepage: http://www.hdtune.com


HD Tune is a Hard Disk utility which has the following functions:

Benchmark: measures the performance
Info: shows detailed information
Health: checks the health status by using SMART
Error Scan: scans the surface for errors
Temperature display

HD Tune Pro gives us accurate read, write and access time results and for the last couple of years has been gaining popularity amongst reviewers. It is now considered a must have application for storage device testing.



Thermaltake BlacX 5G USB 3.0 HDD Docking Station 15 | TweakTown.com


We are starting to get a collection of USB 3.0 desktop docking stations. The two previous models tested were both very fast, so the BlacX will have to perform even better considering its higher cost. There really isn't any chance of that happening, though, since we are limited by the motherboards USB 3.0 speed and not the SSDs or docking station.

The read tests show that all three docking stations read data between 180 and 190MB/s. The Thermaltake BlacX 5G is right in the mix with the two challengers.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 16 | TweakTown.com

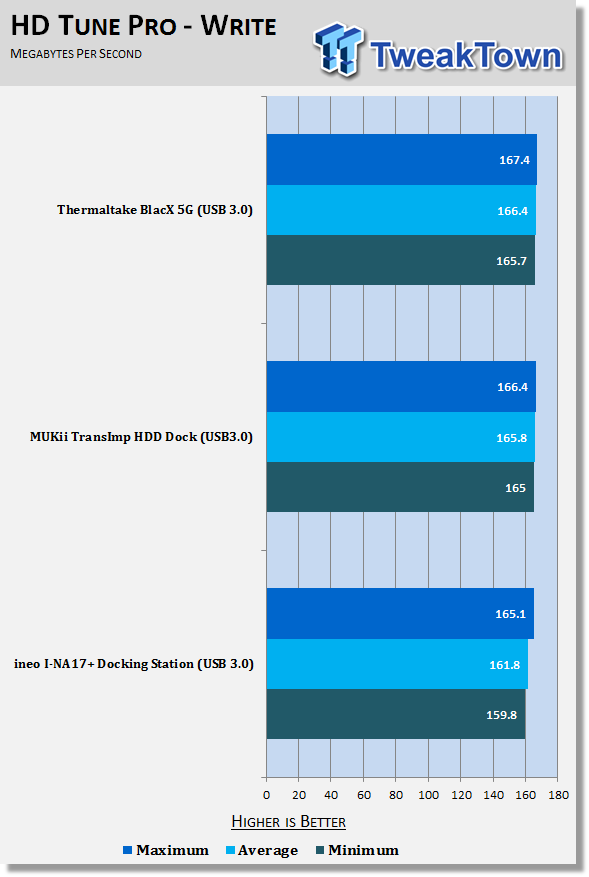

The write test shows the BlacX 5G writing data at the same rate as the other two docking stations we've previously tested.

Benchmarks - Everest Random Access Time


Everest Random Access Time

Version and / or Patch Used: 4.60
Developer Homepage: http://www.lavalys.com
Product Homepage: http://www.lavalys.com




Everest Ultimate and Corporate Edition offer several different benchmarks for testing and optimizing your system or network. The Random Access test is one of very few if not only that will measure hard drives random access times in hundredths of milliseconds as oppose to tens of milliseconds.

Drives with only one or two tests displayed in write the write test mean that they have failed the test and their Maximum and possibly their Average Scores were very high after the cached fills. This usually happens only with controllers manufactured by JMicron.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 17 | TweakTown.com

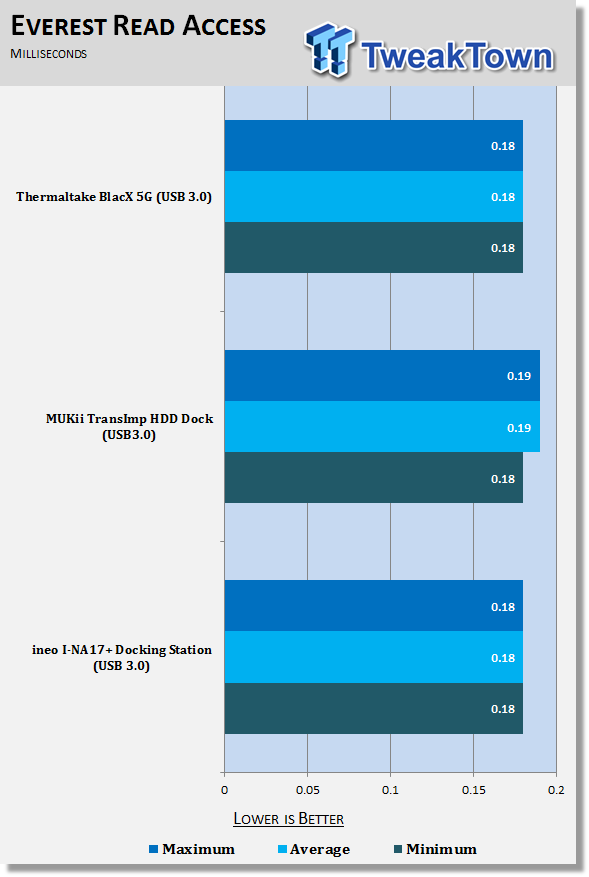

With SSDs being measured in microseconds now for latency, it is important for a docking station not to induce additional delays in data moving to and from the drive. Here we see that the BlacX 5G keeps our C300 reading just as fast as it does on a SATA interface.

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 18 | TweakTown.com


The same is true for the write test; here we see that the BlacX 5G is transparent to the system as far as latency is concerned.

Benchmarks - AS SSD


AS SSD Benchmark

Version and / or Patch Used: 1.2.3577.40358
Developer Homepage: Alex Intelligent Software
Product Homepage: Alex Intelligent Software
Download here: http://www.alex-is.de/PHP/fusion/downloads.php?cat_id=4&download_id=9

AS determines the performance of Solid State Drives (SSD). The tool contains four synthetic as well as three practice tests. The synthetic tests are to determine the sequential and random read and write performance of the SSD. These tests are carried out without the use of the operating system caches.

In all synthetic tests the test file size is 1GB. AS can also determine the access time of the SSD, the access of which the drive is determined to read through the entire capacity of the SSD (Full Stroke). The write access test is only to be met with a 1 GB big test file. At the end of the tests three values for the read and write as well as the overall performance will be issued. In addition to the calculated values which are shown in MB/s, they are also represented in IO per seconds (IOPS).

Note: AS SSD is a great benchmark for many tests, but since Crystal Disk Mark covers a broader range of 4K tests and HD Tune Pro covering sequential speeds, we will only use the Copy Benchmark from AS SSD.

- Copy Benchmark

Thermaltake BlacX 5G USB 3.0 HDD Docking Station 19 | TweakTown.com

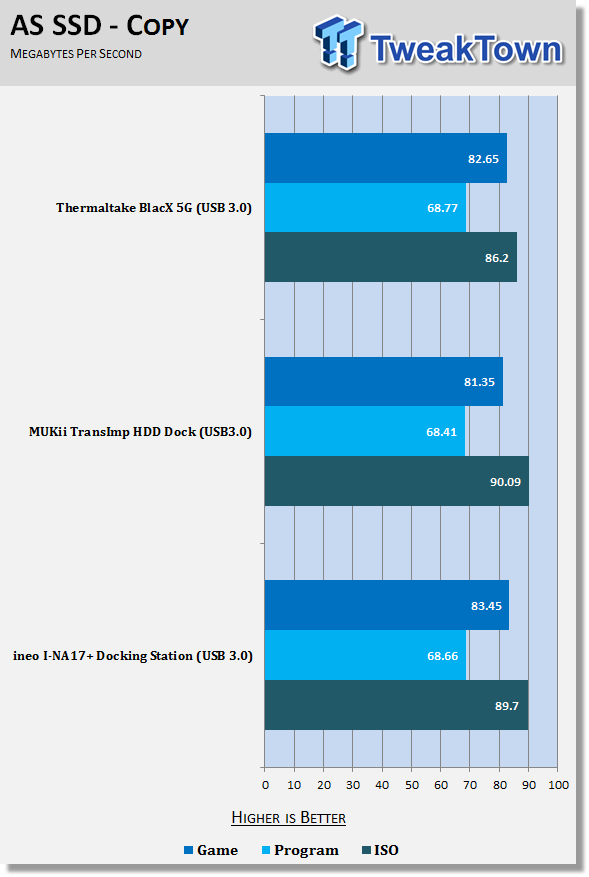

Most users will use their desktop docking station to transfer files to and from temporarily connected drives. In this test we get to see how fast a USB 3.0 device can move data. The Thermaltake BlacX 5G performed very well in all of the tests.

Final Thoughts




Thermaltake has a nearly perfect product with the BlacX 5G. The accessory package is one of the best we've seen with the longer USB 3.0 cable being the standout and the drive covers being the first we've seen to combat drive acoustics. Thermaltake's brand name is also attached to the BlacX 5G, so we don't have any doubts about its long term use. The final piece to the physical puzzle is the transfer speeds associated with USB 3.0 and the BlacX 5G delivers on this front as well with very good USB 3.0 performance that matches the other USB 3.0 products we've tested.

The only real issue we found is the price. The BlacX 5G comes with more accessories and a longer cable, but the price also increases as well. Personally I would pay more for the BlacX 5G since it has a longer USB 3.0 cable. At some point you are going to pull your computer out from under your desk, but will you remember to disconnect the HDD dock with a short cable? - Most likely you will forget and the dock, possibly with a drive installed, will come crashing to the floor. If you have a mechanical drive installed then you can kiss it goodbye nine out of ten times.

When it comes down to making a purchasing decision, you might want to ask yourself just how absent minded you are and how often you will pull your computer out. It's difficult to imagine your purchasing decision coming down to this, but I speak these words from experience.

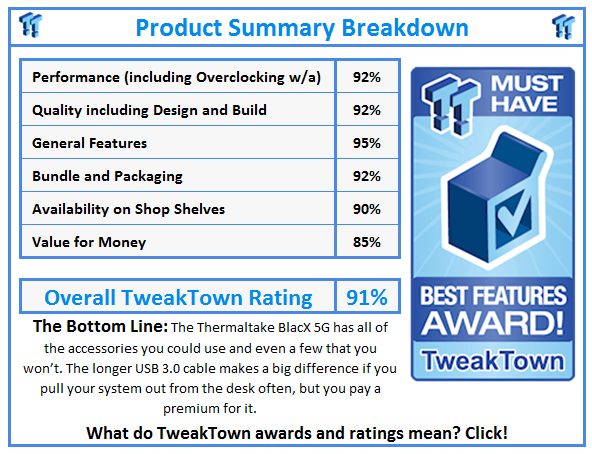

What do TweakTown.com awards mean? Click for details!
