Patriot Torqx 128GB Indilinx MLC Solid State Disk

Patriot comes through with an Indilinx Barefoot MLC SSD. Let's see if it can warp past the competition.
@ChrisRamseyer
Published Thu, Jun 18 2009 10:17 PM CDT   |   Updated Fri, Sep 18 2020 10:50 PM CDT
Rating: 91%Manufacturer: Patriot Memory

Introduction


Patriot Torqx 128GB Indlinx MLC Solid State Disk



Patriot had a very successful run with the Warp Series drives, some of the most sought after JMicron based products that routinely outperformed products from competing SSD manufacturers. In order to distinguish the JMicron drives from the new Indilinx controlled drives, Patriot needed to let go of the Warp product name. The first press release announced the new drive as the Fusion, but in a last minute decision the name was changed to Torqx.

While other companies were rushing to get media and e-tailers their Indilinx SSDs, Patriot was scrambling to get the new packaging ready and the Torqx drives had to sit in a warehouse. With everything finally lining up correctly Patriot is now on a mission to show that with patience comes a superior product. For starters, Patriot was able to update their drives with the latest firmware for the Indilinx Barefoot controller, something that hurt the performance numbers of the G.Skill Falcon when we reviewed it last month. Patriot was also able to react to what enthusiasts were asking for from SSD manufacturers, a way to mount 2.5 inch SSDs into 3.5 inch drive bays.

Today we are going to put the new Patriot Torqx up against other manufacturers SSDs from both the consumer and enterprise markets. How will the Torqx compare? Let's find out.

Specifications, Availability and Pricing




Patriot Torqx 128GB Indlinx MLC Solid State Disk


On the surface the Torqx looks like just another Indilinx Barefoot controlled drive, but after looking at the other spec sheets we see that Patriot is claiming an additional 10 MB/s read speeds over what we have seen so far. Certainly Patriot has the advantage of time with the Torqx and was able to load the drive with newer firmware.

Another item that gives Patriot a heads up on the other Barefoot drives is the accessory package. Patriot included an adapter so you can install the 2.5 inch Torqx into a 3.5 inch drive bay. It might not be much, but in the cut throat world of consumer SSDs this may be what many consumers need to make a purchasing decision.

More than likely price will still play a large role into which drive you purchase. Newegg currently sells the 128GB Torqx that we are reviewing today for 399.99 USD with free shipping. Newegg also shows the 64GB Torqx in stock for 218.89, but the 256GB heavyweight drive is currently not listed. After a quick search at the massive e-tailer it became clear that the Torqx is the highest cost 128GB SSD. Of the latest round of extremely fast Barefoot controlled drives the G.Skill Falcon 128GB drive lists for 325.00 USD, but the Falcon does not come with the adapter that makes installation in a desktop easy.

The specifications list does not show the 64 MB of cache that is built into the Torqx drive. I feel that this information shouldn't slide by unnoticed. The cache allows the drive to write data at close to double the speed of the Intel X25-M. Let's get a closer look at the Patriot Torqx.

The Packaging




Patriot Torqx 128GB Indlinx MLC Solid State Disk


Patriot has always had nice looking packaging for their SSDs and the Torqx keeps with the same tradition. Here we see that Patriot has also done a very good job informing the consumer about the inclusion of the adapter bracket.

Patriot Torqx 128GB Indlinx MLC Solid State Disk


On the back of the package we see that Patriot was able to give a general features list, but omits performance information.

Patriot Torqx 128GB Indlinx MLC Solid State Disk


Also keeping with tradition Patriot has done a good job keeping the drive secure in the package. Here you can also see that the adapter and accessories are packaged separately from the drive.

The Patriot Torqx




Patriot Torqx 128GB Indlinx MLC Solid State Disk

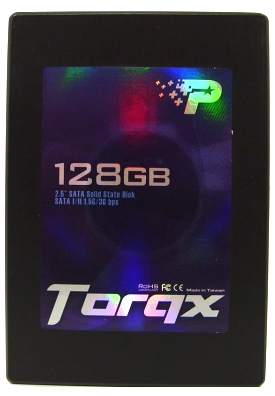

The Torqx has a holographic foil label on the front of the drive.

Patriot Torqx 128GB Indlinx MLC Solid State Disk

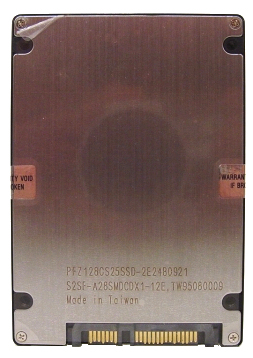

The back of the drive has the serial and part number laser etched in the aluminum casing.

Patriot Torqx 128GB Indlinx MLC Solid State Disk

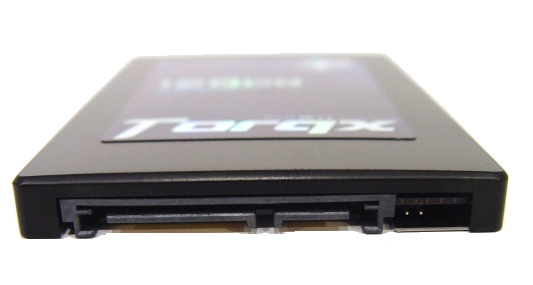

Patriot has given the end user the ability to update the firmware on the Torqx (via a jumper that is exposed). After reviewing my fair share of Barefoot controlled drives it looks like only a few companies have made it possible to do this. In the long run you may be able to squeeze a little more performance out of the drive once more updates become available.

Patriot Torqx 128GB Indlinx MLC Solid State Disk

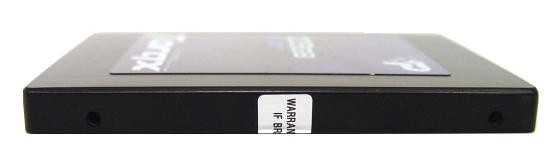

On the side we see that all of the standard mounting points are present so you will not have a problem mounting the Torqx.

Patriot Torqx 128GB Indlinx MLC Solid State Disk

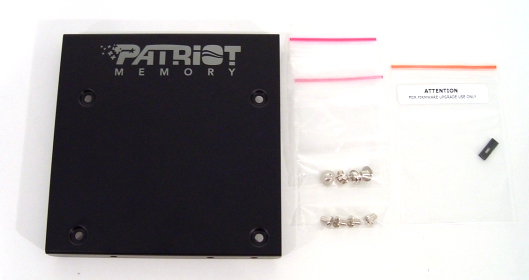

Here we see the adapter, included screws to mount the drive into the adapter and the jumper for firmware upgrades.

Test System Setup and ATTO Baseline


Test System

Processors: AMD Opteron 2356 (2.3GHz Quad-Core) x2
Motherboard: Tyan S2915-E (Supplied by Tyan)
Memory: Kingston KVR667D2S4P5/2G x4 (Supplied by Kingston)
Graphics Card: XFX 8800 GTX (Supplied by XFX USA)
Enclosure: Lian Li V2000
Cooling: Noctua NH-U12DO (Supplied by Noctua)
SATA Controller: Areca ARC-1231ML (Supplied by Areca)
SAS Controller: Areca ARC-1680i (Supplied by Areca)
Operating System: Microsoft Windows Vista Ultimate X64

Today we are comparing the Patriot Torqx SSD to other 2.5 inch drives that we've reviewed in the past.

All of the drives tested were performed on the listed system under identical conditions to ensure true apples to apples performance results for comparison.


ATTO Baseline Performance

Version and / or Patch Used: 2.34

ATTO is used by many disk manufacturers to determine the read and write speeds that will be presented to customers. We use these numbers to observe the drive under ideal conditions.

Patriot Torqx 128GB Indlinx MLC Solid State Disk


The Patriot Torqx is a very fast MLC SSD, but it falls short of the claimed 260 MB/s read speeds. Still, 230 MB/s is very fast and the 194 MB/s write speed is higher than the claimed 180 MB/s.

Benchmarks - HD Tune Pro


HD Tune Pro

Version and / or Patch Used: 3.00
Developer Homepage: http://www.efdsoftware.com
Product Homepage: http://www.hdtune.com


HD Tune is a Hard Disk utility which has the following functions:

- Benchmark: measures the performance
- Info: shows detailed information
- Health: checks the health status by using SMART
- Error Scan: scans the surface for errors
- Temperature display

HD Tune Pro gives us accurate read, write and access time results and for the last couple of years has been gaining popularity amongst reviewers. It is now considered a must have application for storage device testing.




Read Tests

Patriot Torqx 128GB Indlinx MLC Solid State Disk


In HD Tune we see that Patriot Torqx beating every other drive we have tested to date, including the Solidata K5 SLC Barefoot drive that costs nearly twice that of the Torqx and has half of the data capacity.


Write Tests

Patriot Torqx 128GB Indlinx MLC Solid State Disk


The write test shows the Torqx the slowest of the Barefoot drives by a small margin. More interesting is the speed difference between the Patriot Torqx and the Patriot Warp V3.

Benchmarks - EVEREST Random Access Time


EVEREST Random Access Time

Version and / or Patch Used: 4.60
Developer Homepage: http://www.lavalys.com
Product Homepage: http://www.lavalys.com




Everest Ultimate and Corporate Edition offer several different benchmarks for testing and optimizing your system or network. The Random Access test is one of very few if not only that will measure hard drives random access times in hundredths of milliseconds as oppose to tens of milliseconds.


Read Tests

Patriot Torqx 128GB Indlinx MLC Solid State Disk


The average read access times of the Torqx shows that the drive runs nearly parallel with the other Barefoot drives.


Write Tests

Patriot Torqx 128GB Indlinx MLC Solid State Disk


The write access times are spot on with the rest of the Barefoot drives as well.

Let's see how all of these synthetic benchmarks relate to real world applications.

Benchmarks - PCMark Vantage Hard Disk Tests


PCMark Vantage - Hard Disk Tests

Version and / or Patch Used: 1.0.0
Developer Homepage: http://www.futuremark.com
Product Homepage: http://www.futuremark.com/benchmarks/pcmark-vantage/
Buy It Here




PCMark Vantage is the first objective hardware performance benchmark for PCs running 32 and 64 bit versions of Microsoft Windows Vista. PCMark Vantage is perfectly suited for benchmarking any type of Microsoft Windows Vista PC from multimedia home entertainment systems and laptops to dedicated workstations and high-end gaming rigs. Regardless of whether the benchmarker is an artist or an IT Professional, PCMark Vantage shows the user where their system soars or falls flat, and how to get the most performance possible out of their hardware. PCMark Vantage is easy enough for even the most casual enthusiast to use yet supports in-depth, professional industry grade testing.

FutureMark has developed a good set of hard disk tests for their PCMark Vantage Suite. These tests are based on real world applications that many of us use daily.


Patriot Torqx 128GB Indlinx MLC Solid State Disk


HDD1 - Windows Defender
HDD2 - Gaming
HDD3 - Windows Photo Gallery
HDD4 - Vista Startup
HDD5 - Windows Movie Maker
HDD6 - Windows Media Center
HDD7 - Windows Media Player
HDD8 - Application Loading

Other than the SLC flash Solidata K5, the Torqx runs pretty much the same numbers as the other Barefoot drives. We also see that the Torqx is able to outperform the Intel/Kingston X25-M in some of the tests.

Benchmarks - Passmark


Passmark Advanced Multi-User Tests

Version and / or Patch Used: 6.1
Developer Homepage: http://www.passmark.com
Test Homepage: http://www.passmark.com




Many users complain that I/O Meter is too complicated of a benchmark to replicate results so my quest to find an alternative was started. Passmark has added several multi-user tests that measure a hard drives ability to operate in a multi-user environment.



The tests use different settings to mimic basic multi-user operations as they would play out on your server. Variances is read / write percentage as well as random / sequential reads are common in certain applications, Web Servers read nearly 100% of the time while Database Servers write a small amount of data.

The Workstation test is the only single user environment and will be similar to how you use your system at home.


Patriot Torqx 128GB Indlinx MLC Solid State Disk


The workstation and server tests show the Torqx as a very fast drive and it even outperforms the Intel/Kingston X25-M in the workstation category that resembles the patterns most used in desktop environments.

Final Thoughts

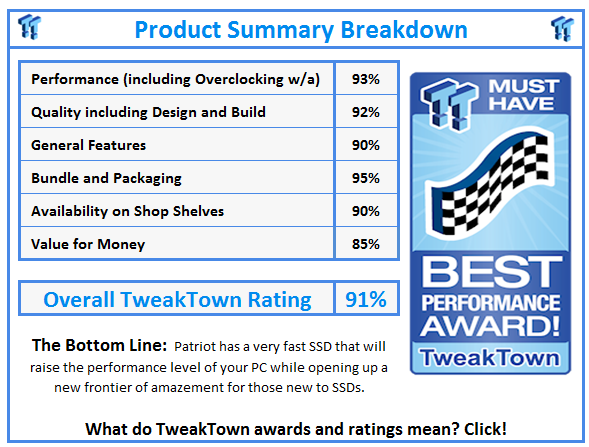

Patriot has always impressed us with their solid state drive offerings and the Torqx is no exception. The synthetic benchmarks show that the Torqx has a lot of potential even though the real world numbers only show the drive performing with the pack of other Indilinx Barefoot controlled drives. Patriot has left the door open to future performance increases or even optimizations for particular tasks, something that most of the companies neglected to include.

Enthusiasts have started moving to SSDs in droves for their desktop and workstations and rightly so since the performance increase can be felt within seconds of turning high performance systems on. Patriot has taken the steps to make the transition from a 3.5 inch drive to the 2.5 inch Torqx much easier. This shows that Patriot listens to what enthusiasts are saying on forums and what storage product reviewers are saying in their reviews.

Cost is always going to be a big factor when it comes time to actually purchase a product and this is where Patriot has fallen short. At 399 USD the Torqx has the highest off the shelf cost of the consumer Barefoot drives we have tested to date. Once you factor in the actual cost of ownership the margin is reduced with the other drives needing some form of adapter to fit in a majority of desktops, but with the G.Skill Falcon selling for only 325.00 USD some users may be swayed by the low cost and find an aftermarket adapter while keeping the true cost of ownership under that of the Torqx. Patriot was a little late to the party with this generation of drives so hopefully as time passes the e-tail cost will shrink as it normally does.
