ASRock 4x4BOX-7840U Mini PC Review

ASRock's 4X4BOX-7840U is the best AMD-powered Mini PC we have tested. With AMD Ryzen AI and the Radeon 780M GPU, it's one worth considering.

Published
Updated
Manufacturer: ASRock
4 minutes & 28 seconds read time
TweakTown's Rating: 90%
TweakTown award

The Bottom Line

ASRock's 4x4BOX 7840U offers generational performance improvements including the addition of AMD Ryzen AI and the Radeon 780M GPU.

Pros

  • + Performance
  • + AMD Ryzen AI
  • + 2.5Gbe Ethernet
  • + Wi-Fi 6E
  • + USB4

Cons

  • - Limited I/O
  • - HDMI 1.4a

Should you buy it?

AvoidConsiderShortlistBuy

Introduction, Specifications, and Pricing

ASRock 4x4BOX-7840U Mini PC Review 01

ASRock is one of a few vendors currently going all in designing and building AMD Ryzen 7000 series mobile Mini PCs. We noted this months back when we reviewed the 4x4BOX 7735U. The 7735U was an impressive Mini PC with solid enough performance to be a small form factor gaming machine with its Ryzen 7 CPU and Radeon 680M graphics. The 7840U looks to one up that model with a slightly better CPU in the Ryzen 7 7840U and Radeon 780M Graphics, along with AMD's new Ryzen AI technology, which is enabled on this model.

ASRock 4x4BOX-7840U Mini PC Review 02

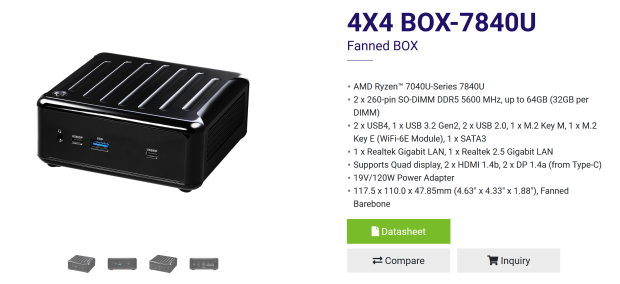

Our review model was a barebones unit. At the core of it, we have a Ryzen 7 7840U processor, an eight-core / sixteen-thread mobile part from AMD offering boost speeds up to 5.1GHz with a peak TDP of 28W. This machine supports two DDR5 modules via internal SO-DIMM slots. We chose to pair it with a set of TCreate sticks from TeamGroup for this review. Storage includes support for one PCIe Gen 4 NVMe solution along with a single 2.5" SATA drive.

Connectivity includes two USB4 ports supporting DP 1.4 for 4K60 compatibility. We also note a single USB 3.2 Gen 2 on the front panel and two USB 2.0 on the rear I/O. Networking includes dual LAN, one being a 2.5Gbe and the other 1Gbe, both from Realtek. Wi-Fi 6E is available as well; Realtek supplies the chipset here, too.

The MSRP of the ASRock 4x4BOX 7840U comes in at $579 as a barebones unit.

Buy at Amazon

ASRock NUC BOX-1165G7 (I7-1165G7)

TodayYesterday7 days ago30 days ago
$612.11$612.18$620.52
* Prices last scanned on 6/24/2024 at 8:11 am CDT - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission.

Overview and BIOS

Overview

ASRock 4x4BOX-7840U Mini PC Review 05

The ASRock 4x4BOX 7840U was delivered in their standard industrial packaging, as seen above.

ASRock 4x4BOX-7840U Mini PC Review 06

This unit includes the power brick rated at 19v 6.3A, a VESA mount, and additional hardware.

ASRock 4x4BOX-7840U Mini PC Review 07

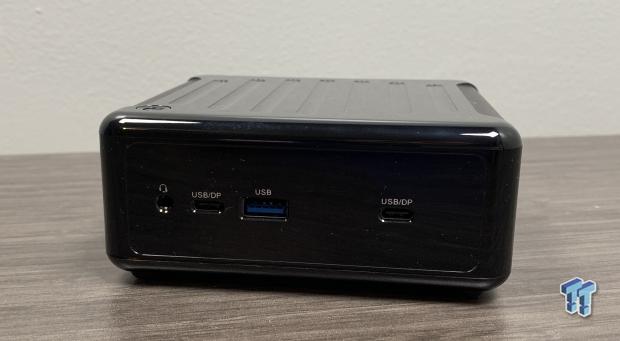

The front of the machine houses two USB4 ports alongside a single USB 3.2 Gen 2 and 3.5mm audio jack.

ASRock 4x4BOX-7840U Mini PC Review 08

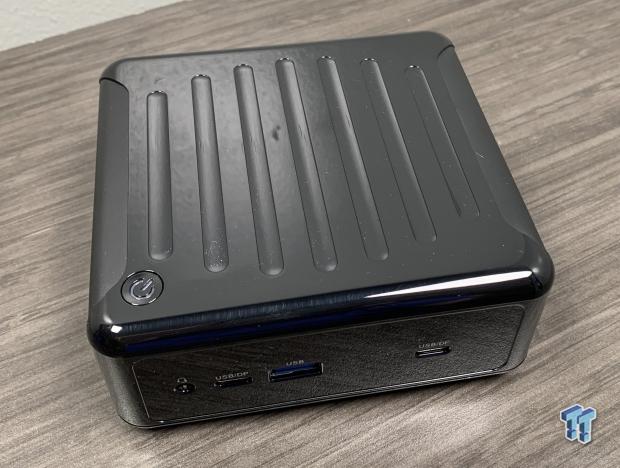

The top of the unit carries the power button.

ASRock 4x4BOX-7840U Mini PC Review 10

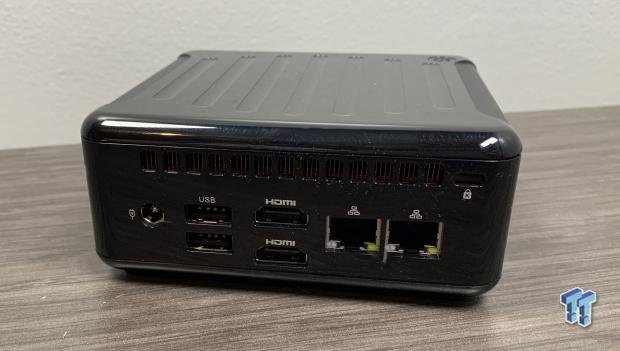

The rear I/O includes power input, dual USB 2.0, and HDMI ports. On the far right, we find the dual LAN and Kensington lock.

ASRock 4x4BOX-7840U Mini PC Review 11

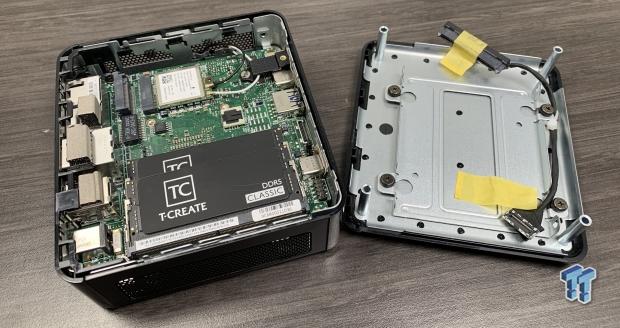

Internally, we have two DDR5 SO-DIMM slots at the bottom, with the 2280 NVMe slot above and the M.2 Wi-Fi slot living underneath. The lid of the machine houses the tray for any 2.5" drive.

BIOS/UEFI

ASRock 4x4BOX-7840U Mini PC Review 20ASRock 4x4BOX-7840U Mini PC Review 21
ASRock 4x4BOX-7840U Mini PC Review 22ASRock 4x4BOX-7840U Mini PC Review 23

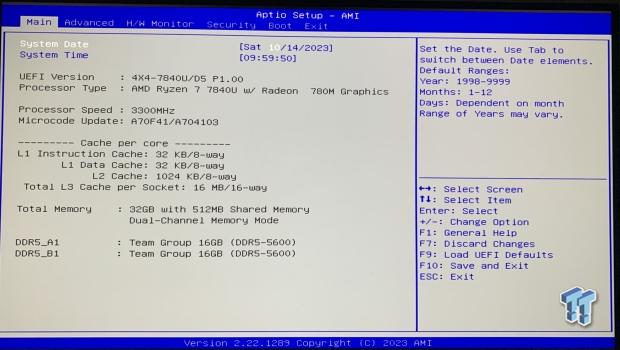

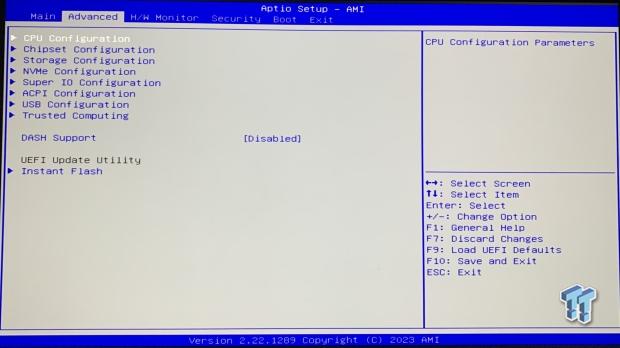

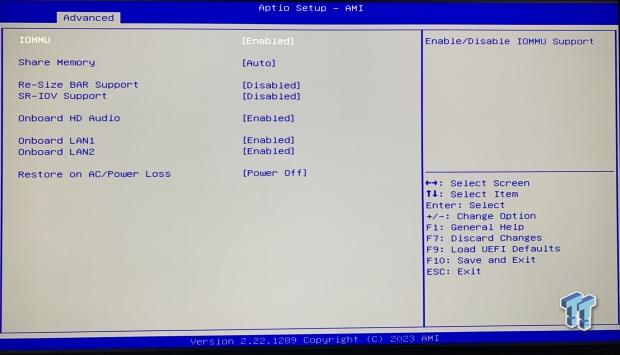

The BIOS on this machine is the basic system, and the main menu gives hardware information. The advances tab expands to provide support for the CPU, chipset, and storage. Further down, you can enable DASH support and update the BIOS.

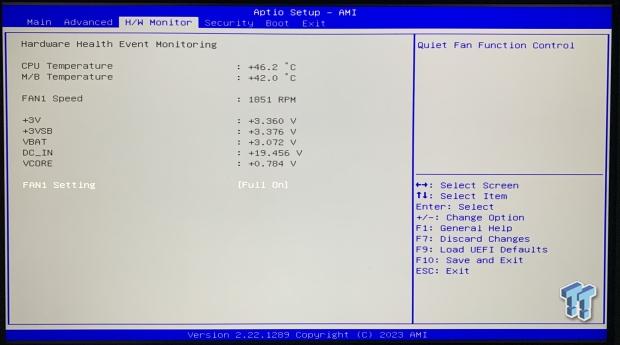

The hardware monitor keeps track of the device's temperatures and voltages, along with a switch for enabling full fan speed.

System/CPU Benchmarks

Cinebench

Cinebench is a long-standing render benchmark that has been heavily relied upon by both Intel and AMD to highlight their newest platforms during unveils. The benchmark has two tests: a single-core workload utilizing one thread or 1T. There is also a multi-threaded test that uses all threads or nT of a tested CPU.

ASRock 4x4BOX-7840U Mini PC Review 30

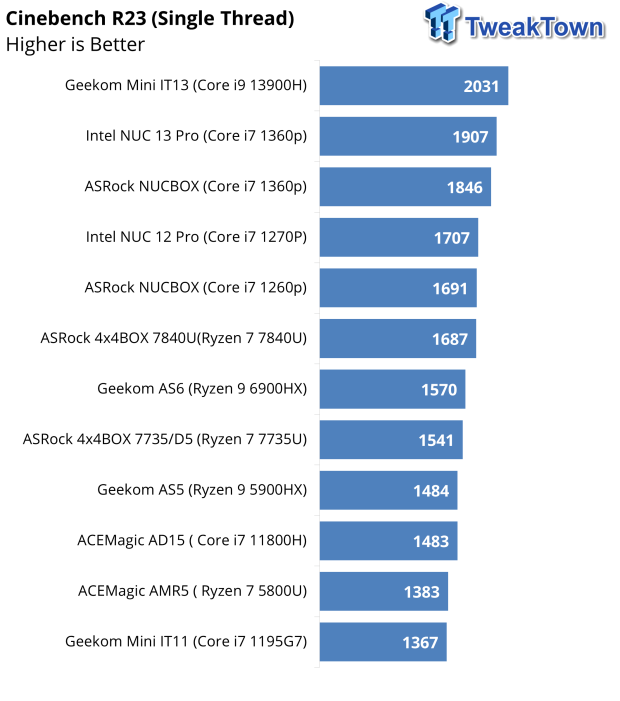

Single core performance for the 7840U landed middle of the pack in our charts at 1687; this was a bit better than the 7735U tested earlier in the year.

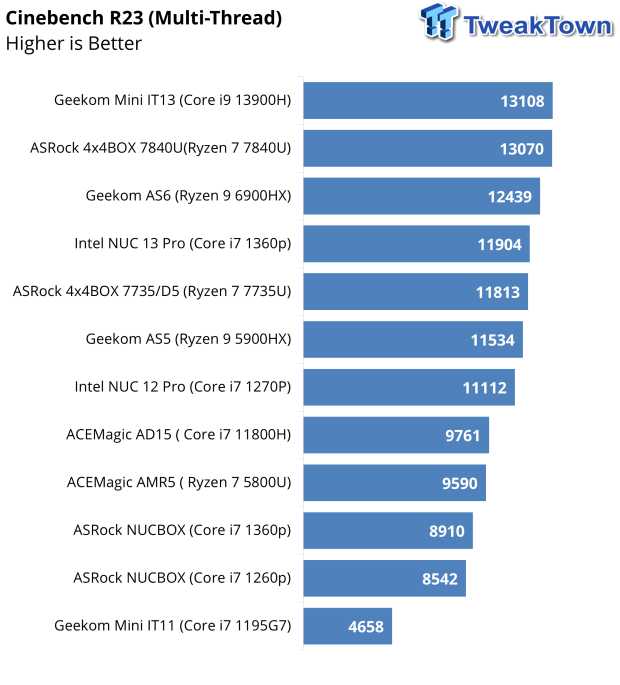

ASRock 4x4BOX-7840U Mini PC Review 31

Multi-thread was the best we have seen from an AMD-powered Mini PC, with the 7840U scoring 13070.

BAPCo CrossMark

CrossMark™ is an easy-to-run native cross-platform benchmark that measures the overall system performance and system responsiveness using models of real-world applications. CrossMark™ supports devices running Windows, iOS, and macOS platforms.

ASRock 4x4BOX-7840U Mini PC Review 32

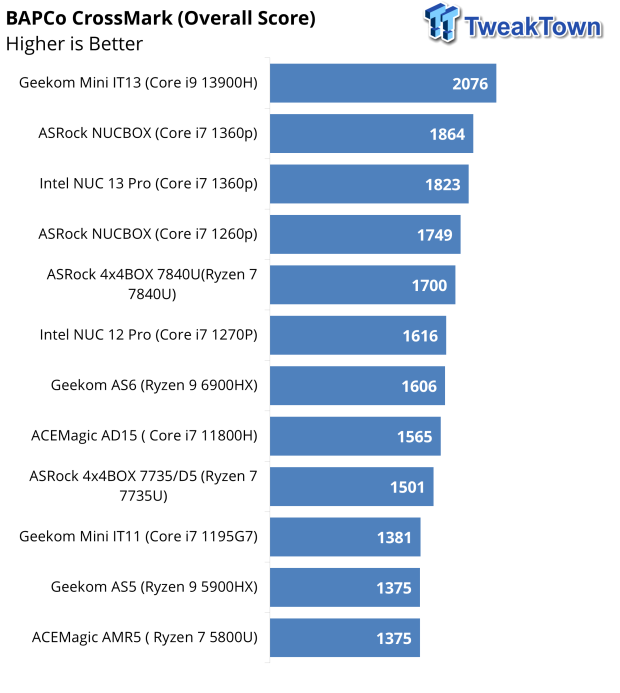

Crossmark landed the 4x4BOX fifth in our charts, quite a bit better than the 7735U. The score was 1700 even.

AID64 Memory

ASRock 4x4BOX-7840U Mini PC Review 33

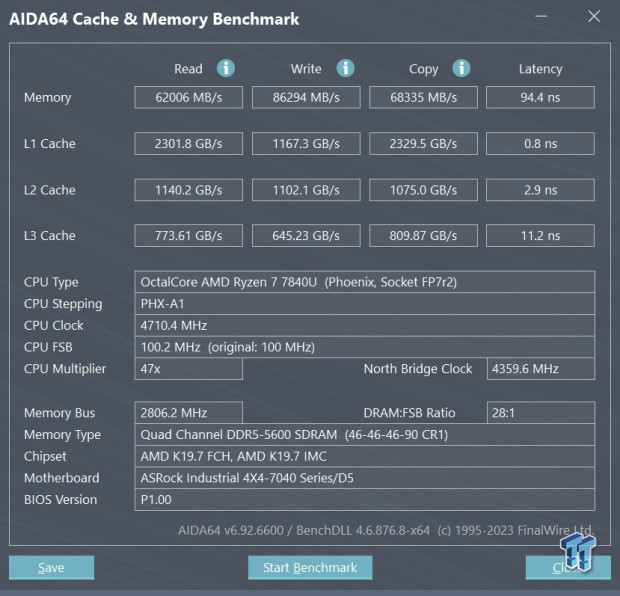

Memory performance reached 62K read, 86K write, and 68K copy. Latency finished up at 94ns.

Geekbench 6

ASRock 4x4BOX-7840U Mini PC Review 34

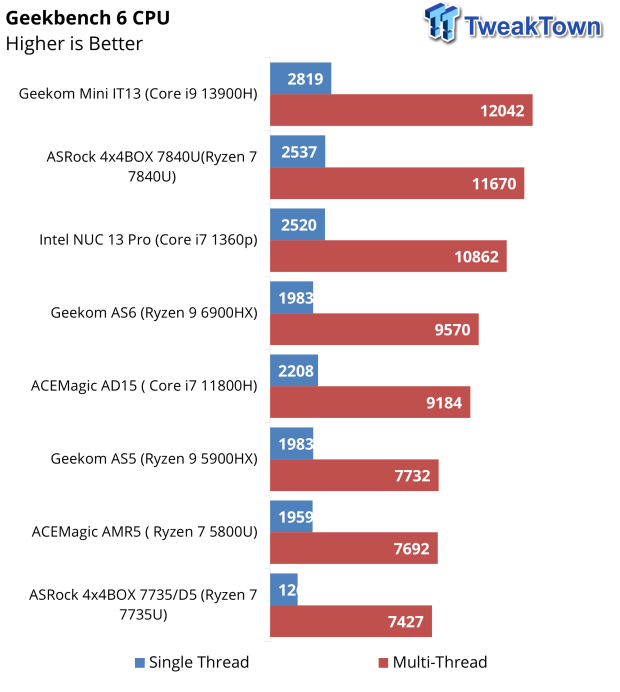

Geekbench CPU gave us a single core score of 2537, about 300 points shy of the 13900H in the Mini IT13 recently reviewed. Multi-core pushed 11670, which was a good amount better than the 7735U.

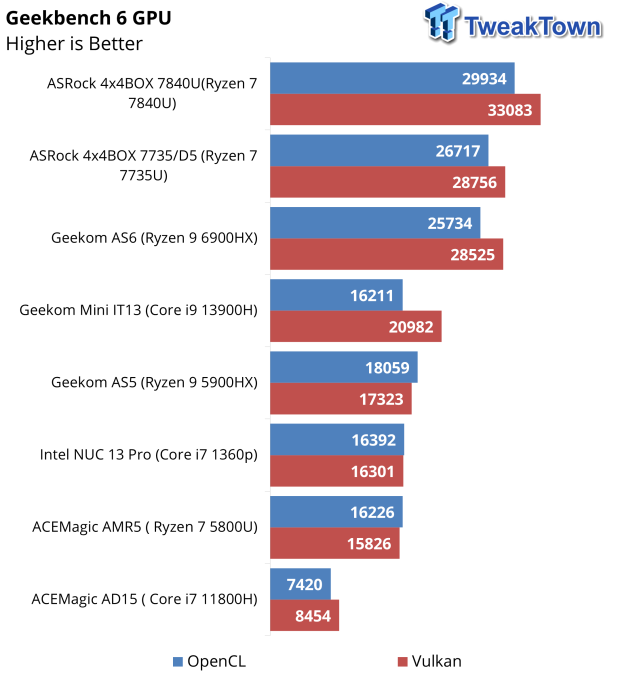

ASRock 4x4BOX-7840U Mini PC Review 35

GPU performance was the best we have seen from a Mini PC, the 7840U grabbing 29934 in OpenCL and 33083 in Vulkan.

UL Benchmarks and Final Thoughts

UL Benchmarks

ASRock 4x4BOX-7840U Mini PC Review 36

CPU Profile finished third in the one and two-thread workloads, the quickest AMD platform we have tested.

ASRock 4x4BOX-7840U Mini PC Review 37

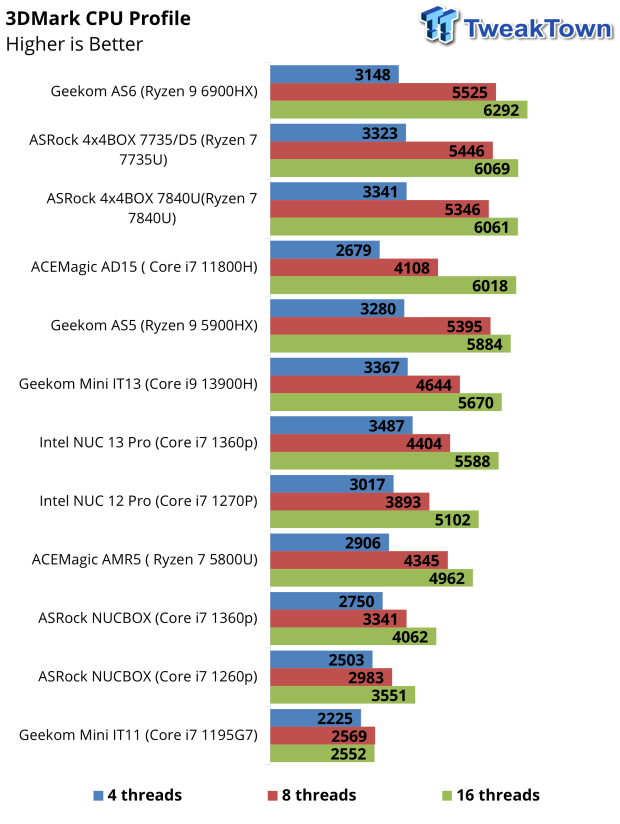

With four through sixteen threads, the 7840U again maintains third in our charts.

ASRock 4x4BOX-7840U Mini PC Review 39

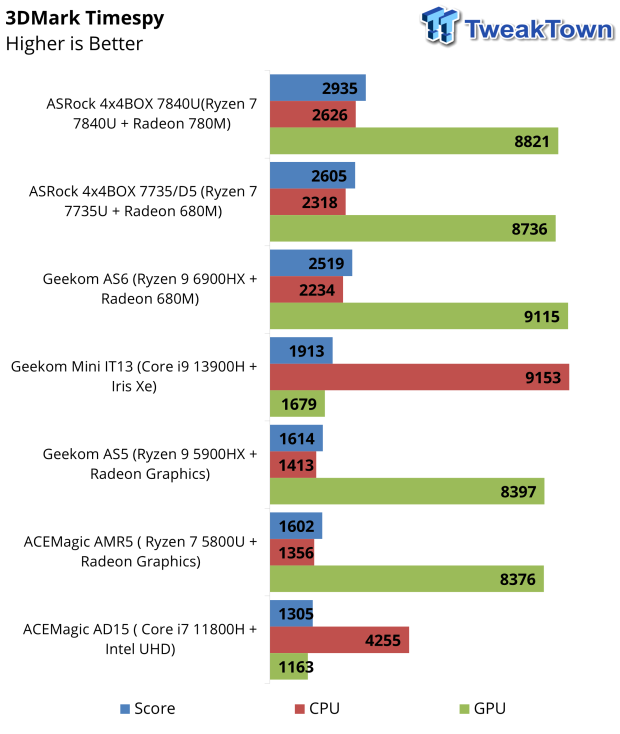

Time Spy was the best yet, as expected. The 780M, a rather decent entry-level GPU, scored 2935 overall and 8821 for the GPU.

ASRock 4x4BOX-7840U Mini PC Review 38

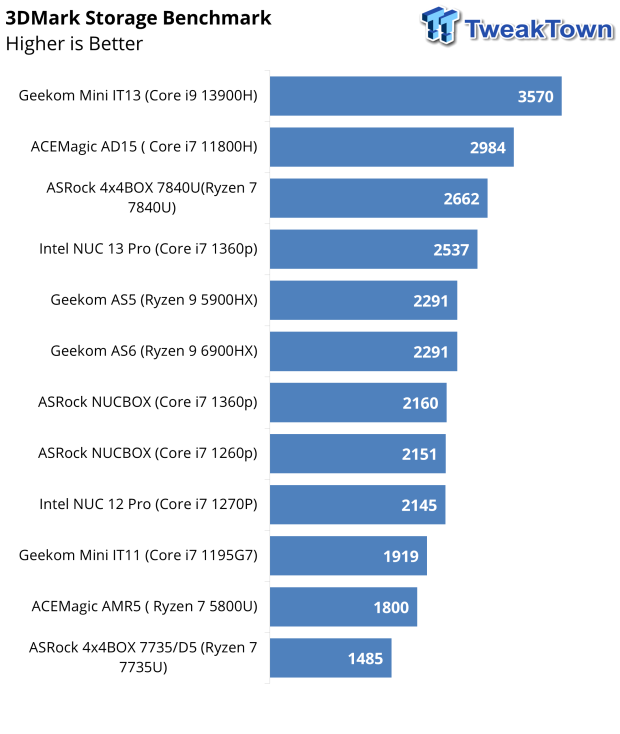

3DMark Storage ranked third in our charts, with the 4x4BOX scoring 2662.

Final Thoughts

ASRock's 4X4BOX 7840U comes away from testing a touch better than the 7735U we tested earlier in the year. Physically, the two units are very similar, sharing the same design, including the chassis and much of the internal layout. This continues into the connectivity, which includes dual USB 2.0 on the rear of the unit along with dual LAN, one port using 1Gbe and the other 2.5Gbe.

This unit, too, supports dual HDMI, though we noted the rear ports only support the 1.4b standard, so it is a limitation for those wanting multiple 4K displays. That said, you can deploy DisplayPort over the USB4 ports found on the front for full 4K60 compatibility. USB4 also gives the ability to use eGPU for anyone considering using this as a gaming machine. Also in the wheelhouse of the 7840U is the Ryzen AI capability, which needs to be enabled by the vendor; ASRock has done that with the 4X4BOX.

Looking at performance, the 7840U was the quickest AMD machine we have tested and the best overall Mini PC. If your goal is gaming, this machine can provide solid entry-level performance right out of the box. Intel 13th Gen still reigns supreme for CPU-leaning workloads, but looking at our charts, the 7840U isn't far behind, with single-thread performance in both Cinebench and 3DMark offering a rather large uptick over last gens 6900HX.

Looking at full system performance, the 4X4BOX provided a near 100-point uptick over the 6900HX, going from 1606 points to 1700 points. Storage performance for this machine was quite good - we deployed our Sabrent Rocket Plus G for this review, and the 4X4BOX landed third in our charts, even beating out the NUC 13 Pro.

Pricing for the 4X4BOX-7840U comes in at $579.99, the same pricing we had on the 4X4BOX-7735U earlier in the year. Comparing the two units, both share the same connectivity options, chassis, and internal layout, but the 7840U has the benefit of Ryzen AI and the newer Radeon 780M graphics.

Performance

90%

Quality

90%

Features

90%

Value

90%

Overall

90%

The Bottom Line

ASRock's 4x4BOX 7840U offers generational performance improvements including the addition of AMD Ryzen AI and the Radeon 780M GPU.

TweakTown award
90%

ASRock NUC BOX-1165G7 (I7-1165G7)

TodayYesterday7 days ago30 days ago
$612.11$612.18$620.52
* Prices last scanned on 6/24/2024 at 8:11 am CDT - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission.

Tyler joined the TweakTown team in 2013 and has since reviewed 100s of new techy items. Growing up in a small farm town, tech wasn't around, unless it was in a tractor. At an early age, Tyler's parents brought home their first PC. Tyler was hooked and learned what it meant to format a HDD, spending many nights reinstalling Windows 95. Tyler's love and enthusiast nature always kept his PC nearby. Eager to get deeper into tech, he started reviewing.
