Beelink EQ14 N150 Mini PC Review

Beelink's EQ14 Mini PC is great for light office use, but its SATA III SSD and price may limit appeal for those seeking better value or speed.

Beelink EQ14 N150 Mini PC
Comment IconFacebook IconX IconReddit Icon
Hardware Editor
Published
Manufactured by Beelink with an MSRP of $239
5 minutes & 30 seconds read time
TweakTown Rating: 69%

Our Verdict

Overall, Beelink's EQ14 Mini PC is a viable option for small form factor (SFF) PCs. It includes everything needed to get started with light office work, but the SATA III-based M.2 SSD and its pricing may limit its appeal.

Pros

  • Ultra-low power consumption
  • Tons of USB connectivity
  • Dual M.2 PCIe slots and dual 4K capable HDMI
  • Dual LAN 1000 Mbps ports with WiFi 6
  • Virtually silent

Cons

  • N150 CPU only utilizes single memory channel
  • Included SSD is M.2 SATA3

Should you buy it?

AvoidConsiderShortlistBuy

As an Amazon Associate, we earn from qualifying purchases. TweakTown may also earn commissions from other affiliate partners at no extra cost to you.

Introduction, Specifications, and Pricing

Small form factor PCs come in many different sizes, just like their ATX brother, so when Beelink reached out to see if we wanted to take a look at their new EQ14, which is powered by the ultra-low-powered quad-core N150 CPU, well, we couldn't say no.

A quick look at the Beelink EQ14 N150 Mini PC

The MSRP pricing of the EQ14 is initially set at $239. However, the EQ14 has been sitting at $199 for a while now. Why don't we look at what we get with the EQ14 and how it performs? Let's go.

ItemDetails
ModelBeelink EQ14 N150
Form FactorMini PC SFF
Dimensions126mm x 126mm x 39mm
Weight490g
MaterialsPlastic
ColorNavy Blue
CPUIntel Twin Lake N150 4C/4T
CPU FrequencyMax Turbo 3.6GHz
RAM16GBx1 SO-DIMM DDR4-3200
StorageSATA III 512GB
Warranty12 Months
Photo of the Beelink EQ14 N150 Mini PC
Best Deals: Beelink EQ14 N150 Mini PC
Country flagToday7 days ago30 days ago
-$199 USD
-$479.58 CAD
-$199 USD
-$199 USD
* Prices last scanned on 4/29/2025 at 5:08 am CDT - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission from any sales.

Packaging

Beelink EQ14 N150 Mini PC Review 1

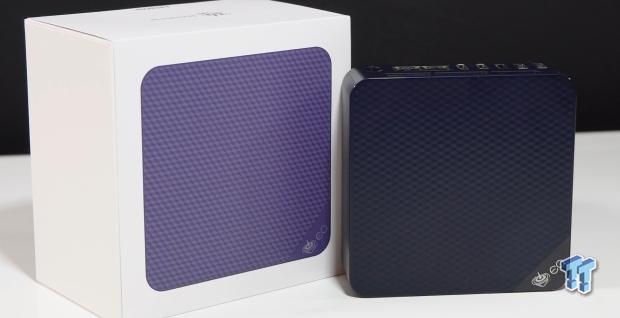

Kicking things off is a tour of the EQ14's packaging, which has a top-down image of the EQ14 itself. It shows a bit of purple coloring to my eyes, but I could just be seeing things.

Beelink EQ14 N150 Mini PC Review 2

The internal specifications of the EQ14 are:

  • Intel Twin Lake N150 4C/4T w/Intel UHD Graphics 24EUs
  • SO-DIMM DDR4 3200MHz Slot (16GB DDR4 3200MHz included)
  • Dual M.2 2280 PCle 3.0 SSD Slots (512GB SATA3 M.2 included)
  • 2.4G & 5G Dual-band WiFi 6 (Intel AX101)
  • Dual LAN 1000Mbp Ports
  • Bluetooth 5.2
  • 126x126x39mm (Without Rubber Feet)
  • 490 grams
Beelink EQ14 N150 Mini PC Review 3

Beelink has packaged the EQ14 in plastic wrap, which includes text thanking you for your choice and instructions for first booting up.

Beelink EQ14 N150 Mini PC Review 4

The package also includes a power cable, HDMI cable, a "hello" sticker, and the user manual.

Beelink EQ14 N150 Mini PC Review 5

Removing the plastic from the exterior of the EQ14 shows a more blue color and hexagonal texturing. In the lower right corner, there is the Beelink logo along with the EQ branding.

Beelink EQ14 N150 Mini PC Review 6

The front of the EQ14 has a single USB 3.2 10Gbps Type-A port, a 3.5mm audio jack, a clear CMOS port, a USB-C 10Gbps port, and a small circular power button.

Beelink EQ14 N150 Mini PC Review 7

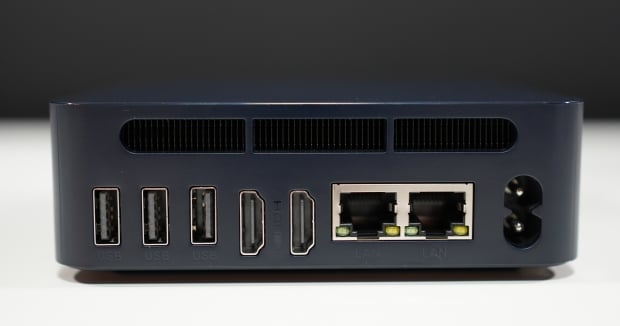

The rear of the EQ14 shows two additional USB 3.2 10 Gbps Type-A ports, a single USB 2.0 Type-A port, two HDMI 4K60 ports, dual 1000 Mbps LAN ports, and the AC power input.

Beelink EQ14 N150 Mini PC Review 8

Going to the underside is the model EQ, followed by the power input of 100-240V 50hz/60hz 1.9A. A QR code is also located via sticker. An extensive "EQ" is in the center with many circular ventilation holes. Along the top and bottom are rubber rails that serve as large feet to keep the EQ14 on your desk and raise it for ample ventilation. A rubber tab is also located in the lower left to aid in removal if a memory or storage upgrade is needed.

Beelink EQ14 N150 Mini PC Review 9

Now to gain access to the internal hardware, four screws are located under a rubber hole stopper.

Beelink EQ14 N150 Mini PC Review 10

Removing the bottom plate gains access to the internals of the EQ14, well, at least to the RAM and SSD portions. An internal power supply sits beside the large black heatsink, which can be removed via two small Phillips screws.

Beelink EQ14 N150 Mini PC Review 11

Here is the other side of the M.2 heatsink, complete with heat pads pre-installed.

Beelink EQ14 N150 Mini PC Review 12

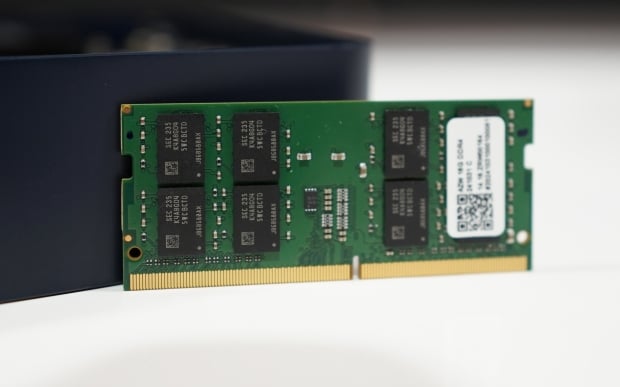

Unfortunately, the N150 CPU only supports a single memory module after removing the single SO-DIMM stick of DDR4-3200 M/T.

Beelink EQ14 N150 Mini PC Review 13

Now, we focus on the included M.2 SATA3 SSD, which has a total capacity of 512GB. It's a shame Beelink didn't opt to use a PCIe-based M.2 storage drive instead of the SATA3-based one.

Beelink EQ14 N150 Mini PC Review 14

Lastly, before we get into the benchmarks, we can see the internal motherboard used in the EQ14. The M.2 PCIe slots are limited to PCIe 3.0 1x on one slot, while the other runs at PCIe 3.0 4x. The included WiFi card, the Intel AX101, sits between the M.2 PCIe slots and the power supply. The AX101 is 802.11ax compliant while running on the 2.5GHz and 5GHz bands, with a max speed of 600 Mbps. Bluetooth 5.2 is also present on the AX101 for added connectivity.

System/CPU Benchmarks

The BIOS

Beelink EQ14 N150 Mini PC Review 15Beelink EQ14 N150 Mini PC Review 16
Beelink EQ14 N150 Mini PC Review 17Beelink EQ14 N150 Mini PC Review 18
Beelink EQ14 N150 Mini PC Review 19Beelink EQ14 N150 Mini PC Review 20

The EQ14 N150's BIOS configuration is text-based. Users can change the date and time at the top of the main page, which also shows hardware information. Chipset, CPU, and storage configuration options are available under the advanced menu. Furthermore, a BIOS update program can be found close to the bottom. In addition to the conventional security and boot tabs, a hardware monitor is another option.

Cinebench R23

Cinebench is a renowned rendering benchmark both Intel and AMD use to highlight their newest platforms during product unveilings. It features two main tests: a single-core test that utilizes one thread (1T) and a multi-threaded test that takes advantage of all the CPU's available threads (nT).

Beelink EQ14 N150 Mini PC Review 21

The EQ14 N150 demonstrated strong performance for a low-powered CPU in R23, achieving scores of 941 for single-core and 2861 for multi-core.

GeekBench 6

Beelink EQ14 N150 Mini PC Review 22

The Geekbench 6 benchmark yielded a score of 1241 for single-core performance and 2971 for multi-core performance.

Beelink EQ14 N150 Mini PC Review 23

The OpenCL performance of the iGPU was measured using the Geekbench Windows AVX2 benchmark, resulting in a score of 3270.

PCMark

Beelink EQ14 N150 Mini PC Review 24

The overall score for PCMark was 2944, with the Essential workload achieving the highest performance.

3DMark

Beelink EQ14 N150 Mini PC Review 25

The CPU Profile provided a single-thread score of 408, which gradually increased to a maximum of 1285 when all available threads were utilized.

Beelink EQ14 N150 Mini PC Review 26

The EQ14 N150 was exclusively tested with the Time Spy gaming workload, resulting in a score of 368 for the EQ14.

Beelink EQ14 N150 Mini PC Review 27

The EQ14 N150's storage performance was about average. The SATA III SSD scored 829, with an average bandwidth of 146.31 MB/s.

Final Thoughts

The Beelink EQ14 150 has generated a variety of opinions. It effectively serves its purpose for office tasks and basic home use. However, for anything beyond web browsing, social media, or other non-CPU-intensive work, the CPU starts to struggle, which is expected from a quad-core processor operating at only 6 watts. One notable drawback of the EQ14 is its use of single-channel memory, a limitation associated with Intel's architecture. Additionally, it features a SATA III M.2 SSD instead of a PCIe M.2 SSD, despite both being similarly priced.

On the positive side, the Beelink EQ14 comes with all the necessary hardware to create a functioning computer. Is it the fastest option available? No. Is it equipped with the latest technology? Not quite. However, it does offer a compact size while providing a full PC experience. Its inclusion of a WiFi 6 card, 16GB of DDR4-3200 memory, and a 512GB SSD is impressive for a mini PC priced under $200. That said, several competitors in the Mini PC market offer similar specifications at slightly lower prices.

Performance

60%

Quality

70%

Features

75%

Value

70%

Overall

69%

Our Verdict

Overall, Beelink's EQ14 Mini PC is a viable option for small form factor (SFF) PCs. It includes everything needed to get started with light office work, but the SATA III-based M.2 SSD and its pricing may limit its appeal.
