Anyone who has built a PC knows the anxiety of checking whether a CPU cooler will actually fit before pulling the trigger. You find the case spec sheet, check the maximum CPU cooler height, compare it to the cooler dimensions, and breathe a sigh of relief when the numbers work out. Noctua wants you to know that those numbers might be lying to you.

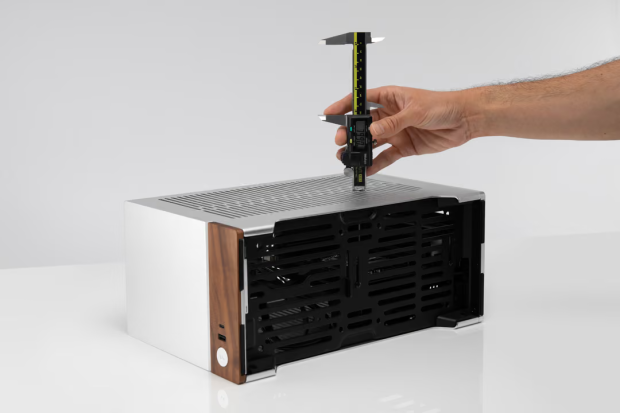

The Austrian cooler manufacturer has been physically hand-measuring over 100 popular PC cases in-house, and what it found is that the official clearance figures printed on case spec sheets are frequently wrong. In most cases, the actual clearance is higher than advertised, meaning builders are sometimes settling for smaller, less capable coolers than their chassis can actually accommodate. But the opposite is also true in some cases, which is the more dangerous scenario.
Corsair's Frame 4000D lists 170mm of cooler clearance, but Noctua measured 180mm of usable space, a full 10mm difference that could determine whether a flagship dual-tower cooler fits or not. The NZXT H2 Flow is listed at 75mm but measures 79mm, which is enough to fit Noctua's NH-L12Sx77 that would otherwise appear incompatible on paper. Thermaltake's TR100 lists 68mm but actually provides 70.7mm, opening the door to a larger cooler than the spec sheet suggests.
On the other side, the ASUS Prime AP201 is listed at 170mm, but Noctua measured 168.3mm, removing any wiggle room for taller RAM modules when using a cooler like the NH-D15 G2. Lian Li's B4-mATX is listed at 168mm but measures 164.5mm, meaning the NH-D15 G2 does not fit at all despite what the specifications suggest.
The reason for the discrepancy, as per Noctua, is that case manufacturers often build conservative buffers into their specs to account for manufacturing tolerances and motherboard standoff variations. Playing it safe prevents side panels from bulging, but it also nudges builders toward unnecessarily smaller coolers.

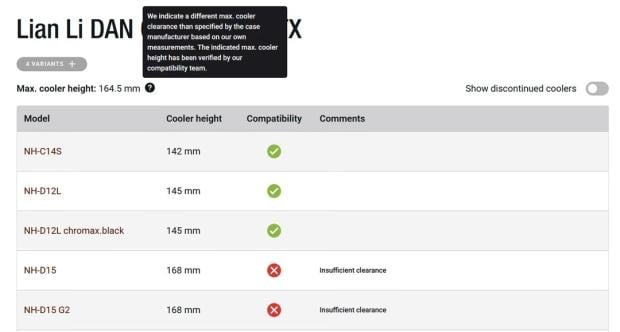

Noctua is maintaining a dedicated case compatibility database with its own measurements, flagging cases where deviations from manufacturer specs were found with a tooltip indicator. Of the 100-plus cases measured so far, 56 showed a relevant deviation.
UPDATE - Corsair responded with the following statement:
Frequently Asked Questions
Open a question for an answer from TweakTown's coverage of this news, or ask your own below.
How many cases out of the 100-plus Noctua measured showed a relevant clearance deviation?
Which cases measured smaller than their listed cooler clearance, and by how much (for example ASUS Prime AP201 and Lian Li B4-mATX)?
How does Noctua explain the reason manufacturers publish conservative cooler clearance figures?
Where can I find Noctua’s case compatibility database and which cases are flagged with tooltip indicators for deviations?
Have a question that isn't listed here? Ask below, and TweakBot will answer it.
CORSAIR generally takes a very conservative approach to our specifications and would rather be on the side of caution than overpromise or guarantee fitment.
For example, some "180 mm" coolers may not account for the additional height required for fan mounting clips or other components. Additionally, cooler manufacturers may measure cooler height differently (e.g., from the socket or from the motherboard PCB), as there isn't a standardized measurement method across the industry.
Therefore, we communicate the 170 mm specification to ensure sufficient clearance in these situations and avoid frustrating end customers when they're on the final stretch of bringing their desired PC to life.
