Introduction
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 10 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 10](https://static.tweaktown.com/content/8/3/8345_10_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.jpg)
I have always enjoyed throwing a set of drives in RAID. Going back over a decade, I ran WD Raptor HDDs in my first gaming PC using a RAID card from Areca. More recently, we have looked at both the ARC-1883i with Seagate Enterprise Capacity v4 HDDs and the ARC-8050T2 with SanDisk Extreme SSDs. Today, we expand further looking at the latest Thunderbolt 3 enclosure from Areca, the ARC-8050T3-12.
This new enclosure builds on the Thunderbolt portfolio started with the original ARC-8050 and carried on by last year's ARC-8050T2. The ARC-8050T3 is the first Thunderbolt 3 RAID enclosure offered by Areca while also being the first platform they have launched with several bay options.
With the T3, you have the choice of choosing 6, 8, or 12 bay models. Each powered by a 1.2GHz dual-core RoC paired with 2GB of DDR3 1866MHz ECC memory.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 02 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 02](https://static.tweaktown.com/content/8/3/8345_02_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
RAID support includes 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, along with Single Disk and JBOD modes. Further, we have features such as online RAID roaming, migrations, and multiple RAID selection which adds to the self-encrypting drives function and background/ instant allocation among others.
In the twelve-bay form factor sent over for review, the Areca ARC-8050T3 carries an MSRP of $2289.99 while the six and eight-bay models can be had for $1599 and $1799, respectively. Each of these units supports both Windows and MacOS with a Thunderbolt 3 connection, and the warranty is listed at three years.
Areca ARC-8050T3
Packaging and a Closer Look
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 10 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 10](https://static.tweaktown.com/content/8/3/8345_10_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.jpg)

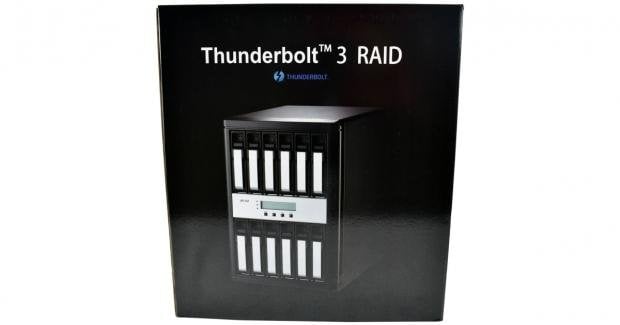

We have a similar look for packaging on the T3 when compared to the T2. There is a lack of marketing information on the box, just an image of the enclosure and the Thunderbolt logo.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 11 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 11](https://static.tweaktown.com/content/8/3/8345_11_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.jpg)
The top of the box gives a little more detail on the unit including interface and supported platforms.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 12 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 12](https://static.tweaktown.com/content/8/3/8345_12_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.jpg)
The scope of delivery includes a Thunderbolt 3 cable, power adapter, and ethernet cable in addition to the user manual.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 13 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 13](https://static.tweaktown.com/content/8/3/8345_13_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.jpg)
The front of the unit house all 12 bays, and the center, a small LCD screen with navigation buttons below.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 14 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 14](https://static.tweaktown.com/content/8/3/8345_14_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.jpg)
The backside starts with two Thunderbolt 3 ports and is followed by a single DisplayPort connection. We then have an RJ45 port and expansion port.
Test System Setup and Web Management
Tyler's Router Test System Specifications
- Motherboard: ASUS Maximus IX Hero (buy from Amazon)
- CPU: Intel Core i7 7700K (buy from Amazon) / (Read our Review)
- Memory: G.SKILL TridentZ DDR4 3200 (buy from Amazon)
- Video Card: EVGA GeForce GTX 1080 Hybrid (buy from Amazon)
- OS Storage: Intel 730 480GB SSD (buy from Amazon) / (Read our Review)
- Secondary Storage: MyDigitalSSD BP5 512GB SSD (buy from Amazon)
- Case: EVGA DG-86 (buy from Amazon)
- Power Supply: EVGA SuperNOVA 750 P2 (buy from Amazon)
- Networking: ASUS PCE-AC88 AC3100 (buy from Amazon)
- Networking: ASUS ROG 10G Express
- I/O: ASUS Thunderbolt EX3 (buy from Amazon)
- OS: Microsoft Windows 10 (buy from Amazon)
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 20 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 20](https://static.tweaktown.com/content/8/3/8345_20_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
The dashboard for the 8050T3 isn't much different from the T2. The RAID set menu gives you a look at all your drives. For this review, we are using eight BP5e SSDs from MyDigitalSSD.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 21 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 21](https://static.tweaktown.com/content/8/3/8345_21_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
The system configuration menu allows setup of the system beeper, task priority, and switching between JBOD and RAID modes. Further, you can enable NCQ and configure cache settings.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 22 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 22](https://static.tweaktown.com/content/8/3/8345_22_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
Advanced configuration allows you to setup TLER and drive timeout settings. You can also optimize the enclosure for AV recording and streaming if needed.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 23 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 23](https://static.tweaktown.com/content/8/3/8345_23_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
Ethernet configuration is simple and allows DHCP setup or manual configurations.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 24 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 24](https://static.tweaktown.com/content/8/3/8345_24_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
Above, you can see controller information; the 8050T3 uses an LSI SAS3108.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 25 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 25](https://static.tweaktown.com/content/8/3/8345_25_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
The hardware monitor keeps an eye on the RoC and voltages for the entire appliance. At the bottom, you can see the cache size for the RoC and current PCIe link states.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 26 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 26](https://static.tweaktown.com/content/8/3/8345_26_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
The hardware monitor keeps an eye on the RoC and voltages for the entire appliance.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 27 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 27](https://static.tweaktown.com/content/8/3/8345_27_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
As mentioned previously, RAID support includes 0, 3, 5, and 6, along with higher level 50 and 60.
Benchmarks – ATTO, Random and Sequential Performance
ATTO
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 29 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 29](https://static.tweaktown.com/content/8/3/8345_29_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
Looking at performance with ATTO disk benchmark, the 8050T3 does remarkably well from 64K through 64M read reaching 2500 to 2700 MB/s.
Write performance is best between 128K and 64M topping out at 1000 MB/s on a few occasions.
Random and Sequential Performance
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 30 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 30](https://static.tweaktown.com/content/8/3/8345_30_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
The random performance gave solid performance with RAID 0 where we see a peak of 70,000 IOPs. With RAID 5, we peak at 70K, as does RAID 6.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 31 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 31](https://static.tweaktown.com/content/8/3/8345_31_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
Write performance hit its highest marks with RAID 0. Here we topped 68,000 IOPS, while RAID 5 hit 30K IOPS and RAID 6 20K IOPS.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 32 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 32](https://static.tweaktown.com/content/8/3/8345_32_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
Sequential performance reached 2400 MB/s with RAID 5. RAID 0 peaked at 2100 MB/s and RAID 6 1900 MB/s.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 33 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 33](https://static.tweaktown.com/content/8/3/8345_33_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
With sequential write, we peaked with RAID 0 at 2400 MB/s. RAID 6 tops 1600 and RAID 5 1700 MB/s.
Benchmarks – SMB Workloads
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 34 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 34](https://static.tweaktown.com/content/8/3/8345_34_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
Database hits it peak quicker than most at 62K IOPS.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 35 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 35](https://static.tweaktown.com/content/8/3/8345_35_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
RAID 5 showed a much higher performance with Web Server; the T3 reached a peak of 59K IOPS.
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 36 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 36](https://static.tweaktown.com/content/8/3/8345_36_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.png)
Again, Web Server topped the RAID 6 chart with similar performance to RAID 5.
Final Thoughts
![Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 01 Areca ARC-8050T3 12-Bay Thunderbolt 3 RAID DAS Review 01](https://static.tweaktown.com/content/8/3/8345_01_areca-arc-8050t3-12-bay-thunderbolt-3-raid-das-review.jpg)
The Areca 8050 lineup have always been built like tanks. These units are built to survive, and even being diskless, do carry some weight. The new ARC-8050T3 series hasn't changed, the smallest model a six-bay unit comes in at 13.2lbs, the eight-bay 15lbs, and the 12-bay comes in at 21lbs. Weight can be a solid indicator of the internal build quality, and for a unit like the 8050 that has the potential to hold 12 drives, it needs every bit of steel it can get.
Moving on, performance doubled last year's 8050T2. When we tested that unit with eight SanDisk SSDs, we peaked at 750 MB/s. With this new unit, using eight drives, we could top 2500 MB/s, nearly reaching 2800 MB/s in some cases.
ATTO showed solid read performance from 64k to 64M and write performance shadowed that. 4K performance topped 70,000 IOPS QD8 through QD128, and moving through workloads, we saw Web Server perform the best for both RAID 5 and 6, while RAID 0 found consistent 60,000 IOPS.
For anyone that has ever set up or managed RAID cards and even HBAs, the 8050T3 menu system is very familiar. It's nearly identical across the entire 8050 lineup which makes migration from one system to another very easy. Areca doesn't shy away from features enabling this solution to take advantage of RAID levels 0, 1, 3, 5, 6, and even multi-RAID 50, 60, and 100 if you have enough drives.
It's obvious the 8050T3 isn't going to be for everyone, the price alone pretty much eliminates it from consumer use. That said, enthusiasts and prosumers that work with 4K, 5K, and 8K video with multiple 4K screens will love the amazing amount of throughput you can push through the brilliant-performing Areca ARC-8050T3.
![TweakTown award TweakTown award](https://www.tweaktown.com/images/awards/badge_performance.png)
Performance | 100% |
Quality | 95% |
Features | 93% |
Value | 90% |
Overall | 95% |
The Bottom Line: Areca's ARC-8050T3 is hands down the quickest Thunderbolt 3 DAS solution to cross my desk. For media professionals and enthusiasts, this solution is a life changer.
