Drobo 5N2 Five-Bay NAS Review

Drobo 5N2 Five-Bay NAS Review

Today's focus is on Drobo's 5N2 Five-Bay NAS, an upgrade over previous models in terms of features and performance, and one to consider.

@TylerBernath
Published Tue, May 16 2017 10:35 AM CDT   |   Updated Thu, Jul 30 2020 4:20 PM CDT
Rating: 90%Manufacturer: Drobo

Introduction

Drobo 5N2 Five-Bay NAS Review 02 | TweakTown.com
VIEW GALLERY - 27 IMAGES

Over the years, I have had a few Drobo products come through. Most recently we looked at the 5C, the latest DAS from Drobo. Today, we switch gears over to the network storage market and look at the latest NAS appliance, the 5N2.

The 5N2 is the latest generation of network appliance from Drobo. At first glance, this solution looks exactly like any other tower appliance from Drobo and even digging in, the entire enclosure, apart from the rear I/O, is nearly identical to the 5D, 5C, and 5N. The Drobo design which they have held onto throughout the years is iconic of the brand.

One of the largest features of Drobo is BeyondRAID, leveraging this you can mix and match drive sizes and perform on-the-fly drive swaps if you want to increase capacity or if you have the misfortune of having a drive fail. Over the years, Drobo has added to the feature list now offering apps through the myDrobo platform and backup via Time Machine and Windows Backup. Remote Replication is handled via Drobo Sync.

Drobo 5N2 Five-Bay NAS Review 03 | TweakTown.com

Specifications for the Drobo 5N2 start off with connectivity via its 2x Gigabit Ethernet ports. Drives are handled via the five tool-free bays on the front of the unit. Supported solutions include 3.5" SATA II and III HDDs and SSDs. On the bottom of the unit, you will find an mSATA slot used for caching. The 5N2 supports CIFS, SMB, and AFP for data access with power fail protection and a Kensington lock port for security.

System support includes OS X 10.10 and above along with Windows 7 and up. The MSRP of the Drobo 5N2 comes in at $499.99 with a two-year warranty.

Drobo 5N2 NAS Appliance

Packaging and a Closer Look

Drobo 5N2 Five-Bay NAS Review 10 | TweakTown.com

The 5N2 is featured right on the front of the box artwork. To the right, we have features listed and below compatibility and connectivity.

Drobo 5N2 Five-Bay NAS Review 11 | TweakTown.com

The backside of the box gives a solid comparison between all current Drobo models.

Drobo 5N2 Five-Bay NAS Review 12 | TweakTown.com

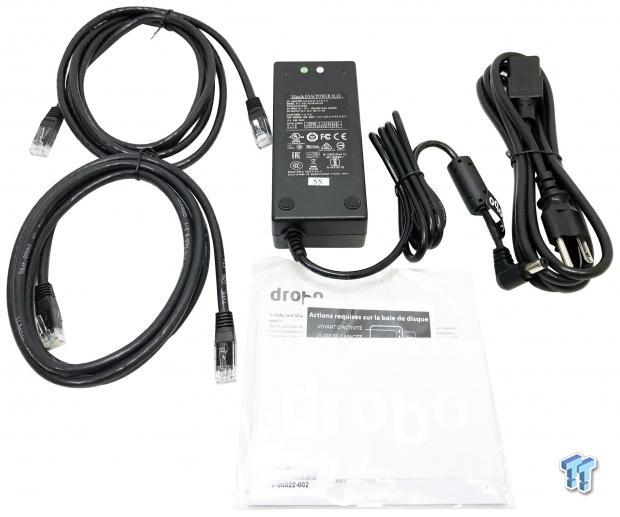

The scope of delivery includes two Ethernet cables, the power adapter, and reading materials.

Drobo 5N2 Five-Bay NAS Review 13 | TweakTown.com

Like previous Drobo appliances, the 5N2 came packaged in a carrying bag.

Drobo 5N2 Five-Bay NAS Review 14 | TweakTown.com

Above, we have our first look at the 5N2. Across the bottom, we have a series of LEDs for power and status.

Drobo 5N2 Five-Bay NAS Review 15 | TweakTown.com

The rear I/O is quite clean for a NAS, consisting of two Gigabit Ethernet ports and a power input. The large rocker switch is the power button.

Drobo 5N2 Five-Bay NAS Review 16 | TweakTown.com

Removing the front cover, we reveal all five drive bays. These are tool-less bays that do not even need trays. Your drives just slide in and lock with the gray clips on the left.

Drobo 5N2 Five-Bay NAS Review 17 | TweakTown.com

For this review, we are using Seagate IronWolf Pro 6TB NAS drives.

Test System Setup and Management

Tyler's NAS Test System Specifications

Drobo 5N2 Five-Bay NAS Review 20 | TweakTown.com

The 5N2 uses the Drobo Dashboard for setup and configuring. To start this process, we first sign up for a Drobo support account.

Drobo 5N2 Five-Bay NAS Review 21 | TweakTown.com

Here we have the landing page for the 5N2. As you can see to the right, Dashboard has found our 5N2, and it is unlocked ready to go.

Drobo 5N2 Five-Bay NAS Review 22 | TweakTown.com

Status gives us an overview of the 5N2, including installed drives to the far right and further details on firmware and uptime in the center.

Drobo 5N2 Five-Bay NAS Review 23 | TweakTown.com

Going to the Network information tab, we see the MAC, IP Address and currently active port speed and duplex.

Drobo 5N2 Five-Bay NAS Review 24 | TweakTown.com

Moving on, we look at the capacity menu. This shows us a breakdown of the current volume. We have 16TB available for data with 5.6 used for data protection.

Drobo 5N2 Five-Bay NAS Review 25 | TweakTown.com

To access the data on the 5N2, you need to create shares. Above, I have created and mounted a Public share for testing.

Drobo 5N2 Five-Bay NAS Review 26 | TweakTown.com

Drobo Apps are listed by category. These categories include cloud and remote access, entertainment and media along with network and system applications.

Drobo 5N2 Five-Bay NAS Review 27 | TweakTown.com

In the tools menu, you will find the ability to control the lights on the NAS along with reset and updating the firmware.

Drobo 5N2 Five-Bay NAS Review 28 | TweakTown.com

Drobo Settings gives you access to the redundancy settings. Here you can switch from dual to single along with controlling disk spin down.

Drobo 5N2 Five-Bay NAS Review 29 | TweakTown.com

Network settings allow you to configure the name and workgroup along with the interface and NIC bonding.

Benchmarks – NASPT, ATTO, and CDM

Drobo 5N2 Performance

HD Video Play - 720p HD stream from Windows Media Player, 256kB reads

2HD Video Play - 2x playback

4HD Video Play - 4x playback

HD Video Record - 720p HD stream, 256kB writes

File Copy from NAS - 4GB file copy, 64kB reads

File Copy to NAS - 64kB writes

The Drobo 5N2 is not directly comparable to any other NAS I have tested due to the lack of iSCSI. In my conventional testing, I would use iSCSI to achieve the highest levels of performance from the appliance or the Drobo I used a mapped network drive.

Drobo 5N2 Five-Bay NAS Review 30 | TweakTown.com

Starting things off we have Intel NASPT, a staple of NAS testing for most. As you can see, I did test both redundancy modes and found very little performance hit to be taken. At the peak, this solution could hit 114 MB/s in playback with the lowest performance coming from File Copy to the NAS at 52 MB/s.

Drobo 5N2 Five-Bay NAS Review 31 | TweakTown.com

ATTO Disk Benchmark was up next and it gives us an idea of the sequential performance of the NAS. At the peak, we are seeing 118 MB/s read at 128K and write performance was steady at 117 MB/s from 256K through 1M.

Drobo 5N2 Five-Bay NAS Review 32 | TweakTown.com

NAS Performance Tester simply throws single large file sizes at the NAS to test performance with a large amount of data. As you can see above, read performance starts off a touch under 100 MB/s but quickly takes off reaching a peak of 114 MB/s. Write performance from the start is at 115 MB/s and hold that throughout the test.

Drobo 5N2 Five-Bay NAS Review 33 | TweakTown.com

Looking at dual redundancy, we have similar performance. Read start off at 87 MB/s reaching a peak of 112 MB/s while write starts at 117 MB/s and holds.

Drobo 5N2 Five-Bay NAS Review 34 | TweakTown.com

Last, we have a couple of charts for CrystalDiskMark. Read performance at QD1 hovers around 110 MB/s read and 93 MB/s write while QD32 increases that to 118 MB/s read and 117.5 MB/s write.

Drobo 5N2 Five-Bay NAS Review 35 | TweakTown.com

Dual redundancy doesn't affect the 5N2 much at all, results here were similar at 117 MB/s read and write.

Final Thoughts

Drobo 5N2 Five-Bay NAS Review 10 | TweakTown.com

I spent a good amount of time with the 5N2 for this review and found the build quality is equal to the 5C at the very least and overall quite good. The enclosure is designed to be durable while also a work of art for your desktop with its lighting. The only downfall for the enclosure is the glossy front panel and it's not that it doesn't look good because it does. The problem comes from the amount of dirt and dust that instantly attract to it upon removal of the protective film.

The software or rather dashboard works as smoothly as it ever has. From the 5D to 5C and now my time with the 5N2, I haven't had trouble setting up or configuring a Drobo appliance, largely due to the ease of use of the Dashboard app. As you saw if you read page three, the dashboard includes a wealth of information on the appliance along with the structure to install apps and manage storage capacity and redundancy.

Performance, while I only used a single connection, was top notch. In everything I could throw at it with the absence of iSCSI, the unit provided consistent results. Sequential performance stayed around 118 MB/s while write was 117 MB/s, and this proved true for both single and dual redundancy. To single out of a few areas where this solution excels, I would say between 64K and 2M read and 64K and 1M write.

The Drobo 5N2 does require you to commit to an ecosystem as BeyondRAID much like any other hybrid storage technology is proprietary to Drobo itself. With that said, the Drobo ecosystem isn't massive, so you won't have a ton of options for an upgrade, but they do offer solid support and warranty.

TweakTown award
Performance88%
Quality95%
Features90%
Value85%
Overall90%

The Bottom Line: Drobo's 5N2 is a slight upgrade over the original 5N in terms of performance and more is to be had if you have the network infrastructure in place to take advantage of NIC bonding.
