Palit GeForce GTX 470 Dual Fan Video Card

It's Palits time to attack the GTX 470 with a new cooler. Let's see how well it stands out against the reference design.
@ShawnBakerTW
Published Mon, May 24 2010 10:38 AM CDT   |   Updated Fri, Sep 18 2020 10:50 PM CDT
Rating: 90%Manufacturer: Palit

Introduction




Palit GeForce GTX 470 Dual Fan Video Card 02 | TweakTown.com
VIEW GALLERY - 35 IMAGES


First it was Galaxy and now it's Palit. It wasn't going to take long for companies to attack the GTX 470 with new cooling solutions and it's clear that companies are ready to rock and roll when it comes to the baby GTX 400 at the moment; the GTX 470.

With the GTX 460 just around the corner it's great to see that companies are still able to put some time aside to fix some of the earlier issues we have had with the GTX 470 and GTX 480. The good news is that it doesn't seem like companies are going to sleep once they've finished with the GTX 470 with most saying that they're already working on the GTX 480 and while most have said we won't see this model pre-Computex, we've got our fingers crossed that we'll see some early revisions of the models there.

Enough about the GTX 480, though; today we're looking at the GTX 470 from Palit. Let's have a look at the package first before we have a closer look at the card itself and see what the card is carrying in the cooling department. Once that's done we'll have a closer look at the specifications before getting stuck into the performance.

The Package




Palit GeForce GTX 470 Dual Fan Video Card 03 | TweakTown.com


Palit GeForce GTX 470 Dual Fan Video Card 04 | TweakTown.com


Palit GeForce GTX 470 Dual Fan Video Card 05 | TweakTown.com


Palit GeForce GTX 470 Dual Fan Video Card 06 | TweakTown.com


Looking at the package, it's clear that nothing has changed much when it comes to Palit with the contents as usual being on the light side of things. The only standout point of the bundle would be the inclusion of the "free apps". We use quotation marks due to the simple fact that these two programs can be downloaded for free, so it's not a huge addition to the package.

The Card and Specifications


The Card

Palit GeForce GTX 470 Dual Fan Video Card 07 | TweakTown.com


Palit GeForce GTX 470 Dual Fan Video Card 08 | TweakTown.com


Palit GeForce GTX 470 Dual Fan Video Card 09 | TweakTown.com


Palit GeForce GTX 470 Dual Fan Video Card 10 | TweakTown.com


Looking at the card, you can clearly tell it's different to the standard GTX 470 with Palit opting for a dual fan design. The card is a dual slot one and hopefully the extra fan will keep the temperature of the model down while not being as loud. Connectivity might be a bit confusing with the addition of a DisplayPort connector. Don't get any ideas about Surround Gaming off a single card, though.


Specifications

Palit GeForce GTX 470 Dual Fan Video Card 01 | TweakTown.com


Why Palit would not only delay the release of this model, but also spend the time making a new cooler for it only to then deny it of a factory overclock is simply beyond me. What this means is that the core comes in at 608MHz, the Shader clock at 1215MHz and the 1280MB of GDDR5 memory at 3348MHz QDR.

Test System Setup and 3DMark Vantage


Palit GeForce GTX 470 Dual Fan Video Card 99 | TweakTown.com


We would like to thank the following companies for supplying and supporting us with our test system hardware and equipment: Intel, ASRock, Kingston, Western Digital, Noctua and Thermaltake.

Today we've thrown a few cards into the mix including the reference GTX 470, GIGABYTEs GTX 480 and the HD 5870 for good measure. The only difference between the two GTX 470s we're testing today is the driver used. The reference card is based on the original sample driver

Let's get started!


3DMark Vantage

Version and / or Patch Used: 1.0.1
Developer Homepage: http://www.futuremark.com
Product Homepage: http://www.futuremark.com/products/3dmarkvantage/
Buy It Here




3DMark Vantage is the new industry standard PC gaming performance benchmark from Futuremark, newly designed for Windows Vista and DirectX10. It includes two new graphics tests, two new CPU tests, several new feature tests, and support for the latest hardware.

3DMark Vantage is based on a completely new rendering engine, developed specifically to take full advantage of DirectX10, the new graphics API from Microsoft.

Palit GeForce GTX 470 Dual Fan Video Card 20 | TweakTown.com


With the default clocks used the performance numbers are as you would expect.

Unigine Heaven Benchmark




Version and / or Patch Used: 1 and 2
Developer Homepage: http://www.unigine.com
Product Homepage: http://unigine.com/press-releases/091022-heaven_benchmark//



New benchmark grants the power to unleash the DirectX 11 potential in the gift wrapping of impressively towering graphics capabilities. It reveals the enchanting magic of floating islands with a tiny village hidden in the cloudy skies. With the interactive mode emerging experience of exploring the intricate world is ensured within reach. Through its advanced renderer, Unigine is one of the first to set precedence in showcasing the art assets with tessellation, bringing compelling visual finesse, utilizing the technology to the full extend and exhibiting the possibilities of enriching 3D gaming.

Note: If a card doesn't support DirectX 11 the benchmark will be left out, if it does it will be included along with the DirectX10 results.

Palit GeForce GTX 470 Dual Fan Video Card 21 | TweakTown.com


We again see no difference between the two GTX 470s. As for the performance against the HD 5870, there's no denying that performance is strong under the Heaven V2 benchmark.

Benchmarks - CINEBENCH


CINEBENCH

Version and / or Patch Used: Release 10 and Release 11.5
Developer Homepage: http://www.maxon.net/
Product Homepage: http://www.maxon.net




CINEBENCH is a real-world test suite that assesses your computer's performace capabilities. MAXON CINEBENCH is based on MAXON's award-winning animation software, CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation. MAXON software has been used in blockbuster movies such as Spider-Man, Star Wars, The Chronicles of Narnia and many more.

MAXON CINEBENCH runs several tests on your computer to measure the performance of the main processor and the graphics card under real world circumstances. The benchmark application makes use of up to 16 CPUs or CPU cores and is available for Windows (32-bit and 64-Bit) and Macintosh (PPC and Intel-based).

Palit GeForce GTX 470 Dual Fan Video Card 22 | TweakTown.com


R10 performance seems a little down; R11.5 performance is as we would expect it.

Benchmarks - Resident Evil 5


Resident Evil 5

Version and / or Patch Used: Demo Benchmark
Developer Homepage: www.residentevil.com/
Product Homepage: http://www.residentevil.com/




Resident Evil 5 is a survival horror video game developed and published by Capcom. The game is the seventh installment in the Resident Evil survival horror series, and was released on September 18. Resident Evil 5 revolves around Chris Redfield and Sheva Alomar as they investigate a terrorist threat in Kijuju, a fictional town in Africa.

Palit GeForce GTX 470 Dual Fan Video Card 23 | TweakTown.com


No difference again between the two cards; it seems the updated driver hasn't done much for the model.

Benchmarks - BattleForge


BattleForge

Version and / or Patch Used: Auto Patched at Load
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.battleforge.com/
Product Homepage: http://www.battleforge.com/





The Gods have disappeared and the old sun has died, letting a vile twilight engulf the world of Nyn. In exchange for all treasures the mortals possessed, the evil giants agreed to forge a new sun and hurl it into the sky.

But the deal was betrayed, the treasure stolen and now the mortals flee the wrath of the giants. Under the light of a new sun the mortals stumble into a world changed and twisted by an age of twilight. The long journey home has become a conquest of survival.

Note: Supporting DirectX 11 we have seperated the graphs for NVIDIA and ATI cards. While the numbers between the two brands can be compared you have to make note that ATI based HD 5000 series cards are running DirectX 11.

Palit GeForce GTX 470 Dual Fan Video Card 24 | TweakTown.com


BattleForge paints the same picture except here we can see the numbers between the two cards are identical.

Benchmarks - Tom Clancy's H.A.W.X.


Tom Clancy's H.A.W.X.

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.ubi.com/UK/default.aspx
Product Homepage: http://www.hawxgame.com/





Tom Clancy's H.A.W.X is an arcade-style flight simulator video game developed by Ubisoft Romania and published by Ubisoft for Microsoft Windows, Xbox 360, PlayStation 3, and iPhone OS.

The fundamental gameplay mechanics are similar to those of other console-based flight series. Players take on enemies with over 50 aircraft available. Each mission is at real world locations in environments created with commercial satellite data. A cockpit, first person, and third person view are selectable. The third person view gives the player an external view of both their plane and the target.

Set above the skies of a near-future world, increasingly dependent on private military companies with elite mercenaries who have a relaxed view on the law. As these non-governmental organizations gain power, global conflict erupts with one powerful PMC attacking the United States.

Palit GeForce GTX 470 Dual Fan Video Card 25 | TweakTown.com


The new driver gives a boost under H.A.W.X.

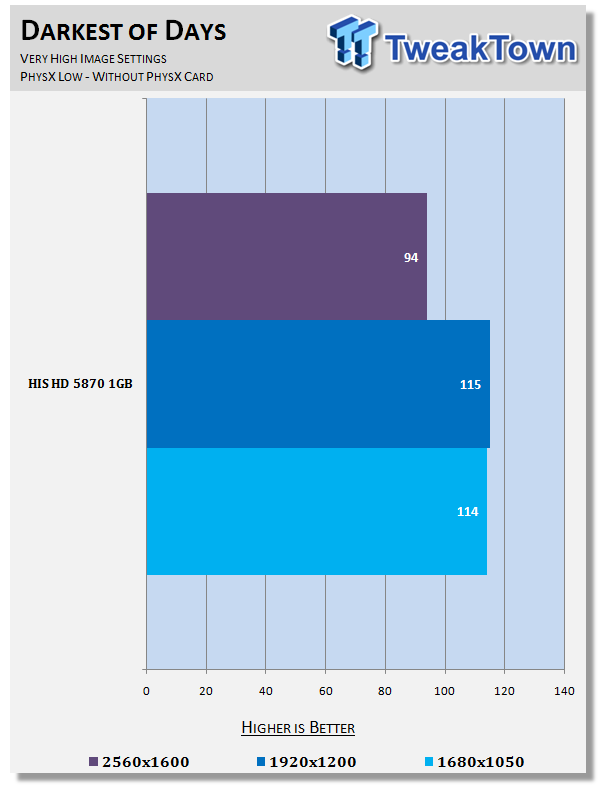

Benchmarks - Darkest of Days


Darkest of Days

Version and / or Patch Used: 1.4
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.darkestofdays.com/index.php
Product Homepage: http://www.darkestofdays.com/index.php





Darkest of Days takes the player through time into historic battles in an effort to save key individuals from certain death. The battles range from Custer's Last Stand at the Battle of the Little Bighorn in 1876 to fighting in Pompeii as ash and fire rain down from an erupting Mt. Vesuvius in 79 AD. Other locations include the battles of Antietam and Tannenberg, and a German World War II P.O.W. camp. There are different missions in every time period and the game takes about 4 hours to complete.

The game features over twenty weapons, both from the original time period as well as those brought back from the future. In addition, there are artillery weapons from different time periods to assist in battle.

Note: With the PhysX set to Medium or High Darkest of Days take advantage of the NVIDIA PhysX abilities. For that reason we will test ATI cards at the Low preset, NVIDIA based cards though will be tested at Low and High.

Palit GeForce GTX 470 Dual Fan Video Card 26 | TweakTown.com


Palit GeForce GTX 470 Dual Fan Video Card 27 | TweakTown.com


DOD performance, as always is a little wobbly; nothing to be worried about, though.

Benchmarks - Far Cry 2


Far Cry 2

Version and / or Patch Used: 1.01
Timedemo or Level Used: Ranch Long
Developer Homepage: http://www.ubi.com/
Product Homepage: http://www.farcry2.com/
Buy It Here




The Dunia Engine was built specifically for Far Cry 2 by the award-winning Ubisoft Montreal development team. It delivers the most realistic destructible environments, amazing special effects such as dynamic fire propagation and storm effects, real-time night-and-day cycle, dynamic music system, non-scripted enemy A.I. and so much more.

Palit GeForce GTX 470 Dual Fan Video Card 28 | TweakTown.com


FC2 performance between the two cards is fairly spot on.

Benchmarks - Batman Arkham Asylum


Batman Arkham Asylum

Version and / or Patch Used: 1.1
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.batmanarkhamasylum.com/
Product Homepage: http://www.batmanarkhamasylum.com/





Batman: Arkham Asylum exposes players to a unique, dark and atmospheric adventure that takes them to the depths of Arkham Asylum - Gotham's psychiatric hospital for the criminally insane. Gamers will move in the shadows, instigate fear amongst their enemies and confront The Joker and Gotham City's most notorious villains who have taken over the asylum.

Using a wide range of Batman's gadgets and abilities, players will become the invisible predator and attempt to foil The Joker's demented scheme.
Batman: Arkham Asylum features an original story penned exclusively for the game by famous Batman author and five-time Emmy award winner Paul Dini, whose credits include Lost season one and Batman: The Animated Series.

Note: With support for PhysX NVIDIA based cards will be tested with the technology on and off, ATI cards will be tested with the technology off due to it not being supported on their cards.

Palit GeForce GTX 470 Dual Fan Video Card 29 | TweakTown.com


Palit GeForce GTX 470 Dual Fan Video Card 30 | TweakTown.com


Performance is a little up and down, but really it's nothing more than a bit of fluctuation.

Benchmarks - Dark Void


Dark Void

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.airtightgames.com
Product Homepage: http://www.darkvoidgame.com/




The game's story takes place during World War II and centers around a cargo pilot named William Augustus Grey (voiced by Nolan North) who is teleported to another world while flying through the Bermuda Triangle. In this world, known as the 'Void', Will encounters an alien race as well as other humans, which are known as the Watchers and the Survivors respectively.

Will reluctantly joins the Survivors who are engaged in a feud with the alien race to satisfy his desire to return to Earth. While aiding the Survivors, Will discovers that the Void is a middle ground that connects both the Watchers homeworld and Earth. It also becomes apparent that the Watchers are supplying the Axis powers with various supplies for reasons unknown. With the help of Nikola Tesla, Will utilizes retrofited Watcher technology to combat the Watchers and eventually find a way to escape the Void.

Palit GeForce GTX 470 Dual Fan Video Card 31 | TweakTown.com


Palit GeForce GTX 470 Dual Fan Video Card 32 | TweakTown.com


Dark Void sees the same bit of fluctuation between the two cards.

Benchmarks - High Quality AA and AF


High Quality AA and AF

Our high quality tests let us separate the men from the boys and the ladies from the girls. If the cards weren't struggling before they will start to now.


Far Cry 2

Palit GeForce GTX 470 Dual Fan Video Card 33 | TweakTown.com


Nu surprises when it comes to Far Cry 2.


Resident Evil 5

Palit GeForce GTX 470 Dual Fan Video Card 34 | TweakTown.com


Nothing but a bit of fluctuation here.


Tom Clancy's H.A.W.X.

Palit GeForce GTX 470 Dual Fan Video Card 35 | TweakTown.com


Like our non AA tests, H.A.W.X. sees a nice little boost in performance with the latest drivers.

Benchmarks - Elcomsoft Wireless Security Auditor


Elcomsoft Wireless Security Auditor

Version and / or Patch Used: 1.51
Timedemo or Level Used: Sample File
Developer Homepage: http://www.elcomsoft.com/
Product Homepage: http://www.elcomsoft.com/ewsa.html




ElcomSoft has pioneered many software innovations that have made it easier to recover passwords protecting various types of resources. For the first time in the industry, the company's patent-pending GPU acceleration makes its way into Wi-Fi password recovery, reducing the time required to recover Wi-Fi passwords up to a hundred times.

Supporting up to four NVIDIA boards such as GeForce 8, 9, and 200, as well as ATI video cards such as RADEON HD 4000 Series and up, Elcomsoft Wireless Security Auditor allows building servers with supercomputer performance at a fraction of the price.

Palit GeForce GTX 470 Dual Fan Video Card 36 | TweakTown.com


WSA performance went up with the new driver; you can see compared to the old stock one it's a lot more impressive.

Benchmarks - Badaboom


Badaboom

Version and / or Patch Used: Release 1.2.1.7
Developer Homepage: http://www.nvidia.com//
Product Homepage: http://www.badaboomit.com/




Badaboom eliminates the frustration of video conversion by providing users with speed, efficiency, quality, and a sleek interface. In a practice that used to take several hours, Badaboom converts feature-length movies in a matter of minutes while keeping the videos looking crisp and clear.

By harnessing the power of NVIDIA CUDA-enabled GPUs, Badaboom offloads the CPU to allow users to continue browsing the Internet or checking email without decreased system performance, making transcoding high-quality video fast, easy, and painless.

Note: With the requirement for a CUDA enabled graphics card to run Badaboom, this means that we can only use NVIDIA based cards for this test.

Palit GeForce GTX 470 Dual Fan Video Card 37 | TweakTown.com


No surprises under Badaboom with performance sitting just where we would expect.

Temperature and Sound Tests


Temperature Tests



With the TES 1326 Infrared Thermometer literally in hand we found ourselves getting real-world temperatures from the products we test at load (3D clock speeds).

There are two places we pull temperature from - the back of the card directly behind the core and if the card is dual slot and has an exhaust point we also pull a temperate from there, as seen in the picture.

Palit GeForce GTX 470 Dual Fan Video Card 38 | TweakTown.com


While still a warm card, it's only slightly warmer than the Galaxy card and a good chunk cooler than the reference model.


Sound Tests



Pulling out the TES 1350A Sound Level Meter we find ourselves quickly yelling into the top of it to see how loud we can be.

After five minutes of that we get a bit more serious and place the device two CM away from the fan on the card to find the maximum noise level of the card when idle (2D mode) and in load (3D mode).

Palit GeForce GTX 470 Dual Fan Video Card 39 | TweakTown.com


At load the card is a little louder than the Galaxy, but it's much quieter than the reference one. The good news is its idle noise is lower than the Galaxy which is always most appreciated.

Power Consumption Tests






Using our new PROVA Power Analyzer WM-01 or "Power Thingy" as it has become quickly known as to our readers, we are now able to find out what kind of power is being used by our test system and the associated graphics cards installed. Keep in mind; it tests the complete system (minus LCD monitor, which is plugged directly into AC wall socket).

There are a few important notes to remember though; while our maximum power is taken in 3DMark06 at the same exact point, we have seen in particular tests the power being drawn as much as 10% more. We test at the exact same stage every time; therefore tests should be very consistent and accurate.

The other thing to remember is that our test system is bare minimum - only a 7,200RPM SATA-II single hard drive is used without CD ROM or many cooling fans.

So while the system might draw 400 watts in our test system, placing it into your own PC with a number of other items, the draw is going to be higher.

Palit GeForce GTX 470 Dual Fan Video Card 40 | TweakTown.com


Power draw is exactly where you would expect with the model.

Total Performance Rating (TPR)


Total Performance Rating

The TPR graph is a combination of all our benchmarks in which NVIDIA and ATI are on an even playing field. This includes benchmarks where PhysX can be forced off like Dark Void and Batman: Arkham Asylum, but not Darkest of Days.

The TPR number is a combination of:

3DMark Vantage, Heaven Benchmark V2, CINEBENCH R11.5, Resident Evil 5, BattleForge, Tom Clancy's H.A.W.X., Far Cry 2, Batman: Arkham Asylum (PhysX Off), Dark Void (PhysX Off) and our three High Quality tests which include Far Cry 2, Resident Evil 5 and Tom Clancy's H.A.W.X.

All of the benchmark results achieved are then combined into a single number. As this graph will grow over time and cards won't be re-tested, next to each model you'll find the driver version that was used when the card was benchmarked.

Palit GeForce GTX 470 Dual Fan Video Card 41 | TweakTown.com


The overall performance is slightly better with the reference one which lets us know that the driver is slightly better. The extra numbers would mainly be coming from H.A.W.X, though.

Total Value Rating (TVR)


Total Value Rating

The TVR graph is the TPR score divided by the price of the video card. The price of the video card is based on the list price of the model on Newegg.com. In the event the card isn't listed, it will be based on the U.S. $ MSRP given to us by the manufacturer.

In the event we can't source a price from either, the product will not receive a TVR rating. As with our TPR graph, the amount of video cards on the list will grow over time and the price of the model won't change from what it was when first reviewed. For this reason the U.S. $ price that the card is based off will be included next to the name of the model.

In the event you want to find the TVR rating yourself based on the current price, all you have to do is simply divide the TPR number by the list price.

TVR numbers are rounded to the nearest whole number; 100.3 will be 100; 100.8 will be 101 and 100.5 will be rounded down to 100.

Palit GeForce GTX 470 Dual Fan Video Card 42 | TweakTown.com


The hyper aggressive pricing on the GTX 470 Palit offering makes it the best valued GTX 470 we've tested. If overclocked the value would go through the roof.

Final Thoughts




Like the Galaxy GTX 470 we looked at just recently, the Palit version does a good job of bringing down our two biggest pet peeves with the model; noise and heat. The only real issue we have with the model is the lack of an overclock, As always, though, it's safe to say that in the near future we'll see a Sonic version of the model. None the less, it would've been nice to see a bit more power on offer from a bump in clock speeds.

On the bundle front it's very Palit due to it being pretty bare. In saying that, though, it's nothing new for the simple reason that Palit tends to be one of the cheapest cards on the market.

Again, though, we're looking at a GTX 470 only a few weeks after launch that cools a lot better than the standard model. We have to wonder why a company like Palit was able to attack the card so quickly with a new cooler, yet NVIDIA couldn't.

For some, cooling and noise won't be an issue, while for others it's a deal breaker. The good news is if you like the GTX 470, but not the heat and the noise, options are now becoming available which make the model a lot more attractive for some.

The Palit GTX 470 is a great starting point for the company and the model; what we're looking forward to is seeing what happens with the Sonic version that will no doubt carry with it an overclock and hopefully something that will be able to give us a nice little boost in performance.

If you want to get away from the stock GTX 470 the Palit version is one worth looking at. As always, it carries with it a more attractive price point which is super appreciated when you're spending big bucks on video card.

At $330 this is a fantastic valued GTX 470. Some companies are selling the reference design for more. We have to ask; why would you buy that over this one?

Palit do what they do best; bring a model people want to the market at a price they're willing to pay. Considering we know the OC potential of the GTX 470, the model is becoming more and more mouth watering as time goes on.

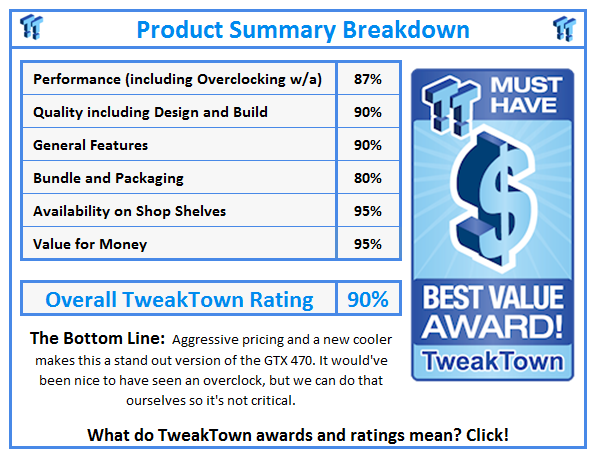

What do TweakTown.com awards mean? Click for details!

PRICING: You can find products similar to this one for sale below.

USUnited States: Find other tech and computer products like this over at Amazon.com

UKUnited Kingdom: Find other tech and computer products like this over at Amazon.co.uk

AUAustralia: Find other tech and computer products like this over at Amazon.com.au

CACanada: Find other tech and computer products like this over at Amazon.ca

DEDeutschland: Finde andere Technik- und Computerprodukte wie dieses auf Amazon.de

Shawn takes care of all of our video card reviews. From 2009, Shawn is also taking care of our memory reviews, and from May 2011, Shawn also takes care of our CPU, chipset and motherboard reviews. As of December 2011, Shawn is based out of Taipei, Taiwan.

We openly invite the companies who provide us with review samples / who are mentioned or discussed to express their opinion. If any company representative wishes to respond, we will publish the response here. Please contact us if you wish to respond.

Related Tags

Newsletter Subscription
Latest News
View More News
Latest Reviews
View More Reviews
Latest Articles
View More Articles
