JEDEC pushes DDR5 server memory to 12,800 MT/s with new MRDIMM Gen2 standard for AI and data center workloads

JEDEC's JC-40 and JC-45 committees have announced a major new step for the DDR5 MRDIMM ecosystem, a memory standard introduced a few years ago to support bandwidth-intensive data workloads. The MRDIMM Gen2 module standard is nearing completion and targets up to 12,800 MT/s. JEDEC has also published a new DDR5 multiplexed-rank data buffer standard and is preparing a matching clock driver standard.

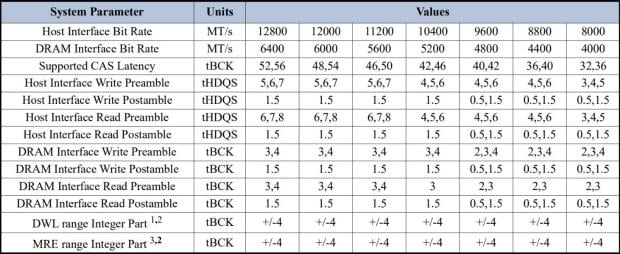

The headline performance number is the 12,800 MT/s target for Gen2 DDR5 MRDIMM raw card designs. First-generation DDR5 MRDIMM platforms currently top out at 8,800 MT/s, which means the new spec is roughly 45% faster. Standard consumer DDR5 tops out at a considerably lower frequency under JEDEC specs, even with CUDIMMs.

3

The standards progress behind that number is equally important. The newly published JESD82-552 DDR5MDB02 Multiplexed Rank Data Buffer standard defines next-generation data-buffer capabilities and improved scalability for MRDIMM architectures. JEDEC is also preparing specifications for the DDR5 Multiplexed Rank Registering Clock Driver, which will improve signal integrity and timing control in MRDIMM module designs. Together, these two standards are expected to finalize the MRDIMM Gen2 specification.

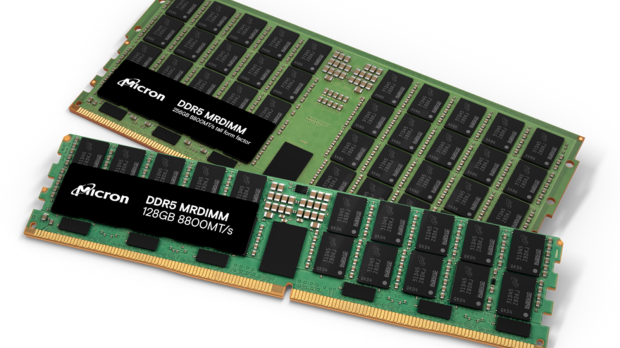

Gamers shouldn't get too excited, though. MRDIMM is not the kind of RAM you'll be using in your gaming PCs. These modules are developed for servers, AI systems, and high-performance computing workloads where memory bandwidth is a higher priority than latency. Unlike typical desktop UDIMMs, they use a multiplexing register and buffers to enable two memory ranks to operate simultaneously on a single DIMM, effectively doubling the data transferred per memory channel. This makes them suitable for modern Xeon and EPYC systems that feed large datasets to AI accelerators, not for AM5 or LGA1851 desktop builds.

3

Still, there's a silver lining for gamers. The technology is being built for the exact segment where memory pressure is rising fastest, and server memory standards have a history of trickling down over time. CUDIMMs are already an example of that, bringing clock drivers onto the DIMM itself to stabilize faster signals, a concept that originated in server memory design.

Whether MRDIMM eventually influences consumer standards remains to be seen, but the JC-45 committee is already planning MRDIMM Gen3, targeting 17,600 MT/s, so the roadmap is moving quickly regardless.
