QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM

Is your NAS starting to feel a bit slow, or file transfers getting slower? Tyler runs you through the procedure for upgrading the memory in your QNAP NAS.

Tyler Bernath | Sep 19, 2014 at 6:05 pm CDT - 3 mins, 45 secs time to read

Guide: Increase the RAM in your QNAP NAS

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 03 | TweakTown.com

As most of you know, when you purchase your very first QNAP NAS, most of the units come with upgradeable memory. While the procedure to upgrade the memory will differ by model, in the most basic of terms, this article will serve as a general guide to upgrading memory. The NAS we are using today is the QNAP TS-451.

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 04 | TweakTown.com

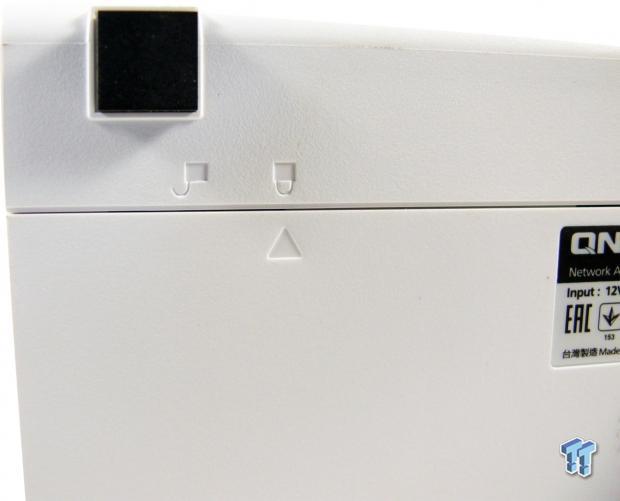

The TS-451 is the first NAS I have seen from QNAP to offer an easy solution to opening up the enclosure for the memory upgrade procedure.

On older NAS units or Pro models with the metal casing, you will want to start off by pulling all the screws off the rear panel.

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 05 | TweakTown.com

For the TS-451, you will need to pull a few screws to release the rear panel, of course they have put the warranty void sticker over the chassis at bottom left in the image.

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 06 | TweakTown.com

Once you get your NAS open, it will look similar to this. The drive cage is almost always in the way when trying to upgrade memory, so we will start by removing a few screws to get at the motherboard.

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 07 | TweakTown.comQNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 08 | TweakTown.comQNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 09 | TweakTown.com

Seen above are the screws you will need to remove to get at the motherboard for the TS-451. On NAS systems like the TS-470 and other with the metal chassis design, I always found it easier to go at it by removing the motherboard from the chassis.

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 10 | TweakTown.com

We have finally reached the motherboard in our TS-451, and as you can see QNAP has left a memory slot open for us to upgrade.

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 11 | TweakTown.com

Over the past few years, I have had a lot of NAS appliances and every one of them has, at one point in time, went through the upgrade process. While I do believe QNAP offers memory upgrades for each of their NAS appliances in their store, the best way I have found to go about this is to pull the NAS open and purchase the exact same module that is already installed.

This will help result in compatibility of both memory modules running together. In the case of our TS-451, we found a 4GB stick of ADATA DDR3L that operates at 1600MHz, so we grabbed a second.

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 12 | TweakTown.com

Before you go messing around with the motherboard, you are going to want to ground yourself and discharge any static that has built up. Take a look at the socket and see how you can go about installing the second module, for our TS-451 the memory slot is covered up by part of the motherboard tray. The metal chassis models like the TS-x69 and x70 series normally house the second slot on the back of the motherboard, making it slightly easier.

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 13 | TweakTown.com

Above, you can see I was able to snake the stick of RAM into the slot - it took some time, so be patient when trying to get it lined up.

QNAP NAS Memory Upgrade Guide - Quick tutorial on increasing your RAM 16 | TweakTown.com

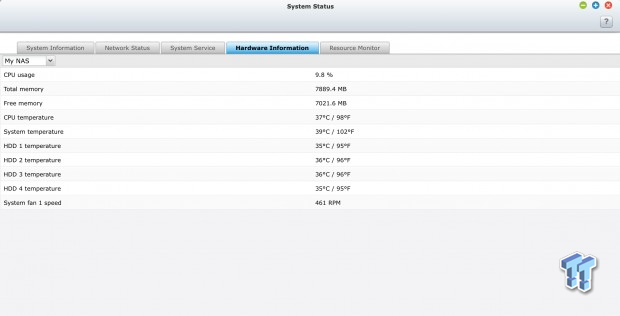

After you get your additional memory installed in your NAS, button everything back up by installing all the screws back where they came from and replacing the chassis housing. Fire up your NAS and head to the GUI to see if your newly installed capacity is being recognized. As you can see above, our TS-451 now has 8GB of RAM ready to go.

So, when should you make that decision to upgrade the memory in your NAS appliance? What I normally do is watch and log my resource use over time. If you see that your NAS is using a lot of resources running services or add-on applications, it may be time to add a second stick of memory.

Adding a second stick of memory can at times help systems with poor file transfer performance, or for those of you that use HD Station and XBMC, improve performance there as well. With new NAS appliances like the TS-451 supporting virtual machines, additional memory will aide in running those VMs, whether you choose to run a Windows or Linux OS.
