NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports

NVIDIA Reflex is a new suite of technologies that gives you detailed stats on system latency, the ultimate tool for pro gamers.

@anthony256
Published Tue, Oct 13 2020 8:00 AM CDT

Introduction

NVIDIA had some exciting news with its new Reflex technology that was unveiled during its Ampere reveal, where we learned about -- and then got to see how awesome the new GeForce RTX 3080 and RTX 3090 graphics cards were.

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 301 | TweakTown.com
VIEW GALLERY - 16 IMAGES

NVIDIA reached out and asked if I would like to play around with their new Reflex Latency Analyzer technology, which is a big part of the exciting new 360Hz (yes, 360FPS -- 360 frames per second) gaming monitors. The company sent me out everything required for the testing, and away I went.

First off, the NVIDIA Reflex Latency Analyzer is a tool that is built directly into the new wave of 360Hz G-SYNC esports displays that -- instead of requiring over $7000 worth of high-end equipment and many hours of configuration and testing -- can precisely measure your latency.

Tools used:

  • ASUS ROG Strix PG259QNR: 360Hz G-SYNC monitor
  • ASUS ROG Chakram Core gaming mouse
  • Razer DeathAdder v2 Pro
  • GeForce Experience (press version)
Buy at Amazon

MSI GeForce RTX 2080 Ti GAMING X TRIO Graphics Card

TodayYesterday7 days ago30 days ago
$1224.88$1949.00-
* Prices last scanned on 10/20/2020 at 4:06 am CDT - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission.

What is NVIDIA Reflex

NVIDIA Reflex is a suite of technologies that were built by NVIDIA to optimize, and measure system latency in competitive games. Most people won't need this -- but esports stars, game streamers, and enthusiasts will want to deep dive into this exact suite of tools.

This includes:

  • NVIDIA Reflex Low-Latency Mode - A new technology to reduce game and rendering latency by up to 50 percent. Reflex is being integrated in top competitive games including Fortnite, VALORANT, Call of Duty: Modern Warfare (2019), and Call of Duty: Warzone.
  • NVIDIA Reflex Latency Analyzer - Now built directly into G-SYNC 360Hz Esports displays! It works by detecting clicks coming from the mouse and then measures the time it takes for the resulting pixels (for example, a gun muzzle flash) to change on screen. Reflex Latency Analyzer is integrated in new 360Hz NVIDIA G-SYNC Esports displays arriving this fall from Acer, Alienware, ASUS, and MSI and supported by top esports peripherals from ASUS, Logitech, Razer, and SteelSeries. Measuring system latency has previously been extremely difficult to do, requiring over $7,000 in specialized high-speed cameras and equipment.
NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 401 | TweakTown.com

You can go for a full deep dive into NVIDIA Reflex here.

Do You Have NVIDIA Reflex?

NVIDIA Reflex isn't just locked to the latest Ampere GPUs or the now-last-gen Turing GPUs -- but it extends all the way back to the GeForce GTX 90 series graphics cards. So if you've got a GeForce GTX 90 series, GeForce GTX 10 series, GeForce RTX 20 series, or if you've been able to actually buy a GeForce RTX 30 series card -- then you have Reflex.

If you've got one of these series cards, you'll be ready for Reflex:

  • GeForce GTX 90 series
  • GeForce GTX 10 series
  • GeForce RTX 20 series
  • GeForce RTX 30 series

ASUS 360Hz G-SYNC Display

NVIDIA sent over the fastest gaming monitor in the world over to test, with the ASUS ROG Strix PG259QNR -- offering a totally next-gen dual-driver IPS panel that the company collaborated with AU Optronics on. The new dual-driver IPS panel is a next-gen IPS panel that offers super-fast, consistent response times and color levels across the entire panel -- most importantly, even at the huge 360Hz refresh rates.

The new 360Hz G-SYNC esports displays, in NVIDIA's own words: "feature the world's fastest refresh rates, hand-tuned esports settings on next-gen IPS technology, high performance Ultra Low Motion Blur (ULMB) tech for superior motion clarity, and support for the NVIDIA Reflex Latency Analyzer, a revolutionary new way to measure system latency. This faster refresh enables crystal clear visuals, extremely low system latency for faster reaction times, and the smoothest motion to keep your crosshairs on target".

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 104 | TweakTown.com
NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 105 | TweakTown.com

In the flesh... the ASUS ROG Strix PG259QNR.

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 106 | TweakTown.com

From left to right we have the power, DisplayPort, USB host, and then 2 x gaming mice plugged directly into the monitor. I'm using the ASUS ROG Chakram Core alongside the Razer DeathAdder v2 Pro gaming mice here.

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 102 | TweakTown.com
NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 103 | TweakTown.com

Setting It Up

My take on NVIDIA Reflex won't be so much about the pure statistics built into the monitor, but rather how it applies to me -- an enthusiast. I love seeing the stats of my hardware when I'm gaming, but nothing over the top.

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 13 | TweakTown.com

I like to have the CPU, RAM, GPU (temp, GPU usage, VRAM usage) stats when gaming. Nothing too much, but enough to see that my hardware is ticking along nicely. Of course, I have my FPS counter enabled in all games -- but there are times when I'm setting up a new system and would love more stats -- that's where NVIDIA Reflex steps in.

I surround myself with high refresh rate monitors, always have -- I have spent a ridiculous amount of money over the last 20 years on displays than I care to admit. But it gives me a good insight into latency in games, as I can instantly feel and recognize a lower refresh panel (say 60Hz, or even 120Hz versus 240Hz or higher).

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 14 | TweakTown.com

But at the end of the day it's not just display refresh rates, there are other point of latency that can create problems -- and in order to measure that you need $7000+ worth of equipment. NVIDIA skips all of that, providing users and benchmarkers like me with a system to measure latency without that massively expensive equipment.

NVIDIA builds in the new Reflex Latency Analyzer into the NVIDIA 360Hz G-SYNC displays, which I have here -- and will be available to consumers in the fall -- captures the entire system latency and provides a precise measure of your PC's reaction time. This makes it as accurate as a super-fast, and very expensive 1000FPS camera.

Why would you use this? To tweak and tune your gaming PC for the ultimate in response time... beyond important for competitive gamers and enthusiasts.

Latency Savings

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 501 | TweakTown.com

If you've got a higher-end graphics card like the new Ampere-based GeForce RTX 3080, then Reflex allows you to game at higher resolutions with the same, if not better responsiveness. This means that in something like Fortnite, you can play at 4K with the responsiveness of 1440p, or at 1440p with the hyper-fast responsiveness of 1080p.

If you've got NVIDIA Ultra Low Latency mode enabled, in a game that supports it -- like Valorant, then you're looking at some ridiculously low system latencies at under 12ms if you've got the right hardware.

Destiny 2 also enjoys some reductions, too.

Performance Overlay

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 13 | TweakTown.com

Now THIS is right up my alley -- NVIDIA's new Performance Overlay built into GeForce Experience, is incredible. It's a very detailed run down of what is going on with your system, and has been totally tweaked for Reflex. You can enable the Reflex option on the Performance Overlay in GFE, getting access to the following data in real-time:

  • FPS - Frames per second - the measure of throughput - not latency.
  • Render Present Latency - The time when the present call entered the queue to the time the present call was executed on the GPU.
  • Render Latency - The time from when the frame gets in line to be rendered to when the GPU completely renders the frame.
  • Reflex Monitoring Position - Rectangle monitoring coordinates.
  • Mouse Latency - Mouse peripheral latency only.
  • PC + Display Latency - Measured from the moment the mouse click is received by the OS to the end of display latency. Monitor OSD reports this.
  • System Latency - The time encompassing the whole end-to-end measurement - from the start of peripheral latency to the end of display latency (requires Reflex Latency Analyzer supported mouse). GeForce Experience reports both PC + Display and total System Latency.

Fortnite + Call of Duty: Warzone Tested

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 16 | TweakTown.com

I installed and tweaked GeForce Experience, enabled the Reflex feature in Performance Overlay in GeForce Experience -- and jumped into (to play) two games: Fortnite and Call of Duty: Warzone. After enabling all of the settings required, I would reboot between testing with Reflex and Ultra Low Latency enabled.

Some games have Reflex and Reflex Low Latency options that you need to enable, with Fortnite having Latency Markers, NVIDIA Reflex Low Latency, Latency Flash -- and for HUD options you also have Latency Debug Stats so you can get the ultimate nerd out of stats.

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 15 | TweakTown.com

In Call of Duty: Warzone you'll have to enable NVIDIA Reflex Low Latency (which has the options of being disabled, being turned ON, and then ON + BOOST).

I pumped many hours into playing Call of Duty: Warzone on the 360Hz monitor with NVIDIA Reflex Low Latency (both enabled + BOOST) and loved every moment of it. It is a ridiculous monitor at 360Hz, and no GPU hardware on the planet can handle 360FPS in Call of Duty.

But, the NVIDIA Reflex technology enabled with BOOST -- is an experience that is unmatched.

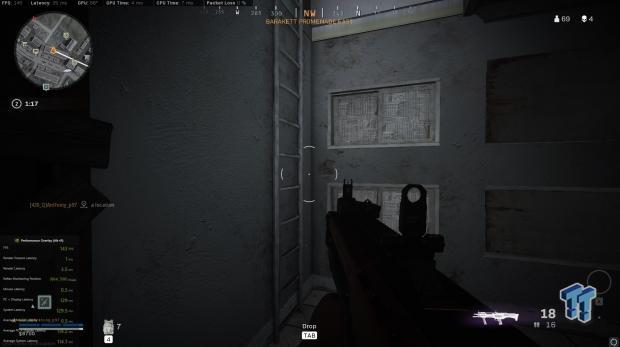

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 201 | TweakTown.com
NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 202 | TweakTown.com

As you can see, you get some glorious stats to check over. There's a lot of latency-related stuff here, giving people who want it, every single detail possible. We have everything from the Render Preset Latency through to the Average PC + Display Latency and even the total System Latency.

Seeing the Render Preset Latency sitting somewhere in the 1ms range is beautiful -- beyond describable smoothness in Call of Duty: Warzone. It's something that you need to simply try in person, I cannot describe how smooth it is. It's almost like how they describe the Matrix... you have to experience it for yourself.

Stats for Nerds FTW

NVIDIA Reflex is another great free upgrade for gamers, that gets built right into an already great foundation that is GeForce Experience. The Performance Overlay is awesome on its own, but Reflex is like steroids to your stats.

NVIDIA Reflex Latency Analyzer Preview: Very Best Tool for Esports 501 | TweakTown.com

Being able to measure and test system latency without super-expensive hardware is great -- but it is not for everyone. If you spend the money on a ridiculously fast 360Hz G-SYNC esports display, then having the Reflex Latency Analyzer built into your monitor and GFE is a Godsend.

The entire esports market is continuing to expand so testing latency becomes a much more important tool, and there are scenarios where this is a game changer. There are esports events where millions of dollars are on the table, so a new milliseconds in latency can mean the difference between a win, and a loss -- between millions of dollars and first place, and not.

In a world where we return to somewhat normal with in-person esports tournaments and events, NVIDIA now exclusively offers esports gamers and companies to deploy GeForce-powered gaming PCs with pinpoint latency. You will of course require the new 360Hz G-SYNC displays, but you would have instantly-calibrated lightning-fast latency on every PC.

This is a very big deal with NVIDIA leading in esports games, having Day One drivers, optimizations, and constant improvements to gigantic esports games like Fortnite, Apex Legends, Call of Duty: Modern Warfare, Valorant, and so many more. NVIDIA Reflex is being added to these games and that is a big deal on its own -- these games are played by 100s of millions of gamers.

I pumped in some hours of playing Call of Duty: Modern Warfare and Warzone with NVIDIA Reflex (+BOOST) on and it was liquid smooth. I don't think I've ever had something feel that smooth when gaming before, and I've tested everything right up to a 280Hz refresh monitor.

The 360Hz dual-driver IPS panel mixed with NVIDIA Reflex is out of this world, it's the very fastest gaming experience I've ever had -- improved again when you can get close to 300FPS+ in something like Fortnite. Running around in Fortnite at over 300FPS with NVIDIA Reflex enabled was incredible.
