MSI MEG B550 Unify Motherboard Review

The MSI MEG B550 Unify motherboard delivers a solid enthusiast platform on the AMD B550 chipset. Come take a look in our review.

@TylerBernath
Published Fri, Jul 9 2021 9:55 AM CDT
Rating: 92%Manufacturer: MSI (B550UNIFY)

Introduction, Specifications, and Pricing

MEG denotes MSI's top-end motherboard portfolio; MSI Enthusiast Gaming. For B550, this encompasses two boards, both from the Unify branch; B550 Unify and B550 Unify X. The latter sharing almost identical specs but appearing to be focused more on the enthusiast overclocking market rather than enthusiast gaming. As the title of this article has noted, we are looking at the non-X or standard MEG B550 Unify platform today, which priced very similar to the latest NZXT B550, and ASRocks own Taichi platform alongside the B550 AORUS Master and ProArt B550 from ASUS; certainly no lack of competition in the market for the Unify.

MSI MEG B550 Unify Motherboard Review 02 | TweakTown.com
VIEW GALLERY - 43 IMAGES

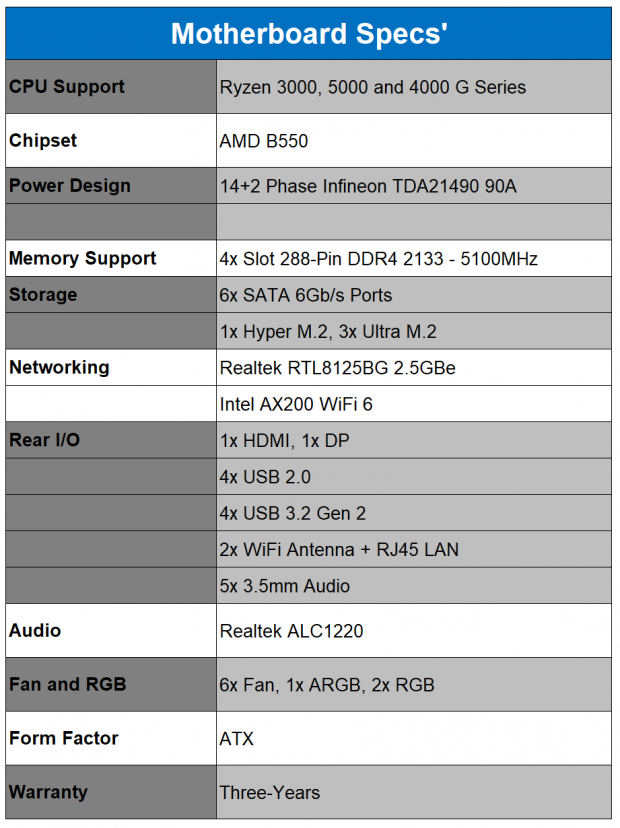

For specifications, the Unify is set up quite well with a 14+2 power design, MSI using Infineon stages this time around each able to handle 90A output current, plenty for the latest Zen 3 series. Of course, AM4 is the socket, and B550 is our chipset, so we have support for DDR4; 2133MHz JEDEC through 5100MHz via DOCP. Max memory is rated at 128GB across four slots.

Connectivity on this platform starts with six SATA 6Gb/s ports alongside four NVMe slots, one being Hyper M.2 and the other three Ultra M.2. USB connectivity includes four USB 2.0 ports with an added PS/2 port for legacy keyboard and mouse and four USB 3.2 Gen 2; one being Type-C and the other three Type-A.

Networking gives us the Realtek RTL8125BG 2.5Gbe chipset alongside Intel AX200 Wi-Fi 6. Additionally, the rear I/O houses HDMI and DP outputs alongside 3.5mm output for audio.

Pricing

The MEG B550 Unify carries an MSRP of $289.99 with a three-year warranty.

Buy at Amazon

MSI MEG B550 Unify Motherboard

TodayYesterday7 days ago30 days ago
$279.99$289.99-
* Prices last scanned on 8/4/2021 at 2:57 pm CDT - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission.

Packaging, Accessories, and Overview

Packaging and Accessories

MSI MEG B550 Unify Motherboard Review 05 | TweakTown.com

Packaging offers an image of the board to the left, chipset, and CPU support below.

MSI MEG B550 Unify Motherboard Review 06 | TweakTown.com

On the back, we have full board specifications to the right with a rear I/O diagram above.

MSI MEG B550 Unify Motherboard Review 07 | TweakTown.com

Included with the motherboard, you will find the Wi-Fi antenna, SATA cable, along with reading materials.

MSI MEG B550 Unify Motherboard Review 08 | TweakTown.com

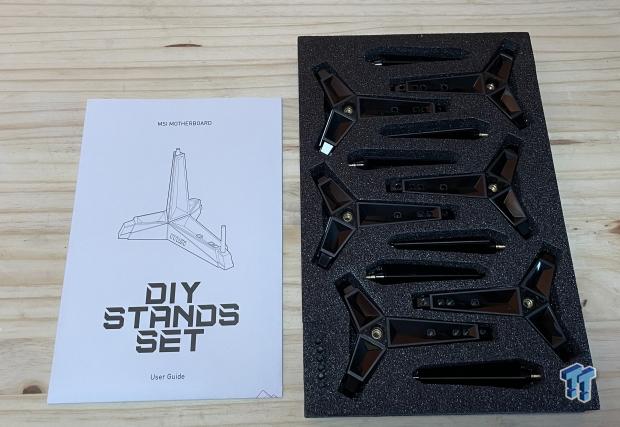

MSI includes a kit to make your own test bench with the B550 Unify.

MSI MEG B550 Unify Overview

MSI MEG B550 Unify Motherboard Review 09 | TweakTown.comMSI MEG B550 Unify Motherboard Review 10 | TweakTown.com

The Unify carries a pure black colorway for the PCB and heat sinks, dragon logo on the rear I/O cover. The layout is relatively typical, with power input placed at industry-standard locations. On the rear of the board, the VRM heat sink has a backplate to aid in rigidity and cooling.

MSI MEG B550 Unify Motherboard Review 11 | TweakTown.com

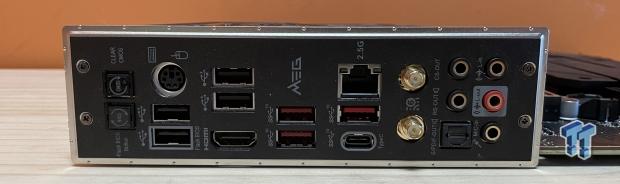

Rear I/O includes both Clear CMOS and Bios flash buttons at the top, followed by legacy USB 2.0 and PS/2 connections. The USB 3.2 Gen 2 ports are colored red and followed by the Wi-Fi antenna and 2.5Gbe LAN port.

MSI MEG B550 Unify Motherboard Review 12 | TweakTown.com

Getting started with the Unify, you will first notice a six-pin power connection for additional slot power. This is next to the front panel audio and RGB connections that move us to the fan headers and the first USB 3.2 internal header on the right edge.

MSI MEG B550 Unify Motherboard Review 13 | TweakTown.com

Further up the line, we find the power and reset buttons, front panel header, and additional fan and SATA connections.

MSI MEG B550 Unify Motherboard Review 14 | TweakTown.com

Up the side of the board, we have the 24 pin power connector and USB 3.2 Gen 2 header, Corsair RGB connection on the right side, and Debug LED.

MSI MEG B550 Unify Motherboard Review 15 | TweakTown.com

Across the top, you will find AIO and CPU fan headers alongside two eight-pin CPU power connections.

PCB and Circuit Analysis

MSI MEG B550 Unify Motherboard Review 16 | TweakTown.com

Power design uses Infineon TDA21490 stages, each capable of 90A.

MSI MEG B550 Unify Motherboard Review 17 | TweakTown.com

B550 chipset is centered above, with a host of ASM1480 switches around it.

MSI MEG B550 Unify Motherboard Review 18 | TweakTown.com

Nuvoton supplies the board super I/O chip, and the Realtek ALC1220 can be seen bottom left.

UEFI, Software and Test System

UEFI

MSI MEG B550 Unify Motherboard Review 20 | TweakTown.comMSI MEG B550 Unify Motherboard Review 21 | TweakTown.com
MSI MEG B550 Unify Motherboard Review 22 | TweakTown.comMSI MEG B550 Unify Motherboard Review 23 | TweakTown.com
MSI MEG B550 Unify Motherboard Review 24 | TweakTown.comMSI MEG B550 Unify Motherboard Review 25 | TweakTown.com

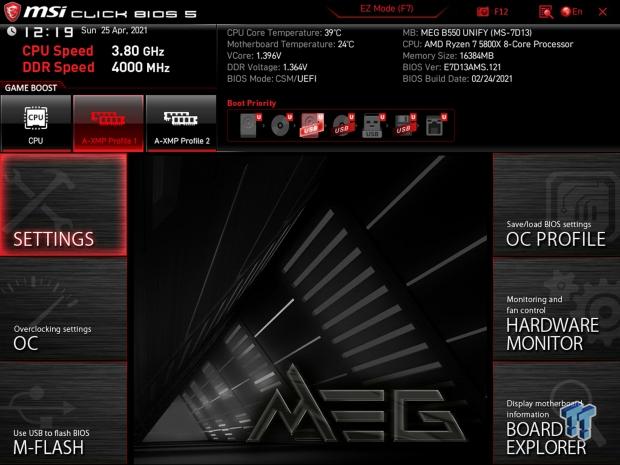

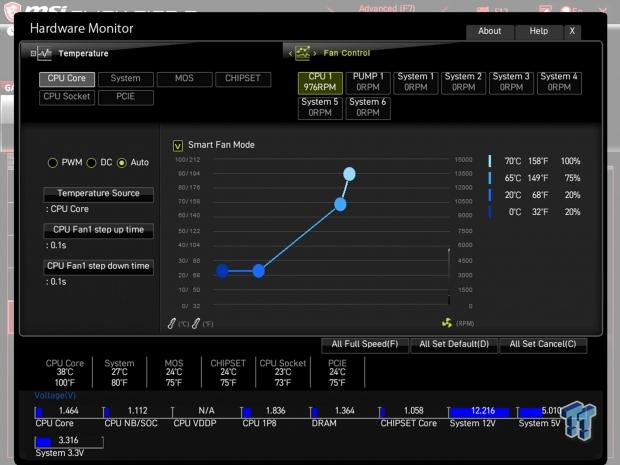

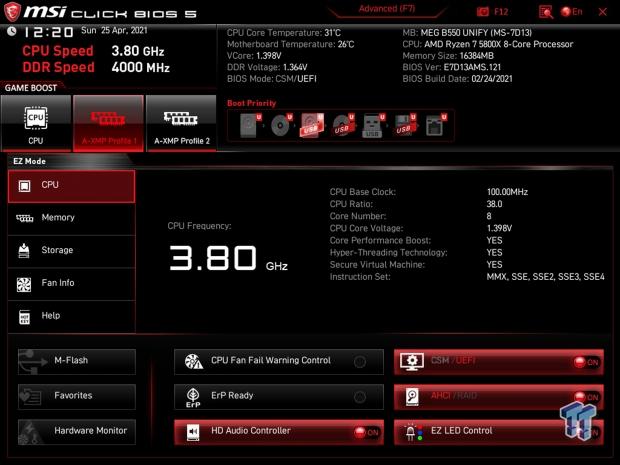

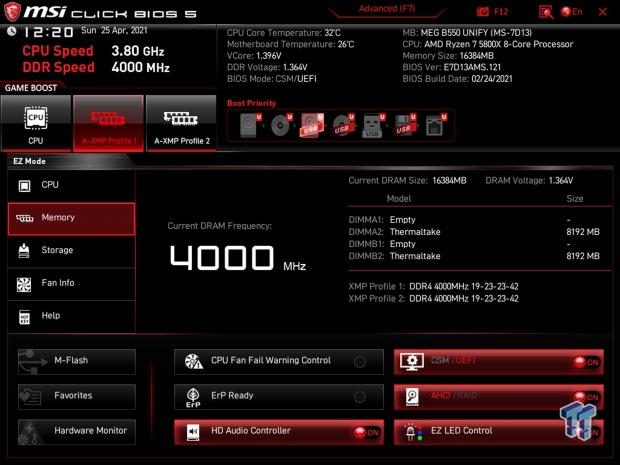

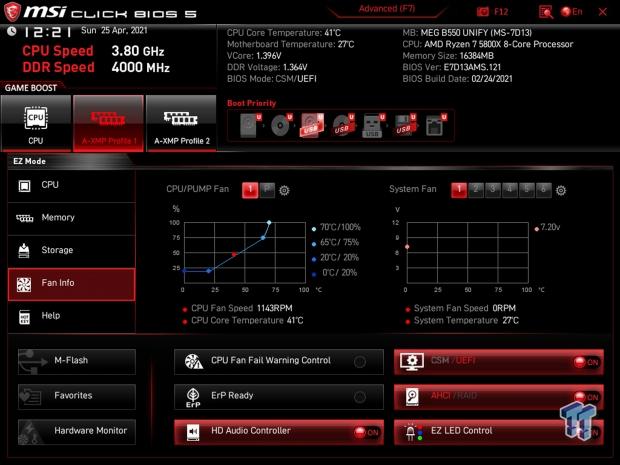

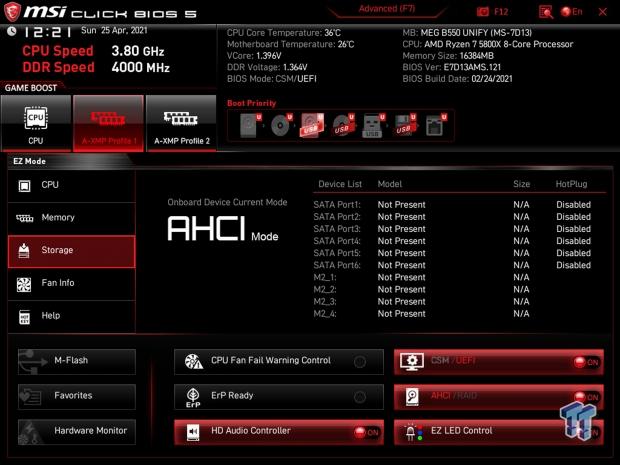

Unify uses Click BIOS 5 from MSI. This is one of the better BIOSes for those wanting to use mouse control. From the main menu, you have access to Game Boost CPU, XMP profiles, and boot priority. At the top, you can check both CPU and DRAM speed with hardware specifications to the right.

Around the center logo of the BIOS, there are six options for further control; these include board settings, overclocking, and M-Flash for BIOS updates. You can also dive into a hardware monitor to set up your chassis fans.

Motherboard Software

MSI MEG B550 Unify Motherboard Review 26 | TweakTown.com

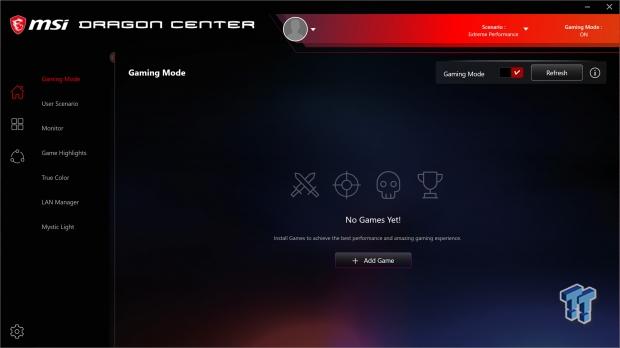

Dragon Center is the main piece of software for the Unify. This software includes software control of game mode and scenarios for differing levels of performance.

MSI MEG B550 Unify Motherboard Review 27 | TweakTown.com

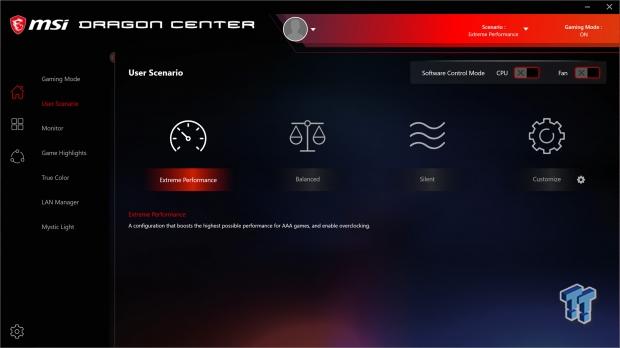

These scenarios affect power options and fan control; each of the four options can be seen above.

MSI MEG B550 Unify Motherboard Review 28 | TweakTown.com

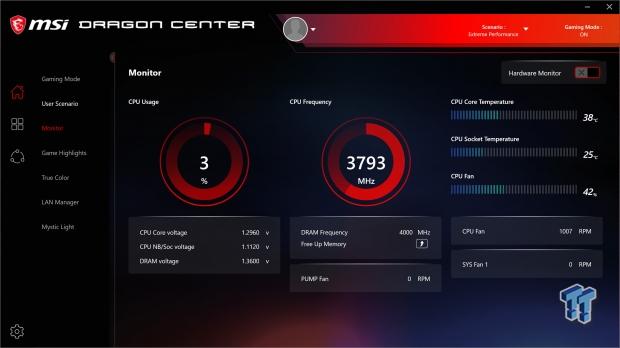

Dragon Center does include hardware monitoring, including CPU usage and frequency.

MSI MEG B550 Unify Motherboard Review 29 | TweakTown.com

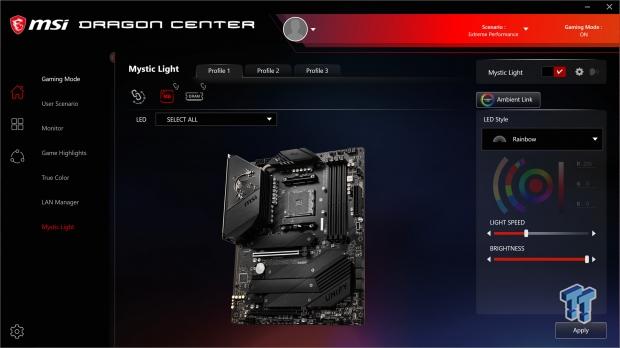

Last, RGB control of MSI Mystic Light is enabled through the dragon center.

Motherboard Testing Supporters

MSI MEG B550 Unify Motherboard Review 31 | TweakTown.com

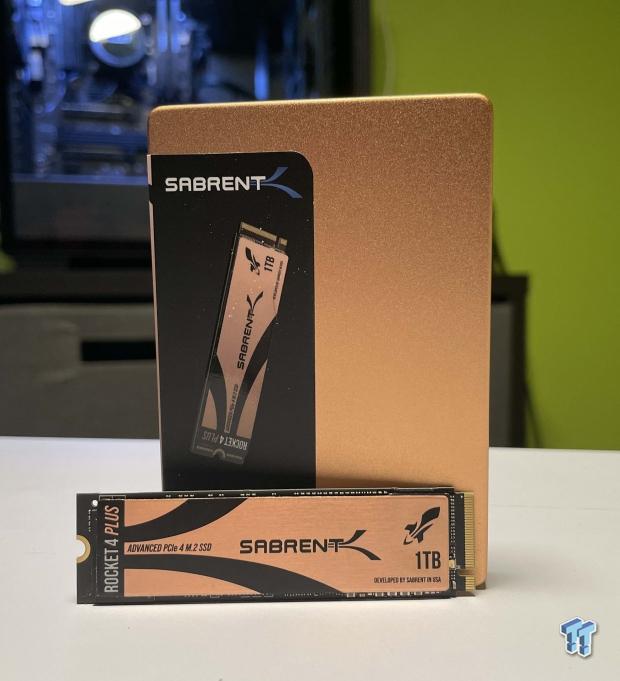

Sabrent supports our storage testing with the Rocket 4 Plus.

MSI MEG B550 Unify Motherboard Review 32 | TweakTown.com

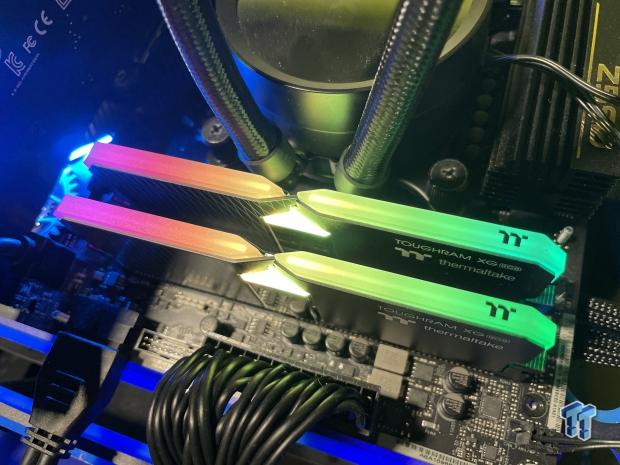

Thermaltake has come onboard with their Toughram XG for all motherboard reviews.

TweakTown AMD Motherboard Test System

MSI MEG B550 Unify Motherboard Review 30 | TweakTown.com

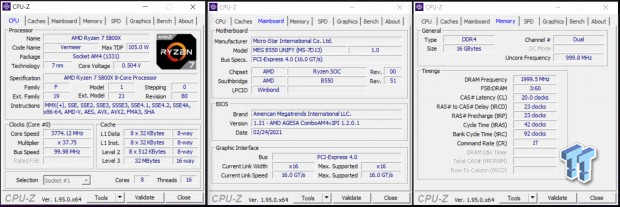

Our testing configuration can be seen above in the CPUz screenshots; we have the 5800X and Toughram XG at 4000 MHz CL20.

Cinebench, Realbench and AIDA64

Cinebench R23

Cinebench is a long-standing render benchmark that has been heavily relied upon by both Intel and AMD to showcase their newest platforms during unveils. The benchmark has two tests, a single-core workload that will utilize one thread or 1T. There is also a multi-threaded test that uses all threads or nT of a tested CPU.

MSI MEG B550 Unify Motherboard Review 50 | TweakTown.com

R23 pushed the Unify to 1585 1T and 15642 nT.

Realbench

Realbench uses both video and photo workloads to benchmark your CPU. We use all three workloads in this scenario.

MSI MEG B550 Unify Motherboard Review 51 | TweakTown.com

Realbench offered up a score of 33.6 seconds for the Heavy Multitasking workload.

AIDA64 Memory

MSI MEG B550 Unify Motherboard Review 52 | TweakTown.com

Memory bandwidth came in at 46K read, 25K write, and 46K copy.

PCMark10 and PugetSystems Benchmarks

PCMark 10

PCMark is a benchmark from UL and tests various workload types to represent typical workloads for a PC. Everything from video conferencing, image import, and editing, along with 3D rendering, are tested.

MSI MEG B550 Unify Motherboard Review 53 | TweakTown.com

PCMark testing gave us a score of 11287 in essentials, 10889 for productivity, and 13691 in digital content.

PugetBench

PugetBench comes from the fantastic people over at Puget Systems that have done countless hours and years benchmarking hardware. For our testing, we will utilize their Davinci Resolve, Photoshop, and Lightroom benchmarks, you can look into them more here.

MSI MEG B550 Unify Motherboard Review 54 | TweakTown.com

Puget for Photoshop ended with a score of 1194.

MSI MEG B550 Unify Motherboard Review 55 | TweakTown.com

Davinci Resolve gave us a score of 1147.

Microsoft Flight Simulator

MSI MEG B550 Unify Motherboard Review 56 | TweakTown.com

In our quick gaming scenario, we see 50.5 FPS from Unify and our RTX 3080.

System I/O Benchmarks

Storage with CrystalDiskMark

Storage tests are all handled by our Sabrent Rocket Plus NVMe 4.0 SSD. Secondary storage tests are conducted with our WD_Black P50 SSD.

MSI MEG B550 Unify Motherboard Review 58 | TweakTown.com

Storage testing peaked at 6844 MB/s reads and 5299 MB/s write.

MSI MEG B550 Unify Motherboard Review 59 | TweakTown.com

Q1 Random showed 70 MB/s reads and 200 MB/s write.

MSI MEG B550 Unify Motherboard Review 57 | TweakTown.com

In our external storage testing, our WD P50 produced 1091 MB/s read and 1090 MB/s write with the Unify.

Audio - Dynamic Range

MSI MEG B550 Unify Motherboard Review 60 | TweakTown.com

Testing audio, we set up RMAA with a 3.5mm cable from the line-in to speaker out (green to blue) and set both to 24Bit 192KHz. Unify picked up 90.1 dBA in this scenario.

Networking

MSI MEG B550 Unify Motherboard Review 61 | TweakTown.com

With networking, we have 2.5GBE and Wi-Fi 6. Wired LAN picked up 2351 Mbps while the AX200 managed 1314 Mbps in testing.

Power, Thermals and Final Thoughts

Power Consumption

MSI MEG B550 Unify Motherboard Review 62 | TweakTown.com

Wrapping up testing, power consumption saw a low of 140w at idle and a peak of 367 watts under CPU load. These numbers may coincide with the lower performance we did see in specific benchmarks.

Thermals

MSI MEG B550 Unify Motherboard Review 63 | TweakTown.com

Thermals were on par at 28c idle and peak of 76c during testing.

Final Thoughts

I was able to keep the Unify on my test bench for several weeks and came away quite happy with the board's performance; through several AGESA updates, this has become quite an excellent overclocking platform and even runs PBO quite well on our 5800X. The design gives this board exceptional power capabilities well over 1000A from the Infineon stages, plenty for the 5900 or 5950X.

The colorway is a mix of PCB black and matte black on the heat sinks, fantastic in my opinion, as it allows for flexibility for consumers going with a themed build. Additionally, for those hating on RGB, you will be happy to know this board has Zero RGB integrated but can be added via headers.

BIOS and software are both easy to navigate; as I said earlier in the article MSI Click BIOs is one of the more mouse-friendly applications we have seen. Dragon Center, on the other hand, is a complete suite that allows you to manage your games and gaming profiles along with monitoring hardware and setting up any RGB lighting you have.

What We Like

Zero RGB: A complete blacked out motherboard!

M.2 Slots: Four M.2 for those wanting massive NVMe support!

Compatibility: AM4 offers massive socket compatibility.

What Could Be Better

Thunderbolt: No integrated Thunderbolt

Price:Pricing could be better considering the competition.

Buy at Amazon

Performance

90%

Quality

90%

Features

97%

Value

90%

Overall

92%

The Bottom Line

MSI's B550 Unify is legit enthusiast platform that offers stunning overclocking capabilities alongside a fantastic set of storage options and connectivity.
