Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review

Moving away from motherboards for a bit we head back to video cards and check out the new NVIDIA GeForce GTX 770 2GB JetStream from Palit.

@ShawnBakerTW
Published Thu, Jul 11 2013 8:01 AM CDT   |   Updated Tue, Apr 7 2020 12:31 PM CDT
Rating: 92%Manufacturer: Palit

Introduction and Package

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 02 | TweakTown.com
VIEW GALLERY - 36 IMAGES

We've already mentioned a few times over the recent weeks, but our lab here in Taipei is really being dominated by a few key products at the moment. One of them is Z87 related items which mainly consists of RAM kits and motherboards. The other area that is extremely busy is the video card side of things.

It's very one sided, though, with NVIDIA cards really being the only ones popping up lately. This is of course due to the fact that NVIDIA over the past month has chosen to grace us with a new series in the form of GTX 700.

While we thought the series would stop for a while once the introduction of the GTX 770 and GTX 780

had hit us, it seems that NVIDIA had one more model in them with the GTX 760 and while they say this is the last one we'll see for a while now, we wouldn't put it past NVIDIA to have something up their sleeve in the event they need it.

While the GTX 760 is the latest model, we've actually got partner designs of all the new NVIDIA models so we'll be of course working our way through them in the coming weeks. Today we're going to be looking at a GTX 770 2GB which comes from Palit. This particular model falls under the JetStream name that we saw Palit launch last year. With big coolers and big out of the box overclocks, it looked to be a good series for the company.

Today we'll be taking the time to see just what the model can do once we push the clock speeds up even higher. As always there's a few things we've got to do before we look at the overclocking side of things. Let's see what's going on with the package first.

Package

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 03 | TweakTown.com
Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 04 | TweakTown.com

Taking a look at the front and the back of the box you can see the standard JetStream design that we've seen from other models that Palit offered under this name. The front has the brand, series and name along with a couple of the main features and the amount of RAM. The back then goes into a little bit more detail on some of the NVIDIA specific features that are on offer from the GTX 700 series model.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 05 | TweakTown.com
Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 06 | TweakTown.com

If we open up the box we then get more information on what exactly we're dealing with when it comes to the video card itself. Of course the big highlight for the model here is the JetStream cooler and you can see the main features in regards to the triple fan setup and massive heatsink are covered here. Other features include DrMOS and 8-Phase PWM power. We also have some information on ThunderMaster, the overclocking utility by Palit. The other side of the box gives us our first look at the card.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 07 | TweakTown.com

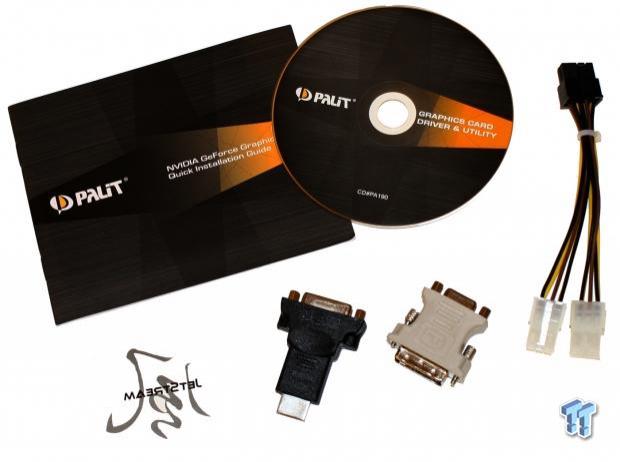

When it comes to the bundle, Palit like most companies these days, don't offer much in the way of video card bundles. We've got a manual and driver CD along with a dual 6-pin PCIe to 8-pin PCIe power connector, DVI to VGA and HDMI to DVI connector and a JetStream case sticker.

The Card and Specifications

The Card

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 08 | TweakTown.com

If you've seen any of the higher-end JetStream offerings from Palit in the past, the triple fan heatsink design wouldn't be new to you. You can see we've got a large fan in the center that goes over the top of the GPU, while two smaller fans are found at each end to help keep everything as cool as possible. If you look carefully you can see the massive heatsink behind the fans and some copper heat pipes.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 09 | TweakTown.com
Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 10 | TweakTown.com

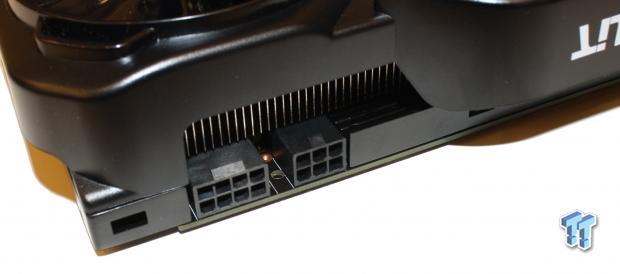

Taking a look across the top you can see we've got a single 8-pin PCIe and 6-pin PCIe power connector at the back. Closer to the front you can see the standard dual SLI connector setup, which allows up to three GTX 770s to run in SLI.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 11 | TweakTown.com

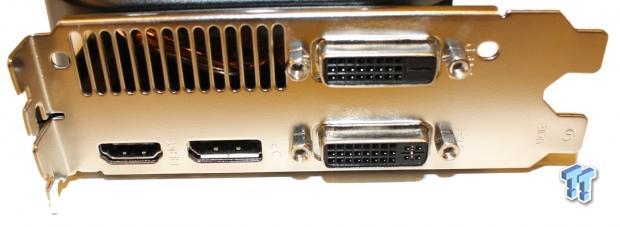

Moving to the front you can see we've got the typical I/O setup with two Dual-Link DVI connectors in the form of a DVI-D and DVI-I. You can see we've also got a HDMI and DisplayPort connector, along with a vent to let some of the hot air escape out the back of the card and your case.

Specifications

Out of the box a reference GTX 770 carries a core clock of 1046MHz, which is boosted up to 1085MHz. As for the 2GB of GDDR5, that comes in at 7012MHz QDR. The JetStream version of the GTX 770 from Palit comes overclocked out of the box. While like most companies they've chosen to leave the memory clock alone, they have bumped the core clock to 1150MHz, which has pushed the boosted clock up to 1202MHz.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 01 | TweakTown.com

As we mentioned earlier, our plan was to overclock the GTX 770 JetStream today. Looking above you can see we pushed the core a little higher to 1180MHz, which pushed the boost clock up to 1232MHz.

As for the 2GB of GDDR5 memory, that's now running at a solid 7600MHz QDR.

Benchmarks - Test System Setup

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 99 | TweakTown.com

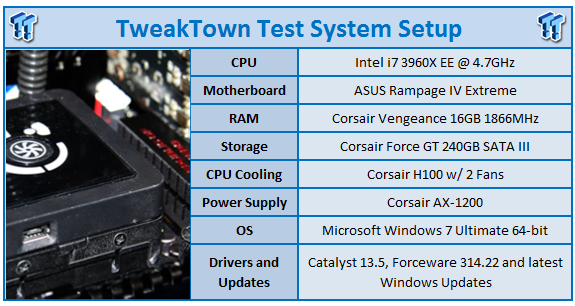

We would like to thank the following companies for supplying and supporting us with our test system hardware and equipment: Intel, ASUS and Corsair.

Before we get into the performance we need to quickly cover the video cards that are in our graphs here today. Along with the Palit GTX 770 2GB JetStream which we've overclocked to 1180MHz / 7600MHz QDR, we've also got the reference GTX 770 at both its stock clocks and overclocked to 1153MHz / 7664MHz QDR.

Also included in our graphs today is the recently looked at MSI GTX 760 2GB Twin Frozr Gaming which is overclocked to 1155MHz / 6800MHz QDR and the reference clocked GTX 780 3GB. On the AMD side we've got the PowerColor PCS HD 7950 overclocked to over 1100MHz on the core and the AMD HD 7970 GHz Edition, which is running at its reference clock speeds.

The FPS Numbers Explained

When we benchmark our video cards and look at the graphs, we aim to get to a certain level of FPS which we consider playable. While many may argue that the human eye can't see over 24 FPS or 30 FPS, any true gamer will tell you that as we climb higher in Frames Per Seconds (FPS), the overall gameplay feels smoother. There are three numbers we're looking out for when it comes to our benchmarks.

30 FPS - It's the minimum number we aim for when it comes to games. If you're not dropping below 30 FPS during games, you're going to have a nice and smooth gaming experience. The ideal situation is that even in a heavy fire fight, the minimum stays above 30 FPS making sure that you can continue to aim easily or turn the corner with no dramas.

60 FPS - It's the average we look for when we don't have a minimum coming at us. If we're getting an average of 60 FPS, we should have a minimum of 30 FPS or better and as mentioned above, it means we've got some smooth game play happening.

120 FPS - The new number that we've been hunting down over recent months. If you're the owner of a 120 Hz monitor, to get the most out of it you want to get around the 120 FPS mark. Moving from 60 FPS / 60 Hz to 120 FPS / 120 Hz brings with it a certain fluidity that can't really be explained, but instead has to be experienced. Of course, if you're buying a 120 Hz monitor to take advantage of 3D, an average of 120 FPS in our benchmark means that in 3D you will have an average of 60 FPS, which again means you should expect some smooth gameplay.

Why are some graphs incomplete?

Adding new game benchmarks is a long, tedious and time consuming task as every video card has to be re-tested in those new benchmarks. Because of that reason we have always just evaluated our benchmark line up every six months. To stay up to date and current with the latest benchmarks and games available, we've changed our approach to adding new benchmarks.

Our benchmark line up will progress and be updated as newer more intensive games with benchmarks comes to light. While this will mean that initially you may only see a single video card in those particular graphs, as the weeks go on and we test more and more video cards, the results will grow quickly. This will help keep our benchmark line up as up to date as possible as we introduce and remove games on a constant basis.

Benchmarks - 3DMark 11

3DMark 11

Version and / or Patch Used: 1.1

Developer Homepage: http://www.futuremark.com

Product Homepage: http://www.3dmark.com/3dmark11/

Buy It Here

3DMark 11 is the latest version of the world's most popular benchmark. Designed to measure your PC's gaming performance 3DMark 11 makes extensive use of all the new features in DirectX 11 including tessellation, compute shaders and multi-threading. Trusted by gamers worldwide to give accurate and unbiased results, 3DMark 11 is the best way to consistently and reliably test DirectX 11 under game-like loads.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 20 | TweakTown.com

Jumping out the gate with 3DMark 11, we can see the Palit GTX 770 2GB JetStream is looking good coming out ahead of the other GTX 770 options. The AMD offerings also prove to not be an issue at all.

Benchmarks - 3DMark Fire Strike

3DMark Fire Strike

Version and / or Patch Used: 1

Developer Homepage: http://www.futuremark.com

Product Homepage: http://www.futuremark.com/benchmarks/3dmark

Buy It Here

Fire Strike is our new showcase DirectX 11 benchmark designed for high-performance gaming PCs. It is our most ambitious and technical benchmark ever, featuring real-time graphics rendered with detail and complexity far beyond what is found in other benchmarks and games today. Fire Strike will only be available in the Windows editions of 3DMark initially.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 21 | TweakTown.com

At the moment we're still waiting to grow the number of cards under Fire Strike, so there's not a lot we can say against other cards. You can see compared to the overclocked Palit GTX 760, though, we do get quite a strong boost in performance that equates to over 20%.

Benchmarks - Unigine Heaven Benchmark

Unigine Heaven Benchmark

Version and / or Patch Used: 3

Developer Homepage: http://www.unigine.com

Product Homepage: http://unigine.com/press-releases/091022-heaven_benchmark//

New benchmark grants the power to unleash the DirectX 11 potential in the gift wrapping of impressively towering graphics capabilities. It reveals the enchanting magic of floating islands with a tiny village hidden in the cloudy skies. With the interactive mode emerging experience of exploring the intricate world is ensured within reach. Through its advanced renderer, Unigine is one of the first to set precedence in showcasing the art assets with tessellation, bringing compelling visual finesse, utilizing the technology to the full extend and exhibiting the possibilities of enriching 3D gaming.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 22 | TweakTown.com

Heaven sees some nice gains in performance and you can see that it really puts us right on top of the reference clocked GTX 780 3GB. It's always nice to see these kind of increases that see the model below line up with the more expensive model above it.

Benchmarks - Phantasy Star Online 2

Phantasy Star Online 2

Version and / or Patch Used: Standalone Benchmark

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://www.sega.com/?t=EnglishUSA

Product Homepage: http://www.pso2.com/us/html/index.html

Play Phantasy Star Online 2 and experience revolutionary combat in an action-driven, free-to-play multiplayer online RPG from SEGA. Take a journey into an immersive sci-fi fantasy narrative and explore mysterious worlds to unravel their secrets. Join fellow adventurers and fight against the legions of darkness to banish them from the galaxy.

Score explanation: Less than 2000: Please adjust your game settings because the processing load is quite heavy.

2000 through 5000: The game runs fine at the setting, if you have room, you can adjust some settings.

5001+: The game works wonderfully at this setting.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 23 | TweakTown.com

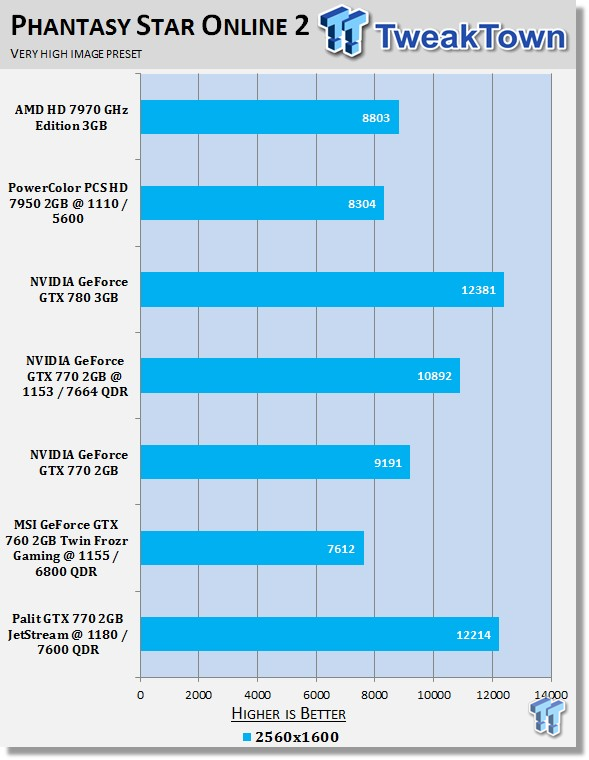

PSO2 sees some great performance gains and just like under Heaven you can see that the Palit GTX 770 2GB JetStream sits right on top of the reference GTX 780 3GB.

Benchmarks - Lost Planet 2

Lost Planet 2

Version and / or Patch Used: Standalone Benchmark

Timedemo or Level Used: Built in Benchmark - Test A Scene 1

Developer Homepage: http://www.capcom.com/

Product Homepage: http://www.lostplanet2game.com/

Lost Planet 2 is a third-person shooter video game developed and published by Capcom. The game is the sequel to Lost Planet: Extreme Condition which is also made by Capcom, taking place ten years after the events of the first game, on the same fictional planet. The story takes place back on E.D.N. III 10 years after the events of the first game. The snow has melted to reveal jungles and more tropical areas that have taken the place of more frozen regions. The plot begins with Mercenaries fighting against Jungle Pirates. After destroying a mine, the Mercenaries continue on to evacuate the area, in which a Category-G Akrid appears and attacks them. After being rescued, they find out their evacuation point (Where the Category-G appeared) was a set-up and no pick up team awaited them. The last words imply possible DLC additions to the game, "There's nothing to be gained by wiping out snow pirates... unless you had some kind of grudge."

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 24 | TweakTown.com

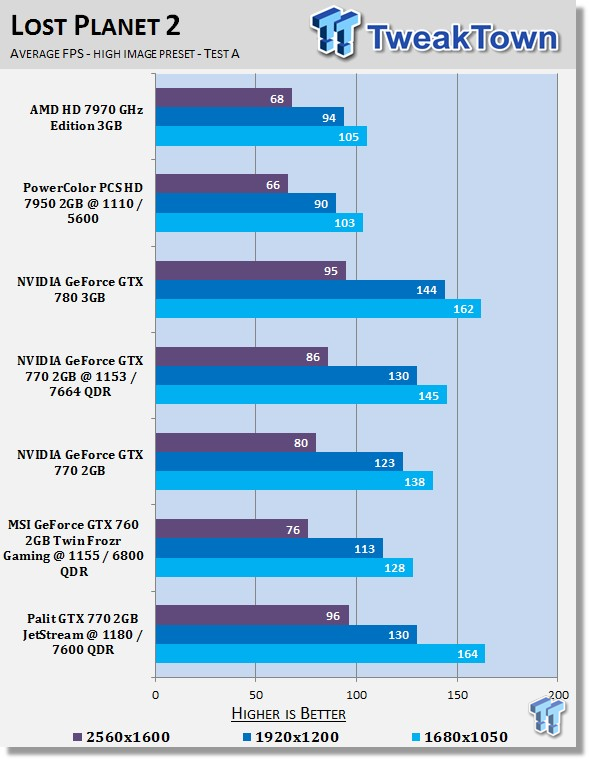

Lost Planet 2 performance is both very strong across the board with some nice gains being seen. You can also see again that performance from the Palit GTX 770 2GB JetStream is very close to the more expensive GTX 780 3GB reference card.

Benchmarks - Just Cause 2

Just Cause 2

Version and / or Patch Used: Latest Steam Update

Timedemo or Level Used: Dark Tower

Developer Homepage: http://www.eidos.com/

Product Homepage: http://www.justcause.com/

Just Cause 2 employs the Avalanche Engine 2.0, an updated version of the engine used in Just Cause. The game is set on the other side of the world from the original Just Cause, on the fictional island of Panau in Southeast Asia. Panau has varied terrain, from desert to alpine to rainforest. Rico Rodriguez returns as the protagonist, aiming to overthrow the evil dictator Pandak "Baby" Panay and confront his former mentor, Tom Sheldon.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 25 | TweakTown.com

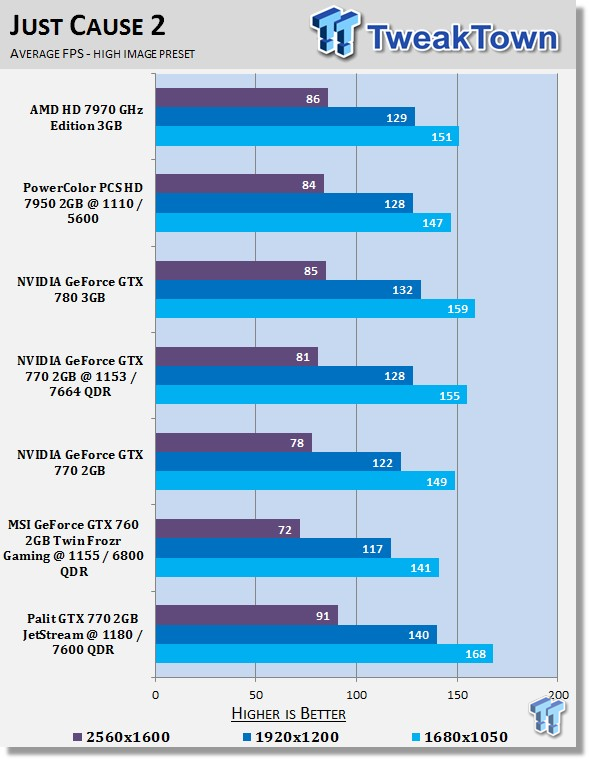

Moving into Just Cause 2 we continue to see the strong performance gains at all resolutions and again like we've seen in our last few benchmarks, the Palit GTX 770 2GB JetStream manages to sneak out ahead of the GTX 780 3GB reference card.

Benchmarks - F1 2012

F1 2012

Version and / or Patch Used: Latest Steam Update

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://www.codemasters.com/uk/

Product Homepage: http://www.codemasters.com

In F1 2012 players will feel the unparalleled thrill of becoming a FORMULA ONE driver with a host of new features, wide-ranging technical and gameplay advancements and extensive competitive and co-operative multiplayer components. F1 2012 will feature all of the official teams, drivers and circuits from the 2012 FIA FORMULA ONE WORLD CHAMPIONSHIP, including the debut of the 2012 FORMULA 1 UNITED STATES GRAND PRIX at Austin, Texas and the return of Germany's famous Hockenheim circuit to the calendar.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 26 | TweakTown.com

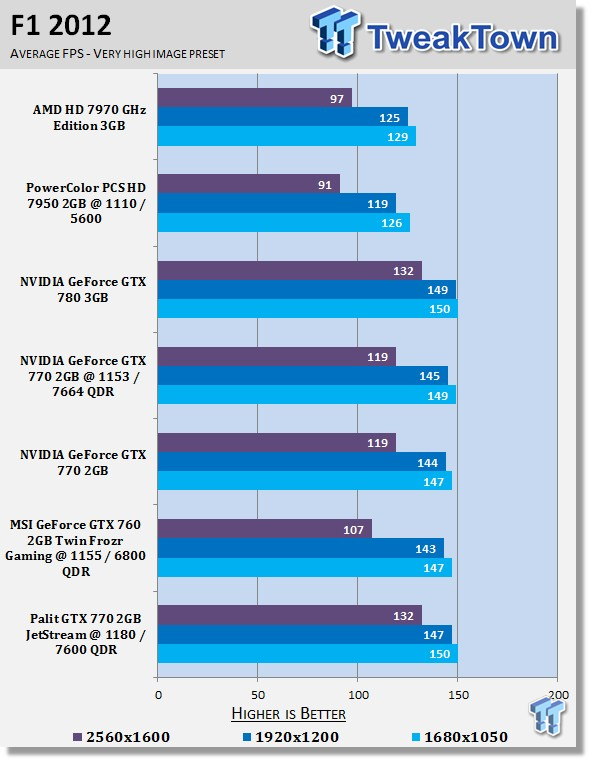

Across the board you can see the NVIDIA video cards sit quite close to each other with the FPS wall being hit at both 1920 x 1200 and 1680 x 1050. 2560 x 1600 where we see the FPS wall not quite hit, we again see the Palit GTX 770 2GB JetStream and reference GTX 780 3GB performance with the same numbers here.

Benchmarks - Metro Last Light

Metro Last Light

Version and / or Patch Used: Latest Steam Update

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://www.4a-games.com/

Product Homepage: http://enterthemetro.com/ /

Metro: Last Light takes place one year after the events of Metro 2033, proceeding from the ending where Artyom chose to call down the missile strike on the Dark Ones. The Rangers have since occupied the D6 military facility, with Artyom having become an official member of the group. Khan, the nomad mystic, arrives at D6 to inform Artyom and the Rangers that a single Dark One survived the missile strike. Khan believes the Dark One is the key to humanity's future, and wants to make peace with it, while Ranger leader Colonel Miller wants to kill the creature due to its potential threat. Miller sends Artyom to the surface with a mission to kill the Dark One; he is accompanied by Anna, Miller's sarcastic daughter and the Rangers' best sniper.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 27 | TweakTown.com

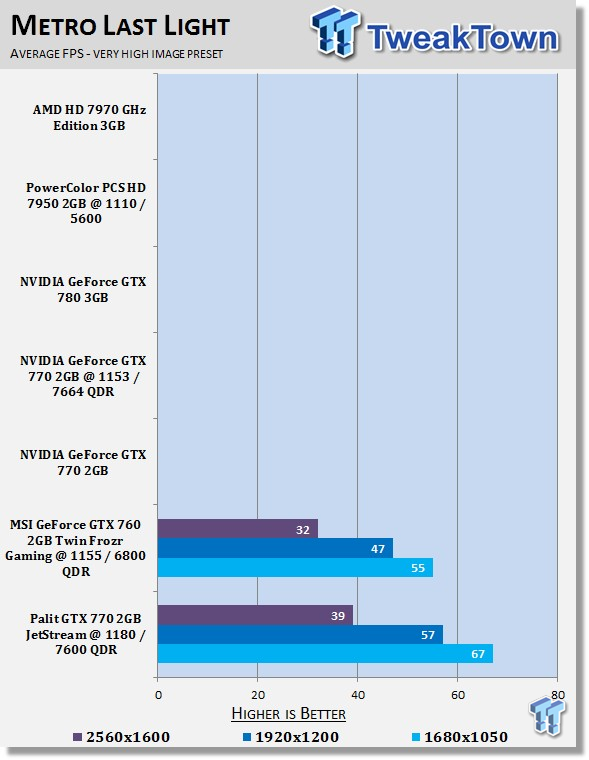

Like Fire Strike, our results are quite limited for Metro Last Light at the moment, but over the coming weeks we'll see the amount of video cards listed grow.

What we can see, though, is that the Palit GTX 770 2GB JetStream when overclocked manages to pull in a good playable number at 1680 x 1050, but falls a little shy of the 60 FPS number we want at 1920 x 1200. Of course falling short there means that 2560 x 1600 isn't an option.

Benchmarks - Dirt Showdown

Dirt Showdown

Version and / or Patch Used: Latest Steam Update

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://www.codemasters.com/uk/

Product Homepage: http://www.codemasters.com/uk/dirtshowdown/360/

DiRT Showdown is the new arcade racing game from the team that brought you the award-winning DiRT series, uncaged in 2012. Pick up and play controls combine with electrifying events, frenzied crowds and stunning graphics to deliver high octane, dive in and drive thrills from event one.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 28 | TweakTown.com

Dirt Showdown sees some nice performance gains across the board. At the highest resolution you can see the overclock manages to help us hit the magical 60 FPS number.

Again this is the kind of thing we love to see when overclocking - our gaming experience move from what we consider unplayable to playable.

Benchmarks - Nexuiz

Nexuiz

Version and / or Patch Used: Latest Steam Update

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://www.alientrap.org/

Product Homepage: http://www.nexuiz.com/

Nexuiz is an Arena First Person shooter coming soon to consoles. Nexuiz is fast paced with extremely competitive game play. IllFonic brings Alientrap Software's Nexuiz to next-gen gaming consoles around the world while staying true to the game play refined over the years through development. IllFonic introduces a new Victorian influenced art style that is simultaneously futuristic and sophisticated. Nexuiz for consoles is powered by CryENGINE 3.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 29 | TweakTown.com

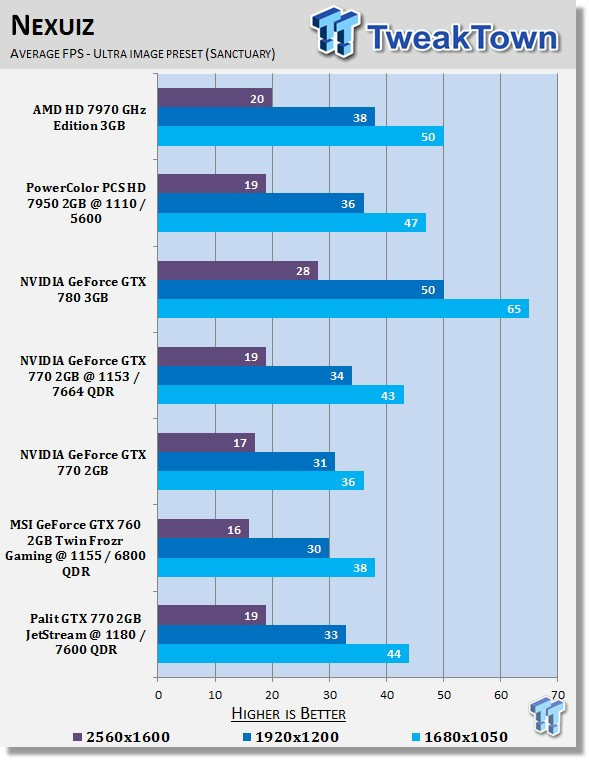

While across the board Nexuiz manages to see some performance gains, the numbers are just ultimately way too low for a good gaming experience. 1680 x 1050 is getting close, but it's not there.

Benchmarks - Sniper Elite V2

Sniper Elite V2

Version and / or Patch Used: Standalone Benchmark

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://www.rebellion.co.uk/

Product Homepage: http://sniperelitev2.com/us/age.html

Sniper Elite V2 features detailed sniping simulation with advanced ballistics, taking into account gravity, wind, velocity, bullet penetration, aim stability and more. Guaranteed to provide players with the most realistic simulation of military sharpshooting yet available.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 30 | TweakTown.com

Sniper Elite V2 numbers across the board look good and you can see we're floating just a couple of FPS behind the GTX 780 at all resolutions.

Benchmarks - Sleeping Dogs

Sleeping Dogs

Version and / or Patch Used: Latest Steam Update

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://eu.square-enix.com/en

Product Homepage: http://www.sleepingdogs.net/

The core gameplay of Sleeping Dogs consists of giving the player an open world environment in which to move around freely. Sleeping Dogs is played as an over-the-shoulder, third-person perspective action-adventure game with role-playing elements. The player controls Wei Shen, a Chinese-American police officer, as he goes undercover to infiltrate the Sun On Yee Triad organization. On foot, the player character has the ability to walk, run, jump, climb over obstacles and swim, as well as use weapons and martial arts in combat. Players also drive a variety of vehicles including cars, boats, and motorcycles.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 31 | TweakTown.com

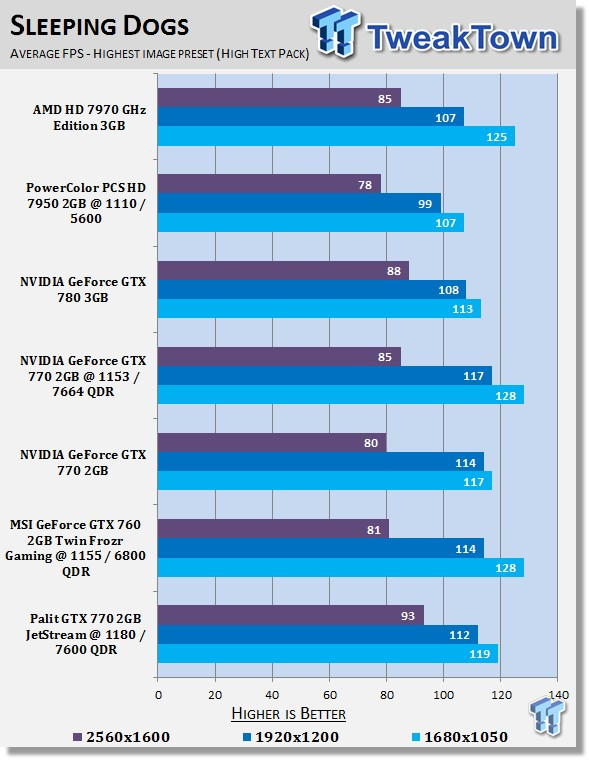

Sleeping Dogs numbers look good across the board with playable FPS seen at all resolutions. You can see that we also manage to outpace the GTX 780 3GB at the highest resolution.

Benchmarks - Far Cry 2

Far Cry 2

Version and / or Patch Used: 1.01

Timedemo or Level Used: Ranch Long

Developer Homepage: http://www.ubi.com

Product Homepage: http://www.farcry2.com

Buy It Here

The Dunia Engine was built specifically for Far Cry 2 by the award-winning Ubisoft Montreal development team. It delivers the most realistic destructible environments, amazing special effects such as dynamic fire propagation and storm effects, real-time night-and-day cycle, dynamic music system, non-scripted enemy A.I. and so much more.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 32 | TweakTown.com

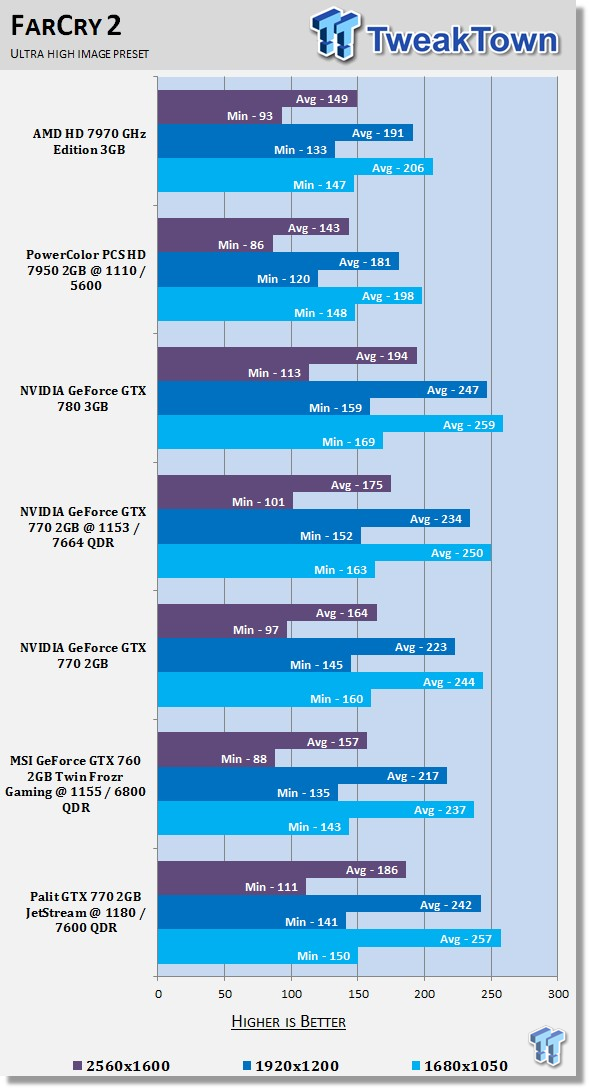

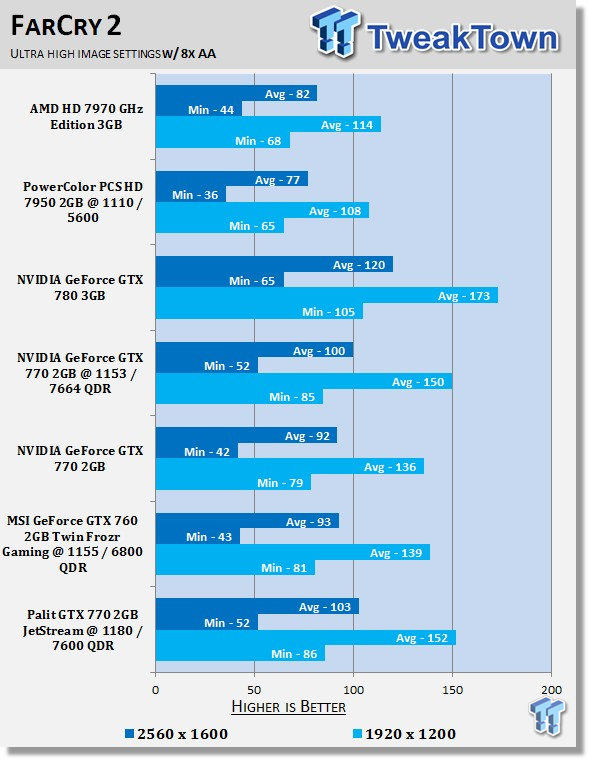

Like most high-end offerings, we see some great numbers out of Far Cry 2, with strong performance being seen across the board.

Please Note: We still include Far Cry 2 in our benchmarks (we know it's old) as a way for our readers to get a general representation of how older games perform on new hardware.

Benchmarks - Hitman Absolution

Hitman Absolution

Version and / or Patch Used: Latest Steam Update

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://www.ioi.dk/

Product Homepage: http://hitman.com/

Hitman: Absolution is an action-adventure stealth game developed by I/O Interactive and published by Square Enix. It is the fifth entry in the Hitman game series, and runs on I/O Interactive's proprietary Glacier 2 game engine. Before release, the developers stated that Absolution would be easier to play and more accessible, while still retaining hardcore aspects of the franchise. The game was released on 20 November 2012, which is in the 47th week of the year (in reference to the protagonist, Agent 47).

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 33 | TweakTown.com

Hitman Absolution hits that FPS wall almost at every resolution across the wall. Only at 2560 x 1600 does it fall a few FPS from it. Fortunately you can see the FPS is strong even at the highest resolution with a 52 FPS minimum and a 62 FPS average.

Benchmarks - Tomb Raider

Tomb Raider

Version and / or Patch Used: Latest Steam Update

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://www.nixxes.com/

Product Homepage: http://www.tombraider.com/us/base/agegate?refer=184&

Tomb Raider is an action-adventure platform video game. Published by Square Enix, Tomb Raider is the fifth title developed by Crystal Dynamics in the Tomb Raider franchise. As the first entry in a new Tomb Raider continuity, the game is a reboot that emphasizes the reconstructed origins of the culturally influential lead character Lara Croft. Tomb Raider was released on 5 March 2013 for PlayStation 3, Xbox 360 and Microsoft Windows to universal critical acclaim.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 34 | TweakTown.com

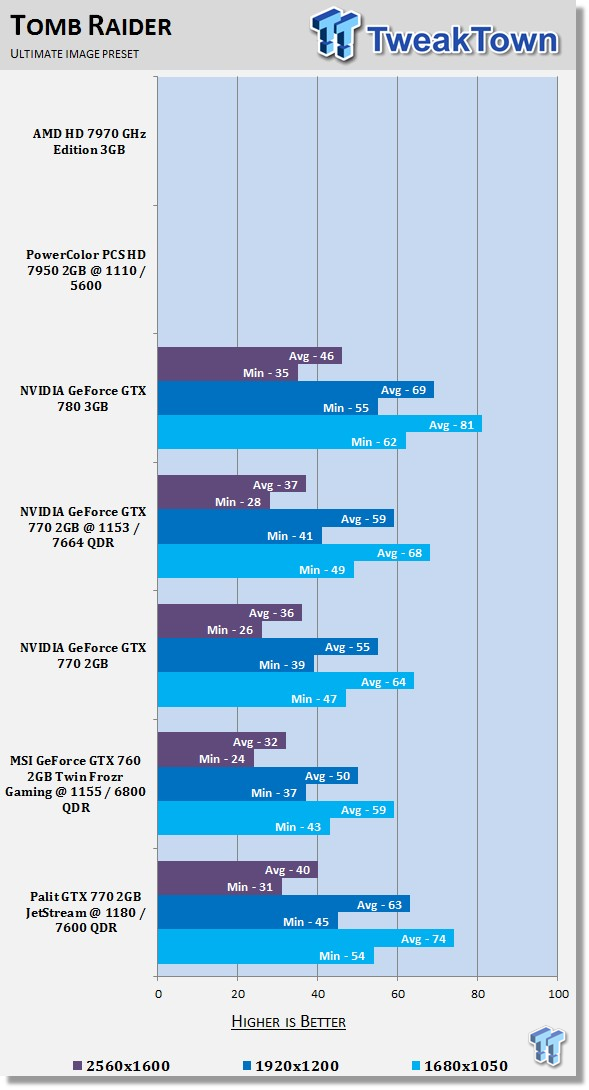

Tomb Raider minimum numbers across the board are strong, but you can see at the highest resolution, the average is too low. Below that, though, we've got very strong minimum and average numbers that see some good gains over the other GTX 770 2GB setups.

Benchmarks - BioShock Infinite

BioShock Infinite

Version and / or Patch Used: Latest Steam Update

Timedemo or Level Used: Built in Benchmark

Developer Homepage: http://irrationalgames.com/

Product Homepage: http://www.bioshockinfinite.com

BioShock Infinite is a first-person shooter video game and the third installment in the BioShock series. Previously known as "Project Icarus", it is being developed by Irrational Games and was released worldwide on the Microsoft Windows, PlayStation 3, and Xbox 360 platforms on March 26, 2013. BioShock Infinite is not part of the storyline of previous BioShock games but features similar gameplay concepts and themes.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 35 | TweakTown.com

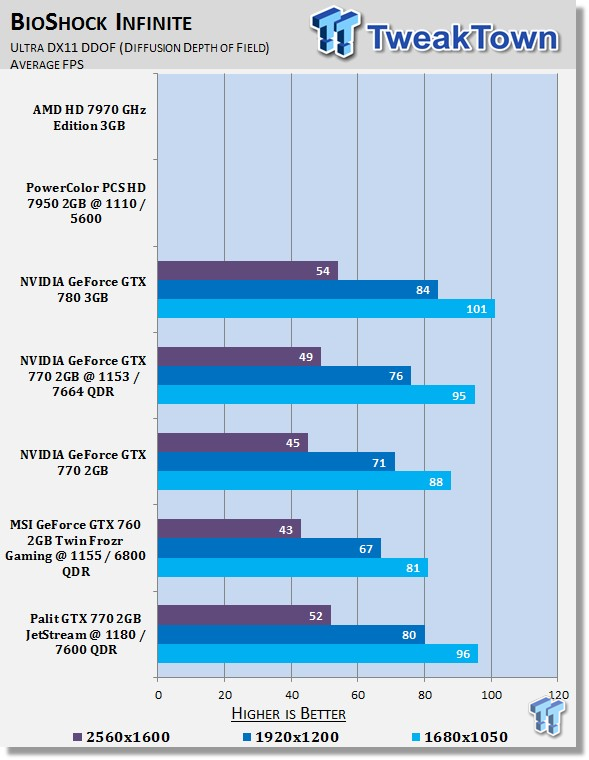

BioShock Infinite sees a bump across the board with some great numbers seen at 1920 x 1200 and 1680 x 1050. At the higher 2560 x 1600 resolution you can see we fall short of the 60 FPS number on all setups.

Benchmarks - High Quality AA and AF

High Quality AA and AF

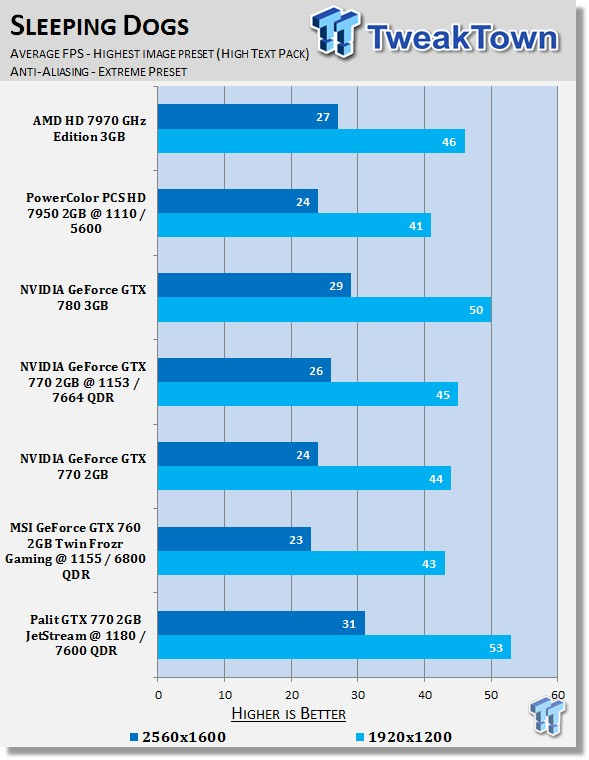

While we test all our games with maximum in-game settings, turning on Anti-Aliasing (AA) and Antistrophic Filtering (AF) helps take the intensity of our testing to another level.

Here we see video cards go from playable FPS to an unplayable FPS and the real power houses continue to help break that 60 FPS mark we always aim for to provide a smooth gaming experience.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 36 | TweakTown.com

With AA and AF on you can again see very strong performance. Compared against the other video cards here, though, you can the Palit card sits ahead of the GTX 780 3GB again.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 37 | TweakTown.com

Metro Last Light is one of our most recent benchmarks and because of that we can't really talk about how it compares to other cards. All we can say, though, is like the GTX 760 from MSI which we overclocked, we're not able to get the FPS we need at both resolutions.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 38 | TweakTown.com

Just Cause 2 sees some nice performance gains and you can see at the highest resolution the overclock is enough to push us into the 60 FPS realm, something that the other GTX 770s couldn't do.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 39 | TweakTown.com

While the overclock manages to boost performance past the GTX 780 3GB again, you can see at both resolutions we're still below the 60 FPS number we're always on the hunt for to provide a solid gaming experience.

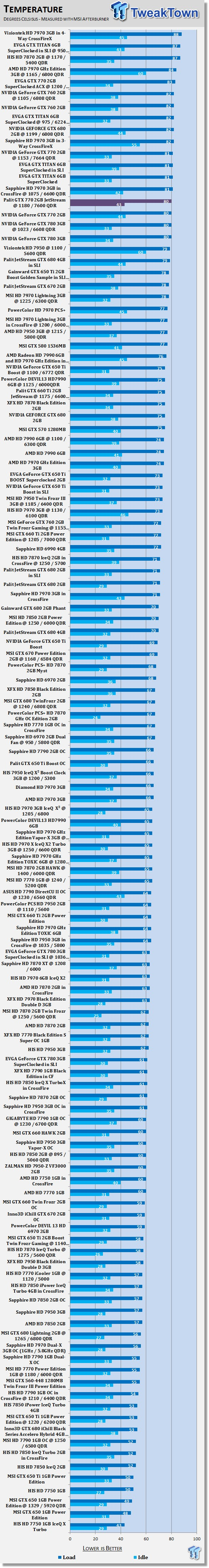

Temperature Test

The temperature of the core is pulled from MSI Afterburner with the max reading used after a completed run off 3DMark Vantage and the Performance preset.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 40 | TweakTown.com

Taking a look at the temperature you can see we're hitting the 80c mark; a number seen on a lot of the new high-end GTX 700 series cards.

Idle comes in a little above the 40c mark. Of course it's important to remember that the video card is overclocked when compared to the reference card.

Sound Test

Pulling out the TES 1350A Sound Level Meter we find ourselves quickly yelling into the top of it to see how loud we can be.

After five minutes of that we get a bit more serious and place the device two CM away from the fan on the card to find the maximum noise level of the card when idle (2D mode) and in load (3D mode).

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 41 | TweakTown.com

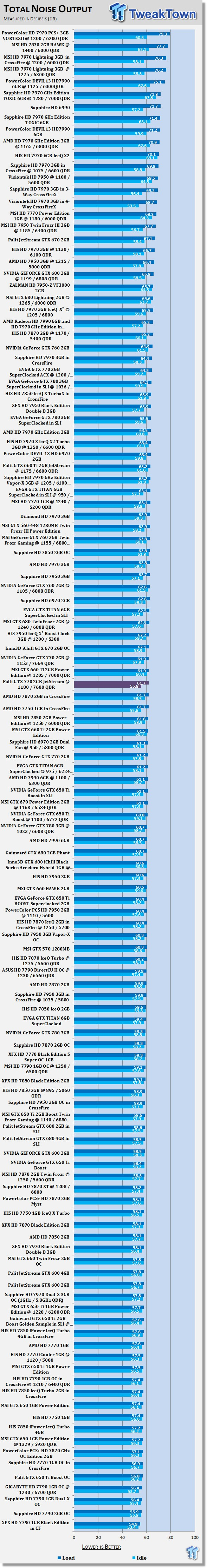

Looking above you can see that noise levels sit towards the middle of the pack, which are a good place for these new GTX 700 series cards.

We can see that other options come in at a decent chunk of decibels higher.

Power Consumption Test

Using our PROVA Power Analyzer WM-01 or "Power Thingy" as it has become quickly known as to our readers, we are now able to find out what kind of power is being used by our test system and the associated graphics cards installed. Keep in mind; it tests the complete system (minus LCD monitor, which is plugged directly into AC wall socket).

There are a few important notes to remember though; while our maximum power is taken in 3DMark06 at the same exact point, we have seen in particular tests the power being drawn as much as 10% more. We test at the exact same stage every time; therefore tests should be very consistent and accurate.

The other thing to remember is that our test system is bare minimum - only a SSD hard drive is used with a single CD ROM and minimal cooling fans.

So while the system might draw 400 watts in our test system, placing it into your own PC with a number of other items, the draw is going to be higher.

Palit GeForce GTX 770 2GB JetStream Overclocked Video Card Review 42 | TweakTown.com

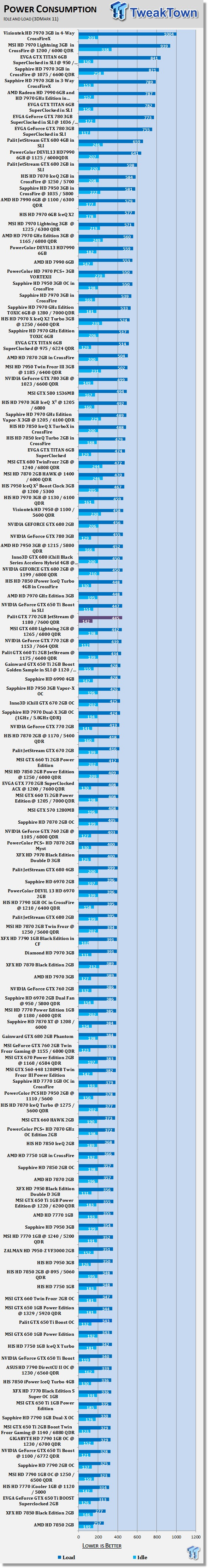

Like noise levels, we can see power draw sits towards the middle of the pack.

At load, we're in the mid 400 watt range, while idle sits in the mid-100 watt range.

Pricing, Availability and Final Thoughts

Without and exact US price at the moment, it's hard to know exactly where we'll see the Palit GTX 770 2GB JetStream sit. If we look at Newegg, though, and compare to the competition, an educated guess would see the model sit at the $424.99 - $429.99 mark, which would line it up with other overclocked GTX 770s with upgraded cooling.

I think something we need to note when it came to the overclocking is that the video card didn't see a huge bump in speeds. 1180MHz on the core means that it is overclocked by only 30MHz. However, something that's really important to note, though, is the out of the box clock speed of the core.

While like most companies Palit have chosen to leave the memory clock alone, the 1150MHz overclock out of the box is one of the best on the market. We don't see anyone actually beat this clock speed, instead we see only MSI match it. It's worth noting, though, that the 1150MHz clocked MSI offering is a Lightning based card and carries a $449.99 price tag, making it the most expensive GTX 770 2GB on the market currently.

While we didn't test the out of the box performance, we know from the overclock we managed to achieve from the reference card what performance would look like. Because of a slightly higher boost clock speed, the Palit offering should come out slightly ahead.

The out of the box clocks, though, are what really have a huge appeal to us. While most companies sit below the 1100MHz mark, Palit has come out and offered 1150MHz out of the box. While we haven't been able to get much more than that when it comes to overclocking, the overall overclock was only slightly behind what we saw out of the EVGA video card we looked at the other week.

One of the biggest issues when it comes to Palit video cards, though, is getting one in North America is difficult - if not near impossible sometimes. This is something that's extremely disappointing due to the fact they produce some truly fantastic models. On the other hand if you're over in Europe, the Palit GTX 770 2GB JetStream can be picked up for 276 pounds ex VAT from Scan UK, which converts to $421.

What do TweakTown.com awards mean? Click for details!

PRICING: You can find products similar to this one for sale below.

USUnited States: Find other tech and computer products like this over at Amazon.com

UKUnited Kingdom: Find other tech and computer products like this over at Amazon.co.uk

AUAustralia: Find other tech and computer products like this over at Amazon.com.au

CACanada: Find other tech and computer products like this over at Amazon.ca

DEDeutschland: Finde andere Technik- und Computerprodukte wie dieses auf Amazon.de

Shawn takes care of all of our video card reviews. From 2009, Shawn is also taking care of our memory reviews, and from May 2011, Shawn also takes care of our CPU, chipset and motherboard reviews. As of December 2011, Shawn is based out of Taipei, Taiwan.

We openly invite the companies who provide us with review samples / who are mentioned or discussed to express their opinion. If any company representative wishes to respond, we will publish the response here. Please contact us if you wish to respond.

Related Tags

Newsletter Subscription

Latest News

View More News

Latest Reviews

View More Reviews

Latest Articles

View More Articles
