Fractal Design Meshify 3 Mid-Tower Chassis Review

TweakTown Rating: 90%

Our Verdict

Fractal's Meshify 3 is the newest case in its Meshify lineup of cases. While it ticks most of the boxes, rear connector motherboard users need to look elsewhere.

Pros

• Three pre-installed 140mm Momentum 14 RGB fans
• Excellent front airflow

Cons

• High pricing on all models
• Reverse connector motherboard support is absent

Should you buy it?

AvoidConsiderShortlistBuy

Buy at Amazon for $239.99 USD

Buy at Amazon for $309.99 CAD

Lowest price in 30 days

Buy at Amazon for £169.99

Lowest price in 30 days

View price at Amazon

Also at PC Case Gear

Introduction, Specifications, and Pricing

Fractal Design has released a new Meshify case and it's called the Meshify 3. The model sent to us by Fractal Design is the highest-ended variant of the Meshify 3, the Ambiance Pro RGB, with a retail price of $219.99. I should also note that Fractal has also launched the XL version of the Meshify 3, offering the same features and options in just a larger package. Fractal has decided that all models now include three 140mm Momentum 14 fans.

However, RGB models do come at a slightly higher price premium. The base model of the Meshify 3 starts at $139.99 for the steel side panel, and the tempered glass panel model costs the same. Moving up the product stack, adding RGB adds $20 for RGB 140mm Momentum 14 fans.

Now, how about we look at what Fractal has with the Meshify 3 chassis and see if it's worth that higher price tag?

Packaging

20

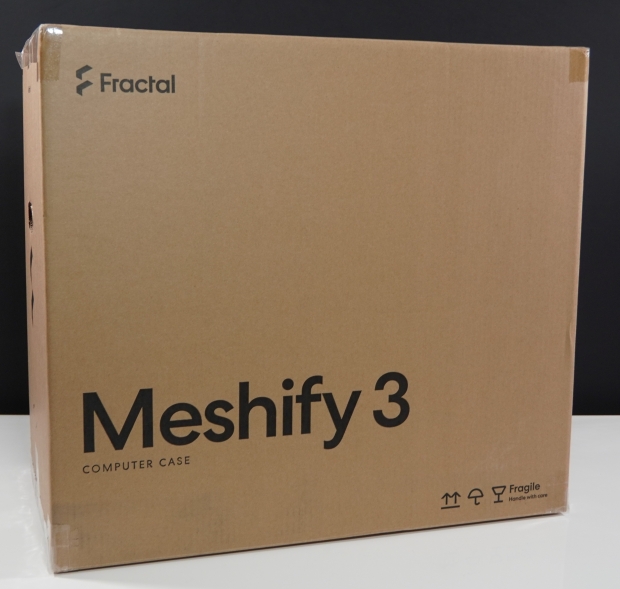

Now, Fractal, being Fractal, has packaged the Meshify 3 in the standard brown cardboard box. The Meshify 3 name is on the side, along with the Fractal logo and name in the upper left-hand corner. Nothing else, nothing more.

20

Best Deals: Fractal Design Meshify 3 Mid-Tower Chassis

Prices last scanned 4 hours and 25 minutes ago

Today 7 days ago 30 days ago Buy

$239.99 USD

7 days ago: $239.99 USD30 days ago: $236.92 USD

$239.99 USD

$236.92 USD

BuyBuy at Amazon

$309.99 CAD

7 days ago: $309.99 CAD30 days ago: $309.99 CAD

$309.99 CAD

$309.99 CAD

BuyBuy at Amazon

£169.99

7 days ago: £169.9930 days ago: £204.95

£169.99

£204.95

BuyBuy at Amazon

Check Price

-

-

CheckCheck Price at Amazon

Check Price

-

-

CheckCheck Price at Newegg

Check Price

-

-

CheckCheck Price at Newegg

Check Price

-

-

CheckCheck Price at PC Case Gear

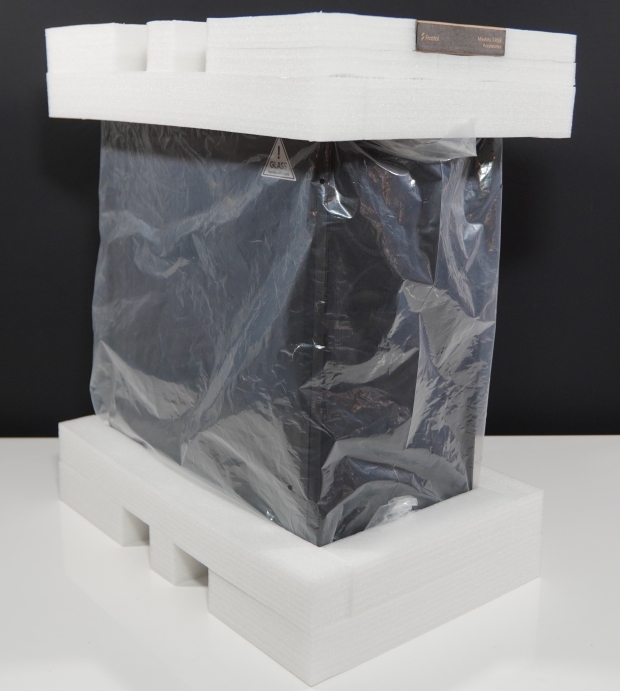

Removing the Meshify 3 from its cardboard packaging again shows how attention to detail Fractal Design is. It is complete with open-cell foam packaging, which can take a hit and provide great protection against drops and bumps. Along with the open-cell foam, the standard plastic cover on the outside keeps most debris from making its way to the Meshify 3 itself. On top, the accessory box is tucked away, which we will dive into later.

Outside the Fractal Design Meshify 3 ATX Mid-Tower Case

20

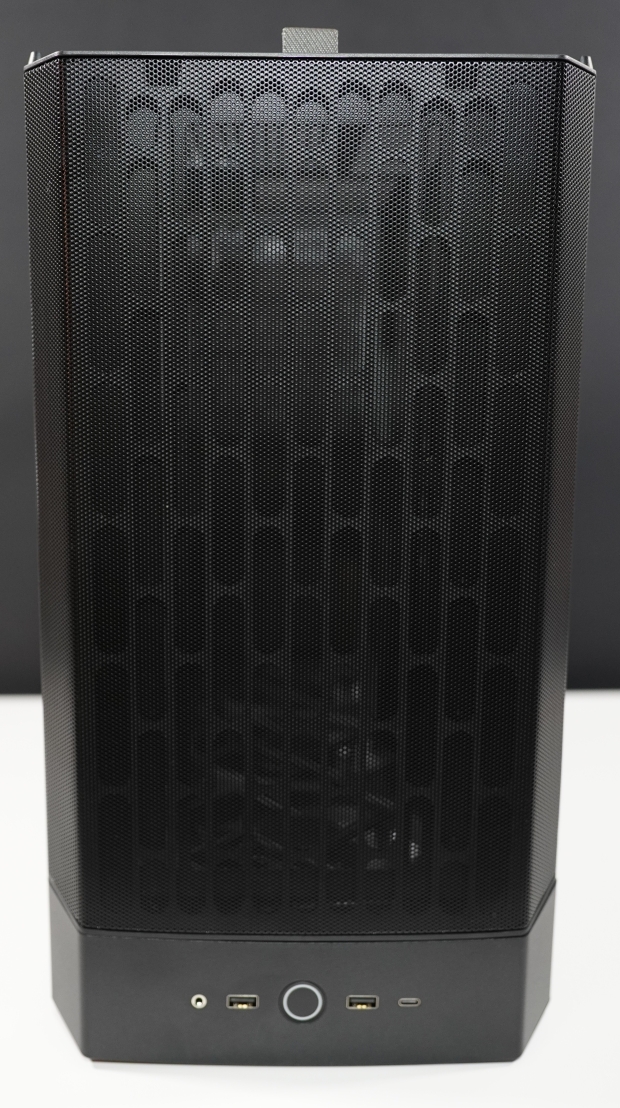

After removing all the packing materials from the Meshify 3, we can clearly see that we have the black TG model with the three Momentum 14 RGB fans pre-installed in the front for fresh air intake. The Meshify 3's dimensions are 433 x 229 x 507 mm, and its net weight is 9.1 kg or 20.06 lbs for the Ambience Pro RGB model.

20

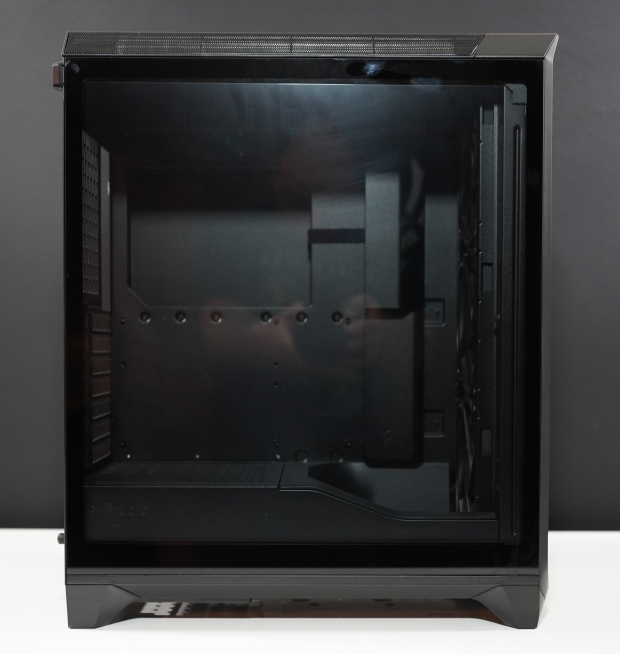

Now we come around to the tempered glass side panel, which is held in place via two POGO retention pins with easy pop-off removal just by pulling the tempered glass side panel towards you.

20

Moving to the rear of the Meshify 3, we see a unified ventilation pattern that feels very "Star Wars" with the long oval-like designs. The left side shows three velcro cable tie-down points, allowing the user to clean up the clutter mess of external cabling that often occurs. Support for a 120mm rear fan is just above the PCIe slots, which we can see in the same pattern, and a plastic cover for the tops of the PCIe brackets. Lastly, the PSU bracket, which Fractal has decided to make flush with the rest of the exterior, offers a cleaner-looking aesthetic.

20

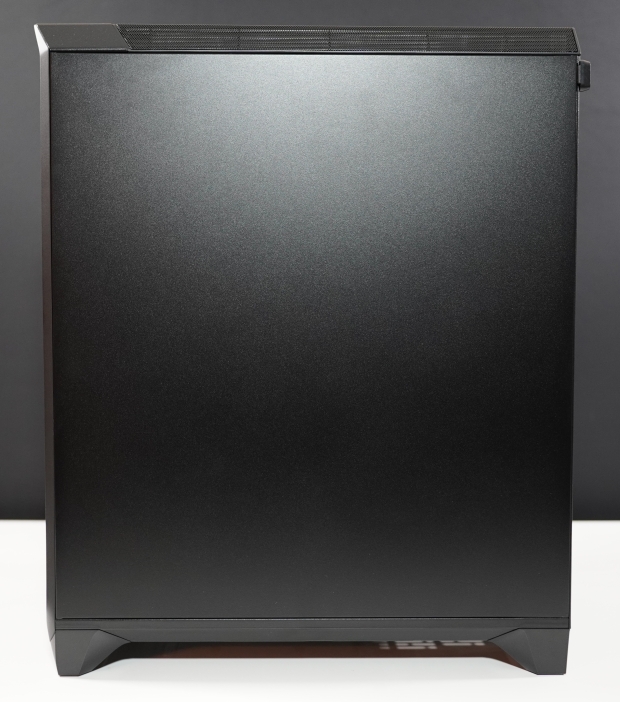

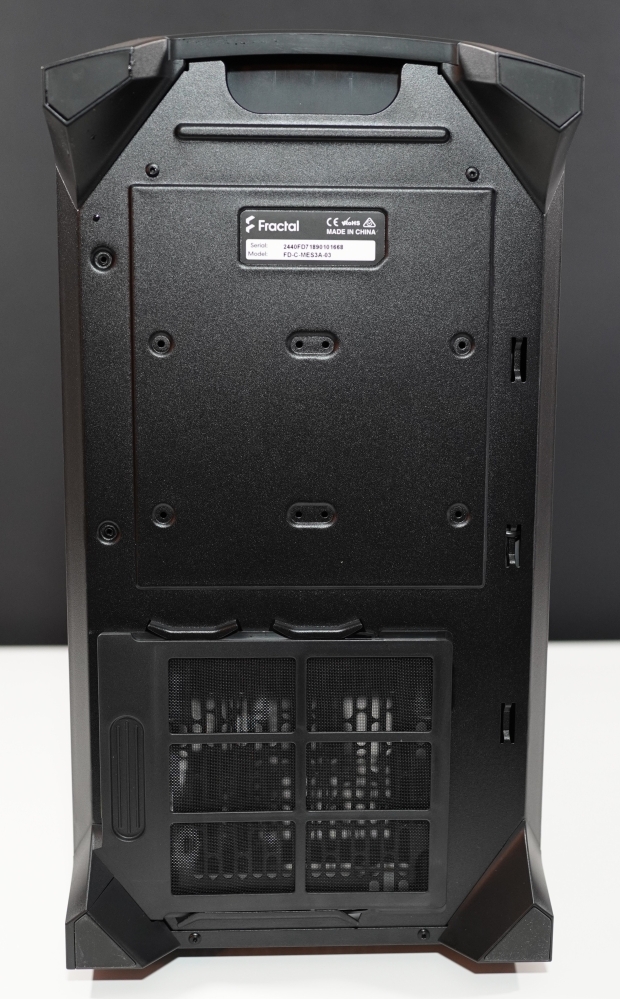

The back side panel has the same retention features as the front tempered glass side panel but with steel. Nothing much else to report here.

20

The top panel of the Meshify 3 is removable via a gray pull tab on the rear, which exposes mounting for fan or radiator mounting. The front I/O of the Meshify 3 has a combo 3.5mm mic/headset jack, a USB 5 Gbps Type-A port, a circle LED lit power button, another USB Type-A 5 Gbps port, and lastly a USB Type-C 20 Gbps port.

20

The bottom of the Meshify 3 shows four very large feet that raise the bottom about 1.5 inches. Fractal has also chosen a slide-out filter from the side rather than the rear for the PSU dust filter, which makes cleaning much easier.

Inside the Fractal Design Meshify 3 ATX Mid-Tower Case

20

Getting to the interior of the Meshify 3, we can see a more compact, taller design than previous versions of the Meshify. One thing that seems to be omitted from the Meshify 3 is having any support for reverse connector motherboards, which I would have thought Fractal wouldn't have missed, but here we are. However, support for E-ATX motherboards is available, even with the adjustable cable hider to the right of the motherboard. The maximum height support for CPU coolers is limited to 173 mm, while the maximum GPU height is slightly higher at 176 mm, including the cables. The GPU length will be somewhat limiting, with a maximum length of 349 mm.

20

Now, we are getting to those three pre-installed Momentum 14 RGB fans that Fractal has included. I love how blacked out the Momentum 14 RGB fans are - even the rear sticker is blacked out. Also, Fractal has a scooped airflow design in the path of the bottom Momentum 14 RGB fan, which I am assuming that this design helps direct airflow more toward the GPU for better cooling. The front fan mounting can also support up to a 280/360mm radiator if water cooling is more your style.

20

Moving up the top panel, which is removable via two captive thumbscrews, allows for the support of up to a 240/280mm radiator or two 120/140mm fans. Having a removable top panel means having tons more room while installing the motherboard and managing cables.

20

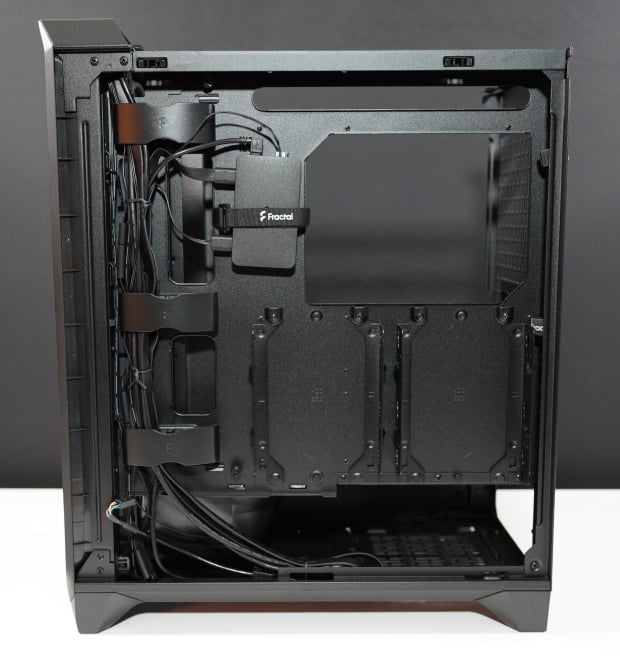

Taking off the rear steel side panel, again with two POGO retention pins, we can now see all the attention Fractal put into the cable management with the three plastic cable brackets on the left-hand side. Fractal for the Ambience Pro RGB model includes the Adjust Pro Hub, which allows you to customize lighting and fans with a download-free configuration tool accessible online. HDD support for the Meshify 3 has six total drive mounts, four of which are for 2.5" drives only, mainly due to the front air front scoop design where the 3.5" drives would typically be installed.

20

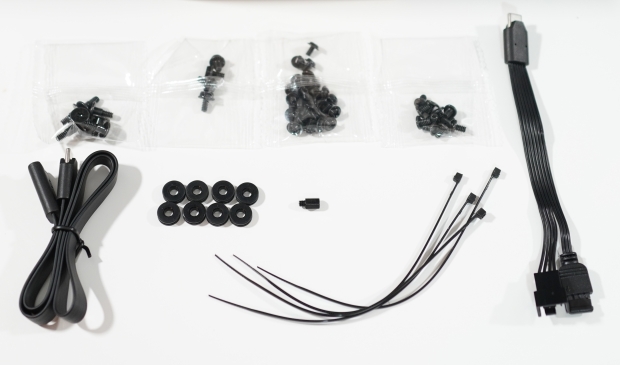

Inside the accessory box: a Motherboard Screw x9, a PSU Screw x4, an SSD Screw x24, an HDD Screw x8, a Motherboard Standoff x1, an HDD Rubber x8, a Zip Tie x4, a 500 mm Fractal Connect Cable x1, and lastly a Legacy Splitter Cable.

Test System, Installation, and Finished Product

Case Test System

Final Thoughts

20

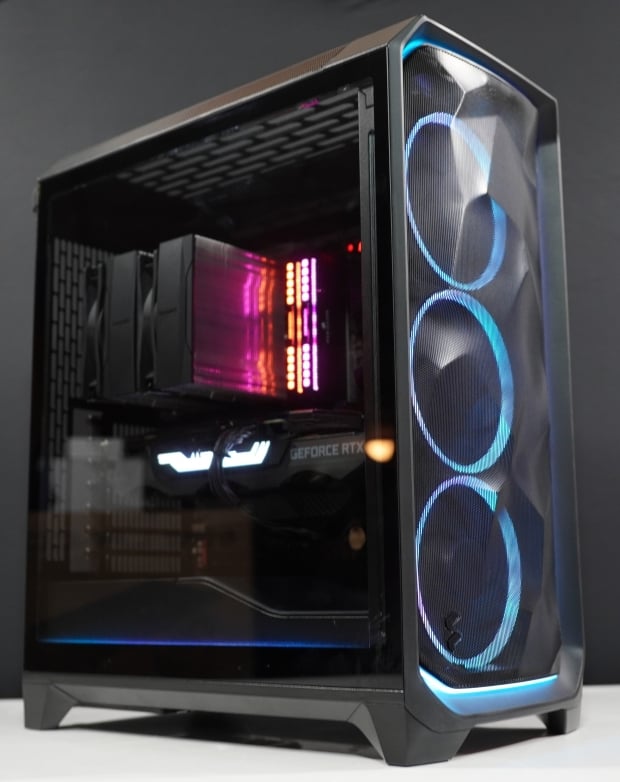

Building in Fractal Design's Meshify 3 left me a little puzzled as to why they wouldn't have supported reverse/back connector motherboards, partly because I had just switched over to the MSI Z790 Project Zero motherboard for ATX review, but that is neither here nor there. Moving on to the build itself, it went decently well once I swapped out the motherboards. The cable management was excellent with those three cable retention clips, along with just about every aspect of the build going swimmingly, just as with any other Fractal build I have done. So, in those regards, well done, except for excluding rear/back connector motherboard support.

20

For testing, I would have used Intel's Core i5 12600K CPU on a Z790 Project Zero motherboard from MSI to test the Fractal Design Meshify 3 ATX mid-tower case. However, the Meshify 3 does not support rear/reverse connector motherboards, so we are returning to the Z690 AORUS Pro. Two sticks of Corsair's Dominator Platinum DDR5-7200 RAM were run at DDR5-4800 M/T for memory stability. Zotac's NVIDIA RTX 3090 Trinity GPU was run at its stock power limits and clocks via MSI's Afterburner GPU Overclocking and Monitoring utility for the test GPU. The Intel Core i5 12600K CPU is now being cooled by the Pure Rock Pro 3 heatsink from be quiet!, which has two 120mm fans in a dual tower configuration for optimal cooling performance.

For the fan configuration, the Fractal Design Meshify 3's fans are set up by default with the three Momentum 14 RGB 140mm fans mounted as front air intake. This kind of fan configuration creates a favorable case pressure scenario with no fan as the rear exhaust. Temperatures for the Intel Core i5 12600K rose to a max temperature of 66C but averaged 60C while maintaining a boost clock of around 4.5GHz. Zotac's NVIDIA RTX 3090 Trinity hit a maximum temperature of 78.2C but only lowered the average temperature to 76.3C. Overall, the temperatures were quite good for the CPU and GPU due to the sufficient cool air from the front intake fans.

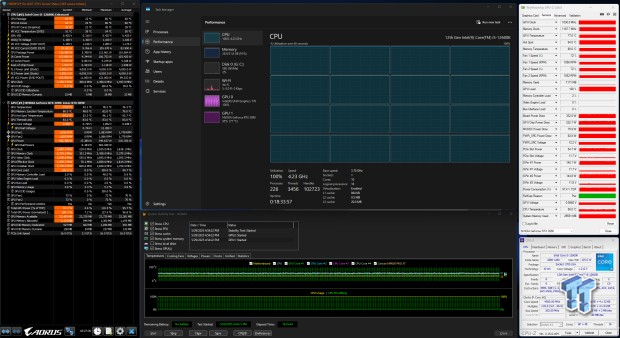

All testing was completed using Aida64 Engineer's System Stability Test version v7.60.7300 for over 18 hours, with an ambient temperature of 19C. Other monitoring software used was HWiNFO64 v8.07-5515, TechPowerUp GPU-Z v2.66, and CPU-Z 2.15.0.x64.

20

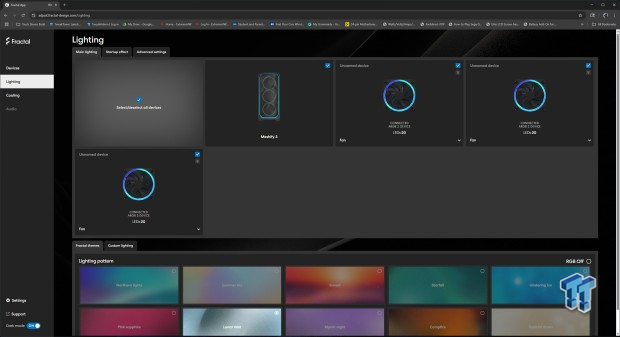

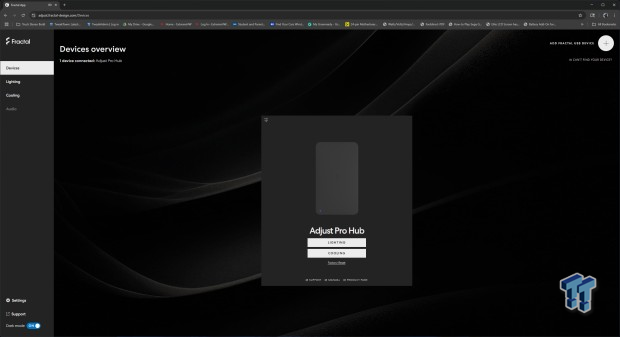

Now, let's talk about Fractal's Adjust Pro Hub, which is included with the Ambience Pro RGB model. This controller, the first of its kind, does not require additional software to be installed on the local system; it has a web interface instead.

20

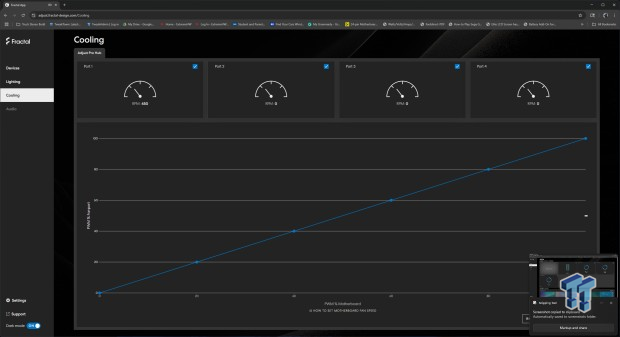

This web interface controls the lighting and fan cooling, feeling much like Corsair's Link software but without all the added bloat of installed software.

20

Connections for the Adjust Pro start with a single SATA power connector, then the fans connect through a USB C "style" plug, and a single Micro USB to USB 2.0 header cable allows for data control. The Adjust Pro has 4 output channels, each supporting up to 16 ARGB Gen 2 devices with a maximum number of 400 LEDs across all the channels.

20

In conclusion, the Meshify 3 from Fractal Design does check most of the boxes off for a builder; however, not supporting rear/reverse connector motherboards in 2025, I would say, is a big miss. The model that we received, the Ambience Pro RGB model, was decked out with three pre-installed 140mm Momentum 14 ARGB fans, which set the stage for front intake airflow while providing ARGB lighting around the LED ring around the front mesh and along the bottom of the PSU shroud.

However, when it comes to pricing, the Ambience Pro RGB model is priced relatively high at $219.99, while the base model comes in at $139.99, sans the ARGB and Adjust Pro Hub. If you don't care for any RGB lighting, go with the base model; if you want RGB, the RGB model is only priced at $20 more. Having to cough up an additional $60 for the Adjust Pro Hub is quite a jump, while the difference in money could be spent elsewhere in your system, like getting a better quality PSU.
