Gigabyte RTX 4060 boards suffer recurrent burns due to VRM defect

Q: Which specific Gigabyte RTX 4060 model did the repair technicians focus their investigation on?

The technicians focused their investigation on the GIGABYTE RTX 4060 AERO model. They concentrated on this model after noticing the same failure pattern showing up repeatedly on those boards.

Q: What component of the VRM did the technicians identify as the root cause of the burns?

They identified the current-sense feedback network feeding the PWM controller as the root cause of the burns. Technicians found the resistor and capacitor values across the four feedback paths were inconsistent, causing the controller to misread phase currents and overload a single MOSFET.

Q: What warning signs should RTX 4060 AERO owners watch for that preceded these failures?

Owners should watch for unusual smells, coil whine, or sudden shutdowns. These were the warning signs that preceded the failures described in the article.

Q: Is the VRM damage described something a user can reasonably repair at home?

The article states that PCB-level VRM damage like this typically is not something you can DIY without proper soldering equipment. Repair shops are offering fixes, and affected owners are advised to keep documentation and contact GIGABYTE support.

Reports of GIGABYTE RTX 4060 burn damage were getting increasingly frequent, and repair techs traced it to an inconsistent VRM feedback circuit.

VIEW GALLERY - 5

Hassam Nasir

Tech Reporter

Published Jul 29, 2026 12:20 PM CDT

1 minute & 45 seconds read time

TL;DR: Brazilian repairers Paulo Gomes and SidNelson traced repeated burns on GIGABYTE GeForce RTX 4060 AERO cards to inconsistent VRM feedback resistor/capacitor values, causing one MOSFET to overload, short, and char the PCB near HDMI. They urge GIGABYTE warranty action; owners should watch for smells, coil whine, or shutdowns.

Voice: Hassam NasirSpeed

0:00 / 3:06

Brazilian GPU repair specialists Paulo Gomes and SidNelson say they have traced a recurring burn issue on GIGABYTE GeForce RTX 4060 boards back to a flaw in the card's VRM design, and not the HDMI port that was initially suspected.

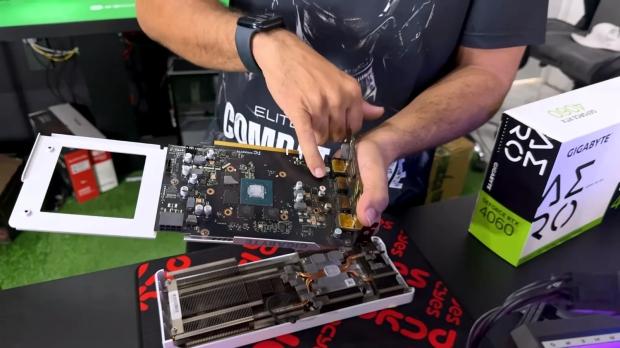

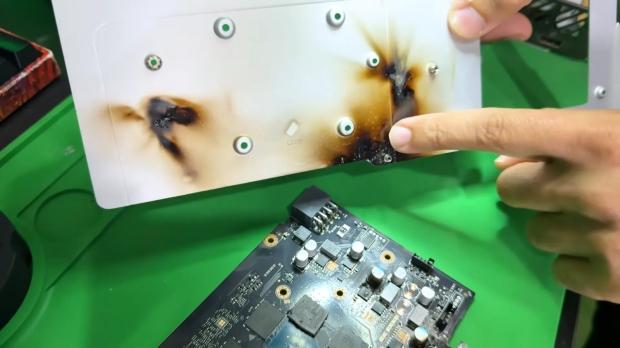

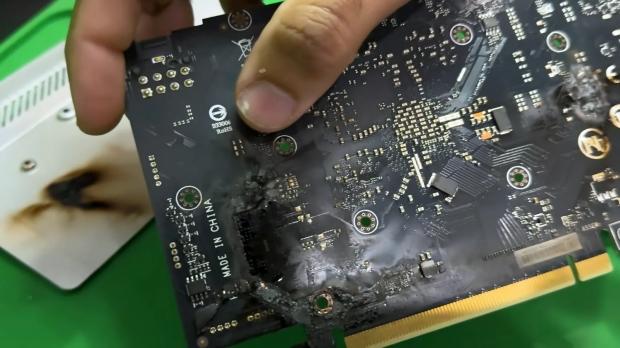

The pair focused their investigation on the GIGABYTE RTX 4060 AERO model after noticing the same failure pattern showing up again and again. Affected boards show heavy PCB carbonization near the HDMI output, which apparently led some owners to assume the display connector was the culprit.

Gomes and SidNelson say that is not the case. Using an oscilloscope and multimeter, they compared damaged samples against a working GIGABYTE card and an Inno3D RTX 4060, checking all four phases of the GPU's power delivery.

Gigabyte RTX 4060 boards suffer recurrent burns due to VRM defect 5

VIEW GALLERY - 5 IMAGES

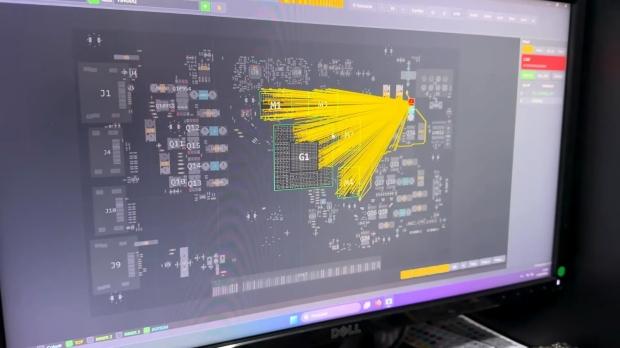

What they found points to the current-sense network feeding the PWM controller. This is the circuit that tells the controller how much current is flowing through each of the four VRM phases, so it can balance the load evenly. According to the investigation, the resistor and capacitor values across those four feedback paths were not consistent, which apparently causes the controller to misread how much current each phase is carrying.

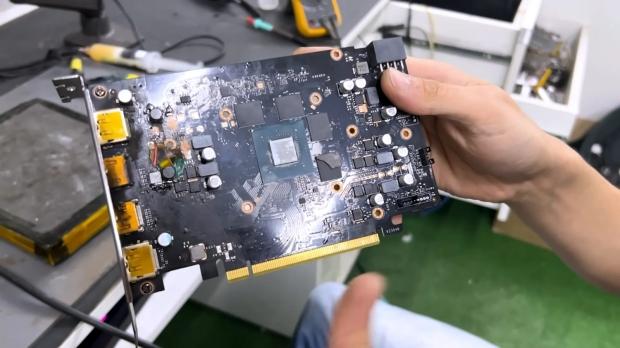

Gigabyte RTX 4060 boards suffer recurrent burns due to VRM defect 2

One MOSFET ends up overloaded while the others sit comfortably within spec, and eventually it shorts and burns, a failure mode similar in severity to melted RTX 5090 power connectors repair shops have documented elsewhere.

It looks like this is a manufacturing defect rather than something caused by user error, and the repair shop says another customer walked in with the same failure while filming the video, which is not exactly reassuring. The technicians are calling on GIGABYTE to address it through warranty support or a recall, and are pointing Brazilian customers toward the country's consumer protection code in the meantime.

Gigabyte RTX 4060 boards suffer recurrent burns due to VRM defect 4

GIGABYTE has not issued a public response, so it is not clear if this is an isolated batch issue or something wider. If you own an RTX 4060 AERO, watching for unusual smells, coil whine, or sudden shutdowns is a reasonable precaution. These are the same warning signs that preceded an ASUS ROG Astral RTX 5090 catching fire earlier this year.

Gigabyte RTX 4060 boards suffer recurrent burns due to VRM defect 3

Frequently Asked Questions

TweakBot answers common questions about this news using TweakTown's own coverage from this page and related content from our archive. Tap a question to reveal the answer, or type your own below.

Question #1

Which specific Gigabyte RTX 4060 model did the repair technicians focus their investigation on?

Question #2

What component of the VRM did the technicians identify as the root cause of the burns?

Question #3

What warning signs should RTX 4060 AERO owners watch for that preceded these failures?

Question #4

Is the VRM damage described something a user can reasonably repair at home?

Have a question not listed here? Ask below and TweakBot will answer it.

It also follows GIGABYTE's history of hardware complaints, a pattern unlikely to help the brand with buyers already wary of board quality. For now, the fix seems to be limited to what repair shops can offer, since PCB-level VRM damage like this typically is not something you can DIY without proper soldering equipment. Anyone affected should hold onto documentation and reach out to GIGABYTE support directly.
