AMD Radeon RX 5700 XT benchmarked at 3440x1440

AMD Radeon RX 5700 XT benchmarked at 3440x1440

AMD's new Navi 10 GPU gets put through its paces in UltraWide gaming at 3440x1440 on the new Radeon RX 5700 XT.

@anthony256
Published Mon, Jul 15 2019 10:00 AM CDT   |   Updated Tue, Sep 24 2019 12:29 AM CDT

Introduction

AMD launched its new Radeon RX 5700 XT and Radeon RX 5700 graphics cards less than two weeks ago (my review here) and at the time I re-tested all of my cards at all resolutions, taking up multiple 100-hour weeks to get it all done. It was worth it, by a long shot -- but hell, it was time consuming. I wanted to include 3440x1440 results but in order to give you 100% results at the three major resolutions: 1080p, 1440p, and 4K -- I needed to cut 3440x1440 out at the time.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 718 | TweakTown.com
VIEW GALLERY - 22 IMAGES

In the last week I have re-run all of graphics cards starting from the GeForce GTX 1060 through to the new RTX SUPER and RTX 2080 Ti, and from the Radeon RX 570 through to Vega and right into the new Radeon RX 5700 XT and RX 5700... oh and Radeon VII too.

I promised 3440x1440 results and have since run everything I can in my suite with the 21:9 aspect ratio, and here we are. I have as many games in my benchmark suite that support 3440x1440, and will incluide more games in the future in separate articles. I'm going to do more Radeon RX 5700 XT + RX 5700 vs GeForce RTX 2060/2060 SUPER graphics cards in 3440x1440 in other games, and will add them to the links to this page as they're added.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 101 | TweakTown.com

Monitor/Additional Pixels

Samsung CF791 - 3440x1440 @ 100Hz

For the 3440x1440 testing we're using the Samsung CF791 -- a 34-inch 21:9 aspect ratio UltraWide gaming monitor with a native 3440x1440 resolution and 100Hz refresh rate. Gaming on a 34-inch monitor at 3440x1440 and 100Hz is pretty damn good, and while it's not as good as the new 3440x1440 @ 200Hz G-Sync monitors, the Radeon RX 5700/5700 XT is perfect for 3440x1440 @ 100FPS.

Test System Specs

Our New GPU Test Rig

Welcome to the latest revision of our GPU test bed, with our system being upgraded from the Intel Core i7-7700K to the Core i7-8700K. The CPU is cooled by the Corsair H115i PRO cooler, with the 8700K overclocked to 5GHz. We've stayed with GIGABYTE for our motherboard with their awesome Z370 AORUS Gaming 7.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 1060 | TweakTown.com

We approached our friends at HyperX for a kit of their kick ass HyperX Predator DDR4-2933MHz RAM (HX429C15PB3AK4/32), with 2 x 8GB sticks for a total of 16GB DDR4-2933. The RAM stands out through every minute of our testing as it has beautiful RGB lights giving the system a slick look while benchmarking our lives away, while the Z370 AORUS Gaming 7 motherboard joins in with its own array of RGB lighting.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 1061 | TweakTown.com

Detailed Tech Specs

  • CPU: Intel Core i7-8700K @ 5GHz
  • Cooler: Corsair Hydro Series H115i PRO
  • MB: Z370 AORUS Gaming 7
  • RAM: 16GB (2x8GB) HyperX Predator DDR4-2933
  • SSD: 1TB OCZ RD400 NVMe M.2
  • SSD: 512GB OCZ RD400 NVMe M.2
  • PSU: InWin 1065W PSU
  • Chassis: In Win X-Frame
  • OS: Windows 10 Pro x64

Additional Images

AMD Radeon RX 5700 XT benchmarked at 3440x1440 1063 | TweakTown.com
AMD Radeon RX 5700 XT benchmarked at 3440x1440 1064 | TweakTown.com
AMD Radeon RX 5700 XT benchmarked at 3440x1440 1065 | TweakTown.com
AMD Radeon RX 5700 XT benchmarked at 3440x1440 1066 | TweakTown.com

Benchmarks - Synthetic

Heaven - 3440x1440

Heaven is an intensive GPU benchmark that really pushes your silicon to its limits. It's another favorite of ours as it has some great scaling for multi-GPU testing, and it's great for getting your GPU to 100% for power and noise testing.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 107 | TweakTown.com
AMD Radeon RX 5700 XT benchmarked at 3440x1440 207 | TweakTown.com

Benchmarks - 3440x1440

RX 5700 XT @ 3440x1440

AMD Radeon RX 5700 XT benchmarked at 3440x1440 4006 | TweakTown.com

Middle-earth: Shadow of War is a sequel to the popular Shadow of Mordor, which was powered by the Lithtech engine. When cranked up to maximum detail, it will chew through your GPU and its VRAM like it's nothing.

You can buy Middle-earth: Shadow of War at Amazon.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 311 | TweakTown.com
AMD Radeon RX 5700 XT benchmarked at 3440x1440 4004 | TweakTown.com

Rainbow Six: Siege has been a strong entry into the franchise, popular for its realistic feel and great graphics. Stable as a rock for benchmarking, right up to 3440x1440 and 4K.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 312 | TweakTown.com
AMD Radeon RX 5700 XT benchmarked at 3440x1440 4013 | TweakTown.com

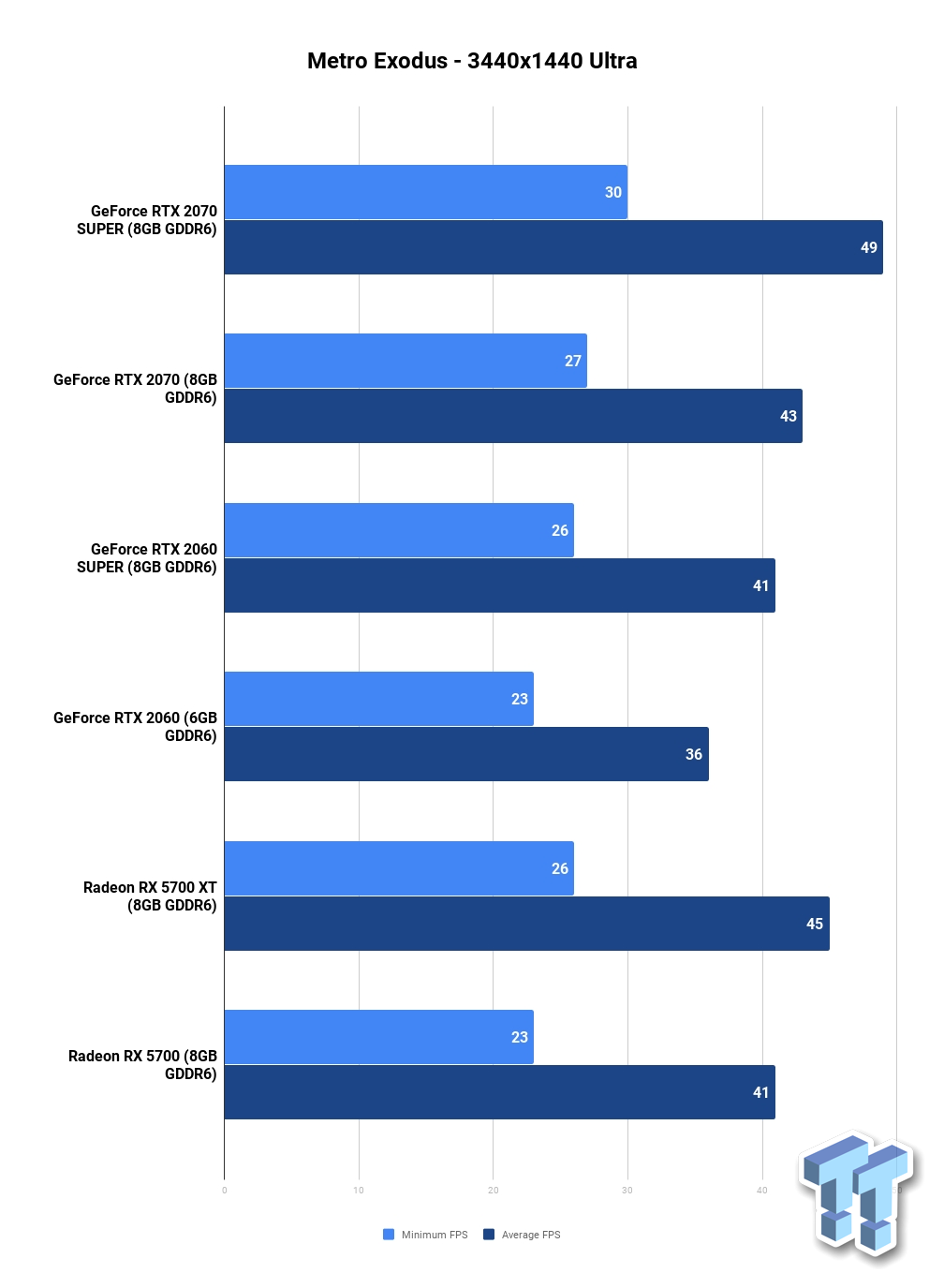

Metro Exodus is one of the hardest tests that our graphics cards have to go through, with 4A Games' latest creation being one of the best looking games on the market. It is a serious test that pushes GPUs to their limits, and also features RTX technologies like DLSS.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 313 | TweakTown.com
AMD Radeon RX 5700 XT benchmarked at 3440x1440 4015 | TweakTown.com

Far Cry New Dawn was developed by Ubisoft, and is powered the Dunia Engine, an engine that has been modified over the years for Far Cry and last used in Far Cry 5. Dunia Engine itself was a modified version of CRYENGINE, scaling incredibly well on all sorts of hardware.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 314 | TweakTown.com
AMD Radeon RX 5700 XT benchmarked at 3440x1440 4002 | TweakTown.com

Shadow of the Tomb Raider is one of the latest games to join our graphics card benchmark lineup, with the game built using the Foundation engine as a base, the same engine in Rise of the Tomb Raider. Eidos Montreal R&D department made lots of changes to the engine during the development of Shadow of the Tomb Raider to make it one of the best-looking games out right now.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 315 | TweakTown.com

Final Thoughts

3440x1440 gaming on the Radeon RX 5700 XT is a great combination as AMD's new Navi-based Radeon RX 5700 XT beats NVIDIA's new GeForce RTX 2060, the new RTX 2060 SUPER and comes close to the higher-end RTX 2070 in the 21:9 aspect ratio. At least in everything but Shadow of War, which the RX 5700 XT loses to the RTX 2060 SUPER, but still beats the RTX 2060.

AMD Radeon RX 5700 XT benchmarked at 3440x1440 731 | TweakTown.com

Not bad for a card that costs $399, and with more and more affordable UltraWide monitors at 3440x1440 @ 100Hz being available, it makes for a potent combo in RX 5700 XT + 3440x1440 @ 100Hz gaming monitor.

MSI's own Optix MAG341CQ gaming monitor offers 3440x1440 @ 100Hz FreeSync for just $429, so mixed with the $399 for the RX 5700 XT we're looking at $828 for a damn good gaming experience. If you're more into the single player gaming side of things then a 21:9 aspect ratio monitor is a huge new window into your games if they support the 3440x1440 native resolution, mixed in with a Radeon RX 5700 XT and even a new Ryzen 7 3700X and you've got a very, very potent UltraWide gaming experience.
