ASUS ROG Maximus Z690 Hero Motherboard Review

ASUS ROG Hero has been the go-to Intel motherboard for years, but will that continue with the new Intel Z690? Let's find out.

@TylerBernath
Published Mon, Dec 6 2021 9:20 AM CST
Rating: 94%Manufacturer: ASUS (ROG MAXIMUS Z690 HERO)

Introduction, Specifications, and Pricing

Part of the official media kit for Intel for the launch of 12th Gen Alder Lake CPUs was the ROG Maximus Hero. This board has been widely regarded as the go-to gaming motherboard for several years. With the Z690 platform, we have all of the standard upgrades; this includes Thunderbolt 4, PCIe 5.0, and of course, DDR5. Outside of this, ASUS has beefed up their board to support five m.2 slots, WiFi6e and 2.5Gbe are added as standard.

ASUS ROG Maximus Z690 Hero Motherboard Review 02 | TweakTown.comASUS ROG Maximus Z690 Hero Motherboard Review 03 | TweakTown.com
VIEW GALLERY - 44 IMAGES

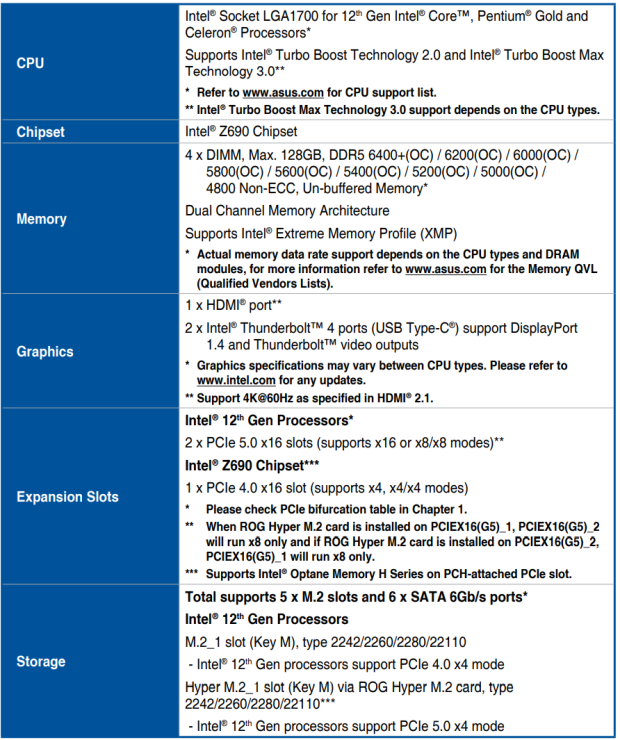

Specifications give us the LGA1700 socket with compatibility with 12th Gen Core Processors alone. The ROG Hero is built on the Z690 chipset with DDR5 support. Max memory capacity is 128GB with speeds from 4800MHz through 6400MHz+ with an OC.

The PCIe slots offer 16 lanes of Gen5 support; this can be set up as a single x16 at the top or 8x8 if using both. The bottom PCIe x4 slot comes from the chipset at PCIe 4.0 speeds.

Further connectivity includes seven USB 3.2 Gen ports, two USB 2.0, and a single USB 3.2 Gen 2x2 on the rear panel. You will also find antenna connections for WiFi6e and 2.5Gbe. This board offers five m.2 slots, three at Gen4 and one at Gen3; the M.2_1 slot supports PCIe Gen 5.0 speeds.

Audio comes from the Realtek ALC4080 with support for 7.1 output and Supreme FX support.

Pricing

The ASUS ROG Maximus Z690 Hero carries an MSRP of $599.99 with a three-year warranty.

Buy at Amazon

ASUS ROG Maximus Z690 Hero Motherboard

TodayYesterday7 days ago30 days ago
$792.79$792.79$621.59
* Prices last scanned on 1/8/2022 at 9:04 pm CST - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission.

Packaging, Accessories, and Overview

Packaging and Accessories

ASUS ROG Maximus Z690 Hero Motherboard Review 05 | TweakTown.com

Packaging is on point and hasn't really changed in several generations. We have ROG branding at the top with board identification. Along the bottom, supported platforms and features.

ASUS ROG Maximus Z690 Hero Motherboard Review 06 | TweakTown.com

Accessories include the ROG Hyper m.2 card, SATA cables, Wi-Fi antenna, and drivers on USB.

ROG Maximus Z690 Hero Overview

ASUS ROG Maximus Z690 Hero Motherboard Review 07 | TweakTown.com

Taking our first look at the board, the Hero has undergone an aesthetic redesign, ROG logos on the chipset heat sink, and rear I/O cover. Black heat sinks cover most of the board real estate, including a heat pipe solution for the VRMs.

ASUS ROG Maximus Z690 Hero Motherboard Review 08 | TweakTown.com

The back of the board is mostly bare, Maximus branding silkscreened onto the middle of the board.

ASUS ROG Maximus Z690 Hero Motherboard Review 09 | TweakTown.com

Rear I/O is well laid out, BIOS Flashback and Clear CMOS at the top; HDMI for onboard video follows. Further down, we run into Thunderbolt along with a full complement of USB 3.2 Gen 2 ports, including one set up with TYPE-C. Audio rounds out the bottom of the board but not before we find two antenna connections.

ASUS ROG Maximus Z690 Hero Motherboard Review 10 | TweakTown.com

Starting our run around the board connections, the bottom includes a set of RGB headers in white, followed by chassis fan connections.

ASUS ROG Maximus Z690 Hero Motherboard Review 11 | TweakTown.com

Further down, we have USB 2.0 headers and front panel connections.

ASUS ROG Maximus Z690 Hero Motherboard Review 12 | TweakTown.com

Around the edge, we have two USB 3.2 Gen 1 headers with SATA ports stuffed between.

ASUS ROG Maximus Z690 Hero Motherboard Review 14 | TweakTown.com

Gen2x2 starts this image off, followed by supplemental power for the board and the 24 pin connections.

ASUS ROG Maximus Z690 Hero Motherboard Review 15 | TweakTown.com

Across the top, we have the debug LED, four fan connections.

ASUS ROG Maximus Z690 Hero Motherboard Review 16 | TweakTown.com

Dual eight-pin power connections wrap up this board.

UEFI, Software and Test System

UEFI

ASUS ROG Maximus Z690 Hero Motherboard Review 20 | TweakTown.comASUS ROG Maximus Z690 Hero Motherboard Review 21 | TweakTown.com
ASUS ROG Maximus Z690 Hero Motherboard Review 22 | TweakTown.comASUS ROG Maximus Z690 Hero Motherboard Review 23 | TweakTown.com
ASUS ROG Maximus Z690 Hero Motherboard Review 24 | TweakTown.comASUS ROG Maximus Z690 Hero Motherboard Review 25 | TweakTown.com
ASUS ROG Maximus Z690 Hero Motherboard Review 26 | TweakTown.comASUS ROG Maximus Z690 Hero Motherboard Review 27 | TweakTown.com
ASUS ROG Maximus Z690 Hero Motherboard Review 28 | TweakTown.comASUS ROG Maximus Z690 Hero Motherboard Review 29 | TweakTown.com

This BIOS should look familiar for anyone that has used a ROG platform in the last few generations. That said, for 12th Gen, we have CPU information in the right pane, BIOS info in the center.

Extreme Tweaker includes current CPU and memory clocks at the top, tuning for both down below. The advanced menu includes options for SATA storage and PCH along with Thunderbolt and NVMe. CPU config includes the ability to enable/disable cores, including E cores and P cores separately.

Monitoring is included alongside fan control, while the tool menu allows you to control RGB and Secure Erase storage devices.

Motherboard Software

ASUS ROG Maximus Z690 Hero Motherboard Review 30 | TweakTown.com

AI Software is included with ROG boards; this software will allow you to auto -OC your processor; our 12900K was tuned for a 68% gain.

ASUS ROG Maximus Z690 Hero Motherboard Review 31 | TweakTown.com

Additional menu options include settings for TPU and VRM control.

Motherboard Testing Supporters

ASUS ROG Maximus Z690 Hero Motherboard Review 36 | TweakTown.com

Sabrent supports our storage testing with the Rocket 4 Plus.

TweakTown Intel Motherboard Test System

Cinebench R23 and AIDA64

Cinebench and AIDA64

Cinebench R23

Cinebench is a long-standing render benchmark that has been heavily relied upon by both Intel and AMD to showcase their newest platforms during unveils. The benchmark has two tests, a single-core workload that will utilize one thread or 1T. There is also a multi-threaded test that uses all threads or nT of a tested CPU.

ASUS ROG Maximus Z690 Hero Motherboard Review 40 | TweakTown.com

Alongside our launch review board and the recently reviewed Unify from MSI, the ROG Hero lands slightly ahead of the Strix at 1983 in 1T R23.

ASUS ROG Maximus Z690 Hero Motherboard Review 41 | TweakTown.com

Nt score comes in at 25604, behind the Strix by a few points and in front of the Unify.

AIDA64 Memory

ASUS ROG Maximus Z690 Hero Motherboard Review 42 | TweakTown.com

AES comes in just over 140K at 140889.

ASUS ROG Maximus Z690 Hero Motherboard Review 43 | TweakTown.com

SHA3 tapped in at 5145.

ASUS ROG Maximus Z690 Hero Motherboard Review 44 | TweakTown.com

Memory throughput pushed 81K read, 77K write, and 79K copy.

PCMark10,3DMark and CrossMark Benchmarks

PCMark 10

PCMark is a benchmark from UL and tests various workload types to represent typical workloads for a PC. Everything from video conferencing, image import, and editing, along with 3D rendering, are tested.

ASUS ROG Maximus Z690 Hero Motherboard Review 45 | TweakTown.com

Overall score in PCMark was at its best with the Hero; at 9639, we are nearly 200 points faster than the Unify.

ASUS ROG Maximus Z690 Hero Motherboard Review 46 | TweakTown.com

Score breakdown shows a significant boost in productivity and digital content with Hero.

CrossMark

ASUS ROG Maximus Z690 Hero Motherboard Review 47 | TweakTown.com

CrossMark showed a close 2nd for the Hero, 2320 points overall.

ASUS ROG Maximus Z690 Hero Motherboard Review 48 | TweakTown.com

Breakdown of CrossMark showed higher results in Creativity for the Hero.

3DMark

ASUS ROG Maximus Z690 Hero Motherboard Review 49 | TweakTown.com

CPU Profile showed equal performance between all boards; in all scenarios, the Hero did score the highest.

ASUS ROG Maximus Z690 Hero Motherboard Review 50 | TweakTown.com

Timespy nods to the Hero with a 200 point advantage.

ASUS ROG Maximus Z690 Hero Motherboard Review 51 | TweakTown.com

The Hero offers a 300 point advantage over Unify in the breakdown, both CPU and GPU showing increased performance.

Gaming and System I/O Benchmarks

Gaming Benchmarks

Gaming

ASUS ROG Maximus Z690 Hero Motherboard Review 52 | TweakTown.com

Tomb Raider showed equal performance for all boards tested; Hero offered 195 FPS in 1080p and 145 FPS at 1440p.

ASUS ROG Maximus Z690 Hero Motherboard Review 53 | TweakTown.com

FCND showed similar performance here as well, 172 FPS for 1080p and 1440p tapping 152 FPS.

Storage with CrystalDiskMark

ASUS ROG Maximus Z690 Hero Motherboard Review 54 | TweakTown.com

Storage performance was fantastic, NVMe topping 7028 MB/s with our Sabrent Rocket Plus; Gen 2x2 at 2011 MB/s followed by Gen 2 at 1071 MB/s and Gen 1 at 459 MB/s.

Power Consumption

ASUS ROG Maximus Z690 Hero Motherboard Review 55 | TweakTown.com

Power consumption for the Unify idled at 92 watts, and full load with R23 peaked at 364 watts.

Final Thoughts

Once again, as they have done for generations, ASUS has delivered a reliable well-endowed motherboard platform with the Z690 Maximus Hero. Connectivity is stacked from USB 3.2 to Thunderbolt and even M.2; a plethora of ports suitable for any consumer wanting to build a top-tier gaming machine are available. Adding to this, the latest Wi-Fi and 2.5Gbe solutions are integrated, and the latest Realtek chipset handles 7.1 audio.

In testing, the Hero did quite well matching the competing MEG Unify platform from MSI in most scenarios. 1T R23 showed both boards at 1983 points, while the Hero did take a 200 point win in multi-threaded. Memory throughput was higher on the Hero; this is due to better XMP compatibility that Unify did not have when we tested.

Gaming scenarios with Tom Raider and Far Cry showed nearly identical performance between boards; the Hero did pull 195fps with our A5000 and 172fps in Far Cry, 1080p, of course. Storage performance was on point, but even across the boards tested, we did see 7021 MB/s with our Rocket Plus.

Pricing is seemingly rough for most mid-tier boards like the ROG Hero, and at $599.99, this board isn't cheap by any means. ASUS does attempt to offset the cost by offering add-ons like the Hyper M.2 card for deploying Gen5 NVMe solutions (Coming Soon) and a relatively packed rear I/O, and plenty of expandability with internal chassis connections.

Buy at Amazon

Performance

95%

Quality

95%

Features

95%

Value

90%

Overall

94%

The Bottom Line

An all-around fantastic platform that offers plenty of connectivity and enough grunt to push even top tier CPUs to their limit.
