Supermicro X13SAE Workstation (Intel W680) Motherboard Review

We get our hands-on the Supermicro X13SAE, our first Intel W680-based workstation motherboard. Join us as we check it out.

@TylerBernath
Published Mon, Apr 11 2022 9:20 AM CDT
Rating: 90%Manufacturer: Supermicro (X13SAE)

Introduction, Specifications, and Pricing

Supermicro is known for its servers and workstations, but they have recently broken into the gaming market with a full line of platforms under the SuperO branding. That said, up to this point, we have yet to see a Z690 motherboard be deployed from SuperO, but they did just launch their X13 lineup of workstation solutions, so today, we have the X13SAE in house for review.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 02 | TweakTown.com
VIEW GALLERY - 28 IMAGES

The X13SAE and its X13SAE-F counterpart are both Supermicro platforms built on the Intel W680 chipset. W680, on the surface, is comparable to Z690 with support for the same PCIe technologies, USB including 3.2 Gen2x2 and the 2.5Gbe/WiFi6e Network stack. Far and away, the largest difference is memory support, where W680 formally introduces Alder Lake to ECC support.

The Supermicro X13SAE is an LGA1700 platform built on the W680 chipset. Memory support is across four slots, with support speed at JEDEC 4800MHz either with or without ECC. Current 12th Gen Intel CPUs are supported up to 125w TDP, with expected support for the Xeon W 1400 series and possible E series later in the year.

Expansion is available via two PCIe x16 slots, both supporting Gen5 with bifurcation allowing x16 for single use or x8x8 if both slots are occupied. Additional slots include 2x PCIe x4 alongside a PCI slot.

Storage connectivity offers three Hyper M.2 slots that support Gen4 PCIe and eight SATA ports for legacy connectivity. USB support includes three Gen 2 ports on the rear of the unit, red in color alongside a Gen2x2 using the USB-C form factor. There are two additional USB 2.0 ports for KB/Mouse and many display outputs that include HDMI, DVI, and Display Port. Audio is passed over the ALC888 audio codec.

Pricing

Current pricing for the Supermicro X13SAE is unknown, but we can guess based on listings at several retailers overseas. This would give us a market price of 424.3 Euro or roughly $460 for this platform.

Buy at Amazon

Intel Core i9-12900K Desktop Processor

TodayYesterday7 days ago30 days ago
$589.99$589.98$598.97
* Prices last scanned on 6/26/2022 at 2:55 am CDT - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission.

Supermicro X13SAE Overview

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 05 | TweakTown.com

The X13SAE is a green PCB motherboard, typical of server and workstation platforms. The layout is standard, CPU socket centered at the top, RAM to the right, and 24pin/8pin power in their usual locations.

The three m2 slots live between the PCIe slots and the SATA ports on the right edge of the board.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 06 | TweakTown.com

The back of the board is mostly blank apart from the support for the CPU socket retention.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 07 | TweakTown.com

Rear I/O includes HDMI and DP at the top, followed by DVI for legacy displays. We then move into USB with two USB 2.0 ports, three USB 3.2 Gen 2, and one Gen 2x2. At the bottom, we have the typical audio layout that includes optical output.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 08 | TweakTown.com

The bottom of the board includes front panel audio and a USB header.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 09 | TweakTown.com

Further down the line, we have the TPM header, front panel chassis connections, and our first fan header.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 10 | TweakTown.com

Up the side of the board, we have eight SATA ports.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 11 | TweakTown.com

Next, we run into USB 3.2 internal headers, both Gen 1 and 2, alongside a vertical USB 3.2 Gen 1 on the board. 24-pin power lives at the top of the board.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 12 | TweakTown.com

Across the top, we have several fan headers and single 8-pin CPU power input.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 13 | TweakTown.com

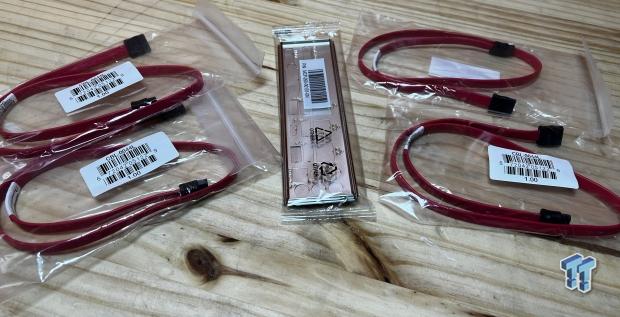

Our sample includes the rear I/O plate and SATA cables.

UEFI, Software and Test System

UEFI

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 20 | TweakTown.comSupermicro X13SAE Workstation (Intel W680) Motherboard Review 21 | TweakTown.com
Supermicro X13SAE Workstation (Intel W680) Motherboard Review 22 | TweakTown.comSupermicro X13SAE Workstation (Intel W680) Motherboard Review 23 | TweakTown.com
Supermicro X13SAE Workstation (Intel W680) Motherboard Review 24 | TweakTown.comSupermicro X13SAE Workstation (Intel W680) Motherboard Review 25 | TweakTown.com

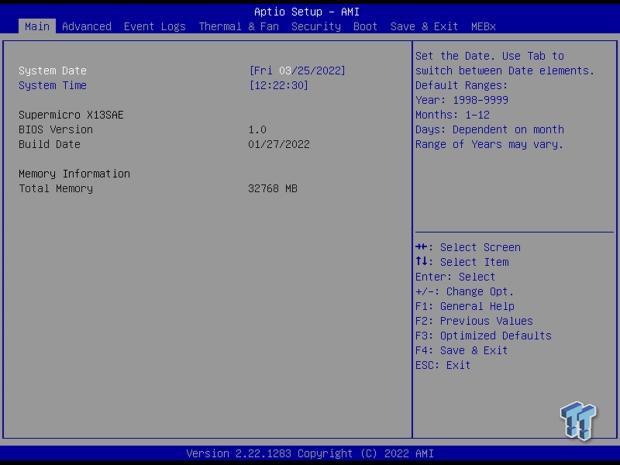

BIOS for the X13SAE is considered legacy by today's standards. Keyboard-friendly layout blue on grey scheme that includes several tabs at the top for navigation. The main menu offers time and date, the current build version, and installed memory.

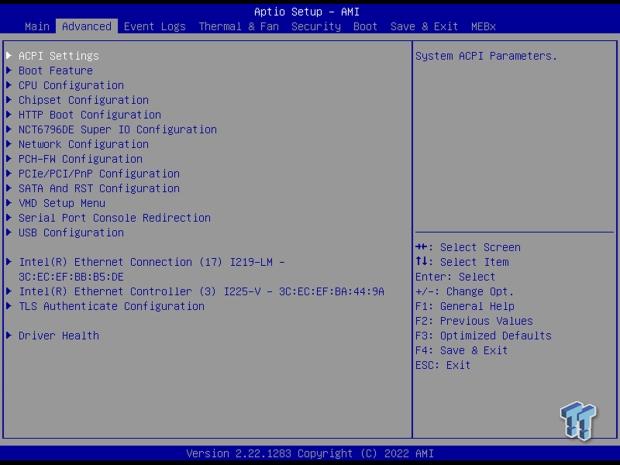

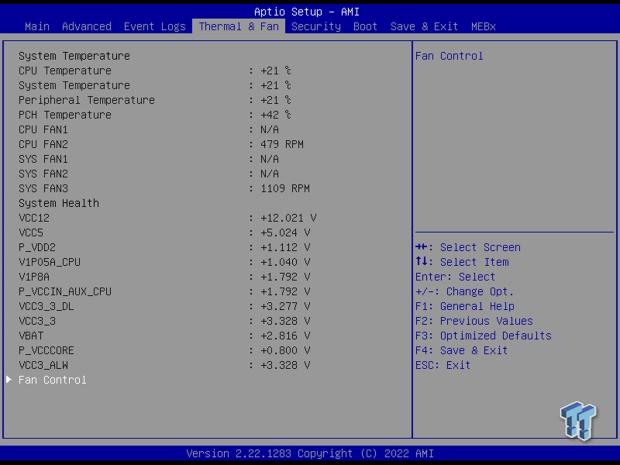

The advanced menu will be where most options are configured. This includes boot features and CPU configuration and chipset, network, and PCIe/SATA storage configurations. Thermal includes temperatures and voltages listed for the board and components - fan tuning is available at the bottom of this menu.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 30 | TweakTown.com

TweakTown Intel Motherboard Test System

Cinebench R23 and AIDA64

Cinebench and AIDA64

Cinebench R23

Cinebench is a long-standing render benchmark that has been heavily relied upon by both Intel and AMD to showcase their newest platforms during unveils. The benchmark has two tests, a single-core workload that will utilize one thread or 1T. There is also a multi-threaded test that uses all threads or nT of a tested CPU.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 40 | TweakTown.com

We tested the X13SAE with our 12900K. In R23, we landed 1997in single thread operations and 26444 in multi-thread.

AIDA64 Memory

AIDA was recently updated to version 6.6, which improved performance in both AES and SHA3 workloads for Alder Lake CPUs. You will notice this performance jump in the charts below when compared to any previous Z690 reviews.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 41 | TweakTown.com

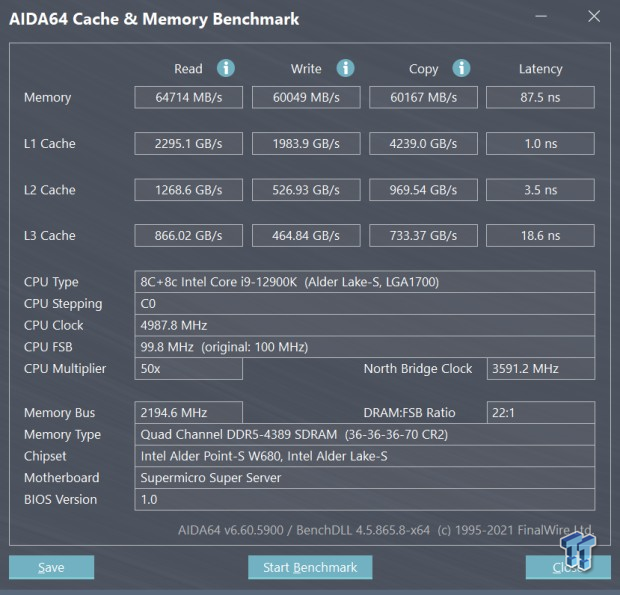

Memory throughput landed at 64K read, 60K write, and 60K copy. This was all at default settings of DDR5-4400 MHZ at CL36.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 42 | TweakTown.com

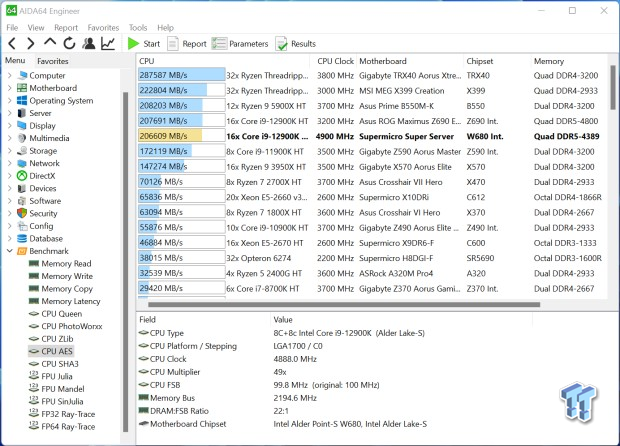

AES kept us in line with our desktop Z690 platforms, the X13SAE offering 206609.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 43 | TweakTown.com

SHA3 tapped in at 6003.

PCMark10, 3DMark and CrossMark Benchmarks

UL Procyon Suite

The UL Procyon Office Productivity Benchmark uses Microsoft Office apps to measure PC performance for office productivity work.

The Photo Editing benchmark uses Adobe® Lightroom® to import, process and modify a selection of images. In the second part of the test, multiple edits and layer effects are applied to a photograph in Adobe® Photoshop®.

The Video editing benchmark uses Adobe® Premiere® Pro to export video project files to common formats. Each video project includes various edits, adjustments, and effects. The benchmark score is based on the time taken to export the videos.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 44 | TweakTown.com

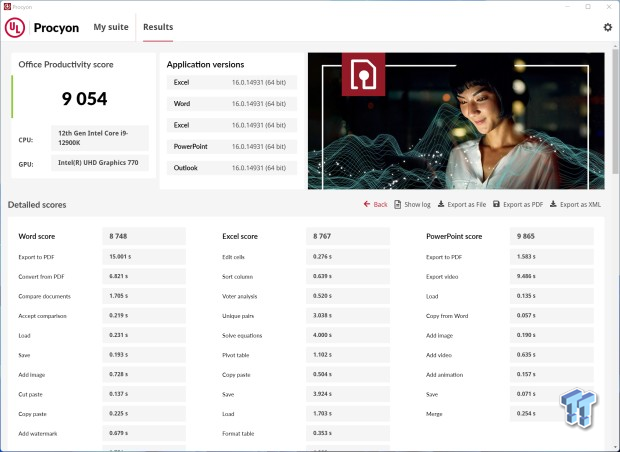

The X13 offered up 9054 points in the office productivity test.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 45 | TweakTown.com

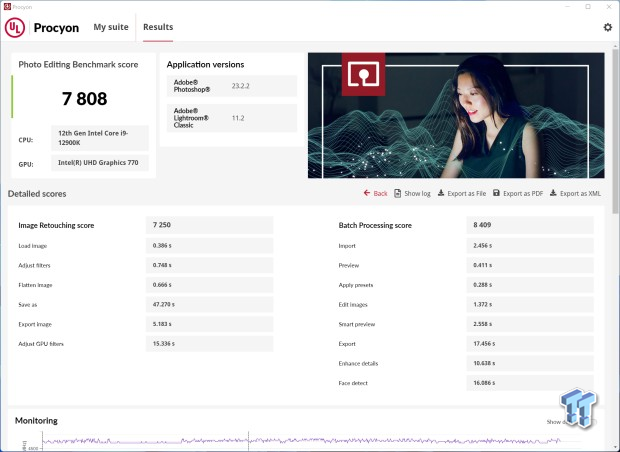

7808 for Photo editing in Procyon.

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 46 | TweakTown.com

2859 for video editing.

CrossMark

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 47 | TweakTown.com

Crossmark turned a score of 2307, very similar to our Z690 testing.

3DMark

Supermicro X13SAE Workstation (Intel W680) Motherboard Review 48 | TweakTown.com

CPU Profile showed solid performance for the X13 paired with our 12900K. 16-threads came in at 10280.

Storage Benchmarks and Final Thoughts

3DMark Storage Benchmarks

UL's newest 3DMark SSD Gaming Test is the most comprehensive SSD gaming test ever devised. We consider it to be superior to testing against games themselves because, as a trace, it is much more consistent than variations that will occur between runs on the actual game itself. This test is, in fact, the same as running the actual game, just without the inconsistencies inherent to application testing.

In short, we believe that this is the world's best way to test an SSDs gaming prowess and accurately compare it against competing SSDs. The 3DMark SSD Gaming Test measures and scores the following:

  • Loading Battlefield V from launch to the main menu.
  • Loading Call of Duty Black Ops 4 from launch to the main menu.
  • Loading Overwatch from launch to the main menu.
  • Recording a 1080p gameplay video at 60 FPS with OBS (Open Broadcaster Software) while playing Overwatch.
  • Installing The Outer Worlds from the Epic Games Launcher.
  • Saving game progress in The Outer Worlds.
  • Copying the Steam folder for Counter-Strike Global Offensive from an external SSD to the system drive.
Supermicro X13SAE Workstation (Intel W680) Motherboard Review 49 | TweakTown.com

For the X13SAE, we saw throughput at 491 MB/s.

Final Thoughts

Consumers waiting to build their next workstation on Intel's W680 chipset shouldn't have much longer to wait as vendors like Supermicro and ASRock Industrial start to populate product pages with more and more information on these boards every day. The X13SAE is the current baseline package, a no-frills board that offers all the basics, including support for DDR5 and PCIe 5.0, USB 3.2 Gen 2x2, and 2.5Gbe for external connectivity.

In testing the X13SAE, we had no issues setting it up with our 12900K and basic kit of DDR5. Without XMP support, our 6000MHz kit of memory loaded up at 4400MHz at CL36. This gave us lower than normal performance in the benchmarks tested compared to our Z690 testing.

As a standalone platform, the X13 was quite good at keeping pace in R23 scoring 1997 single thread and just over 26K multi-thread. Our Procyon testing gave us real-world scenarios for Office, Photo, and Video editing. The X13 produced a score of 9054 in office, higher than both the Maximus Extreme and Aqua OC we recently reviewed.

As far as features are concerned, the X13 has most of what 12th Gen users are looking for, apart from WiFi6. It offers two slots of Gen5 capability and has a good amount of USB 3.2 ports both internally for chassis expansion and externally on the rear I/O. Most notably, I like the addition of the Gen2x2 over USB-C on the rear I/O and further dual LAN alongside multiple display options. As it stands, we are only guessing on the pricing, and at $460, the price is quite easily justified when we look at the hardware.

Performance

90%

Quality

90%

Features

90%

Value

90%

Overall

90%

The Bottom Line

The X13SAE offers solid connectivity alongside all the standard features that are a part of Intel's 12th Gen Core and Xeon platforms.
