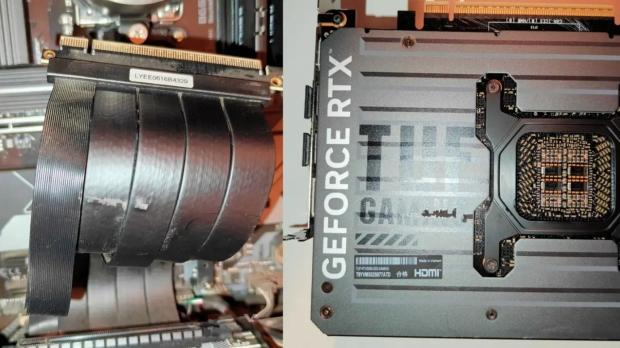

RTX 5090 backplate melts the insulation off a PCIe riser cable in a vertical mount setup

A new RTX 5090 horror story is making the rounds, though this one has nothing to do with the usual 12V-2x6 connector drama. A Reddit user going by RareSiren292 posted photos on r/pcmasterrace showing a PCIe riser cable with its insulation partially melted into goop. The card in question is an ASUS TUF Gaming RTX 5090, mounted vertically using a riser to stand the card upright inside the case.

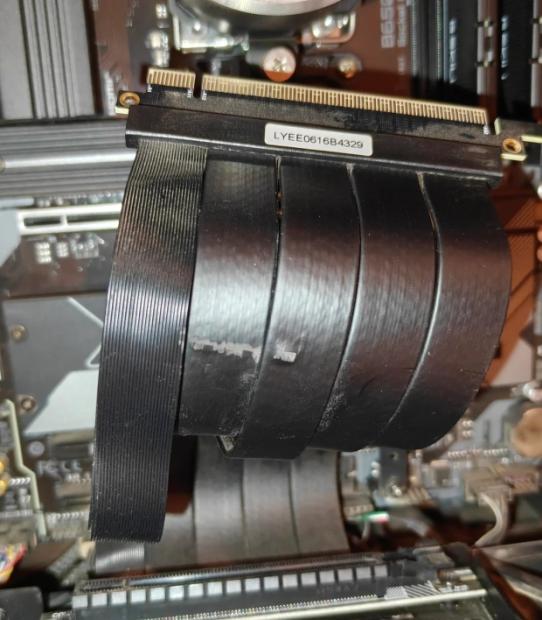

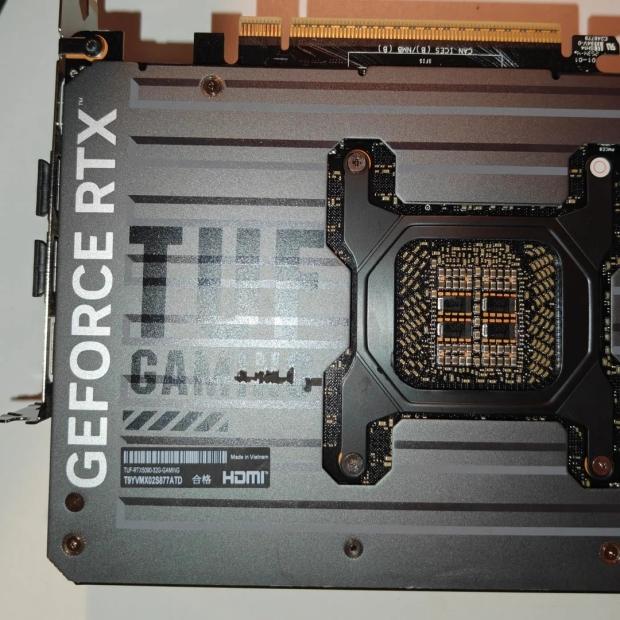

The damage was apparently discovered during a routine cleaning session, not due to any dramatic failure. The user says the riser cable had to be peeled off the back of the card, with the melted plastic sitting exactly where the cable made direct contact with the GPU backplate.

3

Importantly, only the insulation looks affected. Users in the thread pointed out that the damaged section did not line up with the main 12V power pins, and it seems the card itself avoided any electrical damage.

The RTX 5090 is a 575W card, so backplates can run warm under sustained load, though not usually hot enough to melt insulation on their own. The likely culprit is direct contact plus limited airflow. Pressing the riser flat against the backplate removes any air gap, trapping heat against the same spot for hours. That seems to be enough to slowly cook cheap plastic, even if the surface never feels dangerously hot to the touch.

3

This is not the connector meltdown story we usually see with RTX 5090 builds, but it points to a similar underlying issue. Blackwell flagship cards run hot, and any case design that leaves little clearance between the card and surrounding cables is asking for trouble over time.

If you are running a vertical mount, it is worth checking that the riser cable has some breathing room behind the card, especially with quad-slot coolers in tighter cases where clearance is already limited. A small zip tie or cable comb to keep the riser pulled back from the backplate, or simply routing the slack differently, should be enough to prevent this from happening to you.

Frequently Asked Questions

TweakBot answers common questions about this news using TweakTown's own coverage from this page and related content from our archive. Tap a question to reveal the answer, or type your own below.

Question #1

Can using a right-angle or different riser orientation reduce the risk of the cable contacting the backplate?

Click to reveal answer

Question #2

Will adding case fans or improving airflow behind a vertically mounted RTX 5090 lower the risk of melting a riser cable?

Yes. The article says direct contact plus limited airflow likely cooked the riser insulation over hours, and recommends leaving some breathing room between riser and backplate or using a zip tie or cable comb to pull the riser away. Improving airflow or adding case fans behind a vertically mounted RTX 5090 would reduce trapped heat and lower the risk of melting a riser cable.

Answered

Question #3

Are there specific zip tie or cable management methods shown by TweakTown or community guides to keep risers off backplates?

Yes. The primary article recommends using a small zip tie or a cable comb to keep the riser pulled back from the GPU backplate, or routing the slack differently so the riser does not press flat against the backplate. It also suggests periodically peeking behind the card to check clearance.

Answered

Question #4

Could an aftermarket backplate or spacer be used to create a safe gap between the RTX 5090 and a riser cable?

Click to reveal answer

Have a question not listed here? Ask below and TweakBot will answer it.

Ask

Answering your question ×

TweakBot is analyzing your question…

Could not get an answer

TweakBot is generating an answer

Read More

Was TweakBot helpful? Thanks for the feedback!

It might also be worth peeking behind the card every few months just to be safe.
