Thermaltake Core X31 Mid-Tower Chassis Review

Thermaltake Core X31 Mid-Tower Chassis Review

Thermaltake's Core X31 Mid-Tower computer case goes under the microscope today. Will their run of positive Core Series chassis reviews continue?

@chad_sebring
Chad Sebring
Published Wed, Jun 15 2016 1:20 PM CDT   |   Updated Thu, Jul 30 2020 4:20 PM CDT
Rating: 97%Manufacturer: Thermaltake

Introduction, Specifications, and Pricing

Thermaltake Core X31 Mid-Tower Chassis Review 99 | TweakTown.com
VIEW GALLERY - 38 IMAGES

With huge success from their Core Series cases, Thermaltake does not seem to have any intentions of slowing their roll anytime soon. This series has brought the mainstream market cases with above average structural integrity, excellent liquid cooling capability, all wrapped up in a sleek and tidy package. No matter which from this series we are discussing, these three things ring true in every one of them. This review marks the ninth chassis from the Core Series, and not once have we been disappointed with what Thermaltake has sent.

Thermaltake sent us one of their latest designs in the land of well-appointed mid-tower chassis designs, but there are two versions of it. Both cases offer the same bits, down to one exception, the cooling. In the version we have today, it comes with two black Turbo fans, one low in the front, and another in the back. However, there is an RGB variant that sports three 120mm Riing fans. Outside of the cooling, the main idea with this design is to deliver full modularity for storage and cooling. This chassis still provides plenty of room for huge, dual-tower CPU air coolers, and the longest of video cards and power supplies. A lot is going on inside of this mid-tower chassis; we are just scratching the surface so far.

As many Core Series cases as we have seen, and the fact that we know what to expect to some extent, but it is always interesting to see what Thermaltake is doing with the inside of cases these days. To be blunt, Thermaltake is one of maybe three companies that we find are trying to maximize potential in every design. Many companies will waste extra space, or give half-hearted attempts to hide storage drives; only a select few take it to the extent Thermaltake delivers. This all holds true in their latest chassis we were sent, the Core X31, and we are sure you will want to have a look at this affordable, highly modular and water cooling capable, mid-tower chassis has to offer.

Thermaltake Core X31 Mid-Tower Chassis Review 01 | TweakTown.com

The Core X31 mid-tower chassis is an SPCC steel based design with trim made of ABS plastic. It measures in at 490mm tall, 250mm in width, it is 511mm deep, weighs in just less than nineteen pounds, and comes in any color you want, as long as that choice is black. There is a large transparent window on the left side of the chassis in this design, and it affords a view of the whole inside of the chassis. The Core X31 delivers a pair of 5.25" bays that are removable, a cage of three plastic trays for 3.5" or 2.5" drives, and another pair of metal trays for 2.5" drives only. As a bonus, if you should want to remove the HDD rack, the plastic trays inside it can be hung behind the motherboard tray. ATX, Micro-ATX, and Mini-ITX motherboards can be used inside of it, with eight expansion slots to fill, and the front I/O panel offers USB 2.0, USB 3.0, and HD Audio.

The cooling provided in this chassis consists of a pair of 120mm, black, Turbo fans, which provides no CFM rating, but we are told they are 16 dBA and can spin at 1000 RPM. Most will likely discard these in a chassis such as this, though, and the options here are wide open. The front of the chassis offers room for a pair of 120mm fans, a pair of 140mm fans, or you can opt for a 200mm fan to push air into this tower. The top of the chassis raises what the front offered by one, giving you room for three 120mm fans, three 140mm fans, or the option for a pair of 200mm fans. The back of the chassis has slots that will house either a 120mm fan or a 140mm fan, and at the bottom of the Core X31, dependent on the PSU choice, you can install either a pair of 120mm fans or 140mm fans there as well. As for water cooling, the X31 still has it covered. The front can house a 240mm or 280mm radiator, the top can house a 360mm or 280mm radiator, and the rear and bottom both have room for a single 120mm or 140mm radiator.

Thermaltake also offers a clearance section with their chart, and this is all great information to have before buying this chassis. First, we see that if you opt to cool the CPU with an air cooler, you are given 180mm of room for one. Video cards can be blocked by the HDD rack, as it can be moved up the inside of the chassis, and it can restrict cards to 278mm in length. With it removed, you then are offered 420mm of length for them. PSU length is of some concern, only if you want fans on the floor, that is. With one fan in, they show a limit of 180mm and a 220mm limit without fans.

We mentioned earlier that the Core X31 was an affordable design, and looking around for availability and pricing information, we are happy to see this chassis priced where it is. No matter where we looked at the time of writing this, the pricing is the same across the board. No matter if you go to Amazon or Newegg, both locations are offering the same deal currently. We found the Core X31 you are looking at today was priced at just $99.99. Pricing does change a bit if you are looking for the RGB version, though. While Amazon lists the Core X31 RGB at $129.99, you can save $10 if you shop at Newegg. Either variant you do decide to go with, the Core X31 is so feature-rich and aesthetically appealing that you will find it hard to resist the temptation to purchase one.

Chad's Chassis Test System Specifications

Packaging

Thermaltake Core X31 Mid-Tower Chassis Review 02 | TweakTown.com

The Thermaltake name, logo, and slogan are all found at the top in the thin black band. There is a thicker band below broken up by the rendering and LCS certification icon of the Core X31. Then, along the bottom, Thermaltake offers their site address to look for this chassis before buying it off the shelf.

Thermaltake Core X31 Mid-Tower Chassis Review 03 | TweakTown.com

On this side of the box, we are again given all of the naming up top, with a much smaller rendering in the middle of this panel. Nearer to the bottom, we are offered a list of features which is repeated many times in various languages.

Thermaltake Core X31 Mid-Tower Chassis Review 04 | TweakTown.com

As Thermaltake likes to do on a lot of their boxes, they provide an exploded diagram of the Core X31. The diagram shows all of the panels, removable bits, supplied cooling, and answered any questions you may have had about the design.

Thermaltake Core X31 Mid-Tower Chassis Review 05 | TweakTown.com

The last side of the packaging starts off just like its opposing panel, but this time at the bottom, there is a slightly condensed specifications chart to the one we covered earlier.

Thermaltake Core X31 Mid-Tower Chassis Review 06 | TweakTown.com

With plastic wrapped around each foot, found clinging to the inside and outside of the window, and then a bag encompassing the entire chassis, rubbing and abrading is kept from causing any damages. To be able to deliver a chassis in pristine condition like ours is, they also use thick Styrofoam end caps to take the big hits from transit. As rough as our box looked, the Core X31 inside arrived unharmed.

Thermaltake Core X31 Mid-Tower Chassis

Thermaltake Corte X31 Mid-Tower Chassis

Thermaltake Core X31 Mid-Tower Chassis Review 07 | TweakTown.com

The face of the Core X31 comes with an entire panel of mesh, which looks like stacked bricks. At the top, there is a pair of removable panels to utilize the 5.25" bays, and towards the bottom of the chassis is a Thermaltake logo, boldly contrasting the black around it.

Thermaltake Core X31 Mid-Tower Chassis Review 08 | TweakTown.com

At the top, but not connected to the front bezel, we find the front I/O panel. Starting at the left of the I/O panel, there are HD Audio jacks, a tiny reset button, an HDD LED, and the LED-ringed power button is in the middle. Beyond those, we then find the pairs of USB 3.0 and USB 2.0 ports.

Thermaltake Core X31 Mid-Tower Chassis Review 09 | TweakTown.com

The top of the chassis is made of steel, and for now is covered with a large magnetic dust filter. The dust filter is made of fine mesh to keep dust out and removes easily to access fan or water cooling mounts under it.

Thermaltake Core X31 Mid-Tower Chassis Review 10 | TweakTown.com

The left side of the Core X31 shows the gaps in the panels are almost non-existent, and that the vast majority of the side panel is a window. In most instances we do not like to see the bays, but since these can be removed and replaced with other goods you may want to see, we can appreciate its width.

Thermaltake Core X31 Mid-Tower Chassis Review 11 | TweakTown.com

We first noticed that the side panels have both thumbscrews and hex-head screws holding them onto the frame, most likely for shipping reasons only. Down the back we see the rear I/O area and the slots and mesh to the right for the rear exhaust fan. Beneath the cable lock loop, we see eight expansion slots, a large rubber grommet next to them, and the PSU is installed at the bottom.

Thermaltake Core X31 Mid-Tower Chassis Review 12 | TweakTown.com

The right side of the Core X31 is plain, but again, the panel fitment is on point, keeping the lines tight and tidy. There is a finger-grab at the back to help with removal, but both side panels come off with little effort or struggle.

Thermaltake Core X31 Mid-Tower Chassis Review 13 | TweakTown.com

Four shiny plastic legs with rubber rings at the bottom of them are used to support the chassis off whatever surface it sits on top of. This way the majority of the lower portion of this chassis, what is under the fan filter, can be used as an air intake, passive or otherwise.

Inside the Core X31

Thermaltake Core X31 Mid-Tower Chassis Review 14 | TweakTown.com

Removing the front bezel is easy using the cutout at the bottom to grip and pull the panel from the frame. Inside of the bezel we see dust filters in the removable bays, and a larger one in the lower intake section. The front of the chassis has slots for fan installation so they can adjust as needed, and we also see screws in the front of the optical bay trays, which allows for their removal.

Thermaltake Core X31 Mid-Tower Chassis Review 15 | TweakTown.com

Inside of the Core X31, we see that the wiring is run behind the motherboard tray, in through a grommet, and then gets tucked below the PSU cover, so there is no way for it to damage the window. It is hard to see from this angle, but inside of the top HDD tray, we did find a bag of hardware to use for installation.

Thermaltake Core X31 Mid-Tower Chassis Review 16 | TweakTown.com

The pair of 5.25" bays are offered with tool-free clips on this side of the bays. Both sides can be secured with screws if desired, and of course, as we addressed, they can be fully removed if desired.

Thermaltake Core X31 Mid-Tower Chassis Review 17 | TweakTown.com

Tucked in the bottom of the chassis, just behind the 120mm intake fan, we find an HDD rack sitting on a pedestal. They three trays inside will house either a 3.5" or a 2.5" storage drive, and these trays can also be relocated outside of this rack. That is because this HDD rack is removable as well.

Thermaltake Core X31 Mid-Tower Chassis Review 18 | TweakTown.com

We had to remove twelve Phillips head screws to get the bays out of the Core X31. Once these are out of the way, it opens the top for longer water cooling options, and opens the front third of the main chassis section, allowing for more water cooling gear.

Thermaltake Core X31 Mid-Tower Chassis Review 19 | TweakTown.com

The top of the chassis offers grooves to keep 120mm and 140mm cooling offset to the left side of the chassis. This helps keep things away from the memory when using radiators. Keep in mind, there is also a band of slots on the right side too, to allow two 200mm fans in here.

Inside the Core X31 Continued

Thermaltake Core X31 Mid-Tower Chassis Review 20 | TweakTown.com

The motherboard tray is dropped quite a bit from the top panel, and on it, we found eighteen wire tie points, five rubber grommets to pass wiring through, and a pair of large openings at the top for more wiring. There is also a large opening for back plate access, and the tray is labeled for ATX and Micro-ATX boards.

Thermaltake Core X31 Mid-Tower Chassis Review 21 | TweakTown.com

At the bottom of the motherboard tray, we then ran into the PSU cover. On top of it, we see a pair of metal trays for 2.5" drives, a large hole with a grommet for GPU wiring, and a cutout at the back for the front I/O wiring and the SATA drives connections.

Thermaltake Core X31 Mid-Tower Chassis Review 22 | TweakTown.com

You need to remove four screws, shift the PSU cover to the right slightly, and then lift up on it to remove it from the chassis. Once it is out, you have all of that room for the PSU at the back and options for fans or water cooling as well.

Thermaltake Core X31 Mid-Tower Chassis Review 23 | TweakTown.com

At the back of the Core X31, we find the black 120mm fan hanging there, and the sleeved cable and 3-pin connection match that of the intake fan. As for the expansion slots, the covers are held in with thumbscrews.

Thermaltake Core X31 Mid-Tower Chassis Review 24 | TweakTown.com

Behind the tray the depth for wiring is great. Thermaltake does tie up the wiring for you, but it is currently blocking one of the three optional locations to hang the plastic drive trays. Two sites fall behind the left support rail section, and the third is found under the CPU cooler access hole. With all of the tie points and well-placed holes for the wiring, it should be easy to keep the wiring tidy.

Thermaltake Core X31 Mid-Tower Chassis Review 25 | TweakTown.com

The front I/O wiring is long and gives you room to wire it cleanly without much trouble at all. In the mass of black wires, we see the HD Audio Connection, the wires for the lights and switches, the native USB 3.0 connector, the USB 2.0 connection, and the 3-pin fan connection of the Intake fan.

Hardware & Documentation

Thermaltake Core X31 Mid-Tower Chassis Review 26 | TweakTown.com

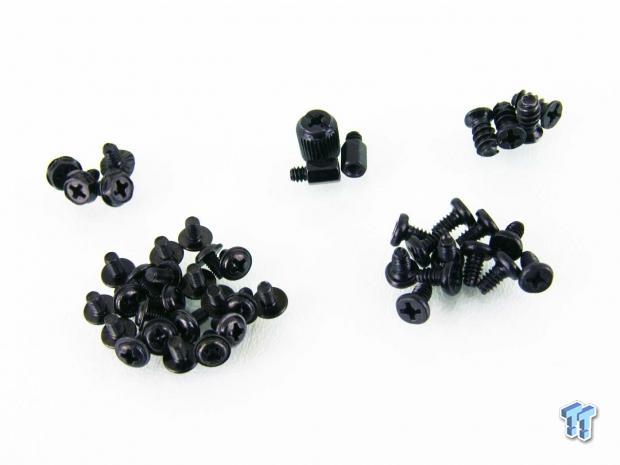

The hardware ships in two bags, a smaller one inside of another. In the smaller of the two bags, this is what is included. There are PSU screws, standoffs and a socket, fan screws, motherboard and SSD screws, and optical drive screws.

Thermaltake Core X31 Mid-Tower Chassis Review 27 | TweakTown.com

In the larger bag, we found a set of five adjustable straps to help maintain the wiring. There is a motherboard POST speaker included, as well as foam rubber washers to isolate mechanical drives in the metal 2.5" drive trays.

Thermaltake Core X31 Mid-Tower Chassis Review 28 | TweakTown.com

The manual is done well. Things start off with a list of all the hardware and what it is used for, and then the manual jumps right into how all of the bits are installed. It also shows how to remove the modular components, where they can be moved to, and completely covers the cooling options.

Thermaltake Core X31 Mid-Tower Chassis Review 29 | TweakTown.com

Thermaltake covers both sides of the coin when it comes to cooling. They are sure not only to show which fans can go in each panel, but they were sure also to do the same for radiator options, showing us that without a doubt, you are safe to install anything they are showing here.

Case Build & Finished Product

Thermaltake Core X31 Mid-Tower Chassis Review 30 | TweakTown.com

With the components we use for our chassis builds, we dropped the optical device long ago. So as we finished the build and snapped the front bezel back onto the frame, we did not change the aesthetics here one iota.

Thermaltake Core X31 Mid-Tower Chassis Review 31 | TweakTown.com

We did leave the bays removed when we did our build, as we simply used the tray on the PSU cover for our SSD. We did move the exhaust fan to the front of the chassis so we could install the AIO, but nothing inside of the Core X31 is out of line or caused us any issues during installation.

Thermaltake Core X31 Mid-Tower Chassis Review 32 | TweakTown.com

The dust shield was a tight fit, but we got it snapped in. We like being able to raise or lower the AIO via the screw slots, and we found no issues aligning the video card. Even when it came to the PSU, we set it on the pads inside, and the holes were all in line, ready for the screws.

Thermaltake Core X31 Mid-Tower Chassis Review 33 | TweakTown.com

We made sure to rewire the Core X31, so that if we needed to, we could use both of the HDD trays optional locations, like how we have it at the bottom. So many tie points you can have four trunks of wiring running across the tray, and large openings to hide everything under the PSU cover.

Thermaltake Core X31 Mid-Tower Chassis Review 34 | TweakTown.com

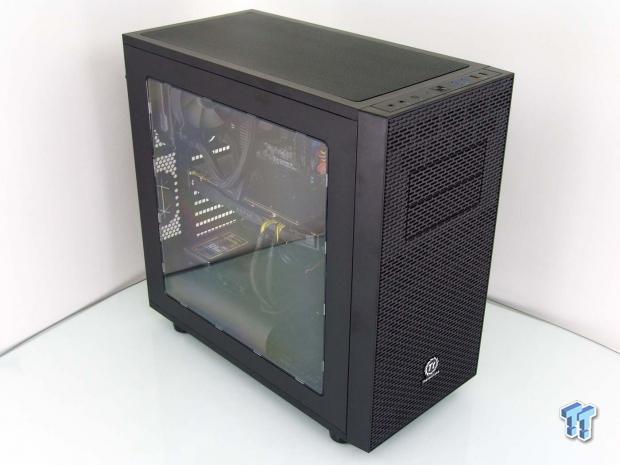

There were no issue with the doors, as you just need to hook them along the front edges, lay the door flat, and slide it forward and screw in the captured thumbscrews. All we need now, it a power cord.

Thermaltake Core X31 Mid-Tower Chassis Review 35 | TweakTown.com

We did miss the tiny blue LED flicker as the SSD booted up and the OS loaded, but the LED ring around the power button is fully lit. Neither of the lights is brilliant, just enough to see them, but not bright enough to fill the whole room with light when it's dark.

Thermaltake Core X31 Mid-Tower Chassis Review 36 | TweakTown.com

The transparent window on the side afford a brilliant view of the gear inside of it, and once we removed the bays, our issue with seeing them was removed. If this was the RGB version, the look would be even more impressive, inside and out, then what we see here, and we are happy with this as it is.

Final Thoughts

Thermaltake does it again. It would seem that with so many cases in the same series, one might get bored looking at them, or reviewing them after a while, and that simply is not the case here. While the Core Series has a defined look that you either love or hate, every version we have been sent, we have thoroughly enjoyed looking at, installing gear into, and tinkering around with.

The Core X31 is yet another chassis that came from a great pedigree and proves it is superior to many cases on the market in its class. If you decide to use the chassis as it is shipped, if you gut it by removing the components, even when loaded with all of your gear, the X31 is solid as a rock, spacious in all areas. It is a design that is just waiting for you to add your individual flavor to it.

For a mid-tower chassis, there is a whole list of reasons that we feel there is a lot of bang for the buck. Dust filters where they are needed most, a PSU cover with optional storage and great wire management options in it, great wire management throughout the entire chassis, modular drive bays, hidden optional drive locations, the list just seems to go on forever. From every angle, Thermaltake has thought things through and proven that they have a design that will fit any possible configuration. As we sit here thinking everything over again, we should bring up that we found the stock fans to be a bit lackluster. Using the AIO, temperatures were not bad, but mainly because the chassis breathes so freely, not that the pair of 120mm Turbo fans were offering up much air flow. However, with less air flow, there is less noise, and the Core X31 never went above 28 dB in our testing around the outside of the chassis.

If you happen to be in the market for a mid-tower chassis, there is only one question left to cover. Since Thermaltake offers up so much in this design, and it is a chassis that can be used and reused many times with various configurations of parts, are you getting the vanilla or the RGB version of the Core X31? While we found no faults with the aesthetics of our X31, we do admit that we would also have enjoyed it more with RGB fans installed. Not only do you get the lighting to see inside and out, but they come with better specifications as well, so you get more cooling performance out of the box too. Considering the difference is only $20 from the $99.99 version we looked at today, versus the X31 RGB listed at $119.99, we feel it is easily worth the upgrade. Either way you decide to go into the realm of mid-tower cases, it is designs like the Core X31 from Thermaltake which keeps all the others on their toes.

Chad's Chassis Test System Specifications

TweakTown award
Performance93%
Quality including Design and Build99%
General Features99%
Bundle and Packaging97%
Value for Money98%
Overall97%

The Bottom Line: A list of features and options that goes on for days! The Core X31 from Thermaltake checks all of the boxes, and even comes with an RGB option, both of which are very affordable. It's one of the best mid-tower cases we have seen in a while.
