Xigmatek Tauro 700-watt Power Supply Review

Xigmatek continues to refresh their power supply units. Today we're looking at the new Tauro 700 watt unit before it hits retail.

@TweakTown
Published Wed, Jun 20 2012 4:59 AM CDT   |   Updated Tue, Nov 3 2020 7:01 PM CST
Rating: 84%Manufacturer: Xigmatek

Introduction, Specifications, Availability and Pricing

Xigmatek Tauro 700-watt Power Supply Review 01 | TweakTown.com
VIEW GALLERY - 26 IMAGES

Last month, we covered the start of Xigmatek's power supply refresh with the launch of the Centauro 1000W unit. The Centauro is aimed towards power users and enthusiast. It would only make sense for Xigmatek to follow up the launch with a power supply line for those who don't demand as much out of their systems. That is just was we are covering today and what the new Tauro series represents for Xigmatek.

The new Tauro series of power supplies will be available in four difference wattages ranging from 400W to 700W. Coupled with the Centauro series, this will give Xigmatek a wide selection of power supplies to choose from starting with entry level power through enthusiast grade power. As you would expect, the Tauro series lacks a little bit of the features and quality we saw in the Centauro series.

The biggest difference that most consumers will find is the lack of modular cabling. There are some very big differences on the inside too.

Let's start taking a look at the Tauro 700W power supply and see just what it has to offer.

Specifications, Availability and Pricing

Xigmatek Tauro 700-watt Power Supply Review 02 | TweakTown.com

The new Tauro 700W power supply from Xigmatek features a single 12V rail that is capable of 58A. This means the power supply is rated for 696W of 12V power and can deliver 99% of the power supply's total wattage on the 12V rail. The 5V rail is rated for 30A while the 3.3V rail is rated for 24A. The two minor rails combined are capable of 170W combined. The 5VSB rail is rated for 3A or a total of 15W. Total combined output for the unit is 700W.

Xigmatek Tauro 700-watt Power Supply Review 03 | TweakTown.com

Even though Xigmatek aims to catch the lower half of the power supply market with the Tauro series, it is still packed with the features that matter most. Voltage, power, circuit and temperature protections are all present and accounted for. The unit is rated for 80Plus Bronze efficiency. All cables are fully sleeved on the power supply, all of which are natively wired. The Tauro 700W features only a single ATX4+4/EPS12V connector.

Pricing for the Xigmatek Tauro 700W is unknown at this time. Pricing will definitely be the key to making the unit a success and we are fairly certain that the Tauro series will be priced well considering its features and performance. Warranty for the Tauro series is a rather short three years.

Packaging

Xigmatek Tauro 700-watt Power Supply Review 04 | TweakTown.com

Xigmatek does a great job on the front of the box with a shot of the unit, wattage, 80Plus certification and a pictorial list of features. This is very similar to what we saw with the Centauro series, just on a white/orange box this time.

Xigmatek Tauro 700-watt Power Supply Review 05 | TweakTown.com

The back expands on the unit a tad bit more with more features and the I/O specifications for the entire Tauro series of power supplies.

Xigmatek Tauro 700-watt Power Supply Review 06 | TweakTown.com

One side gives us barcode and serial number information for the unit.

Xigmatek Tauro 700-watt Power Supply Review 07 | TweakTown.com

Over on the other side, we find another shot of the unit and some contact information.

Xigmatek Tauro 700-watt Power Supply Review 08 | TweakTown.com

Moving to the top of the box, we find a list of connectors available on the unit without cable length.

Xigmatek Tauro 700-watt Power Supply Review 09 | TweakTown.com

The bottom has nothing for than the URL for Xigmatek's website.

Inside the Box

Xigmatek Tauro 700-watt Power Supply Review 10 | TweakTown.com

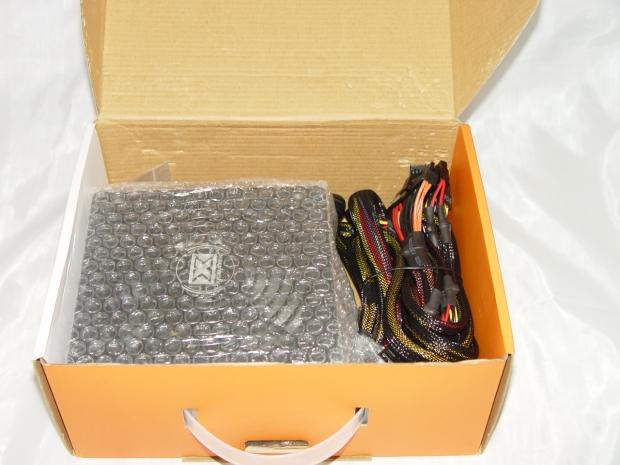

The packaging for the Tauro series from Xigmatek certainly leaves something to be desired. The only protection the unit receives is from the very thin bubble wrap surrounding the unit. There is no foam inside the box and you can see the damage that the connectors have done to the back and side of the box. It is very obvious that the power supply won't be able to take much abuse during shipping and handling.

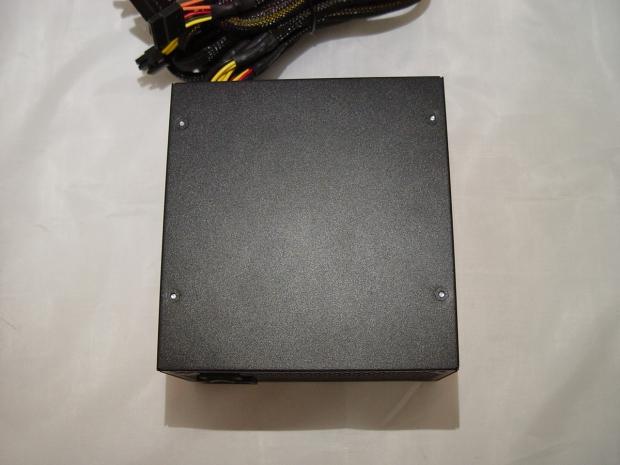

Xigmatek Tauro 700-watt Power Supply Review 11 | TweakTown.com

The top of the unit gives us a great shot at the matte black finish used on the power supply.

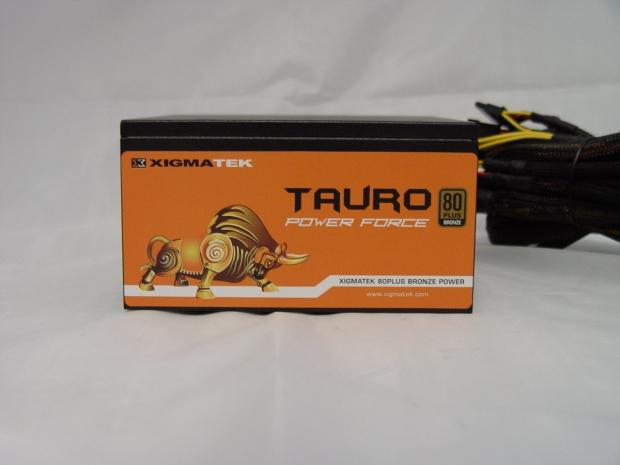

Xigmatek Tauro 700-watt Power Supply Review 12 | TweakTown.com

One side of the unit simply has the Tauro logo stuck on it.

Xigmatek Tauro 700-watt Power Supply Review 13 | TweakTown.com

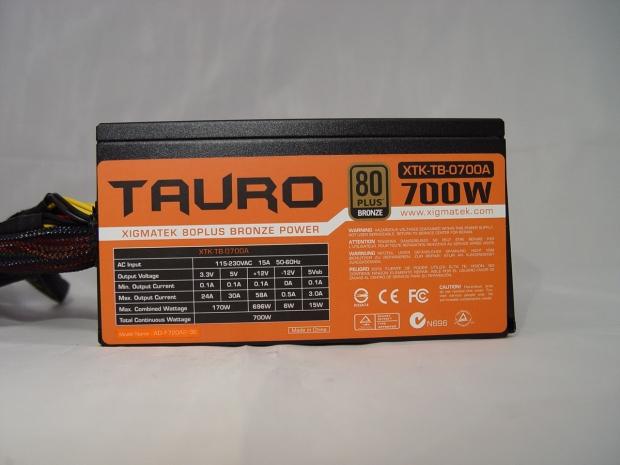

The I/O specification label can be found on the other side of the power supply.

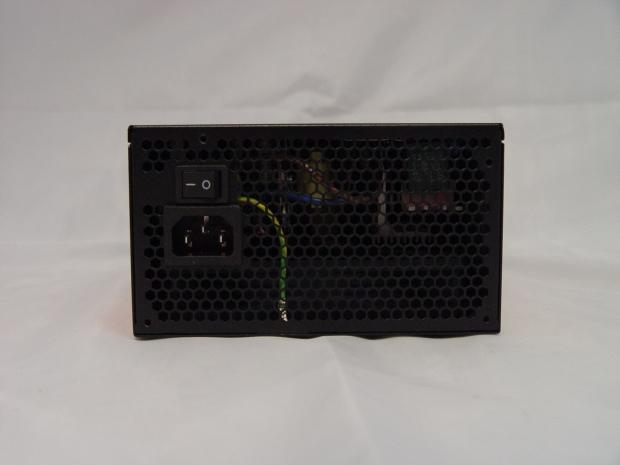

Xigmatek Tauro 700-watt Power Supply Review 14 | TweakTown.com

Turning the unit a bit more, we find the standard honeycomb mesh grill with AC input and on/off rocker switch present.

Xigmatek Tauro 700-watt Power Supply Review 15 | TweakTown.com

Spinning it some more brings us to the front and reveals that things are rather brand. Not that some of sleeving extends all the way inside the power supply and some stops just short. We aren't sure why this is the case as it would just take a little more care to make sure it extended all the way inside the unit.

Xigmatek Tauro 700-watt Power Supply Review 16 | TweakTown.com

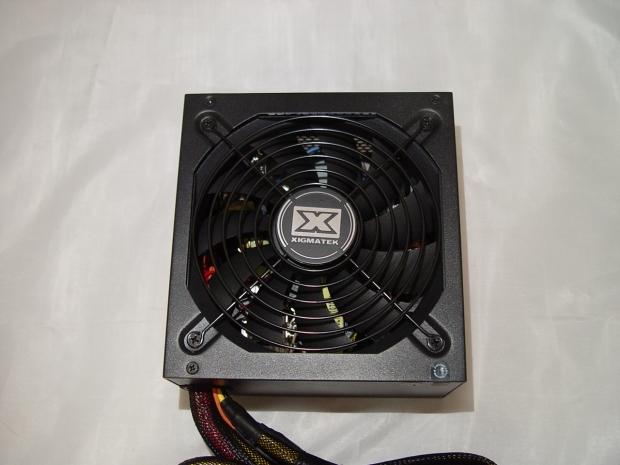

Flipping things over reveals the 135mm fan that actively cools the Tauro 700W power supply.

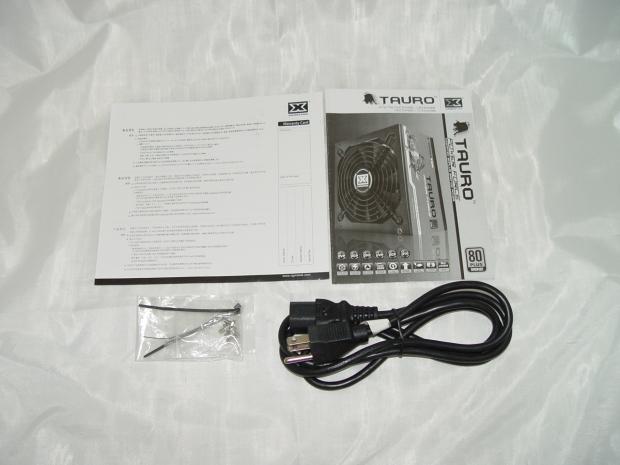

Xigmatek Tauro 700-watt Power Supply Review 17 | TweakTown.com

Package contents include the AC power cable, user manual, warranty card, zip ties and mounting screws.

Cabling Arrangement and A Look Inside

[Heading]Cabling Arrangement

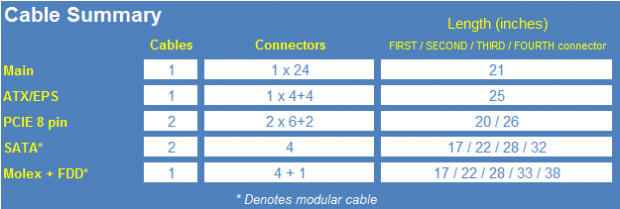

Xigmatek Tauro 700-watt Power Supply Review 18 | TweakTown.com

Cable selection for the Tauro 700W power supply is rather simplistic. There are the obligatory 20+4 Main and ATX 4+4 connectors. After that there are two cables with two PCI-E connectors each to power a duo of graphics cards.

Two more cables proved a total of eight SATA connectors. Rounding things out is one more cable that provides four Molex connectors and a single FDD connector.

Xigmatek Tauro 700-watt Power Supply Review 19 | TweakTown.com

Rail distribution is as simple as it gets with a single 12V rail.

A Look Inside

Xigmatek Tauro 700-watt Power Supply Review 20 | TweakTown.com

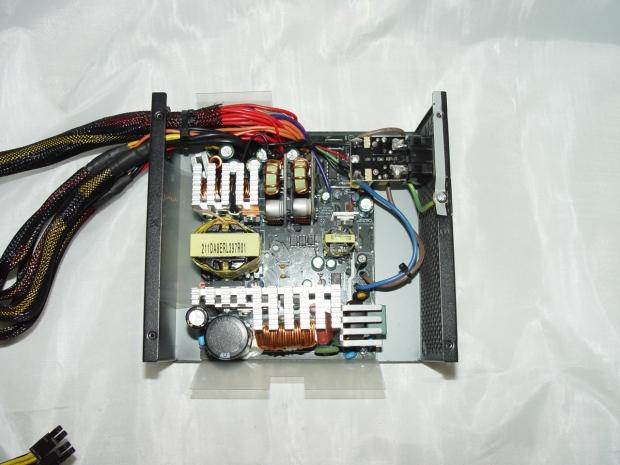

Opening things up, we find a very short PCB. If not for the noise generated by smaller fans, it is very apparent that Xigmatek could have gone with a much smaller enclosure and made this much more compact.

Xigmatek Tauro 700-watt Power Supply Review 21 | TweakTown.com

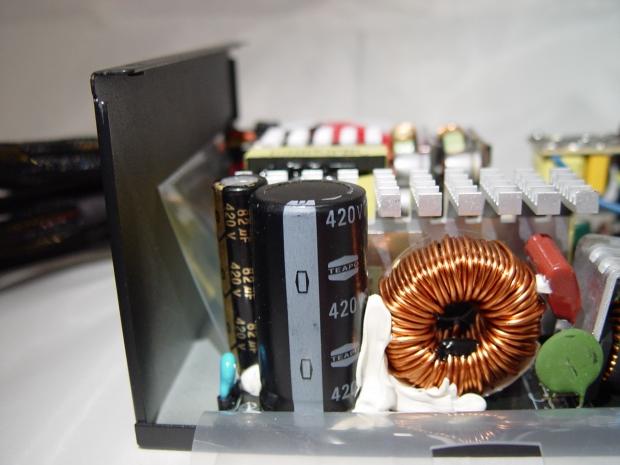

A single Taiwanese Teapo capacitor paired with another capacitor from an unknown manufacturer sits on the primary side of the power supply. The only brand identifying marks on the unit are the letters "HM" and was not something we could find a match to. It certainly doesn't give a warm, fuzzy feeling on the inside.

Xigmatek Tauro 700-watt Power Supply Review 22 | TweakTown.com

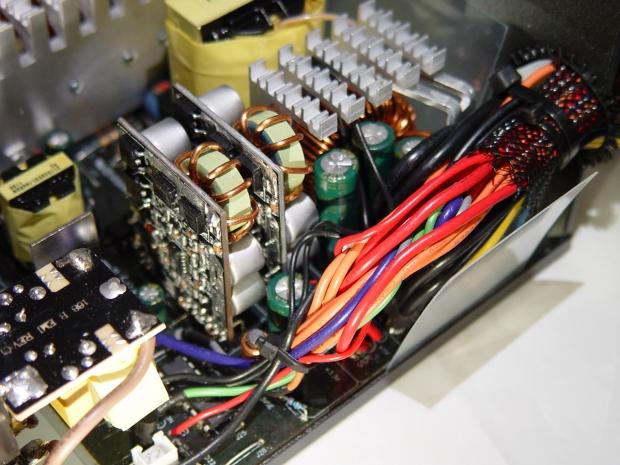

More Teapo capacitors can be found on the secondary side of the PSU.

Xigmatek Tauro 700-watt Power Supply Review 23 | TweakTown.com

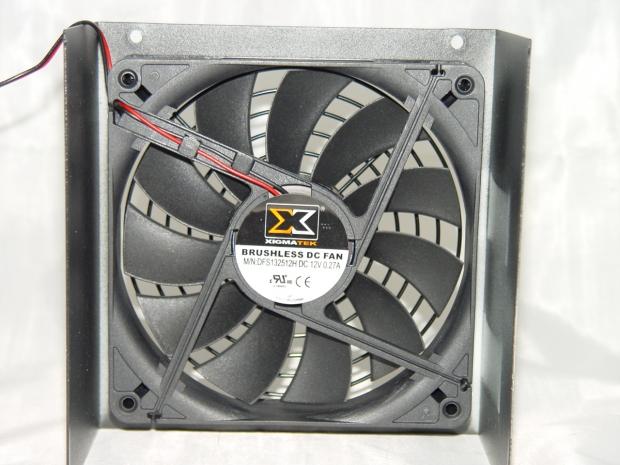

Xigmatek uses their own BFS132512H 135mm fan to cool the Tauro 700W power supply. The unit looks suspiciously similar to the RL4Z B1352512HH fan that we found used in the Centauro 1000W power supply and when you consider that the model numbers are also very similar, we suspect it is just a rebranded Globe Fan unit.

Test Results and Final Thoughts

Test Results

Our load tests utilize a couple of FAST ATE active load testers and a variety of other equipment such as an oscilloscope, power conditioner, temperature probe and a power consumption meter. You can read more about our standard testing approach here.

The tests performed are based around six conceivable setups that are out there and progressively load down the PSU up to the power supply's limits or 1000W, whichever comes first. Since our test equipment's limits are higher than that of the Xigmatek Tauro 700W PSU, we can test it to the maximum.

Xigmatek Tauro 700-watt Power Supply Review 24 | TweakTown.com

The above tests represent typical loads that we have measured from various systems and are meant to give a rough idea of where your computer might fall in line with our tests. Please keep in mind that each system is different and actual loads can vary greatly even with similar hardware.

Xigmatek Tauro 700-watt Power Supply Review 25 | TweakTown.com

Let's start by taking a look at the voltages to see how well this unit did during testing. Starting with the 12V rail, we see 3% regulation from with a total drop of .36V from start to finish. The 5V rail also stayed within 3% voltage regulation and displayed a total drop of .20V. Moving towards the 3.3V rail, we see that regulation was again within 3% with a total voltage drop of .13V.

DC output quality was good from start to finish. Starting out, we were able to see a ripple on the scope during Test 1 where we measured noise at a low 24mV peak to peak. This steadily increased as the loads also increased. By the time we had reached around 50% load, the unit ripple had crept up to 34mV. Under Test 6, we saw that the noise on the 12V rail had crept up to 53mV.

The Xigmatek Tauro 700W PSU is rated for 80Plus Bronze efficiency. This means that the power supply must perform at 82%/85%/82% efficiency at 20%/50%/100% loads respectively. As you can see, the Tauro 700W power supply had no trouble achieving this while on our test bench.

Final Thoughts

Last month's review of the Xigmatek Centauro 1000W left us with a feeling of redemption after their NRP-MC1002 1000W unit fell out of spec last year. We were happy to see Xigmatek back in the market with a quality unit at a good price. When the Tauro 700W arrived, we expected similar results and that is just what we are left with after testing the unit.

Voltage regulation is once again very good, with all rails staying within 3% of specification. DC output quality is still within a very acceptable level and good considering the capacitors in use. If Xigmatek would upgrade from no-name and Taiwanese capacitors, they would likely see an improvement here. Finally, efficiency proves to be right where it should be considering the 80Plus Bronze efficiency rating that the unit carries.

The Tauro 700W is a great fit for those trying to squeeze every penny out of the rig assuming that it is priced properly. Success of this unit is going to be squarely pinned on the price of the unit. It is most certainly a budget unit both in design and performance and will also be great for those who simply require everyday computing with a little bit of gaming on the side.

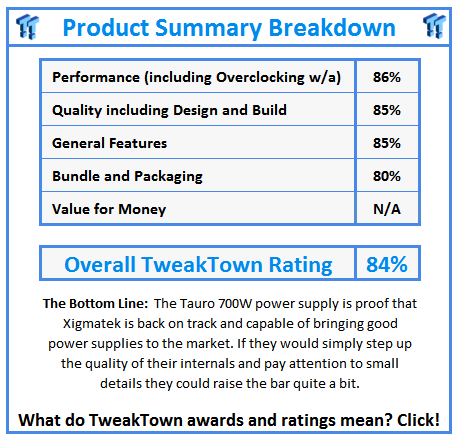

What do TweakTown.com awards mean? Click for details!
