Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card

Sapphire take the time to overclock the HD 5550 512MB GDDR5. We ask ourselves if it's a waste of time.

@ShawnBakerTW
Published Sat, Aug 28 2010 12:01 AM CDT   |   Updated Tue, Nov 3 2020 7:02 PM CST
Rating: 93%Manufacturer: Sapphire

Introduction and The Package


Introduction

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 02 | TweakTown.com
VIEW GALLERY - 25 IMAGES


Another HD 5550 utilizing GDDR5 memory has arrived and we'll be honest when we say it'll probably be one of the last unless someone does something that stands out with the model. We tend to only have a look at one or two of these low end models because we tend to find companies don't mix it up too much. Sapphire today have not only slapped a half decent cooler on the card, but also taken the time to overclock it.

I didn't actually look at the specifications before checking out GPU-Z and I wondered if the OC was going to be the 20MHz or so we saw from GIGABYTE on the HD 5670 recently, or if it was going to be more. And if it was more, what would it actually do for performance? So often we find these low end cards with an overclock to be quite pointless. Let's find out what Sapphire has done, though, and what it means for you.


The Package

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 03 | TweakTown.com


Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 04 | TweakTown.com


Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 05 | TweakTown.com


Within the package there's very little going on. We've got no cables with the only stand out point of the bundle being a discount voucher for some software from ArcSoft which you probably won't use.

The Card




Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 06 | TweakTown.com


Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 07 | TweakTown.com


Sapphire has moved away from the reference cooler and opted for an Arctic Cooling one to help keep the core nice and cool, while at the same time giving them the chance to OC the model a little. Apart from that, there's not a whole lot else to the card; we've got no power or CrossFire connectors and connectivity is a Dual-Link DVI Port, HDMI and DisplayPort.


Specifications

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 01 | TweakTown.com


While Sapphire has chosen to leave the 512MB of GDDR5 memory at the default 4000MHz QDR, they have bumped the core a massive 100MHz to 650MHz. This is quite an overclock on a low end card. From a percentage point of view, from 550MHz it's an increase of almost 20%.

Test System Setup and 3DMark Vantage


Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 99 | TweakTown.com


We would like to thank the following companies for supplying and supporting us with our test system hardware and equipment: Intel, ASRock, Kingston, Western Digital, Noctua and Thermaltake.

We'll today mainly be comparing the OC version of the Sapphire HD 5550 against the stock clocked HIS one we looked at recently. We've also thrown in the new GDDR5 HD 5570 along with a HD 5670 for good measure.

Let's get started!


3DMark Vantage

Version and / or Patch Used: 1.0.1
Developer Homepage: http://www.futuremark.com
Product Homepage: http://www.futuremark.com/products/3dmarkvantage/
Buy It Here




3DMark Vantage is the new industry standard PC gaming performance benchmark from Futuremark, newly designed for Windows Vista and DirectX10. It includes two new graphics tests, two new CPU tests, several new feature tests, and support for the latest hardware.

3DMark Vantage is based on a completely new rendering engine, developed specifically to take full advantage of DirectX10, the new graphics API from Microsoft.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 20 | TweakTown.com


Straight away we can see a nice boost from the OC that is offered from Sapphire.

Unigine Heaven Benchmark




Version and / or Patch Used: 1 and 2
Developer Homepage: http://www.unigine.com
Product Homepage: http://unigine.com/press-releases/091022-heaven_benchmark//



New benchmark grants the power to unleash the DirectX 11 potential in the gift wrapping of impressively towering graphics capabilities. It reveals the enchanting magic of floating islands with a tiny village hidden in the cloudy skies. With the interactive mode emerging experience of exploring the intricate world is ensured within reach. Through its advanced renderer, Unigine is one of the first to set precedence in showcasing the art assets with tessellation, bringing compelling visual finesse, utilizing the technology to the full extend and exhibiting the possibilities of enriching 3D gaming.

Note: If a card doesn't support DirectX 11 the benchmark will be left out, if it does it will be included along with the DirectX10 results.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 21 | TweakTown.com


Under Heaven we see a good performance boost with the model not sitting all that far away from the HD 5570 GDDR5 model.

Benchmarks - CINEBENCH


CINEBENCH

Version and / or Patch Used: Release 10 and Release 11.5
Developer Homepage: http://www.maxon.net/
Product Homepage: http://www.maxon.net




CINEBENCH is a real-world test suite that assesses your computer's performace capabilities. MAXON CINEBENCH is based on MAXON's award-winning animation software, CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation. MAXON software has been used in blockbuster movies such as Spider-Man, Star Wars, The Chronicles of Narnia and many more.

MAXON CINEBENCH runs several tests on your computer to measure the performance of the main processor and the graphics card under real world circumstances. The benchmark application makes use of up to 16 CPUs or CPU cores and is available for Windows (32-bit and 64-Bit) and Macintosh (PPC and Intel-based).

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 22 | TweakTown.com


CINEBENCH performance is what you would expect.

Benchmarks - Resident Evil 5


Resident Evil 5

Version and / or Patch Used: Demo Benchmark
Developer Homepage: www.residentevil.com/
Product Homepage: http://www.residentevil.com/




Resident Evil 5 is a survival horror video game developed and published by Capcom. The game is the seventh installment in the Resident Evil survival horror series, and was released on September 18. Resident Evil 5 revolves around Chris Redfield and Sheva Alomar as they investigate a terrorist threat in Kijuju, a fictional town in Africa.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 23 | TweakTown.com


Checking out RE5, we're still a bit away from that 60 FPS average we need. Compared to the stock clocked model, though, we're seeing an impressive performance gain. A bit of a detail drop at the lower resolution would bring our FPS up to a level we need it to be.

Benchmarks - BattleForge


BattleForge

Version and / or Patch Used: Auto Patched at Load
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.battleforge.com/
Product Homepage: http://www.battleforge.com/





The Gods have disappeared and the old sun has died, letting a vile twilight engulf the world of Nyn. In exchange for all treasures the mortals possessed, the evil giants agreed to forge a new sun and hurl it into the sky.

But the deal was betrayed, the treasure stolen and now the mortals flee the wrath of the giants. Under the light of a new sun the mortals stumble into a world changed and twisted by an age of twilight. The long journey home has become a conquest of survival.

Note: Supporting DirectX 11 we have seperated the graphs for NVIDIA and ATI cards. While the numbers between the two brands can be compared you have to make note that ATI based HD 5000 series cards are running DirectX 11.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 24 | TweakTown.com


We do see a good gain with the overclock being offered. Unfortunately BattleForge runs poorly on most mid range and lower cards.

Benchmarks - Tom Clancy's H.A.W.X.


Tom Clancy's H.A.W.X.

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.ubi.com/UK/default.aspx
Product Homepage: http://www.hawxgame.com/





Tom Clancy's H.A.W.X is an arcade-style flight simulator video game developed by Ubisoft Romania and published by Ubisoft for Microsoft Windows, Xbox 360, PlayStation 3, and iPhone OS.

The fundamental gameplay mechanics are similar to those of other console-based flight series. Players take on enemies with over 50 aircraft available. Each mission is at real world locations in environments created with commercial satellite data. A cockpit, first person, and third person view are selectable. The third person view gives the player an external view of both their plane and the target.

Set above the skies of a near-future world, increasingly dependent on private military companies with elite mercenaries who have a relaxed view on the law. As these non-governmental organizations gain power, global conflict erupts with one powerful PMC attacking the United States.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 25 | TweakTown.com


H.A.W.X. also sees a good gain. We're talking about 20% which is very impressive. Unfortunately the numbers are still too low to be playable.

Benchmarks - Darkest of Days


Darkest of Days

Version and / or Patch Used: 1.4
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.darkestofdays.com/index.php
Product Homepage: http://www.darkestofdays.com/index.php





Darkest of Days takes the player through time into historic battles in an effort to save key individuals from certain death. The battles range from Custer's Last Stand at the Battle of the Little Bighorn in 1876 to fighting in Pompeii as ash and fire rain down from an erupting Mt. Vesuvius in 79 AD. Other locations include the battles of Antietam and Tannenberg, and a German World War II P.O.W. camp. There are different missions in every time period and the game takes about 4 hours to complete.

The game features over twenty weapons, both from the original time period as well as those brought back from the future. In addition, there are artillery weapons from different time periods to assist in battle.

Note: With the PhysX set to Medium or High Darkest of Days take advantage of the NVIDIA PhysX abilities. For that reason we will test ATI cards at the Low preset, NVIDIA based cards though will be tested at Low and High.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 26 | TweakTown.com


We continue to see some good performance from the model, but under these higher settings, even at 1680 x 1050 the card does struggle to give us playable FPS without a detail drop.

Benchmarks - Far Cry 2


Far Cry 2

Version and / or Patch Used: 1.01
Timedemo or Level Used: Ranch Long
Developer Homepage: http://www.ubi.com/
Product Homepage: http://www.farcry2.com/
Buy It Here




The Dunia Engine was built specifically for Far Cry 2 by the award-winning Ubisoft Montreal development team. It delivers the most realistic destructible environments, amazing special effects such as dynamic fire propagation and storm effects, real-time night-and-day cycle, dynamic music system, non-scripted enemy A.I. and so much more.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 28 | TweakTown.com


We continue to see the same thing over and over. The 100MHz core jump on the card is giving us a good boost in performance. However, it's not taking us to the numbers we need at these settings. A detail drop will be in order to lift to a 30 FPS minimum and 60 FPS average.

Benchmarks - Batman Arkham Asylum


Batman Arkham Asylum

Version and / or Patch Used: 1.1
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.batmanarkhamasylum.com/
Product Homepage: http://www.batmanarkhamasylum.com/





Batman: Arkham Asylum exposes players to a unique, dark and atmospheric adventure that takes them to the depths of Arkham Asylum - Gotham's psychiatric hospital for the criminally insane. Gamers will move in the shadows, instigate fear amongst their enemies and confront The Joker and Gotham City's most notorious villains who have taken over the asylum.

Using a wide range of Batman's gadgets and abilities, players will become the invisible predator and attempt to foil The Joker's demented scheme.
Batman: Arkham Asylum features an original story penned exclusively for the game by famous Batman author and five-time Emmy award winner Paul Dini, whose credits include Lost season one and Batman: The Animated Series.

Note: With support for PhysX NVIDIA based cards will be tested with the technology on and off, ATI cards will be tested with the technology off due to it not being supported on their cards.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 29 | TweakTown.com


Under Batman AA we can see that the extra performance on offer from the Sapphire version of the card helps lift our 1920 x 1200 performance to the level we want; a 30 FPS minimum.

Benchmarks - Dark Void


Dark Void

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.airtightgames.com
Product Homepage: http://www.darkvoidgame.com/




The game's story takes place during World War II and centers around a cargo pilot named William Augustus Grey (voiced by Nolan North) who is teleported to another world while flying through the Bermuda Triangle. In this world, known as the 'Void', Will encounters an alien race as well as other humans, which are known as the Watchers and the Survivors respectively.

Will reluctantly joins the Survivors who are engaged in a feud with the alien race to satisfy his desire to return to Earth. While aiding the Survivors, Will discovers that the Void is a middle ground that connects both the Watchers homeworld and Earth. It also becomes apparent that the Watchers are supplying the Axis powers with various supplies for reasons unknown. With the help of Nikola Tesla, Will utilizes retrofited Watcher technology to combat the Watchers and eventually find a way to escape the Void.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 31 | TweakTown.com


We're already getting playable numbers on the stock clocked HD 5550 GDDR5, but the Sapphire version just helps move us further away from those minimums.

Benchmarks - Elcomsoft Wireless Security Auditor


Elcomsoft Wireless Security Auditor

Version and / or Patch Used: 1.51
Timedemo or Level Used: Sample File
Developer Homepage: http://www.elcomsoft.com/
Product Homepage: http://www.elcomsoft.com/ewsa.html




ElcomSoft has pioneered many software innovations that have made it easier to recover passwords protecting various types of resources. For the first time in the industry, the company's patent-pending GPU acceleration makes its way into Wi-Fi password recovery, reducing the time required to recover Wi-Fi passwords up to a hundred times.

Supporting up to four NVIDIA boards such as GeForce 8, 9, and 200, as well as ATI video cards such as RADEON HD 4000 Series and up, Elcomsoft Wireless Security Auditor allows building servers with supercomputer performance at a fraction of the price.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 36 | TweakTown.com


WSA performance is as you would expect; sitting towards the bottom of the pack.

Temperature Test


Temperature Tests



With the TES 1326 Infrared Thermometer literally in hand we found ourselves getting real-world temperatures from the products we test at load (3D clock speeds).

There are two places we pull temperature from - the back of the card directly behind the core and if the card is dual slot and has an exhaust point we also pull a temperate from there, as seen in the picture.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 38 | TweakTown.com


Low end model with active cooling; it comes as no surprise that the card runs very cool.

Sound Test


Sound Tests



Pulling out the TES 1350A Sound Level Meter we find ourselves quickly yelling into the top of it to see how loud we can be.

After five minutes of that we get a bit more serious and place the device two CM away from the fan on the card to find the maximum noise level of the card when idle (2D mode) and in load (3D mode).

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 39 | TweakTown.com


Noise levels sit in a fairly standard area.

Power Consumption Tests






Using our new PROVA Power Analyzer WM-01 or "Power Thingy" as it has become quickly known as to our readers, we are now able to find out what kind of power is being used by our test system and the associated graphics cards installed. Keep in mind; it tests the complete system (minus LCD monitor, which is plugged directly into AC wall socket).

There are a few important notes to remember though; while our maximum power is taken in 3DMark06 at the same exact point, we have seen in particular tests the power being drawn as much as 10% more. We test at the exact same stage every time; therefore tests should be very consistent and accurate.

The other thing to remember is that our test system is bare minimum - only a 7,200RPM SATA-II single hard drive is used without CD ROM or many cooling fans.

So while the system might draw 400 watts in our test system, placing it into your own PC with a number of other items, the draw is going to be higher.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 40 | TweakTown.com


No surprises with power draw with the model sitting towards the bottom of the pack.

Total Performance Rating (TPR)


Total Performance Rating

The TPR graph is a combination of all our benchmarks in which NVIDIA and ATI are on an even playing field. This includes benchmarks where PhysX can be forced off like Dark Void and Batman: Arkham Asylum, but not Darkest of Days.

The TPR number is a combination of:

3DMark Vantage, Heaven Benchmark V2, CINEBENCH R11.5, Resident Evil 5, BattleForge, Tom Clancy's H.A.W.X., Far Cry 2, Batman: Arkham Asylum (PhysX Off), Dark Void (PhysX Off) and our three High Quality tests which include Far Cry 2, Resident Evil 5 and Tom Clancy's H.A.W.X.

All of the benchmark results achieved are then combined into a single number. As this graph will grow over time and cards won't be re-tested, next to each model you'll find the driver version that was used when the card was benchmarked.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 41 | TweakTown.com


Overall the TPR rating of the card is strong. You can see it's actually faster than the GDDR3 HD 5570 from GIGABYTE which was overclocked.

Total Value Rating (TVR) & Final Thoughts


Total Value Rating

The TVR graph is the TPR score divided by the price of the video card. The price of the video card is based on the list price of the model on Newegg.com. In the event the card isn't listed, it will be based on the U.S. $ MSRP given to us by the manufacturer.

In the event we can't source a price from either, the product will not receive a TVR rating. As with our TPR graph, the amount of video cards on the list will grow over time and the price of the model won't change from what it was when first reviewed. For this reason the U.S. $ price that the card is based off will be included next to the name of the model.

In the event you want to find the TVR rating yourself based on the current price, all you have to do is simply divide the TPR number by the list price.

TVR numbers are rounded to the nearest whole number; 100.3 will be 100; 100.8 will be 101 and 100.5 will be rounded down to 100.

Sapphire Radeon HD 5550 512MB GDDR5 OC Video Card 42 | TweakTown.com


Strong performance and a good price means the overall value of the product is quite strong.

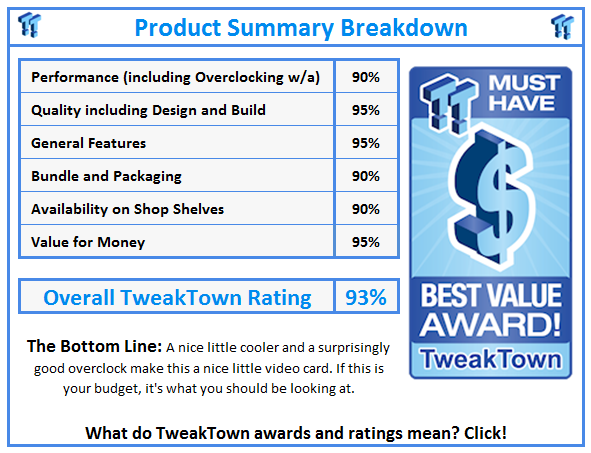

Final Thoughts

It's interesting that Sapphire has chosen to OC the HD 5550, a card that is quite a low end model. The bottom line here is that the overclock that is achieved out of the box is very strong and manages to really give us a nice boost in performance. In some cases like Batman AA we saw the game from below 30 FPS which we consider unplayable, to hitting that 30 FPS minimum we need.

This isn't a bad version of the HD 5550. The price is strong, its performance is good, the cooling is nice and does a fantastic job and you've got a little bonus from ArcSoft if you want to make use of it. If you can stretch the budget a little more, you would probably be better off with a HD 5570. But if you can't, this is a good option.

The main thing you really need to look out for is to make sure you're getting one of the GDDR5 models as the HD 5550 and HD 5570 have been around for a while now. Don't get tricked in by a low price tag thinking you're going to get the same performance, as you can see here today this GDDR5 OC model of the HD 5550 was able to outperform the original GDDR3 model of the HD 5570 when overclocked.
