Sabrent Rocket Q4 NVMe 4TB SSD Review

Sabrent does it again by delivering the best performing QLC SSD we've ever tested in the Rocket Q4 NVMe 4TB. Let's take a look.

@JonCoulterSSD
Published Mon, Nov 2 2020 12:25 AM CST   |   Updated Tue, Nov 3 2020 6:54 PM CST
Rating: 95%Manufacturer: Sabrent (SB-RKTQ4-4TB)

Introduction & Drive Details

Sabrent is undeniably the most forward-thinking SSD company we know of on the consumer front. Its mantra of "Capacity is King" has changed the consumer solid-state storage industry forever. Before Sabrent burst onto the scene in the past year, 512GB was considered the sweet spot for consumer SSDs. Now, thanks to almost exclusively to Sabrent, 2TB is regarded as the sweet spot for fast NVMe storage.

These days, Sabrent is giving us more than just capacity; they are giving us Gen4 speeds to go along with all that glorious capacity. A perfect example of this is the drive we have on the bench today. Sabrent's Rocket Q4 4TB SSD is powered by Sabrent's exclusive version of Phison's proven E16 Gen4 x4 SSD controller. The drive is a uniquely potent mix of QLC flash and a Gen4 interface.

This particular SSD once again demonstrates Sabrent's commitment to offering more for less. There are other 4TB Gen4 QLC SSDs out there, but as far as we know, Sabrent's Rocket Q4 4TB SSD is the only one with 32 CE (Chip Enables) instead of the normal 16 CE common to E16 controlled SSDs. 32 CE means better performance because it potentially doubles parallel processing power compared with more standard 16 CE.

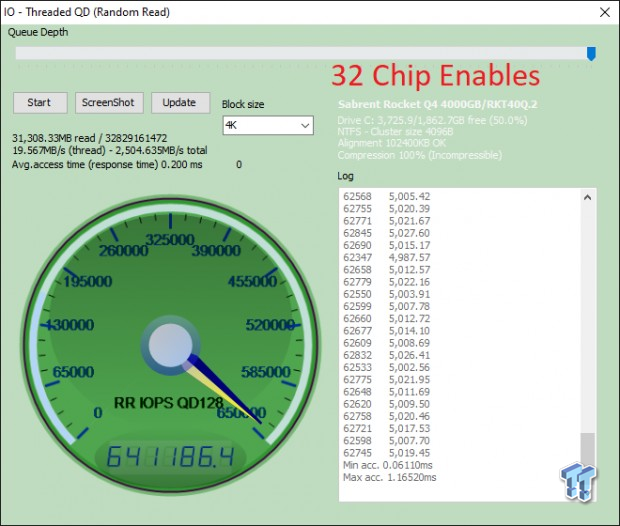

This becomes extra important as it relates to QLC SSDs, which typically have much lower random read performance than their TLC counterparts. In fact, that is the main weakness of QLC based SSDs as we see it. 32 CE changes the game as demonstrated by the following two benchmarks:

Sabrent Rocket Q4 NVMe 4TB SSD Review 45 | TweakTown.com
VIEW GALLERY - 46 IMAGES
Sabrent Rocket Q4 NVMe 4TB SSD Review 46 | TweakTown.com

Look at the difference between 16 CE and 32 CE. 32 CE nearly doubles random read performance. Amazing, and not surprisingly, Sabrent is at the forefront of delivering this type of class-leading performance.

Now let's get into the review so we can demonstrate firsthand why Sabrent's Rocket Q4 4TB SSD with 32 CE is currently the best performing ultra-high capacity QLC M.2 SSD you can buy.

Drive Details

Sabrent Rocket Q4 NVMe 4TB SSD Review 01 | TweakTown.com

800 TeraBytes Written (TBW) is plenty of endurance for consumer usage.

Sabrent Rocket Q4 NVMe 4TB SSD Review 02 | TweakTown.comSabrent Rocket Q4 NVMe 4TB SSD Review 03 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 04 | TweakTown.comSabrent Rocket Q4 NVMe 4TB SSD Review 05 | TweakTown.com

Under that attractive all copper thermal label, we would find a Sabrent PH-SBT-401 8-channel Gen4 x4 controller, two 1TB flash packages, and a 1GB Hynix DRAM package. The backside of the PCB houses another 1GB DRAM package and two more 1TB flash packages.

Jon's Test System Specifications

Buy at Amazon

Sabrent Rocket Q4 NVMe 4TB NVMe PCIe Gen4 x4 M.2 SSD

TodayYesterday7 days ago30 days ago
$749.99$749.99-
* Prices last scanned on 12/1/2020 at 12:47 am CST - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission.

Free SSD Software

Sabrent Rocket Control Panel/Acronis for Sabrent

Sabrent Rocket Q4 NVMe 4TB SSD Review 06 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 07 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 08 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 09 | TweakTown.com

Click here to download Sabrent Rocket Control Panel.

Sabrent's SSD management software is free, and among the best there is. With it, you can perform numerous useful functions to maintain your Sabrent NVMe SSD. You can also get various free tools, including Sabrent's exclusive version of Acronis True Image, with just a click.

Register your SSD with Sabrent within 90 days to extend the Rocket Q4's warranty period from 1-year to 5-years.

Synthetic Benchmarks: CDM & Anvils

CrystalDiskMark

Sabrent Rocket Q4 NVMe 4TB SSD Review 10 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 11 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 12 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 13 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 14 | TweakTown.com

32 CE improves performance across the board, as evidenced when we compare the 4TB Rocket Q4 to its 2TB Rocket Q4 sibling. In this case, we are seeing far better sequential write performance and significantly better random write performance. In fact, the 4TB Rocket Q4 delivers a nice lab record for Q1 random writes. Impressive.

Anvil's Storage Utilities

Sabrent Rocket Q4 NVMe 4TB SSD Review 15 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 16 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 17 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 18 | TweakTown.com

A total score of 21K puts the Rocket Q4 4TB right up there with the best we've ever seen from a high capacity SSD. Additionally, the total write score delivered by the 4TB Rocket Q is another chart-topper. Wow.

Sabrent Rocket Q4 NVMe 4TB SSD Review 19 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 20 | TweakTown.com

We can exceed factory max random IOPS figures for both read and write despite our more demanding user state of OS disk 50% filled.

Synthetic Benchmarks: AS SSD & ATTO

AS SSD

Sabrent Rocket Q4 NVMe 4TB SSD Review 21 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 22 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 23 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 24 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 25 | TweakTown.com

Well, look at that. Another two lab records for Sabrent's latest and greatest. It delivers a total score even higher than the TLC-powered US70 Gen4 SSD. It's hard to believe that this is a QLC-based SSD. Amazing.

ATTO

Sabrent Rocket Q4 NVMe 4TB SSD Review 26 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 27 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 28 | TweakTown.com

The 4TB Rocket Q4 is spending a lot of time at the top of our charts and is beating up on most TLC-powered SSDs in the process.

Real-World Testing: Transfer Rates & Gaming

Transfer Rates

Sabrent Rocket Q4 NVMe 4TB SSD Review 29 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 30 | TweakTown.com

Strong performance here, which is the last place we would expect to find a QLC powered SSD. Keep in mind that this is 100GB in addition to the drive being half full. This is a testament to the drive's SLC caching prowess.

Sabrent Rocket Q4 NVMe 4TB SSD Review 31 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 32 | TweakTown.com

Here is proof that properly controlled QLC can serve data to the host as well as any TLC or even MLC SSDs we've tested.

Game Level Loading

Sabrent Rocket Q4 NVMe 4TB SSD Review 33 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 34 | TweakTown.com

E16 powered SSDs have always had a hard time with this test, and the 4TB Rocket Q4 is no exception. However, we consider this well within respectable range, as it is only a fraction of a second slower per level load than the best performing TLC-based SSDs.

Real-World Testing: PCMark 10 Storage Tests

PCMark 10 Storage Test is the most advanced and most accurate real-world consumer storage test ever made. There are four different tests you can choose from; we run two of them.

The Full System Drive Benchmark and the Quick System Drive Benchmark. The Full System Drive Benchmark writes 204 GB of data over the duration of the test. The Quick System Drive Benchmark writes 23 GB of data over the duration of the test. These tests directly correlate with user experience. Of the two tests, we feel that the Quick System Drive Test most accurately replicates a typical user experience.

PCMark 10 Full System Drive Benchmark

Sabrent Rocket Q4 NVMe 4TB SSD Review 35 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 36 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 37 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 38 | TweakTown.com

32 CE gives the 4TB Rocket Q4 the ability to handle heavy workloads better than we've seen from any Phison-powered QLC-based SSD.

PCMark 10 Quick System Drive Benchmark

Sabrent Rocket Q4 NVMe 4TB SSD Review 39 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 40 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 41 | TweakTown.com
Sabrent Rocket Q4 NVMe 4TB SSD Review 42 | TweakTown.com

Okay, here we go. This is where we believe performance matters most, and this is where the 4TB Rocket Q4 is delivering astonishing performance. This sets the standard for QLC SSDs currently. Impressive.

Final Thoughts

With everything trending towards a QLC future, it's nice to see a drive like Sabrent's Rocket Q4 4TB perform as well as it does. To be honest, a drive like this helps ease the uncertainty that is always present when the bit per cell count goes up.

The 4TB Gen4 monster we tested today is one of the better SSDs we've seen to date, regardless of the type of flash it is powered by. It is easily the fastest QLC-powered SSD we've tested to date. More than that, though, and as our charts testify, Sabrent's latest and greatest is one of the fastest SSDs ever made, period.

Sabrent Rocket Q4 NVMe 4TB SSD Review 43 | TweakTown.com

This is what we are interested in most. Not synthetic numbers run on an empty secondary device, but real performance as an SSD is actually used by the consumer. As the above chart shows, the 4TB Rocket Q4 is a beast that will deliver some of the best user experience available, regardless of bit count or cost. Impressive.

Sabrent Rocket Q4 NVMe 4TB SSD Review 44 | TweakTown.com

Looking back at our results, we find that the Rocket Q4 4TB can deliver 5000/4000 MB/s sequential performance even when it is 50% filled and used as a system disk. That puts it in an elite group. Furthermore, the Rocket Q4 4TB delivers some of the best real-world performance we've seen to date, as evidenced by our transfer results and typical consumer workload testing.

This is QLC at its finest, and Sabrent is leading the way, which is why Sabrent's Rocket Q4 4TB has earned TweakTown's highest award.

Pros

  • Sequential
  • Normal Workloads
  • Capacity

Cons

  • Heavy Workloads
Buy at Amazon

Performance

97%

Quality

98%

Features

90%

Value

95%

Overall

95%

The Bottom Line

Gen4 performance and massive capacity. What more could you want?
