StarTech.com USB 3.0 to SATA/IDE Adapter Review

StarTech.com USB 3.0 to SATA/IDE Adapter Review

If you have a mix of legacy and modern storage devices, the StarTech.com USB 3.0 to IDE/SATA adapter allows simple plug-n-play functionality.

@TylerBernath
Published Wed, Sep 25 2013 9:04 PM CDT   |   Updated Tue, Apr 7 2020 12:32 PM CDT
Rating: 90%Manufacturer: StarTech.com
StarTech.com USB 3.0 to SATA/IDE Adapter Review 99 | TweakTown.com
VIEW GALLERY - 11 IMAGES

StarTech.com specializes in designing and manufacturing and even selling a number of adapters converting one format to another along with a number of accessories to handle any need you may have. Today, we have one of their latest adapters in the form of a USB 3.0 to IDE/SATA converter.

This converter/adapter allows users the ability to connect up any 2.5" or 3.5" drive into a device which then allows access to the drives contents with the speed of USB 3.0. StarTech.com list compatibility with modern Windows operating systems, along with full Linux and Mac OS 8.6+. Warranty period for this adapter is set at two years.

StarTech.com USB 3.0 to SATA/IDE Adapter Review 02 | TweakTown.com

The scope of delivery includes the power adapter, which has both Molex and SATA power connections. In addition to this, there is an included SATA data cable and user manual.

StarTech.com USB 3.0 to SATA/IDE Adapter Review 03 | TweakTown.com

Looking over the adapter itself, we find everything packed into a convenient, small form factor. On the top there are several LEDs to indicate activity across each interface.

StarTech.com USB 3.0 to SATA/IDE Adapter Review 04 | TweakTown.com

The bottom of the unit has a 44-pin EIDE/PATA interface commonly found on 2.5" IDE drives.

StarTech.com USB 3.0 to SATA/IDE Adapter Review 05 | TweakTown.com

The top of the unit houses your standard 40-pin EIDE/PATA connection.

StarTech.com USB 3.0 to SATA/IDE Adapter Review 06 | TweakTown.com

The end of the device houses the SATA connection.

StarTech.com USB 3.0 to SATA/IDE Adapter Review 07 | TweakTown.com

Here we have attached our Corsair Neutron, to test the throughput capabilities of the unit.

StarTech.com USB 3.0 to SATA/IDE Adapter Review 20 | TweakTown.com

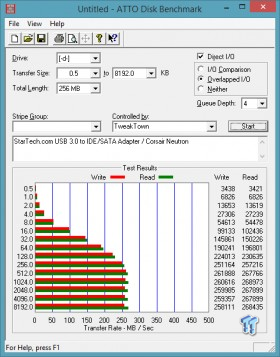

In our first test, running ATTO Disk Benchmark, we found the StarTech device capable of 268 MB/s read and 260 MB/s write. Now these are great numbers for such a simple device, but it does allude to the device not having a SATA III capable controller.

StarTech.com USB 3.0 to SATA/IDE Adapter Review 21 | TweakTown.com

CDM shared many of the same results with the StarTech reaching the same 268 MB/s read and 258 MB/s write.

The StarTech.com USB 3.0 to IDE/SATA adapter carries on the vision of what their business is all about, "hard to find made easy", enabling end users and business administrator to find what they need to enable their solutions. The unit carries a good depth of quality into it and at no time did I feel there were any corners cut in the manufacturing process.

Performance of the unit was ample, where we found plenty of storage throughput for any HDD and SSD for that matter. Where I would say there could be some improvement would be in the addition of a higher tier SATA controller, so we can get the true speed of USB 3.0 when using NAND flash devices.

Pricing at the time of writing is set at $53.99 with an included two year warranty. One thing is for sure with this device from StarTech.com, it enables true plug-n-play capability for legacy and modern storage devices, in one simple package.
