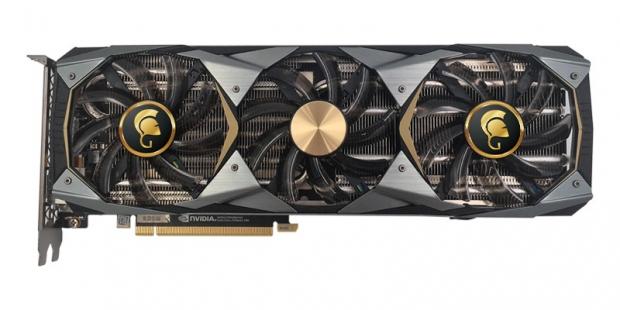

Manli announces GeForce RTX 2080 Ti & GeForce RTX 2070

19 November, 2018 - Manli Technology Group Limited, the major Graphics Cards and other components manufacturer, today announced the brand new RTX 20 Series graphics solution - Manli GeForce RTXTM 2080 Ti & GeForce RTXTM 2070 with Blower Fan.

Powered by the latest NVIDIA TurningTMGPU architecture and the revolutionary RTX platform, Manli GeForceRTXTM2080 Ti provides top tier gaming performance for gaming enthusiast. It is built-in 4352 CUDA Cores, with core frequency is at 1350MHz, which can boost up to 1545MHz, and for Manli GeForce RTXTM 2070 is built-in 2304 CUDA Cores, with the base clock is at 1410MHz and which can dynamically boost up to 1620MHz.

"Tai Chi" Series of Cooler Cover Design

The cooler cover design comes with the symbol of "Tai Chi", to couple strength (performance) and gentleness (silence). Meanwhile, the upgraded dual ball bearing strength blower fan design with heat pipe (Manli GeForce RTXTM2070) or advanced vapor chamber cooling technology (Manli GeForce RTXTM 2080 Ti) which strength cooling efficiency.

Specifications

Product Name

• Manli GeForce RTXTM2080 Ti
• Heatsink with Blower Fan
• Manli GeForce RTXTM2070
• Heatsink with Blower Fan

Model Name

• M-NRTX2080TI/6RIHPPPC-M1408
• M-NRTX2070/6RGHDPPP-F402G
• Chipset Name
• GeForce RTXTM 2080 Ti
• GeForce RTXTM 2070

CUDA Cores

• 4352
• 2304

Memory Configuration

• 11GB GDDR6
• 8GB GDDR6

Memory Interface

• 352-bit
• 256-bit

Base Clock / Boost Clock

• 1350 / 1545MHz
• 1410 / 1620MHz

Memory Speed

• 14Gbps
• 14Gbps

Cooling Design

• Heatsink with Blower Fan
• Heatsink with Blower Fan

Display Output

• 3 x DisplayPort, HDMI, USB Type-CTM
• 3 x DisplayPort, HDMI, DVI-DL

Power Connectors

• 2 x 8-pin
• 1 x 8-pin

Box Dimension

• 352 x 170 x 110mm
• 352 x 170 x 110mm

Main Features

• Real-Time Ray Tracing
• NVIDIA GeForce Experience
• NVIDIA Ansel
• NVIDIA Highlights
• NVIDIA G-SYNCTM Compatible
• Game Ready Drivers
• Microsoft DirectX 12 API, Vulkan API, OpenGL 4/5
• DisplayPort 1.4, HDMI 2.0b
• Designed for USB Type-CTM and VirtualLinkTM(Manli GeForce RTXTM 2080Ti)
• HDCP 2.2
• NVIDIA GPU BoostTM
• VR Ready

System Requirements

• PCI Express-compliant motherboard with one dual-width x16 graphics slot
• Two 8-pin PCI Express supplementary power connector (Manli GeForce RTXTM 2080 Ti)
• One 8-pin PCI Express supplementary power connector (Manli GeForce RTXTM 2070)
• Minimum 650W or greater system power supply (Manli GeForce RTXTM 2080 Ti)
• Minimum 550W or greater system power supply (Manli GeForce RTXTM 2070)
• 1.5GB of available hard-disk space
• 8GB system memory (16GB or higher recommended)
• Microsoft Windows 10 64-bit (April 2018 Update or Later), Windows 7 64-bit, Linux 64-bit
• DVD-ROM drive or Internet connection
