HIS Radeon HD 6870 1GB Turbo Video Card

HIS is the first company to bring us a pre-overclocked HD 6800 series card. It comes in the form of the higher end HD 6870 and falls into the Turbo series.

Published
Updated
Manufacturer: HIS
13 minutes & 34 seconds read time

Introduction and Package


Introduction

HIS Radeon HD 6870 1GB Turbo Video Card 02


HIS has come out fast this time with a pre overclocked card and to be honest, they need to. AMD-only partners like them need to make sure the interest is constantly there for AMD based video cards and they figure the best way to do this is get a pre overclocked model to the market sooner rather than later.

Falling into the Turbo series, one we know and love, the HD 6870 Turbo is no doubt going to carry with it a bit of extra power over a stock clocked model. Before we find out how much extra power is on offer, though, and at what clocks it's being offered at, we'll first check out the bundle HIS has put together before having a closer look at the card itself.


The Package

HIS Radeon HD 6870 1GB Turbo Video Card 03


HIS Radeon HD 6870 1GB Turbo Video Card 04


HIS Radeon HD 6870 1GB Turbo Video Card 05


You're not going to see anything we haven't already seen with the HD 6870 from HIS; the box is very similar with the main difference being some Turbo markings. Inside we've got the driver CD, manual, sticker along with a couple of power convertors, a DVI to VGA convertor and our Crossfire cable.

Card and Specifications


The Card

HIS Radeon HD 6870 1GB Turbo Video Card 06


Checking out the card, you're again not going to really see anything that you didn't see from the HIS HD 6870 we already looked at. On the cooler the main difference is the Turbo marking to let you know we're indeed working with the Turbo model.

HIS Radeon HD 6870 1GB Turbo Video Card 07


HIS Radeon HD 6870 1GB Turbo Video Card 08


HIS Radeon HD 6870 1GB Turbo Video Card 09


Doing a quick spin around the card, you're going to see our two 6-Pin PCI-E connectors at the top of the card, single CF connector at the front and connectivity is in the form of a Dual-Link DVI, Single-Link DVI, HDMI and two Mini DisplayPorts.


Specifications

HIS hasn't gone too crazy with the overclock. Being such an early stage, it's safe to say that companies haven't quite found the maximum safe overclock they can offer yet. We're sure that HIS will again attack overclocking when we see the IceQ series greet us.

HIS Radeon HD 6870 1GB Turbo Video Card 01


At 920MHz the core has been bumped by 20MHz which isn't huge. Fortunately the memory has had a slightly more significant boost moving from 4200MHz QDR to 4480MHz QDR. We're not going to see huge gains from the overclock, but the increased memory speed should clearly separate it from a stock clocked card.

Test System Setup and 3DMark Vantage


HIS Radeon HD 6870 1GB Turbo Video Card 99


We would like to thank the following companies for supplying and supporting us with our test system hardware and equipment: Intel, ASRock, Kingston, Mittoni, Noctua and Corsair.

We've got a number of cards in the lineup today including the stock clocked HD 6870, HD 6850, HD 5870 and an overclocked GTX 460.

Let's get started!


3DMark Vantage

Version and / or Patch Used: 1.0.1
Developer Homepage: http://www.futuremark.com
Product Homepage: http://www.futuremark.com/products/3dmarkvantage/
Buy It Here




3DMark Vantage is the new industry standard PC gaming performance benchmark from Futuremark, newly designed for Windows Vista and DirectX10. It includes two new graphics tests, two new CPU tests, several new feature tests, and support for the latest hardware.

3DMark Vantage is based on a completely new rendering engine, developed specifically to take full advantage of DirectX10, the new graphics API from Microsoft.

HIS Radeon HD 6870 1GB Turbo Video Card 20


Looking at Vantage, we can see a nice little boost in both scores, especially at the performance preset.

Unigine Heaven Benchmark




Version and / or Patch Used: 2
Developer Homepage: http://www.unigine.com
Product Homepage: http://unigine.com/press-releases/091022-heaven_benchmark//



New benchmark grants the power to unleash the DirectX 11 potential in the gift wrapping of impressively towering graphics capabilities. It reveals the enchanting magic of floating islands with a tiny village hidden in the cloudy skies. With the interactive mode emerging experience of exploring the intricate world is ensured within reach. Through its advanced renderer, Unigine is one of the first to set precedence in showcasing the art assets with tessellation, bringing compelling visual finesse, utilizing the technology to the full extend and exhibiting the possibilities of enriching 3D gaming.

HIS Radeon HD 6870 1GB Turbo Video Card 21


Checking out Heaven, we continue to see a little bump in performance which brings it in line with the GTX 460 and with it being a little faster at the higher resolution.

Benchmarks - Resident Evil 5


Resident Evil 5

Version and / or Patch Used: Demo Benchmark
Developer Homepage: www.residentevil.com/
Product Homepage: http://www.residentevil.com/




Resident Evil 5 is a survival horror video game developed and published by Capcom. The game is the seventh installment in the Resident Evil survival horror series, and was released on September 18. Resident Evil 5 revolves around Chris Redfield and Sheva Alomar as they investigate a terrorist threat in Kijuju, a fictional town in Africa.

HIS Radeon HD 6870 1GB Turbo Video Card 22


Getting into the real world games, we see a little performance bump at all resolutions on offer.

Benchmarks - Tom Clancy's H.A.W.X.


Tom Clancy's H.A.W.X.

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.ubi.com/UK/default.aspx
Product Homepage: http://www.hawxgame.com/





Tom Clancy's H.A.W.X is an arcade-style flight simulator video game developed by Ubisoft Romania and published by Ubisoft for Microsoft Windows, Xbox 360, PlayStation 3, and iPhone OS.

The fundamental gameplay mechanics are similar to those of other console-based flight series. Players take on enemies with over 50 aircraft available. Each mission is at real world locations in environments created with commercial satellite data. A cockpit, first person, and third person view are selectable. The third person view gives the player an external view of both their plane and the target.

Set above the skies of a near-future world, increasingly dependent on private military companies with elite mercenaries who have a relaxed view on the law. As these non-governmental organizations gain power, global conflict erupts with one powerful PMC attacking the United States.

HIS Radeon HD 6870 1GB Turbo Video Card 23


H.A.W.X. also sees a nice little bump across the board from the extra MHz.

Benchmarks - Mafia II


Mafia II

Version and / or Patch Used: Latest Steam Update
Timedemo or Level Used: Built in Benchmark
Developer Homepage: http://www.2kczech.com/
Product Homepage: http://www.mafia2game.com/
Buy It Here




Mafia II is a third-person action-adventure video game, the sequel to Mafia: The City of Lost Heaven. It is developed by 2K Czech, previously known as Illusion Softworks, and is published by 2K Games. The game is set from 1943 to 1951 in Empire Bay (the name is a reference to New York's state nickname "The Empire State"), a fictional city based on San Francisco and New York City, with influences from Chicago and Detroit. The game features a completely open-ended game map of 10 square miles. No restrictions are included from the start of the game. There are around 50 vehicles in the game, as well as licensed music from the era.

HIS Radeon HD 6870 1GB Turbo Video Card 24


Mafia II performance at 1920 x 1200 and 1680 x 1050 continues to be strong and with the Turbo version it's a little bit stronger again.

Benchmarks - Lost Planet 2


Lost Planet 2

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built in Benchmark - Test A Scene 1
Developer Homepage: http://www.capcom.com/
Product Homepage: http://www.lostplanet2game.com/




Lost Planet 2 is a third-person shooter video game developed and published by Capcom. The game is the sequel to Lost Planet: Extreme Condition which is also made by Capcom, taking place ten years after the events of the first game, on the same fictional planet. The story takes place back on E.D.N. III 10 years after the events of the first game. The snow has melted to reveal jungles and more tropical areas that have taken the place of more frozen regions. The plot begins with Mercenaries fighting against Jungle Pirates. After destroying a mine, the Mercenaries continue on to evacuate the area, in which a Category-G Akrid appears and attacks them. After being rescued, they find out their evacuation point (Where the Category-G appeared) was a set-up and no pick up team awaited them. The last words imply possible DLC additions to the game, "There's nothing to be gained by wiping out snow pirates... unless you had some kind of grudge."

HIS Radeon HD 6870 1GB Turbo Video Card 25


Lost Planet 2 sees a small performance bump, but across the board we're below the 60 FPS average we need.

Benchmarks - Aliens vs. Predator


Aliens vs. Predator

Version and / or Patch Used: Standalone Benchmark
Timedemo or Level Used: Built in Benchmark
Developer Homepage: http://www.rebellion.co.uk/
Product Homepage: http://www.sega.com/games/aliens-vs-predator/




Aliens vs. Predator is a science fiction first-person shooter video game, developed by Rebellion Developments, the team behind the 1999 original PC game, and published by Sega for Microsoft Windows, the PlayStation 3 and the Xbox 360. The game is based on the Alien vs. Predator franchise, a combination of the characters and creatures of the Alien franchise and the Predator franchise. There are three campaigns in the game, one for each race/faction (the Predators, the Aliens and the Colonial Marines), that, while separate in terms of individual plot and gameplay, form one overarching storyline.

Following the storyline of the campaign modes comes the multiplayer aspect of the game. In this Multiplayer section of the game, players face off in various different gametypes in various different ways.

HIS Radeon HD 6870 1GB Turbo Video Card 26


Like we're seeing in all our other games, the small overclock is giving us a small performance boost. In this case you can see the extra MHz was just enough to get us over the 60 FPS average we want to see at 1680 x 1050.

Benchmarks - Final Fantasy XIV


Final Fantasy XIV

Version and / or Patch Used: Standalone Benchmark
Timedemo or Level Used: Built in Benchmark - Elezen (Male)
Developer Homepage: http://www.square-enix.com/
Product Homepage: http://www.finalfantasyxiv.com/




Final Fantasy XIV, also known as Final Fantasy XIV Online, is the fourteenth installment in the Final Fantasy series. The game is a massively multiplayer online role-playing game and is developed and published by Square Enix. The game takes place in a land called Hydaelyn, mainly in a region named Eorzea, which will have a contemporaneously aesthetic blend of science fiction and classic fantasy elements.

The battle and job systems will be different from the one previously used in Final Fantasy XI, which utilized experience points and level-based progression. Final Fantasy XIV is being designed to utilize a skill-based progression[15] system similar to that of Final Fantasy II. Character races will resemble and allow players to create avatars similar to ones in Final Fantasy XI. Group play has been de-emphasized, and now solo and group play have been balanced. Weapon use will alter "character development".

Note: Final Fantasy XIV gives us a score and not a normal FPS rating, our understanding is that anything around 2000 points or above is considered playable.

HIS Radeon HD 6870 1GB Turbo Video Card 27


FF XIV manages to benefit well from the extra MHz on offer.

Benchmarks - Street Fighter IV


Street Fighter IV

Version and / or Patch Used: Standalone Benchmark
Timedemo or Level Used: Built in Benchmark
Developer Homepage: http://www.capcom.com/
Product Homepage: http://www.streetfighter.com/




While Street Fighter IV features models and backgrounds rendered in 3D, the gameplay remains on a traditional 2D plane, with the camera having freedom to move in 3D at certain times during fights, for dramatic effect. Producer Yoshinori Ono has stated that he wanted to keep the game closer to Street Fighter II. A new system called "Focus Attacks" ("Saving Attack" for the Japanese version) has been introduced, as well as Ultra moves. The traditional six-button control scheme returns, with new features and special moves integrated into the input system, mixing classic gameplay with additional innovations.

All the characters and environments in Street Fighter IV are rendered as 3D models with polygons, similar to the Street Fighter EX sub-series Capcom produced with Arika. However, there are a couple of key differences. Art director and character designer Daigo Ikeno, who previously worked on Street Fighter III 3rd Strike, opted for non-photorealistic rendering to give them a hand-drawn look, with visual effects accented in calligraphic strokes, ink smudges and ink sprays during the fights.

HIS Radeon HD 6870 1GB Turbo Video Card 28


Street Fighter IV numbers become bigger thanks to those extra MHz that HIS has given us.

Benchmarks - Far Cry 2


Far Cry 2

Version and / or Patch Used: 1.01
Timedemo or Level Used: Ranch Long
Developer Homepage: http://www.ubi.com/
Product Homepage: http://www.farcry2.com/
Buy It Here




The Dunia Engine was built specifically for Far Cry 2 by the award-winning Ubisoft Montreal development team. It delivers the most realistic destructible environments, amazing special effects such as dynamic fire propagation and storm effects, real-time night-and-day cycle, dynamic music system, non-scripted enemy A.I. and so much more.

HIS Radeon HD 6870 1GB Turbo Video Card 29


That extra speed on offer helps boost our minimum up a little with it moving further way from that 30 FPS we want at the highest resolution.

Benchmarks - Batman Arkham Asylum


Batman Arkham Asylum

Version and / or Patch Used: 1.1
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.batmanarkhamasylum.com/
Product Homepage: http://www.batmanarkhamasylum.com/





Batman: Arkham Asylum exposes players to a unique, dark and atmospheric adventure that takes them to the depths of Arkham Asylum - Gotham's psychiatric hospital for the criminally insane. Gamers will move in the shadows, instigate fear amongst their enemies and confront The Joker and Gotham City's most notorious villains who have taken over the asylum.

Using a wide range of Batman's gadgets and abilities, players will become the invisible predator and attempt to foil The Joker's demented scheme.
Batman: Arkham Asylum features an original story penned exclusively for the game by famous Batman author and five-time Emmy award winner Paul Dini, whose credits include Lost season one and Batman: The Animated Series.

HIS Radeon HD 6870 1GB Turbo Video Card 30


Batman AA performance is improved across the board in both the minimum and average department.

Benchmarks - High Quality AA and AF


High Quality AA and AF

Our high quality tests let us separate the men from the boys and the ladies from the girls. If the cards weren't struggling before they will start to now.

HIS Radeon HD 6870 1GB Turbo Video Card 31


HIS Radeon HD 6870 1GB Turbo Video Card 32


HIS Radeon HD 6870 1GB Turbo Video Card 33


HIS Radeon HD 6870 1GB Turbo Video Card 34


We see a little boost in all our games; unfortunately Mafia II and AVP performance is still a little low and Far Cry 2 minimum is still just below that 30 FPS we want. We're so close to it, though.

Temperature Test


Temperature Tests



The temperature of the core is pulled from MSI Afterburner with the max reading used after a completed run off 3DMark Vantage and the Performance preset.

HIS Radeon HD 6870 1GB Turbo Video Card 40


Heat wise the HIS HD 6870 Turbo doesn't hold any nasty surprises; it runs a little warmer than the stock clocked model, but nothing too serious.

Sound Test


Sound Tests



Pulling out the TES 1350A Sound Level Meter we find ourselves quickly yelling into the top of it to see how loud we can be.

After five minutes of that we get a bit more serious and place the device two CM away from the fan on the card to find the maximum noise level of the card when idle (2D mode) and in load (3D mode).

HIS Radeon HD 6870 1GB Turbo Video Card 41


The noise levels are also slightly bumped up, but with only 1dB separating the stock and this one you're not going to be able to tell the difference between the two.

Power Consumption Tests






Using our new PROVA Power Analyzer WM-01 or "Power Thingy" as it has become quickly known as to our readers, we are now able to find out what kind of power is being used by our test system and the associated graphics cards installed. Keep in mind; it tests the complete system (minus LCD monitor, which is plugged directly into AC wall socket).

There are a few important notes to remember though; while our maximum power is taken in 3DMark06 at the same exact point, we have seen in particular tests the power being drawn as much as 10% more. We test at the exact same stage every time; therefore tests should be very consistent and accurate.

The other thing to remember is that our test system is bare minimum - only a SSD hard drive is used with a single CD ROM and minimal cooling fans.

So while the system might draw 400 watts in our test system, placing it into your own PC with a number of other items, the draw is going to be higher.

HIS Radeon HD 6870 1GB Turbo Video Card 42


Power draw is bumped slightly, but you see the HD 6870 continues to look great against the competition.

Total Performance Rating (TPR)


Total Performance Rating

The TPR graph is a combination of all our benchmarks in which NVIDIA and ATI are on an even playing field.

The TPR number is a combination of:

3DMark Vantage, Heaven Benchmark V2, Resident Evil 5, Tom Clancy's H.A.W.X., Mafia 2 (PhysX Off), Lost Planet 2, Aliens vs. Predator, Final Fantasy XIV (No CF Support), Street Fighter IV, Far Cry 2, Batman: Arkham Asylum (PhysX Off) and our four High Quality tests which include Mafia 2, Aliens vs. Predator, Street Fighter IV and Far Cry 2.

All of the benchmark results achieved are then combined into a single number. As this graph will grow over time and cards won't be re-tested, next to each model you'll find the driver version that was used when the card was benchmarked.

HIS Radeon HD 6870 1GB Turbo Video Card 50


Overall you can see we get a nice little performance boost from the stock HD 6870 and while the overclock isn't the largest, it manages to sit right on the tail of the cheaper but much more overclocked HD 6850 at over 1GHz which is impressive.

Total Value Rating (TVR)


Total Value Rating

The TVR graph is the TPR score divided by the price of the video card. The price of the video card is based on the list price of the model on Newegg.com. In the event the card isn't listed, it will be based on the U.S. $ MSRP given to us by the manufacturer.

In the event we can't source a price from either, the product will not receive a TVR rating. As with our TPR graph, the amount of video cards on the list will grow over time and the price of the model won't change from what it was when first reviewed. For this reason the U.S. $ price that the card is based off will be included next to the name of the model.

In the event you want to find the TVR rating yourself based on the current price, all you have to do is simply divide the TPR number by the list price.

TVR numbers are rounded to the nearest whole number; 100.3 will be 100; 100.8 will be 101 and 100.5 will be rounded down to 100.

HIS Radeon HD 6870 1GB Turbo Video Card 51


The value isn't as strong as the HD 6850 which is to be expected, but it still looks good against a number of other cards including the older HD 5800 series.

Final Thoughts




HIS haven't gone too crazy with the clocks and that ultimately comes down to the fact that they wanted to hit the market fast with the model. The good news is that when it comes down to it all, the overclock on offer does help give us a nice little boost in performance for a relatively small increase in price.

Of course, if you find yourself wanting to dive into some overclocking a little later down the track the option is always there. For now, though, you can be happy knowing that against your friend who just bought a stock clocked one, you're going to be a bit faster.

Outside of the overclock there's nothing else really on offer here and the main reason is because AMD hasn't really given partners a chance to mess around with the models yet when it comes to new cooling. The good news is that we're hearing companies are now attacking the model like they have the HD 6850, and we should begin to see more and more different models that separate themselves soon enough.

The HIS HD 6870 Turbo has a clear user in mind; it's for someone that wants a little more performance for a little more price. It's also clearly aimed at users who don't want to overclock because they don't know how to or simply can't be bothered.

If you're looking for a bit more punch over the standard HD 6870, the Turbo version from HIS is one worth looking at. For the moment as well the competition is almost nonexistent in this market, because HIS have attacked the clock speeds of the model so quickly.

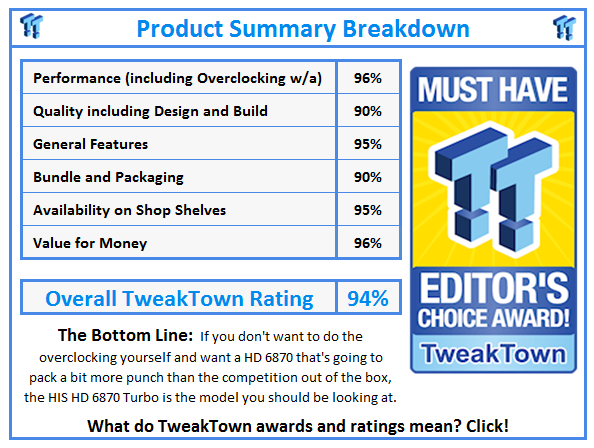

What do TweakTown.com awards mean? Click for details!
