ASRock Radeon RX 6600 XT Phantom Gaming D Review

The ASRock Radeon RX 6600 XT Phantom Gaming D is here, offering a custom mid-range RDNA 2 card with all the Phantom Phrills.

@anthony256
Published Wed, Sep 8 2021 8:08 AM CDT
Rating: 97%Manufacturer: ASRock (RX6600XT PGD 8G)

Introduction

ASRock's very best custom Radeon RX 6600 XT is here with the Phantom Gaming D variant graphics card, rocking the Navi 23 GPU and 8GB of GDDR6 memory but under the Phantom style.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 503 | TweakTown.com
VIEW GALLERY - 83 IMAGES

The flagship Radeon RX 6600 XT Phantom Gaming D graphics card is everything you expect from ASRock: an awesome design that looks great both on the front and back, fantastic performance at 1080p and 1440p thanks to the mid-range powerhouse performance from the RDNA 2 architecture, and a $120+ price premium over the "$379" MSRP on the AMD Radeon RX 6600 XT.

ASRock rocks out with RGB lighting, the triple-fan cooler, and a design that I think is one of the best of the custom Radeon RX 6600 XT cards you can buy. I would've preferred a nice-and-tight dual-slot design, but the 2.7-slot design is here to stay with the new mid-range RX 6600 XT Phantom Gaming D from ASRock.

Where AMD tries to have a $379 MSRP on the Radeon RX 6600 XT, you're looking at a $120 premium -- so around $500 -- for the ASRock Radeon RX 6600 XT Phantom Gaming D graphics card.

Buy at Amazon

ASRock Radeon RX 6700 XT Challenger D Gaming

TodayYesterday7 days ago30 days ago
$1149.95$1149.95-
* Prices last scanned on 9/16/2021 at 1:10 am CDT - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission.

Everything You Need to Know About The RX 6600 XT

ASRock Radeon RX 6600 XT Phantom Gaming D Review 22 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 05 | TweakTown.com

AMD's new Radeon RX 6600 XT is everything we've come to know and love about the Radeon RX 6000 series graphics cards: we have the kick-ass RDNA 2 architecture, 8GB of GDDR6 memory, Infinity Cache, HDMI 2.1 connectivity, FidelityFX Super Resolution (FSR), ray tracing, and everything in between.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 07 | TweakTown.com

The new Radeon RX 6600 XT has 8GB of GDDR6 memory clocked at 16Gbps on a 128-bit memory bus with 32MB of AMD Infinity Cache (down from the 128MB on the higher-end Radeon RX 6800 XT for example). Infinity Cache helps the Radeon RX 6600 XT swing above its weight, especially when compared with previous-gen GPUs in the same "price range" as the RX 6600 XT.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 11 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 12 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 13 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 14 | TweakTown.com

AMD is marketing its new RDNA 2-powered Radeon RX 6600 XT graphics card up against NVIDIA's previous-gen Pascal-based GeForce GTX 1060 and showing that it has far over 100%+ performance gains in the latest titles. This is a huge deal for gamers that have a GTX 1060 or RX 5x0 series graphics card, and want an RDNA 2-powered upgrade... the Radeon RX 6600 XT is a fantastic option for 1080p gamers.

Hell, the Radeon RX 6600 XT is even capable of beating NVIDIA's new Ampere-powered GeForce RTX 3060 graphics card, but not the GeForce RTX 3060 Ti -- we'll have more on that later, but AMD has positioned the new RX 6600 XT very well in the performance department.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 19 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 20 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 21 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 22 | TweakTown.com

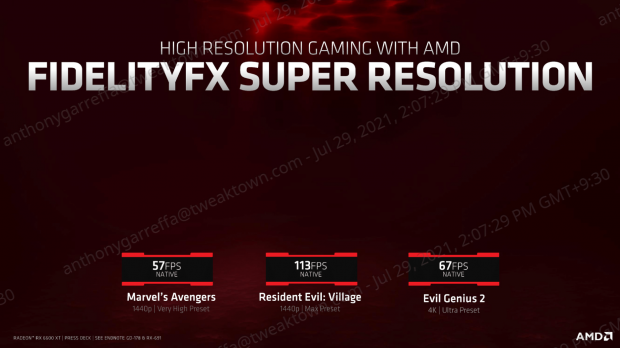

Add into the fact you've got FSR support -- at least in the small amount of games available now, is another nice touch for the Radeon RX 6600 XT.

ASRock + AMD marketing

ASRock Radeon RX 6600 XT Phantom Gaming D Review 701 | TweakTown.com

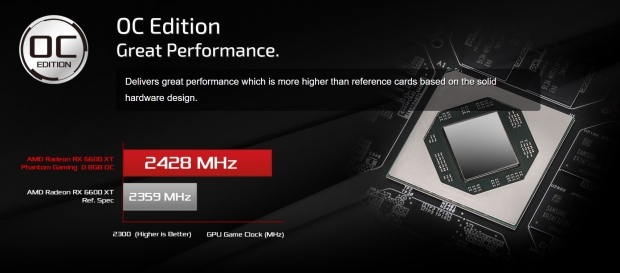

ASRock Radeon RX 6600 XT Phantom Gaming D Review 702 | TweakTown.com

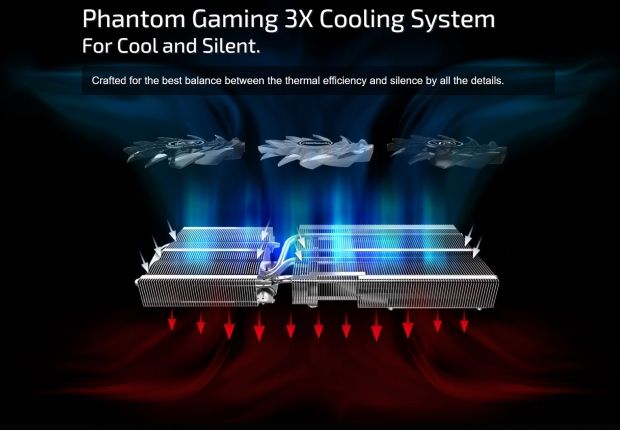

ASRock Radeon RX 6600 XT Phantom Gaming D Review 703 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 704 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 705 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 706 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 707 | TweakTown.com

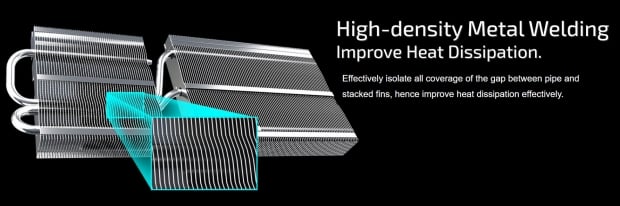

ASRock Radeon RX 6600 XT Phantom Gaming D Review 708 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 709 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 710 | TweakTown.com

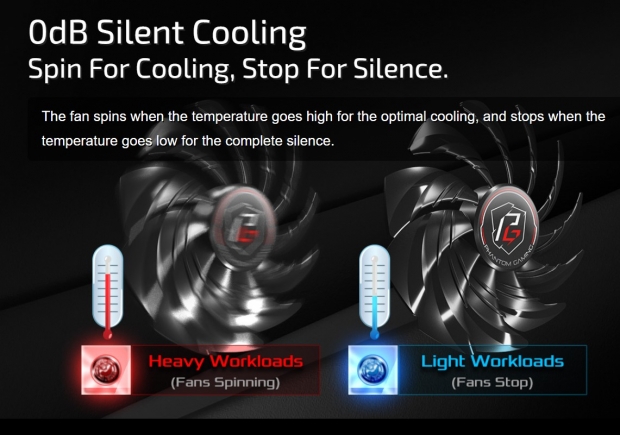

ASRock Radeon RX 6600 XT Phantom Gaming D Review 711 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 712 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 713 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 714 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 715 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 716 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 717 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 718 | TweakTown.com

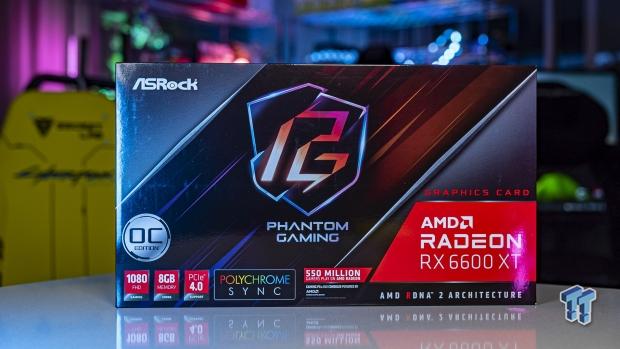

Detailed Look

ASRock Radeon RX 6600 XT Phantom Gaming D Review 501 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 502 | TweakTown.com

xxxxxx

ASRock Radeon RX 6600 XT Phantom Gaming D Review 503 | TweakTown.com

xxxxxxxxxxxx

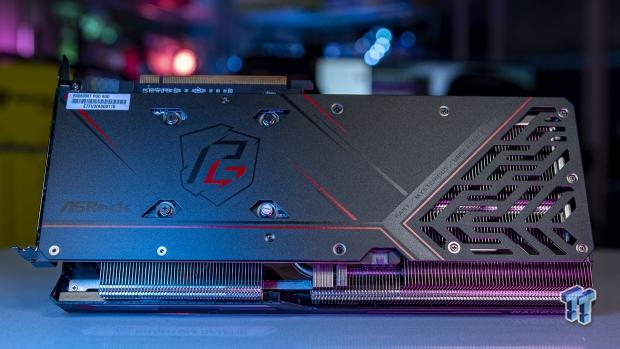

ASRock Radeon RX 6600 XT Phantom Gaming D Review 505 | TweakTown.com

xxxxxxxxxxxx

ASRock Radeon RX 6600 XT Phantom Gaming D Review 510 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 509 | TweakTown.com

xxxxxxxxxxxx

ASRock Radeon RX 6600 XT Phantom Gaming D Review 511 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 508 | TweakTown.com

Test System Specs

Latest upgrade:

Sabrent sent over their huge Rocket Q 8TB NVMe PCIe M.2 2280 SSD, which will be my new Games install SSD inside of my main test bed.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 1166 | TweakTown.com

I've got a new upgrade inside of my GPU test bed before my change to a next-gen test bed, where I will be preparing for NVIDIA's next-gen Ampere graphics cards and AMD's next-gen RDNA 2 graphics cards.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 1162 | TweakTown.com

Sabrent helped out with some new storage for my GPU test beds, sending over a slew of crazy-fast Rocket NVMe PCIe M.2 2280 SSDs. I've got this installed into my GPU test bed as the new Games Storage drive, since games are so damn big now. Thanks to Sabrent, I've got 2TB of super-fast M.2 PCIe 3.0 x4 SSD storage now.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 1165 | TweakTown.com

Anthony's GPU Test System Specifications

I've recently upgraded my GPU test bed -- at least for now, until AMD's new Ryzen 9 5950X processor is unleashed then the final update for 2020 will happen and we'll be all good for RDNA 2 and future Ampere GPU releases. You can read my article here: TweakTown GPU Test Bed Upgrade for 2021, But Then Zen 3 Was Announced.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 201 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 222 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 211 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 224 | TweakTown.com

Benchmarks - Synthetic

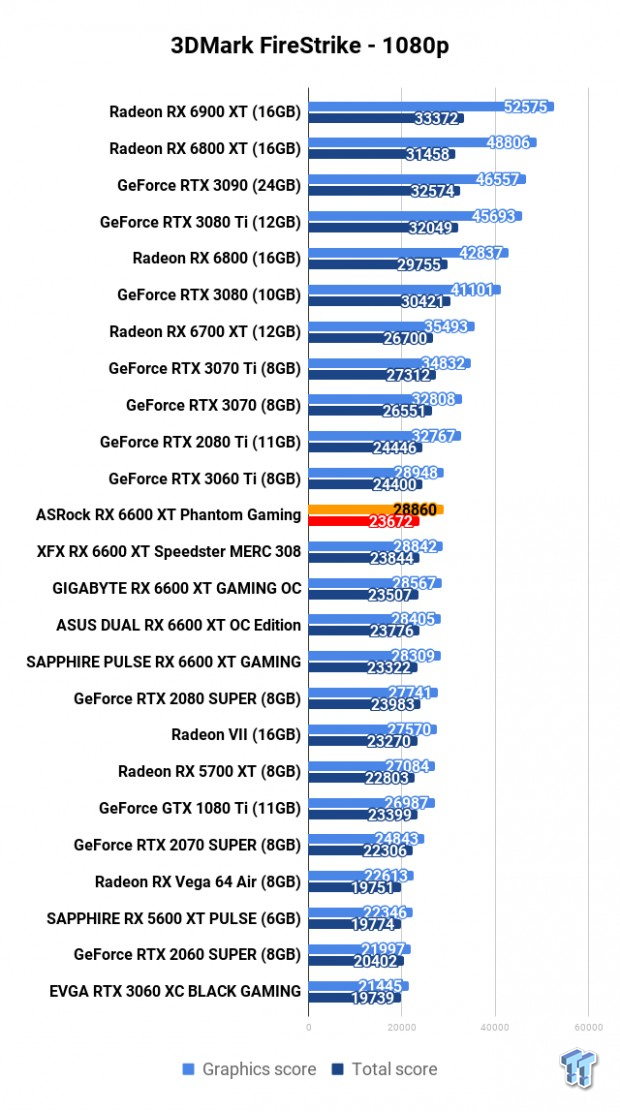

3DMark Fire Strike

ASRock Radeon RX 6600 XT Phantom Gaming D Review 4000 | TweakTown.com

3DMark has been a staple benchmark for years now, all the way back to when The Matrix was released and Futuremark had bullet time inspired benchmarks. 3DMark is the perfect tool to see if your system - most important, your CPU and GPU - is performing as it should. You can search results for your GPU, to see if it falls in line with other systems based on similar hardware.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 101 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 102 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 103 | TweakTown.com

3DMark TimeSpy

ASRock Radeon RX 6600 XT Phantom Gaming D Review 104 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 105 | TweakTown.com

Heaven - 1080p

Heaven benchmark

Heaven is an intensive GPU benchmark that really pushes your silicon to its limits. It's another favorite of ours as it has some great scaling for multi-GPU testing, and it's great for getting your GPU to 100% for power and noise testing.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 108 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 107 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 106 | TweakTown.com

Benchmarks - 1080p

ASRock Radeon RX 6600 XT Phantom Gaming D Review 4014 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 309 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 310 | TweakTown.com

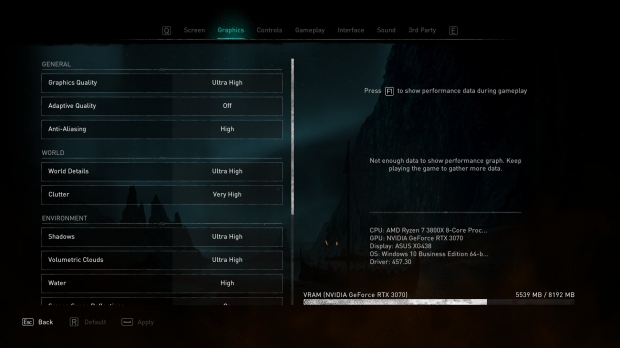

Assassin's Creed: Valhalla is the latest game to be inserted into our benchmark suite, with Ubisoft Montreal using its AnvilNext engine to power the game. It scales really well across the cards, and has some surprising performance benefits with AMD's new Big Navi GPUs.

You can buy Assassins Creed: Valhalla at Amazon.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 111 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 4006 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 304 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 305 | TweakTown.com

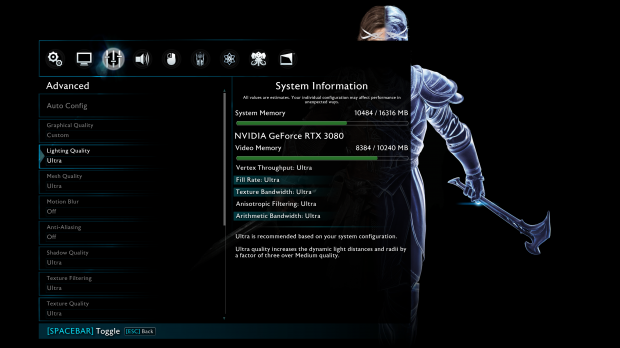

Middle-earth: Shadow of War is a sequel to the popular Shadow of Mordor, which was powered by the Lithtech engine. When cranked up to maximum detail, it will chew through your GPU and its VRAM like it's nothing.

You can buy Middle-earth: Shadow of War at Amazon.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 120 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 4013 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 303 | TweakTown.com

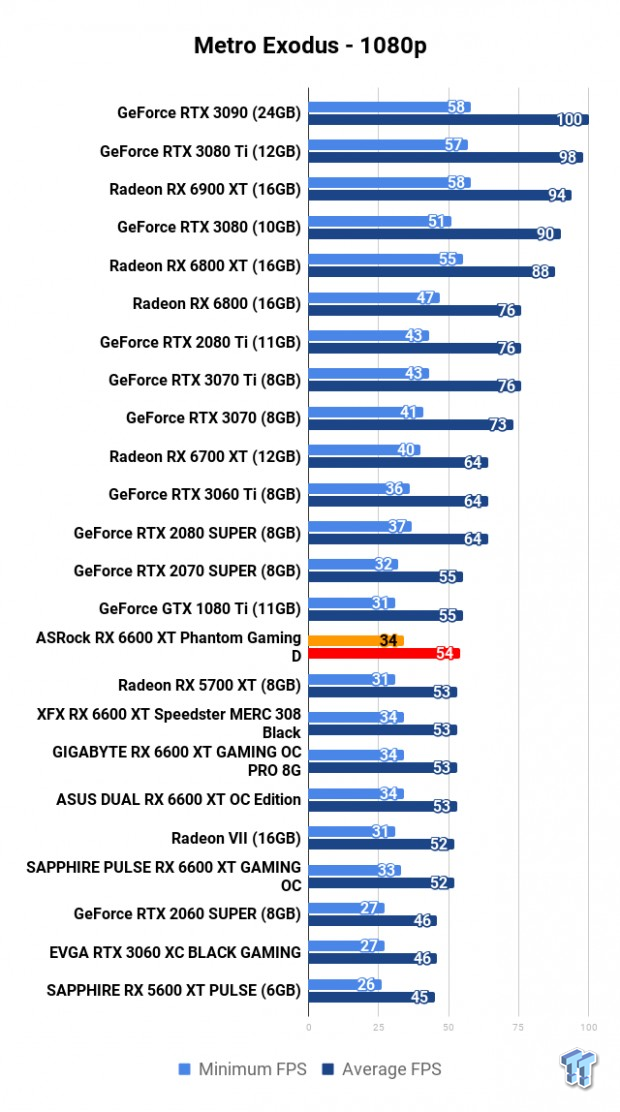

Metro Exodus is one of the hardest tests that our graphics cards have to go through, with 4A Games' latest creation being one of the best looking games on the market. It is a serious test that pushes GPUs to their limits, and also features RTX technologies like DLSS.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 114 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 4002 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 302 | TweakTown.comASRock Radeon RX 6600 XT Phantom Gaming D Review 301 | TweakTown.com

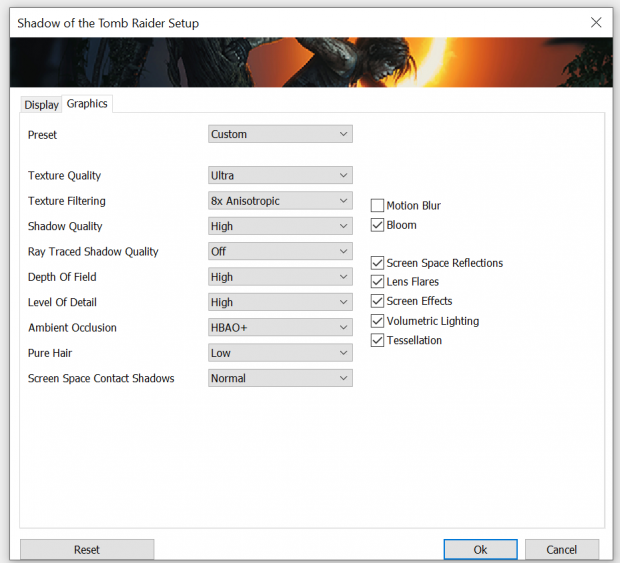

Shadow of the Tomb Raider is one of the latest games to join our graphics card benchmark lineup, with the game built using the Foundation engine as a base, the same engine in Rise of the Tomb Raider. Eidos Montreal R&D department made lots of changes to the engine during the development of Shadow of the Tomb Raider to make it one of the best-looking games out right now.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 117 | TweakTown.com

1080p Benchmark Performance Thoughts

83FPS average in Assassin's Creed: Valhalla, lining up with the other custom RX 6600 XT cards -- and then ASRock's new custom Radeon RX 6600 XT Phantom Gaming D beating them all in Shadow of War... if it is just by a single frame per second.

Fantastic performance at 1080p for a card that consumes less than 150W.

Benchmarks - 1440p

ASRock Radeon RX 6600 XT Phantom Gaming D Review 4014 | TweakTown.com

Assassin's Creed: Valhalla is the latest game to be inserted into our benchmark suite, with Ubisoft Montreal using its AnvilNext engine to power the game. It scales really well across the cards, and has some surprising performance benefits with AMD's new Big Navi GPUs.

You can buy Assassins Creed: Valhalla at Amazon.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 110 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 4006 | TweakTown.com

Middle-earth: Shadow of War is a sequel to the popular Shadow of Mordor, which was powered by the Lithtech engine. When cranked up to maximum detail, it will chew through your GPU and its VRAM like it's nothing.

You can buy Middle-earth: Shadow of War at Amazon.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 119 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 4013 | TweakTown.com

Metro Exodus is one of the hardest tests that our graphics cards have to go through, with 4A Games' latest creation being one of the best looking games on the market. It is a serious test that pushes GPUs to their limits, and also features RTX technologies like DLSS.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 113 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 4002 | TweakTown.com

Shadow of the Tomb Raider is one of the latest games to join our graphics card benchmark lineup, with the game built using the Foundation engine as a base, the same engine in Rise of the Tomb Raider. Eidos Montreal R&D department made lots of changes to the engine during the development of Shadow of the Tomb Raider to make it one of the best-looking games out right now.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 116 | TweakTown.com

1440p Benchmark Performance Thoughts

In 1440p, the ASRock Radeon RX 6600 XT Phantom Gaming D is neck-and-neck with the rest of the custom Radeon RX 6600 XT cards I've tested in Assassin's Creed: Valhalla and Metro Exodus, but it does pull ahead by 1FPS in Shadow of the Tomb Raider.

Next-gen console crushing performance, even at 1440p.

Benchmarks - 4K

ASRock Radeon RX 6600 XT Phantom Gaming D Review 4014 | TweakTown.com

Assassin's Creed: Valhalla is the latest game to be inserted into our benchmark suite, with Ubisoft Montreal using its AnvilNext engine to power the game. It scales really well across the cards, and has some surprising performance benefits with AMD's new Big Navi GPUs.

You can buy Assassins Creed: Valhalla at Amazon.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 109 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 4006 | TweakTown.com

Middle-earth: Shadow of War is a sequel to the popular Shadow of Mordor, which was powered by the Lithtech engine. When cranked up to maximum detail, it will chew through your GPU and its VRAM like it's nothing.

You can buy Middle-earth: Shadow of War at Amazon.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 118 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 4013 | TweakTown.com

Metro Exodus is one of the hardest tests that our graphics cards have to go through, with 4A Games' latest creation being one of the best looking games on the market. It is a serious test that pushes GPUs to their limits, and also features RTX technologies like DLSS.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 112 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 4002 | TweakTown.com

Shadow of the Tomb Raider is one of the latest games to join our graphics card benchmark lineup, with the game built using the Foundation engine as a base, the same engine in Rise of the Tomb Raider. Eidos Montreal R&D department made lots of changes to the engine during the development of Shadow of the Tomb Raider to make it one of the best-looking games out right now.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 115 | TweakTown.com

4K Benchmark Performance Thoughts

Please don't buy the Radeon RX 6600 XT thinking you're going to be blazing through games at 120FPS at 4K... but you're still going to achieve 30FPS average for the most part -- in most AAA titles. Not bad for a mid-range GPU.

Power Consumption & Temps

ASRock Radeon RX 6600 XT Phantom Gaming D Review 801 | TweakTown.com
ASRock Radeon RX 6600 XT Phantom Gaming D Review 802 | TweakTown.com

2609MHz GPU boost all day long with the triple-fan cooler on the ASRock Radeon RX 6600 XT Phantom Gaming D graphics card keeping things cool at 58C, with the GPU hotspot temps at 58C. This is a bit hotter than the SAPPHIRE PULSE RX 6600 XT, but it's nothing to sneeze at.

We have the same 135W GPU power draw, too.

What's Hot, What's Not

What's Hot

  • ASRock Phantom style looks mean AF: I think the ASRock Radeon RX 6600 XT Phantom Gaming D is one of the best-looking custom RX 6600 XT cards that I've seen so far. It is a tie between the XFX and ASRock custom RX 6600 XT cards for style now, with the Phantom Gaming D looking mean AF.
  • Great triple-fan cooler: The triple-fan cooler keeps GPU temps under 60C while keeping things nice and quiet, too. It looks great in the system, and performs great under benchmark, mining, and gaming loads 24/7.
  • Fantastic thermal performance: Sub 60C temps here.
ASRock Radeon RX 6600 XT Phantom Gaming D Review 507 | TweakTown.com

What's Not

There's not much wrong here with the ASRock Radeon RX 6600 XT Phantom Gaming D, apart from it being priced higher than it should be (which is out of ASRock's control) and harder to find than other launches over the last 10-15 years.

Final Thoughts

ASRock's custom Radeon RX 6600 XT Phantom Gaming D graphics card is a fantastic mid-range RDNA 2 card that would be a great GPU upgrade for gamers who have been waiting for a mid-range GPU.

ASRock Radeon RX 6600 XT Phantom Gaming D Review 504 | TweakTown.com

The mid-range Radeon RX 6600 XT is only mid-range because the high-end and enthusiast GPUs of today are so expensive: think the Radeon RX 6800 XT and Radeon RX 6900 XT as well as the GeForce RTX 3080 Ti, and GeForce RTX 3090 graphics cards that are many thousands of dollars.

ASRock's new Radeon RX 6600 XT Phantom Gaming D is the flagship Radeon RX 6600 XT from the company, factory overclocked and hitting 2605MHz out of the box and with a little OC wiggle room on top. It ends up being one of the fastest, and sometimes the very fastest custom RX 6600 XT that I've reviewed so far (and this is my 6th custom RX 6600 XT card).

If you want a virtually silent, kick-ass 1080p gaming GPU then the Radeon RX 6600 XT Phantom Gaming D is for you. Price aside, it's an excellent card -- worth the $120 over the "$379" MSRP that AMD has on the Radeon RX 6600 XT is worth it. You'll have to pull the trigger at the end of the day, but the Radeon RX 6600 XT Phantom Gaming D on its own stands on its own two feet, very easily.

Performance

95%

Quality

95%

Features

100%

Value

N/A

Overall

97%

The Bottom Line

ASRock's flagship Radeon RX 6600 XT Phantom Gaming D graphics card is one of the best custom RX 6600 XT cards you can buy. A no-brainer if you're after the RX 6600 XT.
