ADATA XPG SX8200 Pro 2TB M.2 SSD Review

ADATA XPG SX8200 Pro 2TB M.2 SSD Review

ADATA's hugely popular XPG SX8200 Pro series gets a capacity increase, now up to 2TB. Here is our full review.

@JonCoulterSSD
Published Fri, May 15 2020 10:55 AM CDT   |   Updated Thu, Jul 30 2020 4:20 PM CDT
Rating: 92%Manufacturer: ADATA (ASX8200PNP-2TT-C)

Introduction & Drive Details

ADATA's XGP SX8200 Series is something we always want more of. In this case, by more we mean more capacity. ADATA recently updated the XPG SX8200 Pro Series with a 2TB capacity option. As we've shown since its inception, the SX8200 Pro series is indeed one of the best performing SSD series ever made.

The SX8200 Pro has at its heart a Silicon Motion SM2262EN 8-channel controller. The SM2262EN is one of our favorite controllers for several reasons. It serves up 4K QD1 random read performance that is a cut above most of its competitors. It delivers massive sequential performance. Additionally, Silicon Motion's SM2262EN controller is well known for delivering almost unrivaled game level loading performance.

Unlike the 1TB XPG SX8200 Pro model where the primary focus was all-out performance, the 2TB model we have on the bench today is all about capacity and, more importantly, value. The 2TB model is employing a 512Gb Die based flash array, which is by the numbers slower than the 256Gb Die flash array employed by the performance-oriented 1TB model. 512Gb flash is more cost-effective, and that is where the value comes from.

The value makes its way to the consumer via pricing. At $259.99, the TLC powered 2TB SX8200 Pro is priced similarly to QLC SSDs, and that's where we find the value. TLC (3-bit) flash is gradually being supplanted by QLC (4-bit) flash, and someday TLC will become a niche product because QLC is so much cheaper. However, as it stands today, TLC flash, for the most part, delivers significantly better performance and much better endurance. So, if you can get TLC for around or close the same price as QLC, TLC is the better value.

With value and capacity defined as what the 2TB SX8200 Pro is all about, let's get into this review and see what its performance looks like.

Drive Details

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 01 | TweakTown.com
VIEW GALLERY - 47 IMAGES
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 02 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 03 | TweakTown.comADATA XPG SX8200 Pro 2TB M.2 SSD Review 04 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 05 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 06 | TweakTown.comADATA XPG SX8200 Pro 2TB M.2 SSD Review 07 | TweakTown.com

XPG M.2 SSDs typically come with a stick-on metallic thermal label to improve thermal performance, and this is the case with the 2TB XPG SX8200 Pro. It is up to the end-user if they choose to use it. It is not necessary for throttle free performance, and in fact, we didn't use it for our testing. If you do decide to employ the included thermal label, be careful how it is placed on the controller side of the drive. If you must remove it, it's not going to be reusable.

Jon's Test System Specifications

Buy at Amazon

ADATA XPG SX8200 Pro 2TB NVMe PCIe Gen3 x4 M.2 SSD

TodayYesterday7 days ago30 days ago
$249.99$249.99$249.99
* Prices last scanned on 9/21/2020 at 8:51 am CDT - prices may not be accurate, click links above for the latest price. We may earn an affiliate commission.

SSD Toolbox

ADATA SSD Toolbox

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 08 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 09 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 10 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 11 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 12 | TweakTown.com

ADATA has one of the best SSD utilities in the business. With it, you can monitor temperatures, SSD health, optimize your system for SSD use, update firmware, and secure erase. This just leaves data migration (cloning) to complete the package. Not to worry, when you register your product, ADATA makes available their OEM version of Acronis disk migration utility, which can be found here at the bottom of the page.

Synthetic Benchmarks: CDM & Anvils

CrystalDiskMark

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 13 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 14 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 15 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 16 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 17 | TweakTown.com

One thing for sure, sequential performance is not lacking. The 2TB SX8200 Pro is serving up some of the best sequential speeds we've seen to date for a Gen3 SSD. QD1 random read performance is outstanding as expected from any SM2262EN powered SSD. This will undoubtedly translate to excellent gaming performance, as we will see later in the review.

Anvil's Storage Utilities

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 18 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 19 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 20 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 21 | TweakTown.com

Even though the overall score is relatively low, the 2TB SX8200 Pro does deliver what we are looking for most. We want to see 4K random read performance over 15K. The SX8200 Pro 2TB serves up nearly 17K. Outstanding. Additionally, we are looking for a minimum total read score of 6,000, and the SX8200 Pro 2TB can deliver that as well.

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 22 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 23 | TweakTown.com

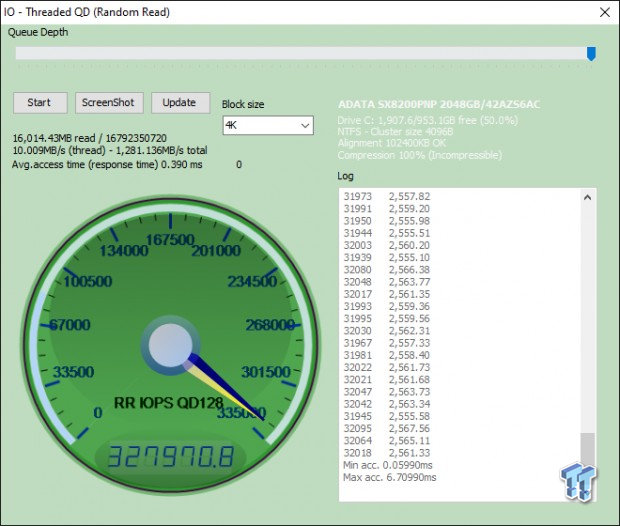

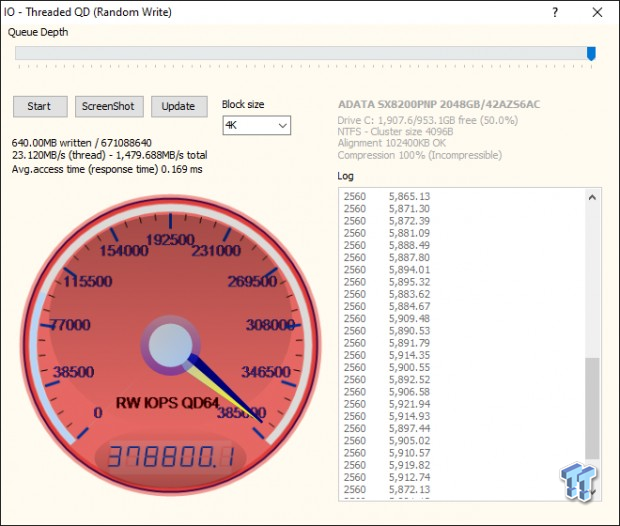

Max random IOPS results are decent, but nothing to write home about.

Synthetic Benchmarks: AS SSD & ATTO

AS SSD

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 24 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 25 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 26 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 27 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 28 | TweakTown.com

In terms of the overall score, the SX8200 Pro series has never done very well when digesting AS SSD test data. This is because so much of the score is derived from 64-thread random performance, and SM2262EN controlled SSDs are tuned for lower queue depths, which are far more important.

ATTO

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 29 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 30 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 31 | TweakTown.com

Excellent. Exceptional small-file performance and nearly full speed at 128K transfers. Exactly what we are looking for.

Real-World Testing: Transfer Rates & Gaming

Transfer Rates

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 32 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 33 | TweakTown.com

Exceeds our minimum of 500 MB/s, but even so, it is still in the disappointment range. 512Gb flash is the culprit here.

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 34 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 35 | TweakTown.com

Here we find the SX8200 Pro 2TB near the bottom of our chart.

Game Level Loading

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 36 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 37 | TweakTown.com

Right here is a big part of the value we see in the XPG SX8200 Pro 2TB. Gaming. We feel it is an ideal gaming SSD. It can hold a ton of games and look at how fast it loads levels. Impressive.

Real-World Testing: PCMark 10 Storage Tests

PCMark 10 Storage Test is the most advanced and most accurate real-world consumer storage test ever made. There are four different tests you can choose from; we run two of them. The Full System Drive Benchmark and the Quick System Drive Benchmark. The Full System Drive Benchmark writes 204 GB of data over the duration of the test. The Quick System Drive Benchmark writes 23 GB of data over the duration of the test. These tests directly correlate with user experience. Of the two tests, we feel that the Quick System Drive Test most accurately replicates a typical user experience.

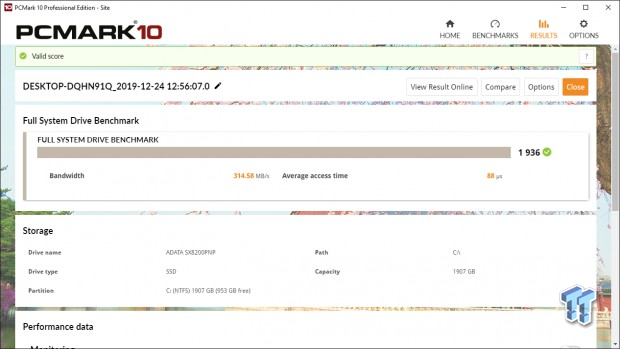

PCMark 10 Full System Drive Benchmark

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 38 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 39 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 40 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 41 | TweakTown.com

Decent heavy consumer workload performance. 512Gb flash keeps the cost low, but there is a price to be paid in terms of user experience, as demonstrated by our chart.

PCMark 10 Quick System Drive Benchmark

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 42 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 43 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 44 | TweakTown.com
ADATA XPG SX8200 Pro 2TB M.2 SSD Review 45 | TweakTown.com

Ditto for normal consumer type workloads. Although not bad, the SX8200 Pro 2TB delivers below-average performance where we want most to see it if it is to be utilized as a system disk.

Final Thoughts

So exactly what does ADATA's SX8200 Pro 2TB have to offer? First is capacity. You get a full 2048 GB of unformatted capacity, which is rare to see these days. More importantly, it is a full 2TB of TLC flash, which is still superior to QLC in most cases. Additionally, it is a real bargain at $259.99. To top it off, the SX8200 Pro 2TB is a true gaming SSD. We really see the SX8200 Pro as one of the best dedicated gaming drives on the market at any price.

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 46 | TweakTown.com

We would like to see a better user experience ranking to be sure, but it is still capable of delivering better than Samsung's current 2TB NVMe flagship.

ADATA XPG SX8200 Pro 2TB M.2 SSD Review 47 | TweakTown.com

Looking back at our test results, we can identify a few areas where ADATA's XPG SX8200 Pro delivers the goods. Right out of the gate, it delivered some of the best sequential and 4K QD1T1 random read performance we've seen to date. Following that, it delivered almost 17K IOPS 4K random read performance with Anvil's. Not easy to do. Finally, and most importantly, it served up some of the best game level loading times we've seen to date.

Gaming performance and value pricing have earned ADATA's SX8200 Pro 2TB a well-deserved TweakTown award.

Pros

  • Value
  • Gaming Performance
  • 5-Year Warranty

Cons

  • Consumer Workloads
Buy at Amazon

Performance

80%

Quality

95%

Features

95%

Value

98%

Overall

92%

The Bottom Line

Superior gaming SSD at a great price.
