Introduction, Specifications, and Pricing

Today we take a look at GIGABYTE's Z370 Aorus Ultra Gaming WIFI-OP, a more affordable, a basic refresh motherboard that comes packaged with Optane storage. Intel has been trying hard to get people to utilize Optane as a large cache for a slower drive when it comes to bridging the gap between modern NVMe drives and traditional hard drives.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 01 | TweakTown.com
VIEW GALLERY - 79 IMAGES

So, when you see a product with the 8th Gen + on the logo, you can bet Optane is involved, and in this case, a 32GB unit is already pre-installed in the top M.2 slot. The new motherboard has been slightly revamped to better support Intel's 8th Generation product line, so let's see what it has to offer.

Specifications

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 02 | TweakTown.com

The Z370 Aorus Ultra Gaming WIFI-OP offers two M.2 slots (although one is occupied), WIFI, USB 3.1, USB 3.0, SATA6Gb/s, and it supports SLI.

Pricing

The Z370 Aorus Ultra Gaming WIFI-OP isn't for sale just yet but will cost around $200 with the Optane module.

Packaging and Z370 Aorus Ultra Gaming WIFI-OP Overview

Packaging and Overview

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 03 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 04 | TweakTown.com

The box for the Z370 Aorus Ultra Gaming WIFI-OP has a basic box with a lot about its included Optane module.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 05 | TweakTown.com

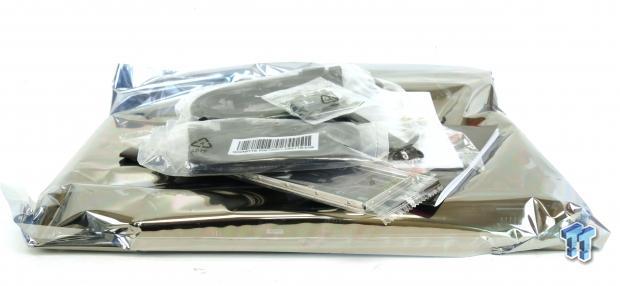

The accessory package includes four SATA6Gb/s cables, WIFI Antenna, IO shield, G-Connector, case badge, manual, and driver DVD.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 06 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 07 | TweakTown.com

The Z370 Aorus Ultra Gaming WIFI-OP has six fan headers; all of them are PWM/DC mode headers. The one header circled in blue is a pump header that runs full speed by default, while the rest of the headers run off a standard cooling curve you can change in the UEFI or through Windows.

The motherboard has an interesting black and white color theme with hints of red. GIGABYTE also heavily branded the M.2 heat sink with Optane. The board has crazy RGB aesthetics and has a nice side overlay near the 24-pin connector. The back of the motherboard is pretty bare.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 08 | TweakTown.com

The rear IO panel features PS/2 keyboard and mouse, four USB 3.0 ports (yellow feature DAC-UP 2), USB 3.1 type-A, USB 3.1 type-C, HDMI, Gbit LAN, and 7.1 audio outputs.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 09 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 10 | TweakTown.com

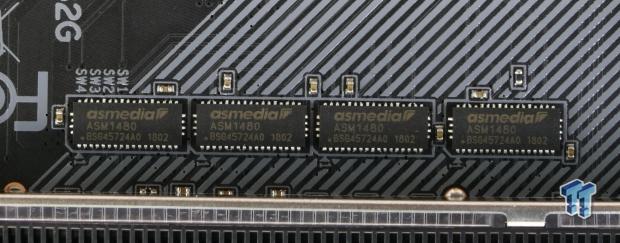

The PCI-E layout is simple; the first two large reinforced x16 slots operate at x16/x0 or x8/x8. The bottom x16 slot is x4 PCI-E 3.0 electrical and there are two x1 PCI-E slots routed to the CPU. The last slot shares bandwidth the PCI-E x1 slots. The top M.2 slot is occupied with an Optane module.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 11 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 12 | TweakTown.com

The second M.2 slot supports x4 PCI-E 3.0 and SATA based M.2 drives. Four of the six SATA6Gb/s ports are right-angled.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 13 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 14 | TweakTown.com

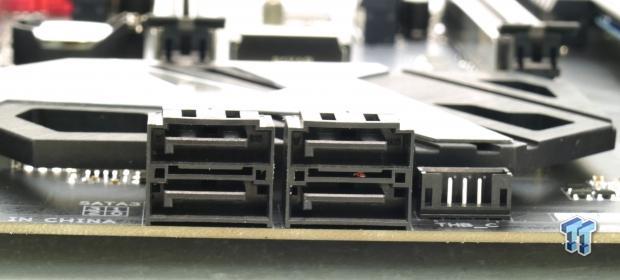

The remaining two SATA6Gb/s ports are angled straight up and are located to the left of the boot LEDs. We get a USB 3.0 type-A internal header and a type-C internal header. There is also a Thunderbolt 3 GPIO header.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 15 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 16 | TweakTown.com

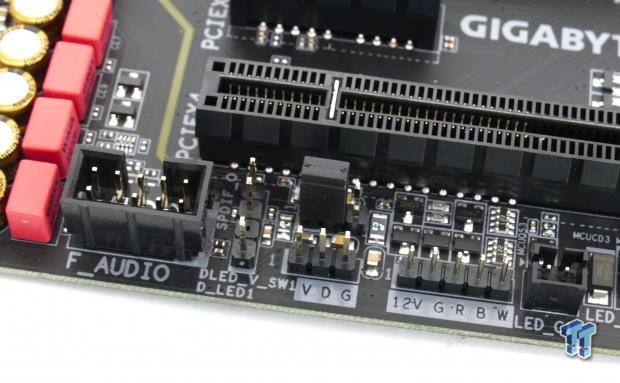

At the top right and bottom left corners of the motherboard, we find two RGBW headers and two digital RGB (addressable) with a jumper to change the digital header's voltage between 5v and 12v.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 17 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 18 | TweakTown.com

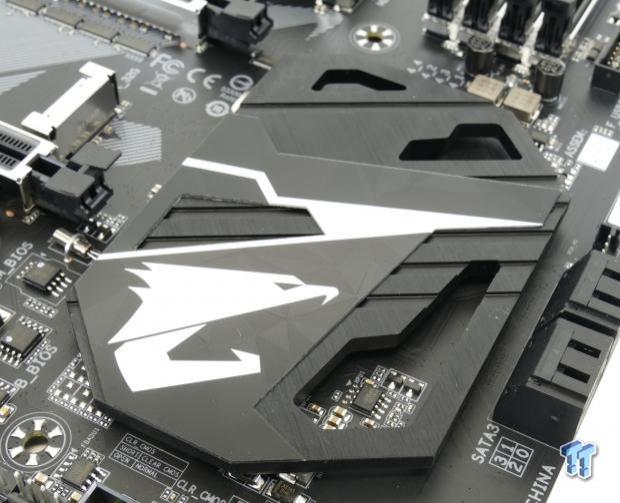

Near the TPM header, we find two USB 2.0 internal headers. The heat sinks for the VRMs are screwed into the motherboard, and pressure is excellent.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Circuit Analysis

Circuit Analysis

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 19 | TweakTown.com

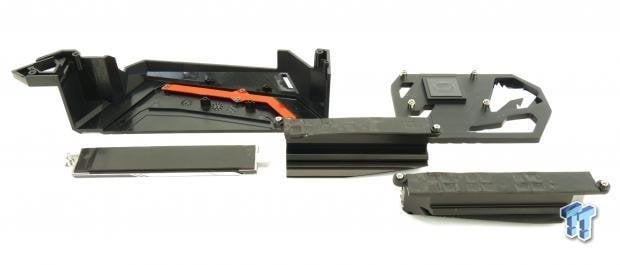

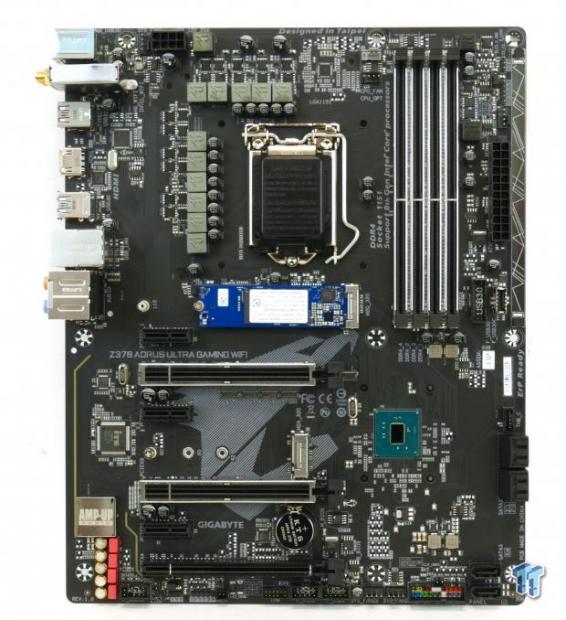

The motherboard shows us everything once we remove the heat sinks, including the 32GB Optane module.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 20 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 21 | TweakTown.com

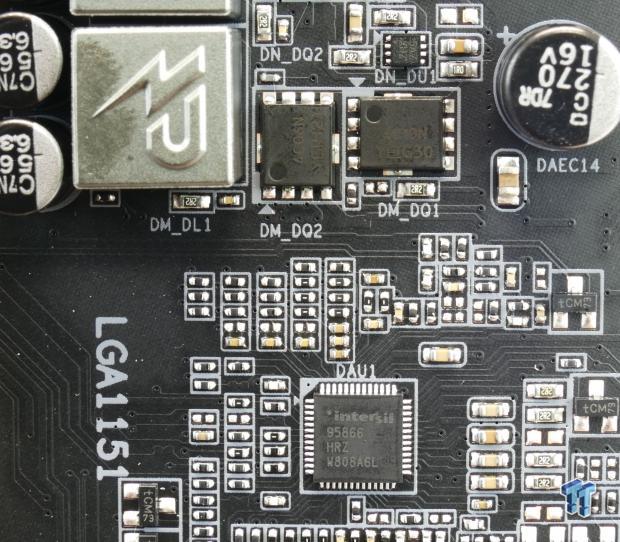

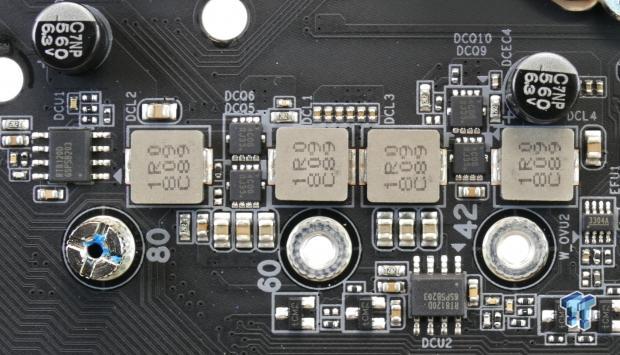

The VRM is in an 8+3 phase configuration, and it's pretty much identical to the VRM on the Z370 Aorus Gaming 5 rather than that on motherboards lower down the food chain. The change is to add more chokes and that way one major heat source is reduced. The VRM on this motherboard uses Intersil's ISL95866 4+3 phase PWM controller.

It offers four phases for the CPU VCore, and on that rail, it has two integrated driver outputs and GIGABYTE adds two more drivers (ISL6625A) for a total of four driver outputs. These four driver outputs go to two sets of power stage components, resulting in eight phases. The On Semiconductor NTMFS4C06N is the low-side MOSFET, and the NTMFS4C10N is the high-side MOSFET for each of the power stages.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 22 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 23 | TweakTown.com

The VCCSA and VCCIO get their power from their one single phase VRMs. Each uses a Richtek RT8120D (single phase PWM with integrated driver) and two ON Semiconductor MOSFETs. The memory VRM also uses an RT8120, but a single phase made up of three On Semi 4C06N MOSFETs.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Circuit Analysis

Z370 Aorus Ultra Gaming WIFI-OPCircuit Analysis Continued

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 24 | TweakTown.com

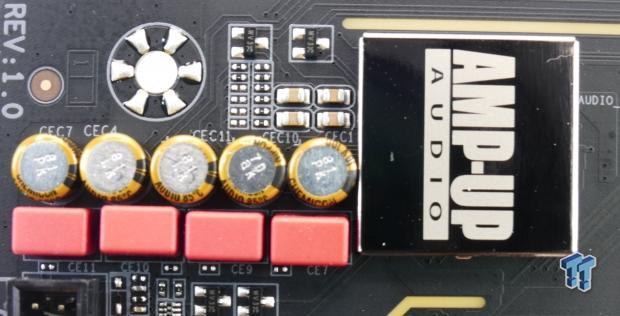

The audio section of the PCB is physically isolated from the rest of the PCH. The sound system uses an ALC1220 with some Nichicon Gold Series and WIMA audio capacitors.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 25 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 26 | TweakTown.com

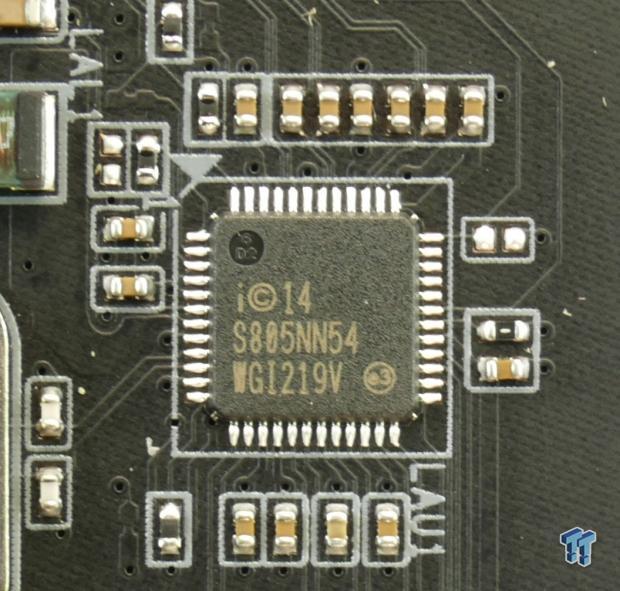

Here we find out i219v PHY that creates the 1Gbit Intel NIC. We also get an Intel Wireless AC 8265NGW wireless controller.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 27 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 28 | TweakTown.com

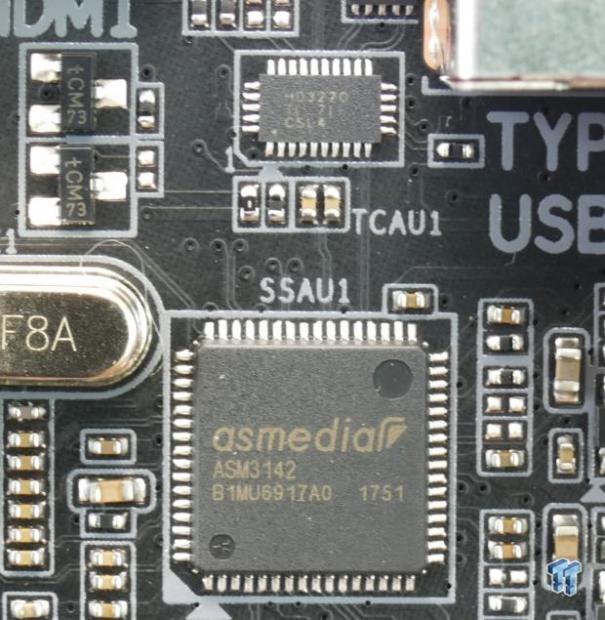

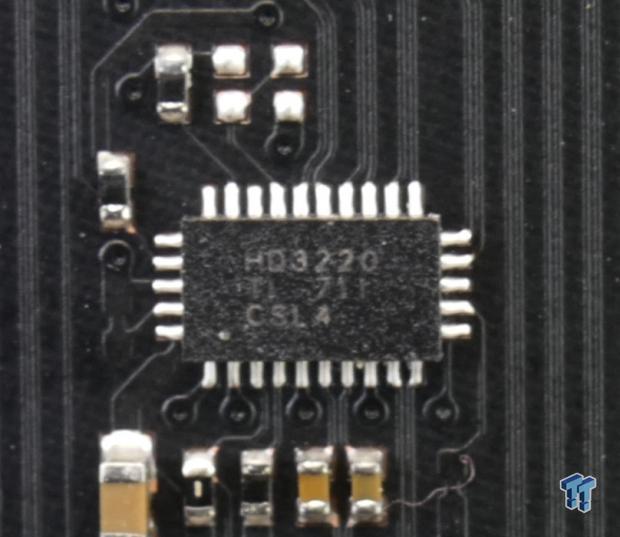

The ASMedia ASM3142 is used as the USB 3.1 controller, and the TI HD3220 chip acts as a type-C switch chip. We find another HDS3220 for the internal type-C header.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 29 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 30 | TweakTown.com

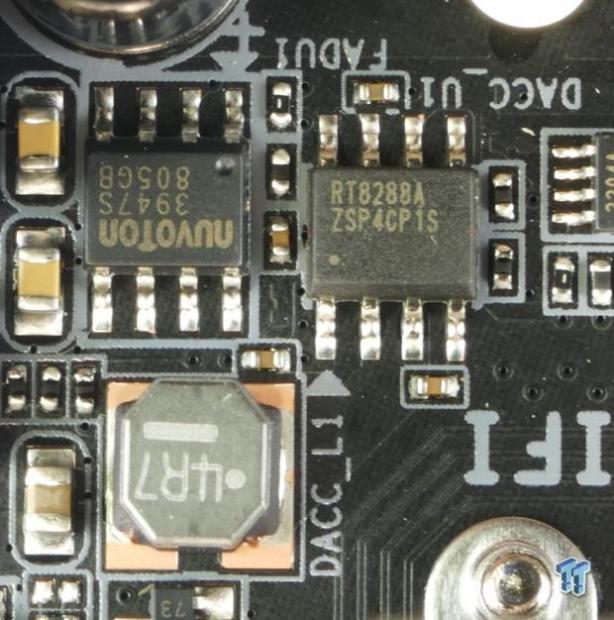

The rear IO has two DAC-UP 2 ports, and those get power from a circuit controlled by the Richtek RT8288A. The main SuperIO is the IT8686E, and it monitors, provides fan control, and the rear PS/2 port.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 31 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 32 | TweakTown.com

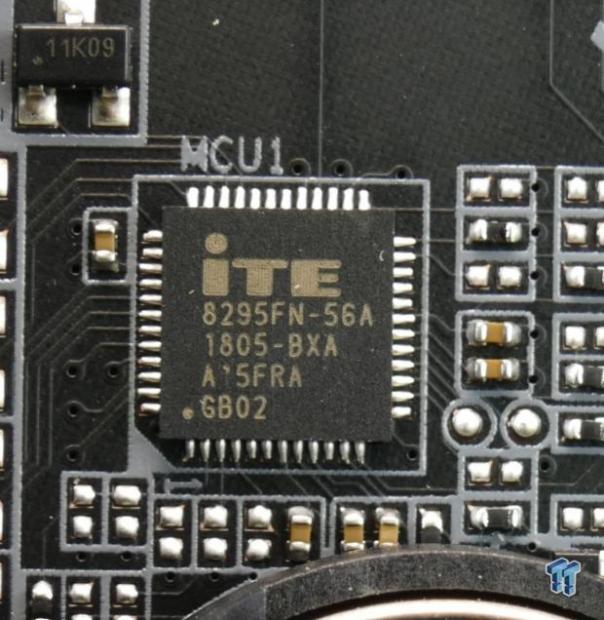

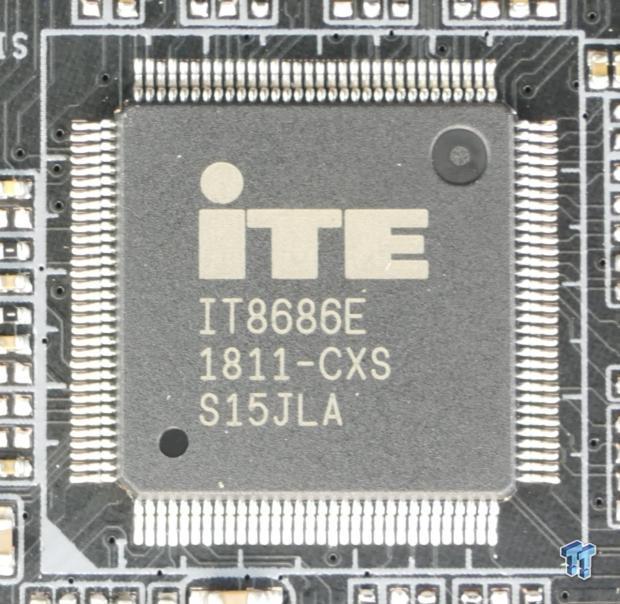

The IT8295FN is a microcontroller programmed to provide RGB LED support. The motherboard does come with dual BIOS ROMs for redundancy.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 33 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 34 | TweakTown.com

An NXP level shifter provides the rear IO panel with an HDMI port. ASMedia ASM1480 provides the motherboard with the ability to switch around PCI-E lanes.

BIOS and Software

BIOS

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 35 | TweakTown.com

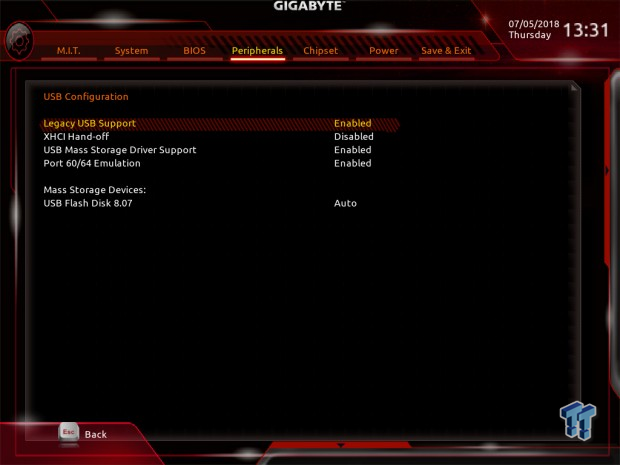

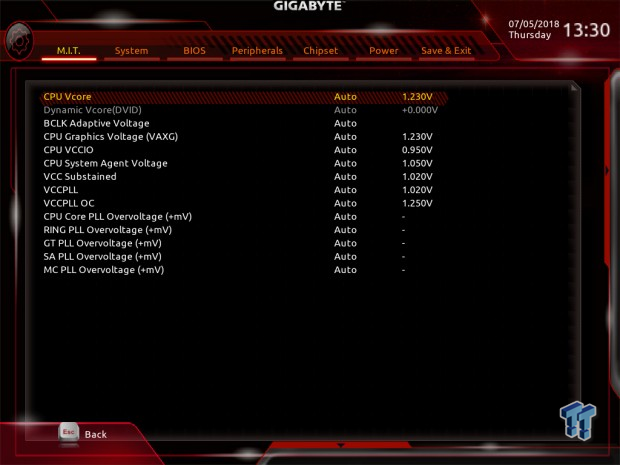

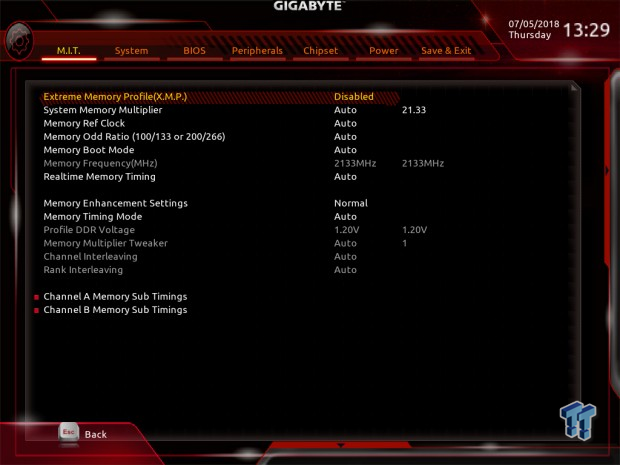

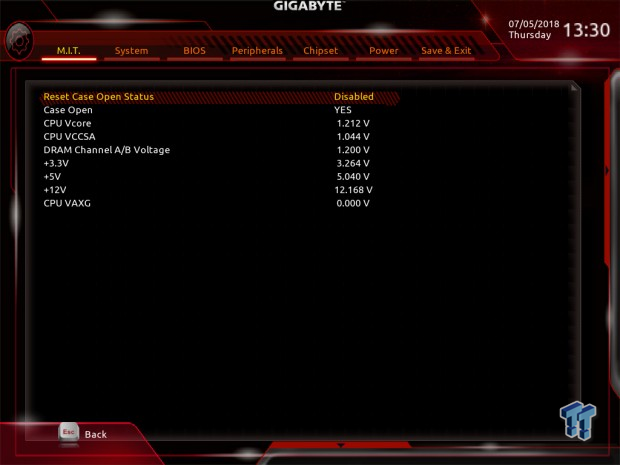

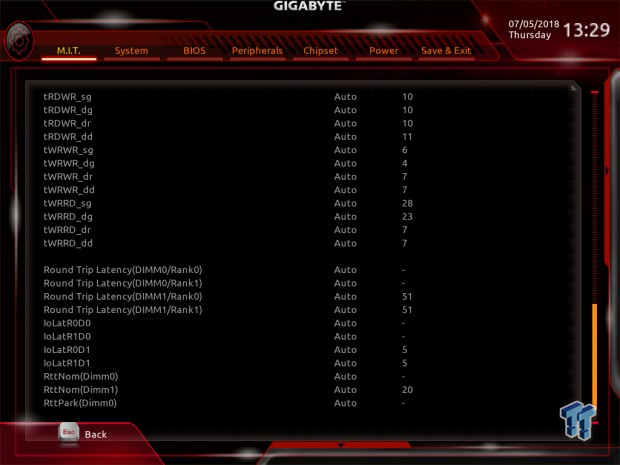

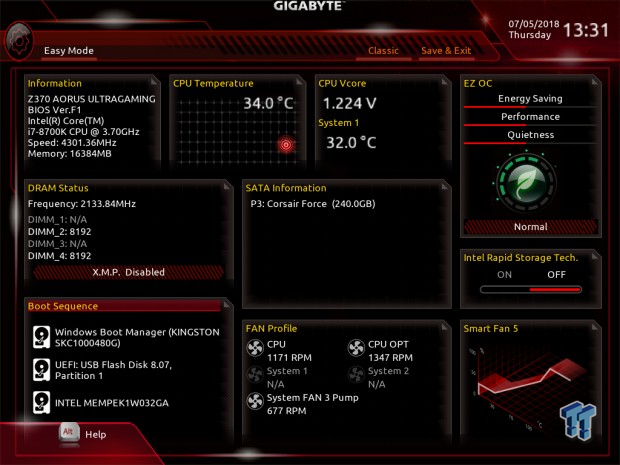

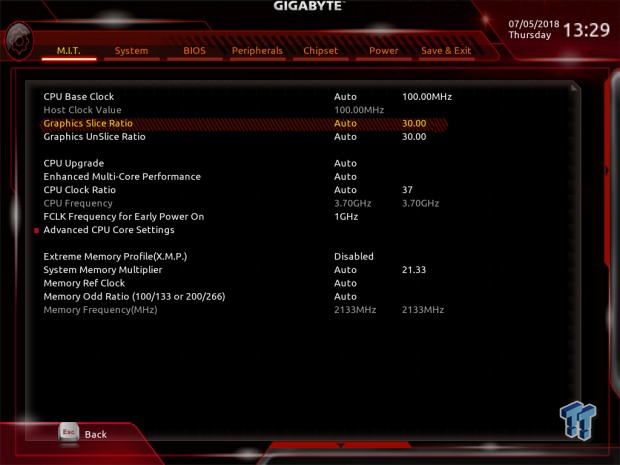

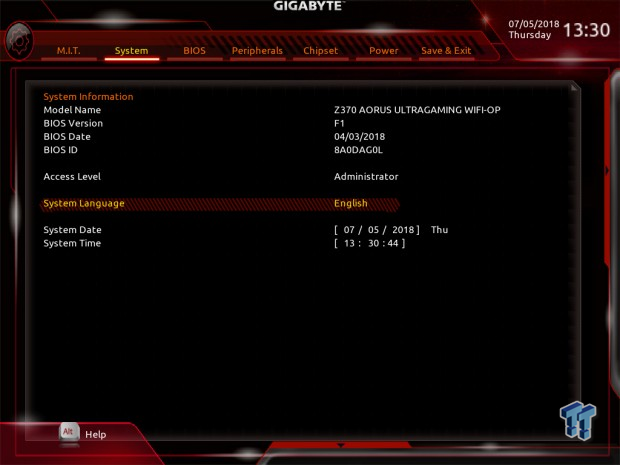

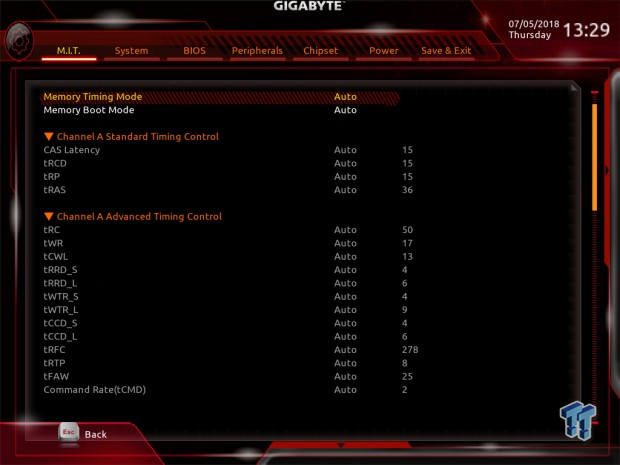

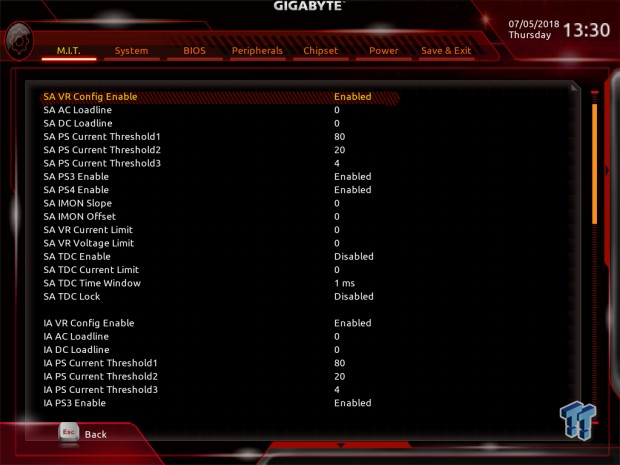

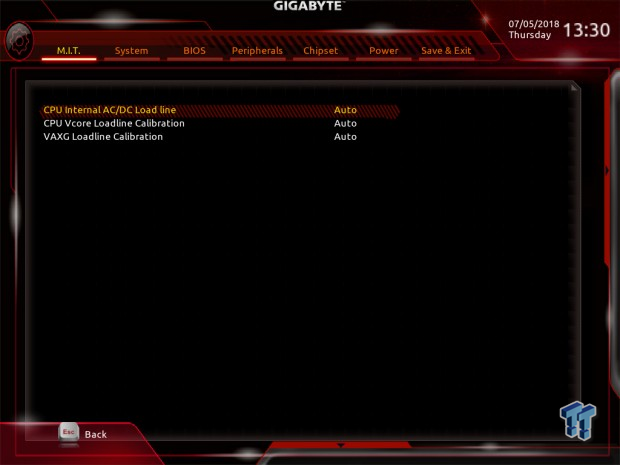

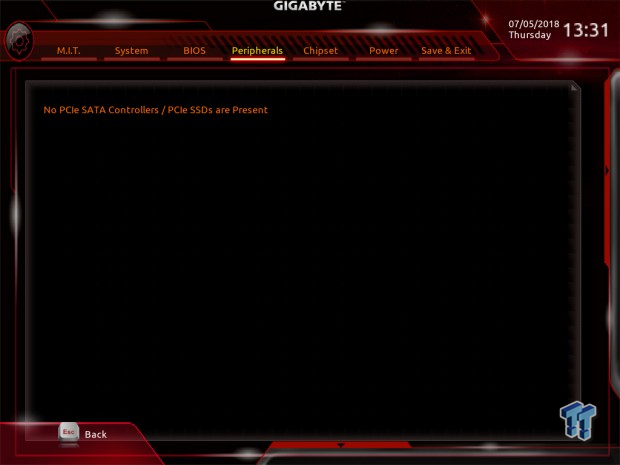

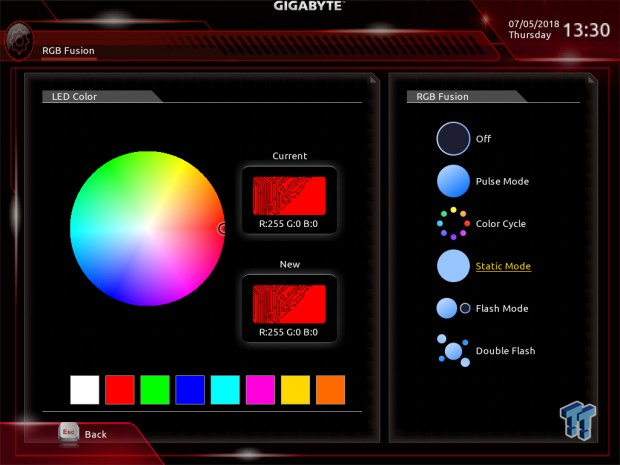

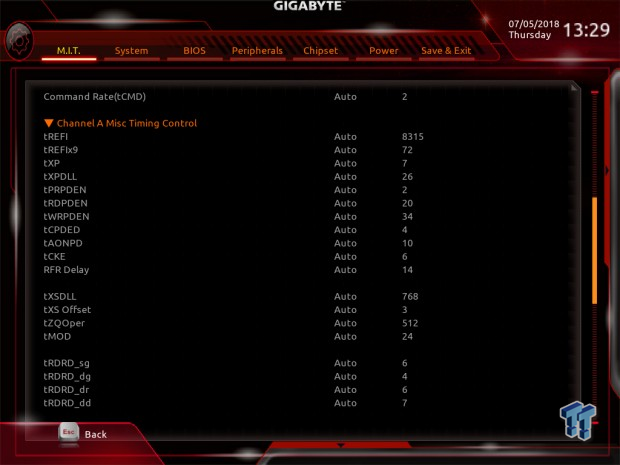

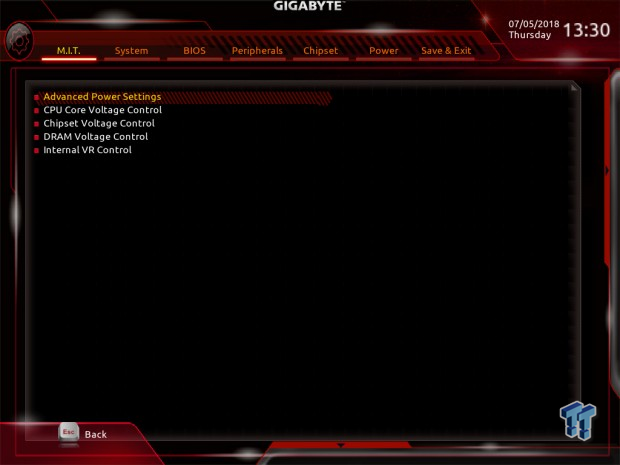

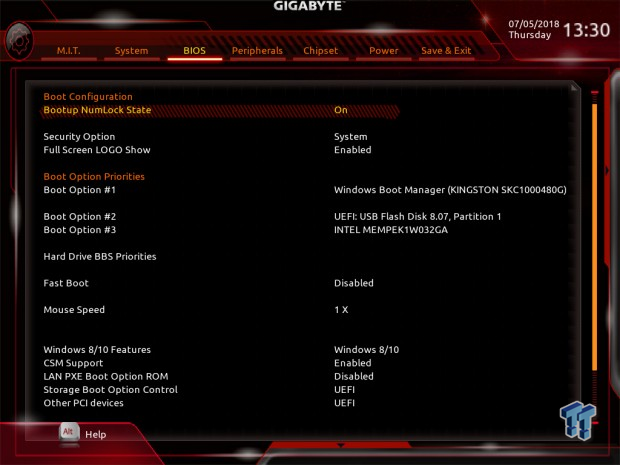

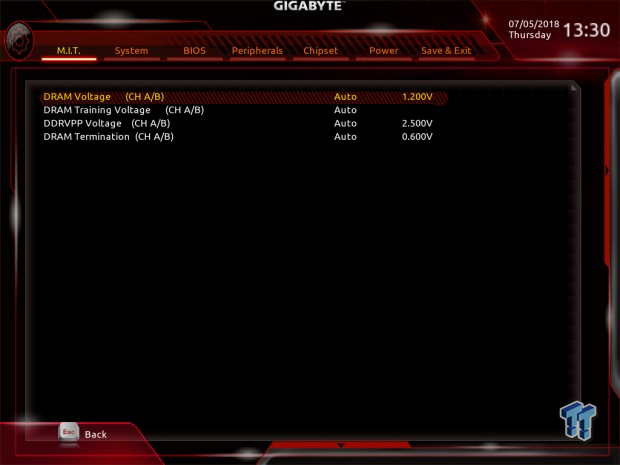

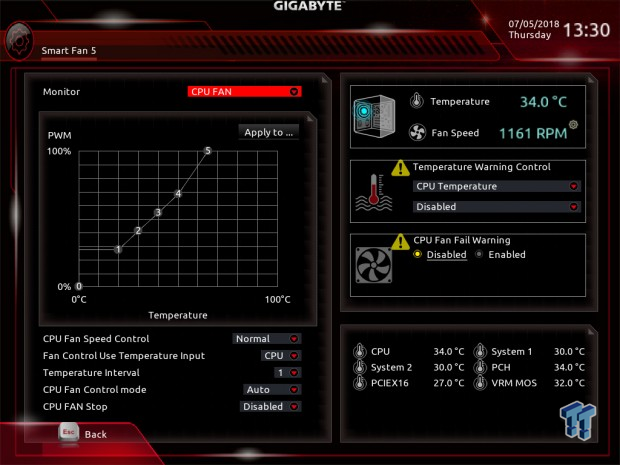

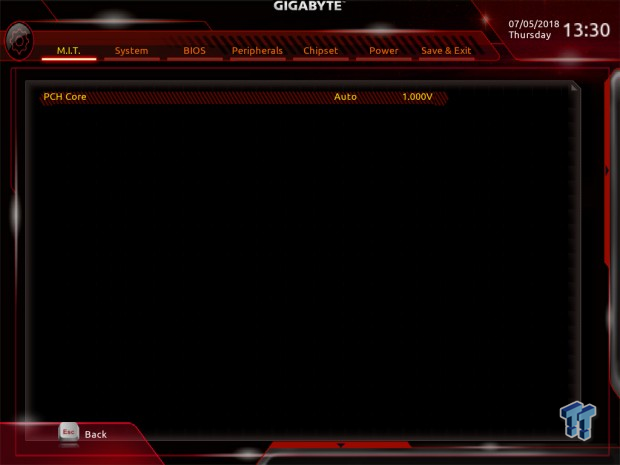

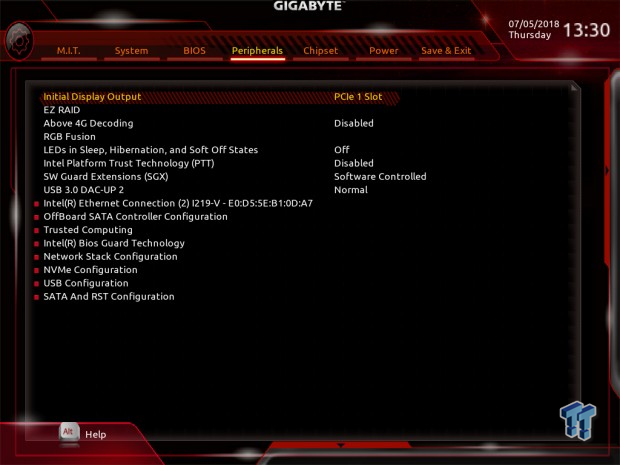

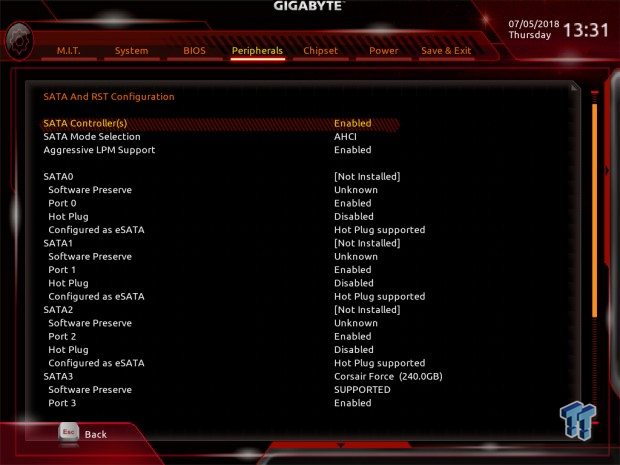

The UEFI has two operation modes; a basic mode with a GUI and a more advanced UEFI-style mode, which is where you should do all of your overclocking. The motherboard also has a nice GUI for fan control as well as a menu for full RGB LED control, albeit it's not that extensive. All the settings you need to get up and running are present.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 36 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 37 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 38 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 39 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 40 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 41 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 42 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 43 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 44 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 45 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 46 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 47 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 48 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 49 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 50 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 51 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 52 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 53 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 54 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 55 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 56 | TweakTown.com

Software

GIGABYTE includes APP Center, 3D OSC, @BIOS, BIOS Setup, USB Blocker, Cloud Station, EasyTune, Fast Boot, PlatformPowerManagment, RGB Fusion, SIV, Smart Backup, Smart TimeLock, Smart Keyboard, and VTuner among some other programs.

Test System Setup

Steven's Motherboard Test System Specifications

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 57 | TweakTown.com
GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 58 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 59 | TweakTown.com

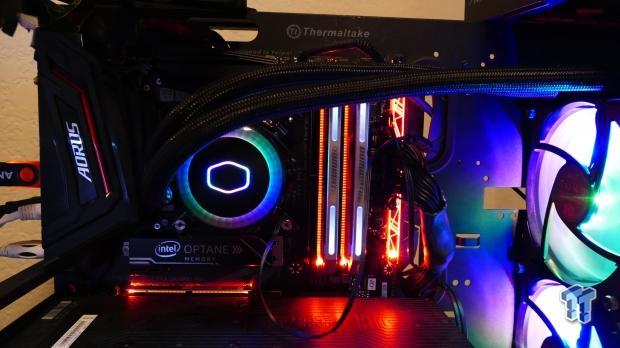

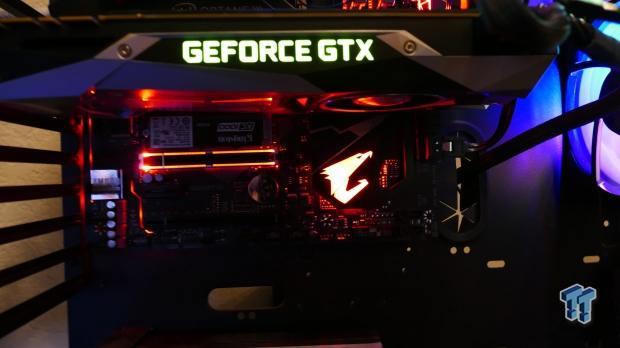

The Z370 Aorus Ultra Gaming WIFI-OP is lit like a Christmas tree, so if you love RGB (as many do), then you will love this motherboard. If you don't like RGB, you can just disable them.

CPU, Memory, and System Benchmarks

CINEBENCH 11.5

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 60 | TweakTown.com

wPrime

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 61 | TweakTown.com

AIDA64 FLOPS and IOPS

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 62 | TweakTown.com

AIDA64 Memory

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 63 | TweakTown.com

ScienceMark

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 64 | TweakTown.com

HandBrake

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 65 | TweakTown.com

3DMark: Fire Strike

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 66 | TweakTown.com

3DMark: Cloud Gate

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 67 | TweakTown.com

ResidentEvil 6

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 68 | TweakTown.com

The Z370 Aorus Ultra Gaming WIFI-OP is not using multi-core enhancement by default, although you can enable it in the UEFI. I also didn't find any performance issues. The Z370 Aorus Ultra Gaming WIFI-OP offers solid performance in CPU, memory, and GPU tasks.

System IO Benchmarks

CrystalDiskMark SATA6G:

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 69 | TweakTown.com

CrystalDiskMark M.2:

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 70 | TweakTown.com

ixChariot Network Throughput:

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 71 | TweakTown.com

The Z370 Aorus Ultra Gaming WIFI-OP's M.2 and SATA performance are excellent, and its WIFI is of great quality.

Thermal Imaging and Power Consumption

System power is measured at the wall with an AC power meter.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 72 | TweakTown.com

Note on Thermal Images: In the temperature section, we use our Seek thermal imaging camera to capture the surface temperatures of major components on the board. I look at the VRM and then all other things that light up the screen. If there is something to worry about, then I will state it. Otherwise, I will just show the hotter running parts of the board for fun. Unless some component is over 80-90C, then there isn't anything to worry about.

All systems will act differently, so I will look for commonalities, such as how far from the VRM the heat spreads through the PCB and the difference in temperature between the front side and backside of the PCB. Keep in mind, the majority of the heat from the VRM goes into the PCB as it is a giant soldered on copper heat sink. A larger difference in temperature between the back and front of the PCB points towards a more effective heat sink.

Thermal Testing at Stock Speeds:

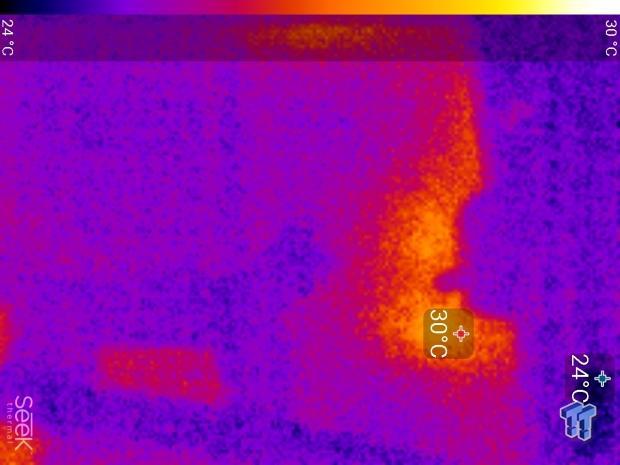

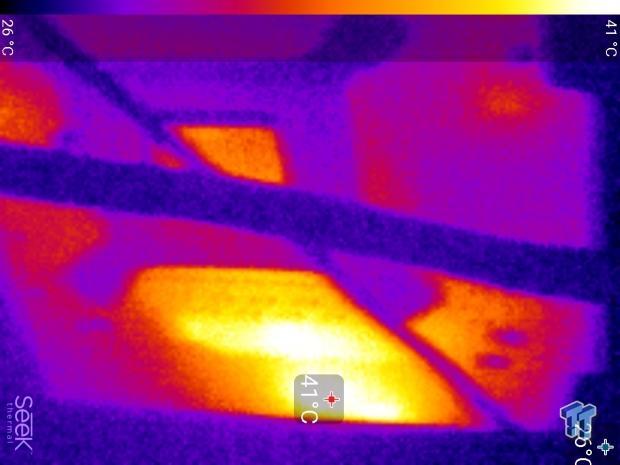

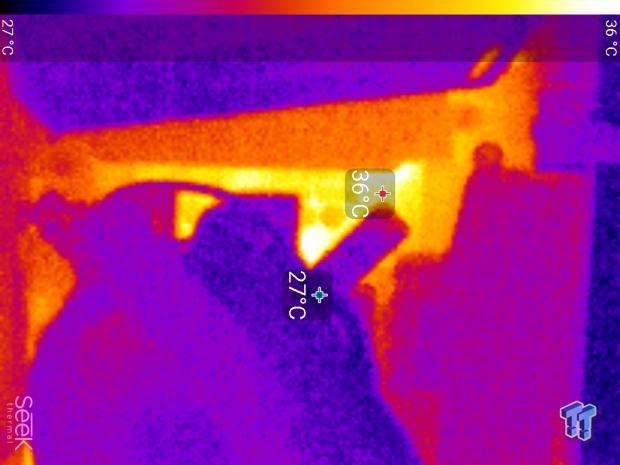

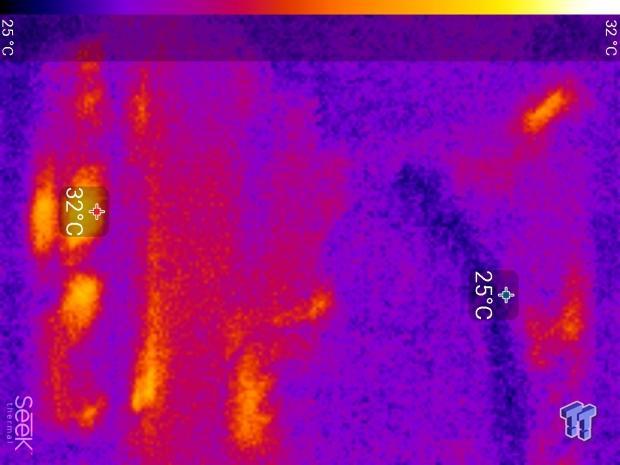

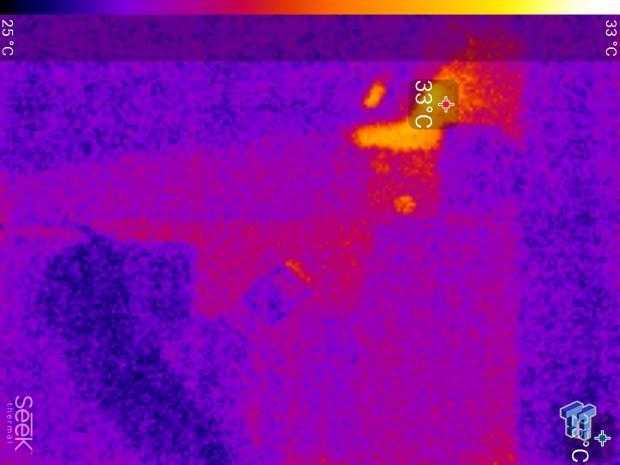

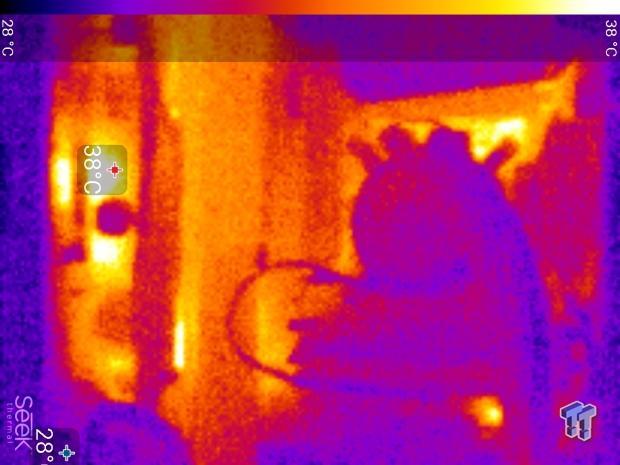

The image on the left is always at idle, and the image on the right is at load. During ALL TESTS, fans to the right of the motherboard from the (Corsair H110i) radiator are left on automatic mode (ramps with internal block temperature). Additionally, a 120mm fan is situated right above the VRM, and it blows down at a medium rate (very quiet). Thermal Images are taken at loop 15 of Intel Burn Test

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 73 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 74 | TweakTown.com

Full frontal.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 75 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 76 | TweakTown.com

Up-close of the front of the VRM.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 77 | TweakTown.comGIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 78 | TweakTown.com

Up-close of the back of the VRM.

The Z370 Aorus Ultra Gaming WIFI-OP's thermal performance is great, and while it is much better than the previous GIGABYTE motherboards at this price point, it still could use some active cooling in that direction if you are using a water cooling unit. It has the same VRM as the Z370 Aorus Gaming 5. Anything under 60C is great, 60-80C is acceptable, and anything above 80C is a bit worrisome (if at stock).

What's Hot, What's Not & Final Thoughts

What's Hot

Strong Controller Choices: The motherboard comes with a 32GB Optane module installed, and that costs about $65 dollars. While Optane can be used as a boot drive, it's typically used as a cache for hard drives. While 32GB might be a bit small, but the good news is that Intel has just unlocked another use for Optane other than using it as either a boot drive or a cache for your main boot HDD or SSD. Intel now allows for Optane to be used to accelerate any drive, so if you have a decent sized normal NAND SSD and a multi-TB HDD, you can now accelerate that HDD to do things like load your game files faster. If we take the cost of Optane out of the motherboard, then the motherboard is a decent value.

Improved VRM: Compared to the first version of the Z370 Aorus Ultra Gaming WIFI, the new 2.0-OP version has increased VRM components to help reduce heat in that area.

Fan Control: We find six hybrid fan headers on the motherboard, and they can all be easily controlled through the UEFI or System Information Viewer in Windows.

RGB LED Support: We get built in RGB LEDs on the motherboard with their own dedicated zones. We also find two RGBW headers and two digital (addressable) RGB LED headers with both 5v and 12v support.

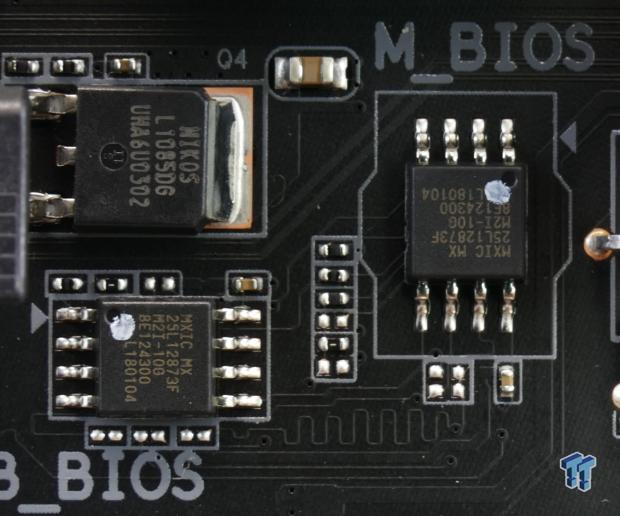

Dual BIOS: We do find two BIOS ROMs on the motherboard for extra protection.

What's Not

If you need Optane: The price of this motherboard is quite prohibitive unless you really need Optane memory support.

Final Thoughts

The GIGABYTE Z370 Aorus Ultra Gaming WIFI-OPis all about fixing a few things from GIGABYTE's first Z370 motherboards, such as upgrading the VRM to the levels of GIGABYTE's Z370 Aorus Gaming 5. It's also a highly specialized motherboard with a 32GB Optane module with its own heat sink, but the good news is that if you want the motherboard without Optane, GIGABYTE does have a model without it.

GIGABYTE Z370 Aorus Ultra Gaming WIFI-OP Motherboard Review 79 | TweakTown.com

Optane does accelerate use cases, and if you are going to build a system with just an HDD, Optane is a good idea. If you are building a system with an SSD as your main drive along with an HDD for games and stuff, then Optane could also be useful. The motherboard is a decent model if you are going to make full use of Intel's Optane memory.

TweakTown award
Performance90%
Quality90%
Features95%
Value85%
Overall90%

The Bottom Line: The Z370 Aorus Ultra Gaming WIFI-OP is designed to fulfill the needs of anyone in the market for a Z370 motherboard and Optane memory to accelerate a main or secondary HDD.
