ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review

We delve into ASUS Lyra, a tri-band mesh home wireless system. Is it one for you to consider deploying? Let's investigate.

@TylerBernath
Tyler Bernath
Published Fri, Oct 13 2017 12:25 PM CDT   |   Updated Thu, Jul 30 2020 4:20 PM CDT
Rating: 94%Manufacturer: ASUS

Introduction & Pricing, Availability, and Specifications

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 03 | TweakTown.com
VIEW GALLERY - 24 IMAGES

At CES 2017, ASUS unveiled their entry into the mesh networking market with the HiveSpot. That platform has now been rebranded Lyra, and we finally get our hands-on it in today. Lyra is one of only a few mesh platforms on the market to utilize tri-band technology with both Linksys and Netgear be two others. Tri-band platforms have a distinct advantage in that they use the second 5GHz band for a Wi-Fi backhaul. This, in turn, gives a more satisfying user experience to clients that may be connected to a second or third node.

Lyra is a three-node system, but it is customizable. You can buy a single pack Lyra and just use it as a standard Wi-Fi router and later add on if needed. Each unit has a 400 Mbps 2.4GHz band and two 867 Mbps 5GHz bands. One of the 867 Mbps-capable 5GHz bands acts as a backhaul between each node.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 02 | TweakTown.com

Like many ASUS routing solutions in the past, this too has been outfitted with Ai Protection from TrendMicro. This protects your network from unwanted intrusion along with infection detection and block along with the ability to block access to malicious websites.

The MSRP of the three node Lyra Mesh platform comes in at $399.99 with a two-year warranty.

Router Details

ASUS Lyra Mesh Wi-Fi System

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 03 | TweakTown.com

The packaging does steer away from what we typically see with ASUS. With this being a broad consumer product instead of gaming, it is nice to see the modern appeal on the box art.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 04 | TweakTown.com

The back houses a full specification sheet for the router.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 05 | TweakTown.com

In the box, we find three Lyra units, three power adapters, and one ethernet cable.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 06 | TweakTown.com

Lyra may be one of the best-looking mesh platforms currently on the market. Each small puck has ASUS branding on the front with an RGB LED on the top.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 07 | TweakTown.com

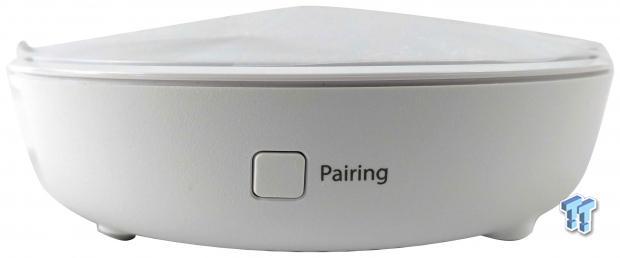

The side of each node houses a pairing button for setup.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 08 | TweakTown.com

The backside gives us both ethernet ports and power input.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 09 | TweakTown.com

The backside houses regulatory info and model info. At the top, we have wall mounting notches built into the frame of the node.

Management GUI Details

Management GUI

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 20 | TweakTown.com

Like many new platforms, Lyra is controlled via an app available for iOS and Android. I am using the iOS version.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 21 | TweakTown.com

Setup starts with a quick welcome before we push on to the next step.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 22 | TweakTown.com

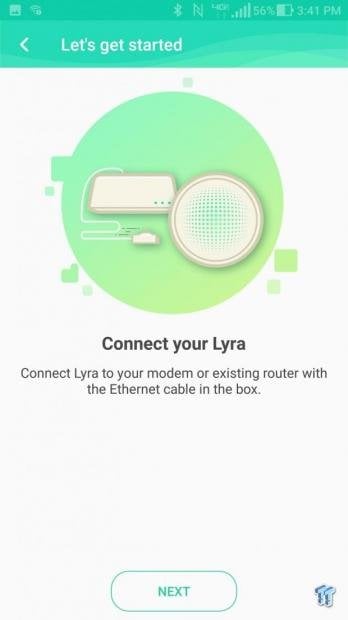

We then set up and plug in our first node, connect to our modem, and continue in the app.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 23 | TweakTown.com

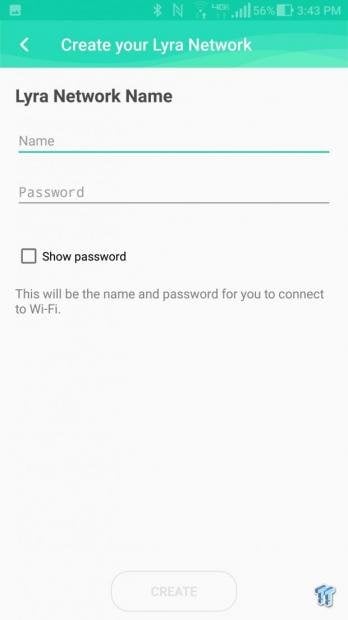

We choose our SSID and password here in the next step and move towards the finish line.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 24 | TweakTown.com

Lyra setup is complete. Adding additional nodes will take you through those same few steps again.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 25 | TweakTown.com

The dashboard for Lyra gives access to a network map, traffic manager, and guest access on the left side.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 26 | TweakTown.com

Traffic Manager enables you to prioritize Lyra for certain tasks.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 27 | TweakTown.com

The settings menu gives you access to the SSID, password, and WAN settings. Advanced controls include port forwarding, IP binding, and remote connection.

Test System Setup & Benchmark Throughput Tests

Tyler's Router Test System Specifications

Wired Throughput

The Tenda AC9 was the last router I tested with the old Z170 platform. With our new test system, we re-ran it through testing to have it on our new charts.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 30 | TweakTown.com

Testing Lyra, I could get solid throughput via LAN reaching 939 Mbps.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 31 | TweakTown.com

WAN throughput was only slightly lower at 919 Mbps.

Wireless Throughput

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 32 | TweakTown.com

2.4GHz performance reached 211 Mbps peak while 5GHz topped out at 553.1 Mbps.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 33 | TweakTown.com

Moving over to our iPhone, we found mobile throughput to reach 91 Mbps with 5GHz again doing quite well at 514 Mbps.

Benchmarks - Wireless Range and Sessions

Wireless Range

Our next test for this new setup sees how range affects performance. With this, we start at 10Ft and move out to 30Ft. Routers are tested in their default configuration for this part; the client device is the iPhone 7 Plus.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 34 | TweakTown.com

2.4GHz range was pretty solid through 30ft. We started with 91 Mbps at 10Ft, moved to 90 and 20ft, and finished with 90 Mbps at 30Ft.

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 35 | TweakTown.com

The 5GHz band starts at 514 Mbps at 10Ft, moving out to 20Ft we hold much of that throughput at 498 Mbps. At 30Ft, we finish things up at 434 Mbps.

Sessions

ASUS Lyra Tri-Band Mesh Wi-Fi Router System Review 36 | TweakTown.com

The Lyra did amazingly well in our sessions test and as you can see in the chart above ended right in the middle between the best and worst routers we have tested.

For this test, we started at 932 Mbps and at the halfway point were down to 900 Mbps. We finished this test up with the Lyra still holding on at 620 Mbps.

Final Thoughts

I've been using the Lyra in my own home for a slight bit over a month now, and I must say it's really one of the most stable mesh platforms I have used. That's saying a lot because we have had nearly all platforms come through at some point, albeit most were tested within days of launch.

Build quality is superb and what I would expect from ASUS or any notable vendor for that matter. The plastics fit tight together, and the small form factor allows you to tuck them away with ease. Adding to that, ASUS made Lyra wall mountable, so you can take things a bit further and set up your home with nodes on the ceiling or wall, wherever you have power. The only drawback I found during my testing was I couldn't turn off the LED on all nodes, just the base node.

The performance was some of the highest we have seen from a mesh platform too - it's right up at the top with Netgear Orbi from earlier in the year. In LAN, we topped out at 939 Mbps, WAN reached 919, and Wi-Fi 211 Mbps and 553 Mbps, respectively.

Moving into range and mobile throughput, I found equally pleasing results with Lyra holding its 2.4GHz throughput the full 30ft run we test in. 5GHz did lose some performance down to 434 Mbps, but in a full node environment, it would be less.

The app is one of the cleanest I have seen, offering a simple setup procedure and modern dashboard feel. The Lyra does lack many of the advanced features you would find on a typical single node router, but ASUS was sure to keep Ai Protection, and port forwarding along with a slimmed down version of QoS with Traffic Manager.

TweakTown award
Performance95%
Quality95%
Features92%
Value95%
Overall94%

The Bottom Line: With so many mesh platforms on the market, the ASUS Lyra stands out as a top three solution for those that want an easy to set up and very quick mesh platform for their home network.
