Introduction
NVIDIA crafted one of the best graphics cards ever made with its GeForce GTX 1080, and while we've had plenty of custom GTX 1080s, nothing has rolled through my GPU labs like ZOTAC's awesome little GeForce GTX 1080 Mini. Just look how small it is...
It's a tiny card, with all of the power of the GTX 1080 inside - including the 8GB of GDDR5X clocked at 10Gbps. It has all of the grunt of the GTX 1080 and is the world's smallest GTX 1080 - something ZOTAC can put in bold. ZOTAC has deployed its IceStorm cooling technology on the GTX 1080 Mini, with a great-looking backplate and cooling system.
Does ZOTAC manage to offer the same performance as NVIDIA's own GeForce GTX 1080 Founders Edition, or can ZOTAC squeeze an additional few FPS out of their GTX 1080 Mini? You'd be surprised, considering it uses the same 1 x 8-pin PCIe power connector as the GTX 1080 FE.
Pricing & Availability
ZOTAC has priced its GeForce GTX 1080 Mini at $599 on Amazon, while NVIDIA's stock GeForce GTX 1080 Founders Edition costs $635. There were plenty of both available at the time of writing.
World's Smallest GTX 1080!
Don't get me wrong, I'm addicted to technology more than most people I know... but, I love it with AIB partners do something different with a high-end/enthusiast graphics card. ZOTAC has crammed NVIDIA's super-fast GeForce GTX 1080 into what they can shout from the rooftops as the world's smallest GTX 1080.
As you can see, the ZOTAC GeForce GTX 1080 Mini is just 8.3 inches (211mm) long, with a 90mm and 100mm fan. It really is a super-small GTX 1080, but don't underestimate its power - it has all of the grunt of the GTX 1080.
ZOTAC has used a direct copper cold block contact on the GPU, part of its IceStorm cooling technology that also uses 5 x 6mm copper heat pipes, and wide flat fan blades for maximum airflow. ZOTAC uses a wide array aluminum heat sink on its GTX 1080 Mini, and wide curved fans with 'Static Pressure Optimized' fan that keeps airflow over the most important parts of the card.
The company took in the concerns of consumers, with the GTX 1080 Mini Gunmetal Grey blending "perfectly into any system color scheme - both front and back side," and I have to agree.
Heck, Upgrade Addiction has even showed off the ZOTAC GeForce GTX 1080 Mini in a super-powered state, with Tim replacing the stock thermal compound on the ZOTAC GTX 1080 Mini with Conductonaut, and seeing a huge 10C drop in temperatures - and a massive 88MHz GPU overclock. When overclocked even more, the same 10C temperature drop was noticed (60C max) and another 48MHz on the GPU.
Specifications

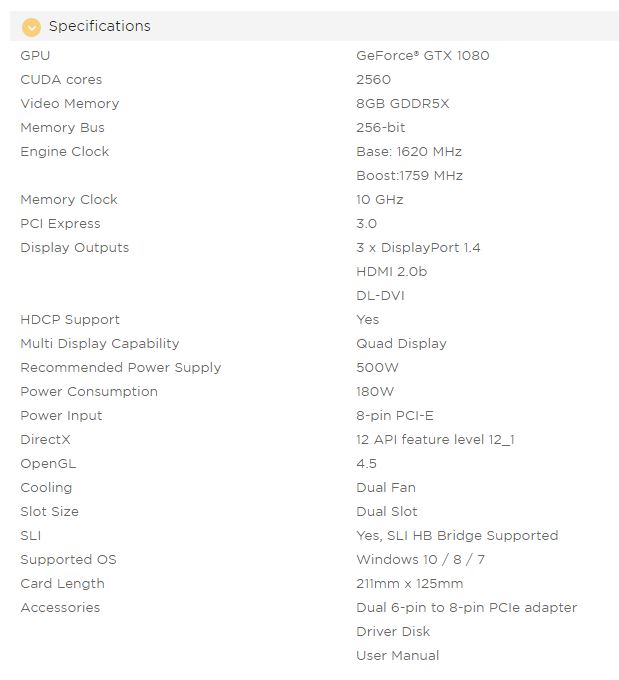

ZOTAC has stuck to NVIDIA's GeForce GTX 1080 Founders Edition specs, with 1620/1759MHz for the base/boost clocks, respectively. The 8GB of GDDR5X is clocked at the same 10Gbps, over a 256-bit memory bus.
Detailed Look
The front of the box doesn't show much, we don't even know its the super-small GTX 1080 Mini at this point - but we see 8GB GDDR5X and IceStorm cooling tech badges in the bottom left.
I think ZOTAC should've made it much clearer that this is the world's smallest GTX 1080, as we only see 'Super Compact' and that the GTX 1080 Mini is 'designed to fit compact gaming systems.'
Here we have the front of the ZOTAC GeForce GTX 1080 Mini, and as you can see - it's small.
The great-looking backplate.
From the top of the card, we can see the heat pipes and the 8-pin PCIe power connector, while the heat sink runs off of the end of the PCB.
The single 8-pin PCIe power connector.
There are some thick cooling pads between the heat sink and PCB, with a chunky heat pipe system seen from the bottom - also, you'll notice the GTX 1080 Mini is a dual-slot graphics card.
ZOTAC maintains the stock display connectivity, with 3 x DP, 1 x HDMI 2.0, and 1 x DVI.
Test System Specs
I've recently edited my GPU test bed, which was powered by the Intel Core i7-5960X processor, and shifted into the arms of Kaby Lake and Intel's new Core i7-7700K. GIGABYTE hooked us up with their awesome new AORUS Z270X-Gaming 9 motherboard, which is the heart and soul of my new GPU test platform.
Detailed Tech Specs
- CPU: Intel Core i7-7700K
- Cooler: Nocua U12S
- MB: AORUS Z270X-Gaming 9
- RAM: 16GB (2x8GB) G.SKILL Trident Z 4000MHz DDR4
- SSD: 1TB OCZ RD400 NVMe M.2
- PSU: Corsair AX1500i
- Chassis: In Win X-Frame
Detailed Look

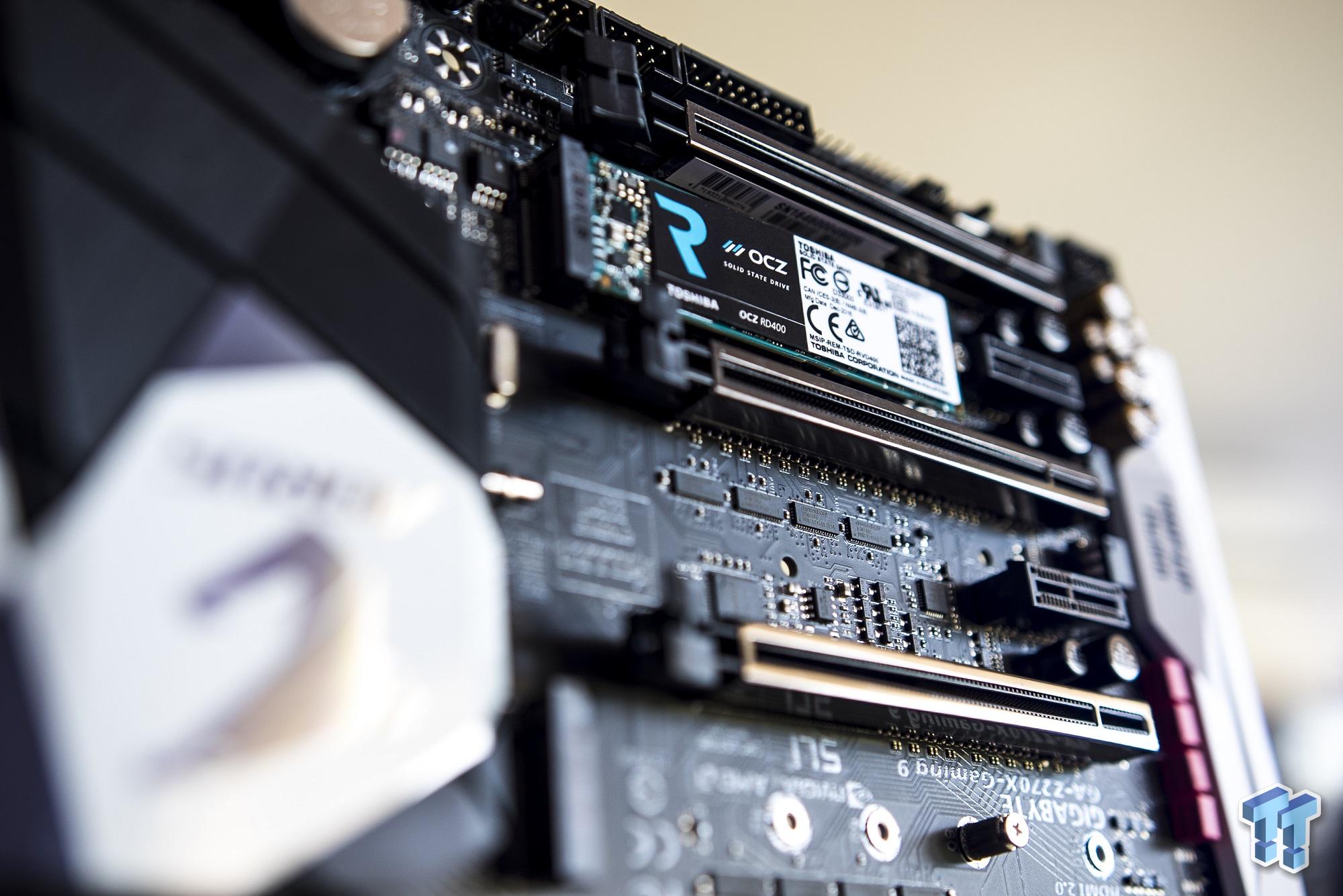

There's a bigger article I've got coming that will detail the new system, but for now - here are some shots I've taken of the new system in action:
Benchmarks - Synthetic
3DMark Fire Strike - 1080p
3DMark has been a staple benchmark for years now, all the way back to when The Matrix was released and Futuremark had bullet time inspired benchmarks. 3DMark is the perfect tool to see if your system - most important, your CPU and GPU - is performing as it should. You can search results for your GPU, to see if it falls in line with other systems based on similar hardware.
3DMark Fire Strike - 1440p
3DMark has been a staple benchmark for years now, all the way back to when The Matrix was released and Futuremark had bullet time inspired benchmarks. 3DMark is the perfect tool to see if your system - most important, your CPU and GPU - is performing as it should. You can search results for your GPU, to see if it falls in line with other systems based on similar hardware.
3DMark Fire Strike - 4K
3DMark has been a staple benchmark for years now, all the way back to when The Matrix was released and Futuremark had bullet time inspired benchmarks. 3DMark is the perfect tool to see if your system - most important, your CPU and GPU - is performing as it should. You can search results for your GPU, to see if it falls in line with other systems based on similar hardware.
Heaven - 1080p
Heaven is an intensive GPU benchmark that really pushes your silicon to its limits. It's another favorite of ours as it has some great scaling for multi-GPU testing, and it's great for getting your GPU to 100% for power and noise testing.
Heaven - 1440p

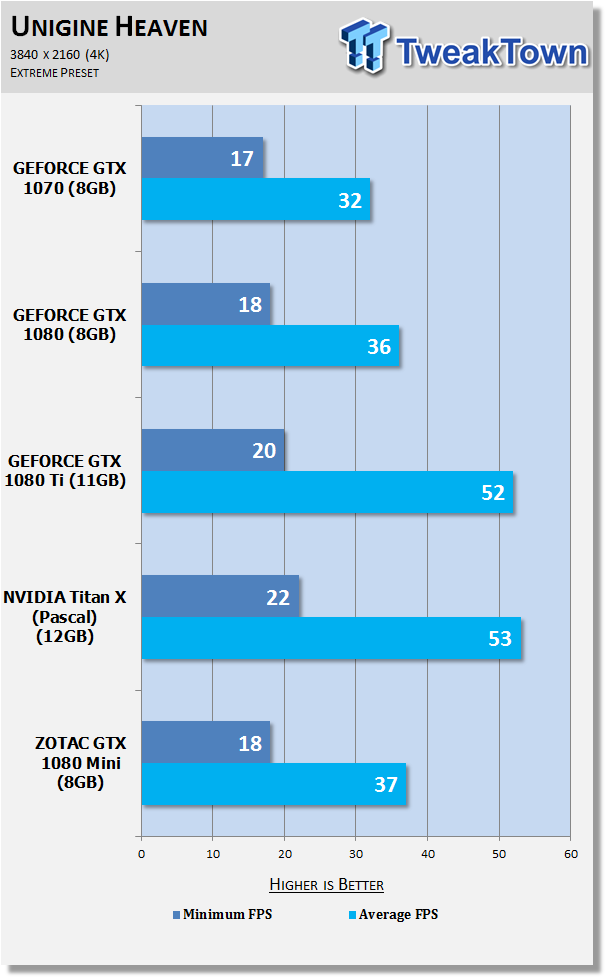

Heaven - 4K

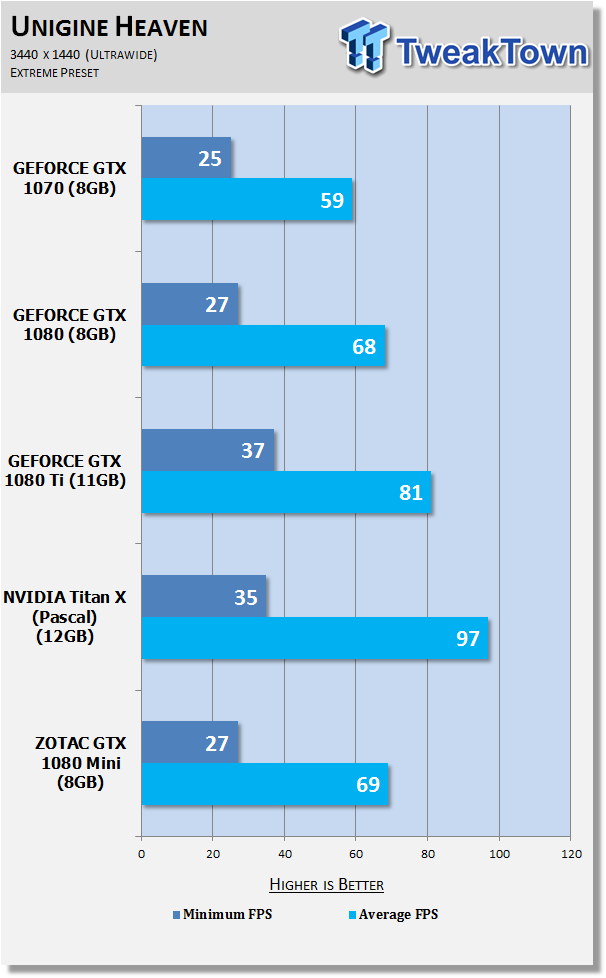

Heaven - 3440x1440
Benchmarks - 1080p
1080p Benchmarks

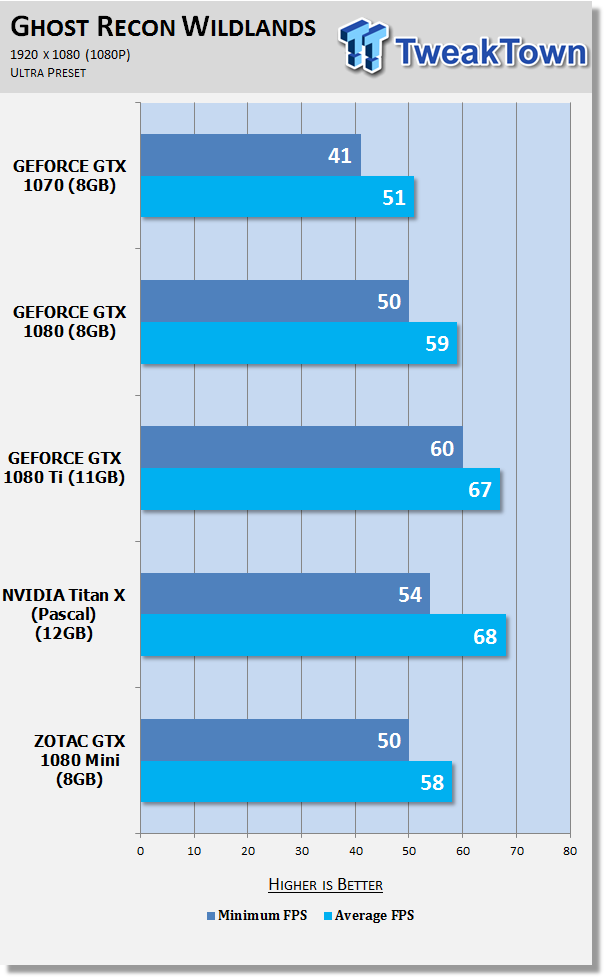

Ubisoft's latest installment in the Tom Clancy's Ghost Recon series is Ghost Recon Wildlands, an open world tactical shooter with some of the best graphics on the market, with Ubisoft Paris using a modified version of the AnvilNext engine.

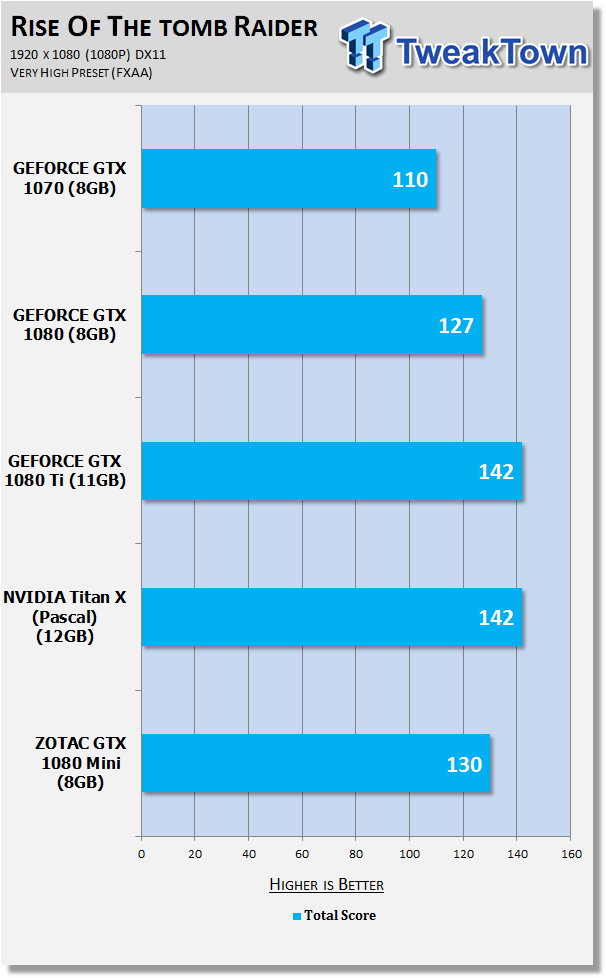

Rise of the Tomb Raider is one of the best looking games on the market, a truly gorgeous game - and a wonder to benchmark. The team at Crystal Dynamics made a very scalable PC game that plays really well testing graphics cards. We've got DX11 and DX12 results in one here, showing the slight strengths of running DX12 mode.
Far Cry Primal is a game built on the impressive Dunia Engine 2 with wide open, beautiful environments. It might look stunning, but the performance is actually quite good - but most cards will be stressed at 1440p, and especially so at 4K and beyond.
You can buy Far Cry Primal at Amazon.
Rainbow Six: Siege has been a strong entry into the franchise, popular for its realistic feel and great graphics. Stable as a rock for benchmarking, right up to 3440x1440 and 4K.
Middle-earth: Shadow of Mordor is one of the most graphically intensive games we test, with Monolith using their own Lithtech engine to power the game. When cranked up to maximum detail, it will chew through your GPU and its VRAM like it's nothing.
You can buy Middle-earth: Shadow of Mordor at Amazon.
Metro: Last Light Redux comes from developer 4A Games, making the Redux version of Metro: Last Light the 'definitive' version of the game. Redux had a fresh coat of paint on the already impressive 4A Engine, and it really pushes our GPUs to their limits.
You can buy Metro: Last Light Redux at Amazon.
Benchmarks - 1440p
1440p Benchmarks
Ubisoft's latest installment in the Tom Clancy's Ghost Recon series is Ghost Recon Wildlands, an open world tactical shooter with some of the best graphics on the market, with Ubisoft Paris using a modified version of the AnvilNext engine.
Rise of the Tomb Raider is one of the best looking games on the market, a truly gorgeous game - and a wonder to benchmark. The team at Crystal Dynamics made a very scalable PC game that plays really well testing graphics cards. We've got DX11 and DX12 results in one here, showing the slight strengths of running DX12 mode.

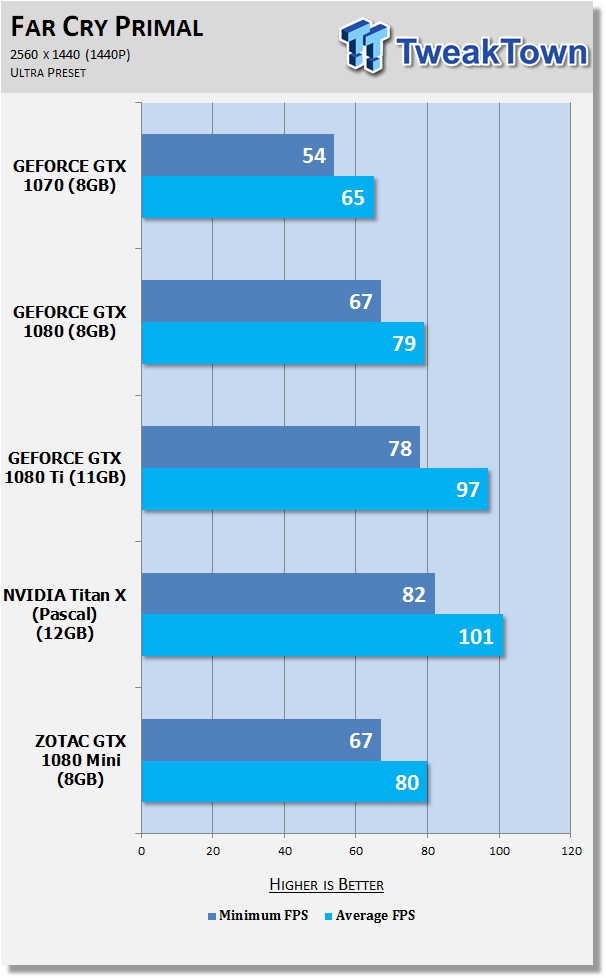

Far Cry Primal is a game built on the impressive Dunia Engine 2 with wide open, beautiful environments. It might look stunning, but the performance is actually quite good - but most cards will be stressed at 1440p, and especially so at 4K and beyond.
You can buy Far Cry Primal at Amazon.
Rainbow Six: Siege has been a strong entry into the franchise, popular for its realistic feel and great graphics. Stable as a rock for benchmarking, right up to 3440x1440 and 4K.
Middle-earth: Shadow of Mordor is one of the most graphically intensive games we test, with Monolith using their own Lithtech engine to power the game. When cranked up to maximum detail, it will chew through your GPU and its VRAM like it's nothing.
You can buy Middle-earth: Shadow of Mordor at Amazon.

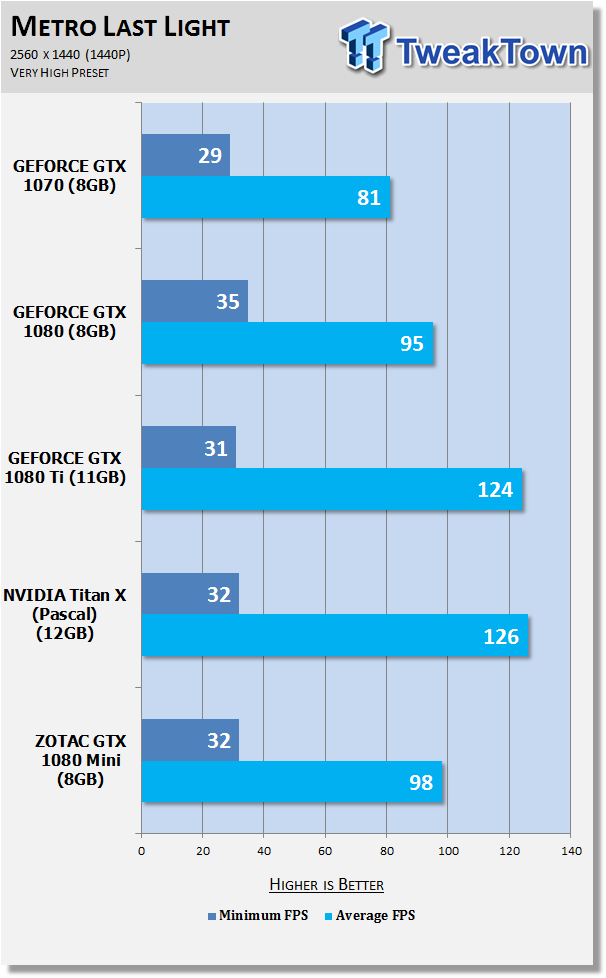

Metro: Last Light Redux comes from developer 4A Games, making the Redux version of Metro: Last Light the 'definitive' version of the game. Redux had a fresh coat of paint on the already impressive 4A Engine, and it really pushes our GPUs to their limits.
You can buy Metro: Last Light Redux at Amazon.
Benchmarks - 4K
4K Benchmarks
Ubisoft's latest installment in the Tom Clancy's Ghost Recon series is Ghost Recon Wildlands, an open world tactical shooter with some of the best graphics on the market, with Ubisoft Paris using a modified version of the AnvilNext engine.
Rise of the Tomb Raider is one of the best looking games on the market, a truly gorgeous game - and a wonder to benchmark. The team at Crystal Dynamics made a very scalable PC game that plays really well testing graphics cards. We've got DX11 and DX12 results in one here, showing the slight strengths of running DX12 mode.

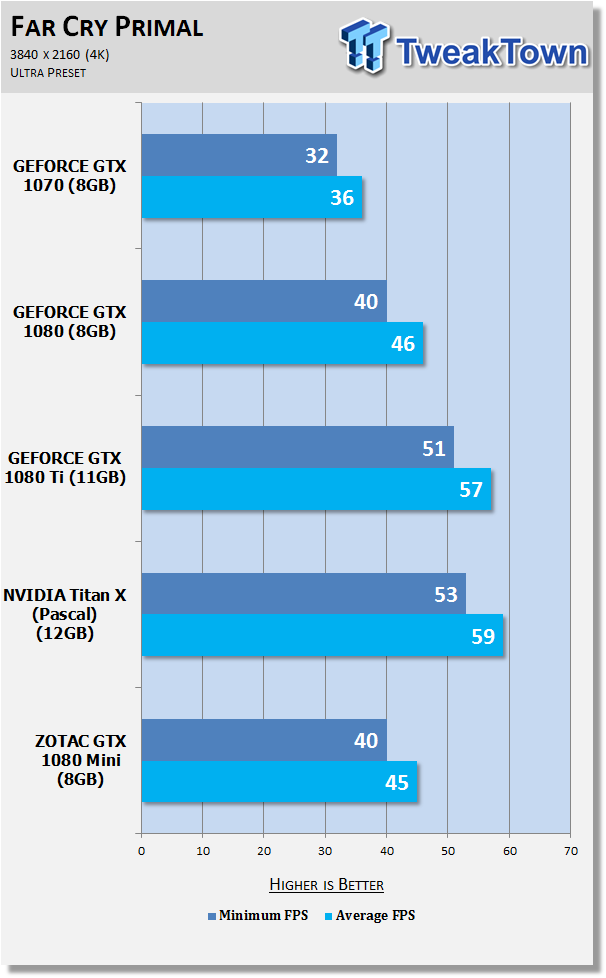

Far Cry Primal is a game built on the impressive Dunia Engine 2 with wide open, beautiful environments. It might look stunning, but the performance is actually quite good - but most cards will be stressed at 1440p, and especially so at 4K and beyond.
You can buy Far Cry Primal at Amazon.
Rainbow Six: Siege has been a strong entry into the franchise, popular for its realistic feel and great graphics. Stable as a rock for benchmarking, right up to 3440x1440 and 4K.
Middle-earth: Shadow of Mordor is one of the most graphically intensive games we test, with Monolith using their own Lithtech engine to power the game. When cranked up to maximum detail, it will chew through your GPU and its VRAM like it's nothing.
You can buy Middle-earth: Shadow of Mordor at Amazon.

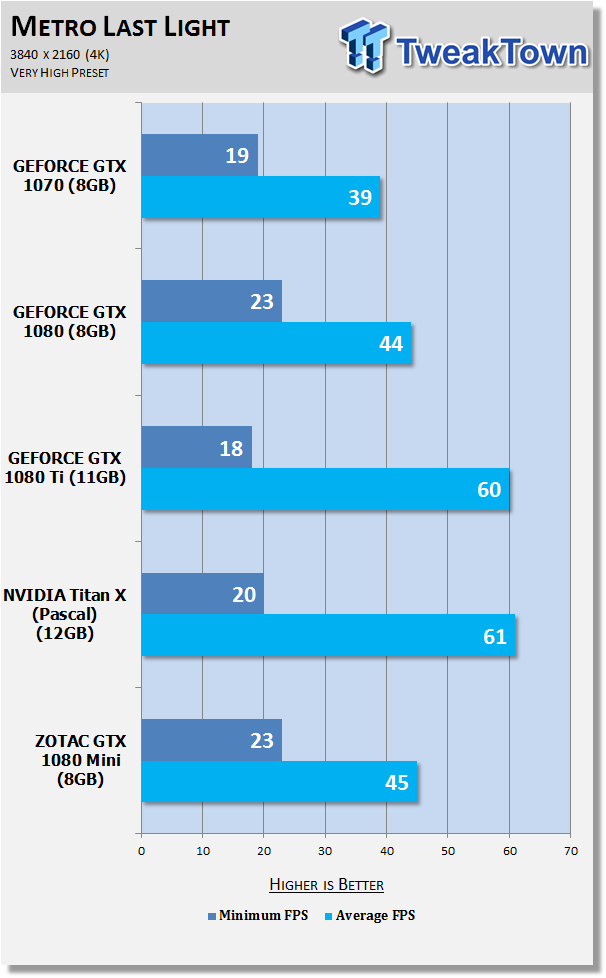

Metro: Last Light Redux comes from developer 4A Games, making the Redux version of Metro: Last Light the 'definitive' version of the game. Redux had a fresh coat of paint on the already impressive 4A Engine, and it really pushes our GPUs to their limits.
You can buy Metro: Last Light Redux at Amazon.
Benchmarks - 3440x1440
3440x1440 Benchmarks
Ubisoft's latest installment in the Tom Clancy's Ghost Recon series is Ghost Recon Wildlands, an open world tactical shooter with some of the best graphics on the market, with Ubisoft Paris using a modified version of the AnvilNext engine.

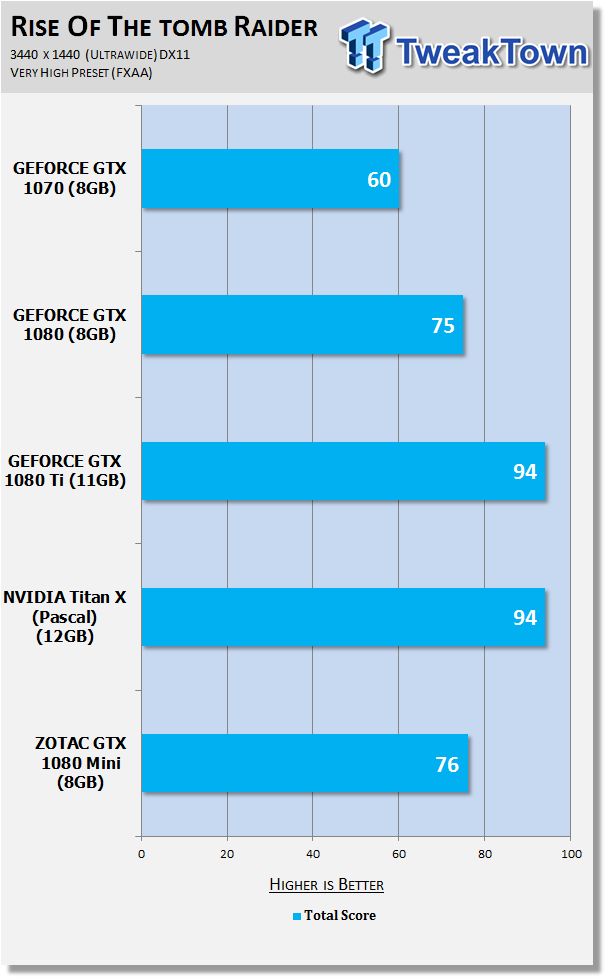

Rise of the Tomb Raider is one of the best looking games on the market, a truly gorgeous game - and a wonder to benchmark. The team at Crystal Dynamics made a very scalable PC game that plays really well testing graphics cards. We've got DX11 and DX12 results in one here, showing the slight strengths of running DX12 mode.
Far Cry Primal is a game built on the impressive Dunia Engine 2 with wide open, beautiful environments. It might look stunning, but the performance is actually quite good - but most cards will be stressed at 1440p, and especially so at 4K and beyond.
You can buy Far Cry Primal at Amazon.

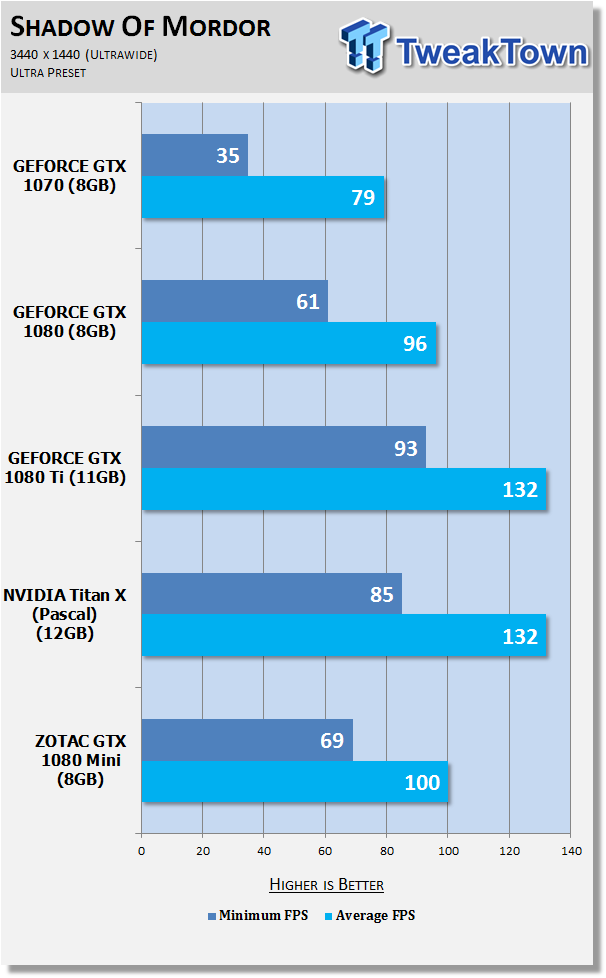

Middle-earth: Shadow of Mordor is one of the most graphically intensive games we test, with Monolith using their own Lithtech engine to power the game. When cranked up to maximum detail, it will chew through your GPU and its VRAM like it's nothing.
You can buy Middle-earth: Shadow of Mordor at Amazon.
Metro: Last Light Redux comes from developer 4A Games, making the Redux version of Metro: Last Light the 'definitive' version of the game. Redux had a fresh coat of paint on the already impressive 4A Engine, and it really pushes our GPUs to their limits.
You can buy Metro: Last Light Redux at Amazon.
Benchmarks - DX12
DX12 Benchmarks

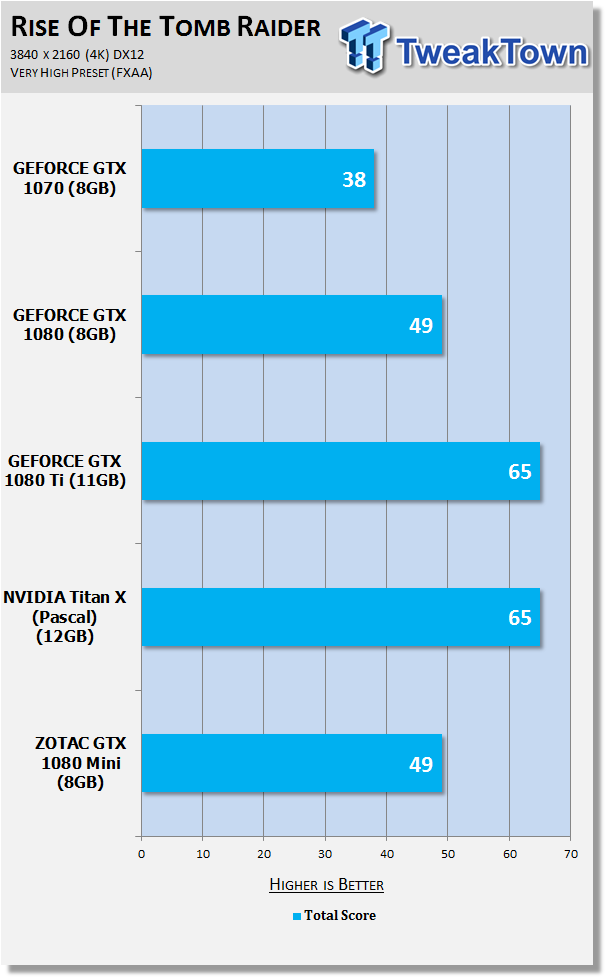

Rise of the Tomb Raider is one of the best looking games on the market, a truly gorgeous game - and a wonder to benchmark. The team at Crystal Dynamics made a very scalable PC game that plays really well testing graphics cards. We've got DX11 and DX12 results in one here, showing the slight strengths of running DX12 mode.

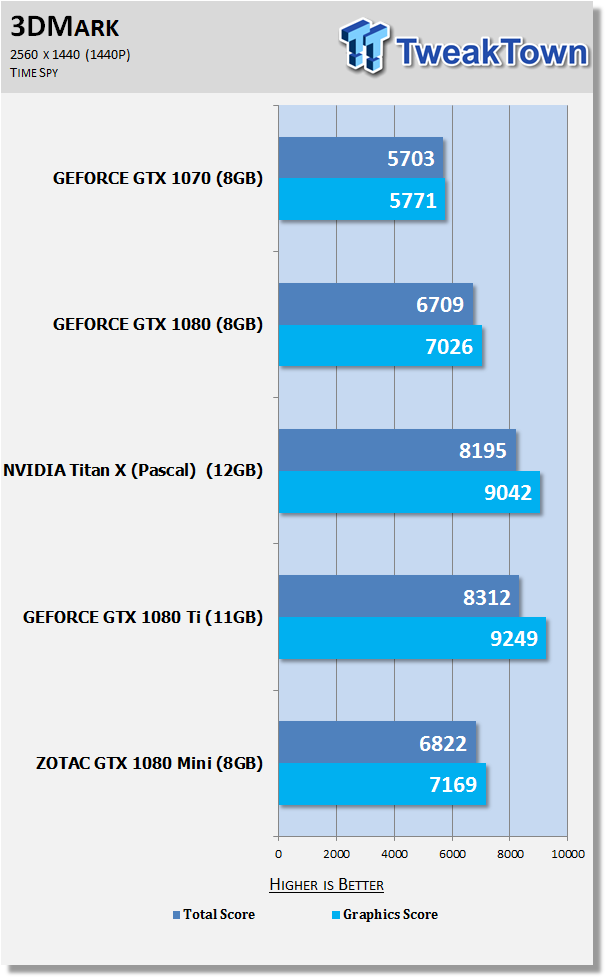

3DMark TimeSpy (DX12) 1440p
3DMark has been a staple benchmark for years now, all the way back to when The Matrix was released and Futuremark had bullet time inspired benchmarks. 3DMark is the perfect tool to see if your system - most important, your CPU and GPU - is performing as it should. You can search results for your GPU, to see if it falls in line with other systems based on similar hardware.
Performance Analysis & Final Thoughts
Performance Analysis
ZOTAC offers identical performance to NVIDIA's GeForce GTX 1080 Founders Edition, with most games seeing a few more frames per second over the GTX 1080 FE. This is a great achievement by ZOTAC, as they've managed to meet the great performance of the GTX 1080 FE and surpass it - all on a smaller PCB with the same 1 x 8-pin PCIe power connector.
I wouldn't recommend gaming at 4K on the ZOTAC GeForce GTX 1080 Mini, as we're looking at somewhere between 30-45FPS average in our tests, but we are running them on Ultra presets. 60FPS could be attained pretty easily with some detail level adjustments, but on my favorite 21:9 aspect ratio, the ZOTAC GTX 1080 Mini hits anywhere between 40-100FPS, averaging out at around 75FPS at 3440x1440.
Final Thoughts
If you're building a new mITX gaming PC and wanted some potent GPU power - ZOTAC's super-small GTX 1080 Mini is the one for you. It requires a single 8-pin PCIe power connector, making it a very power efficient graphics card that packs a massive performance punch.
There's also some overclocking potential on the card, something that is another achievement for ZOTAC given the size of the GTX 1080 Mini. There's the possibility of SLI with the GTX 1080 Mini, which would make for one of the fastest graphics cards setups inside of a small mITX gaming PC.
ZOTAC continues to impress, even into the release of the GeForce GTX 1080 Ti - as a super-small GTX 1080 Mini graphics card shows ZOTAC's team of custom PCB experts can handle Pascal in a big way. If you're in the market for a mITX gaming PC and needed a super-small, yet super-powerful graphics card, you need to check out the ZOTAC GeForce GTX 1080 Mini.
