GIGABYTE's Z170X-Ultra Gaming is a refreshed Intel Z170 motherboard with plenty of solid features at a price that is pretty hard to beat.

@StevenBassiriTT
Published Thu, Aug 11 2016 11:46 AM CDT   |   Updated Thu, Jul 30 2020 4:20 PM CDT
Rating: 91%Manufacturer: GIGABYTE

Introduction, Specifications, and Pricing

GIGABYTE Z170X-Ultra Gaming Motherboard Review 01 | TweakTown.com
VIEW GALLERY - 100 IMAGES

It's been a while since I reviewed an Intel Z170-based motherboard, but over the past few months, we have seen vendors launching newer models. GIGABYTE launched two new high-end motherboards at Computex, the Z170X-Ultra Gaming, and the Z170X-Designare. Both motherboards are targeted towards the two largest subsets of Z170 buyers; gamers and power users. The Z170X-Ultra Gaming differs from most of GIGABYTE's previous Z170 gaming products. It has a neutral color look, it has metal shielding instead of plastic, it features U.2, and it carries some of GIGABYTE's newer features such as 100W USB Type-C support.

The Z170X-Ultra Gaming is basically a refreshed Z170 motherboard with the latest features. Its color theme is worth noting because many users had asked for more color-neutral motherboards. If users decide to disable the red LEDs, then the motherboard will be all black with some hints of silver. If they decide to leave the LEDs on, then a very red color theme with diffused LEDs will appear, and it doesn't look half bad.

Let's take a closer look at the Z170X-Ultra Gaming.

Specifications

GIGABYTE Z170X-Ultra Gaming Motherboard Review 02 | TweakTown.com

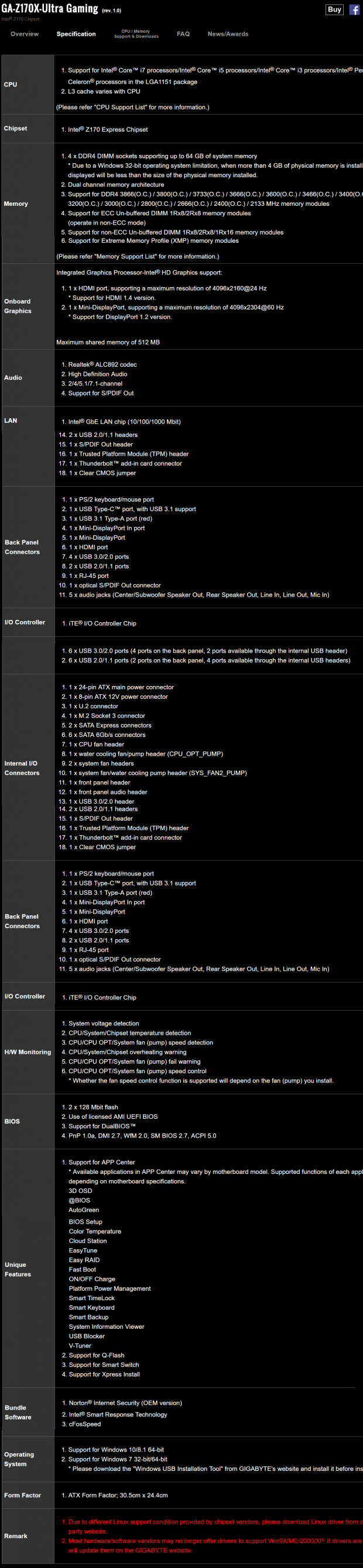

The GIGABYTE Z170X-Ultra Gaming has a lot of high-end features, including Thunderbolt 3, USB 3.1, U.2, M.2 (32Gb/s), USB 3.0, and SATA 6Gb/s.

Pricing

The Z170X-Ultra Gaming is available from many large retailers for roughly $170.

Packaging and Z170X-Ultra Gaming Overview

Packaging and Overview

GIGABYTE Z170X-Ultra Gaming Motherboard Review 03 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 04 | TweakTown.com

The Z170X-Ultra Gaming's box is red and black, like the motherboard when its powered on. Packaging is nothing fancy, but it's good enough to protect the motherboard.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 05 | TweakTown.com

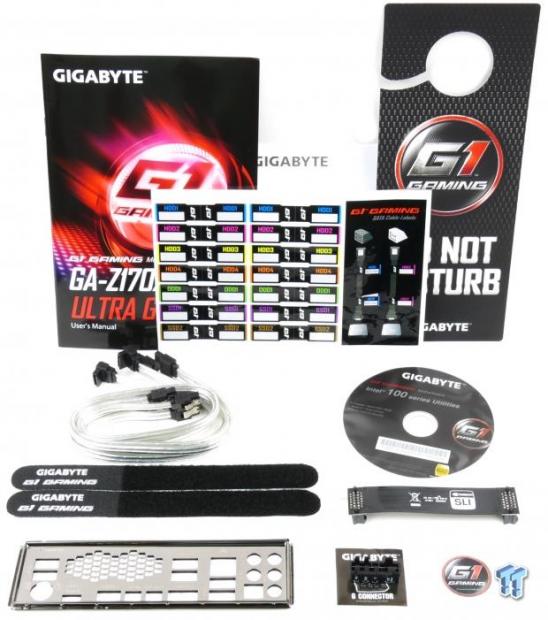

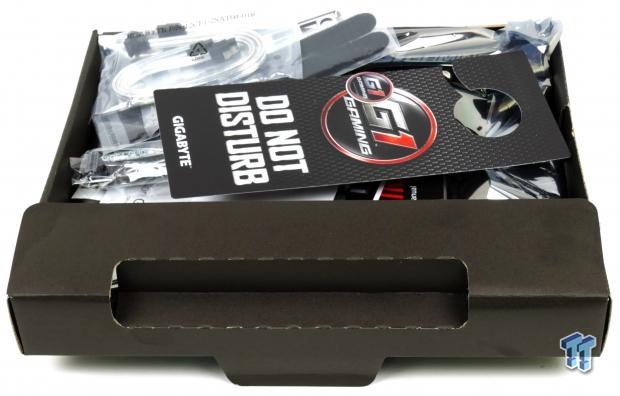

Accessories include 2x SATA6Gb/s cables, IO shield, SLI connector, Velcro cable ties, G-Connector, storage device stickers, G1 case badge, door hanger, driver DVD, and manuals.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 06 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 07 | TweakTown.com

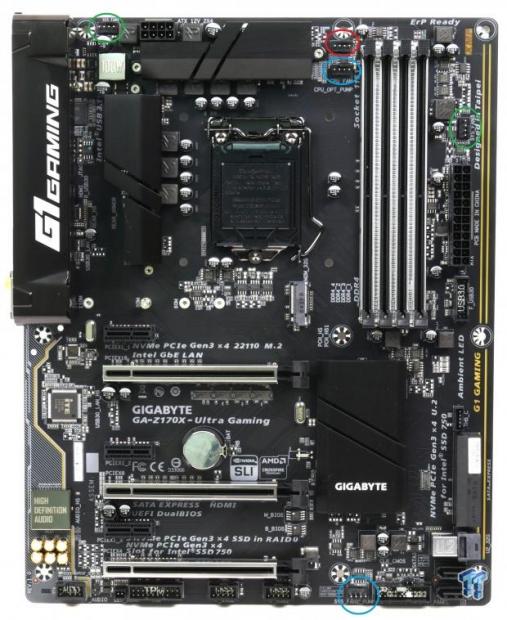

The GIGABYTE Z170X-Ultra Gaming has five 4-pin headers. The CPU fan header circled in red offers PWM only control; the two headers circled in blue operate in PWM or voltage mode, and the two headers circled in green operate in voltage mode.

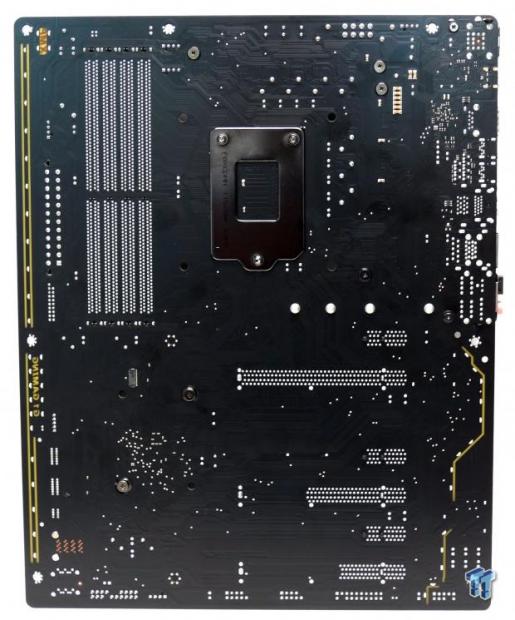

The motherboard has a very neutral color theme, and while RGB LEDs would have been perfect, GIGABYTE instead chose to use red LEDs. There is a lot of cut out yellowish diffused PCB lining the edge of the motherboard, which will light up when the LEDs are on. Under the VRM, PCI-E slots, and between the memory DIMMs are red LEDs that illuminate the motherboard.

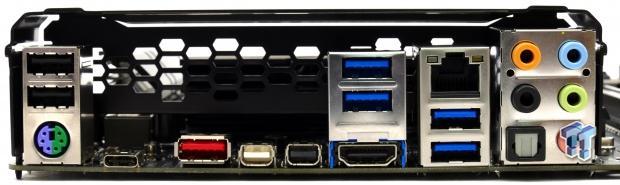

GIGABYTE Z170X-Ultra Gaming Motherboard Review 08 | TweakTown.com

The IO panel on the Z170X-Ultra Gaming carries four USB 3.0 ports, two USB 2.0 ports, mini DisplayPort, mini DisplayPort in (for ThunderBolt), PS/2 Keyboard/Mouse, USB 3.1/Thunderbolt 3 Type-C connector, USB 3.1 Type-A connector, HDMI, RJ-45 LAN, and 7.1 audio outputs with S/PDIF.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 09 | TweakTown.com

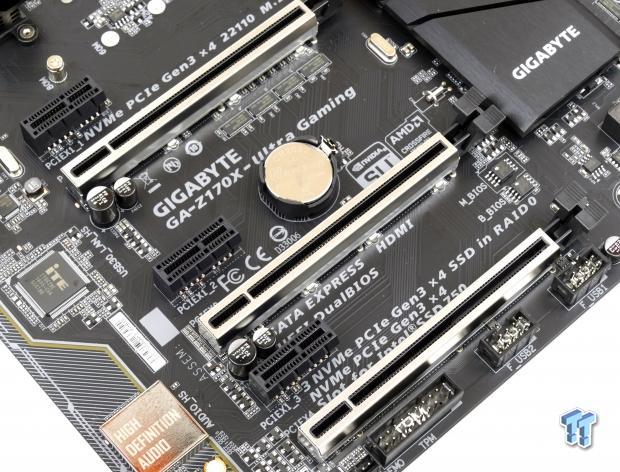

The PCI-E layout is designed so that the first two full sized x16 slots get bandwidth from the CPU. They will work at x16/x0 or x8/x8 for SLI or CrossFireX. These full sized x16 slots are reinforced with metal braces that keep them steady even under the pressure of a heavy GPU. The last x16 slot operates at x4 and is routed to the PCH; it can also be used for RAID with the M.2 and U.2 slots.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 10 | TweakTown.com

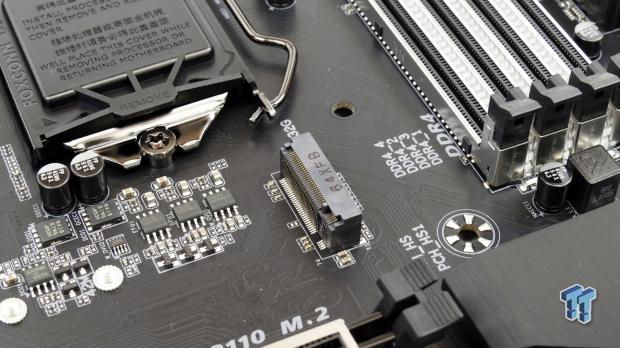

There is a 32Gb/s M.2 slot located below the CPU socket and supports RAID with the U.2 and last PCI-E x16 slot.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 11 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 12 | TweakTown.com

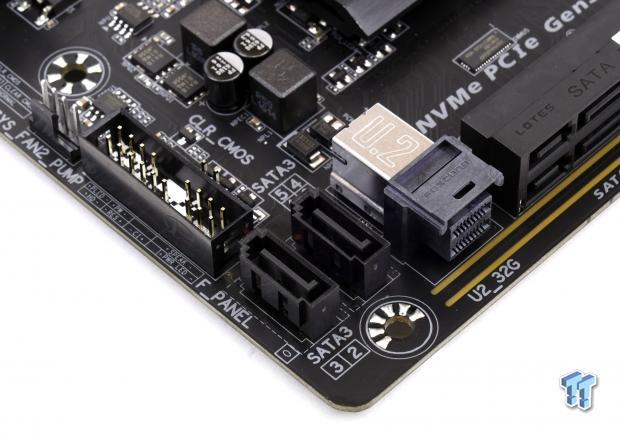

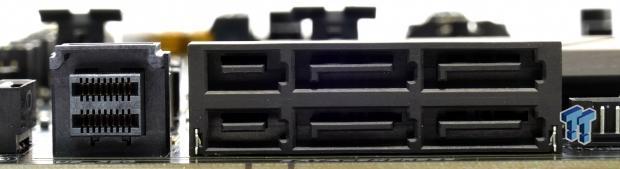

The U.2 connector is located in the lower right-hand corner of the motherboard. Two of the six SATA6Gb/s ports from the PCH are straight while the remaining four are angled at 90 degrees and also support SATA Express.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 13 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 14 | TweakTown.com

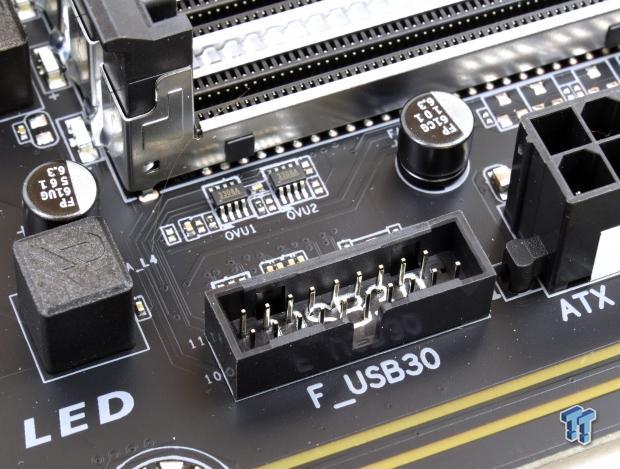

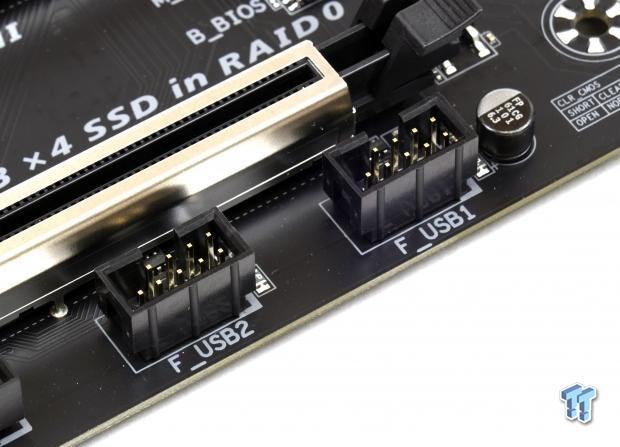

There is a USB 3.0 internal header located below the 24-pin connector and two USB 2.0 headers located along the bottom of the motherboard.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 15 | TweakTown.com

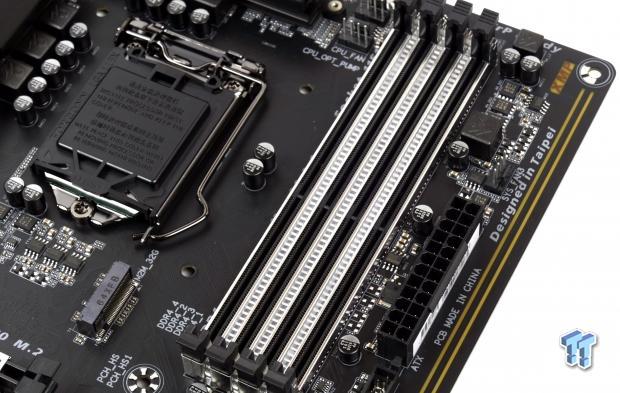

The area between the DIMMs uses plastic columns to diffuse the red LED light.

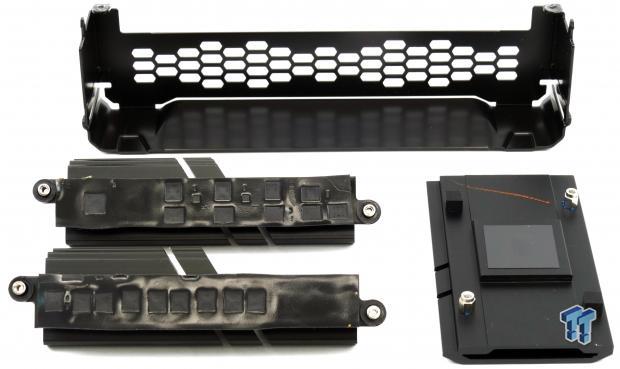

GIGABYTE Z170X-Ultra Gaming Motherboard Review 16 | TweakTown.com

The heat sinks and shield are all metal, and the heat sinks make great contact with the MOSFETs.

GIGABYTE Z170X-Ultra Gaming Circuit Analysis

Circuit Analysis

GIGABYTE Z170X-Ultra Gaming Motherboard Review 17 | TweakTown.com

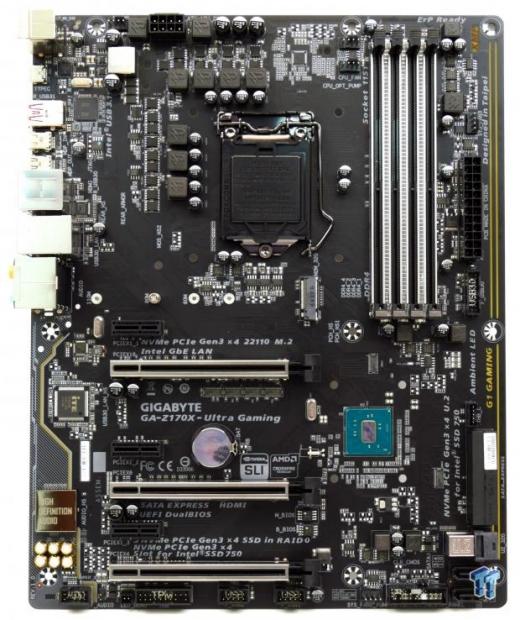

This board is much more interesting without its heat sinks.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 18 | TweakTown.com

We all know that Skylake doesn't use much power, even when overclocked, and it turns out that motherboard manufacturers have taken note. The VRM on the Z170X-Ultra Gaming is a 4+3 phase VRM and uses custom branded Power inductors and 10K black polymer solid capacitors.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 19 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 20 | TweakTown.com

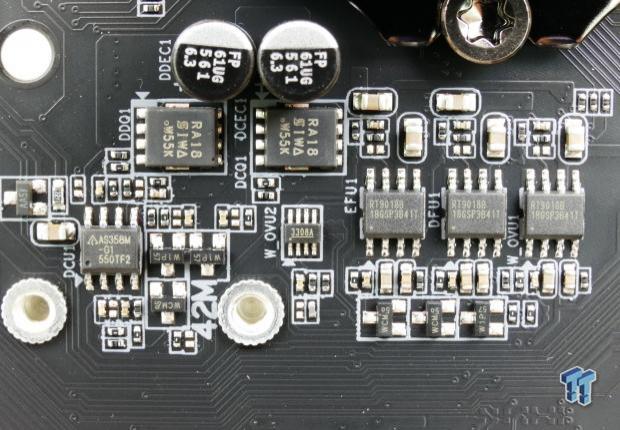

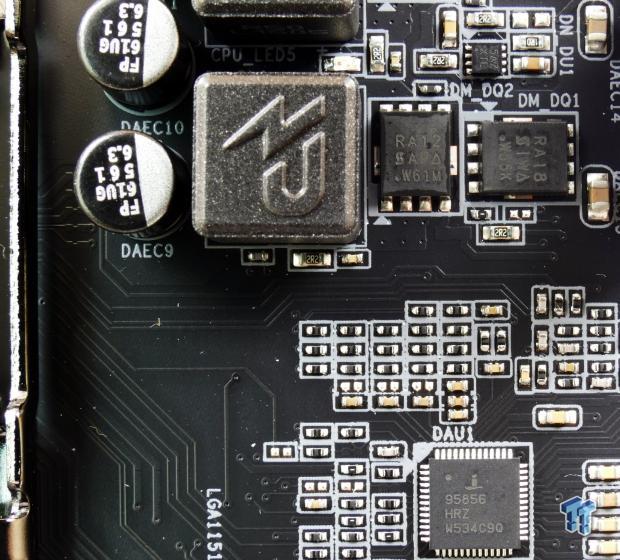

The Intersil ISL95856 is a 4+3 phase hybrid PWM with two integrated drivers on the four phase rail and a single driver integrated for the three phase rail. Four Intersil ISL6625A drivers are used, two for the iGPU phases and two for the VCore phases. The motherboard uses Vishay SiRA12 and SiRA18 for the high-side and low-side PowerPAK MOSFETs. Overall, this VRM is probably the minimum you want for overclocking. The VCCIO, VCCSA, and other rails for overclocking come from a linear regulator circuit and a few LDOs.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 21 | TweakTown.com

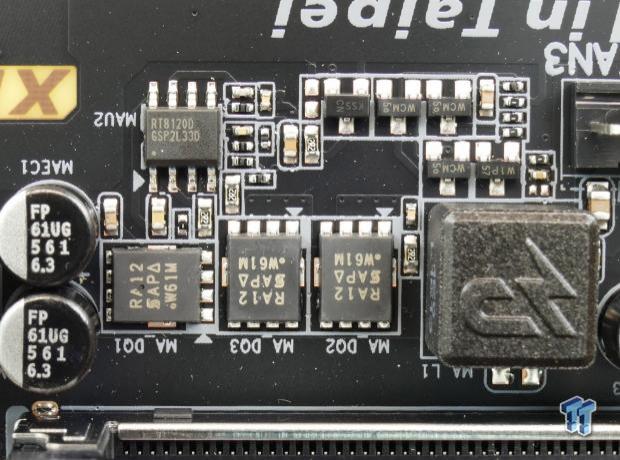

The memory VRM uses a Richtek RT8120D single phase integrated PWM with drivers and uses three SiRA12 PowerPAK MOSFETs (two for the low-side and one high-side).

GIGABYTE Z170X-Ultra Gaming Circuit Analysis Continued

Z170X-Ultra Gaming Circuit Analysis Continued

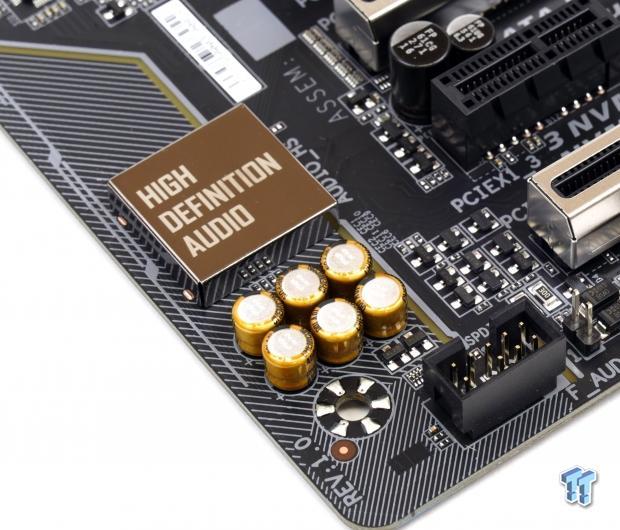

GIGABYTE Z170X-Ultra Gaming Motherboard Review 22 | TweakTown.com

GIGABYTE is using the ALC892 audio codec instead of the common ALC1150, and there is no amplifier, but audio quality isn't too bad.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 23 | TweakTown.com

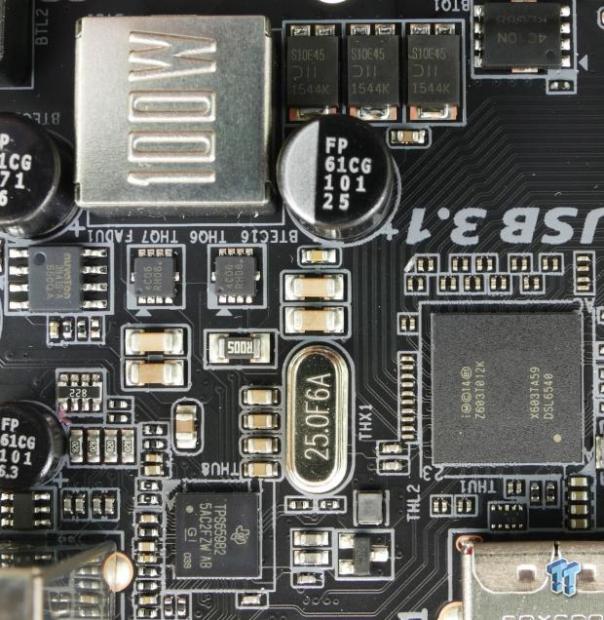

Intel is using the Intel Alpine Ridge USB 3.1/ThunderBolt 3 controller for the Type-C and Type-A port on the rear IO. The Texas Instruments TPS65982 is used for Type-C port switching and USB Power Delivery 2.0 control. One big feature of this motherboard is the 100W USB power support for the two ports controlled by the Alpine Ridge controller. The circuit uses a boost converter to output a maximum of 20V at 5A for 100W. The 100W cover is hiding a transformer or some type of choke, there are two 4C06 MOSFETs for switching the power, and the motherboard is protected by diodes to ensure the power doesn't flow back into the rest of the circuitry.

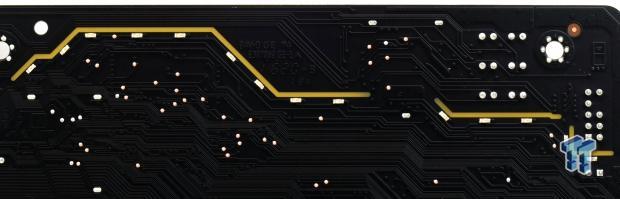

GIGABYTE Z170X-Ultra Gaming Motherboard Review 24 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 25 | TweakTown.com

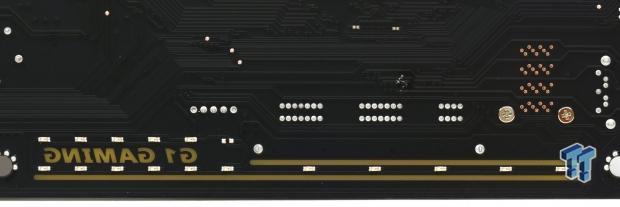

The Z170X-Ultra Gaming has tons of red LEDs all over the back and even front of the motherboard.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 26 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 27 | TweakTown.com

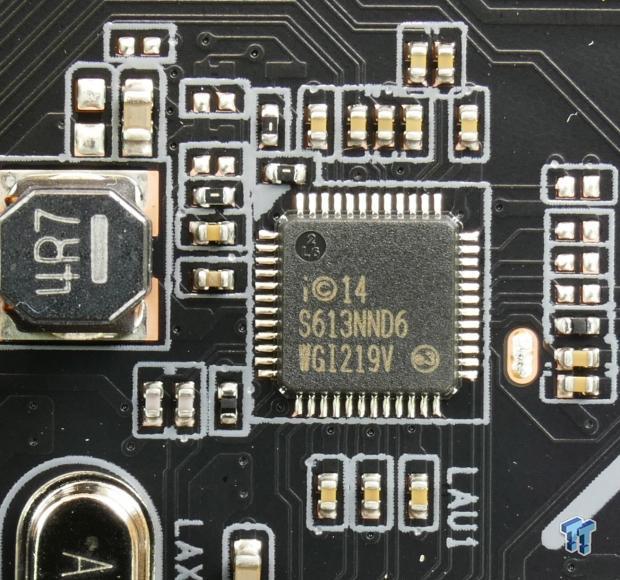

GIGABYTE made sure to use an Intel NIC for networking. The i219v is used as the PHY for the integrated MAC in the PCH. The motherboard has two 128Mbit BIOS ROMs for dual BIOS.

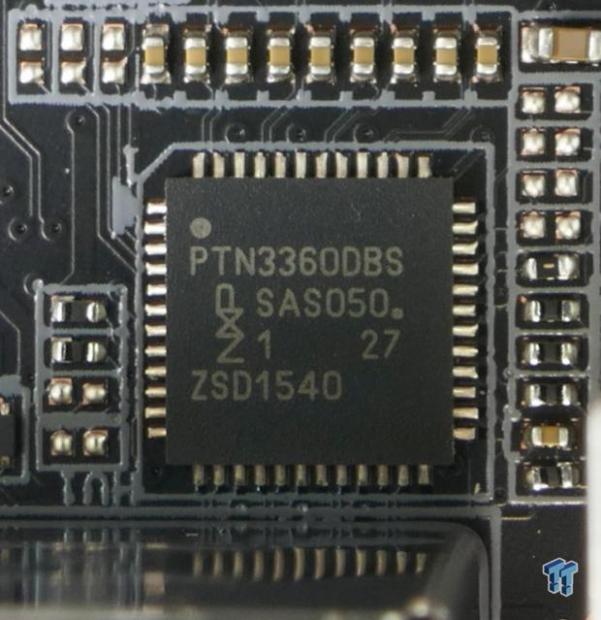

GIGABYTE Z170X-Ultra Gaming Motherboard Review 28 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 29 | TweakTown.com

An iTE IT8628E is used as the main SuperIO that provides fan control, voltage/temperature monitoring, and provides PS/2 on the rear IO. The motherboard uses a level shifter to produce HDMI from the digital video output of the CPU.

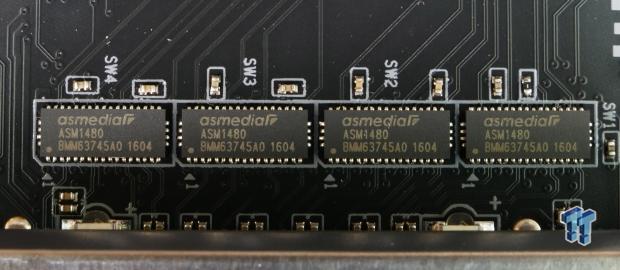

GIGABYTE Z170X-Ultra Gaming Motherboard Review 30 | TweakTown.com

There are four ASMedia ASM1480 PCI-E 3.0 quick switches located below the first PCI-E x16 slot to move x8 of CPU bandwidth between it and the x16 slot below it. There are other ASM1480s around the motherboard to switch PCH bandwidth.

BIOS and Software

BIOS

GIGABYTE Z170X-Ultra Gaming Motherboard Review 31 | TweakTown.com

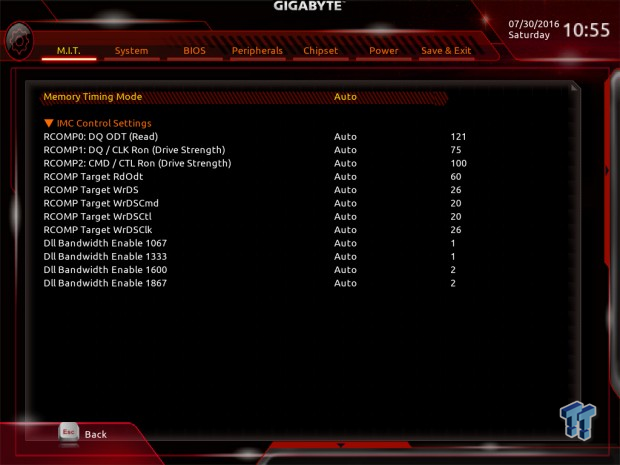

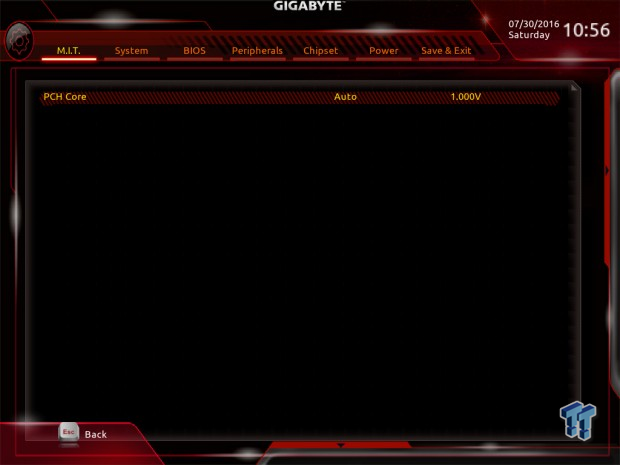

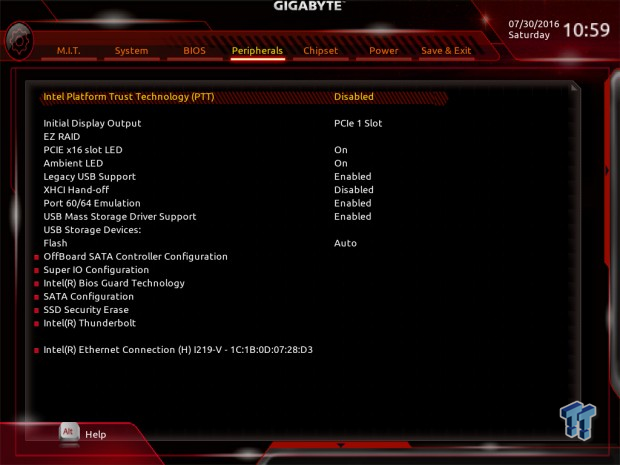

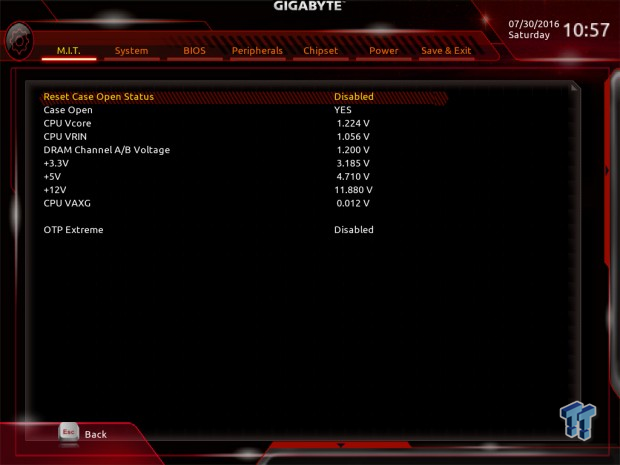

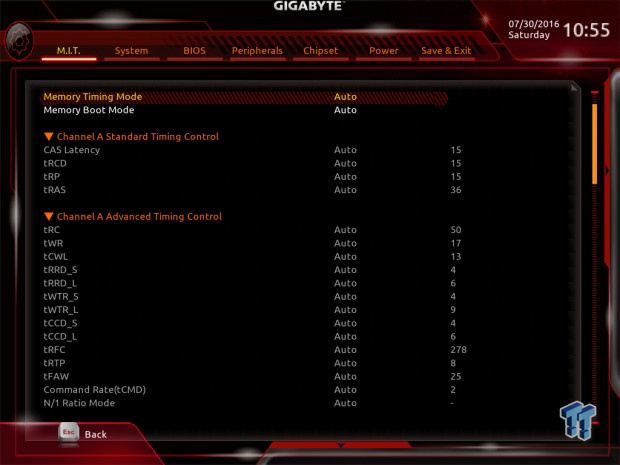

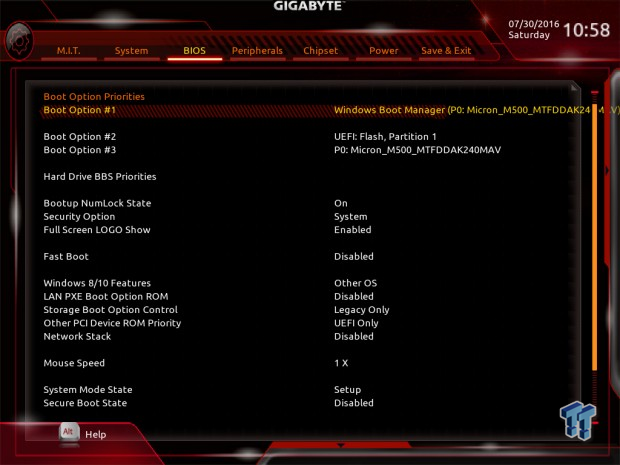

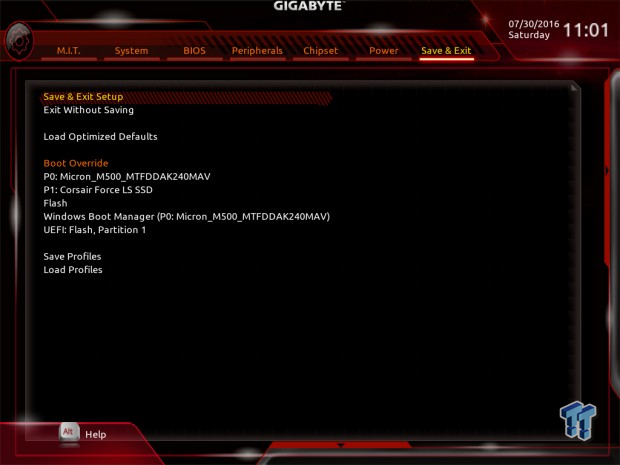

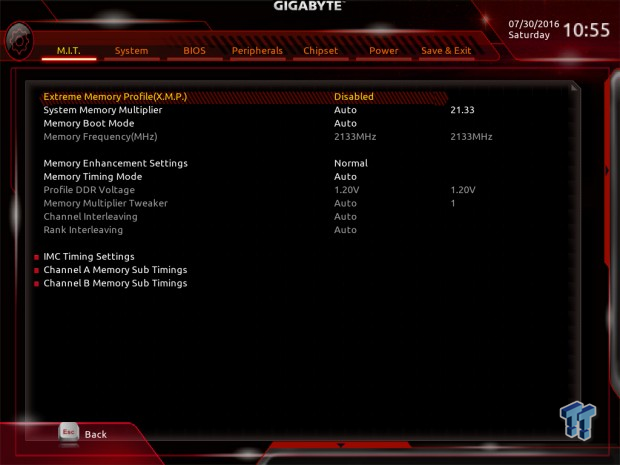

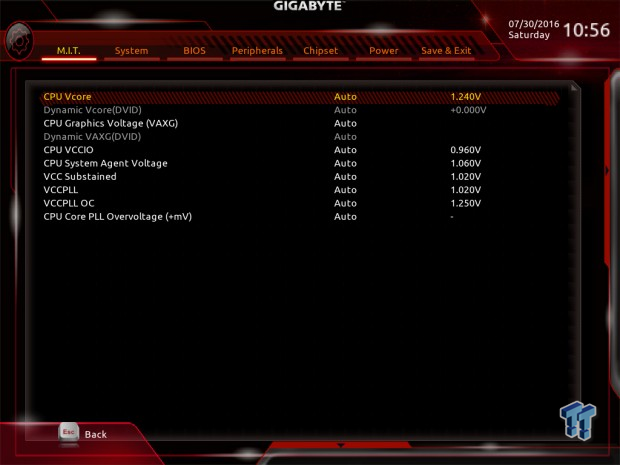

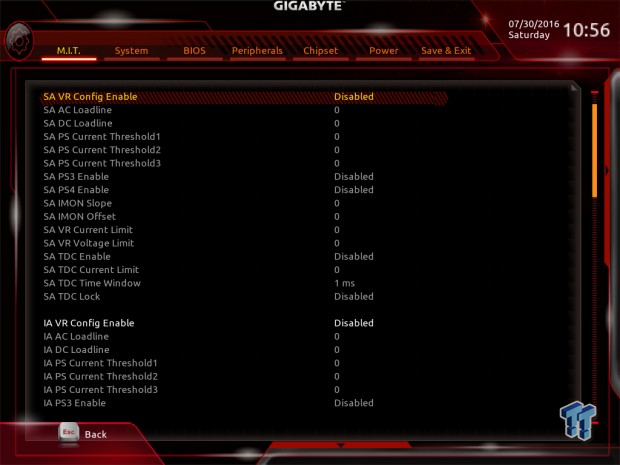

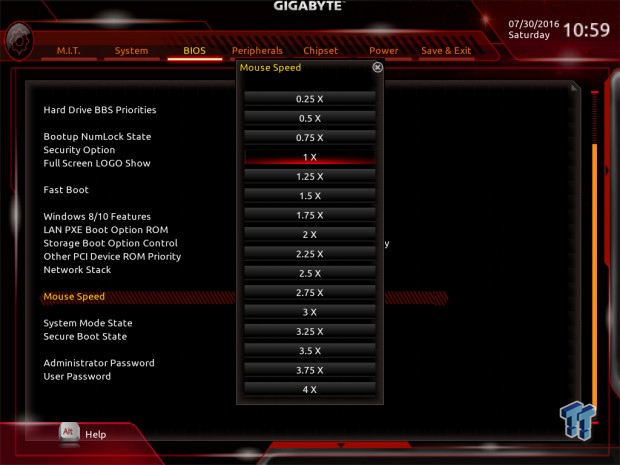

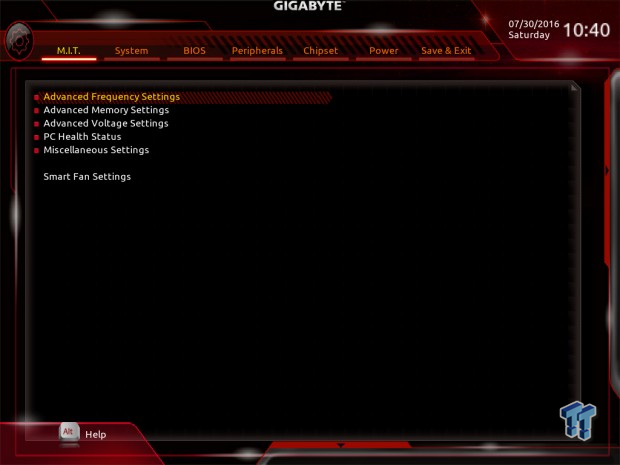

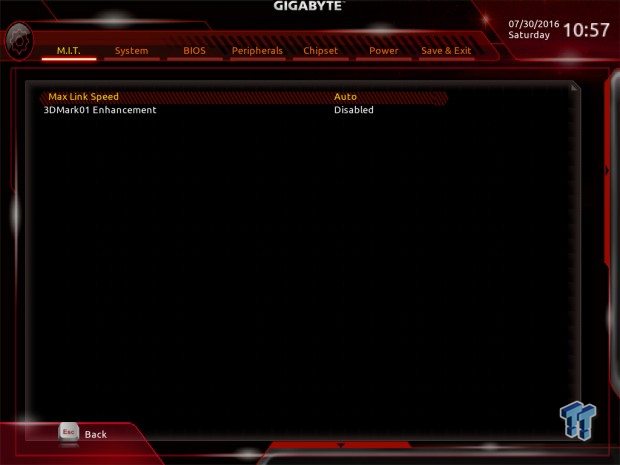

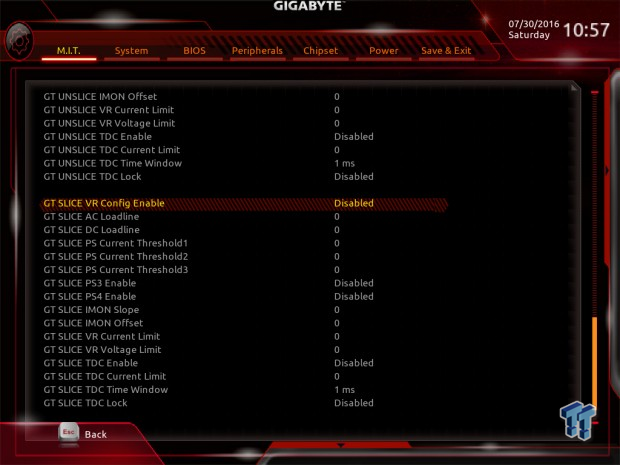

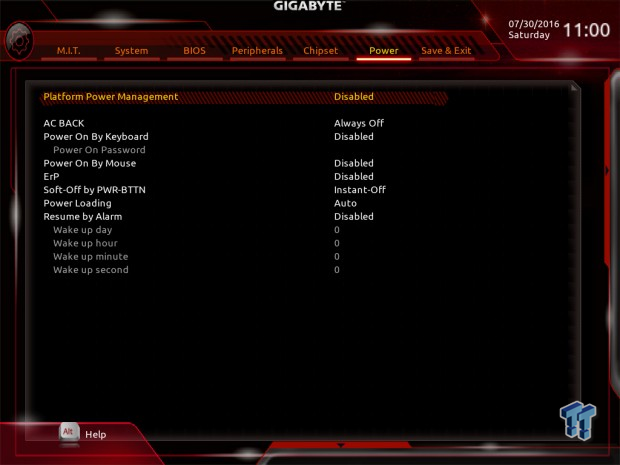

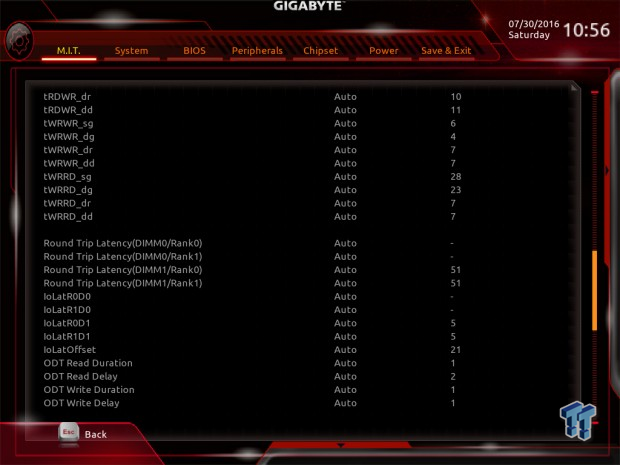

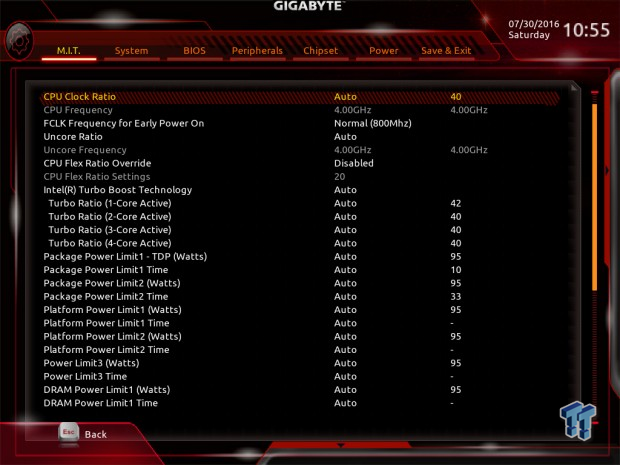

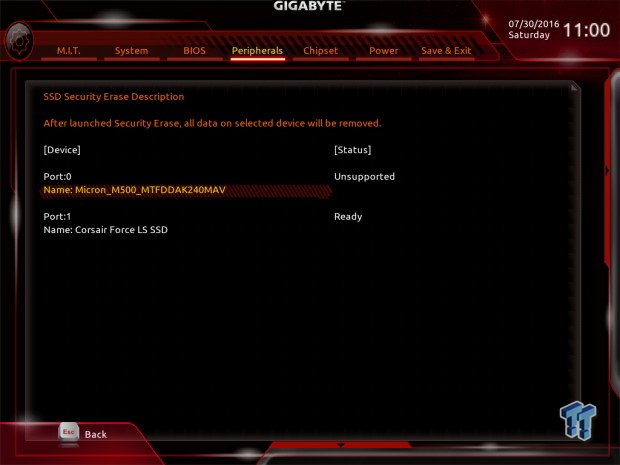

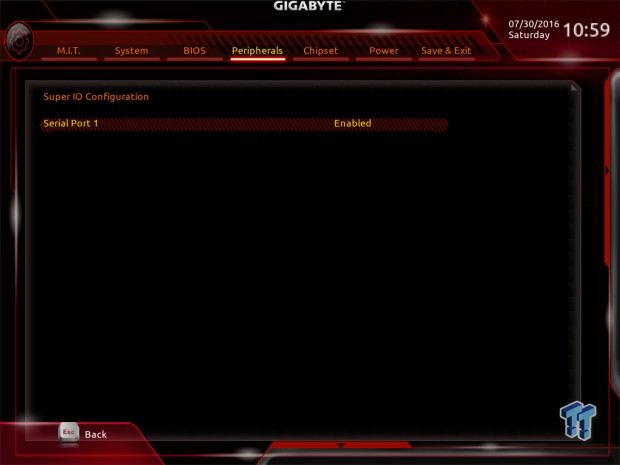

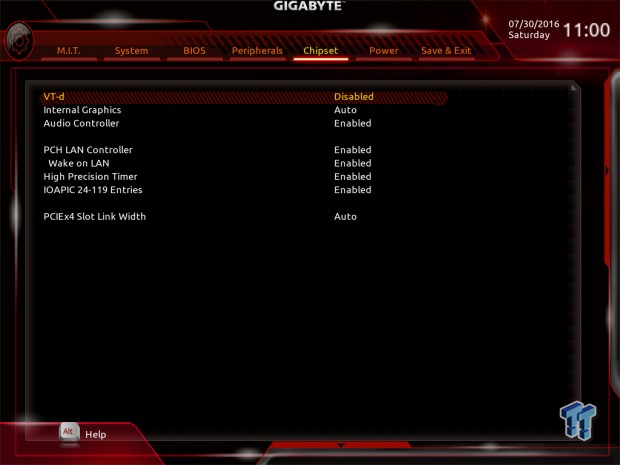

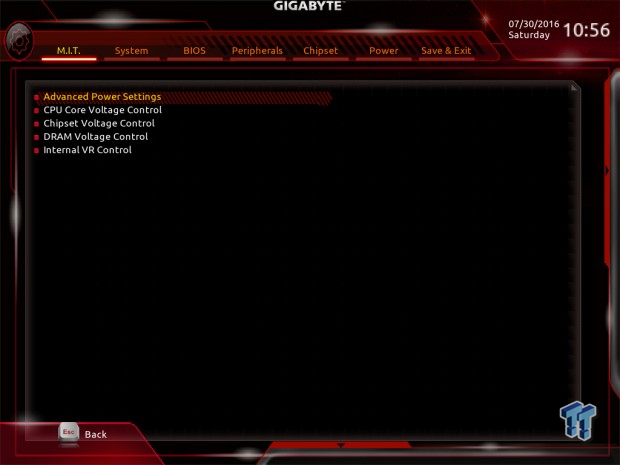

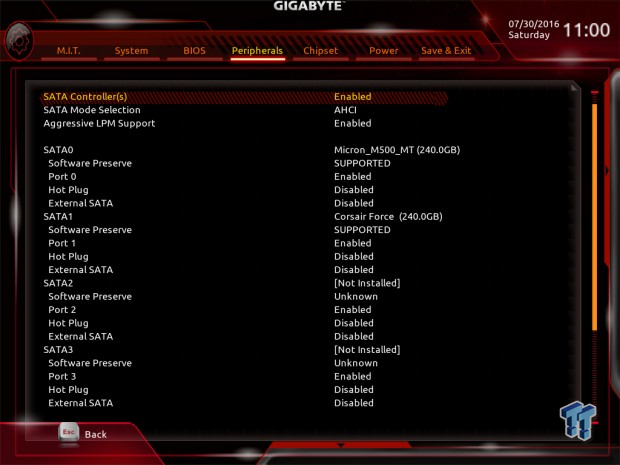

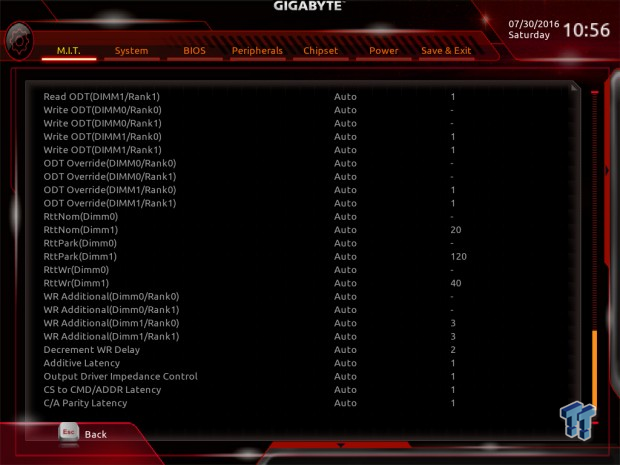

The Z170X-Ultra Gaming carries GIGABYTE's latest BIOS, which features a new color theme and more settings for fan control. One of the biggest weaknesses of the previous GIGABYTE Z170 motherboards was the lack of GUI fan control in the UEFI. The new series of X99 and Z170 GIGABYTE motherboards have revamped fan control, and in some cases, you can choose if you want the header to work in voltage or PWM mode.

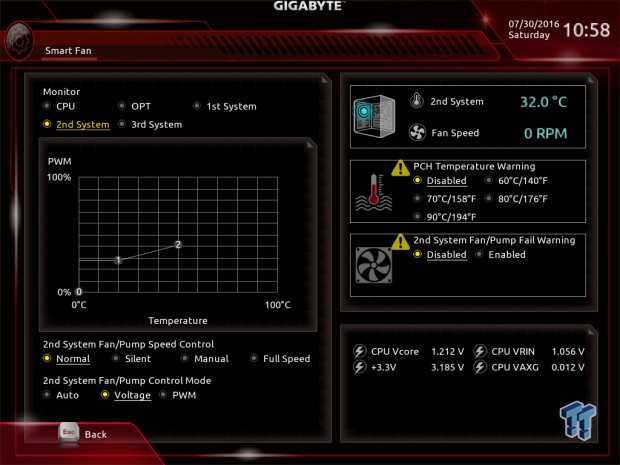

The new UEFI offers fan control through a GUI, so you don't need to setup fan control through Windows programs. The UEFI also has overclocking settings you might need to produce a decent overclock, there are limited PWM controls (you can control the LLC), but not as much as GIGABYTE's higher-end offerings.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 32 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 33 | TweakTown.com

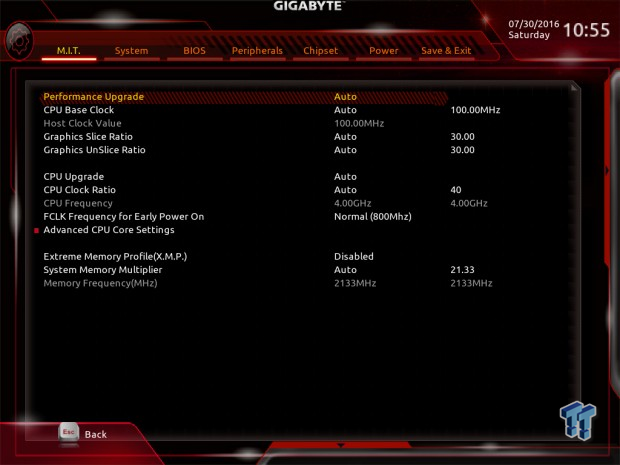

GIGABYTE Z170X-Ultra Gaming Motherboard Review 34 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 35 | TweakTown.com

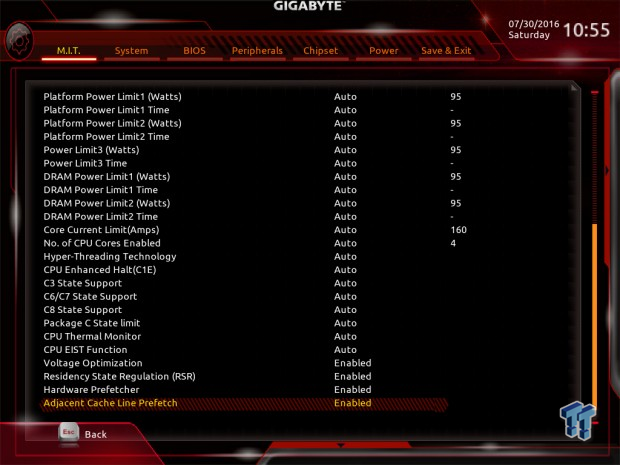

GIGABYTE Z170X-Ultra Gaming Motherboard Review 36 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 37 | TweakTown.com
GIGABYTE Z170X-Ultra Gaming Motherboard Review 38 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 39 | TweakTown.com

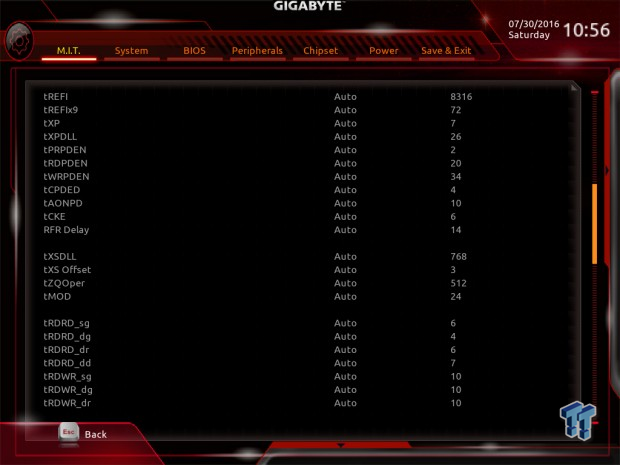

GIGABYTE Z170X-Ultra Gaming Motherboard Review 40 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 41 | TweakTown.com
GIGABYTE Z170X-Ultra Gaming Motherboard Review 42 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 43 | TweakTown.com
GIGABYTE Z170X-Ultra Gaming Motherboard Review 44 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 45 | TweakTown.com
GIGABYTE Z170X-Ultra Gaming Motherboard Review 46 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 47 | TweakTown.com

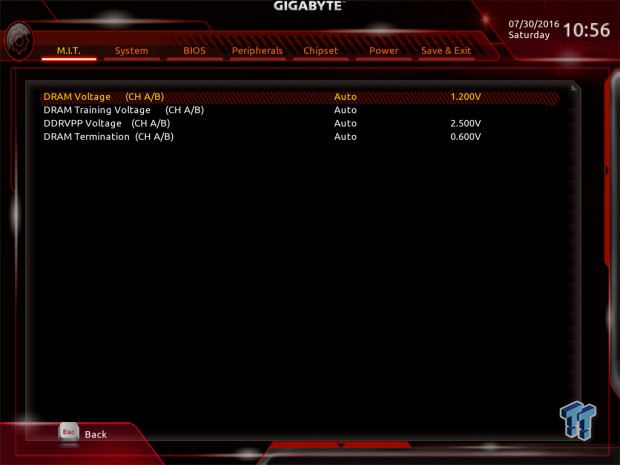

GIGABYTE Z170X-Ultra Gaming Motherboard Review 48 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 49 | TweakTown.com
GIGABYTE Z170X-Ultra Gaming Motherboard Review 50 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 51 | TweakTown.com

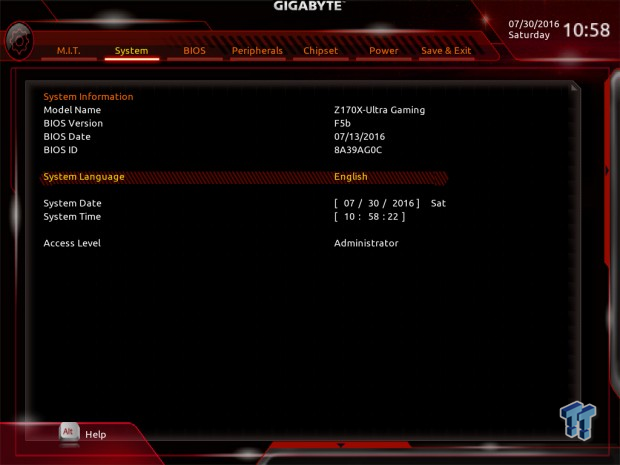

GIGABYTE Z170X-Ultra Gaming Motherboard Review 52 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 53 | TweakTown.com

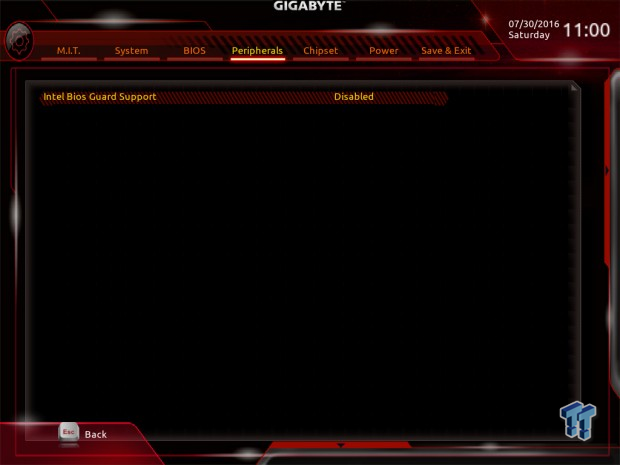

GIGABYTE Z170X-Ultra Gaming Motherboard Review 54 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 55 | TweakTown.com
GIGABYTE Z170X-Ultra Gaming Motherboard Review 56 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 57 | TweakTown.com
GIGABYTE Z170X-Ultra Gaming Motherboard Review 58 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 59 | TweakTown.com

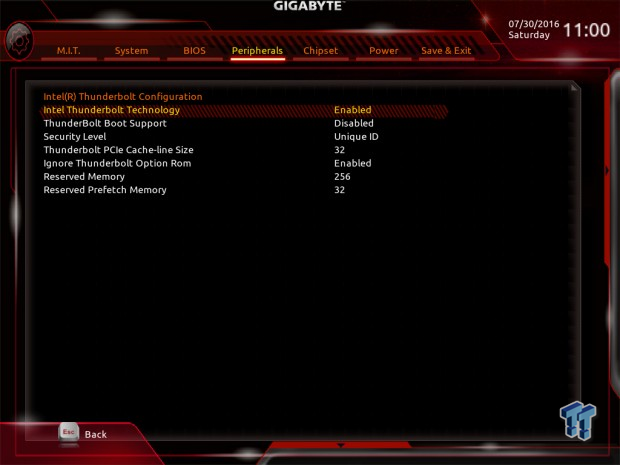

GIGABYTE Z170X-Ultra Gaming Motherboard Review 60 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 61 | TweakTown.com
GIGABYTE Z170X-Ultra Gaming Motherboard Review 62 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 63 | TweakTown.com

Software

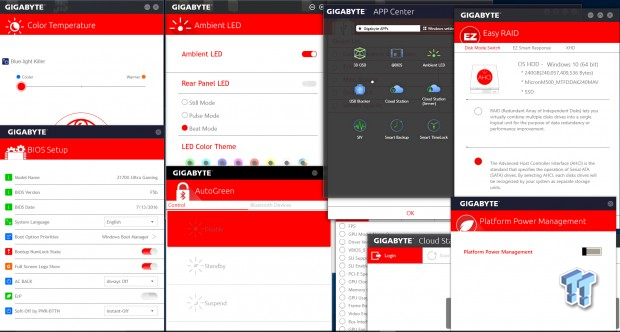

GIGABYTE Z170X-Ultra Gaming Motherboard Review 64 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 65 | TweakTown.com

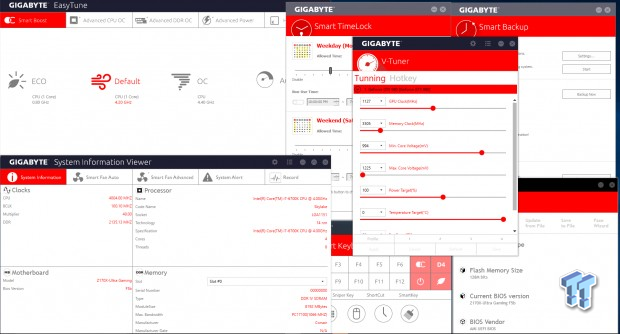

GIGABYTE includes many different software applications. They include Color Temperature, Ambient LED, BIOS Setup (change some BIOS settings from Windows), AutoGreen, APP Center (all the other applications can be accessed through APP Center), EasyRAID, Platform Power Management, Cloud Station, OSD, EasyTune, System Information Viewer, Smart TimeLock, Smart Backup, V-Tuner, @BIOS, and Smart Keyboard.

Test System Setup

Steven's Motherboard Test System Specifications

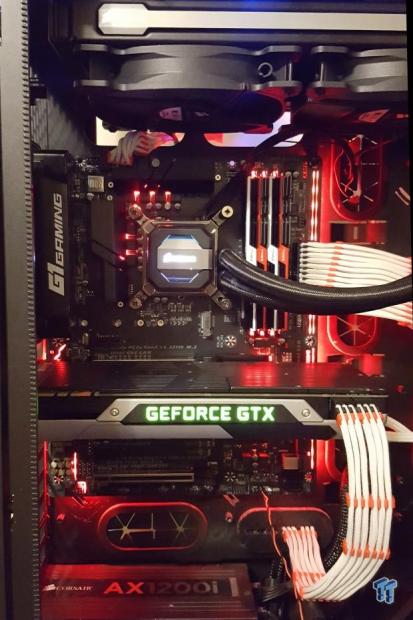

GIGABYTE Z170X-Ultra Gaming Motherboard Review 66 | TweakTown.com

Upon first glance, the Z170X-Ultra Gaming might seem like a neutral color motherboard, but when you press the power button, the red LEDs kick into gear. The red LEDs can be disabled, but in a red themed build, they would look great.

The new test bench is designed to test every aspect of the motherboard and IO. I have designed it so that the motherboard sits in a case and is cooled by fans always on at a constant rate to keep the conditions similar during all tests. I have cut out part of the case behind the motherboard so I can get thermal images of the back of the PCB where the VRM heat spreads. System and CPU power measurements are now digitally logged.

I am also using a Netgear Nighthawk X4 AC2350 for our network (including wireless AC) tests. The latest M.2, SSD, and USB technologies are also being utilized to test the maximum potential of the motherboards that are tested.

Overclocking

Overclocking Results

CPU Overclocking

I have decided to reduce the CPU VCore to 1.4v applied (I will measure real VCore at the output capacitors), and see how high I can validate. On most boards, it's 5GHz.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 67 | TweakTown.com

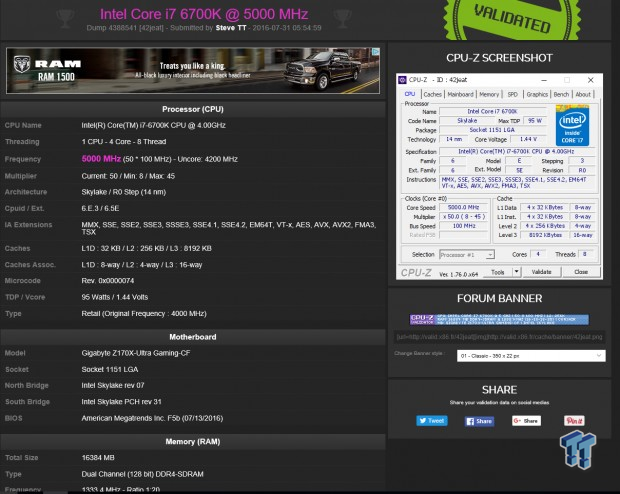

I wasn't surprised when the Z170X-Ultra Gaming hit 5GHz; it's an overclocking motherboard, so 5GHz is to be expected.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 68 | TweakTown.com

Stability testing worked well; I was able to overclock stable to 4.7GHz.

Compatible Memory Overclocking Kits

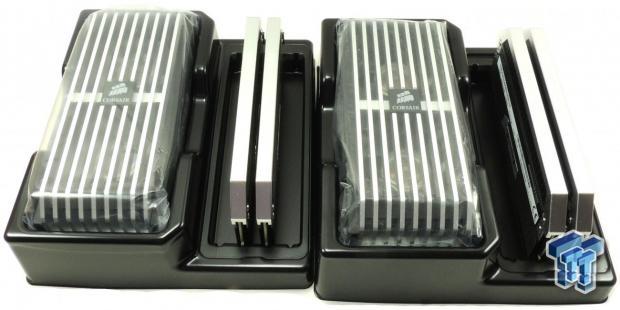

Test 1: 2x4GB (8GB) Corsair Dominator Platinum 3200MHz C16

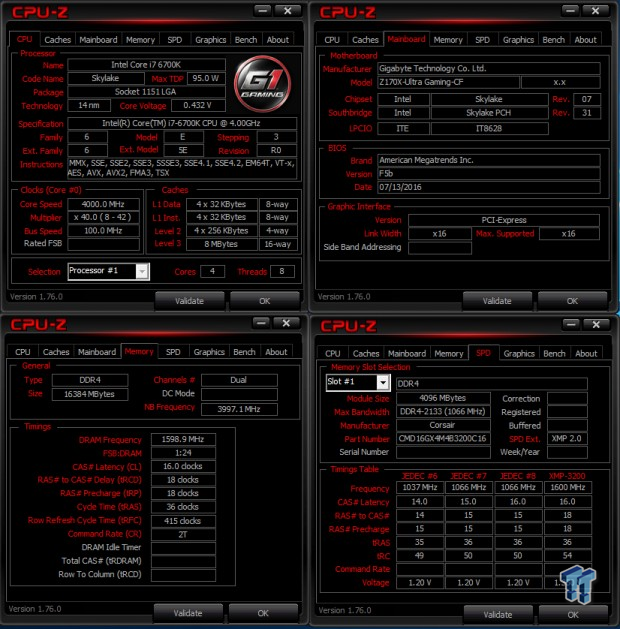

GIGABYTE Z170X-Ultra Gaming Motherboard Review 69 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 70 | TweakTown.com

The Dominator Platinum worked without a hitch.

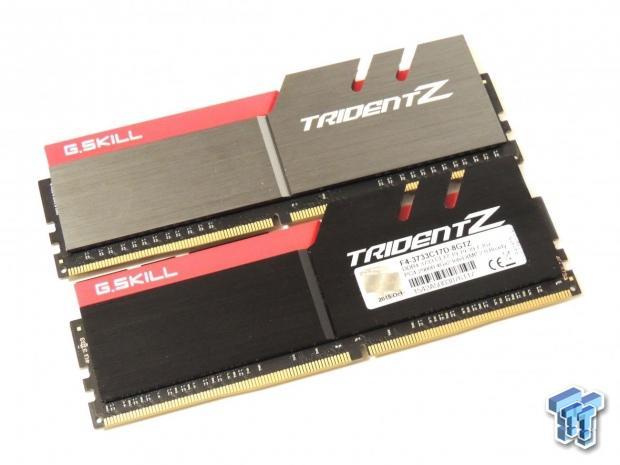

Test 2: 2x4GB (8GB) G.Skill TridentZ 3733MHz C17

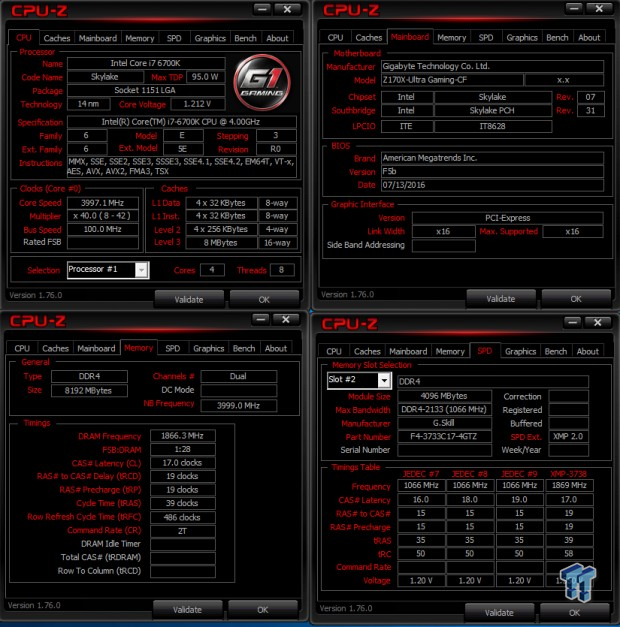

GIGABYTE Z170X-Ultra Gaming Motherboard Review 71 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 72 | TweakTown.com

The TridentZ worked well, even at their high speed of 3.733GHz.

CPU, Memory, and System Benchmarks

CINEBENCH 11.5

GIGABYTE Z170X-Ultra Gaming Motherboard Review 73 | TweakTown.com

wPrime

GIGABYTE Z170X-Ultra Gaming Motherboard Review 74 | TweakTown.com

AIDA64 AES and HASH

GIGABYTE Z170X-Ultra Gaming Motherboard Review 75 | TweakTown.com

AIDA64 FPU

GIGABYTE Z170X-Ultra Gaming Motherboard Review 76 | TweakTown.com

AIDA64 Memory

GIGABYTE Z170X-Ultra Gaming Motherboard Review 77 | TweakTown.com

PCMark8 Home Test

GIGABYTE Z170X-Ultra Gaming Motherboard Review 78 | TweakTown.com

3DMark: Cloud Gate

GIGABYTE Z170X-Ultra Gaming Motherboard Review 79 | TweakTown.com

3DMark: Fire Strike

GIGABYTE Z170X-Ultra Gaming Motherboard Review 80 | TweakTown.com

GIGABYTE's Z170X-Ultra Gaming does not have multi-core enhancement enabled by default. It uses Intel's default Turbo bins and doesn't push all CPU cores to the maximum frequency at stock.

Once I overclocked to the 4.5G profile, the performance of the system matched or even surpassed that of others. The increase in performance could be due to improved microcode since it's been a while since we did a Z170 motherboard review and the microcode is more recent.

Some motherboard reviews put a lot of weight into motherboard CPU, memory, and GPU benchmarks, but for me, CPU, memory, and GPU benchmarks on motherboards should be more about finding anomalies, and I do that at standard settings (4.5G in graphs).

System IO Benchmarks

CrystalDiskMark SATA6G:

GIGABYTE Z170X-Ultra Gaming Motherboard Review 81 | TweakTown.com

CrystalDiskMark M.2:

GIGABYTE Z170X-Ultra Gaming Motherboard Review 82 | TweakTown.com

CrystalDiskMark USB 3.0:

GIGABYTE Z170X-Ultra Gaming Motherboard Review 83 | TweakTown.com

ixChariot Network Throughput:

GIGABYTE Z170X-Ultra Gaming Motherboard Review 84 | TweakTown.com

The Z170X-Ultra Gaming has solid IO performance when it comes to storage. The reason the M.2 speeds are so much faster is because I have switched the M.2 drive from a Kingston Predator 240GB module to a Samsung 950 Pro.

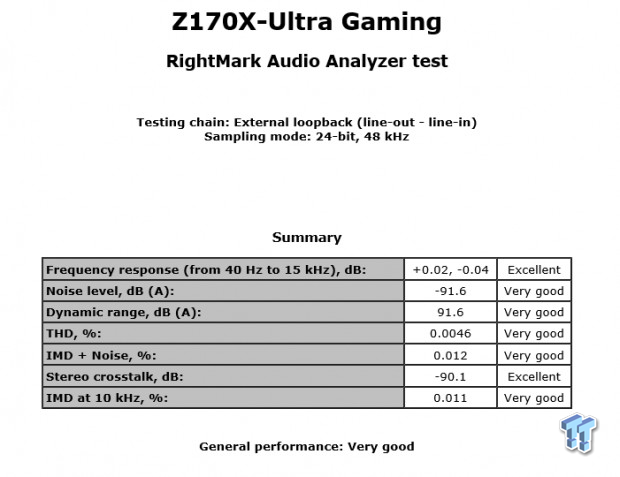

Audio RMAA 5.5:

I disable all audio features, set the correct bitrates, and then test the audio with a loopback test.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 85 | TweakTown.com

Sound Judgment by Ear: Acceptable. With its ALC892 the motherboard does a decent job, but it could be better. There are five ratings for audio: 1. Problems, 2. Okay, 3. Acceptable, 4. Very good, 5. Excellent

Thermal Imaging and Power Consumption

System power usage is measured at the AC/DC PSU (the Corsair AX1200i) which I have connected to another system to measure the test system, and as a backup, I have a wall meter to verify. The CPU power is measured through the 8-pin connector, which is hooked up to a hall effect IC, which measures current and puts out a voltage in proportion to the current. That voltage is logged by a National Instruments ADC, which logs the DC voltage level that I then convert into current.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 86 | TweakTown.com

Note on Thermal Images: In the temperature section, we use our Seek thermal imaging camera to capture the surface temperatures of major components on the board. I look at the VRM and then all other things that light up the screen. If there is something to worry about, then I will state it. Otherwise, I will just show the hotter running parts of the board for fun. Unless some component is over 80-90C, then there isn't anything to worry about.

All systems will act differently, so I will look for commonalities, such as how far from the VRM the heat spreads through the PCB and the difference in temperature between the front side and backside of the PCB. Keep in mind, the majority of the heat from the VRM goes into the PCB as it is a giant soldered on copper heat sink. A larger difference in temperature between the back and front of the PCB points towards a more effective heat sink.

Thermal Testing at Stock Speeds:

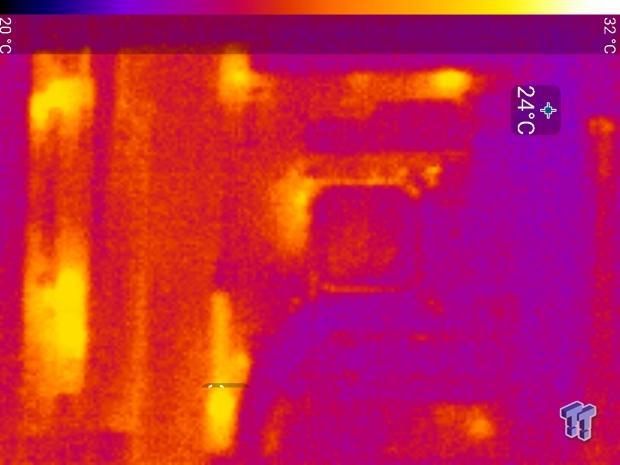

The image on the left is always at idle, and the image on the right is at load. During ALL TESTS, fans above the VRM that cool the CPU cooler's (Corsair H110i GT) radiator are turned on to high (12v).

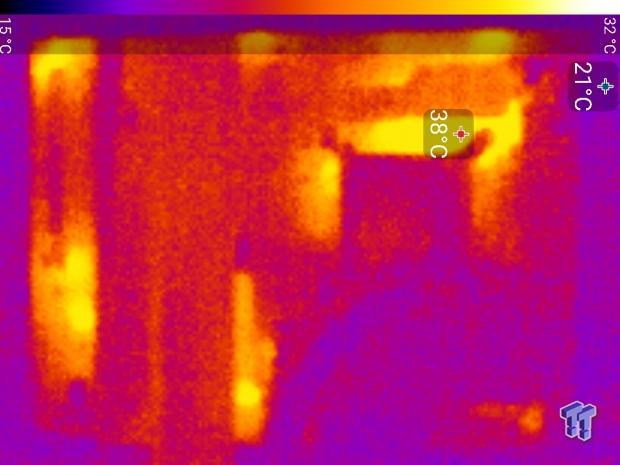

GIGABYTE Z170X-Ultra Gaming Motherboard Review 87 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 88 | TweakTown.com

Full frontal.

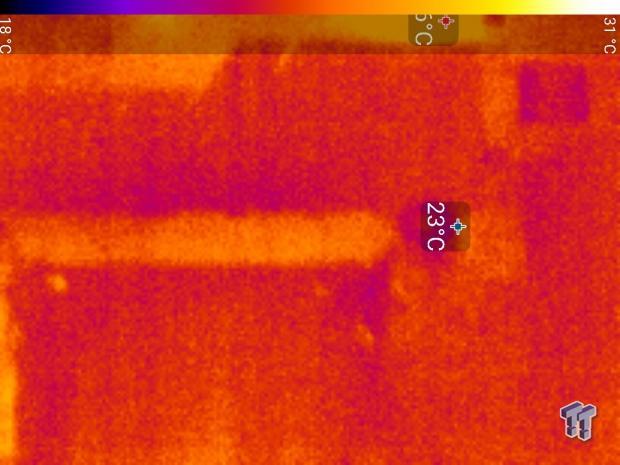

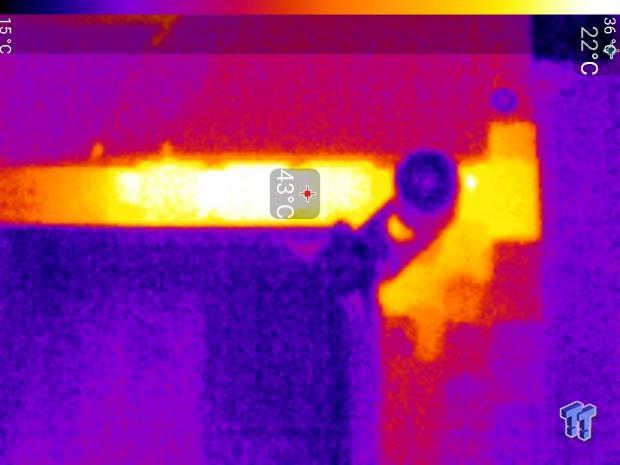

GIGABYTE Z170X-Ultra Gaming Motherboard Review 89 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 90 | TweakTown.com

Up-close of the front of the VRM.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 91 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 92 | TweakTown.com

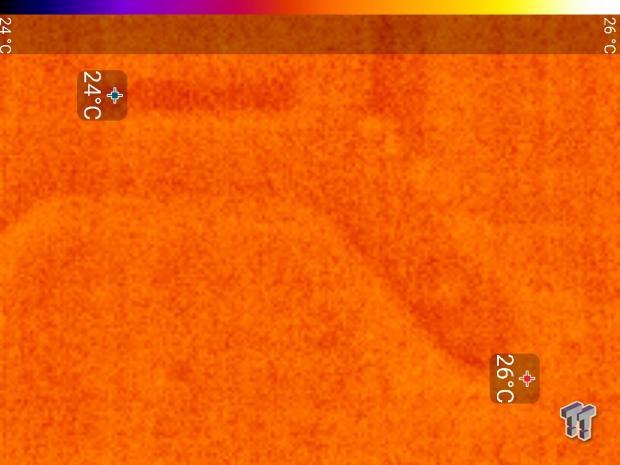

Up-close of the back of the VRM.

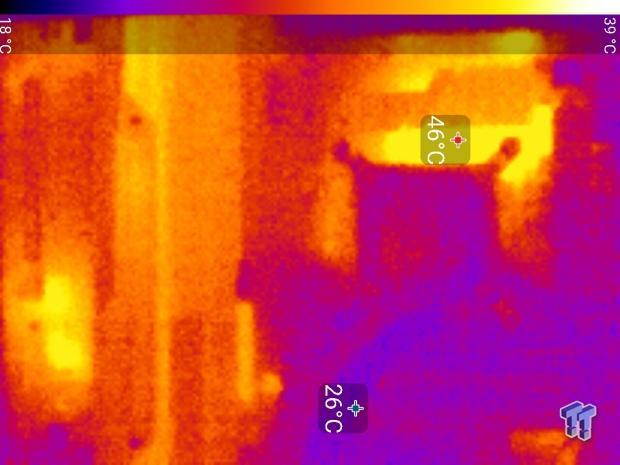

Thermal Testing at 4.5GHz Overclocked Speeds:

The image on the left is always at idle, and the image on the right is at load. During ALL TESTS, fans above the VRM that cool the CPU cooler's (Corsair H110i GT) radiator are turned on to high (12v).

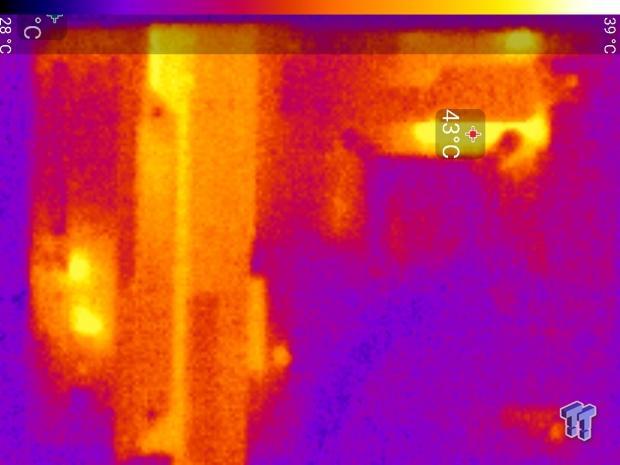

GIGABYTE Z170X-Ultra Gaming Motherboard Review 93 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 94 | TweakTown.com

Full frontal.

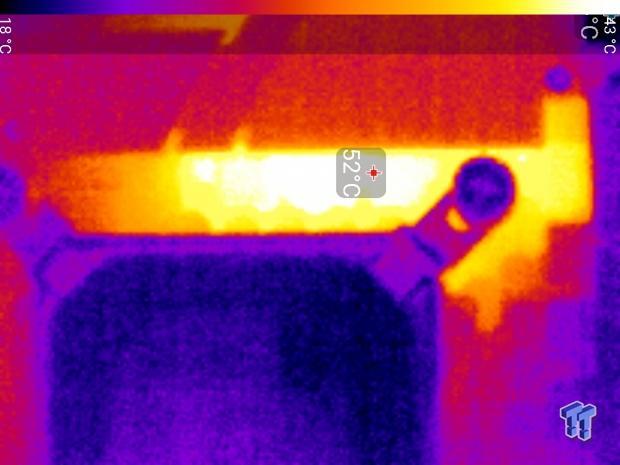

GIGABYTE Z170X-Ultra Gaming Motherboard Review 95 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 96 | TweakTown.com

Up-close of the front of the VRM.

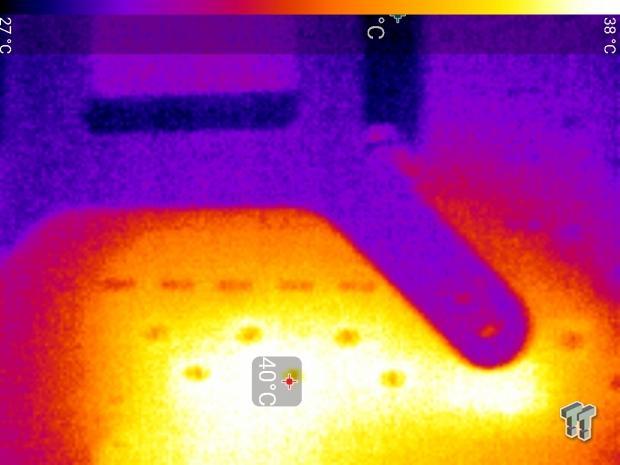

GIGABYTE Z170X-Ultra Gaming Motherboard Review 97 | TweakTown.comGIGABYTE Z170X-Ultra Gaming Motherboard Review 98 | TweakTown.com

Up-close of the back of the VRM.

The VRM on the Z170X-Ultra Gaming uses only four VRM phases for the VCore. Granted, most motherboards with eight phases on the Z170 platform are really just four phases doubled, but they usually have double the components.

Idle temperatures are quite good, but load temperatures are in line with what you might expect from a smaller VRM. Temperatures didn't exceed 60C, which still makes the results excellent, but they could have been better if GIGABYTE used more phases or a higher quality VRM.

Anything under 60C is great, 60-80C is acceptable, and anything above 80C is a bit worrisome (if at stock).

What's Hot, What's Not & Final Thoughts

Here are key points about the GIGABYTE Z170X-Ultra Gaming.

What's Hot

NVMe Storage Delight: The Z170X-Ultra Gaming carries U.2 and M.2 ports, each can operate at 32Gb/s and support the latest in NVMe storage. You can even RAID the U.2, M.2, and last PCI-E x16 slot because of the way GIGABYTE has set up the storage subsystem of the motherboard. The motherboard fully supports the latest in connectivity; it's even written on the PCB. What I like about the design is that there is little switching (other than disabled SATA ports), so you can use U.2 without affecting the M.2 port.

Thunderbolt 3 and 100W USB PD2: GIGABYTE originally launched the Z170X-Ultra Gaming with the correct hardware for Thunderbolt 3, but without the certification. They weren't able to advertise it, but since its initial release, GIGABYTE has received certification, and instructions on how to update your Z170X-Ultra Gaming to provide Thunderbolt 3 are on GIGABYTE's product page.

While Thunderbolt 3 on such an inexpensive motherboard is quite awesome, 100W USB Power Delivery 2.0 support is even more impressive. GIGABYTE has implemented a step up converter, allowing a maximum output of 20v at 5A, which is part of USB specifications. The Z170X-Ultra Gaming is ready for the future of USB.

Color Neutral: The matte black PCB matched with the black heat sinks and shield produces a very color neutral motherboard. With the red LEDs turned off, the Z170X-Ultra Gaming could match almost any color scheme your heart desires.

BIOS and Fan Control: GIGABYTE's new UEFI was easy to navigate and feature rich. They have added in GUI based fan control which makes installing fan control software in Windows redundant, so you don't need to bloat your OS. The new UEFI has good LED control too, making Windows software unnecessary. While I understand that some people are hesitant to enter the UEFI at all, it's better to have the option to change things in the UEFI instead of in Windows, since a lot of the software can cause issues. GIGABYTE's latest generation of UEFI BIOS provides users much more flexibility than before.

What's Not

Onboard Audio: Many people don't care that much about onboard audio, but some do. GIGABYTE used an ALC892 instead of the common ALC1150 with amplifiers, and because of this audio, performance is slightly poorer compared to other motherboards.

No RGB LEDs: If GIGABYTE had put on RGB LEDs on this motherboard rather than red LEDs, they would have had one killer product on their hands. The motherboard's color neutral black would have gone great with RGBs allowing users to change the color theme to whatever they choose, but alas we only get red.

VRM not Over-Built: The Z170X-Ultra Gaming's VRM is what I would consider the minimum for overclocking a 6700K. You will be able to pull off a 4.5-4.8GHz 24/7 OC, but anything over that might be pushing it.

Final Thoughts

GIGABYTE's Z170X-Ultra Gaming is a feature-loaded product at a very fair price. At $170, it offers Thunderbolt 3 with 100W USB Power Delivery 2 support, U.2, M.2, Intel NIC, and a sleek heat sinks/shield design. My biggest gripe with the product is that it uses red LEDs instead of RGBs. If you want a red color theme, and many of you do, then this product hits the nail on the head when it comes to aesthetics, but for some of us who would prefer to choose our color, it could be a bit on the duller side of things. Apart from aesthetics, motherboard performance was top notch.

GIGABYTE Z170X-Ultra Gaming Motherboard Review 99 | TweakTown.com

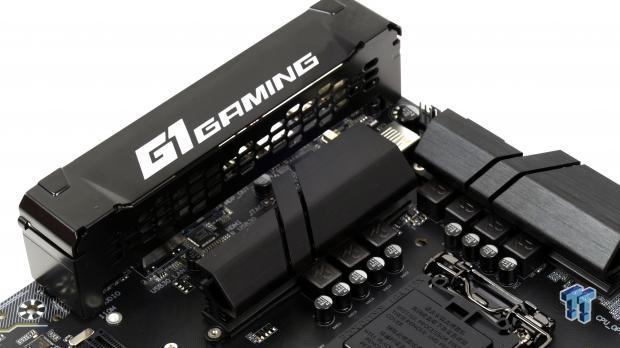

The Z170X-Ultra Gaming is what I would consider a Z170 refresh model. It has much of what was missing from earlier GIGABYTE Z170 motherboards, including better UEFI fan control, U.2, and Thunderbolt 3. Since the product costs only $170 and offers so many premium features, you are going to take a hit in some feature aspects. I have to say that giving up higher quality onboard audio for other features is a good trade. The Z170X-Ultra Gaming is an excellent value for any gamer who wants to run the latest connectivity, have excellent support for future Type-C peripherals, and wants something that looks great in red.

TweakTown award
Performance (including Overclocking)91%
Quality including Design and Build89%
General Features92%
Bundle and Packaging86%
Value for Money95%
Overall91%

The Bottom Line: GIGABYTE's Z170X-Ultra Gaming is loaded with all the latest in premium features, including Thunderbolt 3, U.2, and 100W USB PD2 support at a price that is very hard to beat.

PRICING: You can find products similar to this one for sale below.

USUnited States: Find other tech and computer products like this over at Amazon.com

UKUnited Kingdom: Find other tech and computer products like this over at Amazon.co.uk

AUAustralia: Find other tech and computer products like this over at Amazon.com.au

CACanada: Find other tech and computer products like this over at Amazon.ca

DEDeutschland: Finde andere Technik- und Computerprodukte wie dieses auf Amazon.de

Steven went from a fledgling forum reader in 2003 to one of the internet's brightest tech stars by 2010. Armed with an information systems degree, a deep understanding of circuitry, and a passion for tech, Steven (handle Sin0822) enjoys sharing his deep knowledge with others. Steven details products down to the component level to highlight seldom explained, and often misunderstood architectures. Steven is also a highly decorated overclocker with several world records.

We openly invite the companies who provide us with review samples / who are mentioned or discussed to express their opinion. If any company representative wishes to respond, we will publish the response here. Please contact us if you wish to respond.

Related Tags

Newsletter Subscription

Latest News

View More News

Latest Reviews

View More Reviews

Latest Articles

View More Articles
