Today Tyler takes a close look at Areca's ARC-8050T2, a Thunderbolt 2 8-Bay RAID Tower DAS. Read on as he gives us his full thoughts in his review.

@TylerBernath
Published Wed, Jul 30 2014 9:08 AM CDT   |   Updated Tue, Apr 7 2020 12:33 PM CDT
Rating: 94%Manufacturer: Areca

Introduction & Pricing, Availability and Specifications

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 01 | TweakTown.com
VIEW GALLERY - 50 IMAGES

Over the past few months, we have enjoyed a tremendous amount of Thunderbolt and Thunderbolt 2 solutions coming through the lab. Until recently, the LaCie 5Big Thunderbolt we reviewed late last year was the most ambitious platform we have tested.

Today, things change quite a bit for myself, as we take things to an entirely new level of Thunderbolt storage with the Areca ARC-8050T2. The 8050T2 as we will call it from here on out, is a complete 6Gb/s SAS capable RAID storage solution, with compatibility on both Mac and Windows platforms. The 8050T2 utilizes a dual-core 800MHz RoC with 1GB of DDR3 memory and supports a hardware RAID 6 engine allowing for two drive failures without impacting data retention.

Another feature of the 8050T2 is its intelligent power function, which allows the RAID box to turn on and off with the host system to enhance data integrity. In addition to this, the Areca 8050T2 supports a backup battery option that protects all data in cache in the event of power loss.

Let's take a close look at it now.

Pricing, Availability and Specifications

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 02 | TweakTown.com

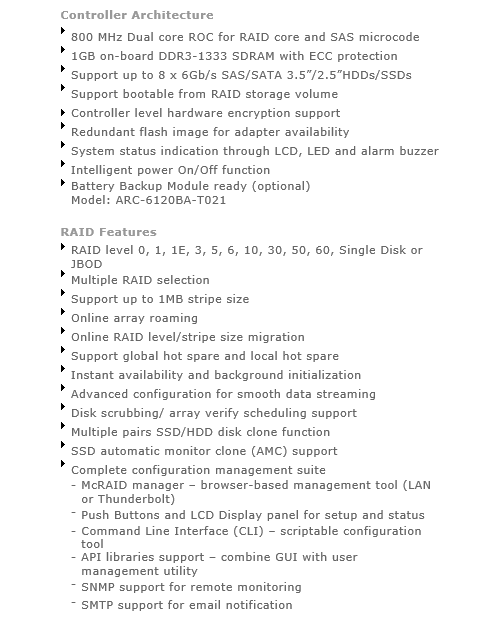

Above we have the simplified specifications for the ARC-8050T2. As you can see, the RAID box supports eight 6Gb/s SAS or SATA SSDs or HDDs, along with that it can be set as a bootable volume from Thunderbolt capable Macintosh computers.

RAID levels include 0, 1, 3, 5 and 6, along with higher levels 10, 30, 50 and 60. In addition, we have support for multiple RAID and stripe size up to 1MB.

MSRP for the Areca ARC-8050T2 is set at $1799.99 with a three-year warranty. Availability is high at this point with many online retailers having the unit in stock.

PRICING: You can find the Areca ARC-8050T2 DAS for sale below. The prices listed are valid at the time of writing but can change at any time. Click the link to see the very latest pricing for the best deal.

United States: The Areca ARC-8050T2 DAS retails for $1799 at Amazon.

Areca ARC-8050T2 Thunderbolt 2

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 03 | TweakTown.com

Packaging for the 8050T2 carries an image of the RAID box on the front with the Thunderbolt logo displayed prominently in the center.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 04 | TweakTown.com

The top of the box details further specifications, along with a checklist of what is inside the box.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 05 | TweakTown.com

Here we have the scope of delivery; this includes reading materials, driver CD, along with a Thunderbolt cable, Ethernet cable and power cord.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 06 | TweakTown.com

Above we get our first look at the 8050T2. The unit carries an overall black aesthetic with silver drive trays. The center of the unit houses the two line LCD with buttons to control below it.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 07 | TweakTown.com

The back of the 8050T2 houses dual Thunderbolt 2 ports. In the center, we have the power supply and Ethernet below to the right.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 08 | TweakTown.com

Removing the outer shell of the RAID box, we get our first look inside. The power supply is mounted in the center with four bays flanking above and below.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 09 | TweakTown.com

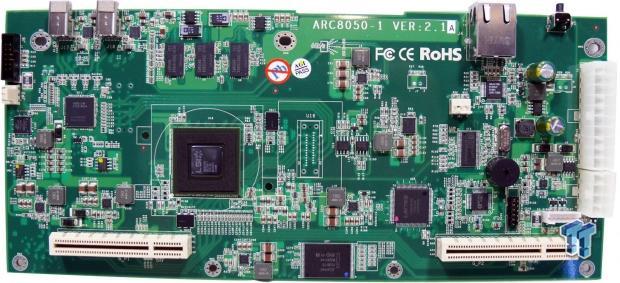

Here we have a look at the motherboard for the 8050T2. The bottom left and right hold the PCIe slots for the backplanes.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 10 | TweakTown.com

Here we have the Intel DSL5520 four-channel Thunderbolt controller.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 11 | TweakTown.com

Above, we have the LSI SAS2208 RoC with Samsung DRAM to the right.

Test System Setup and Web Management

Test System Setup

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 100 | TweakTown.com Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 101 | TweakTown.com
Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 17 | TweakTown.com

In testing the performance of Thunderbolt storage solutions, we utilize the Apple MacBook Pro Retina Late 2013 model, which as of this article is running OS X 10.9.1. Full system specifications are available above. To create RAID volumes in OS X I use Apple Disk Utility with 64K stripe size.

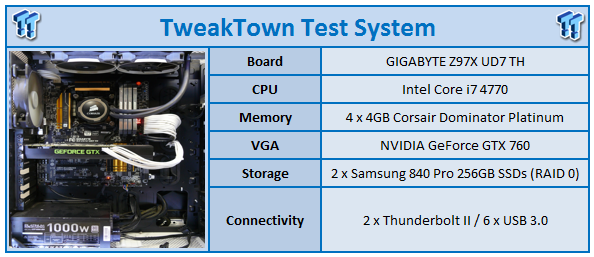

In addition to this, we use a Windows test system seen above for Thunderbolt appliances that support. Benchmarks used in Windows include IOMeter 1.1; all volumes use a 128K-stripe size and are tested without a file system.

AJA System Test

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 98 | TweakTown.com

Check the performance of any drive on your system to ensure it is tuned for the performance you need.

Areca Web Management

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 20 | TweakTown.com

Starting out with the web management GUI, we look at the system information tab. Here we can see the firmware information along with more detailed information about the RoC.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 21 | TweakTown.com

Next up we look at our RAID set hierarchy.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 22 | TweakTown.com

The hardware monitor tab, gives information about the temperatures inside the unit.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 23 | TweakTown.com

The ARC-8050T2 supports SNMP where you can setup then monitor your RAID tower remotely.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 24 | TweakTown.com

Next up we look at the Ethernet configuration, here you can setup the 8050T2 for remote access.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 25 | TweakTown.com

In the next menu, we have the RAID stagger power control.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 26 | TweakTown.com

The advanced configuration menu allows you to change TLER, along with optimize the Areca for streaming.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 27 | TweakTown.com

System configuration allows simpler setup options such as SATA NCQ and Disk Write Cache mode.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 28 | TweakTown.com

Here we have a mixed drive set in the Areca unit. Within the RAID set menu, you can create multiple arrays to suite your needs.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 29 | TweakTown.com

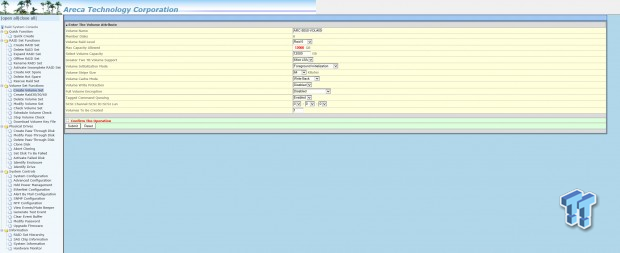

Here we have setup a 12TB RAID 6 array. Within this menu, you can setup multiple volume for each RAID set.

Benchmarks - 4K Random and 128K Sequential Workloads

Random and Sequential Workloads with HDDs

All testing below was done with eight WD Red 2TB drives.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 30 | TweakTown.com

Random read was rather impressive across all arrays. As you can see at QD32, we were able to reach 600 IOPS across the board.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 31 | TweakTown.com

Random write was quite good with RAID 0, while RAID 10 came in at 1160 IOPS at QD32.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 32 | TweakTown.com

RAID 0 and RAID 5 paved the way with sequential, reaching 719 MB/s and 722 MB/s, respectively.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 33 | TweakTown.com

RAID 0 again was the quickest array with sequential write, coming in at 702 MB/s.

Random and Sequential Workloads with SSDs

All testing below was done on eight SanDisk Extreme Pro 256GB SSDs.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 35 | TweakTown.com

Above, we have our very first test run with SSDs. As you can see, we maxed out Thunderbolt 2 at 63,284 random read IOPS.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 36 | TweakTown.com

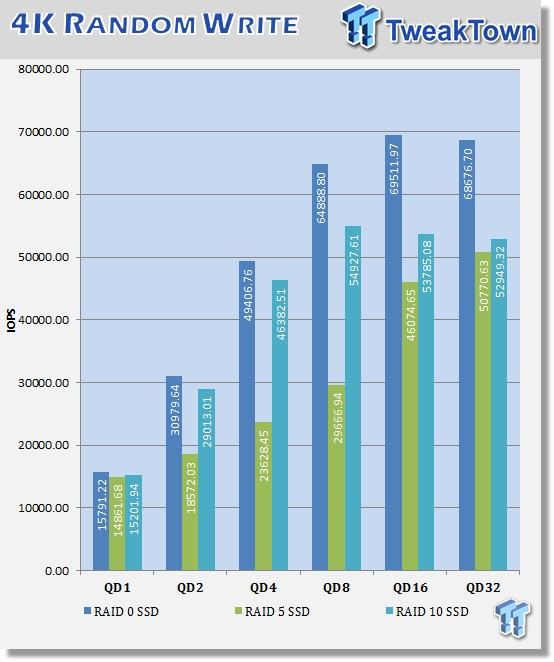

Random write IOPS came in at 69,511 at QD16.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 37 | TweakTown.com

Sequential read for the Areca came in at 1448.4 MB/s at QD32.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 38 | TweakTown.com

Sequential write came in at 1386.7 MB/s at QD32 with our RAID 0 array.

Benchmarks - Latency and Mixed Workloads

Page 5[Benchmarks - Latency and Mixed Workloads]

Latency

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 39 | TweakTown.com

Random read latency was the best with the SSDs as expected, while the HDD arrays had RAID 10 as the quickest.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 40 | TweakTown.com

Random write had the RAID 0 array as the quickest.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 41 | TweakTown.com

Sequential read latency had the RAID 0 HDD array only 3ms behind the RAID 0 SSD array.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 42 | TweakTown.com

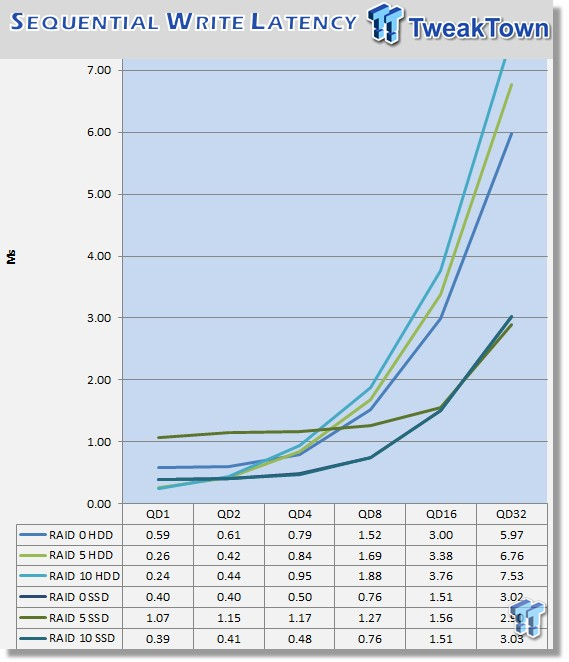

Sequential write had the RAID 5 SSD array as the quickest with the RAID 0 HDD taking honors on the other side.

Mixed Workloads

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 44 | TweakTown.com

Here we have our first mixed workload, OLTP/Database. As you can see, the RAID 0 array excelled here at 475 IOPS.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 45 | TweakTown.com

File Server came in at 504 IOPS at QD32.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 46 | TweakTown.com

Email server furthered the performance at 434 IOPS at QD32.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 47 | TweakTown.com

Web Server had all RAID arrays matched in performance.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 48 | TweakTown.com

Once again, RAID 0 array did the best with Workstation

Benchmarks - AJA System Test

AJA System Test

All of the below benchmark were ran with our Apple MacBook Pro and OS X 10.9.4

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 50 | TweakTown.com

In our 720p workload, the RAID 0 and 10 array showed steady read performance throughout, while the RAID 5 array showed some jitter.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 51 | TweakTown.com

720p write looked more like a heart rate machine than a benchmark result, as you can see performance was a bit erratic.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 52 | TweakTown.com

1080p read showed a peak of 1340 MB/s for RAID 0.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 53 | TweakTown.com

1080p write performance was once again all over the place. After testing, we found this to be a setting within the web config. We were able to clean up these tests by setting the number of streams to six.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 54 | TweakTown.com

4K read calmed the chart down quite a bit. At its peak, the RAID 0 array touched 1400 MB/s.

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 55 | TweakTown.com

4K write had the RAID 0 array showing a lot of variability. This was cleaned up after testing by optimizing the number of streams to a value of six.

Final Thoughts

Areca ARC-8050T2 Thunderbolt 2 8-Bay RAID Tower DAS Review 99 | TweakTown.com

Our first impression of the Areca ARC-8050T2 was one of awe. For starters, this is the very first enterprise level Thunderbolt solution to come through the lab, and because of this, it enables you access to a completely separate tier of options in configuring your storage. With the Areca unit, you can utilize multiple RAID sets with multiple volumes, giving you the utmost in flexibility, while maintaining data integrity.

The performance of the 8050T2 was nothing but spectacular with our eight SanDisk Extreme Pro SSDs installed. These drives allowed us to take Thunderbolt to the extreme and peak out at a very impressive 1444 MB/s in RAID 0. With hard drives, performance suffered only sparingly and we were still able to reach 722 MB/s with our WD Red 2TB drives. Of course, with this unit able to utilize SAS HDDs, the options for storage capacity and performance are basically endless.

One feature of the 8050T2 I really enjoyed was the ability to boot my MacBook Pro Retina from the array, actually surpassing the storage performance of the built-in m.2 SSD by a fair margin, while having the ability to enjoy a literal tower of capacity. The only downfall I was able to source out on the Areca ARC-8050T2 was that the unit did not respond when trying to use an optical Thunderbolt cable, which I do assume is from the intelligent power function of the device, and as such lacks a power button.

Overall, the Areca ARC 8050T2 is a rather impressive Thunderbolt solution and being an Areca product has more options unlocked allowing top tier control of your storage.

PRICING: You can find the Areca ARC-8050T2 DAS for sale below. The prices listed are valid at the time of writing but can change at any time. Click the link to see the very latest pricing for the best deal.

United States: The Areca ARC-8050T2 DAS retails for $1799 at Amazon.
