GIGABYTE unleashes a dual-CPU workstation motherboard equipped with enough PCIe lanes to run four video cards and SAS storage options. Let's check it out.

@William_Harmon_
Published Mon, Apr 7 2014 9:00 AM CDT   |   Updated Tue, Apr 7 2020 12:32 PM CDT
Rating: 94%Manufacturer: GIGABYTE

Introduction and Packaging

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 01 | TweakTown.com
VIEW GALLERY - 52 IMAGES

Long known for making excellent enthusiast class motherboards, GIGABYTE is now using that knowledge on a dual-socket 2011 workstation class board called the GA-7PESH3.

Workstation class motherboards demand high reliability and excellent performance, which is something GIGABYTE is well known for.

This motherboard has a large amount of features, so let us look what this motherboard has to offer. The latest BIOS version R14 supports the Intel Xeon Processor E5-2600 V2 family. This includes the E5-2697 V2, which has 12 cores/24 threads.

This motherboard supports four-way SLI and CrossFireX, and it can also handle NVIDIA Tesla, Intel Xeon Phi co-processors, NVIDIA Quadro, and AMD FirePro cards. For storage options, the GA-7PESH3 includes eight SAS 6Gb/s ports.

Let us look at what you get in the retail package.

Packaging

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 02 | TweakTown.com

Here we see the front of the retail box, which shows that this motherboard is SLI, VMWare and Red Hat certified.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 03 | TweakTown.com

Looking at the back of the retail box, we see the main attributes of the product, which is reliability, availability, and serviceability.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 04 | TweakTown.com

Opening the box, we see the motherboard in an antistatic bag and foam inserts to protect the motherboard.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 05 | TweakTown.com

After we remove the motherboard and cardboard insert, we find all the motherboard accessories underneath.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 06 | TweakTown.com

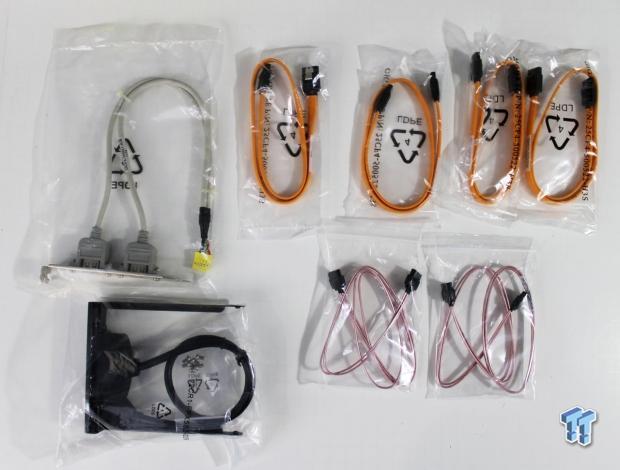

The accessories in the retail package include:

- Six SATA connectors

- One USB expansion via header

- One USB 3.0 expansion via header

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 07 | TweakTown.com

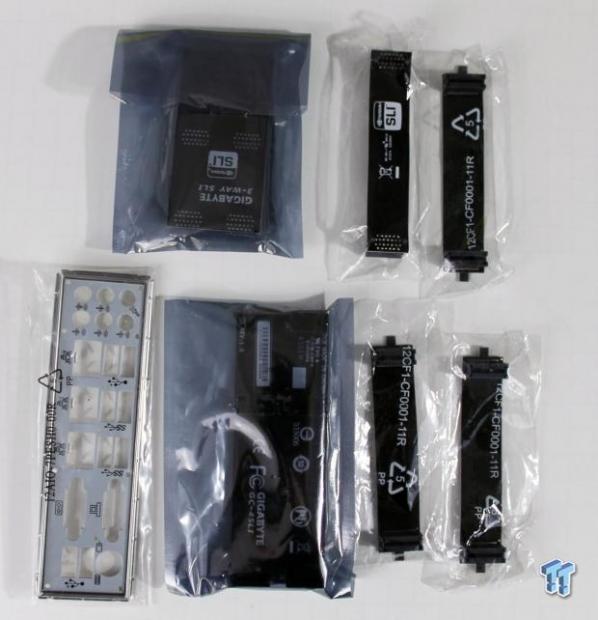

Additional accessories are the back I/O plate and SLI and Crossfire bridges.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 08 | TweakTown.com

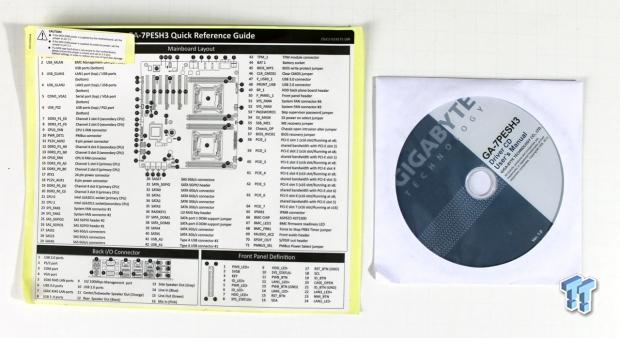

Also included in the accessory package is a quick reference guide and a driver disk.

Specifications and Layout

Specifications

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 09 | TweakTown.com

One of the first things we noticed was the eight SAS 6Gb/s ports, which is a big plus for storage uses.

The GA-7PESH3 has remote management built into the motherboard, which allows use in a server role as well as a workstation.

This board also has a full load out of PCIe slots, which enable the use of four video cards.

Layout

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 10 | TweakTown.com

Overall layout of the GA-7PESH3 is typical for boards of this type. We see the same issue of RAM slot locations that we see in other boards. The orientation of the RAM slots can block airflow, and depending on the heat sinks used, it can block the use of tall memory sticks.

Even with the large Noctua heat sinks we used, we did not have a RAM cooling problem, but we used an open-air bench setup. Keep this in mind when deciding on a case to use for this motherboard.

The general layout of the board is very clean, and when installed into a case, case fan locations should blow across the motherboard.

One other issue we had with the board was the location of the power connectors and the heat sinks next to them. The left hand 8-pin connector and the main 24-pin connector are very close to heat sinks. Plugging in the power connectors was no problem, but taking them out was another story. We could not get our fingers in between the connector and the heat sink and had to use a screwdriver to push in the release tab.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 11 | TweakTown.com

This is the left side of the motherboard. Here we can see the headers used on this motherboard.

At the very top of the motherboard is the audio header. On the left side, we see two fan (white) headers. Next is the front panel header. Below that is an HDD back plane header. Next is a header for USB 2.0 There are additional jumpers between the PCIe slots. PCIe slot #1 is on the far left.

Between PCIe #1 & PCIe #2:

PCIE_SW1 shares bandwidth switch

1-2 Close: PCIE SLOT1 X16, PCIE SLOT2 X0

2-3 Close: PCIE SLOT1 X8, PCIE SLOT2 X8

Between PCIe #2 & PCIe #3:

The top white connector is IPMB1 IPMB connector

Then below the white connector is:

JP_PLD_DB Power Debug mode

JTAG1 CPLD Debug mode

Between PCIe #4 & PCIe #5:

Top Jumper:

PMBUS_SEL PMBus Power Select jumper

1-2 Close: PMBus connects to PCH.

2-3 Close: PMBus connects to BMC. (Default setting)

Bottom Jumper:

PCIE_SW2 shares bandwidth switch

1-2 Close: PCIE SLOT3 X16, PCIE SLOT4 X0

2-3 Close: PCIE SLOT3 X8, PCIE SLOT4 X8

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 12 | TweakTown.com

Starting from where we left off, the next two connectors are two Type A USB 2.0 connectors. Below the USB connectors are two SATA (black) 3Gb/s connectors. Next, we see two SATA (red) 6Gb/s connectors. To the left side of those, we have two SATA (black) 3Gb/s connectors.

Next, we see at the bottom left of the board eight white SAS 6Gb/s connectors. The two black headers just to the right of the SAS connectors are the SAS SGPIO headers #1 and #2. And just below those are two white fan headers.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 13 | TweakTown.com

Seven PCIe slots are on the board, which break down like this.

PCIe slot #1 starts of the left.

PCIe slot 1 (x16 slot/Running at x8; shared bandwidth with PCI-E slot 2)

PCIe slot 2 (x16 slot/Default running at x16; running x8 when PCI-E slot 1 is populated)

PCIe slot 3 (x16 slot/Running at x8; shared bandwidth with PCI-E slot 4)

PCIe slot 4 (x16 slot/Default running at x16; running x8 when PCI-E slot 3 is populated)

PCIe slot 5 (x16 slot/Running at x8; shared bandwidth with PCI-E slot 6)

PCIe slot 6 (x16 slot/Default running at x16; running x8 when PCI-E slot 5 is populated)

PCIe slot 7 (x16 slot/Running at x16)

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 14 | TweakTown.com

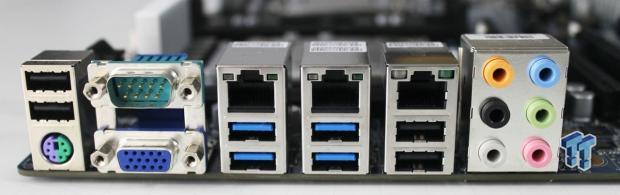

Here we can see the backside I/O. On the left, we have two USB 2.0 ports with a PS/2 port just below. Next is a COM port with the video port below. The next two stacks have an RJ45 LAN Port with two USB 3.0 ports below. Next is the KVM Server Management 10/100 LAN Port with two USB 2.0 ports below. The last stack contains the audio outputs.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 15 | TweakTown.com

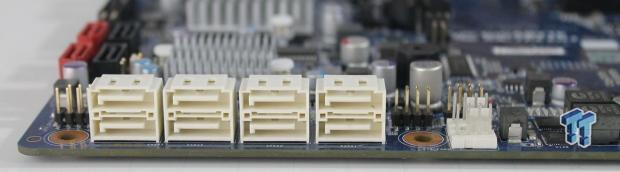

At the front of the motherboard, we see the eight white SAS 6Gb/s connectors.

BIOS

The BIOS for this motherboard is typical for these motherboards, so we will only show key BIOS screens.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 16 | TweakTown.com

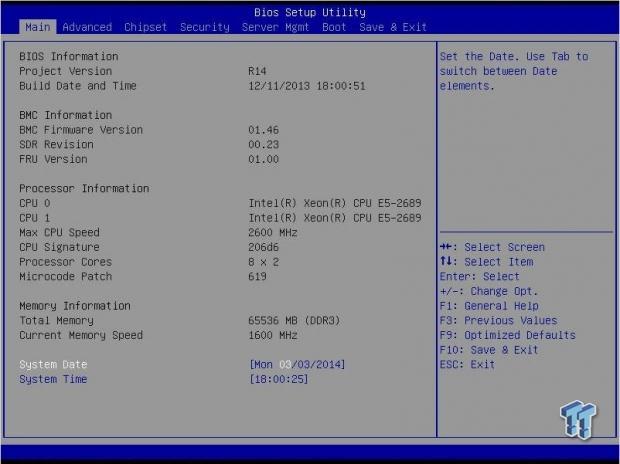

This is the main BIOS screen you see when you first enter the BIOS.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 17 | TweakTown.com

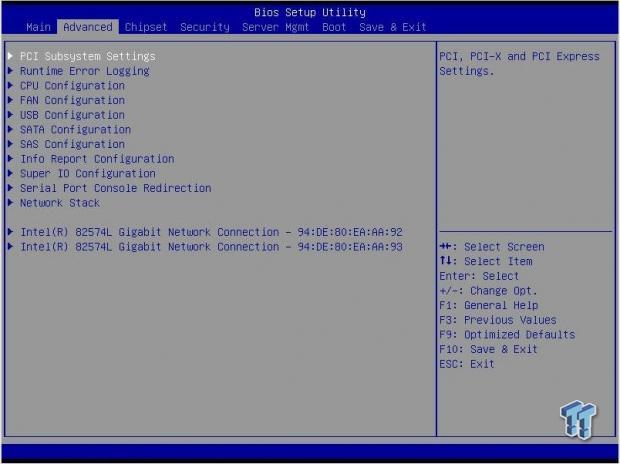

The next menu is the advanced tab, which shows the settings you can change here.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 18 | TweakTown.com

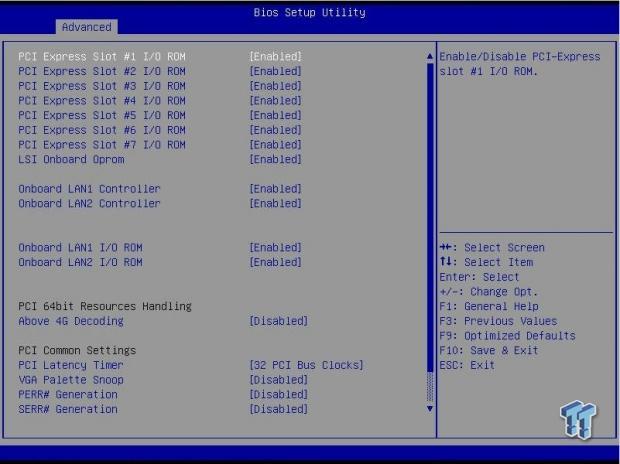

Here we see the advanced PCI subsystem settings tab.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 19 | TweakTown.com

Next is the advanced CPU configuration tab.

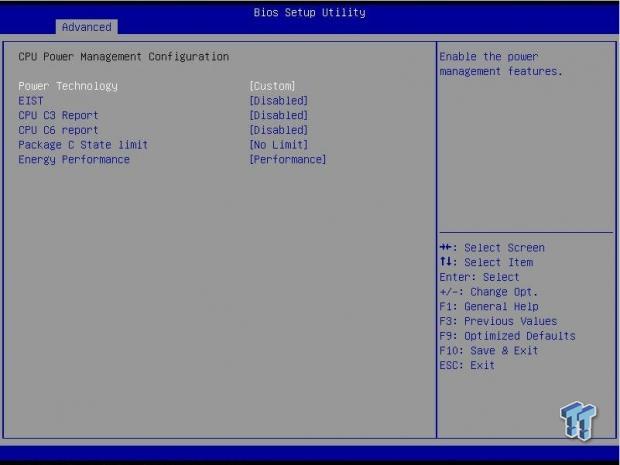

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 20 | TweakTown.com

Here we see the advanced CPU power management configuration.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 21 | TweakTown.com

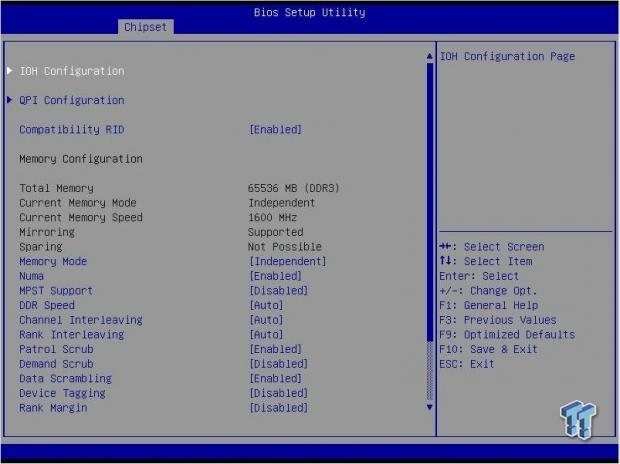

The controls that can be made for the advanced memory (chipset) tab.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 22 | TweakTown.com

Here we see the server management tab. Entering the BMC LAN configuration tab will show the IP address used for remote access.

Software & Remote Access

Software

The GA-7PESH3 comes with one driver disk.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 23 | TweakTown.com

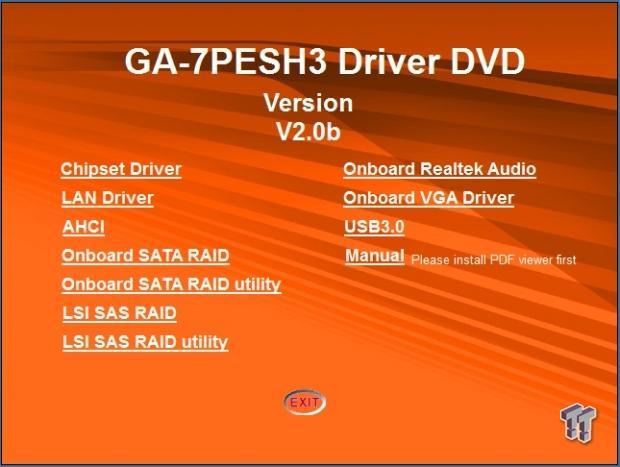

When using Windows Server 2008, we see this screen when you insert the driver disk. Clicking on each item will install the drivers selected.

This disk seems to only auto run in Windows Server 2008. In other operating systems, we had to manually go into the device manager and select each item to browse the disk to find the correct driver.

It also seemed that not all drivers were included on this disk for different operating systems.

For example, in Windows 7, we installed the LAN drivers so we could access the Internet. We then went to GIGABYTE's website and download the rest of the drivers needed and installed them manually.

Remote Access

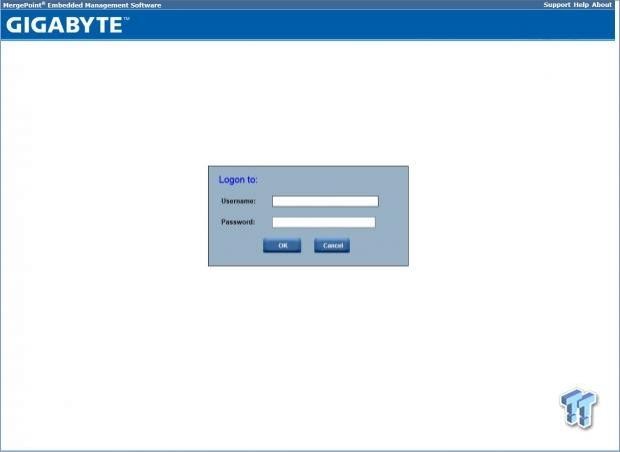

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 24 | TweakTown.com

Some of the IPMI remote management features of this board do not function if there are video cards installed. In order to remote into the machine and operate the BIOS/desktop, you cannot use extra video cards, and this feature will only work with onboard video. All other features of IPMI will function as normal.

To get remote access up and running, enter the BIOS and head over to the server management tab. Move on down to the BMC LAN configuration tab. This will show the IP address used for remote access.

Enter this IP address into your browser and you will see the login page.

Log in using:

Username: admin

Password: password

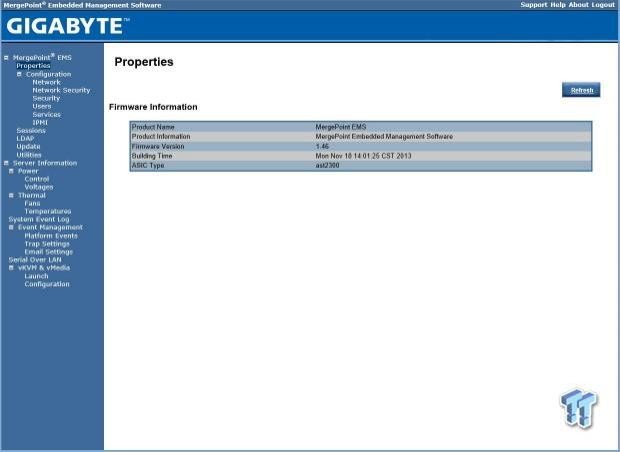

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 25 | TweakTown.com

This is the home page for remote access.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 26 | TweakTown.com

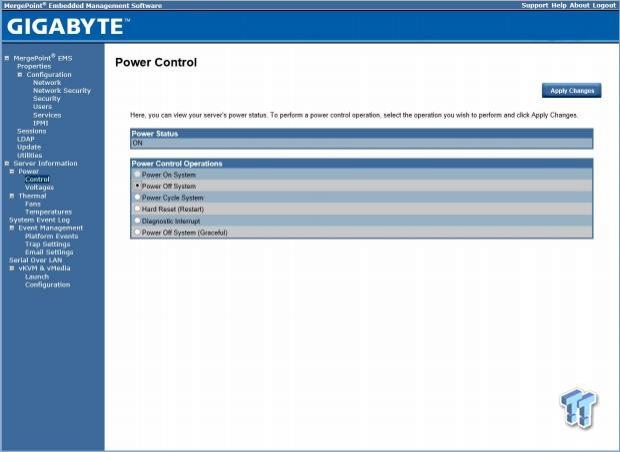

With the power control menu, you can cycle the machine or power it on.

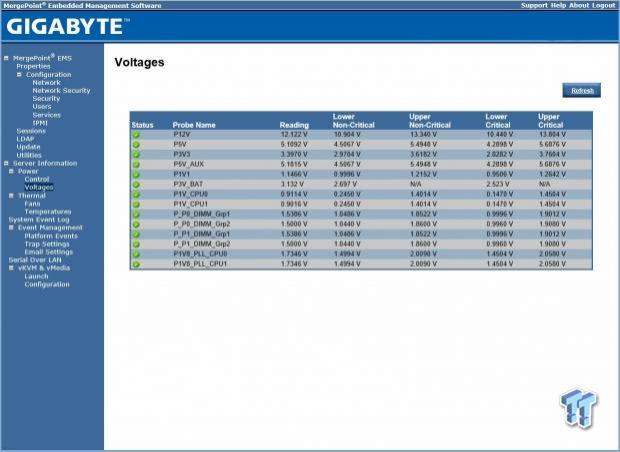

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 27 | TweakTown.com

Here you can see all the voltage levels that the machine is running.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 28 | TweakTown.com

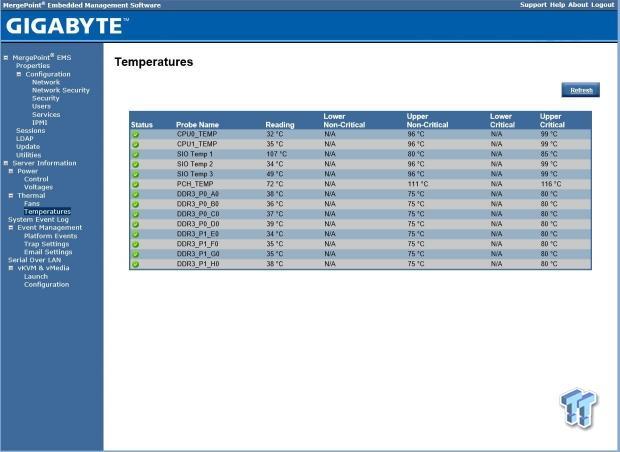

The temperature menu shows all the different temperatures that the machine is running at.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 29 | TweakTown.com

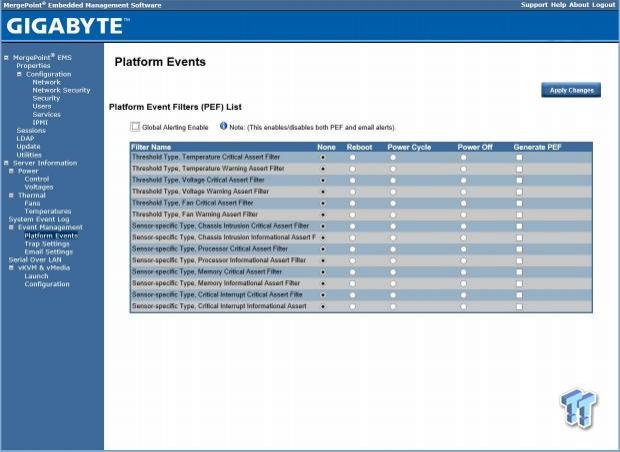

With the platform event menu, you can select what happens when an event occurs.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 30 | TweakTown.com

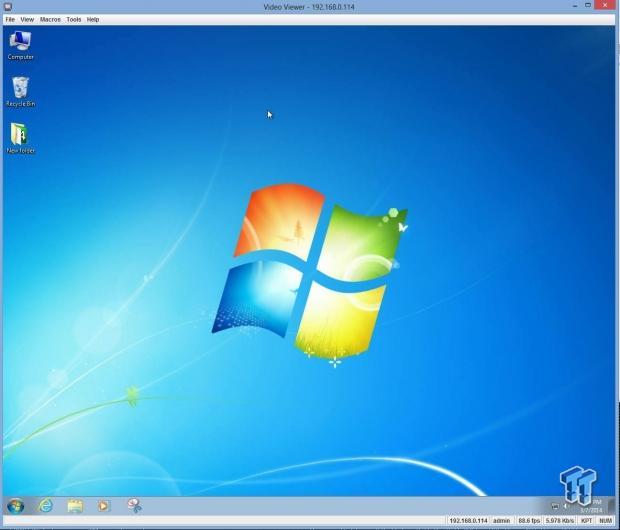

The last menu item is vKVM & vMedia and Launch. This allows you to remote into the machine's desktop and operate it just as if you are sitting in front of the machine.

In order to get to this remote management screen, we had to remove the NVIDIA Quadro K5000.

Test System Setup

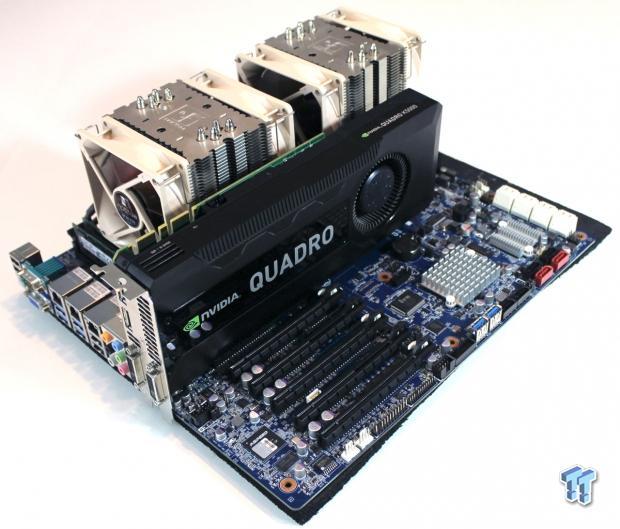

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 31 | TweakTown.com
GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 32 | TweakTown.com

Special thanks to GIGABYTE, NVIDIA, NZXT, SanDisk, Kingston, and Noctua for their support!

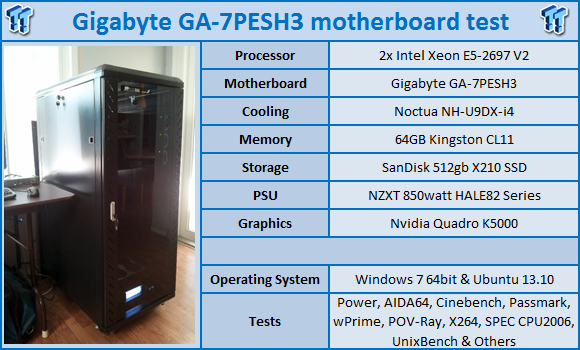

The test setup is typical for a workstation setup. The CPUs used in these tests are two Intel Xeon E5-2697 V2 CPUs. The memory installed is 64GB of Kingston CL11 RAM.

We also used an NVIDIA Quadro K5000 for our graphics tests. This motherboard can handle four GPUs, but we only have one here so that will have to do.

For all tests that we ran, we used optimized BIOS settings for max performance.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 33 | TweakTown.com

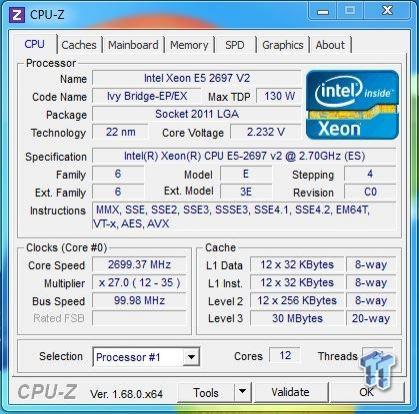

This is the CPUz screen showing the various stats of the Xeon E5-2697 V2 CPUs. As you can see, this CPU has a max TDP of 130 watts.

This CPU has 12 cores, and we are running two of them for a total of 24 cores/48 threads.

System and CPU Benchmarks

Passmark8

PassMark performance test runs 32 tests, including CPU, 2D and 3D graphics, disk, and memory tests, to come up with an overall system ranking that allows you to determine how fast your computer is in comparison with other systems.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 34 | TweakTown.com

In the Passmark tests, we find that higher stock speeds and better graphics score better. The GA-7PESH3 scored very well in this test but came in second place to a machine using E5-2670s.

Cinebench 11.5

Cinebench is a real-world cross platform test suite that evaluates your computer's performance capabilities. The test scenario uses all of your system's processing power to render a photorealistic 3D scene. This scene makes use of various different algorithms to stress all available processor cores. You can also run this test with a single core mode to give a single core rating.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 35 | TweakTown.com

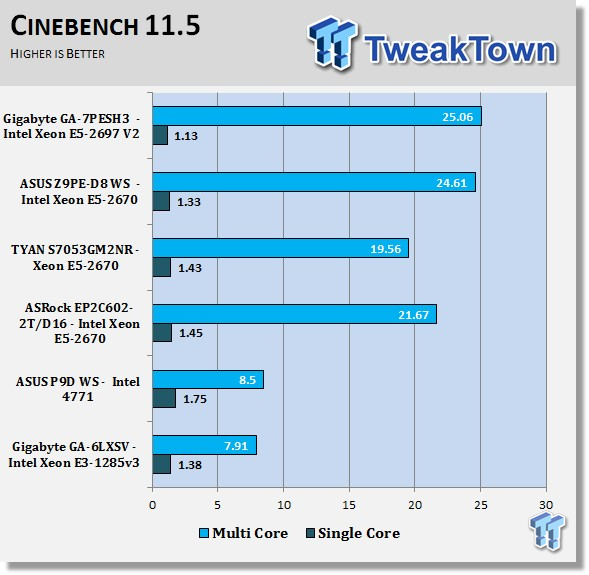

Again, we find the lower stock speeds of the E5-2697 V2s hold this board back in these benches, but it really takes off in the multi-threaded scores as we can see here. Having 48 threads is a real advantage here.

The GA-7PESH3 claimed the number one spot in this test also but only by a small amount.

Cinebench R15

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 36 | TweakTown.com

Just like in the Cinebench 11.5 results, we see a slower single-threaded score and a much higher multi-threaded score.

In this test, the GA-7PESH3 took a strong lead. It really shows the extra performance gain of the E5-2697 V2s with the extra cores they have.

wPrime

wPrime is a leading multithreaded benchmark for x86 processors that tests your processor performance. This is a great test to use to rate the system speed; it also works as a stress test to see how well the system cooling is performing.

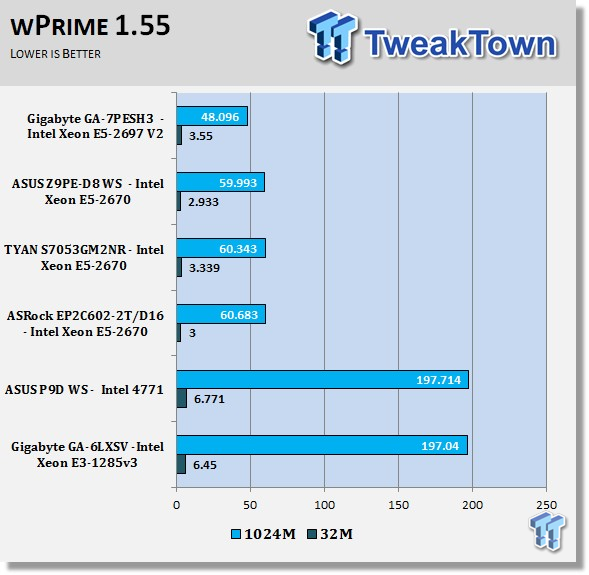

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 37 | TweakTown.com

In this test, we see the GA-7PESH3 is again faster and takes the lead in the dual-CPU category.

POV-Ray

POV-Ray (Persistence of Vision Ray-Tracer) creates three-dimensional, photo-realistic images using a rendering technique called ray tracing. Ray tracing is not a fast process by any means, but it produces very high quality images with realistic reflections, shading, perspective, and other effects.

This is a very good test to stress CPU threads and check memory stability and overclocks to see if the system is stable. The latest version, 3.6, is a free download and has a benchmark utility that we have run for these tests. Results displayed show the average PPS (pixels per second) that the render took.

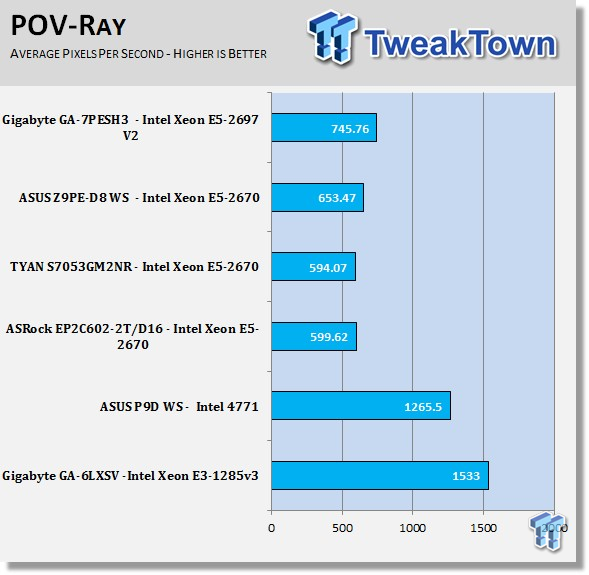

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 38 | TweakTown.com

Single-threaded higher clock speeds will generate higher scores with this bench, so a dual-CPU system does not help this benchmark much.

Here again, we see the GA-7PSH3 takes a strong lead in the dual-CPU category.

x264 HD

x264 HD Benchmark measures how fast your computer can encode a 1080p video clip into a high quality x264 video file. This benchmark uses multi-core/threaded systems very efficiently and is a good memory stability test.

Results in this test are the average of each pass performed four times.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 39 | TweakTown.com

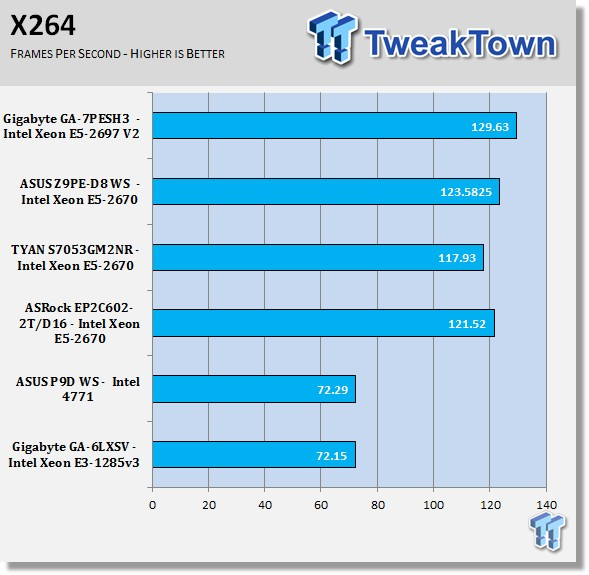

The GA-7PESH3 came in a good second place in the test.

SPECwpc_v1.0.2

SPECwpc_v1.0.2 is a workstation benchmark that measures key aspects of workstation applications.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 40 | TweakTown.com

These tests do put a huge load on the system and take about 8 hours to run on this system. SPECwpc puts a heavy load on the GPU, as well.

In everything but general operations, the GA-7PESH3 with the pair of E5-2697 V2s has taken a strong lead.

Memory Benchmarks

AIDA64

AIDA64 memory bandwidth benchmarks (Memory Read, Memory Write, and Memory Copy) measure the maximum achievable memory data transfer bandwidth.

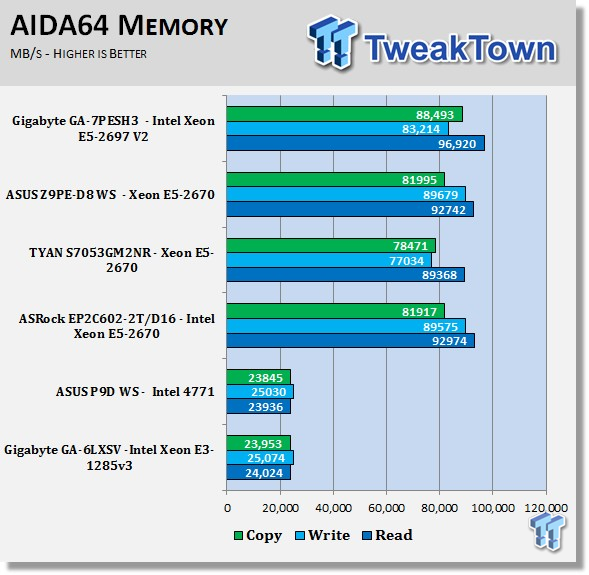

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 41 | TweakTown.com

AIDA64 memory tests show the GA-7PESH3 has a very good memory design and show about the best speeds we have seen yet. The only thing holding this back is memory writes, but it is still faster than some others are.

LinX

LinX 0.6.4 is a CPU benchmark that measures floating-point operations per second, and it is used to compare CPU performance; it is also a very good stress test to run.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 42 | TweakTown.com

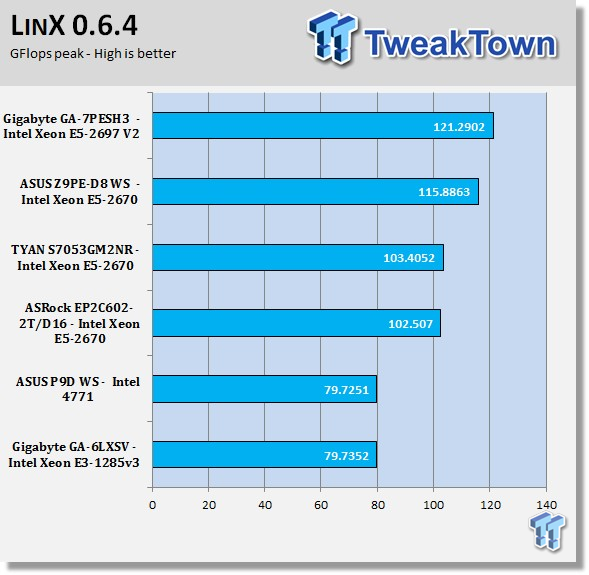

Just like the AIDA memory tests, this board really is pushing memory fast.

UnixBench 5.1.3 and SPEC CPU2006v1.2

UnixBench

UnixBench has been around for a long time now, and it is a good general-purpose benchmark to test on Linux systems.

This is a system benchmark, and it shows the performance of single-threaded and multi-threaded tasks.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 43 | TweakTown.com

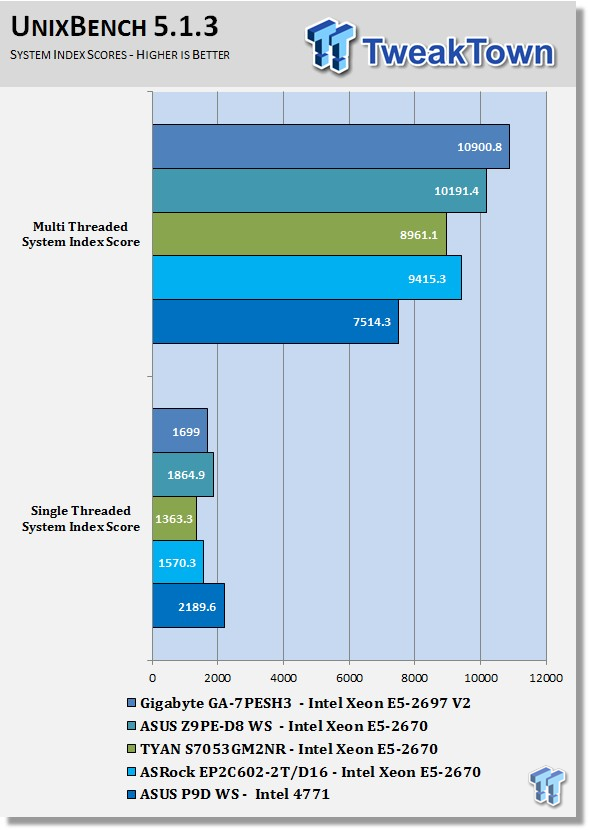

This shows the system indexes after a complete UnixBench run. Here, we get an idea of how much performance gain we get using multi-threaded applications. However, many applications use single threads, so this number is really the base, and a higher clock speed will increase both indexes.

In UnixBench, we get lower scores, and it shows this benchmark is not a strong one for the GA-7PESH3.

SPEC CPU2006v1.2

SPEC CPU2006v1.2 measures compute intensive performance across the system using realistic benchmarks to rate real performance.

When CPU2006 first came out, many complained about how long this benchmark took to run; it could last up to 12 days for a full run. In our tests here, we are seeing runs take a good two full days to run, which shows how much faster CPU architecture is with modern CPUs.

We break the test down into four parts when running in case there is a problem. This way, we do not waste a lot of time doing a run that has issues.

All of our runs are full CPU2006 qualified and could actually be submitted to the SPEC website.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 44 | TweakTown.com

This benchmark has many different commands to use depending on what the user is looking for. For our tests, we used basic commands that run a full test.

Here, you can see the SPEC scores after full runs for Integer (int) and Floating Point (fp) tests. Single-core runs show how fast (speed) a CPU can perform a given task. In the multi-core runs, we set SPEC CPU2006v1.2 to use all threads, and this is a measure of the throughput of the system.

The additional core/threads of this system has a huge impact on performance in these tests and really show the amount of horsepower that a dual-socket system has over a single-socket board

Single-threaded results are still very important, but when you need lots of those to run, moving to a dual-socket setup is the way to go.

We can see that the GA-7PESH3 with E5-2697 V2s takes a very strong lead in multi-threaded benchmarks.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 45 | TweakTown.com

Looking at the results of single-threaded integer runs, we can get an idea of speed at which the Intel Xeon E5-2697 V2s can crunch through the different integer tests. Not all CPUs are equal here, and ones that have a higher speed will generally perform these tests faster. In this case, this is the stock speed of the Intel Xeon E5-2697 V2s. Naturally, using an overclocked system or CPUs with a higher stock speed will generate higher results.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 46 | TweakTown.com

Now we run the test using all 48 threads of the dual-Intel Xeon E5-2697 V2s to measure the throughput of the system. In this test, more cores/threads will have a greater effect on the outcome.

We can see a big difference here using the dual-socket setup with a three to four times performance boost in many cases.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 47 | TweakTown.com

Just like the integer tests, we now run the floating-point tests in single (speed) mode. The lower clock speeds of the Intel Xeon E5-2697 V2s holds this bench back also.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 48 | TweakTown.com

Here, we see the results of the multi-threaded floating-point run that uses all 48 threads of the dual-Intel Xeon E5-2697 V2s. Like the multi-threaded integer test, more cores/threads will have a greater impact on the test.

Power Consumption

We used the WattsUp? Pro meter in these tests. This allowed us to measure power use directly from the wall. This meter also uses a USB cable to connect to a computer and Logger Pro software to graph the readings while we run our tests.

To test total system power use, we used the AIDA64 Stability test to load the CPU, and then we recorded the result.

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 49 | TweakTown.com

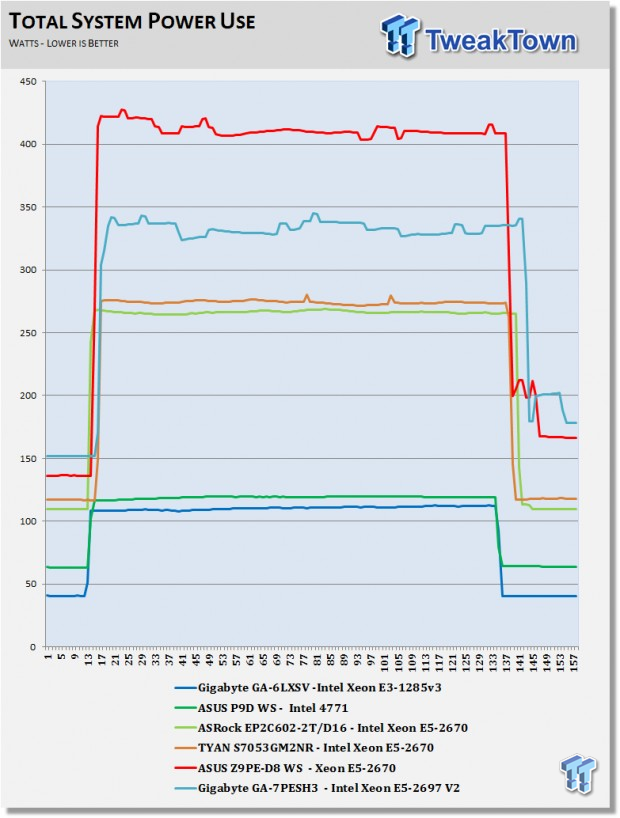

With dual-socket systems, power use can be rather high when fully loaded. The GA-7PESH3 with E5-2697 V2s did peak out at 342watts. This shows that using E5-2697 V2s has a huge impact on how much power a system uses, and there is a about a 100-watt difference between dual-socket systems and single-socket systems.

That is a large amount of power savings that can save the user a lot of money over the long run.

Final Thoughts

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 50 | TweakTown.com

Just like some of the other workstation class motherboards, this one can fill several roles that range from workstations to gaming systems to servers.

With the latest BIOS R14, this board can support the latest Intel E5-2600 family of CPUs. If you manage to get a board with an earlier BIOS, you might have to flash to R14 to be able to use them. We had no issues with our E5-2670 CPUs, but again, we had BIOS R14 installed.

Performance wise, the GA-7PESH3 was strong using the E5-2697 V2s, and we feel these CPUs really bring out its full potential.

By using the latest Intel Ivy Bridge Xeons like the E5-2697 V2s, we also had a much lower power draw. This is a huge plus, and the lower power use on full load can really add up to savings on the power bill. In addition, they also run much cooler.

We also saw several top scores using the E5-2697 V2s, which do show this board has good potential for high performance. It also really handles memory very well and is able to push bandwidth fast.

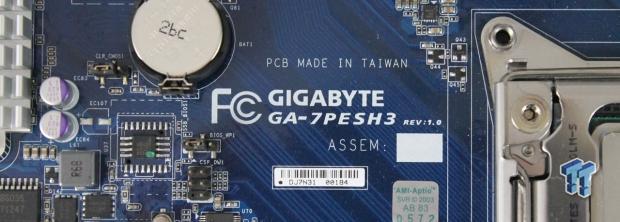

GIGABYTE GA-7PESH3 (Intel C602) Workstation Motherboard Review 51 | TweakTown.com

One other draw back was with how the IPMI worked. It would have been nice if we could remote in when we have video cards installed. However, if you use this as a workstation, then IPMI generally is not necessary, so it is not a real concern.

The last issue we had was with the driver disk; it should come with everything needed for all the different operating systems. We found it strange that it only auto booted in Windows Server 2008 and not others. At least it had LAN drivers for Windows 7, so we could go to the GIGABYTE website and download the rest. If it did not have the LAN drivers, we would have had to burn a disk with the drivers from the website because it did not even have drivers for USB and Windows 7.

PRICING: You can find the GIGABYTE GA-7PESH3 for sale below. The prices listed are valid at the time of writing but can change at any time. Click the link to see the very latest pricing for the best deal.

United States: The GIGABYTE GA-7PESH3 retails for $692.52 at Amazon.

What do TweakTown.com awards mean? Click for details!

PRICING: You can find products similar to this one for sale below.

USUnited States: Find other tech and computer products like this over at Amazon.com

UKUnited Kingdom: Find other tech and computer products like this over at Amazon.co.uk

AUAustralia: Find other tech and computer products like this over at Amazon.com.au

CACanada: Find other tech and computer products like this over at Amazon.ca

DEDeutschland: Finde andere Technik- und Computerprodukte wie dieses auf Amazon.de

William Harmon started working with computers back in 2005 and began overclocking all kinds of different setups. My focus back then and even now is extreme cooling using Single Stage Phase units, Cascades and Liquid Nitrogen. During this time I was also in several competitions that GIGABYTE had sponsored, GOOC 2009 and 2010. Using technics in overclocking and cooling that I have learned over the years I started building high speed workstations and servers for clients who needed higher performing systems. Many of these systems are used in high frequency trader companies and work stations used in all kinds of professions. At TweakTown, I provide and develop accurate test and benchmark methods for servers and other equipment to help make purchasing decisions easier.

We openly invite the companies who provide us with review samples / who are mentioned or discussed to express their opinion. If any company representative wishes to respond, we will publish the response here. Please contact us if you wish to respond.

Related Tags

Newsletter Subscription

Latest News

View More News

Latest Reviews

View More Reviews

Latest Articles

View More Articles
