Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review

Cooler Master's V700 PSU flexes its muscle and proves why it is the best deal of the V-series and one of the best units that CM has on offer.

@zovadka
Published Tue, Dec 24 2013 8:01 AM CST   |   Updated Tue, Apr 7 2020 12:32 PM CDT
Rating: 93%Manufacturer: Cooler Master

Introduction, Specifications, Availability and Pricing

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 01 | TweakTown.com
VIEW GALLERY - 24 IMAGES

Over six months ago, Cooler Master launched their V-series of power supplies. The V-series is still their current flagship power supply. As such, we thought it would be worth our time to find out how one of the lower wattage V-series units compared to the higher wattage units.

We've seen companies use different manufacturers for higher and lower wattage units in the same series and want to see if the same thing is going on here or if the lower wattage unit are every bit as good as their higher wattage units.

After digging into the V700 a little bit, we found it to be of the same manufacturer, which is Seasonic in this case. This means that we probably won't be seeing too many differences aside from wattage, cables and connectors. If that is all we find, that means the V700 will be a major win for consumers since the V1000 is such a great unit.

Let's just dig into this thing since we already know some of what to expect from this power supply.

Specifications, Availability and Pricing

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 02 | TweakTown.com

Cooler Master uses a single 12V rail on the V700. This single rail is rated for 58A. The 3.3V and 5V rails are rated for 25A with a combined maximum output of 125W. The 5VSB rail is rated for 3A or 15W. Combined maximum output for the Cooler Master V700 is 700W. Just as we had hoped for, the only difference here is in the 12V rail.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 03 | TweakTown.com

Just as we saw with the V1000, the Feature Summary is almost full of green checks, but misses it by one item. All protections are present including SCP, OVP, OCP, OPP and OTP. The V700 features fully modular cables, all of which are fully sleeved. The V700 is rated for 80 PLUS Gold efficiency, but unfortunately it is not rated for 100% continuous output at 50C. Cooler Master does rate it for to do so at 40C though, which is important to know.

Cooler Master has an MSRP of $159.99 on the V700. This is a little bit higher than what we expected, but Newegg has the power supply for sale for $119.99 and $79.99 after rebates. Even without the rebates, that makes this a very attractively priced unit for consumers as it places right in the middle of about a dozen different units with nearly the same features. Cooler Master backs the V700 with a five year warranty.

Packaging

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 04 | TweakTown.com

Once again, little has changed, this time with the packaging. The same packaging is used with the model number being the only thing changed.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 05 | TweakTown.com

There isn't much to go by on the left half of the back as it only gives us four bullet points in many different languages.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 06 | TweakTown.com

The right half gives us a little more with a pictorial view of the connectors, a fan chart showing fan speed and fan voltage in relation to the load of the power supply, and an efficiency curve for the power supply.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 07 | TweakTown.com

Cooler Master gives us some specifications on this side of the box. The other sides contain no useful information.

Inside the Box

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 10 | TweakTown.com

An inch of foam surrounds the power supply on all sides. All modular cables and accessories are contained inside the bag towards the front of the box.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 11 | TweakTown.com

The I/O specification label is located on top along with the serial number. We can also see the matte black finish on the V700.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 12 | TweakTown.com

Both sides have the same logos on them with the opposite side being inverted.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 13 | TweakTown.com

We have the on/off rocker switch along with AC input in the back. The honeycomb mesh grill takes up the remaining space except for the little bit that was left to show off the Cooler Master name.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 14 | TweakTown.com

The front has all of the modular connections labeled clearly.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 15 | TweakTown.com

Cooler Master uses a honeycomb mesh grill to protect the fan on the bottom. It is surrounded with a brushed nickel plate to break up the monotony of all black.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 16 | TweakTown.com

The V700 is fully modular. All cables except the 24-pin are of the flat ribbon type. The 24-pin is sleeved with nylon mesh.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 17 | TweakTown.com

Finishing off what is inside the box is the AC input cord, mounting screws and manual.

Cabling Arrangement and A Look Inside

Cabling Arrangement

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 19 | TweakTown.com

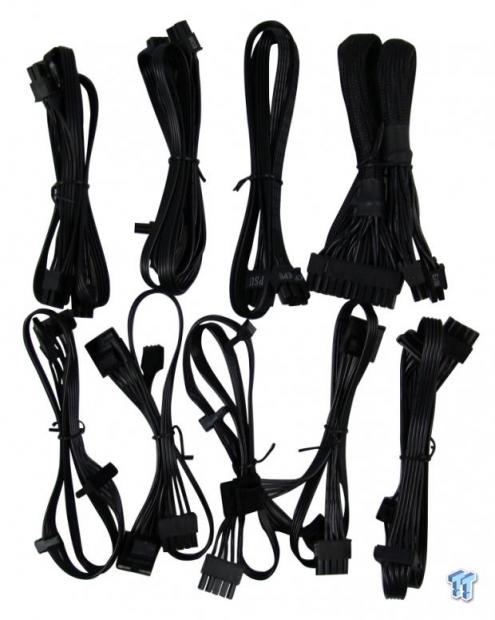

Cooler Master keeps the cable arrangement short and simple. All cables are modular including the 24-pin and ATX 4+4. There are two PCI-E cables included which each have a pair of connectors on them. Peripherals are handled via five cables, three of which are for three SATA devices, one for two Molex devices, and one more for two Molex devices with a FDD connector at the end.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 20 | TweakTown.com

Rail distribution is as simple as it gets with a single 12V rail. There is no need to worry about load balancing here.

A Look Inside

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 21 | TweakTown.com

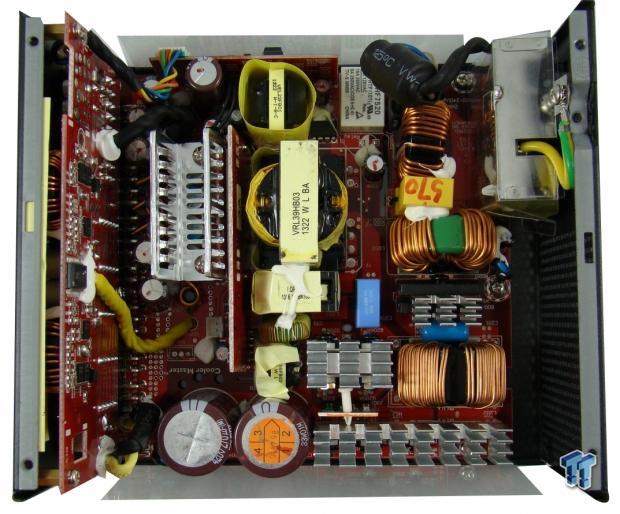

Cooler Master uses plenty of passive cooling on the inside of the V700 and is identical to what we saw with the V1000.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 22 | TweakTown.com

Two Nippon Chemi-Con capacitors reside on the primary side of the power supply.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 23 | TweakTown.com

The secondary side is filled with more Chemi-con caps.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 24 | TweakTown.com

Cooler Master uses the Protechnic MGA13512XR-O25 fan for the active cooling inside the V700.

Test Results and Final Thoughts

Test Results

Our load tests utilize a couple of FAST ATE active load testers and a variety of other equipment such as an oscilloscope, power conditioner, temperature probe and a power consumption meter. You can read more about our standard testing approach here.

The tests performed are based around six conceivable setups that are out there and progressively load down the PSU up to the power supply's limits or 1000W, whichever comes first. Since our test equipment's limits are higher than that of the Cooler Master V700 700W power supply, we can test it to the maximum.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 25 | TweakTown.com

The above tests represent typical loads that we have measured from various systems and are meant to give a rough idea of where your computer might fall in line with our tests. Please keep in mind that each system is different and actual loads can vary greatly even with similar hardware.

Cooler Master V700 700-Watt 80 PLUS Gold Power Supply Review 26 | TweakTown.com

Let's start by taking a look at the voltages to see how well this unit did during testing. Starting with the 12V rail, we see 1% regulation from start to finish with a total drop of .07V. The 5V rail managed to stay within 1% of specification with a total drop of .02V from start to finish. Moving towards the 3.3V rail, we see that regulation was within 1% of specification with a total voltage drop of .03V.

DC Output quality for the Cooler Master V700 700W was good and well within specifications. During Test 1, we saw 15mV of noise on our scope. When we increased the loads in Test 3, the ripple climbed to 28mV at a little over half load. During Test 5 under a load of 700W, the oscilloscope showed a maximum of 33mV on noise on the 12V rail.

The Cooler Master V700 700W is rated for 80 PLUS Gold efficiency. This means that the power supply must perform at 87%/90%/87% efficiency at 20%/50%/100% loads respectively. As you can see, V700 passed on our bench, and wasn't close to failing at any point.

Final Thoughts

The V700 is the third power supply in the V-series that we have looked at from Cooler Master. It is also the last one in the series for us to look at. Both the V1000 and V850 proved to be fantastic power supplies. Considering the V700 is built on the exact same platform the other two are built on, there is no reason that it shouldn't perform just as well as the other two in the series have.

That is exactly what has happened with the V700. The performance is spectacular and mildly better than what we've seen so far. The V700 has superior voltage regulation with all rails staying within 1%. Not too many units have ever been able to accomplish this.

The noise suppression on the 12V rail wasn't quite as good, but it is still what we consider very good and not something that we would ever even bat an eyelash at. The efficiency is even right where it is supposed to be for the Gold certification that it holds.

Sweetening the deal even more on this already great power supply is the price. It may have an MSRP of $159.99, but it can currently be had for $79.99 after rebates. With the incentives that Cooler Master is throwing around and the great performance from this unit, it is very clear that the V700 is going to be a favorite for many segments of the PC market as it is cheap enough for a budget PC yet strong enough for a most dual GPU gaming machines.

That is a hard combination to beat and I suspect that it will be for some time.

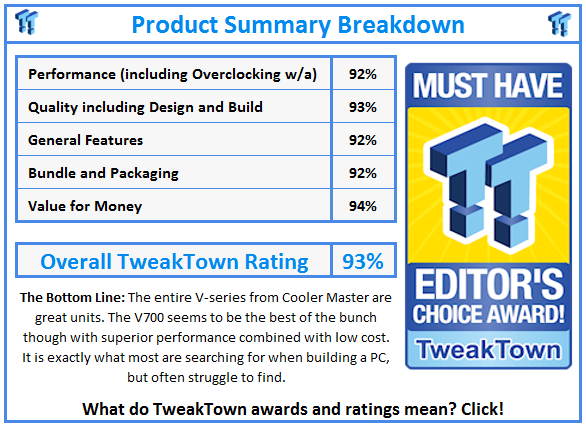

What do TweakTown.com awards mean? Click for details!
