XFX ProSeries 1000W Power Supply Review

XFX adds more power to their ProSeries line of PSU's. We begin with a look at the new 1000W model and crank it up under full load in our test lab today.
@ChrisRamseyer
Published Tue, Dec 6 2011 9:44 PM CST   |   Updated Fri, Sep 18 2020 10:50 PM CDT
Rating: 90%Manufacturer: XFXForce

Introduction, Specifications, Availability and Pricing

XFX ProSeries 1000W Power Supply Review 01 | TweakTown.com
VIEW GALLERY - 30 IMAGES

Over the past five to six years, the name XFX has become synonymous with enthusiasts and for many good reasons. XFX made a huge push during the era of the NVIDIA 6xxx and 7xxx series cards and were always pushing the limits of the clock speeds. This gave them some of the fastest cards on the market and enthusiasts naturally flocked to them for better performance. Since then, the company has expanded quite a bit and now not only offers NVIDIA cards, but AMD cards and power supplies as well.

XFX's motto is "Play Hard," and their power supplies allow you to do just that. They offer a wide range of units to fulfill any need, from the low power user to the full enthusiast. XFX recently introduced a few new power supplies to their ProSeries line and we are going to take a look at a few of the new units over the coming weeks. Today we are taking a look at the new ProSeries 1000W Platinum PSU. It should offer enough power for nearly everyone out there and do so at high efficiency.

Specifications, Availability and Pricing

XFX ProSeries 1000W Power Supply Review 02 | TweakTown.com

As you can see, the ProSeries 1000W PSU is a single rail unit that provides 83A of power on the 12V rail. Both of the minor rails are capable of 25A each with a combined total output of 125W. This isn't quite as high as we would like to see, but it will have to do.

XFX ProSeries 1000W Power Supply Review 03 | TweakTown.com

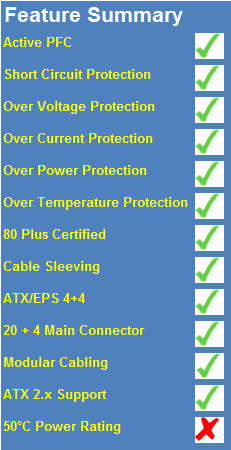

XFX's ProSeries 1000W power supply has nearly a full set of features and almost gets a green check across the board. All of the protections are there, including the Over Temperature Protection. The unit has an 80Plus Platinum certification, but isn't rated for 100% continuous output at 50C. All of the cables are modular and fully sleeved on the unit.

We were able to find the new ProSeries 1000W power supply readily available at a very wide variety of places and the power supply has an MSRP of $249.99. We couldn't find anyone that could beat Newegg's price on the unit, coming in at $249.99 with free shipping. XFX backs the ProSeries 1000W with a five year warranty.

The Packaging

XFX ProSeries 1000W Power Supply Review 04 | TweakTown.com

XFX keeps it quite simple on the front with just a little bit of marketing and decent shot of the unit.

XFX ProSeries 1000W Power Supply Review 05 | TweakTown.com

They hit you pretty good when you move over to the back. As you have probably noticed, they are pretty big on the SolidLink and EasyRail points since it is listed on both the front and back.

XFX ProSeries 1000W Power Supply Review 06 | TweakTown.com

When you look at the top, you start feeling like they are beating a dead horse as you get pounded with more of the same marketing.

XFX ProSeries 1000W Power Supply Review 07 | TweakTown.com

At least we finally get some real information when we look at the bottom. Here we finally see the I/O specifications and the cable list.

XFX ProSeries 1000W Power Supply Review 08 | TweakTown.com

One side has some more information with bold text to highlight the important stuff.

XFX ProSeries 1000W Power Supply Review 09 | TweakTown.com

The other side finishes beating the horse on the EasyRail subject and lets you know that it is ready for triple GPU's.

Inside the Box

XFX ProSeries 1000W Power Supply Review 10 | TweakTown.com

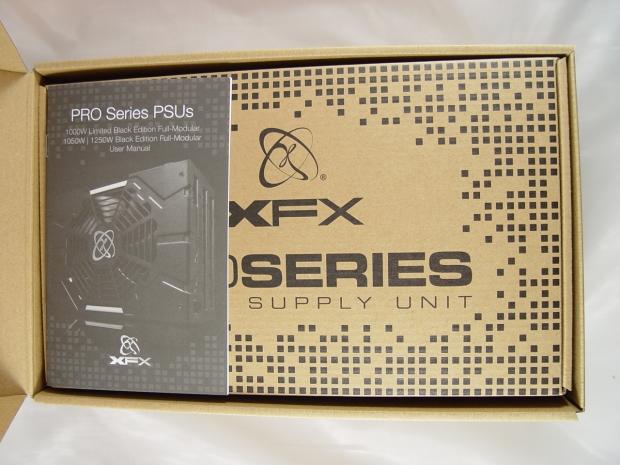

Inside the box we find the user manual and box of modular cables sitting on top of the power supply.

XFX ProSeries 1000W Power Supply Review 11 | TweakTown.com

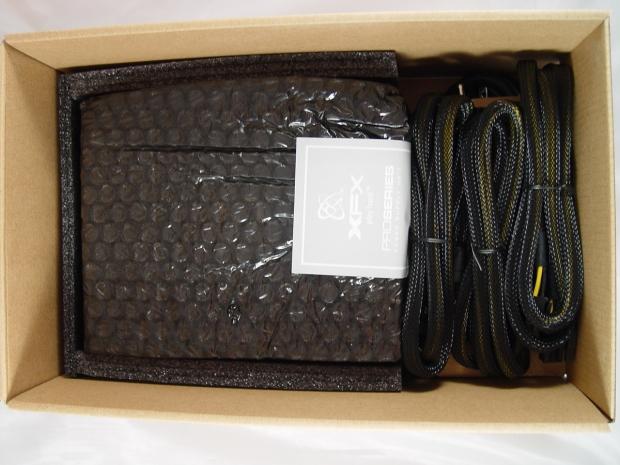

Once we remove that stuff, we find the power supply nestled in some foam and wrapped in bubble wrap. The cables you see there are for the PCI-E connections.

XFX ProSeries 1000W Power Supply Review 12 | TweakTown.com

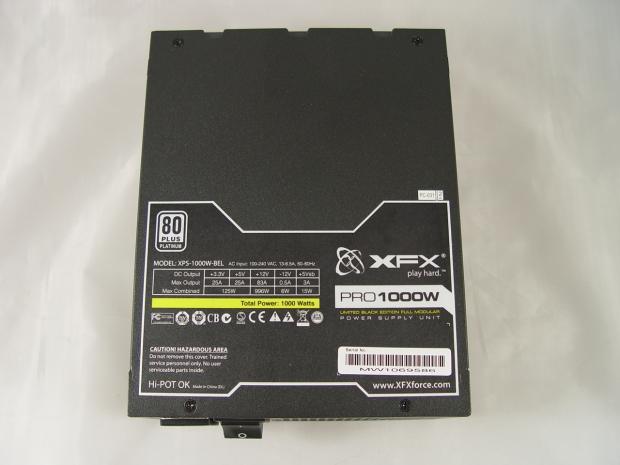

Taking a peek at the top, we see that XFX has placed the I/O Specification label here out of sight.

XFX ProSeries 1000W Power Supply Review 13 | TweakTown.com

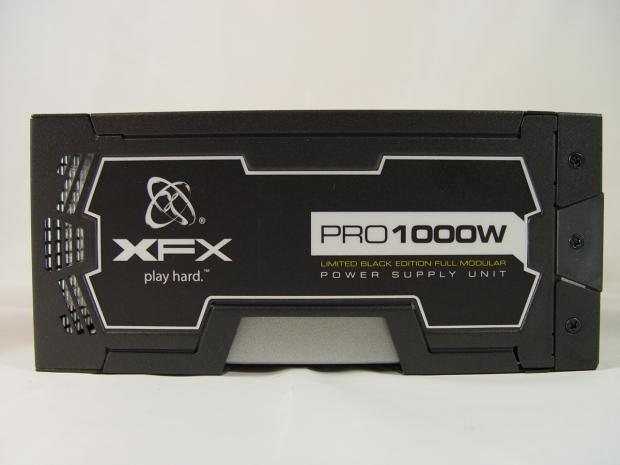

On the side we can see that there is some extra venting and that the standard style case isn't used. It will be interesting to see what we can find once we open this thing up.

XFX ProSeries 1000W Power Supply Review 14 | TweakTown.com

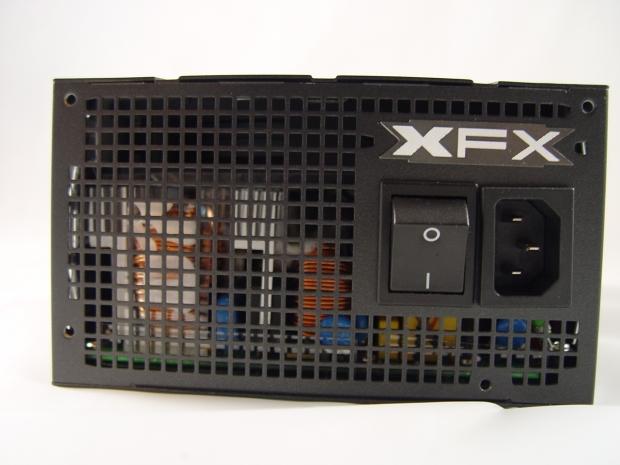

The back of the unit uses square vent holes similar to that of what Antec uses. It also has a large on/off rocker switch and the AC input.

XFX ProSeries 1000W Power Supply Review 15 | TweakTown.com

Checking the front, we can see all of the modular connections for the power supply. Also note that there is a switch to control the fan. This allows you to decide if you want to have the fan run all of the time or just let it be temperature controlled.

XFX ProSeries 1000W Power Supply Review 16 | TweakTown.com

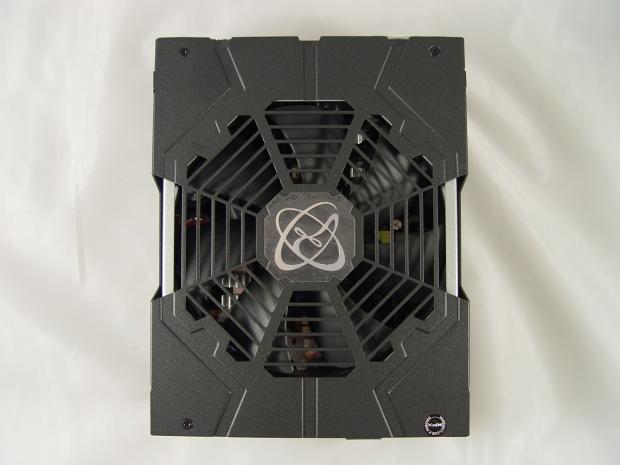

XFX uses quite a different design for the fan grill. While this may not be optimum for airflow, it does add some flair that we don't normally see in a power supply.

XFX ProSeries 1000W Power Supply Review 17 | TweakTown.com

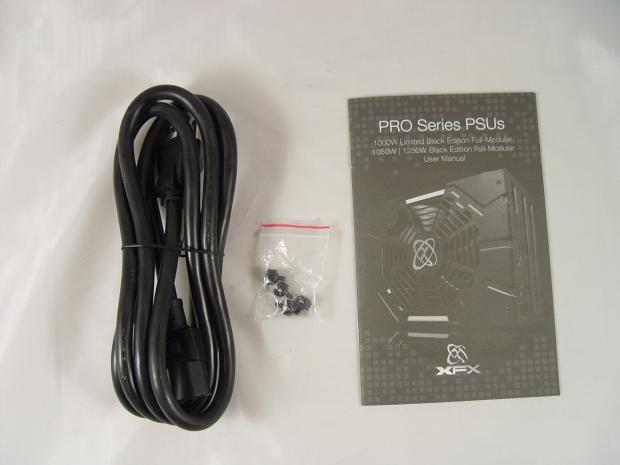

Also included are the AC input cable, black thumb screws to mount the unit and the user manual.

XFX ProSeries 1000W Power Supply Review 18 | TweakTown.com

Cabling Arrangement & A Look Inside

Cabling Arrangement

XFX ProSeries 1000W Power Supply Review 19 | TweakTown.com

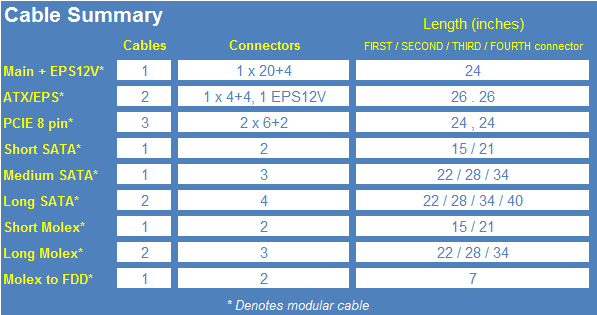

As you can tell from the cable summary, the ProSeries 1000W unit is fully modular. XFX includes a very comprehensive list of cables and connectors to cover you in just about any situation that you could come across. The only real complaint is that all three of the PCI-E cables are of the same length. XFX was smart enough to take care of this with the SATA and Molex cables as they have several different lengths, but not with the PCI-E cables. A few inches of variance in them would have been nice.

XFX ProSeries 1000W Power Supply Review 20 | TweakTown.com

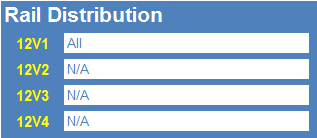

XFX keeps the rail distribution sweet and simple with a single 12V rail. This is the "EasyRail Technology" that they bombard you with on the front. It is just a marketing ploy to make you think it is something new when in reality it is something that we have been enjoying in high end power supplies for quite some time.

A Look Inside

XFX ProSeries 1000W Power Supply Review 21 | TweakTown.com

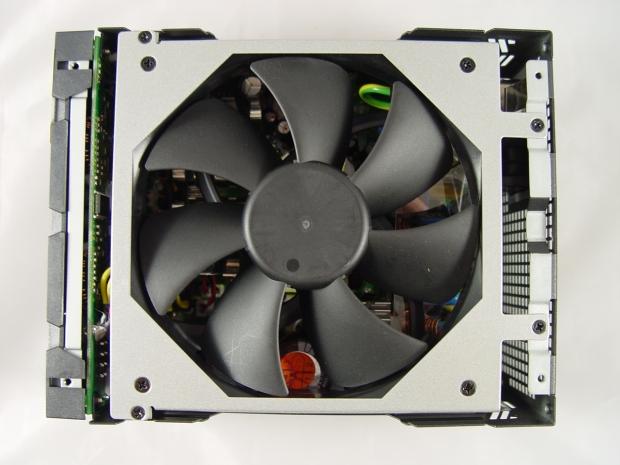

Popping the top off the unit, we find that the fan is mounted a bit differently as it isn't attached to the top of the case.

XFX ProSeries 1000W Power Supply Review 22 | TweakTown.com

Once we pull the fan from the unit, we find that XFX has crammed quite a bit into the ProSeries 1000W unit. At least they have taken care to add heatsinks in numerous places to help cool the unit.

XFX ProSeries 1000W Power Supply Review 23 | TweakTown.com

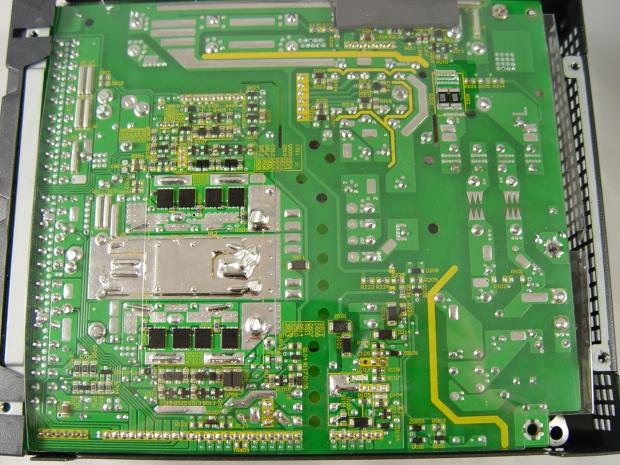

As part of taking this unit apart, we are actually able to see the bottom of the PCB. XFX has done a very good job of soldering here.

XFX ProSeries 1000W Power Supply Review 24 | TweakTown.com

Going deeper into the unit, we find the modular connectors. XFX makes note that the power supply uses their SolidLink technology in that the modular connectors are connected directly to the PCB. This is only partially true as the middle and top row of modular connectors are supplied power via a wire between the two PCB's.

XFX ProSeries 1000W Power Supply Review 25 | TweakTown.com

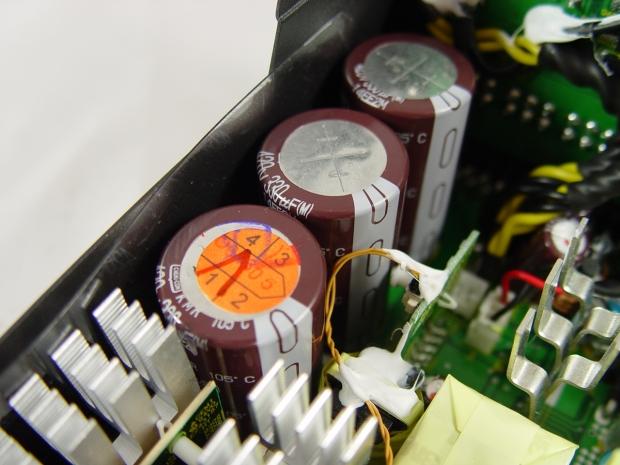

Taking a close look at the capacitors, we find a trio of Nippon Chemi-con caps on the primary side. This is something that we usually only see in power supplies greater than 1000W and that isn't necessarily guaranteed. Our best guess is that they used three slightly smaller caps instead of two because of space constraints between other components and the enclosure.

XFX ProSeries 1000W Power Supply Review 26 | TweakTown.com

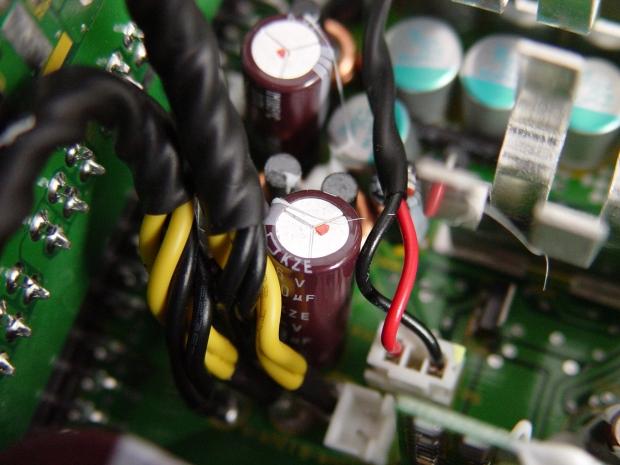

Nippon Chemi-Con capacitors were present on the secondary side as well.

XFX ProSeries 1000W Power Supply Review 27 | TweakTown.com

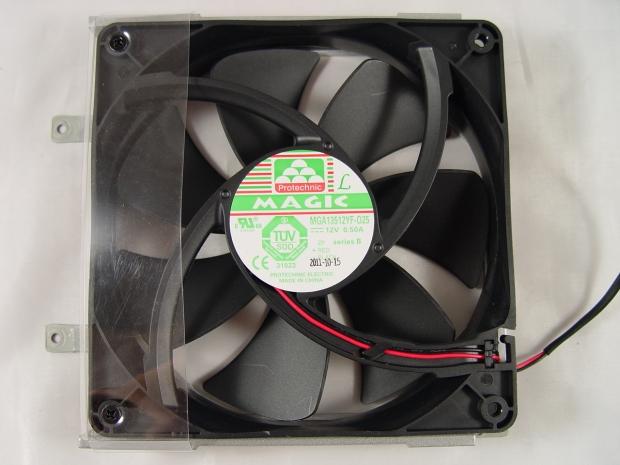

Cooling the 1000W ProSeries power supply is the Protechnic Magic MGA13512YF-O25 135mm fan.

Test Results & Final Thoughts

Test Results

Our load tests utilize a couple of FAST ATE active load testers and a variety of other equipment such as an oscilloscope, power conditioner, temperature probe and a power consumption meter. You can read more about our standard testing approach here.

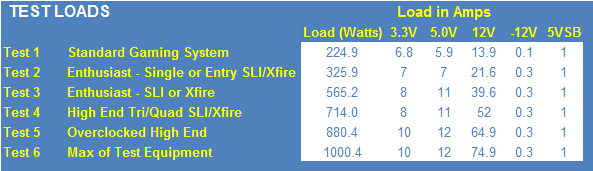

The tests performed are based around six conceivable setups that are out there and progressively load down the PSU up to the power supply's limits or 1000W, whichever comes first. Since our test equipment's limits are equal to that of the XFX ProSeries 1000W, we can test it to the maximum.

XFX ProSeries 1000W Power Supply Review 28 | TweakTown.com
XFX ProSeries 1000W Power Supply Review 29 | TweakTown.com

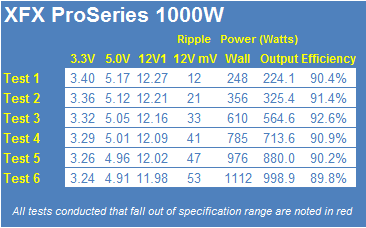

Let's start by taking a look at the voltages to see how well this unit did during testing. Starting with the 12V rail, we see 3% regulation from start to finish with a total drop of .29V throughout all the tests. The 5V rail didn't quite fair as well with 4% voltage regulation and a total drop of .26V. Moving towards the 3.3V rail, we see that regulation stays at 4% with a total voltage drop of .16V.

DC output quality was OK from start to finish. Starting out, we were clearly able to see a ripple on the scope during Test 1 where we measured noise at a low 12mV peak to peak. This steadily increased as the loads also increased. By the time we had reached around 50% load, the unit ripple had crept up to 33mV. Under full load, we saw that the noise on the 12V rail had crept up to 53mV.

The XFX ProSeries 1000W is rated for 80Plus Platinum efficiency. This means that the power supply must perform at 90%/92%/89% efficiency at 20%/50%/100% loads respectively. As you can see, the XFX ProSeries managed to score a pass while on our test bench. There were several times that the power supply was right on the edge. This would explain why the 1050W ProSeries PSU is only rated for 80Plus Gold efficiency.

Final Thoughts

XFX has a great power supply with the ProSeries 1000W. It is loaded with features, has great cable selection and a ton of power to handle just about whatever you can throw at it. Voltage regulation was good, with 4% regulation on the minor rails and 3% on the single 12V rail. The unit also had good DC output quality with a maximum of 53mV of ripple under full load and is backed by a five year warranty. On top of that, that unit has great efficiency, proving that it is worthy of the 80 Plus Platinum certification that it bears.

Unfortunately the unit comes at the very steep price of $250. Enthusiasts are used to paying a premium for additional features and better performance, but at that price, it is expected that more is included. On top of that, enthusiast level performance is expected and 4% voltage regulation with greater than 50mV ripple on the 12V rail is not acceptable. Those that are doing their shopping will find that they can get their hands on the Enermax MaxRevo 1350W for just a little bit more coin and get better performance all the way around. Hopefully XFX drops the price of the unit soon and makes it a bit more attractive.

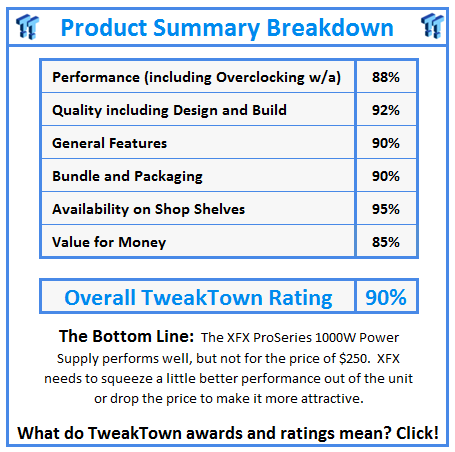

What do TweakTown.com awards mean? Click for details!
