AXLE Radeon HD 5670 1GB Video Card

It's been a while since we've seen anything from AXLE, but today we have a look at this mid range HD 5600 series card.
| Jun 23, 2010 at 4:16 am CDT
Rating: 87%Manufacturer: AXLE 3D

Introduction

Introduction

VIEW GALLERY - 26 IMAGES


Having had a look again recently at some mid range ATI cards, it's time to have a look at another. In this case it's the HD 5670 from AXLE. Sitting between the HD 5570 and HD 5750, the model was designed for people who don't quite need the power on offer from the HD 5700 series, but need a little more than the HD 5500.

It's been a while since we've seen anything from AXLE. Again, though, the company decides to send us a boring mid range model from ATI. As always, we'll see what's going on, but with the model being out for so long there's got to be something that makes it a stand out product for us to give it our big tick of approval.

Let's have a look at the package first before we have a closer look at the card, its clocks and then of course the performance. Hopefully AXLE can offer us something we haven't seen yet from the HD 5670.

The Package

The Package

AXLE Radeon HD 5670 1GB Video Card 03 | TweakTown.com


AXLE Radeon HD 5670 1GB Video Card 04 | TweakTown.com


AXLE Radeon HD 5670 1GB Video Card 05 | TweakTown.com


Mid range card, mid range package; as usual nothing but the bare essentials being seen. This isn't so much of an issue, though, since it helps keep the price down. You can see on the front of the box that AXLE has opted for an Arctic Cooling solution, though.

The Card

The Card

AXLE Radeon HD 5670 1GB Video Card 06 | TweakTown.com


AXLE Radeon HD 5670 1GB Video Card 07 | TweakTown.com


AXLE Radeon HD 5670 1GB Video Card 08 | TweakTown.com


AXLE Radeon HD 5670 1GB Video Card 09 | TweakTown.com


Looking at the card, you might get the feeling you've seen this before; that's because the cooling fan that AXLE are using here is the same one we saw on the GT 240 towards the end of last year. It seemed to handle the mid range model well, so hopefully it'll do the same here again.

As for the rest of the card, there's nothing that really stands out. We've got a single 6-Pin PCI-E power connector, Crossfire bridge and connectivity is offered via Dual-Link DVI, VGA and HDMI ports.


Specifications

AXLE Radeon HD 5670 1GB Video Card 01 | TweakTown.com


Carrying with it a 775MHz core and a 4000MHz QDR memory clock on the 1GB of GDDR5 memory, the card is carrying the reference clocks. It's a little disappointing since AXLE has opted for an upgraded cooler. It would've been nice to make better use of that by offering us a bit of an overclock, even if the core was just pushed to 800MHz.

Test System Setup and 3DMark Vantage

AXLE Radeon HD 5670 1GB Video Card 99 | TweakTown.com


We would like to thank the following companies for supplying and supporting us with our test system hardware and equipment: Intel, ASRock, Kingston, Western Digital, Noctua and Thermaltake.

We'll be checking out the HD 5670 from AXLE against the HD 5570 1GB OC and HD 5750 1GB Silent Cell from GIGABYTE. Performance should sit almost smack, bang in the middle. Let's see how the model is going these days and what user it best caters toward.

Let's get started!


3DMark Vantage

Version and / or Patch Used: 1.0.1
Developer Homepage: http://www.futuremark.com
Product Homepage: http://www.futuremark.com/products/3dmarkvantage/
Buy It Here




3DMark Vantage is the new industry standard PC gaming performance benchmark from Futuremark, newly designed for Windows Vista and DirectX10. It includes two new graphics tests, two new CPU tests, several new feature tests, and support for the latest hardware.

3DMark Vantage is based on a completely new rendering engine, developed specifically to take full advantage of DirectX10, the new graphics API from Microsoft.

AXLE Radeon HD 5670 1GB Video Card 20 | TweakTown.com


No real surprise here with the model sitting just where you would expect.

Unigine Heaven Benchmark

Unigine Heaven Benchmark

Version and / or Patch Used: 1 and 2
Developer Homepage: http://www.unigine.com
Product Homepage: http://unigine.com/press-releases/091022-heaven_benchmark//



New benchmark grants the power to unleash the DirectX 11 potential in the gift wrapping of impressively towering graphics capabilities. It reveals the enchanting magic of floating islands with a tiny village hidden in the cloudy skies. With the interactive mode emerging experience of exploring the intricate world is ensured within reach. Through its advanced renderer, Unigine is one of the first to set precedence in showcasing the art assets with tessellation, bringing compelling visual finesse, utilizing the technology to the full extend and exhibiting the possibilities of enriching 3D gaming.

Note: If a card doesn't support DirectX 11 the benchmark will be left out, if it does it will be included along with the DirectX10 results.

AXLE Radeon HD 5670 1GB Video Card 21 | TweakTown.com


We again see performance is in between the other two mid range cards.

Benchmarks - CINEBENCH

CINEBENCH

Version and / or Patch Used: Release 10 and Release 11.5
Developer Homepage: http://www.maxon.net/
Product Homepage: http://www.maxon.net




CINEBENCH is a real-world test suite that assesses your computer's performace capabilities. MAXON CINEBENCH is based on MAXON's award-winning animation software, CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation. MAXON software has been used in blockbuster movies such as Spider-Man, Star Wars, The Chronicles of Narnia and many more.

MAXON CINEBENCH runs several tests on your computer to measure the performance of the main processor and the graphics card under real world circumstances. The benchmark application makes use of up to 16 CPUs or CPU cores and is available for Windows (32-bit and 64-Bit) and Macintosh (PPC and Intel-based).

AXLE Radeon HD 5670 1GB Video Card 22 | TweakTown.com


No real surprise here when it comes to CINEBENCH performance.

Benchmarks - Resident Evil 5

Resident Evil 5

Version and / or Patch Used: Demo Benchmark
Developer Homepage: www.residentevil.com/
Product Homepage: http://www.residentevil.com/




Resident Evil 5 is a survival horror video game developed and published by Capcom. The game is the seventh installment in the Resident Evil survival horror series, and was released on September 18. Resident Evil 5 revolves around Chris Redfield and Sheva Alomar as they investigate a terrorist threat in Kijuju, a fictional town in Africa.

AXLE Radeon HD 5670 1GB Video Card 23 | TweakTown.com


While the HD 5570 can't offer us an average of 60 FPS or greater at any resolution, the HD 5670 from AXLE is able to offer a playable framerate at 1680 x 1050.

Benchmarks - BattleForge

BattleForge

Version and / or Patch Used: Auto Patched at Load
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.battleforge.com/
Product Homepage: http://www.battleforge.com/





The Gods have disappeared and the old sun has died, letting a vile twilight engulf the world of Nyn. In exchange for all treasures the mortals possessed, the evil giants agreed to forge a new sun and hurl it into the sky.

But the deal was betrayed, the treasure stolen and now the mortals flee the wrath of the giants. Under the light of a new sun the mortals stumble into a world changed and twisted by an age of twilight. The long journey home has become a conquest of survival.

Note: Supporting DirectX 11 we have seperated the graphs for NVIDIA and ATI cards. While the numbers between the two brands can be compared you have to make note that ATI based HD 5000 series cards are running DirectX 11.

AXLE Radeon HD 5670 1GB Video Card 24 | TweakTown.com


Most cards struggle under BattleForge and here is no different.

Benchmarks - Tom Clancy's H.A.W.X.

Tom Clancy's H.A.W.X.

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.ubi.com/UK/default.aspx
Product Homepage: http://www.hawxgame.com/





Tom Clancy's H.A.W.X is an arcade-style flight simulator video game developed by Ubisoft Romania and published by Ubisoft for Microsoft Windows, Xbox 360, PlayStation 3, and iPhone OS.

The fundamental gameplay mechanics are similar to those of other console-based flight series. Players take on enemies with over 50 aircraft available. Each mission is at real world locations in environments created with commercial satellite data. A cockpit, first person, and third person view are selectable. The third person view gives the player an external view of both their plane and the target.

Set above the skies of a near-future world, increasingly dependent on private military companies with elite mercenaries who have a relaxed view on the law. As these non-governmental organizations gain power, global conflict erupts with one powerful PMC attacking the United States.

AXLE Radeon HD 5670 1GB Video Card 25 | TweakTown.com


While the performance is a good improvement over the HD 5570, we're going to need to drop the detail level or resolution to get some more playable FPS.

Benchmarks - Darkest of Days

Darkest of Days

Version and / or Patch Used: 1.4
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.darkestofdays.com/index.php
Product Homepage: http://www.darkestofdays.com/index.php





Darkest of Days takes the player through time into historic battles in an effort to save key individuals from certain death. The battles range from Custer's Last Stand at the Battle of the Little Bighorn in 1876 to fighting in Pompeii as ash and fire rain down from an erupting Mt. Vesuvius in 79 AD. Other locations include the battles of Antietam and Tannenberg, and a German World War II P.O.W. camp. There are different missions in every time period and the game takes about 4 hours to complete.

The game features over twenty weapons, both from the original time period as well as those brought back from the future. In addition, there are artillery weapons from different time periods to assist in battle.

Note: With the PhysX set to Medium or High Darkest of Days take advantage of the NVIDIA PhysX abilities. For that reason we will test ATI cards at the Low preset, NVIDIA based cards though will be tested at Low and High.

AXLE Radeon HD 5670 1GB Video Card 26 | TweakTown.com


While falling below that 60 FPS mark we want at 1680 x 1050, unlike the HD 5570 it's not that far from it. A bit of messing around with the detail will bring the FPS up to a playable level.

Benchmarks - Far Cry 2

Far Cry 2

Version and / or Patch Used: 1.01
Timedemo or Level Used: Ranch Long
Developer Homepage: http://www.ubi.com/
Product Homepage: http://www.farcry2.com/
Buy It Here




The Dunia Engine was built specifically for Far Cry 2 by the award-winning Ubisoft Montreal development team. It delivers the most realistic destructible environments, amazing special effects such as dynamic fire propagation and storm effects, real-time night-and-day cycle, dynamic music system, non-scripted enemy A.I. and so much more.

AXLE Radeon HD 5670 1GB Video Card 28 | TweakTown.com


Like we've seen in most of the benchmarks, the HD 5670 doesn't offer us the ideal FPS at these high settings when gaming at 1680 x 1050. Attacking the detail levels, though, and we can lift that minimum up to 30 FPS.

Benchmarks - Batman Arkham Asylum

Batman Arkham Asylum

Version and / or Patch Used: 1.1
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.batmanarkhamasylum.com/
Product Homepage: http://www.batmanarkhamasylum.com/





Batman: Arkham Asylum exposes players to a unique, dark and atmospheric adventure that takes them to the depths of Arkham Asylum - Gotham's psychiatric hospital for the criminally insane. Gamers will move in the shadows, instigate fear amongst their enemies and confront The Joker and Gotham City's most notorious villains who have taken over the asylum.

Using a wide range of Batman's gadgets and abilities, players will become the invisible predator and attempt to foil The Joker's demented scheme.
Batman: Arkham Asylum features an original story penned exclusively for the game by famous Batman author and five-time Emmy award winner Paul Dini, whose credits include Lost season one and Batman: The Animated Series.

Note: With support for PhysX NVIDIA based cards will be tested with the technology on and off, ATI cards will be tested with the technology off due to it not being supported on their cards.

AXLE Radeon HD 5670 1GB Video Card 29 | TweakTown.com


Most cards run Batman AA well and this is no different; a minimum above 30 FPS at both resolutions.

Benchmarks - Dark Void

Dark Void

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.airtightgames.com
Product Homepage: http://www.darkvoidgame.com/




The game's story takes place during World War II and centers around a cargo pilot named William Augustus Grey (voiced by Nolan North) who is teleported to another world while flying through the Bermuda Triangle. In this world, known as the 'Void', Will encounters an alien race as well as other humans, which are known as the Watchers and the Survivors respectively.

Will reluctantly joins the Survivors who are engaged in a feud with the alien race to satisfy his desire to return to Earth. While aiding the Survivors, Will discovers that the Void is a middle ground that connects both the Watchers homeworld and Earth. It also becomes apparent that the Watchers are supplying the Axis powers with various supplies for reasons unknown. With the help of Nikola Tesla, Will utilizes retrofited Watcher technology to combat the Watchers and eventually find a way to escape the Void.

AXLE Radeon HD 5670 1GB Video Card 31 | TweakTown.com


Dark Void is a little older and you can see that the HD 5670 handles this kind of game well with a minimum of over 30 FPS at both resolutions.

Benchmarks - Elcomsoft Wireless Security Auditor

Elcomsoft Wireless Security Auditor

Version and / or Patch Used: 1.51
Timedemo or Level Used: Sample File
Developer Homepage: http://www.elcomsoft.com/
Product Homepage: http://www.elcomsoft.com/ewsa.html




ElcomSoft has pioneered many software innovations that have made it easier to recover passwords protecting various types of resources. For the first time in the industry, the company's patent-pending GPU acceleration makes its way into Wi-Fi password recovery, reducing the time required to recover Wi-Fi passwords up to a hundred times.

Supporting up to four NVIDIA boards such as GeForce 8, 9, and 200, as well as ATI video cards such as RADEON HD 4000 Series and up, Elcomsoft Wireless Security Auditor allows building servers with supercomputer performance at a fraction of the price.

AXLE Radeon HD 5670 1GB Video Card 36 | TweakTown.com


WSA performance was not kind to the AXLE HD 5670. We ran it multiple times and the numbers were consistent.

Temperature Test

Temperature Tests



With the TES 1326 Infrared Thermometer literally in hand we found ourselves getting real-world temperatures from the products we test at load (3D clock speeds).

There are two places we pull temperature from - the back of the card directly behind the core and if the card is dual slot and has an exhaust point we also pull a temperate from there, as seen in the picture.

AXLE Radeon HD 5670 1GB Video Card 38 | TweakTown.com


The Arctic Cooling solution doesn't disappoint. Performance is strong from the cooler.

Sound Test

Sound Tests



Pulling out the TES 1350A Sound Level Meter we find ourselves quickly yelling into the top of it to see how loud we can be.

After five minutes of that we get a bit more serious and place the device two CM away from the fan on the card to find the maximum noise level of the card when idle (2D mode) and in load (3D mode).

AXLE Radeon HD 5670 1GB Video Card 39 | TweakTown.com


Noise levels are impressive with it being the second quietest card that we've tested to date.

Power Consumption Tests

Power Consumption Tests



Using our new PROVA Power Analyzer WM-01 or "Power Thingy" as it has become quickly known as to our readers, we are now able to find out what kind of power is being used by our test system and the associated graphics cards installed. Keep in mind; it tests the complete system (minus LCD monitor, which is plugged directly into AC wall socket).

There are a few important notes to remember though; while our maximum power is taken in 3DMark06 at the same exact point, we have seen in particular tests the power being drawn as much as 10% more. We test at the exact same stage every time; therefore tests should be very consistent and accurate.

The other thing to remember is that our test system is bare minimum - only a 7,200RPM SATA-II single hard drive is used without CD ROM or many cooling fans.

So while the system might draw 400 watts in our test system, placing it into your own PC with a number of other items, the draw is going to be higher.

AXLE Radeon HD 5670 1GB Video Card 40 | TweakTown.com


Power draw is nice and low, as you would expect from the mid range model.

Total Performance Rating (TPR)

Total Performance Rating

The TPR graph is a combination of all our benchmarks in which NVIDIA and ATI are on an even playing field. This includes benchmarks where PhysX can be forced off like Dark Void and Batman: Arkham Asylum, but not Darkest of Days.

The TPR number is a combination of:

3DMark Vantage, Heaven Benchmark V2, CINEBENCH R11.5, Resident Evil 5, BattleForge, Tom Clancy's H.A.W.X., Far Cry 2, Batman: Arkham Asylum (PhysX Off), Dark Void (PhysX Off) and our three High Quality tests which include Far Cry 2, Resident Evil 5 and Tom Clancy's H.A.W.X.

All of the benchmark results achieved are then combined into a single number. As this graph will grow over time and cards won't be re-tested, next to each model you'll find the driver version that was used when the card was benchmarked.

AXLE Radeon HD 5670 1GB Video Card 41 | TweakTown.com


As you would expect, the model sits in between the HD 5570 and HD 5750.

Final Thoughts

Final Thoughts

The HD 5670 is best suited for people who are interested in gaming at medium detail at 1680 x 1050 in newer games or older games at the same resolution, but with more detail. It would suit people who play Source based games like Portal, Counter Strike Source and more.

While the AXLE HD 5670 is a nice version of the model, it's nothing we haven't really seen before. If you're wanting to save a few dollars compared to the HD 5750, but at the same time need some more power than the HD 5570, it's a great option.

People on older 4:3 monitors with 1280 x 1024 resolution or those on newer monitors of 1680 x 1050 and like to have the odd game will find the value in the product. Unlike the HD 5570, you can easily game on this model.

If you don't mind the dual slot design, this is a nice little HD 5670 that cools well and runs quiet. If you can afford something faster, the HD 5750 is a nice little upgrade, but if you're only wanting to spend around that $110 mark, this is a great option.

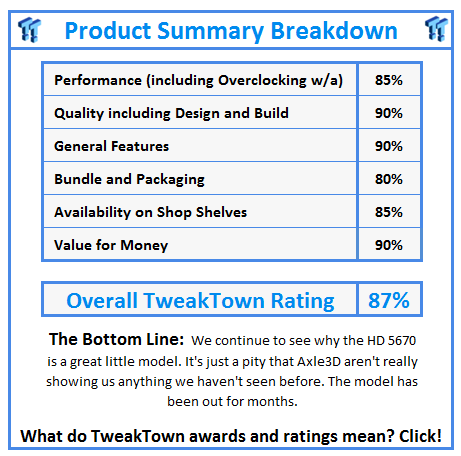

What do TweakTown.com awards mean? Click for details!
