A-DATA X Series Ver 2 PC3-12800 6GB DDR3 Kit

A-DATA has stepped up and released a high-end PC3-12800 kit as part of its X Series lineup. We see if the company can offer some serious competition.

@ShawnBakerTW
Published Tue, Jul 7 2009 9:01 AM CDT   |   Updated Tue, Nov 3 2020 7:03 PM CST
Rating: 93%Manufacturer: A-DATA

Introduction


A-DATA X Series Ver 2 PC3-12800 6GB DDR3 Kit



It's been a while since we've seen anything from A-DATA, but like most memory companies they've also decided to ramp up their memory in the MHz department with the release of a PC3-12800 memory or 1600MHz kit.

Not only has the company decided to release a 1600MHz module, they've also mixed it up by adding a fancy cooler to the setup to really help the company stand out from others. It also helps cement the company as not only one that makes plenty of memory for people who want standard JEDEC specs, but also with the ability to be in the systems of the more hardcore users.

This is what it looks like in the paper department anyway and whether or not they actually translate into some good performing modules remains to be seen. What we'll do quickly is have a closer look at the package and the modules before seeing how they clock up and then we'll check out the performance results we get from the modules.

The Package and Modules


The Package

It's nice to see that A-DATA has gone a bit fancy on the packaging. From the front we can actually see a sneak peek of the cooling they have opted for along with the main details on the memory modules.

A-DATA X Series Ver 2 PC3-12800 6GB Kit


Across the top we have the important information like brand and speed, which in this case is DDR3-1600 along with the fact that it's a 6GB kit. While we can only see two modules, we can see along the bottom that this is a triple channel kit.

A-DATA X Series Ver 2 PC3-12800 6GB Kit


Looking at the back of the package, we can see across the bottom we have a bit of a step by step guide that shows us how to install the cooler. Above that we have a bunch of information regarding the kits features, specifications and other helpful info.

A-DATA X Series Ver 2 PC3-12800 6GB Kit


Inside the package the main extra we can see is the cooler that A-DATA has chosen to include in the package. While installation might look a bit confusing, looking at the back shows us how to do it and it really isn't that hard.


The Modules

Checking out the modules now, we can see that there isn't anything too fancy going on with the overall design of the heatsink. We can see that it's silver and in the middle of it we have the A-DATA logo.

A-DATA X Series Ver 2 PC3-12800 6GB Kit


A-DATA X Series Ver 2 PC3-12800 6GB Kit


One side shows us serial information while in the corner of the other side we have more information on the specifications. We can see it's a 1600MHz kit; the timings are 7-7-7-20 and the voltage range is between 1.75v - 1.85v which is a bit up on Intel's 1.65V max recommendation. We can also see the A-DATA website mentioned for if you're interested in seeing some of the other products the company does.

Overclocking




Having so many PC3-16000 kits laying around at the moment, when I went to the A-DATA website to see what the clock speeds and timings were on the modules I accidently looked at the PC3-16000 kit instead of 1600MHz kit (or PC3-12800).

A-DATA X Series Ver 2 PC3-12800 6GB DDR3 Kit


What this meant is I was working on achieving 2000MHz at the default timings of 9-9-9-24 and while it did seem a bit harder to get there than the PC3-16000 kit I reviewed from Corsair the other day, it managed to stay there and run our benchmarks without any issues.

It wouldn't get much higher, though, which didn't come as much of a surprise. What did come as a surprise, however, was a few days later when I looked closer at the pictures I realized I was dealing with a PC3-12800 (or 1600MHz) kit. What this ultimately means is that we've got a very nice clocking set of A-DATA modules on our hands here!


Important Editor Note: Our maximum overclocking result is the best result we managed in our limited time of testing the memory. Due to time constraints we weren't able to tweak the motherboard to the absolute maximum and find the highest possible FSB, as this could take days to find properly. We do however spend at least a few hours overclocking every motherboard to try and find the highest possible overclock in that time frame. You may or may not be able to overclock higher if you spend more time tweaking, or as new BIOS updates are released. "Burn-in" time might also come into play if you believe in that.

Test System Setup and wPrime


Test System Setup

Processor(s): Intel i7 920 @ 3.2GHz (200MHz x 16)
Cooling: Noctua NH-U12P (Supplied by Noctua)
Motherboard(s): GIGABYTE EX58-UD5 (Supplied by GIGABYTE)
Graphics Card(s): ASUS GTX 285(Supplied by ASUS)
Hard Disk(s): Western Digital 300GB Velicorapter (Supplied by Western Digital)
Operating System: Windows Vista SP1 64-Bit
Drivers: ForceWare 185.65


Today we'll be seeing how the A-DATA kit we have here goes at its stock 1600MHz speed and we'll also see how that compares against 2000MHz Corsair modules that have been down clocked to 1600MHz and use the JEDEC approved latencies.

We'll also be seeing how the kit compares at the stock 1333MHz that most basic i7 systems would use along with what kind of performance increase we got when the speeds are ramped up to 2000MHz.


wPrime

Version and / or Patch Used: 1.62
Developer Homepage: http://www.wprime.net/
Product Homepage: http://www.wprime.net/




wPrime uses a recursive call of Newton's method for estimating functions, with f(x)=x2-k, where k is the number we're sqrting, until Sgn(f(x)/f'(x)) does not equal that of the previous iteration, starting with an estimation of k/2. It then uses an iterative calling of the estimation method a set amount of times to increase the accuracy of the results. It then confirms that n(k)2=k to ensure the calculation was correct. It repeats this for all numbers from 1 to the requested maximum.

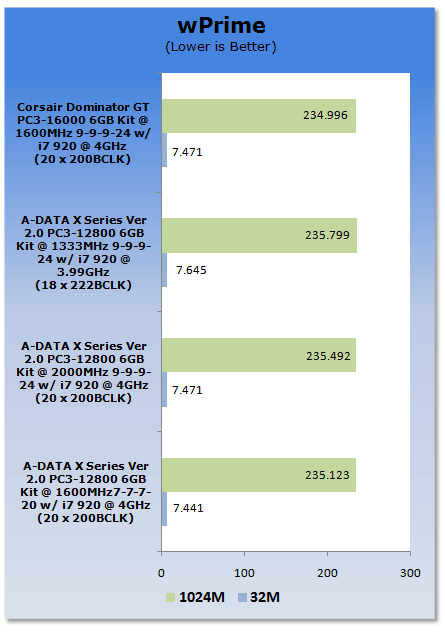

A-DATA X Series Ver 2 PC3-12800 6GB DDR3 Kit


With the processor sitting at 4GHz in all setups what we see is that the performance between all configurations is very similar.

Benchmarks - EVEREST Ultimate Edition


EVEREST

Version and / or Patch Used: Ultimate Edition
Developer Homepage: http://www.lavalys.com/
Product Homepage: http://www.lavalys.com/products/overview.php?pid=3&ps=UE&lang=en
Buy It Here




EVEREST Ultimate Edition is an industry leading system diagnostics and benchmarking solution for enthusiasts PC users, based on the award-winning EVEREST Technology. During system optimizations and tweaking it provides essential system and overclock information, advanced hardware monitoring and diagnostics capabilities to check the effects of the applied settings. CPU, FPU and memory benchmarks are available to measure the actual system performance and compare it to previous states or other systems. Furthermore, complete software, operating system and security information makes EVEREST Ultimate Edition a comprehensive system diagnostics tool that offers a total of 100 pages of information about your PC.

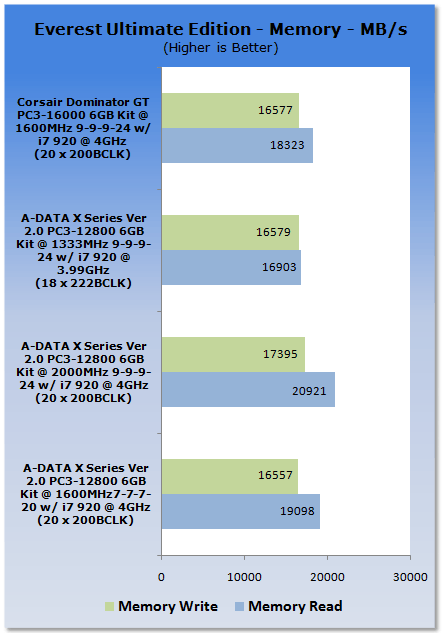

A-DATA X Series Ver 2 PC3-12800 6GB DDR3 Kit


We can see that at 2000MHz we've got some serious performance on offer here. We can also see that the lower latency timings on offer from the A-DATA modules when compared to the Corsair give us a nice boost in read performance.

Benchmarks - SiSoft Sandra


SiSoft Sandra

Version and / or Patch Used: Professional Home
Developer Homepage: http://www.sisoftware.co.uk
Product Homepage: http://sisoftware.jaggedonline.com/index.php?location=home&a=TTA&lang=en
Buy It Here




SiSoft Sandra (System ANalyser, Diagnostic and Reporting Assistant) is a synthetic Windows benchmark that features different tests used to evaluate different PC subsystems.

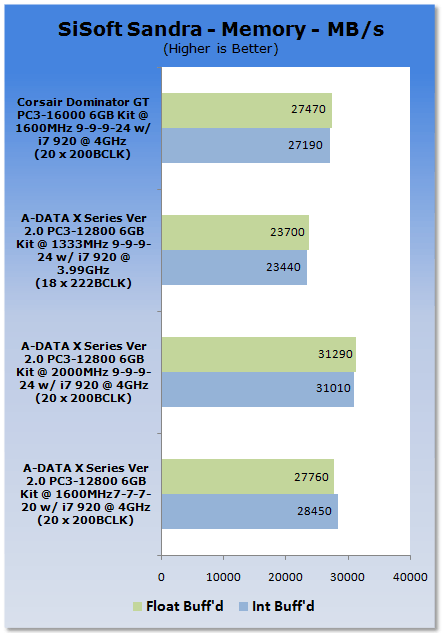

A-DATA X Series Ver 2 PC3-12800 6GB DDR3 Kit


Like EVEREST we can see that with the modules at 2000MHz we see some serious performance. We can also see that compared to the Corsair modules which are down clocked we get a jump on them thanks to the lower latencies on offer.

Benchmarks - Sciencemark


ScienceMark 2.0

ScienceMark 2.0 is a mathematical program designed to stress the memory subsystems of both desktop/workstation and server environments to determine the read/write latency as well as the overall memory bandwidth available between the CPU and the memory controller.

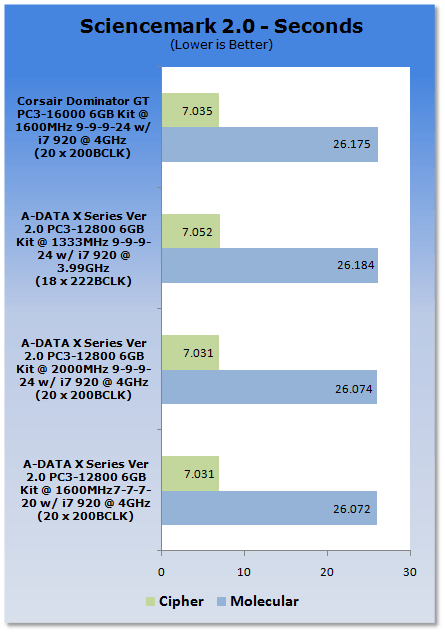

A-DATA X Series Ver 2 PC3-12800 6GB DDR3 Kit


Here we can see that performance between all setups is quite similar with not much to report about.

Benchmarks - Far Cry 2


Far Cry 2

Version and / or Patch Used: 1.01
Timedemo or Level Used: Ranch Long
Developer Homepage: http://www.ubi.com/
Product Homepage: http://www.farcry2.com/
Buy It Here




The Dunia Engine was built specifically for Far Cry 2 by the award-winning Ubisoft Montreal development team. It delivers the most realistic destructible environments, amazing special effects such as dynamic fire propagation and storm effects, real-time night-and-day cycle, dynamic music system, non-scripted enemy A.I. and so much more.


A-DATA X Series Ver 2 PC3-12800 6GB DDR3 Kit


A-DATA X Series Ver 2 PC3-12800 6GB DDR3 Kit


Performance is slightly up and down all over the place here but nothing to really report on, the extra MHz on offer here really do little for gaming performance.

Final Thoughts




With the clocks we achieved out of these A-DATA modules, it's clear that there's some serious performance on offer which shows us that A-DATA could be a serious contender when it comes to performance memory.

As for its 1600MHz performance, the 7-7-7-20 timings on offer really give us a nice boost in performance in memory related benchmarks when compared to modules sitting at the same speed, but using the JEDEC approved 9-9-9-24 setup.

The overall bundle that A-DATA has put together is pretty impressive as well with the company choosing to ramp it up in the cooling department by offering us an active cooling solution, which is always a nice addition to your memory kit.

1600MHz memory really gives us a nice balance when it comes to price and performance. We get a nice little jump in memory performance when compared to stock 1333MHz modules with a bump in price that is nowhere near as major as what is seen in 2000MHz kits.

With A-DATA also offering 2000MHz kits, there's no doubt that A-DATA can be a serious contender in the highly competitive memory market. And while these highly clocked kits might not be the biggest seller, it does draw attention to the brand which results in people looking at their clocked modules for basic systems or friends who don't want to spend the big bucks.
