Today we look at the Z390 Phantom Gaming 7, which was actually under NDA until just recently. While we are unsure of why this motherboard was under NDA, it does have a healthy feature set, ASRock's first integrated IO shield, and it's the first motherboard that uses USB-IF's new USB 3.2 renaming scheme. Let's see what this motherboard has in store for us today.

Specifications

The Z390 Phantom Gaming 7 features two M.2 slots, 2.5G LAN, Intel LAN, USB 3.2 (USB 3.0 and USB 3.1), and SATA6Gb/s.

Pricing

The Z390 Phantom Gaming 7 cost is currently unknown, but probably cheaper than the Phantom Gaming 9.

Packaging and Z390 Phantom Gaming 7 Overview

Packaging and Overview

ASRock Z390 Phantom Gaming 7 Motherboard Preview 03 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 04 | TweakTown.com

The box has the same design as the other Z390 Phantom Gaming motherboards, and the packaging is well done.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 05 | TweakTown.com

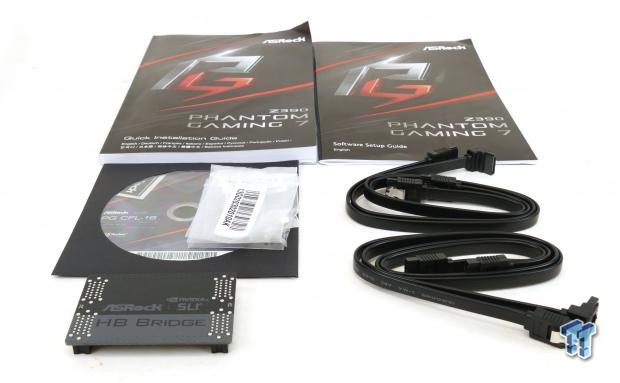

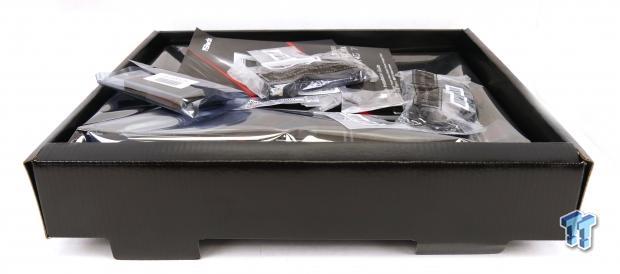

The accessory package includes four SATA6Gb/s cables, SLI HB bridge, M.2 screws, Post Card, Driver DVD, manual, and a case badge.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 06 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 07 | TweakTown.com

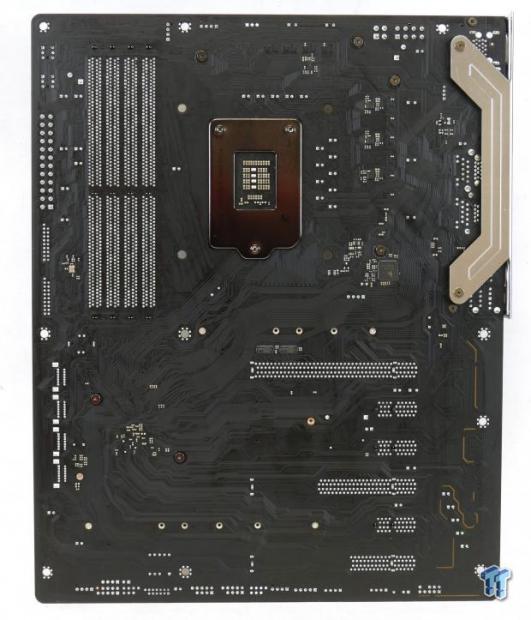

There are five fan headers on this motherboard. The one circled in red is a 1A PWM header for the CPU cooler fan. The other four headers circled in blue are capable of up to 2A of current and can operate as DC or PWM mode fans. The motherboards color theme includes both the silkscreen on the PCB and the colors on the heat sinks. The rear of the motherboard has some chips, but it's pretty barren otherwise.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 08 | TweakTown.com

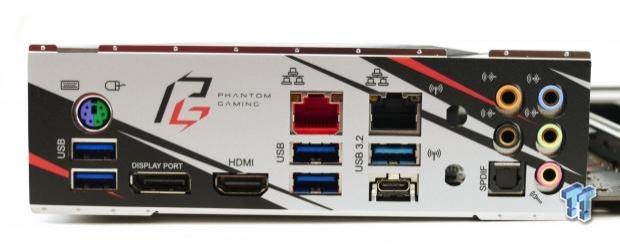

The rear IO panel features PS/2 Keyboard and Mouse, four USB 3.0 (5Gb/s) ports, a USB 3.1 (10Gb/s, labeled USB 3.2) type-A port, a USB 3.1 (10Gb/s, labeled USB 3.2) type-C port, DisplayPort, HDMI, 2.5G LAN, two 1G LAN, and gold plated 7.1 audio outputs with S/PDIF.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 09 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 10 | TweakTown.com

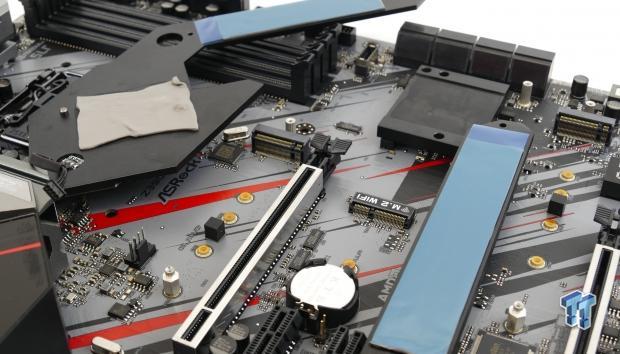

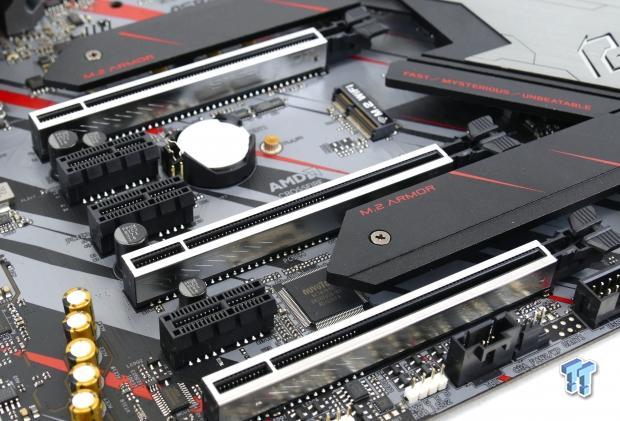

The PCI-E layout is as follows, x16/x0/x4 or x8/x8/x4. Both M.2 slots operate at x4 PCI-E, and it looks as if they share bandwidth with some of the SATA ports. Both M.2 slots have heat sinks, but the heat sink on the top one can be a bit tough to get off since it has a thermal pad that kind of glues it to the PCH heat sink. It's possible to separate it from the PCH heat sink, but it requires some pressure. There is also a WIFI M.2 card slot.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 11 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 12 | TweakTown.com

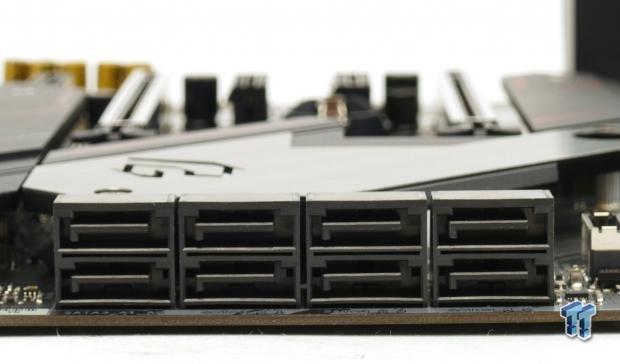

There are eight SATA6Gb/s ports, two of which come from an ASMedia controller while the rest are from the PCH. There are two USB 3.0 internal headers and a USB 3.0 type-C header.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 13 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 14 | TweakTown.com

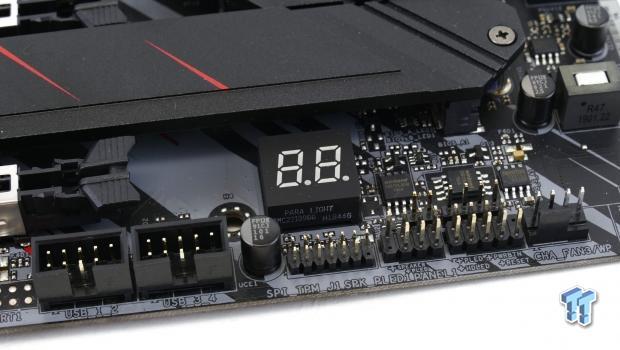

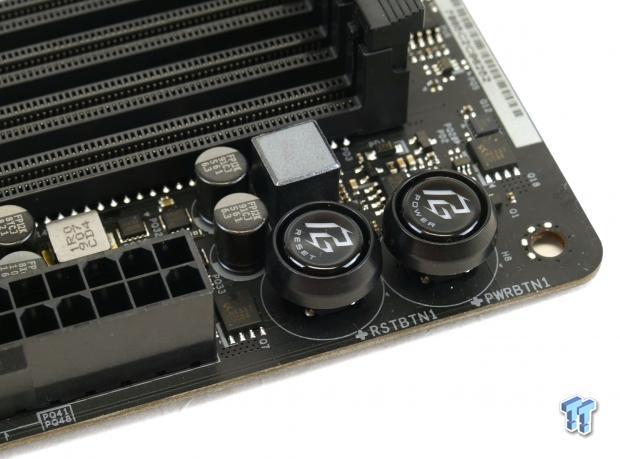

At the top right of the motherboard, we find a power button and a reset button. In the bottom right corner of the motherboard, we find our front panel headers, a TPM header, and two USB 2.0 internal headers.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 15 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 16 | TweakTown.com

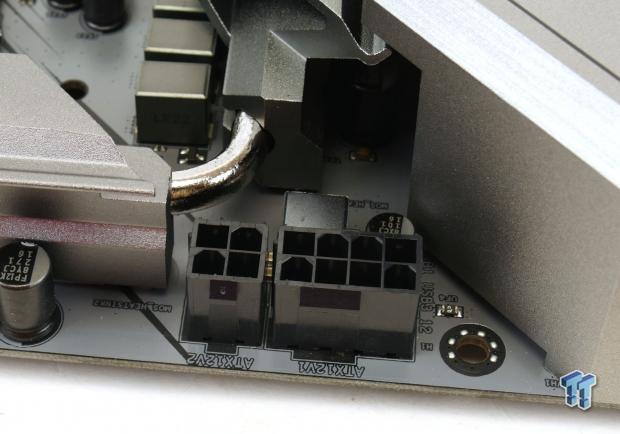

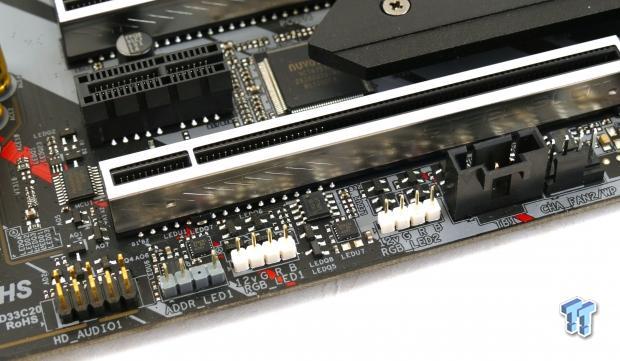

We also find an addressable RGB LED header near two RGB LED headers, a Thunderbolt GPIO header, and our HD audio header. The motherboard offers one 8-pin power header and one optional 4-pin power header for CPU power.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 17 | TweakTown.com

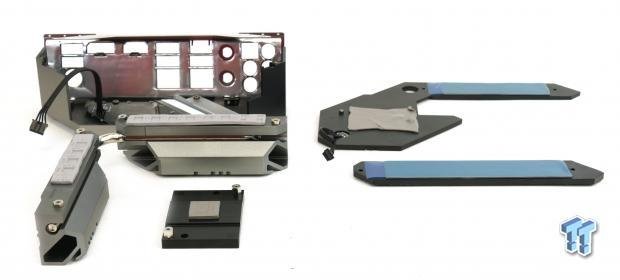

The motherboard's heat sinks are all screwed into the motherboard. The motherboard is also the first ASRock motherboard with an integrated IO shield.

ASRock Z390 Phantom Gaming 7 Circuit Analysis

Circuit Analysis

ASRock Z390 Phantom Gaming 7 Motherboard Preview 19 | TweakTown.com

The Z390 Phantom Gaming 7 shows us the goods with the heat sinks removed!

ASRock Z390 Phantom Gaming 7 Motherboard Preview 20 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 21 | TweakTown.com

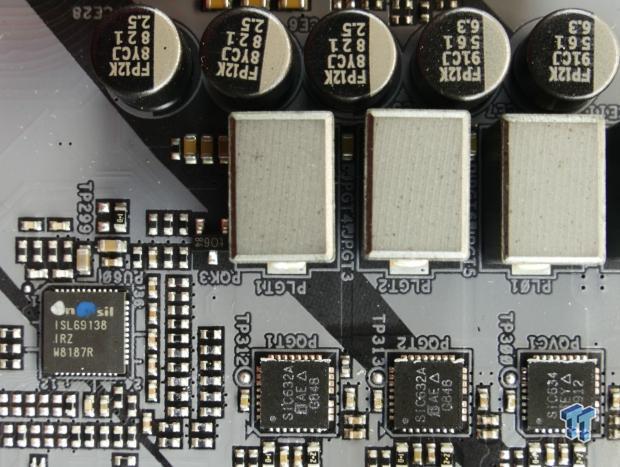

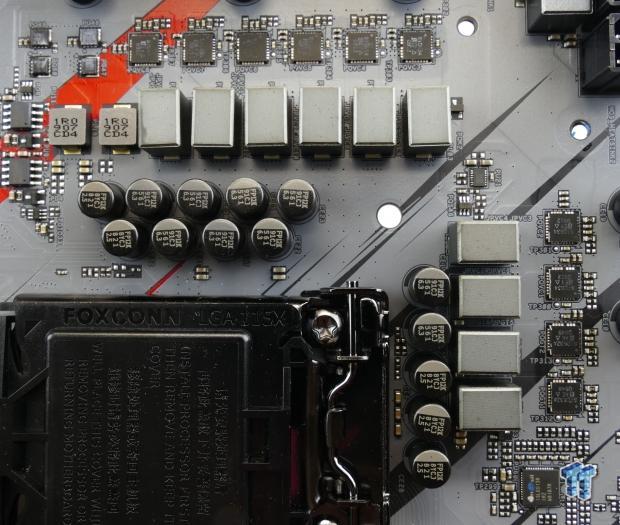

It looks like ASRock has embraced the DrMOS trend of these mid to high-end Z390 motherboards. The CPU VCore is eight phases doubled by four ISL6617 doublers, the iGPU is two phases, and the VCCIO and VCCSA are single phases. The PWM controller is a digital PWM from Intersil, the ISL69138 in a 4+2 phase configuration. The power stages are Vishay DrMOS SiC632A for the iGPU phases and DrMOS SiC634 for the CPU VCore, and both are rated 50A.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 22 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 23 | TweakTown.com

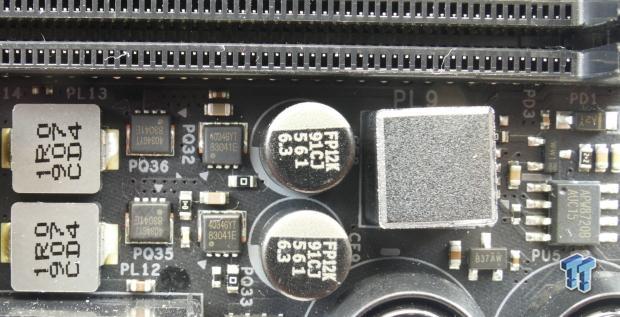

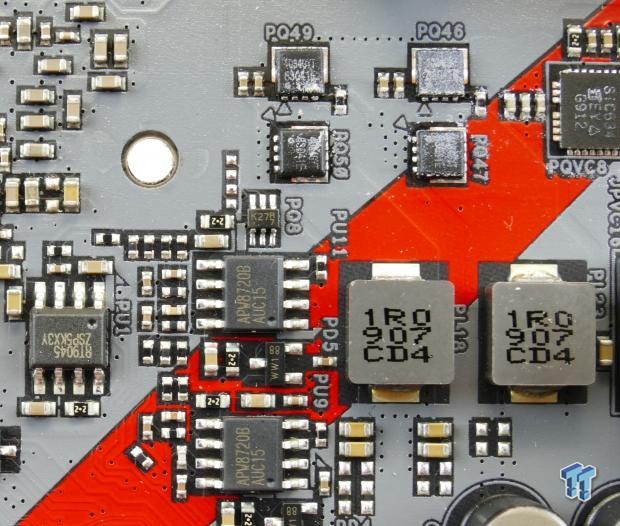

The VCCSA and VCCIO are controlled by APW8720 integrated PWM/driver chips and control smaller MOSFETs from ON Semiconductor. The memory VRM is two phases using the same PWM and double the number of power stage components as the VCCIO or VCCSA phases.

ASRock Z390 Phantom Gaming 7 Circuit Analysis Continued

Z390 Phantom Gaming 7 Circuit Analysis Continued

ASRock Z390 Phantom Gaming 7 Motherboard Preview 24 | TweakTown.com

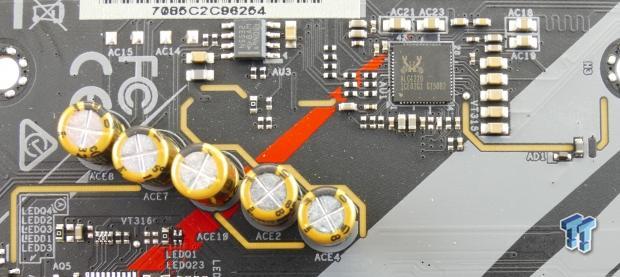

The audio solution consists of a Realtek ALC1220 rated up to 120dB with integrated amplifier going to the rear IO panel, an added NE5532 for front audio amplification, and Gold series audio capacitors.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 25 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 26 | TweakTown.com

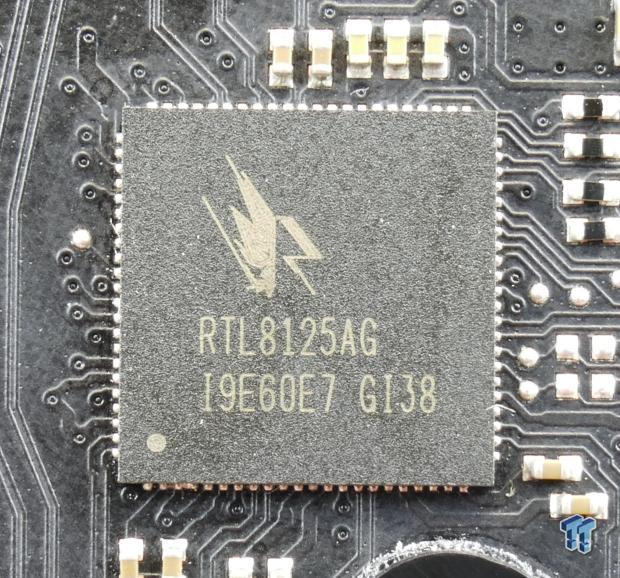

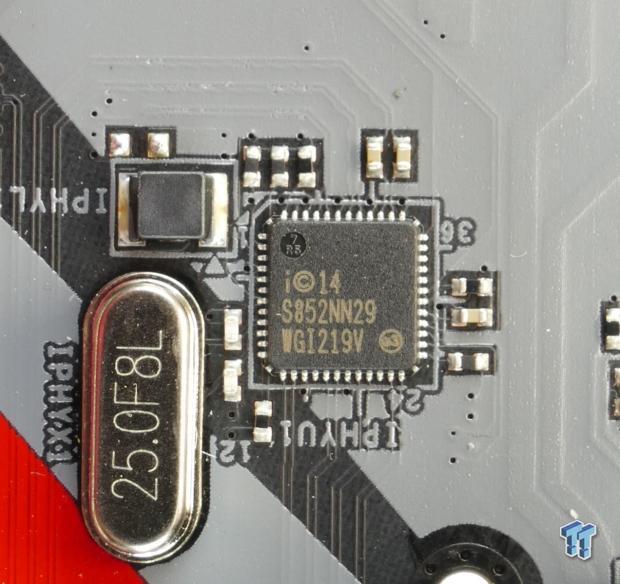

We find Realtek's 2.5Gbit Gaming LAN controller on the back of the motherboard, RTL8125. The Intel i219V is the GBit Intel chip for the 1Gbit LAN port.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 27 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 28 | TweakTown.com

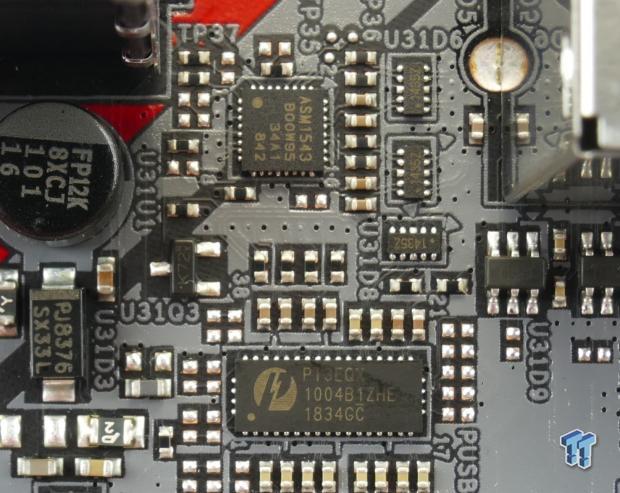

The rear USB 3.1 (10Gb/s, called USB 3.2 on rear IO panel) are re-driven by the Pericom PI3EQX, and the type-C port on the rear gets an ASMedia ASM1543 type-C switch chip. The internal USB 3.0 type-C header gets its own ASM1543 type-C switch chip.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 29 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 30 | TweakTown.com

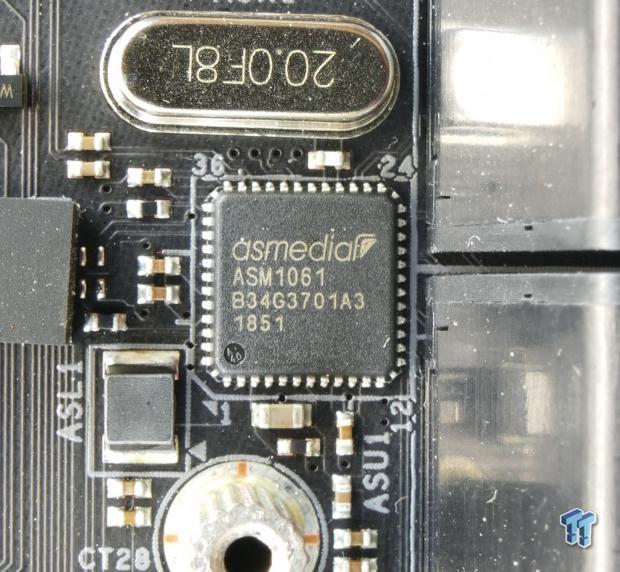

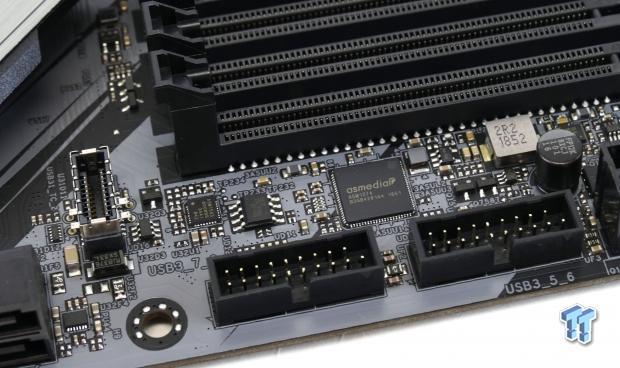

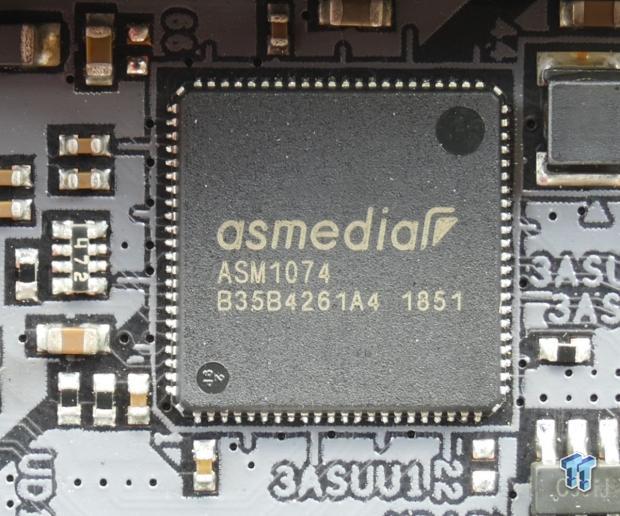

An ASMedia ASM1074 is used as a USB 3.0 hub to produce two USB 3.0 internal headers. The ASMedia ASM1061 provides two SATA6Gb/s ports.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 31 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 32 | TweakTown.com

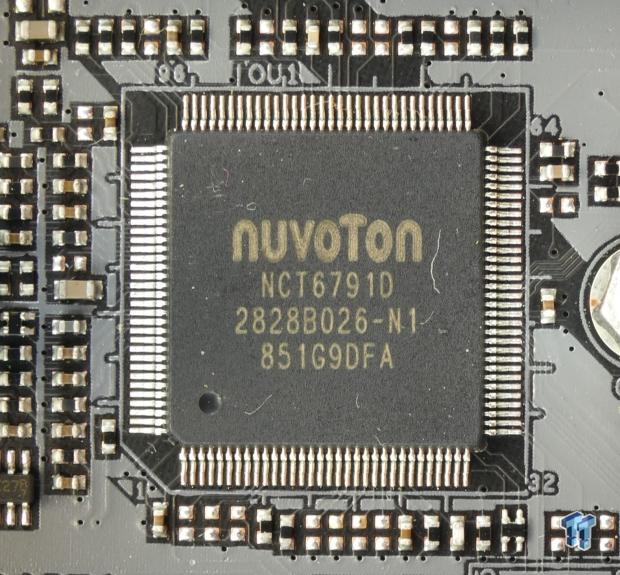

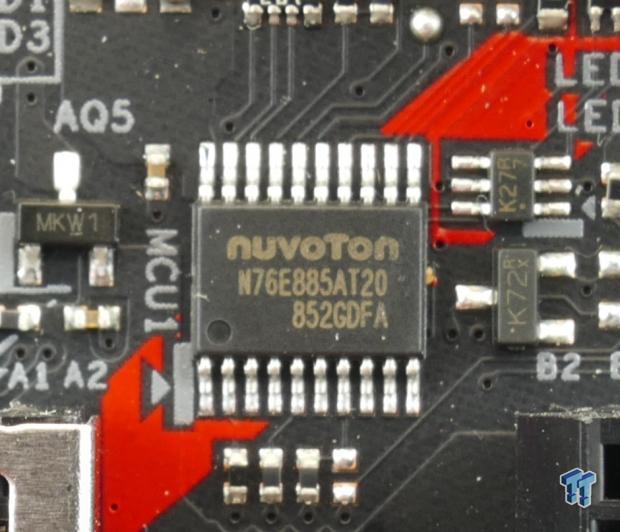

The Nuvoton NCT6791D is used as the SuperIO controller. The Nuvoton N76E885AT is the microcontroller used to control the RGB LEDs.

ASRock Z390 Phantom Gaming 7 Motherboard Preview 33 | TweakTown.comASRock Z390 Phantom Gaming 7 Motherboard Preview 34 | TweakTown.com

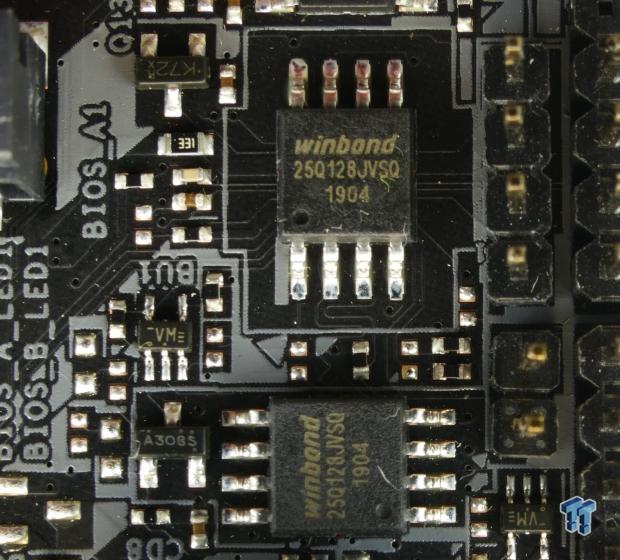

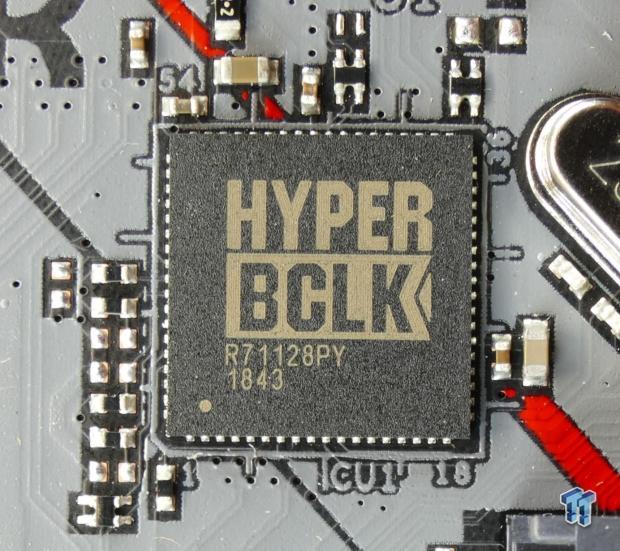

A Hyper BCLK chip is used to allow for better BCLK overclocking. The motherboard has two 128Mbit (16MB) BIOS ROM chips for redundancy.
