NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment

I punish the GeForce GTX 480 with more voltage; and my ear drums with the fan speed set to 100%!
@ShawnBakerTW
Published Thu, Apr 15 2010 1:53 PM CDT   |   Updated Fri, Sep 18 2020 10:50 PM CDT
Manufacturer: NVIDIA

Introduction


NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 02 | TweakTown.com
VIEW GALLERY - 28 IMAGES


As I write this, MSI literally just released the latest version of MSI Afterburner 1.6.0 Beta only a few hours ago. The fact that MSI released a new version of Afterburner doesn't warrant its own article.

The fact that MSI offered Voltage Adjustment to the new GeForce GTX 480 video card in the release though, very much does. Voltage Adjustment on video cards has become such a big thing these days; companies offering such good cooling options mean that the video cards can handle a bit more voltage, which in turn is offering some outstanding performance increases.

MSI have done extremely well; anyone who's overclocking is using their software and in every screenshot you're seeing the MSI logo, no matter what card you're using. A constant flow of updates and people wanting to get the most out of a video card means we're seeing it so often. These days when someone asks what do I use to overclock my video card the chances are they're being told MSI Afterburner.

Due to the fact that we want to offer this article to you in the shortest time frame possible, the word count is going to be down, as most of my effort is placed in benchmarking.

On the next page we'll have a few screenshots and after that it's straight into the benchmarking!

GTX 480 Overclocking




NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 03 | TweakTown.com


NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 01 | TweakTown.com


As we mentioned overclocking was done with MSI Afterburner; speaking to MSI they told us that a Core Voltage of 1100 was safe; so I went to 1113 because I live life on the edge.

At first I did my overclocking with the fan left on AUTO; the problem is I had Vantage crashing at core clocks lower than what I ended up with. It seemed that the fan wasn't speeding up enough to keep the video card cool enough and in turn Vantage would freeze up by the second test. By moving to 100% we got through Vantage no problems; so we thought we would see if we could go higher again and we ended up with about another 15MHz.

As for the final overclock and how it compares to the reference one; 841MHz on the core which is way up from the stock 701MHz. The Shader clock has of course increased; that's gone from 1401MHz to 1682MHz.

While the memory might not get any love from the voltage adjustment we did manage to increase that from 3696MHz QDR to a very yummy 4200MHz QDR.

That's some serious clocks; hopefully it brings with it some serious performance!

Test System Setup and 3DMark Vantage


NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 99 | TweakTown.com


We would like to thank the following companies for supplying and supporting us with our test system hardware and equipment: Intel, ASRock, Kingston, Western Digital, Noctua and Thermaltake.

Again due to the time sensitive nature, I won't be explaining the graphs today - forgive me, will you? To be honest though, they speak for themselves!


3DMark Vantage

Version and / or Patch Used: 1.0.1
Developer Homepage: http://www.futuremark.com
Product Homepage: http://www.futuremark.com/products/3dmarkvantage/
Buy It Here




3DMark Vantage is the new industry standard PC gaming performance benchmark from Futuremark, newly designed for Windows Vista and DirectX10. It includes two new graphics tests, two new CPU tests, several new feature tests, and support for the latest hardware.

3DMark Vantage is based on a completely new rendering engine, developed specifically to take full advantage of DirectX10, the new graphics API from Microsoft.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 20 | TweakTown.com

Unigine Heaven Benchmark




Version and / or Patch Used: 1 and 2
Developer Homepage: http://www.unigine.com
Product Homepage: http://unigine.com/press-releases/091022-heaven_benchmark//



New benchmark grants the power to unleash the DirectX 11 potential in the gift wrapping of impressively towering graphics capabilities. It reveals the enchanting magic of floating islands with a tiny village hidden in the cloudy skies. With the interactive mode emerging experience of exploring the intricate world is ensured within reach. Through its advanced renderer, Unigine is one of the first to set precedence in showcasing the art assets with tessellation, bringing compelling visual finesse, utilizing the technology to the full extend and exhibiting the possibilities of enriching 3D gaming.

Note: If a card doesn't support DirectX 11 the benchmark will be left out, if it does it will be included along with the DirectX10 results.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 21 | TweakTown.com

Benchmarks - CINEBENCH


CINEBENCH

Version and / or Patch Used: Release 10 and Release 11.5
Developer Homepage: http://www.maxon.net/
Product Homepage: http://www.maxon.net




CINEBENCH is a real-world test suite that assesses your computer's performace capabilities. MAXON CINEBENCH is based on MAXON's award-winning animation software, CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation. MAXON software has been used in blockbuster movies such as Spider-Man, Star Wars, The Chronicles of Narnia and many more.

MAXON CINEBENCH runs several tests on your computer to measure the performance of the main processor and the graphics card under real world circumstances. The benchmark application makes use of up to 16 CPUs or CPU cores and is available for Windows (32-bit and 64-Bit) and Macintosh (PPC and Intel-based).

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 22 | TweakTown.com

Benchmarks - Resident Evil 5


Resident Evil 5

Version and / or Patch Used: Demo Benchmark
Developer Homepage: www.residentevil.com/
Product Homepage: http://www.residentevil.com/




Resident Evil 5 is a survival horror video game developed and published by Capcom. The game is the seventh installment in the Resident Evil survival horror series, and was released on September 18. Resident Evil 5 revolves around Chris Redfield and Sheva Alomar as they investigate a terrorist threat in Kijuju, a fictional town in Africa.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 23 | TweakTown.com

Benchmarks - BattleForge


BattleForge

Version and / or Patch Used: Auto Patched at Load
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.battleforge.com/
Product Homepage: http://www.battleforge.com/





The Gods have disappeared and the old sun has died, letting a vile twilight engulf the world of Nyn. In exchange for all treasures the mortals possessed, the evil giants agreed to forge a new sun and hurl it into the sky.

But the deal was betrayed, the treasure stolen and now the mortals flee the wrath of the giants. Under the light of a new sun the mortals stumble into a world changed and twisted by an age of twilight. The long journey home has become a conquest of survival.

Note: Supporting DirectX 11 we have seperated the graphs for NVIDIA and ATI cards. While the numbers between the two brands can be compared you have to make note that ATI based HD 5000 series cards are running DirectX 11.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 24 | TweakTown.com

Benchmarks - Tom Clancy's H.A.W.X.


Tom Clancy's H.A.W.X.

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.ubi.com/UK/default.aspx
Product Homepage: http://www.hawxgame.com/





Tom Clancy's H.A.W.X is an arcade-style flight simulator video game developed by Ubisoft Romania and published by Ubisoft for Microsoft Windows, Xbox 360, PlayStation 3, and iPhone OS.

The fundamental gameplay mechanics are similar to those of other console-based flight series. Players take on enemies with over 50 aircraft available. Each mission is at real world locations in environments created with commercial satellite data. A cockpit, first person, and third person view are selectable. The third person view gives the player an external view of both their plane and the target.

Set above the skies of a near-future world, increasingly dependent on private military companies with elite mercenaries who have a relaxed view on the law. As these non-governmental organizations gain power, global conflict erupts with one powerful PMC attacking the United States.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 25 | TweakTown.com

Benchmarks - Darkest of Days


Darkest of Days

Version and / or Patch Used: 1.4
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.darkestofdays.com/index.php
Product Homepage: http://www.darkestofdays.com/index.php





Darkest of Days takes the player through time into historic battles in an effort to save key individuals from certain death. The battles range from Custer's Last Stand at the Battle of the Little Bighorn in 1876 to fighting in Pompeii as ash and fire rain down from an erupting Mt. Vesuvius in 79 AD. Other locations include the battles of Antietam and Tannenberg, and a German World War II P.O.W. camp. There are different missions in every time period and the game takes about 4 hours to complete.

The game features over twenty weapons, both from the original time period as well as those brought back from the future. In addition, there are artillery weapons from different time periods to assist in battle.

Note: With the PhysX set to Medium or High Darkest of Days take advantage of the NVIDIA PhysX abilities. For that reason we will test ATI cards at the Low preset, NVIDIA based cards though will be tested at Low and High.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 26 | TweakTown.com


NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 27 | TweakTown.com

Benchmarks - Far Cry 2


Far Cry 2

Version and / or Patch Used: 1.01
Timedemo or Level Used: Ranch Long
Developer Homepage: http://www.ubi.com/
Product Homepage: http://www.farcry2.com/
Buy It Here




The Dunia Engine was built specifically for Far Cry 2 by the award-winning Ubisoft Montreal development team. It delivers the most realistic destructible environments, amazing special effects such as dynamic fire propagation and storm effects, real-time night-and-day cycle, dynamic music system, non-scripted enemy A.I. and so much more.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 28 | TweakTown.com

Benchmarks - Batman Arkham Asylum


Batman Arkham Asylum

Version and / or Patch Used: 1.1
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.batmanarkhamasylum.com/
Product Homepage: http://www.batmanarkhamasylum.com/





Batman: Arkham Asylum exposes players to a unique, dark and atmospheric adventure that takes them to the depths of Arkham Asylum - Gotham's psychiatric hospital for the criminally insane. Gamers will move in the shadows, instigate fear amongst their enemies and confront The Joker and Gotham City's most notorious villains who have taken over the asylum.

Using a wide range of Batman's gadgets and abilities, players will become the invisible predator and attempt to foil The Joker's demented scheme.
Batman: Arkham Asylum features an original story penned exclusively for the game by famous Batman author and five-time Emmy award winner Paul Dini, whose credits include Lost season one and Batman: The Animated Series.

Note: With support for PhysX NVIDIA based cards will be tested with the technology on and off, ATI cards will be tested with the technology off due to it not being supported on their cards.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 29 | TweakTown.com


NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 30 | TweakTown.com

Benchmarks - Dark Void


Dark Void

Version and / or Patch Used: Benchmark Demo
Timedemo or Level Used: Built-in Test
Developer Homepage: http://www.airtightgames.com
Product Homepage: http://www.darkvoidgame.com/




The game's story takes place during World War II and centers around a cargo pilot named William Augustus Grey (voiced by Nolan North) who is teleported to another world while flying through the Bermuda Triangle. In this world, known as the 'Void', Will encounters an alien race as well as other humans, which are known as the Watchers and the Survivors respectively.

Will reluctantly joins the Survivors who are engaged in a feud with the alien race to satisfy his desire to return to Earth. While aiding the Survivors, Will discovers that the Void is a middle ground that connects both the Watchers homeworld and Earth. It also becomes apparent that the Watchers are supplying the Axis powers with various supplies for reasons unknown. With the help of Nikola Tesla, Will utilizes retrofited Watcher technology to combat the Watchers and eventually find a way to escape the Void.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 31 | TweakTown.com


NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 32 | TweakTown.com

Benchmarks - High Quality AA and AF


High Quality AA and AF

Our high quality tests let us separate the men from the boys and the ladies from the girls. If the cards weren't struggling before they will start to now.


Far Cry 2

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 33 | TweakTown.com



Resident Evil 5

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 34 | TweakTown.com



Tom Clancy's H.A.W.X.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 35 | TweakTown.com

Benchmarks - Elcomsoft Wireless Security Auditor


Elcomsoft Wireless Security Auditor

Version and / or Patch Used: 1.51
Timedemo or Level Used: Sample File
Developer Homepage: http://www.elcomsoft.com/
Product Homepage: http://www.elcomsoft.com/ewsa.html




ElcomSoft has pioneered many software innovations that have made it easier to recover passwords protecting various types of resources. For the first time in the industry, the company's patent-pending GPU acceleration makes its way into Wi-Fi password recovery, reducing the time required to recover Wi-Fi passwords up to a hundred times.

Supporting up to four NVIDIA boards such as GeForce 8, 9, and 200, as well as ATI video cards such as RADEON HD 4000 Series and up, Elcomsoft Wireless Security Auditor allows building servers with supercomputer performance at a fraction of the price.

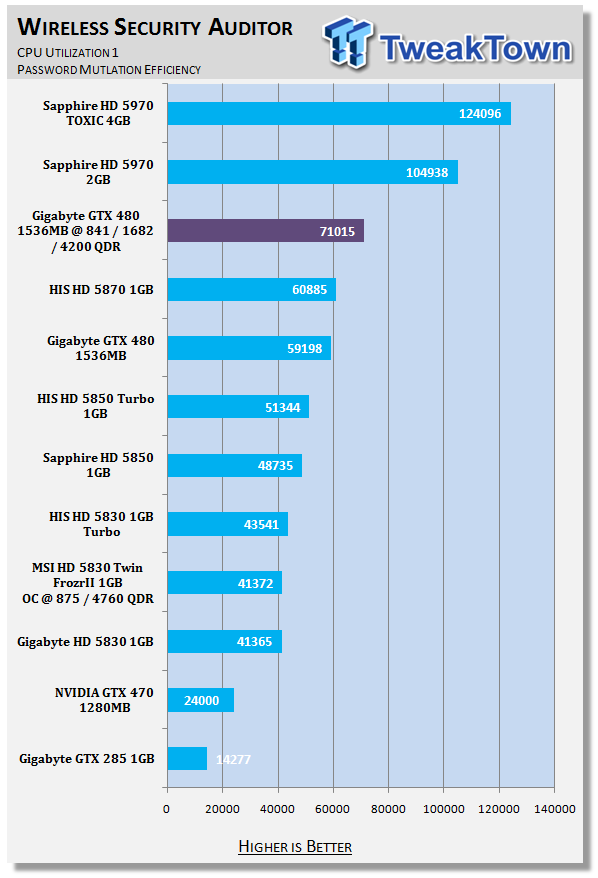

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 36 | TweakTown.com

Benchmarks - Badaboom


Badaboom

Version and / or Patch Used: Release 1.2.1.7
Developer Homepage: http://www.nvidia.com//
Product Homepage: http://www.badaboomit.com/




Badaboom eliminates the frustration of video conversion by providing users with speed, efficiency, quality, and a sleek interface. In a practice that used to take several hours, Badaboom converts feature-length movies in a matter of minutes while keeping the videos looking crisp and clear.

By harnessing the power of NVIDIA CUDA-enabled GPUs, Badaboom offloads the CPU to allow users to continue browsing the Internet or checking email without decreased system performance, making transcoding high-quality video fast, easy, and painless.

Note: With the requirement for a CUDA enabled graphics card to run Badaboom, this means that we can only use NVIDIA based cards for this test.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 37 | TweakTown.com

Temperature and Sound Tests


Temperature Tests



With the TES 1326 Infrared Thermometer literally in hand we found ourselves getting real-world temperatures from the products we test at load (3D clock speeds).

There are two places we pull temperature from - the back of the card directly behind the core and if the card is dual slot and has an exhaust point we also pull a temperate from there, as seen in the picture.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 38 | TweakTown.com



Sound Tests



Pulling out the TES 1350A Sound Level Meter we find ourselves quickly yelling into the top of it to see how loud we can be.

After five minutes of that we get a bit more serious and place the device two CM away from the fan on the card to find the maximum noise level of the card when idle (2D mode) and in load (3D mode).

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 39 | TweakTown.com

Power Consumption Tests






Using our new PROVA Power Analyzer WM-01 or "Power Thingy" as it has become quickly known as to our readers, we are now able to find out what kind of power is being used by our test system and the associated graphics cards installed. Keep in mind; it tests the complete system (minus LCD monitor, which is plugged directly into AC wall socket).

There are a few important notes to remember though; while our maximum power is taken in 3DMark06 at the same exact point, we have seen in particular tests the power being drawn as much as 10% more. We test at the exact same stage every time; therefore tests should be very consistent and accurate.

The other thing to remember is that our test system is bare minimum - only a 7,200RPM SATA-II single hard drive is used without CD ROM or many cooling fans.

So while the system might draw 400 watts in our test system, placing it into your own PC with a number of other items, the draw is going to be higher.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 40 | TweakTown.com

Total Performance Rating (TPR)


Total Performance Rating

The TPR graph is a combination of all our benchmarks in which NVIDIA and ATI are on an even playing field. This includes benchmarks where PhysX can be forced off like Dark Void and Batman: Arkham Asylum, but not Darkest of Days.

The TPR number is a combination of:

3DMark Vantage, Heaven Benchmark V2, CINEBENCH R11.5, Resident Evil 5, BattleForge, Tom Clancy's H.A.W.X., Far Cry 2, Batman: Arkham Asylum (PhysX Off), Dark Void (PhysX Off) and our three High Quality tests which include Far Cry 2, Resident Evil 5 and Tom Clancy's H.A.W.X.

All of the benchmark results achieved are then combined into a single number. As this graph will grow over time and cards won't be re-tested, next to each model you'll find the driver version that was used when the card was benchmarked.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 41 | TweakTown.com

Total Value Rating (TVR)


Total Value Rating

The TVR graph is the TPR score divided by the price of the video card. The price of the video card is based on the list price of the model on Newegg.com. In the event the card isn't listed, it will be based on the U.S. $ MSRP given to us by the manufacturer.

In the event we can't source a price from either, the product will not receive a TVR rating. As with our TPR graph, the amount of video cards on the list will grow over time and the price of the model won't change from what it was when first reviewed. For this reason the U.S. $ price that the card is based off will be included next to the name of the model.

In the event you want to find the TVR rating yourself based on the current price, all you have to do is simply divide the TPR number by the list price.

TVR numbers are rounded to the nearest whole number; 100.3 will be 100; 100.8 will be 101 and 100.5 will be rounded down to 100.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 42 | TweakTown.com

Vantage Suicide Run




If you're from GIGABYTE Tech, please look away so you don't see what I did to your GTX 480.

When I asked MSI what was a safe voltage to go to they responded back with "only 1.1"; so I asked "1125 not safe?" and they responded back with "it's too hot, you can only tweak 0.1 v."

Since we already were running 1113 what was a little bit more going to do? So we moved the slider to the max which was 1125. Once we did that and hit apply our machine BSOD and we couldn't turn it back on... just kidding :)

All I wanted was a clock speed that would run a single loop of Vantage and give us a P score. Looking at the full screen you can see the clocks we achieved along with the score. Of course we wouldn't recommend doing this 24 / 7; plus the fact of the matter is that it won't run everything.

NVIDIA GeForce GTX 480 Overclocking with Voltage Adjustment 10 | TweakTown.com


As a note the GTX 480 at default achieved P21491, at the speeds that ran all our benchmarks we achieved P25241.

Final Thoughts




The first thing we have to say is that this isn't practical. When we say that we mean it's not practical in the sense that you cannot have the fan running at 100% when you're gaming; honestly 82dB is loud. I mean - it's really loud!

If you go down the path of water cooling the model though, you're not going to have this issue; the other thing is because we ran on such a tight schedule and AUTO didn't want to play nice, we just cranked it to the top. To be honest, everything might be sweet at say 70%; of course that's something that you can find out without any real issue.

Performance is insane! There are some absolutely massive gains seen especially at 2560 x 1600. Some of the most noteworthy scores would be a P25k run on a single GPU air cooled video card and almost P26k in our suicide run. V2 Heaven outperforming the HD 5970 and the GTX 480 going from matching or being behind the HD 5970 in H.A.W.X. and RE5 AA benchmarks to being clearly in front.

If you had to put it all in perspective our TPR graph paints the best picture; we've gone from 42,514 to 49,027, which equates to an increase of over 15%.

There's no denying that NVIDIA had some issues with Fermi; what this shows us today though is the potential. The next generation of NVIDIA videos cards I think will be a force to be reckoned with.
