Netgear ProSAFE XS712T L2+ 10GbE Switch Review

Today Chris takes a look at Netgear's ProSAFE XS712T L2+ 10GbE switch. Is it time to get your house or office connected with 10Gb Ethernet?

Published
Updated
Manufacturer: Netgear
6 minutes & 17 seconds read time

Introduction

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 01

Ever since the Taiwanese NAS manufactures included 10GbE capabilities to their products, I've been in the 10GbE network market. Until now your options were limited to enterprise, expensive paired with lucky, or enterprise paired with more expensive. Searching the used market is little help. Early 10GbE came from a connector called CX4. Just as with gigabit Ethernet, fiber brought 10GbE out of the largest data centers, but fiber can be expensive since each end takes an optical transceiver. The natural progression is to copper lines, but it takes time for technology to move from the top down.

The Netgear website is a lesson in diversity. The company makes several products, in several categories and masters pushing technology from the top down. We're all familiar with Netgear's consumer products. I'd say for a majority of enthusiasts and IT administrators, Netgear built our first switches or routers. As our needs move up in complexity, Netgear works to move the technology lower in price.

In January, Netgear announced three new ProSAFE SMB switches with 10GbE capability, an 8-port, the 12-port that we're looking at today, and a 24-port. MSRPs range from $7999 for the 24 port model, to $1400 for the eight port model. Our XS712T 12 port unit rings the bell at $2500 retail, but a quick search on Google returned an e-tail price of just $1661.99 at Newegg.

Let's take a look at the specifications and features.

Specifications and Pricing

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 02

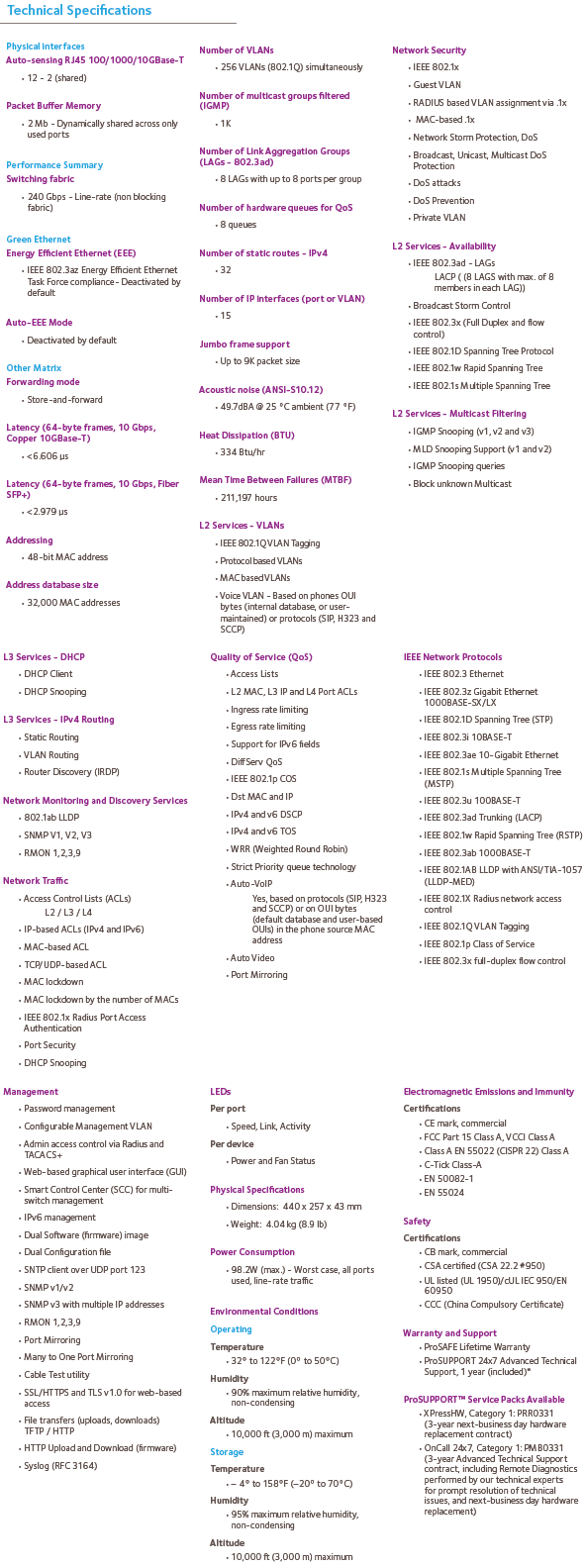

Powered by a 600MHz processor, the XS712T is the first 10GBase-T Smart Switch designed for SMB use. Advanced L2+ features give network administrators features not available on unmanaged products. Depending on need, the XS712T works well as core switch for SMB networks or as an aggregation switch in the middle of a medium sized network.

Going into the review, I found the XS712T with more features than I initially assumed. Netgear optimized the new ProSAFE family of products for converged networks where voice, data, and video flow over the same network. Auto VoIP prioritization eases office configuration and takes the complexity out of building a converged office. The L2+ rating means this switch pulls a handful of Layer 3 features.

As mentioned in the introduction, we managed to find the ProSAFE XS712T for $1661.99 at Newegg. This is less than the MSRP and much less than any competitor's 10GbE 12-port solution. If you are looking for the absolute best price, Amazon has the switch for as low as $1507.50 at the time of writing.

Netgear covers the unit with a lifetime warranty as long as you are the original purchaser and purchased the switch from an authorized dealer.

Packaging

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 03

Our sample ProSAFE XS712T shipped in the retail package.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 04

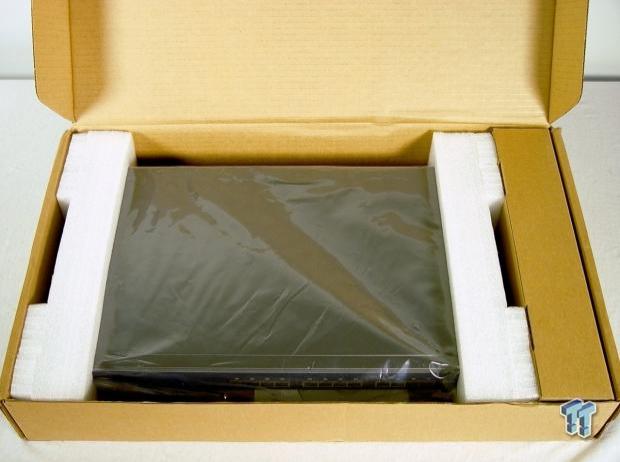

Inside we found the switch protected with dense foam and adequate protection on the corners where damage occurs during shipping. The accessory package was held in a separate area away from the switch.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 05

Netgear includes a product manual, software disk, rackmount ears, screws for rackmount use, and rubber feet for shelf use.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 06

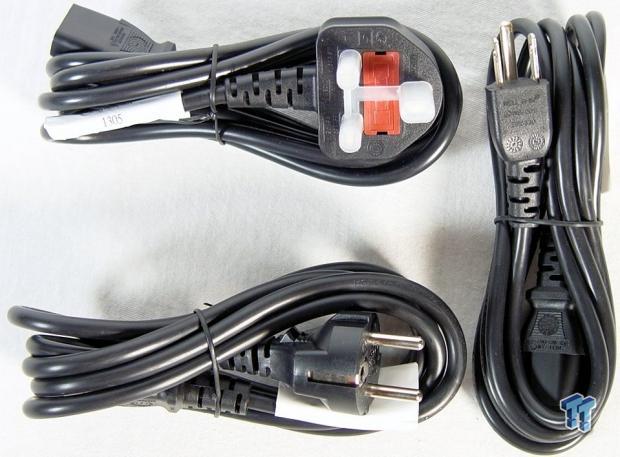

Three power cables were included for different standards.

Netgear ProSAFE XS712T

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 07

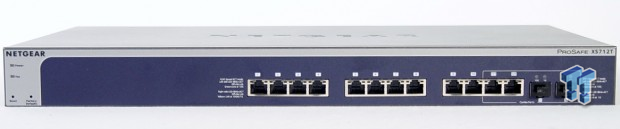

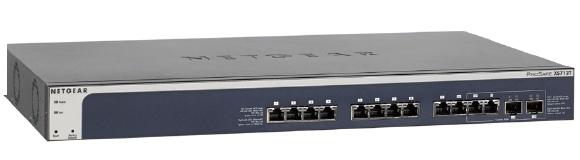

Here we get our first look at the Netgear ProSAFE XS712T. There are twelve 10GBase-T RJ45 ports and two SFP+ ports shared with two RJ45 ports.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 08

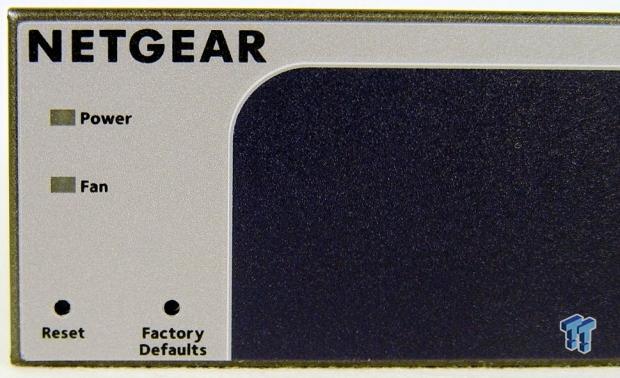

Status LEDs indicate power or fan failure. Just below, we found recessed reset and factory default buttons.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 09

LED activity indicators show network status at the port.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 10

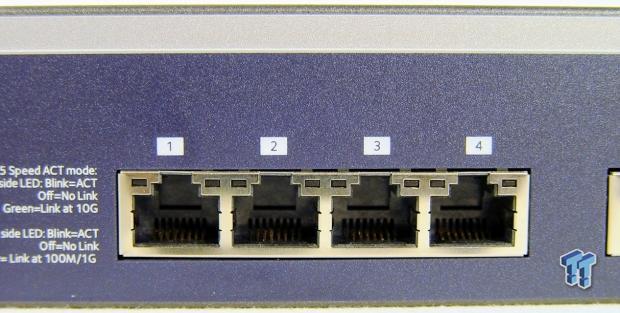

Ports are configured in three clusters of four.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 11

Two SFP+ ports work with Netgear 10GbE optics. We tested the unit with Intel optics from a X520-SR2 and they worked.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 12

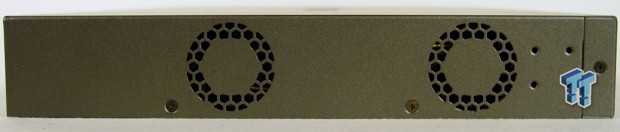

Two cooling fans on the side of the unit blow fresh air across the internals. With this configuration you don't have to worry about front to back or reverse air flow in the rack.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 13

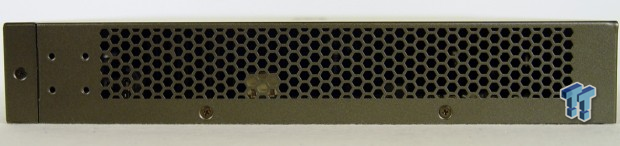

Air comes out on the other side through a perforated panel.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 14

On the back we found a power connector and slot for a Kensington lock.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 15

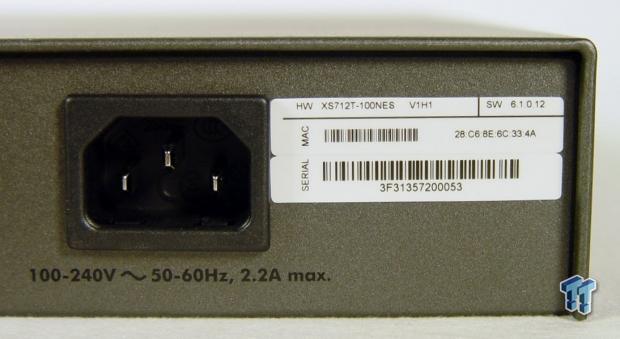

The printed MAC address was found on the label next to the power port.

Configuration Menus

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 40

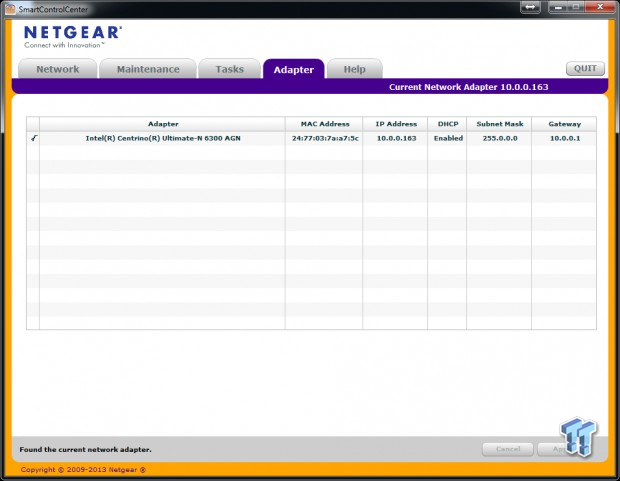

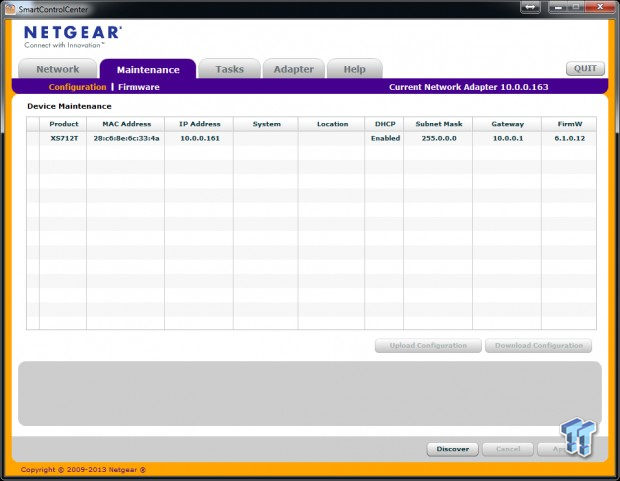

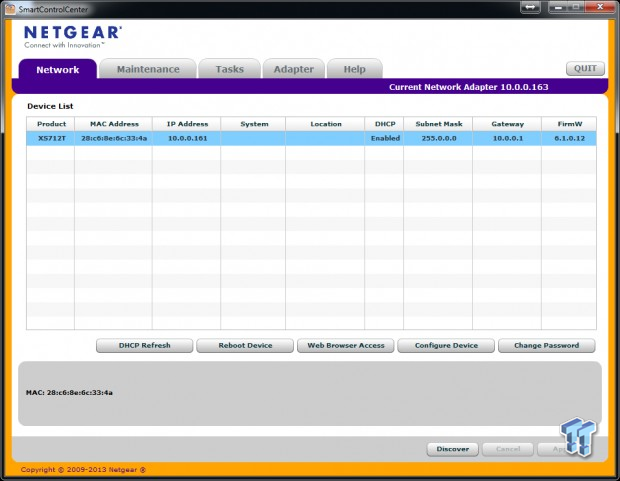

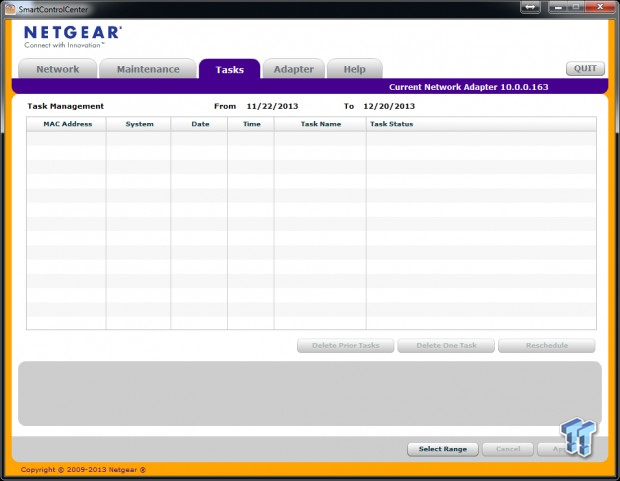

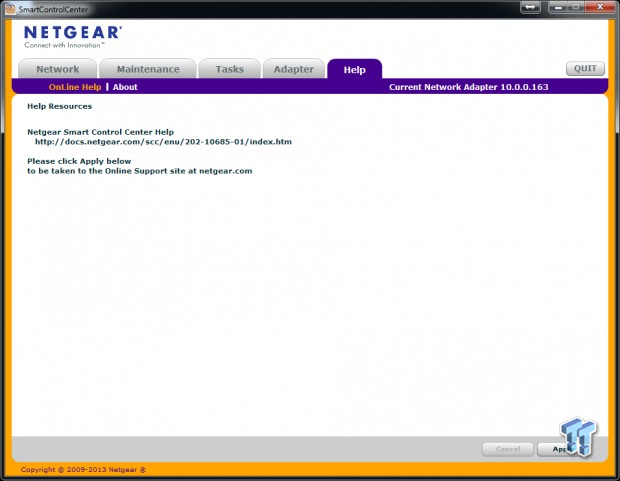

Netgear's Smart Control Center Manager gives you instant access to the switch's browser interface and quick configuration settings.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 41 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 42 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 43 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 44
Netgear ProSAFE XS712T L2+ 10GbE Switch Review 45

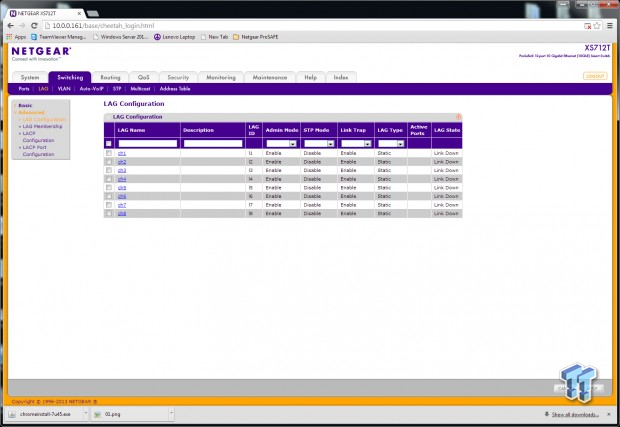

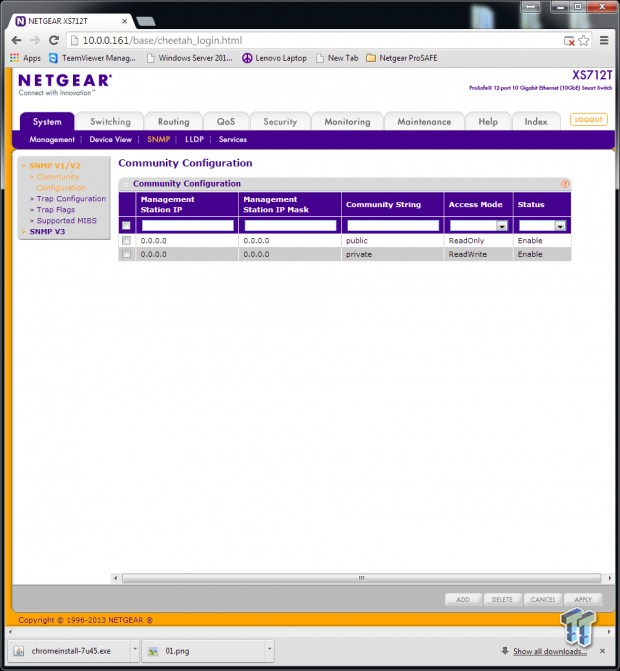

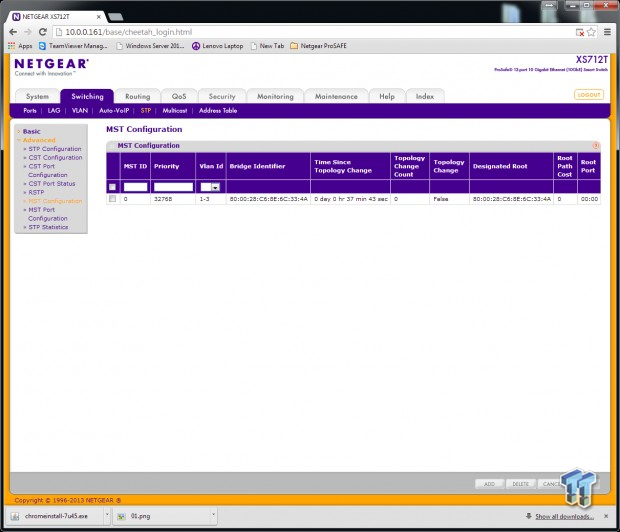

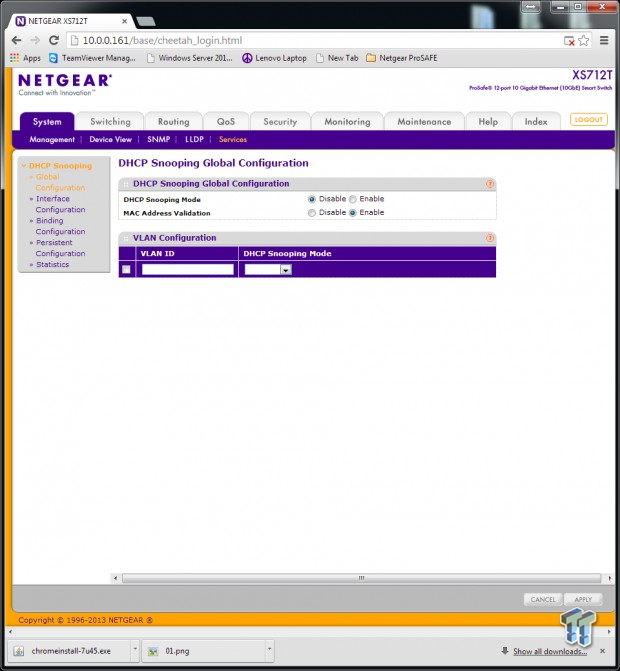

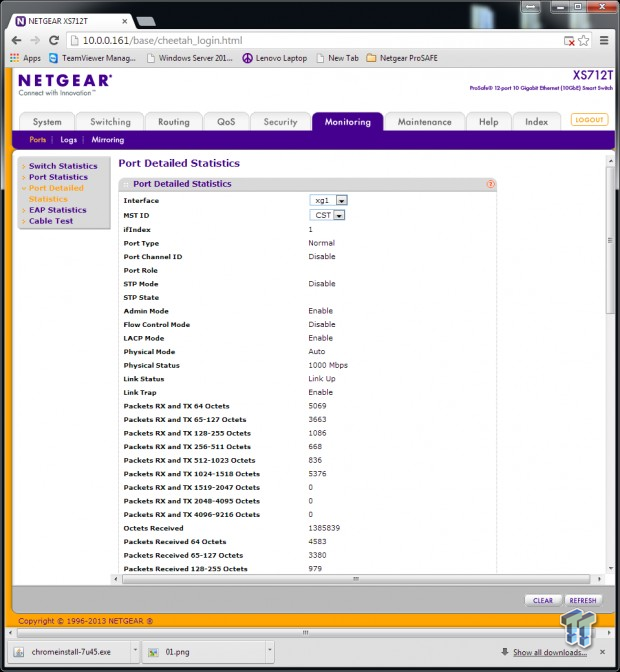

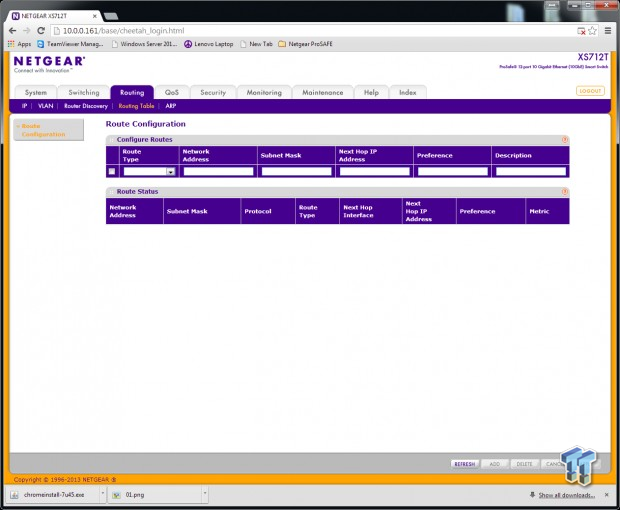

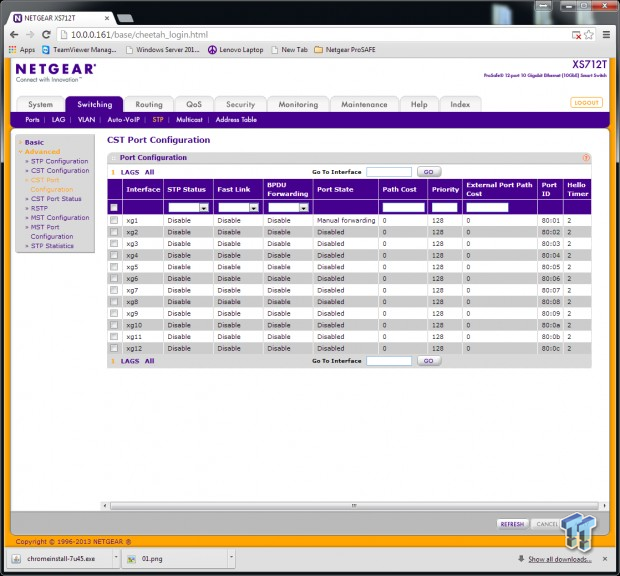

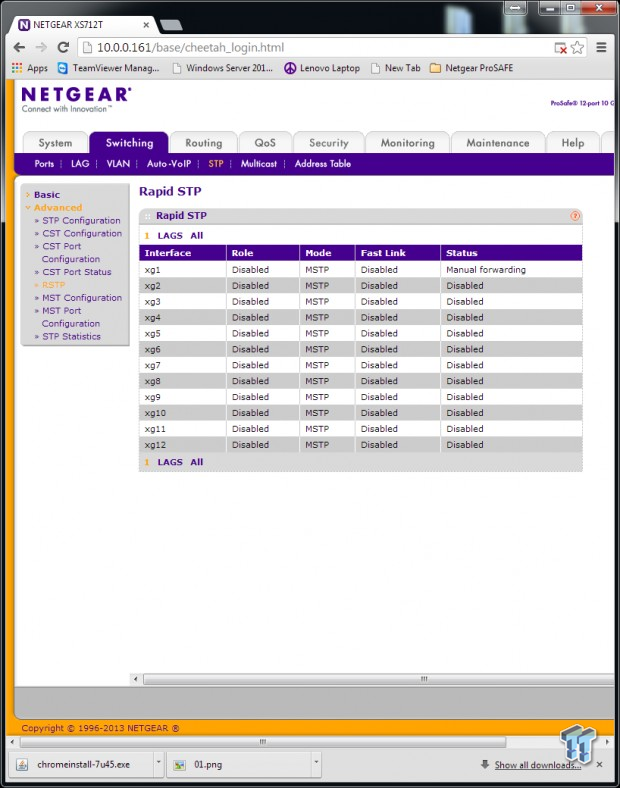

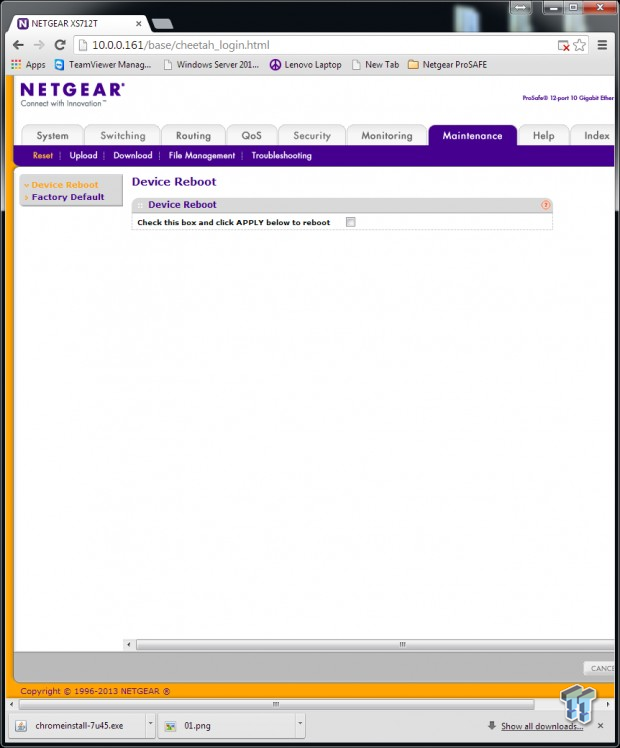

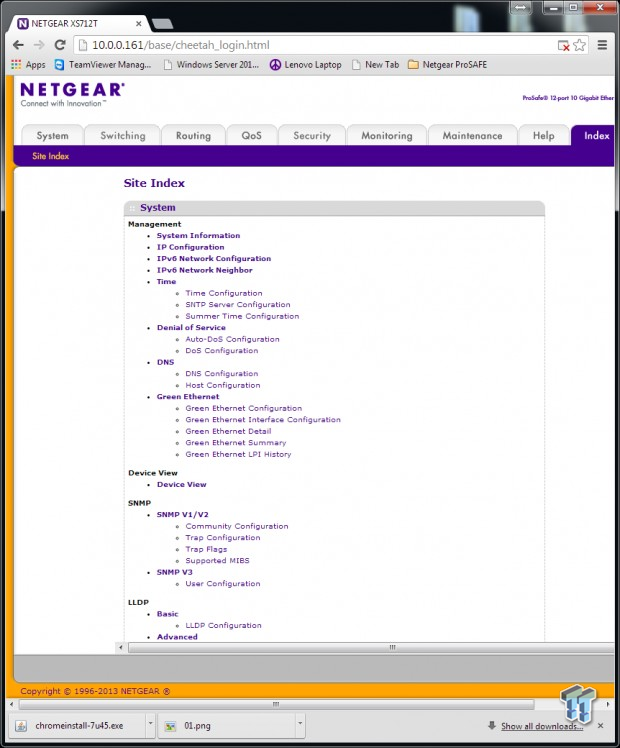

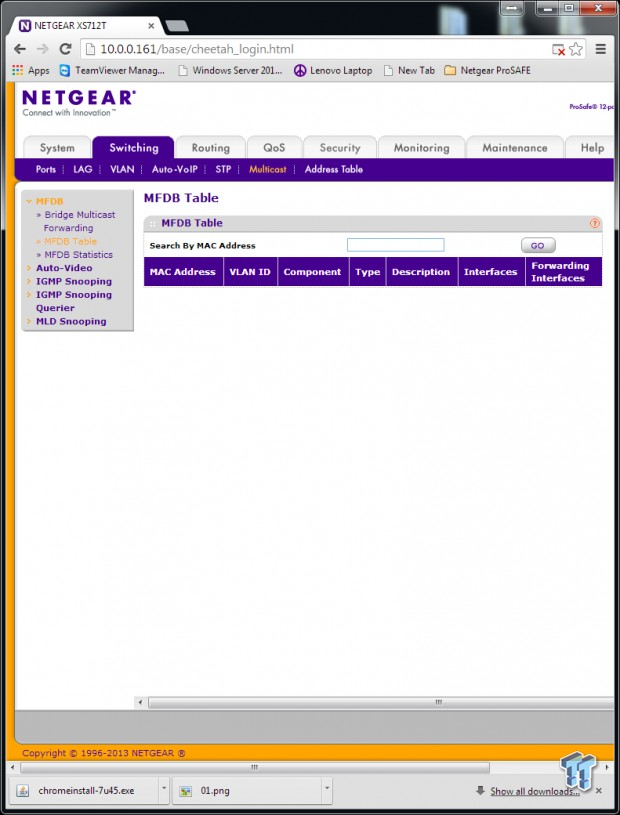

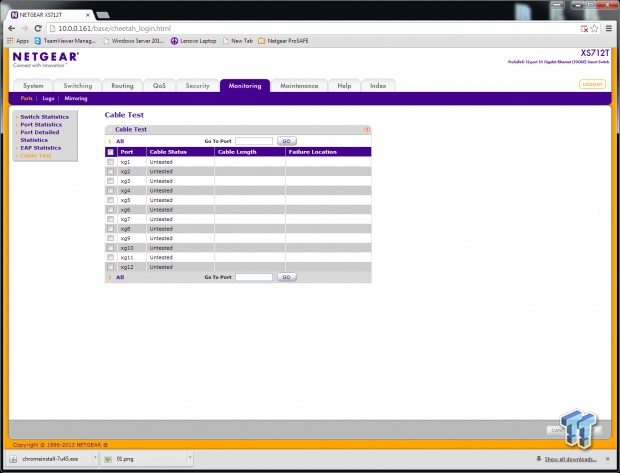

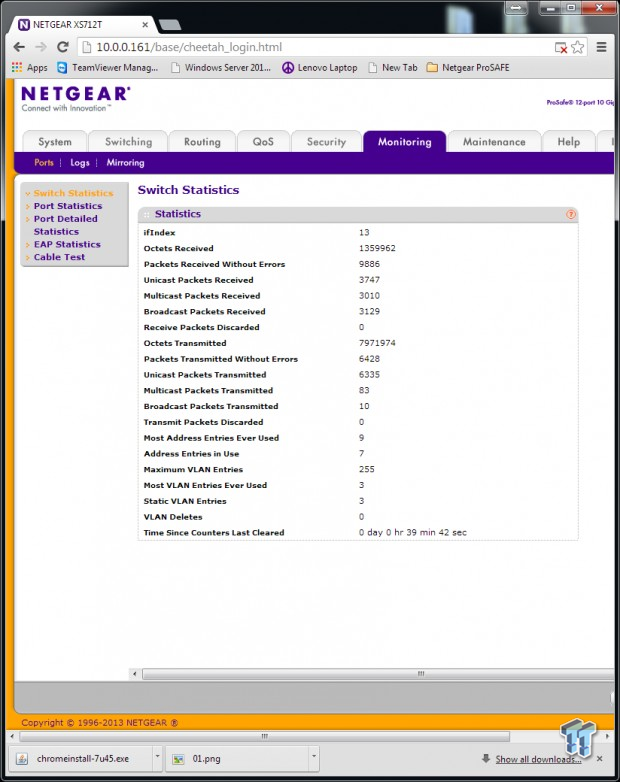

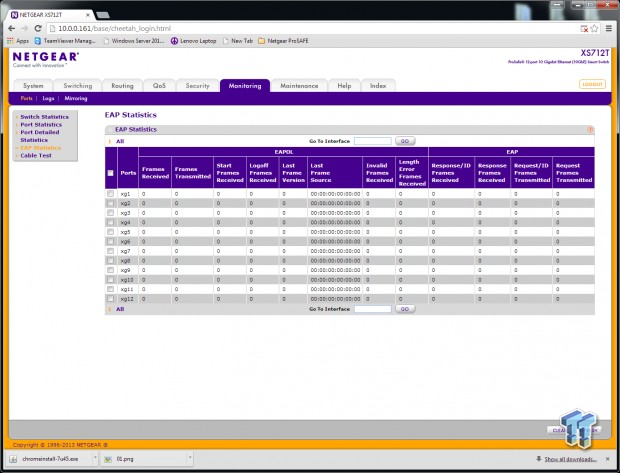

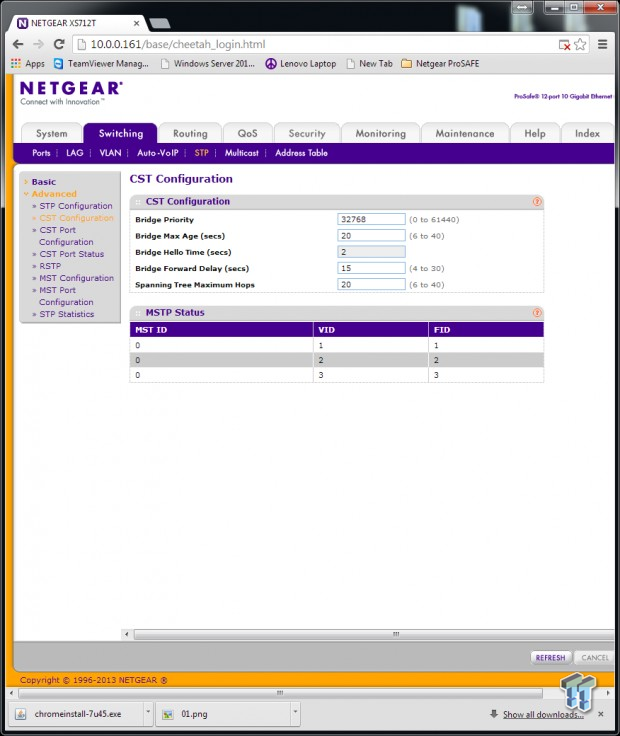

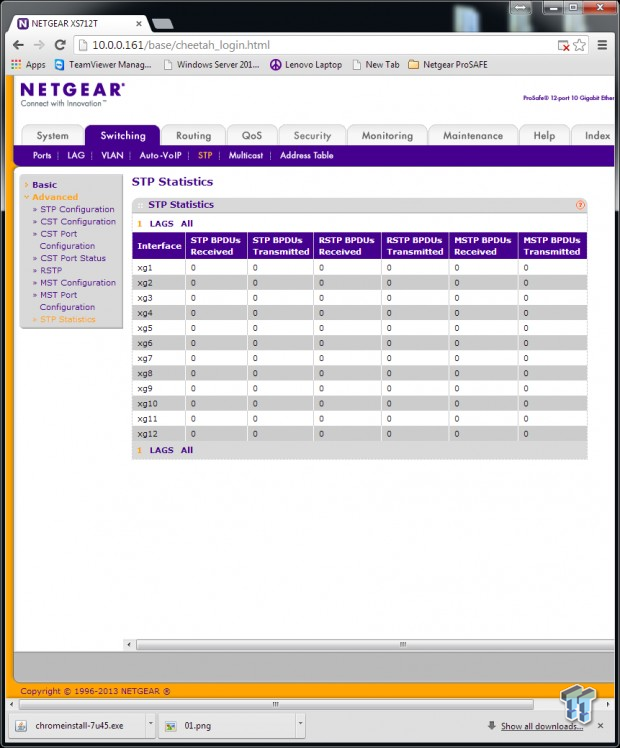

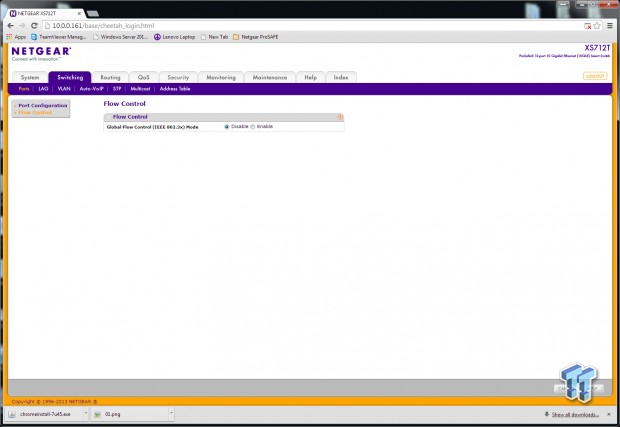

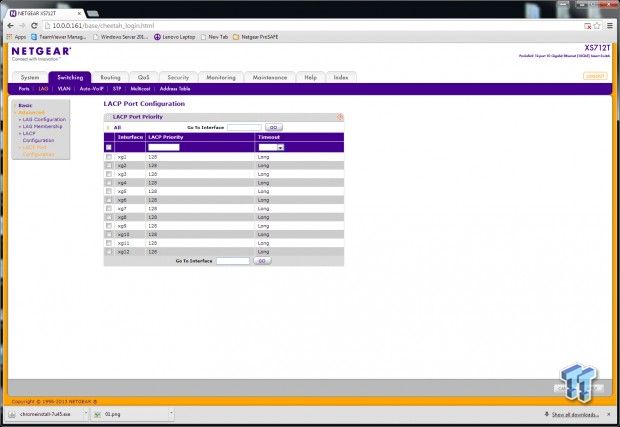

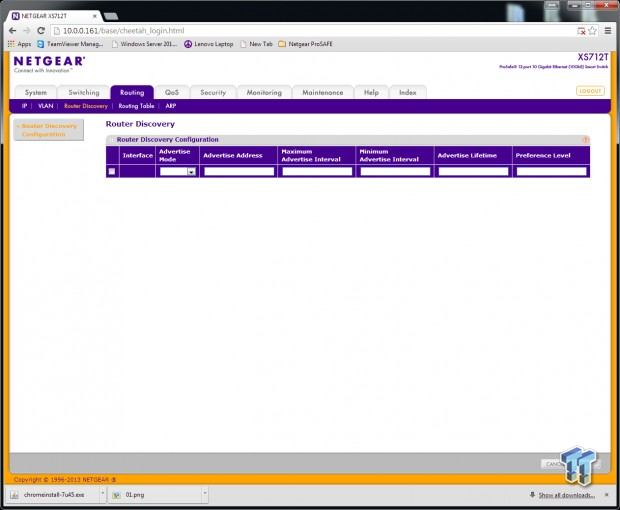

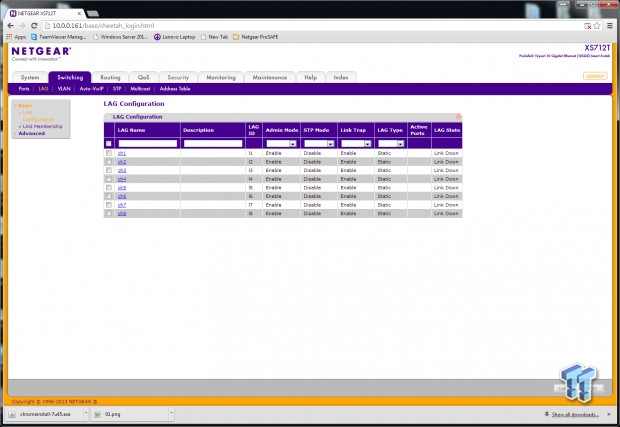

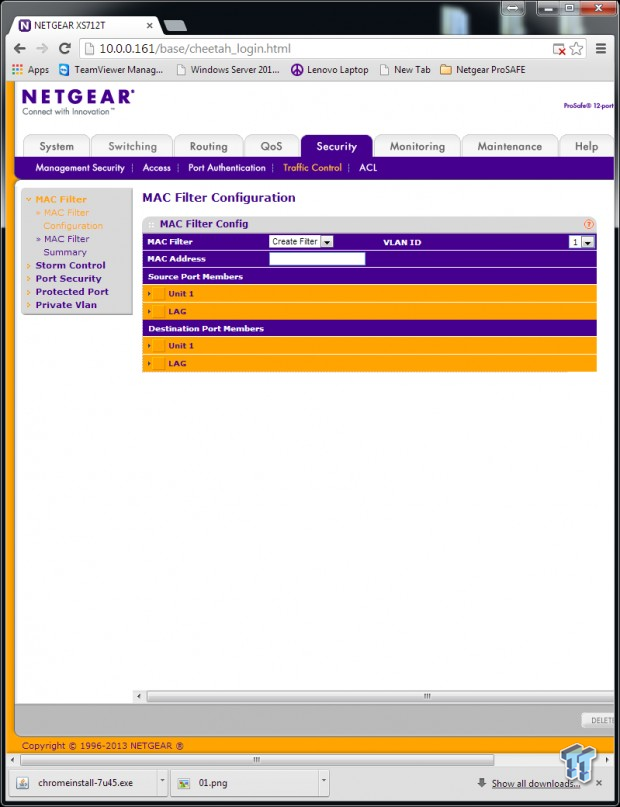

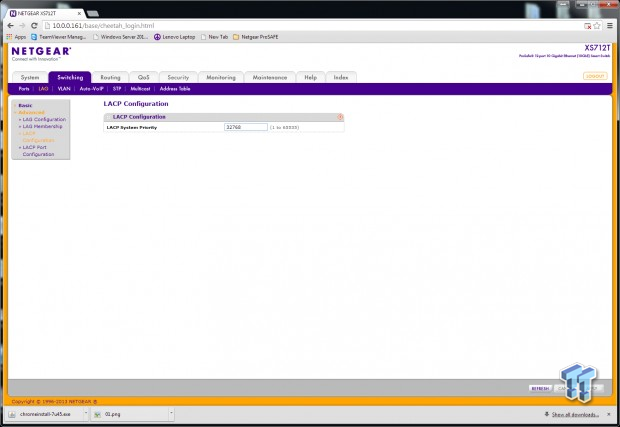

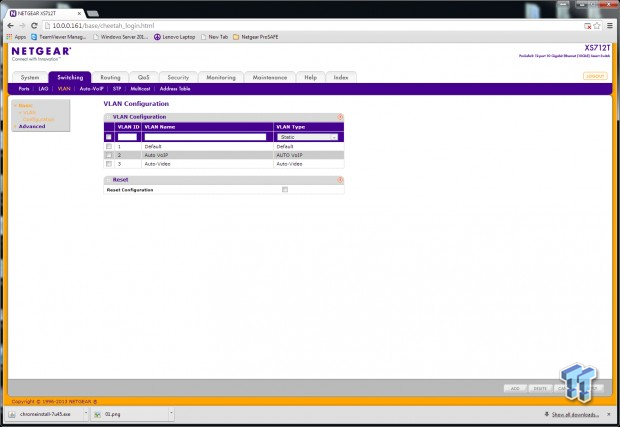

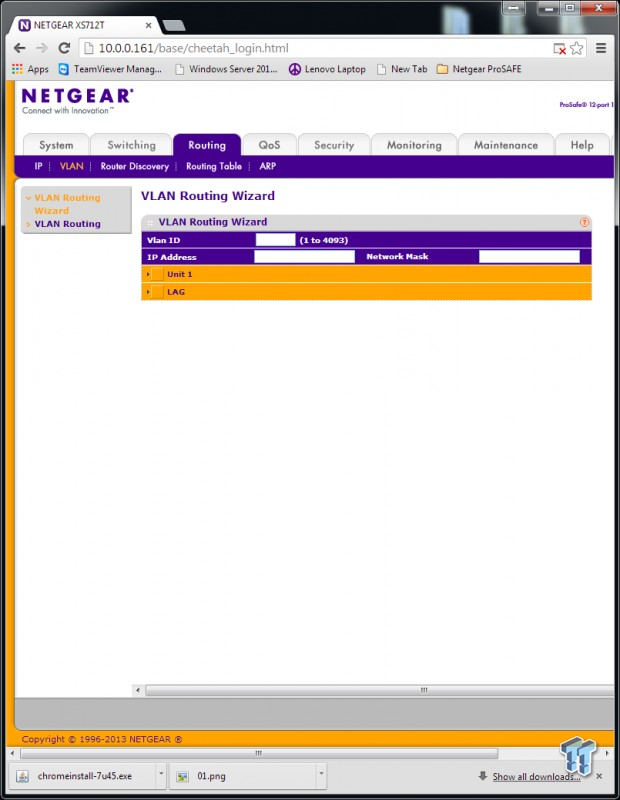

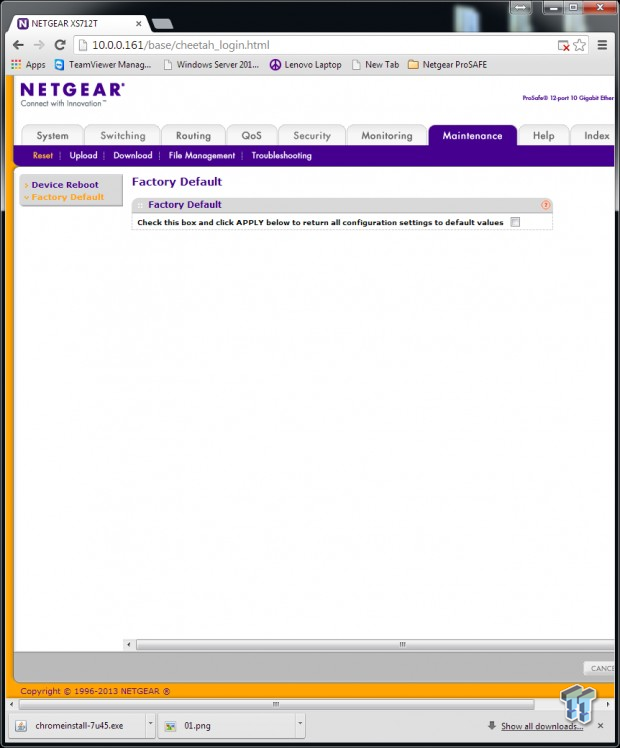

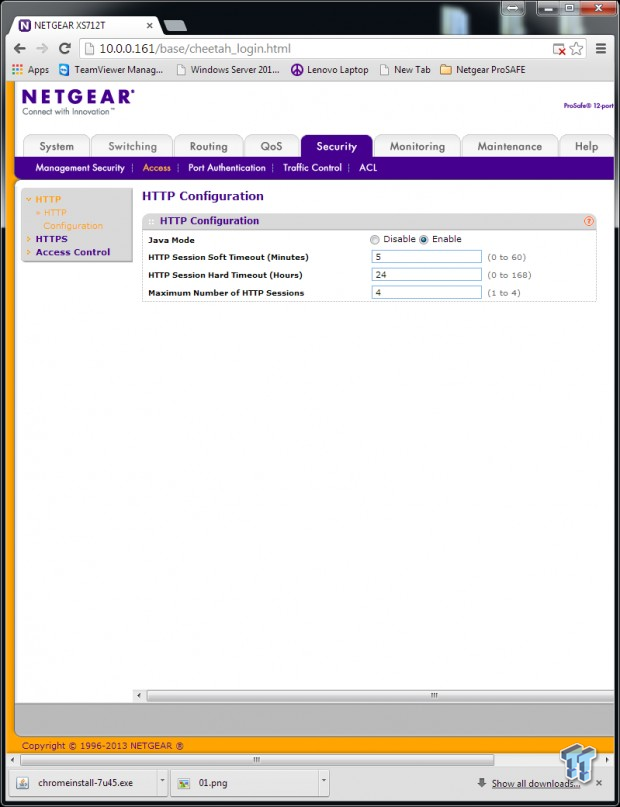

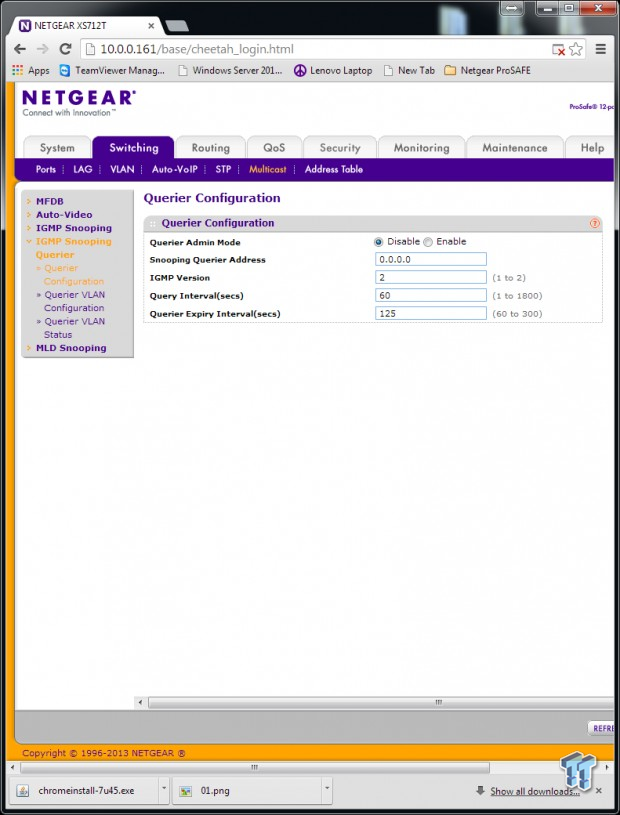

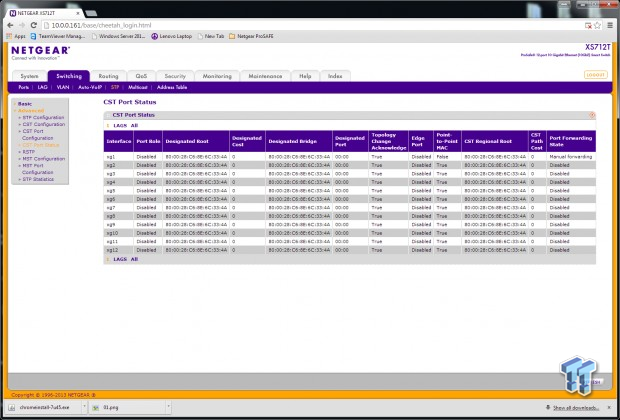

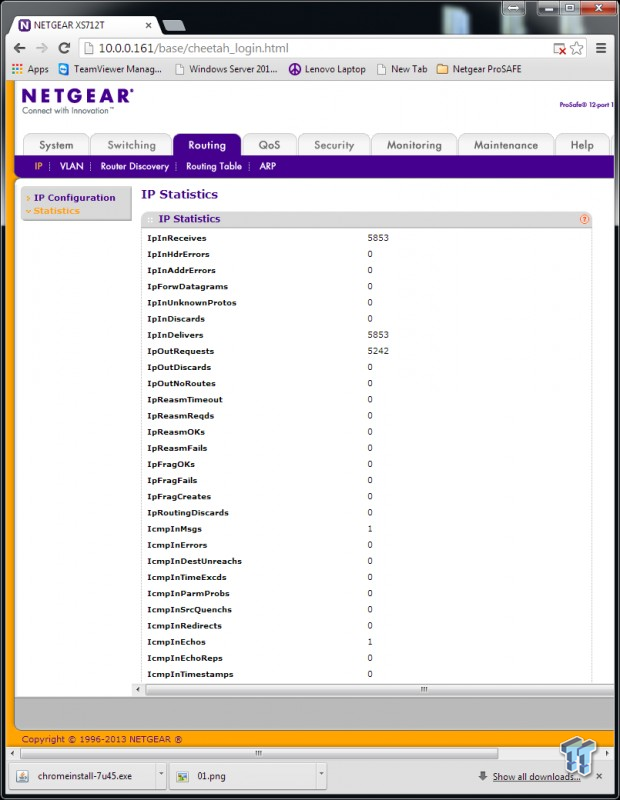

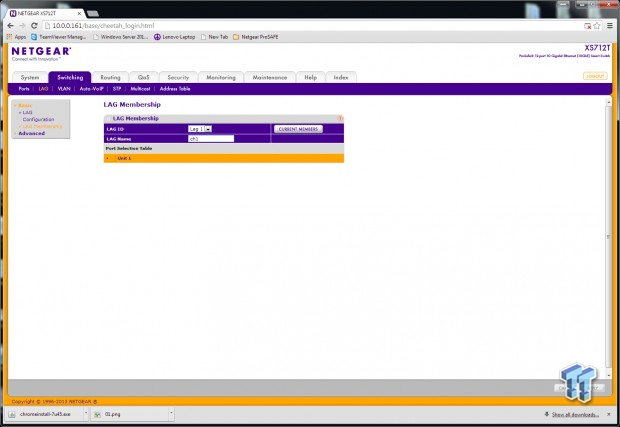

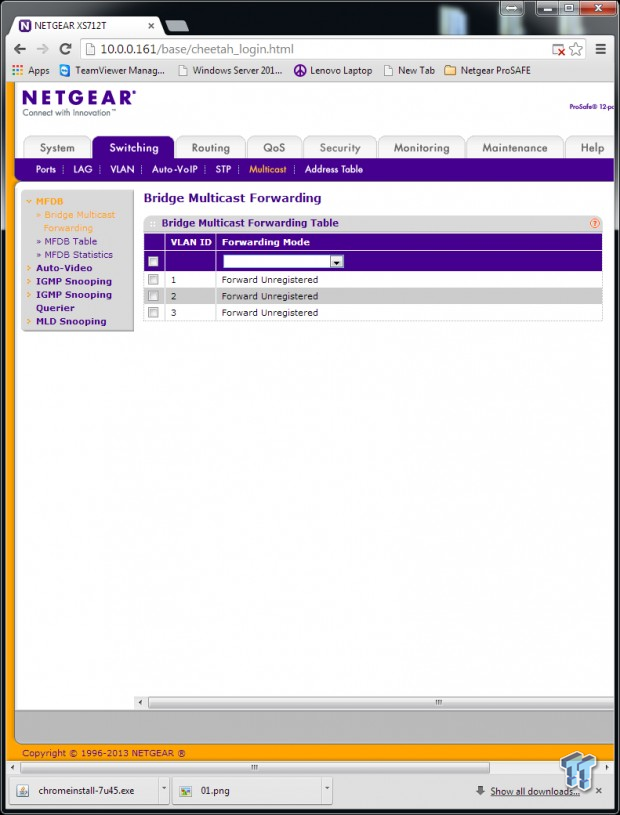

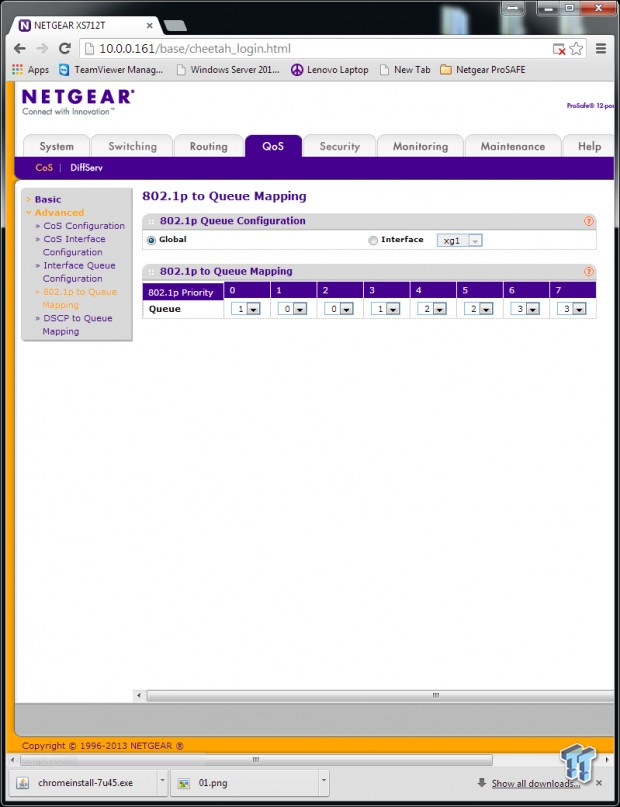

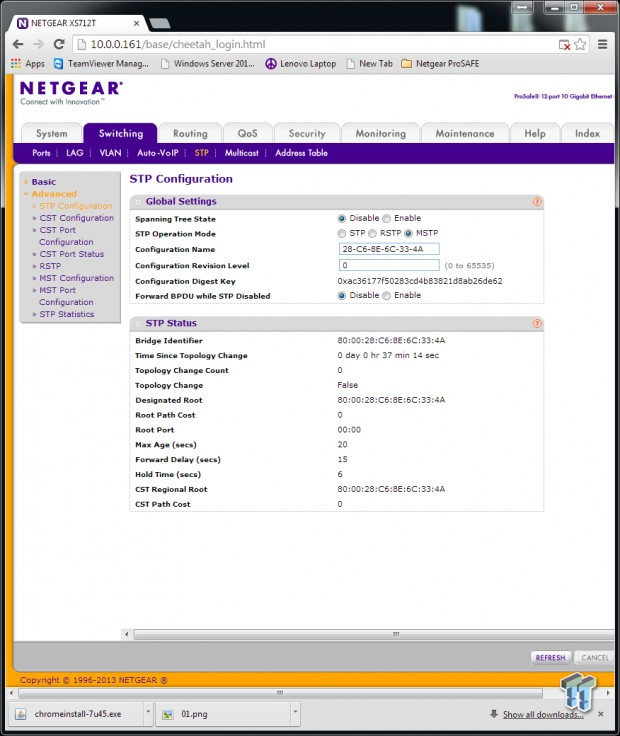

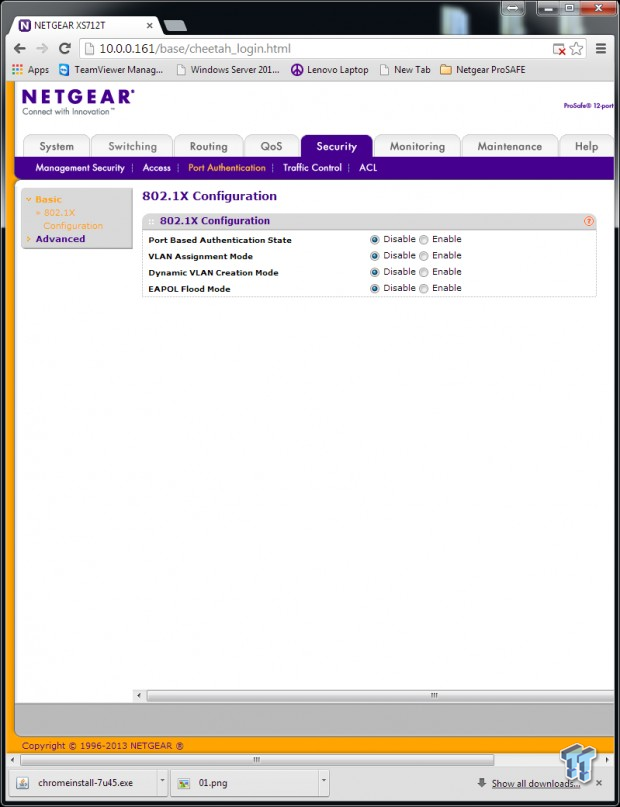

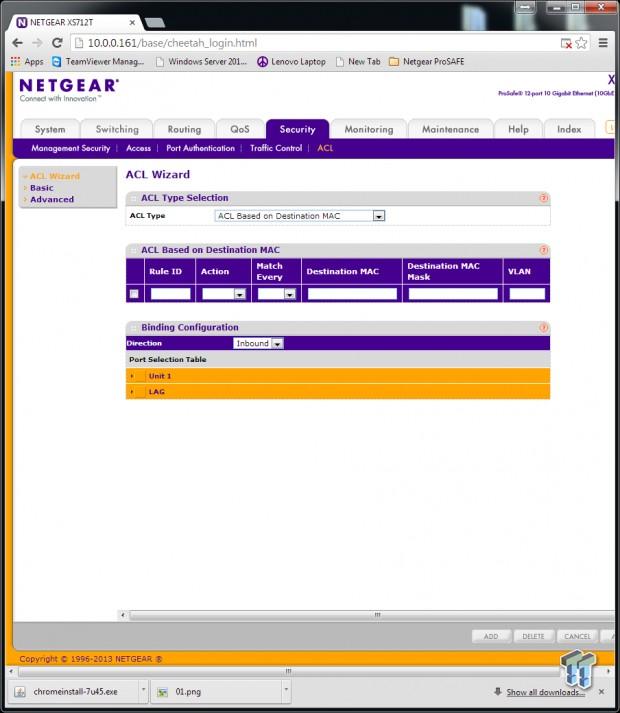

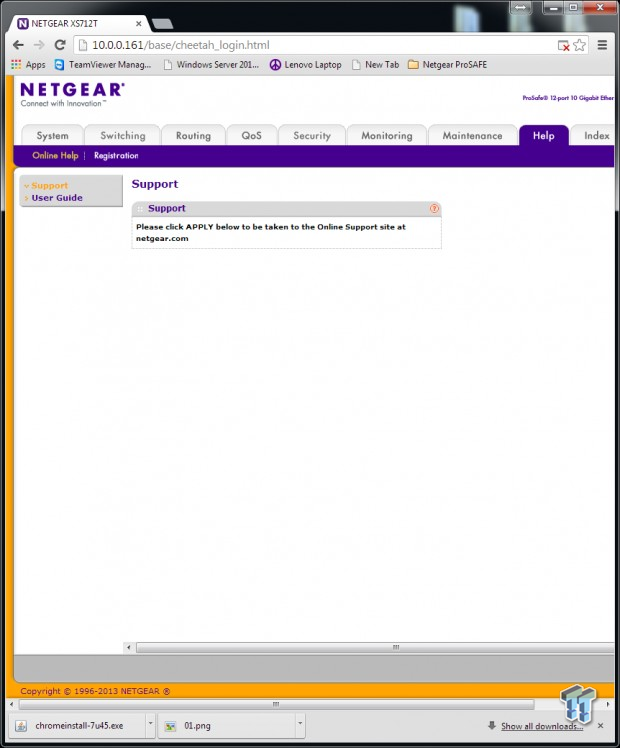

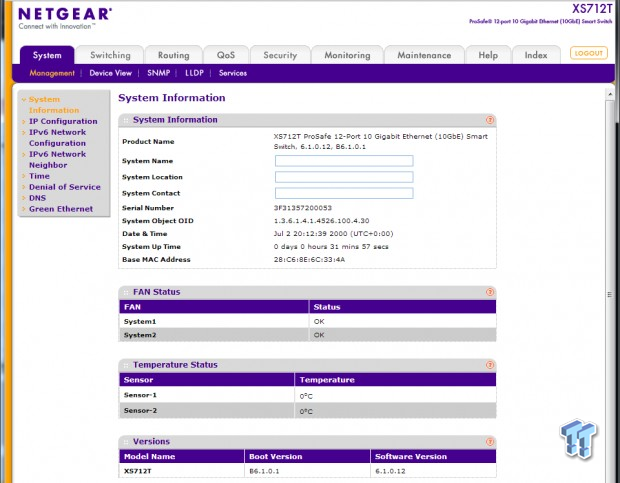

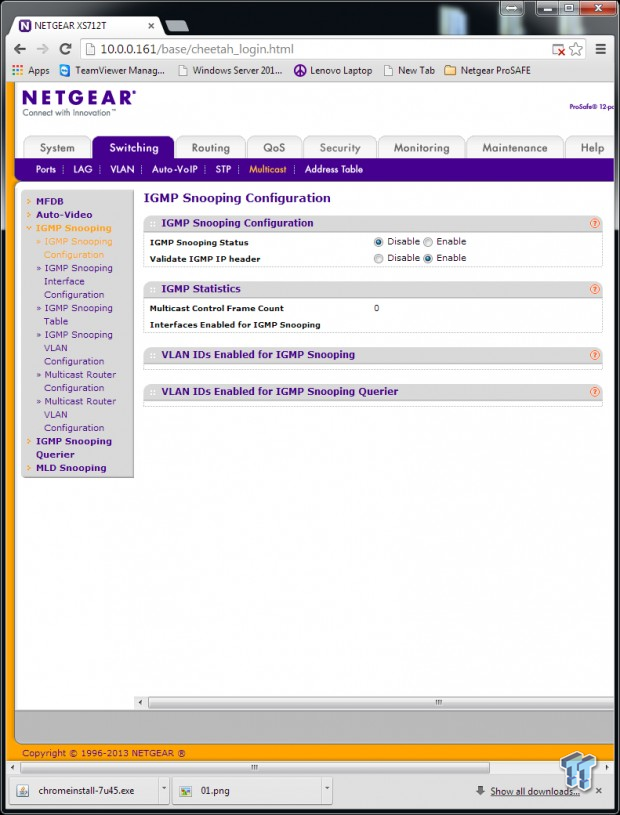

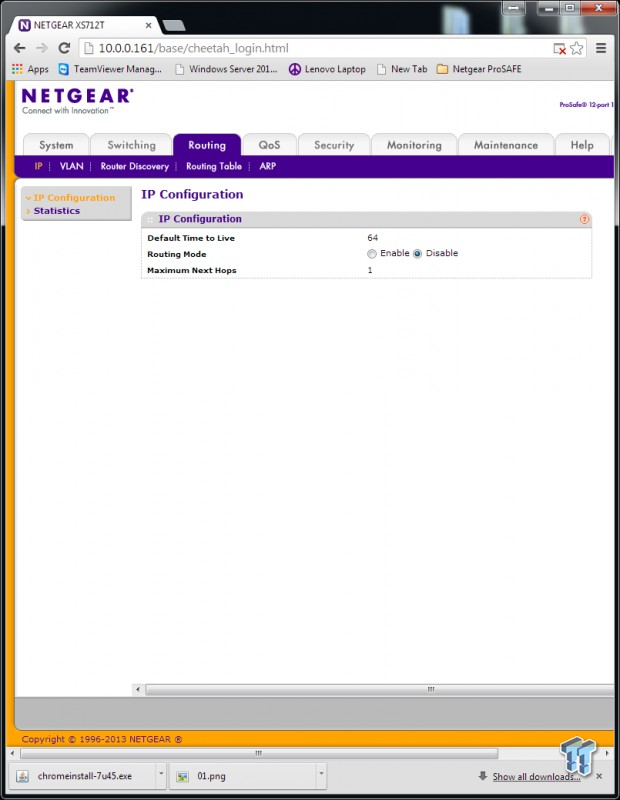

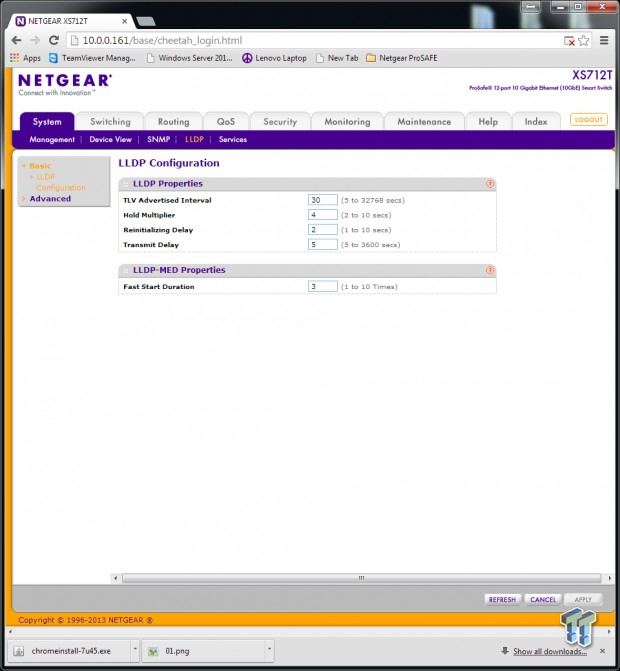

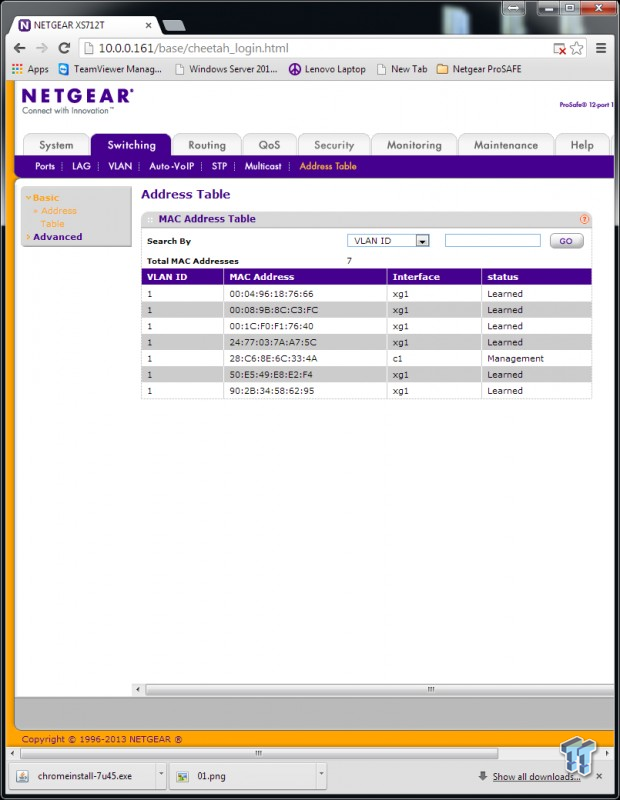

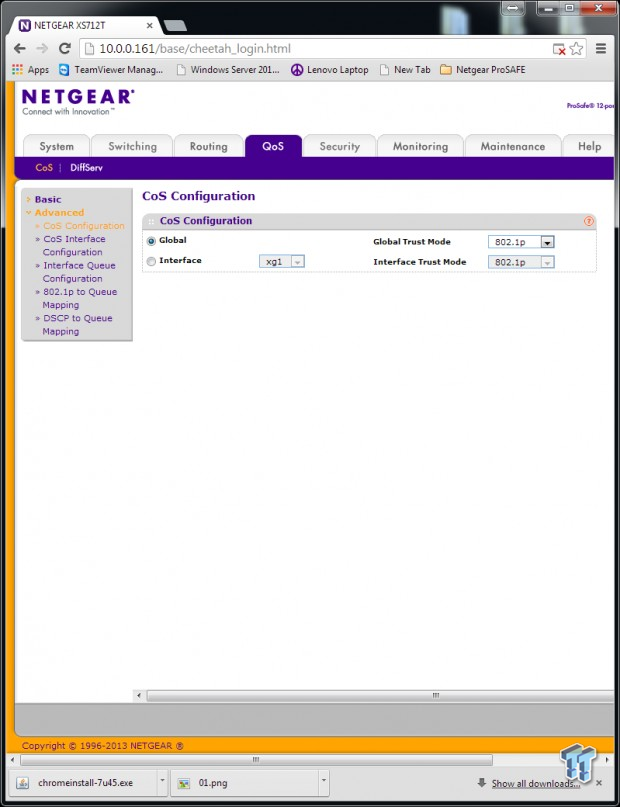

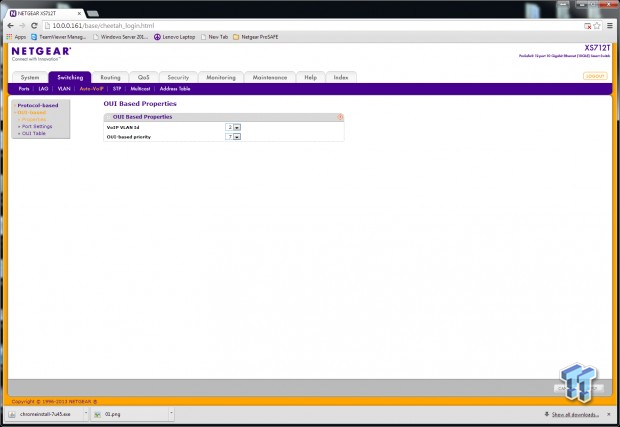

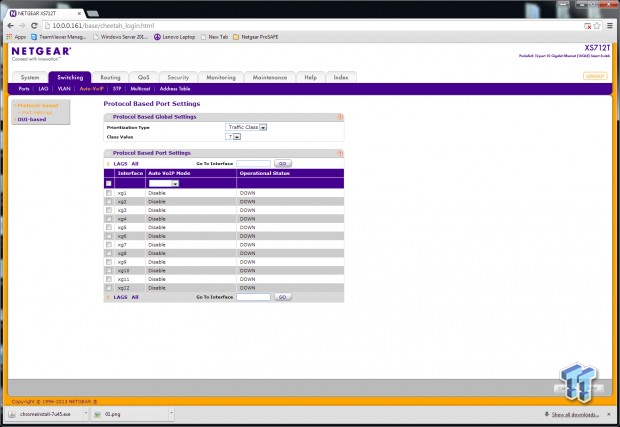

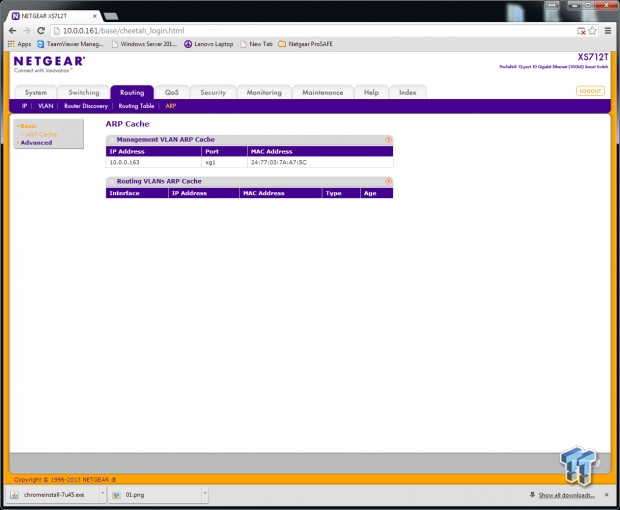

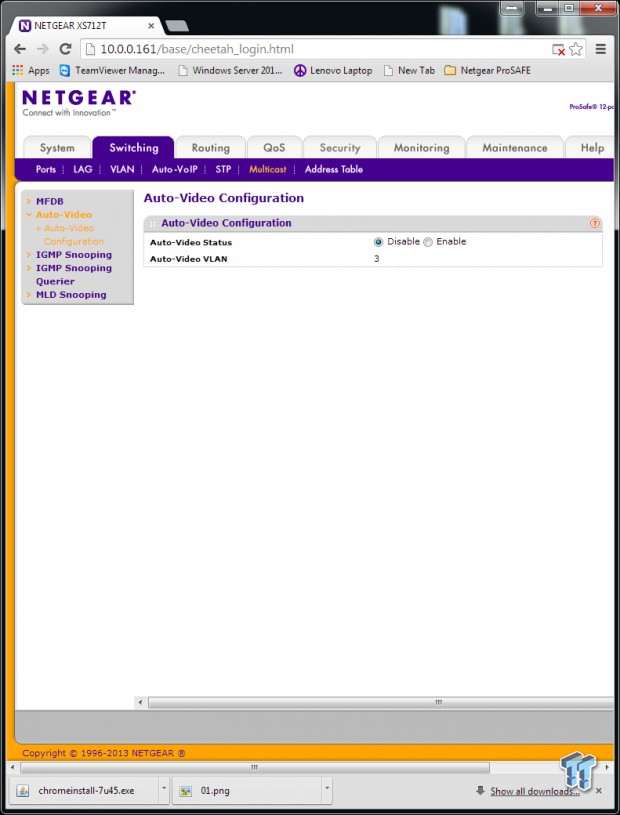

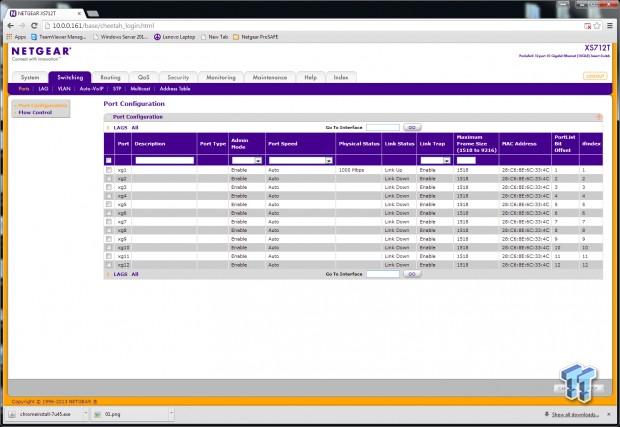

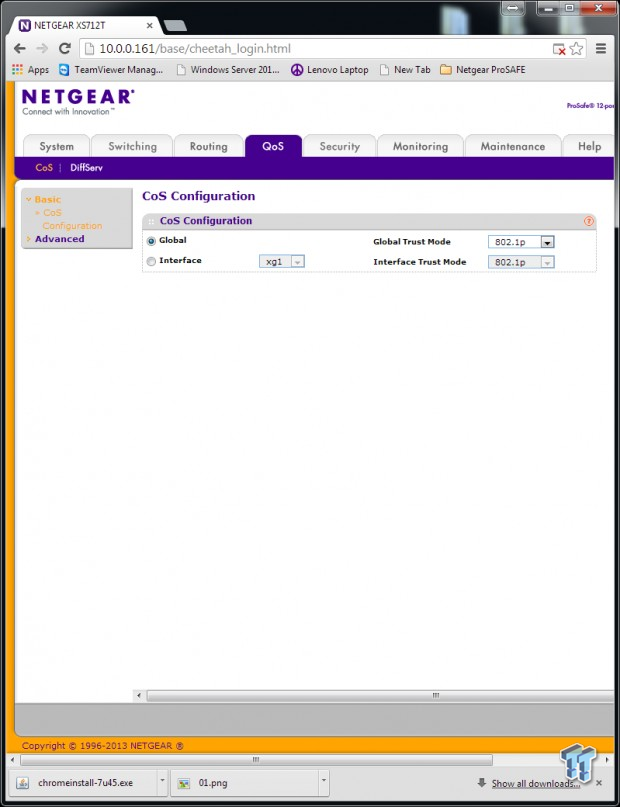

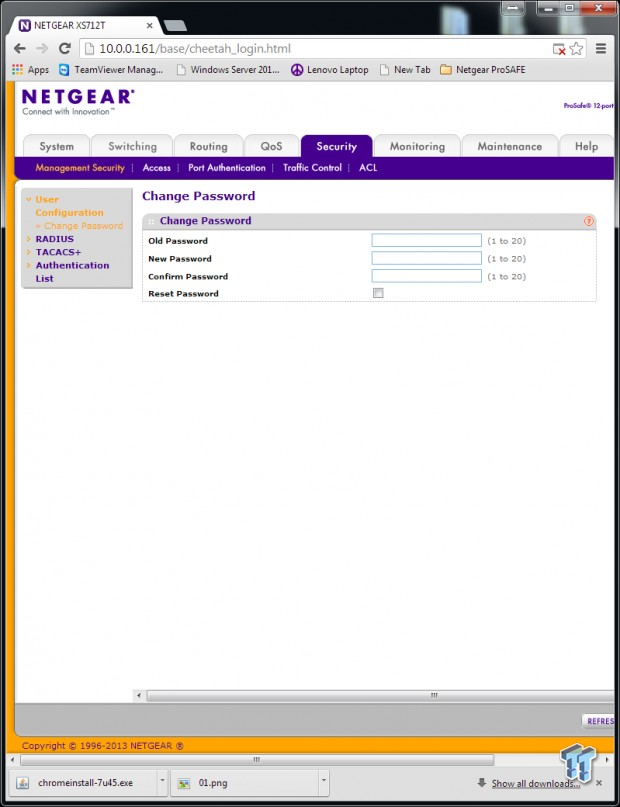

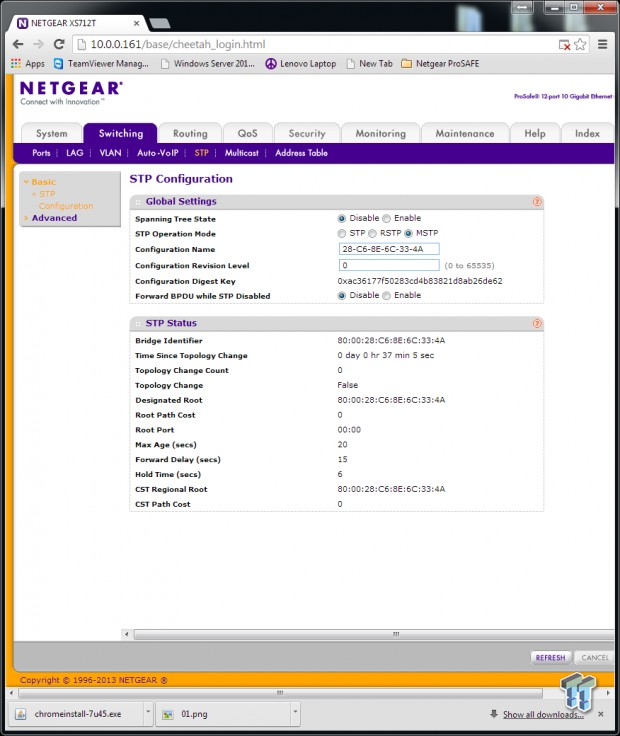

Once inside the browser interface, you have full control of the XS712T's functions.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 46

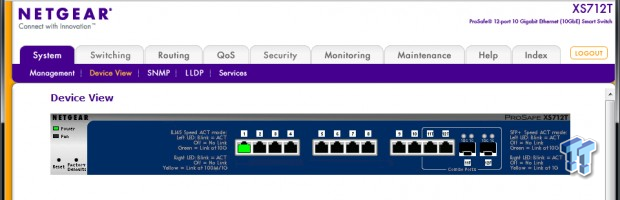

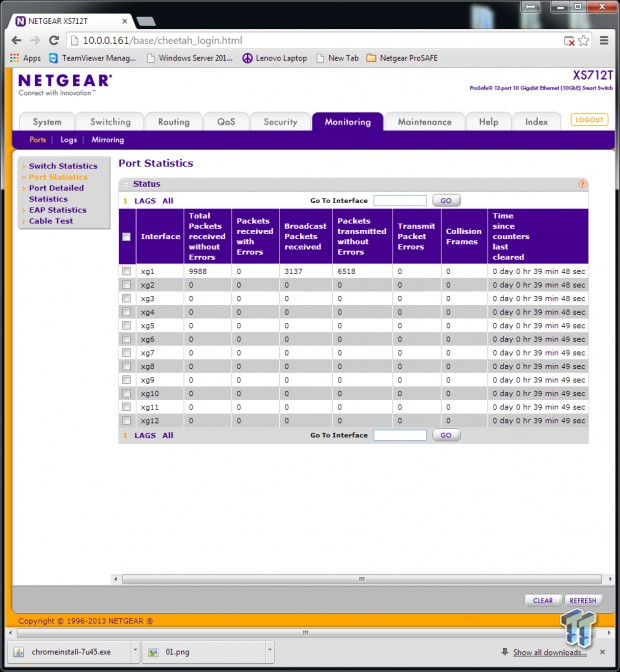

After installing Java, the device view allows you to check port status and link speed.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 47 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 48 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 49 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 50 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 51 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 52 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 53 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 54 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 55 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 56 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 57 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 58 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 59 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 60 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 61 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 62 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 63 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 64 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 65 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 66 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 67 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 68 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 69 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 70 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 71 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 72 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 73 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 74 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 75 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 76 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 77 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 78 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 79 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 80 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 81 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 82 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 83 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 84 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 85 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 86 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 87 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 88 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 89 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 90 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 91 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 92 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 93 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 94 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 95 Netgear ProSAFE XS712T L2+ 10GbE Switch Review 96

Test System Setup

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 200

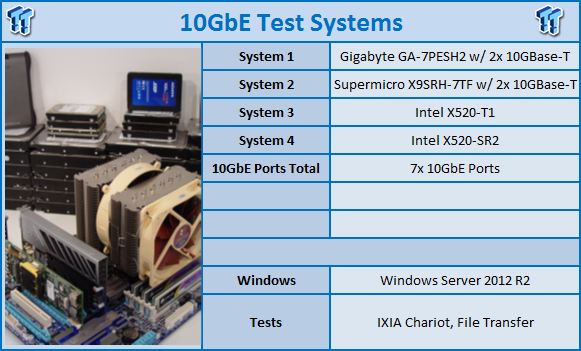

Ideally, we would run the Netgear ProSAFE XS712T with all twelve ports at 10GbE, but we're still building our test lab. At this time, we have seven 10GbE ports to test the switch, five 10GBase-T and two via SFP+.

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 201

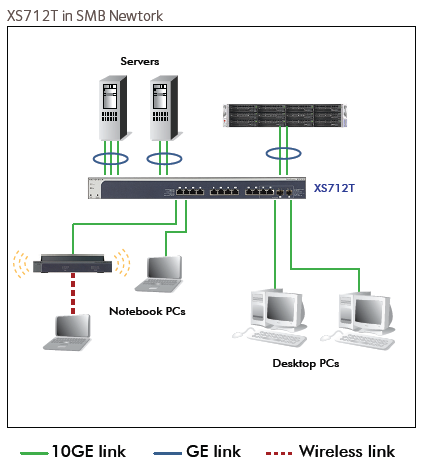

Our focus today is on using the Netgear ProSAFE XS712T as a small business switch for increased virtual machine density.

Benchmarks - IXIA IxChariot Throughput

Version and / or Patch Used: 6.70

Developer Homepage: http://www.ixia.com

Product Homepage: http://www.ixiacom.com/products/network_test/applications/

As your company's network and applications become increasingly more complex, network performance becomes mission critical. New applications such as VoIP, video, and enterprise applications, introduce potential network bottlenecks which must be isolated and corrected. IxChariot is the industry's leading network assessment tool allowing you to troubleshoot your networks and applications and get your company's network back on track -and the IxChariot that you already own is the perfect tool for the job.

Test: Linked Pair, Ultra High Performance

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 203

We tested the system four ways with IXIA's IxChariot. For the tests, we used the Ultra High Performance Script with a pair of connections. The 10GBase-T to 10GBase-T and 10GBase-T to SPF+ performance were identical results, so you can't see one over the other on the chart.

Our SFP+ to SFP+ test ran on the same system using the main OS installation for the host and a virtual machine as the target; each with a dedicated port on an Intel X520-SR2 network adapter.

The fourth and final test ran on two gigabit Ethernet systems connected to the Netgear ProSAFE XS712T. The performances for all four tests were exactly what we expected to see on this nonblocking switch.

Benchmarks - IXIA IxChariot Response Time

Version and / or Patch Used: 6.70

Developer Homepage: http://www.ixia.com

Product Homepage: http://www.ixiacom.com/products/network_test/applications/

As your company's network and applications become increasingly more complex, network performance becomes mission critical. New applications such as VoIP, video, and enterprise applications introduce potential network bottlenecks which must be isolated and corrected. IxChariot is the industry's leading network assessment tool allowing you to troubleshoot your networks and applications and get your company's network back on track -and the IxChariot that you already own is the perfect tool for the job.

Test: Linked Pair, Ultra High Performance

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 204

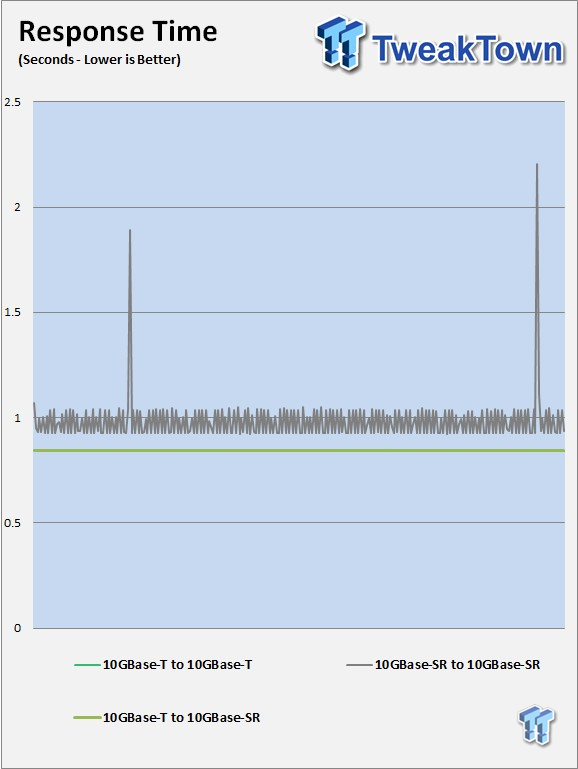

Here we see the response time for the same pairs minus the 1GbE to 1GbE pair since that test ran on the IxChariot Performance Script and not the Ultra High Performance Script. Again, the 10GBase-T to 10GBase-T test and 10GBase-T to 10GBase-SR test results were nearly identical, so we can't see a difference on the chart.

The same configuration for fiber was used, one system with the host OS using a port and a Hyper-V install using the second port.

Final Thoughts

Netgear ProSAFE XS712T L2+ 10GbE Switch Review 205

It will take another three years or longer for 10GbE to reach current gigabit Ethernet prices, but Netgear made the first move towards the SMB market. With the rise in virtualization, processing power and DRAM capacity, SMB servers are able to do more, but network bandwidth has become a limiting factor. With 10GbE your link to the network opens, allowing more virtual machines to run on the same machine and still have high throughput performance with low latency.

We currently have two systems in the office with onboard 10GbE: a Supermicro single LGA2011 socket system and a GIGABYTE dual LGA2011 system. While still the exception, onboard 10GBase-T will increase in popularity, and getting the ports onboard costs less than a regular board plus a 10GbE adapter. The network adapter prices are decreasing as well though, so it's becoming less expensive to add 10GbE capabilities to existing servers too.

Netgear's entry product to the 10GbE market with eight ports is the ProSAFE Plus XS708E and we found it for $854.71 online. The 8-port model doesn't carry the same L2+ features as the model we reviewed today, but it looks like a good way to enter the 10GbE market.

The ProSAFE XS712T 12-port model we tested today has a lot of features (more that most small offices need), has enough ports for a small office, and is priced very well. As we mentioned in the review, this is the lowest priced, 12-port 10GbE model we managed to find, new or used. We really like the two SFP+ ports on the switch since many existing servers shipped with 10GBase-SR has more penetration in the market. Everything is 10GBase-T, but this switch allows you to unite your older hardware with new products.

Two years ago we started covering Thecus and QNAP NAS products with 10GbE capability. Netgear just released the new ReadyNAS 716, also with a 10GbE option. The timing of this review isn't coincidence, Netgear, the world leader in shipped NAS products, is ready to move 10GbE down to the SMB market. The ProSAFE XS712T is the perfect companion to new 10GbE NAS products.

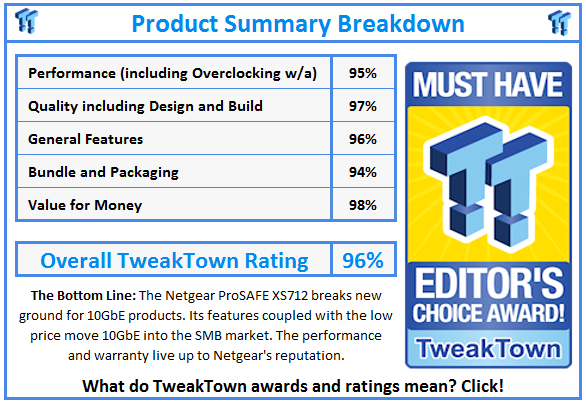

What do TweakTown.com awards mean? Click for details!
